Page 1108 of 2572
H01015C83438H01015C83438H42229
Side Airbag
Sensor Assy RHAirbag
Sensor
Assy
Center
ESR
VUPR
SSR+
Floor Wire
D
CBA
SSR-
A18
H01015C83438H01015C83438H42229
Side Airbag
Sensor Assy RHAirbag
Sensor
Assy
Center
ESR
VUPR
SSR+
Floor Wire
D
CBA
SSR-
A18
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1325
1515 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

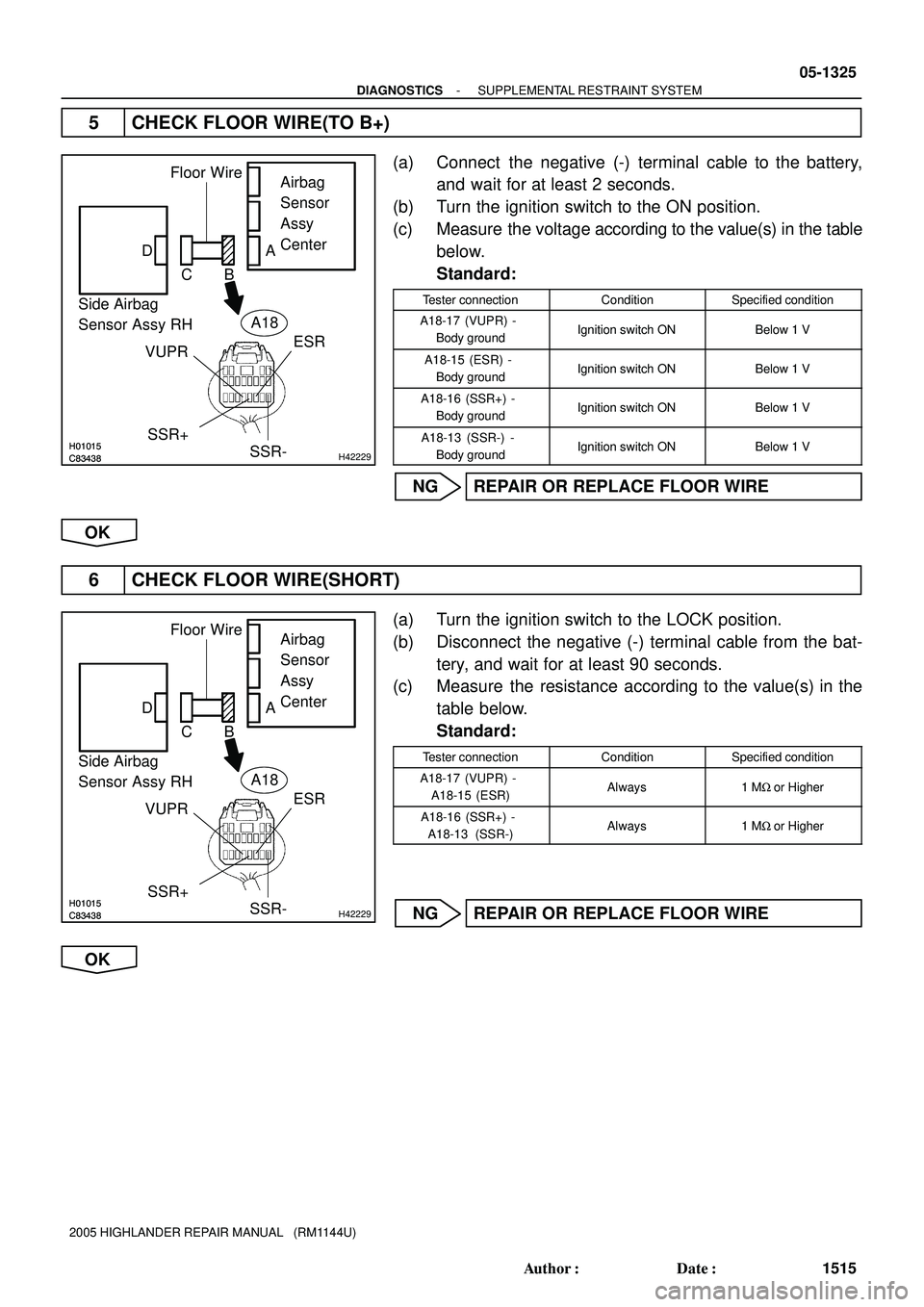

5 CHECK FLOOR WIRE(TO B+)
(a) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(b) Turn the ignition switch to the ON position.
(c) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
A18-17 (VUPR) -
Body groundIgnition switch ONBelow 1 V
A18-15 (ESR) -
Body groundIgnition switch ONBelow 1 V
A18-16 (SSR+) -
Body groundIgnition switch ONBelow 1 V
A18-13 (SSR-) -
Body groundIgnition switch ONBelow 1 V
NG REPAIR OR REPLACE FLOOR WIRE
OK
6 CHECK FLOOR WIRE(SHORT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
A18-17 (VUPR) -
A18-15 (ESR)Always1 MW or Higher
A18-16 (SSR+) -
A18-13 (SSR-)Always1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE
OK
Page 1109 of 2572
H10600 H01065H01012
H01066H10600 H01065H01012
H01066H42115
Airbag
Sensor
Assy
Center
DLC3
CG TCDTC B1140/32
DTC B1141/33
Side
Airbag
Sensor
Assy LH
05-1326
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1516 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
7 CHECK SIDE AIR BAG SENSOR ASSY RH
(a) Connect the connector to the airbag sensor assy center.
(b) Interchange the side airbag sensor assy RH with LH and
connect the connectors to them.
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(h) Check the DTCs (see page 05-1215).
Result:
NG: ADTC B1140/32 is output.
NG: BDTC B1141/33 is output.
OKDTC B1140/32 and B1141/33 are not
output.
NG:A REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
NG:B REPLACE SIDE AIR BAG SENSOR ASSY RH
(SEE PAGE 60-57)
OK
USE SIMULATION METHOD TO CHECK
Page 1110 of 2572
H43054
S16
Side Airbag Sensor Assy LHAirbag Sensor Assy Center
W
G
R ESL
VUPL
SSL+
SSL-1
4
3
2A1618
16
17
20 B
ESL
VUPL
SSL+
SSL- A16
A16
A16 (*1)
(*1)
(*1)
(*1)
*1: w/ Curtain Shield Airbag
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1327
1517 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

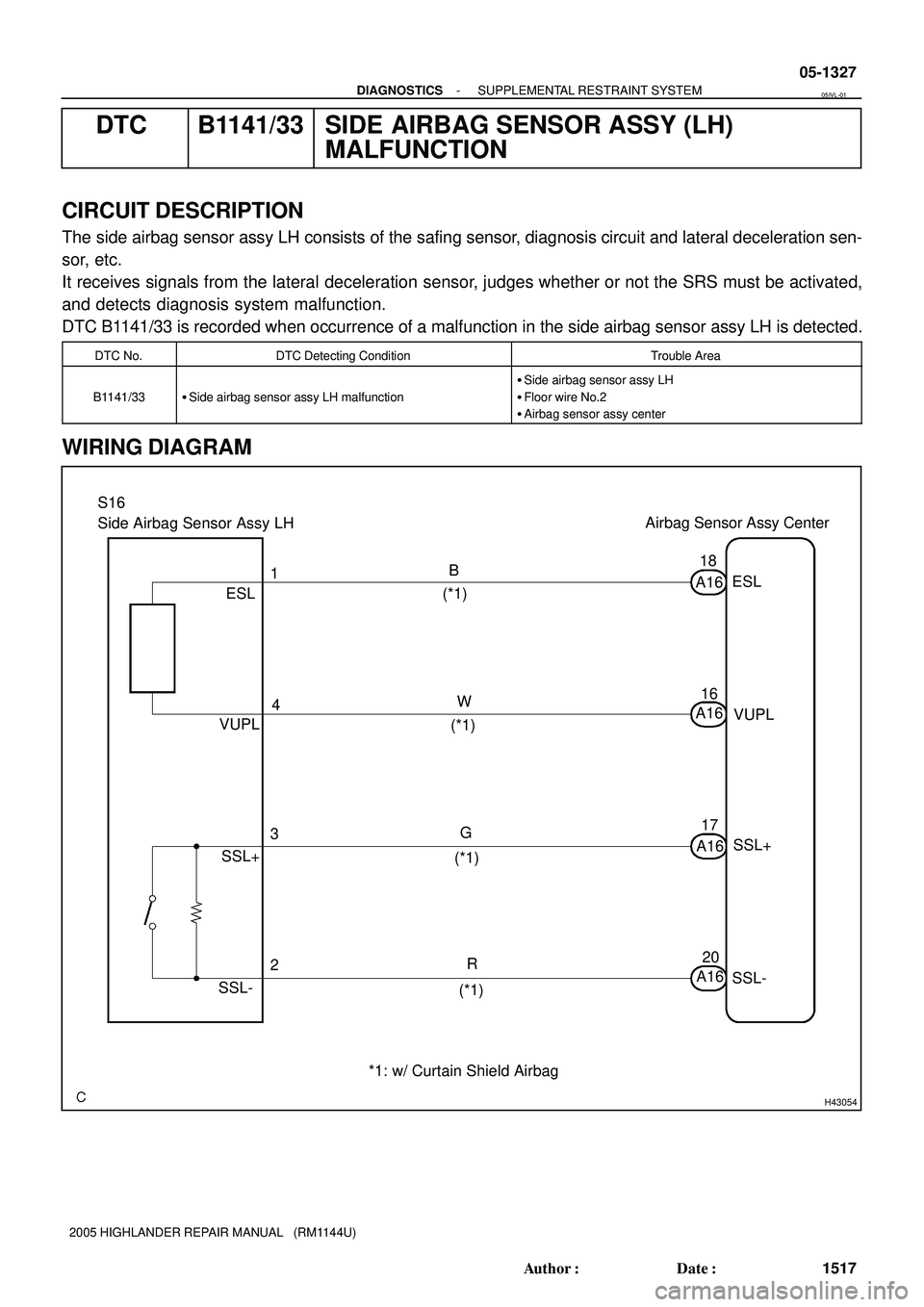

DTC B1141/33 SIDE AIRBAG SENSOR ASSY (LH)
MALFUNCTION
CIRCUIT DESCRIPTION
The side airbag sensor assy LH consists of the safing sensor, diagnosis circuit and lateral deceleration sen-
sor, etc.
It receives signals from the lateral deceleration sensor, judges whether or not the SRS must be activated,
and detects diagnosis system malfunction.
DTC B1141/33 is recorded when occurrence of a malfunction in the side airbag sensor assy LH is detected.
DTC No.DTC Detecting ConditionTrouble Area
B1141/33Side airbag sensor assy LH malfunction
Side airbag sensor assy LH
Floor wire No.2
Airbag sensor assy center
WIRING DIAGRAM
05IVL-01
Page 1111 of 2572
H01007
H10600 H01066H40445
Side
Airbag
Sensor
Assy LHAirbag
Sensor
Assy
Center
DLC3
CG
TC
DTC B1141/33
05-1328
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1518 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
1 CHECK DTC
(a) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(b) Clear the DTCs stored in memory (see page 05-1215).
(c) Turn the ignition switch to the LOCK position.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Check the DTCs (see page 05-1215).
OK:
DTC B1141/33 is not output.
HINT:
Codes other than code B1141/33 may be output at this time, but
they are not related to this check.
NG Go to step 2
OK
USE SIMULATION METHOD TO CHECK
2 CHECK AIRBAG SENSOR ASSY CENTER CONNECTOR
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds.
(c) Check that the connectors are properly connected to the airbag sensor assy center and the side airbag
sensor assy LH.
NG CONNECT CONNECTORS, THEN GO TO STEP
1
OK
Page 1112 of 2572
C91384C91385H01010C82600C91384C91385H01010C82600H43148
SSL-SSL+
ESLVUPL
Airbag
Sensor
Assy
Center Floor Wire No.2
SST SSTSide Airbag
Sensor Assy LHD
CBA
ESLVUPL
SSL-SSL+
S16A16
H01010
C83441H42231
SSL-
SSL+
ESLVUPL
Airbag
Sensor
Assy
Center Floor Wire No.2
Side Airbag
Sensor Assy LHD
CBA
A16
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1329
1519 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

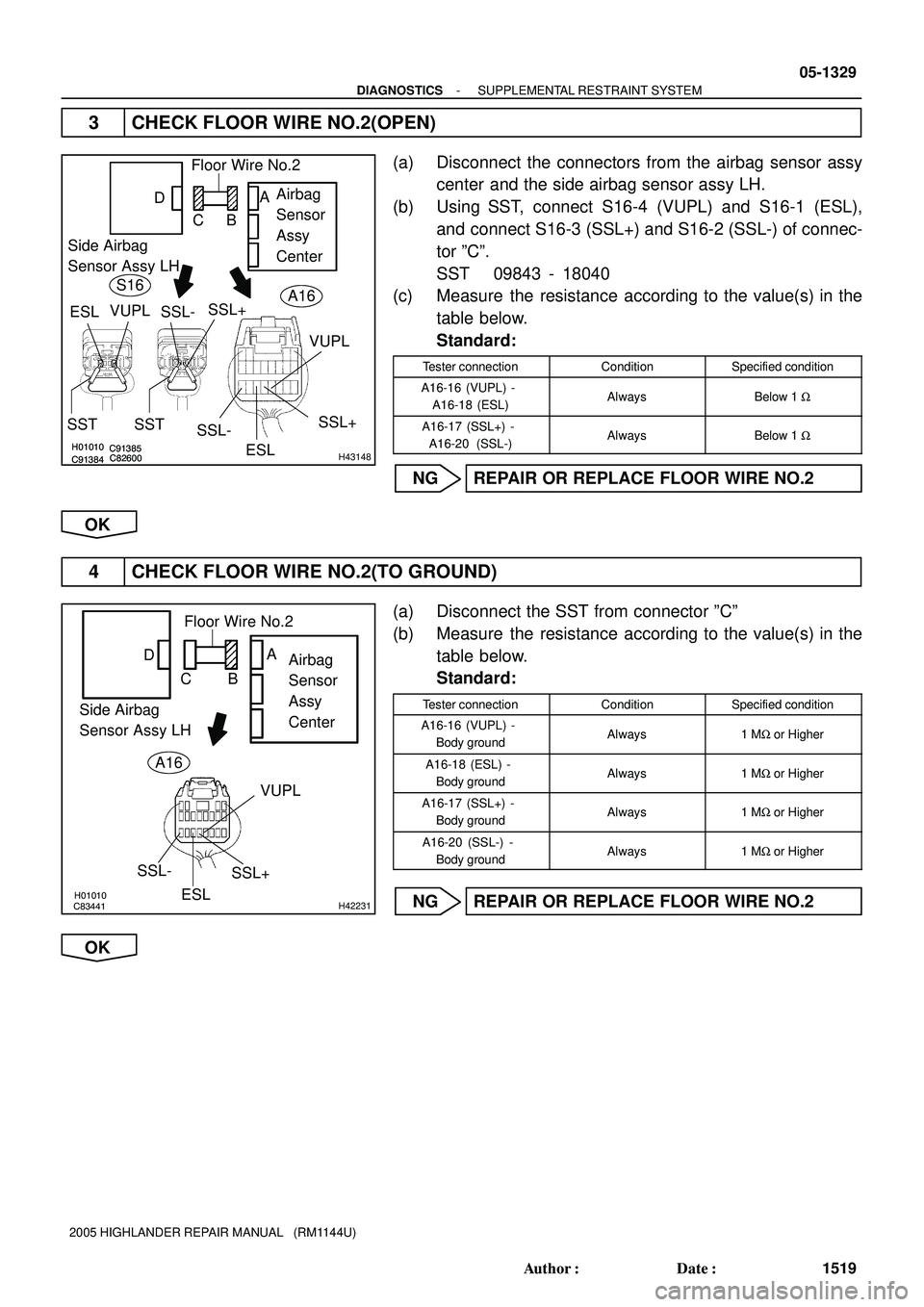

3 CHECK FLOOR WIRE NO.2(OPEN)
(a) Disconnect the connectors from the airbag sensor assy
center and the side airbag sensor assy LH.
(b) Using SST, connect S16-4 (VUPL) and S16-1 (ESL),
and connect S16-3 (SSL+) and S16-2 (SSL-) of connec-
tor ºCº.
SST 09843 - 18040
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
A16-16 (VUPL) -
A16-18 (ESL)AlwaysBelow 1 W
A16-17 (SSL+) -
A16-20 (SSL-)AlwaysBelow 1 W
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
4 CHECK FLOOR WIRE NO.2(TO GROUND)
(a) Disconnect the SST from connector ºCº
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
A16-16 (VUPL) -
Body groundAlways1 MW or Higher
A16-18 (ESL) -
Body groundAlways1 MW or Higher
A16-17 (SSL+) -
Body groundAlways1 MW or Higher
A16-20 (SSL-) -
Body groundAlways1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
Page 1113 of 2572
H01010
C83441H42231
SSL-
SSL+
ESLVUPL
Airbag
Sensor
Assy
Center Floor Wire No.2
Side Airbag
Sensor Assy LHD
CBA
A16
H01010
C83441H42231
SSL-
SSL+
ESLVUPL
Airbag
Sensor
Assy
Center Floor Wire No.2
Side Airbag
Sensor Assy LHD
CBA
A16
05-1330
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1520 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

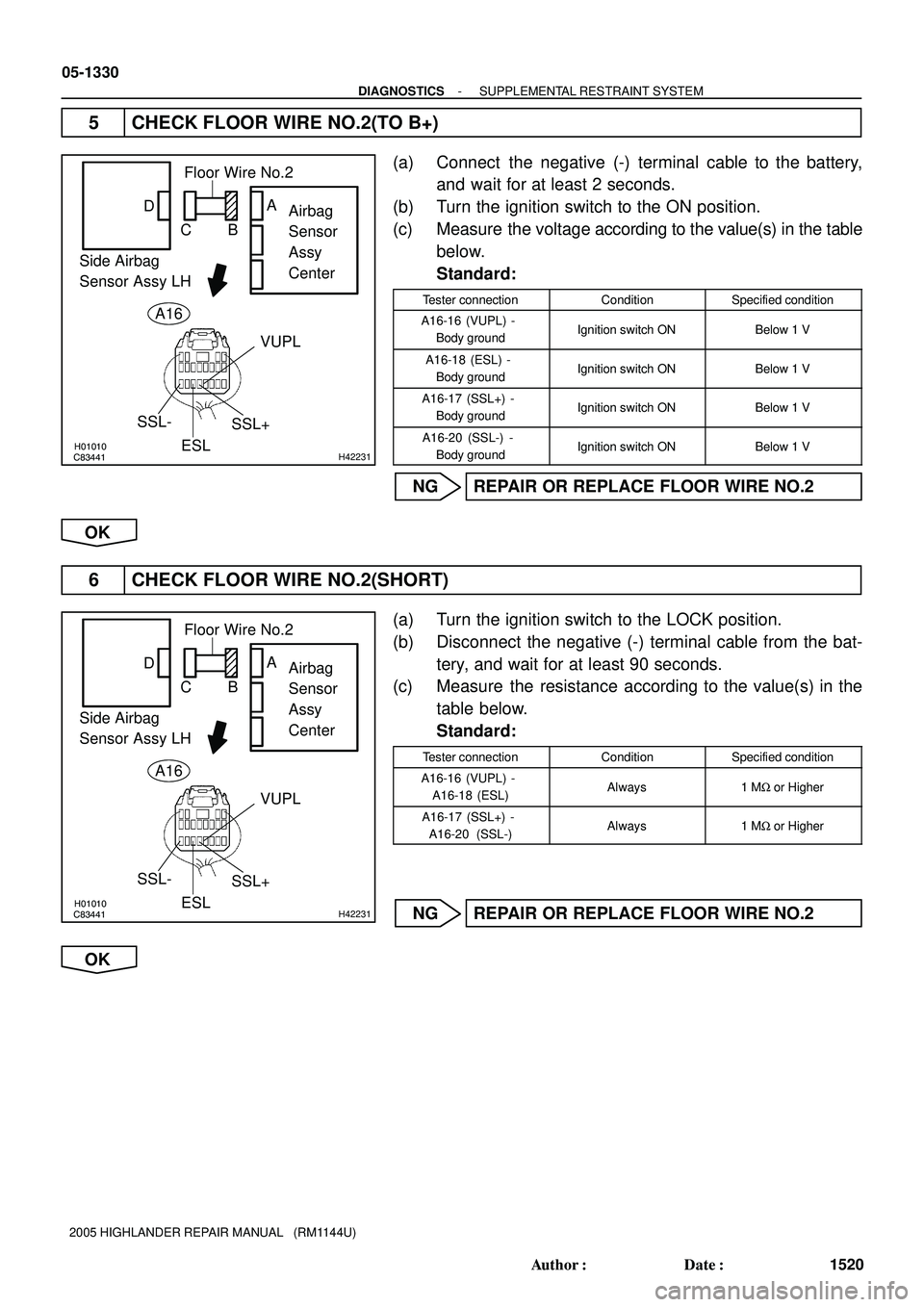

5 CHECK FLOOR WIRE NO.2(TO B+)
(a) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(b) Turn the ignition switch to the ON position.
(c) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
A16-16 (VUPL) -
Body groundIgnition switch ONBelow 1 V
A16-18 (ESL) -
Body groundIgnition switch ONBelow 1 V
A16-17 (SSL+) -
Body groundIgnition switch ONBelow 1 V
A16-20 (SSL-) -
Body groundIgnition switch ONBelow 1 V
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
6 CHECK FLOOR WIRE NO.2(SHORT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
A16-16 (VUPL) -
A16-18 (ESL)Always1 MW or Higher
A16-17 (SSL+) -
A16-20 (SSL-)Always1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
Page 1114 of 2572
H01007
H10600H01065H01066H42116
Airbag
Sensor
Assy
Center Side
Airbag
Sensor
Assy RH
DLC3
CGTC
DTC B1140/32
DTC B1141/33
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1331
1521 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

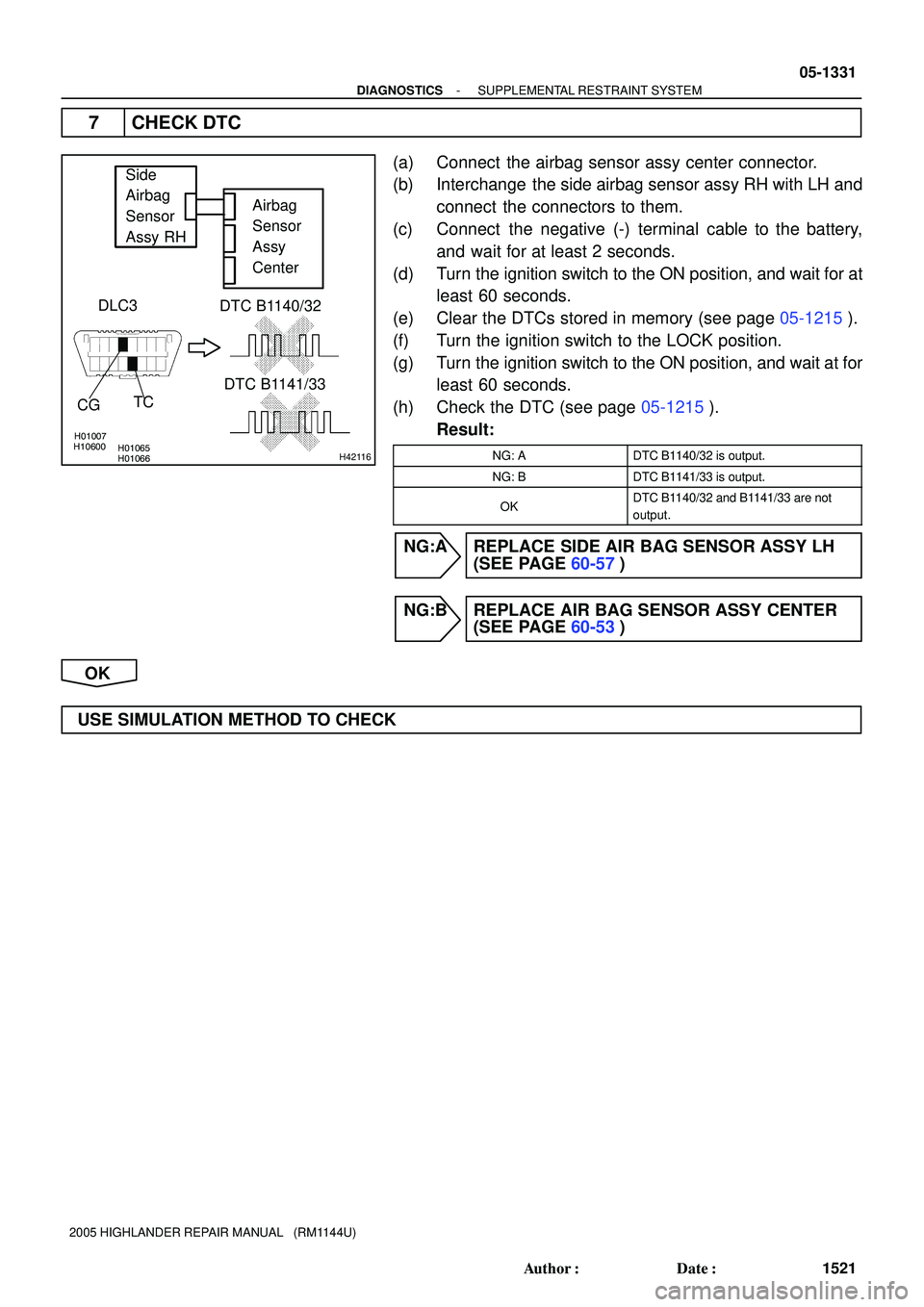

7 CHECK DTC
(a) Connect the airbag sensor assy center connector.
(b) Interchange the side airbag sensor assy RH with LH and
connect the connectors to them.
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait at for
least 60 seconds.
(h) Check the DTC (see page 05-1215).
Result:
NG: ADTC B1140/32 is output.
NG: BDTC B1141/33 is output.
OKDTC B1140/32 and B1141/33 are not
output.
NG:A REPLACE SIDE AIR BAG SENSOR ASSY LH
(SEE PAGE 60-57)
NG:B REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
USE SIMULATION METHOD TO CHECK
Page 1115 of 2572
H02750
Airbag Sensor Assy Center
+SR
-SR A17
A179
20 IK13
4 B-W
BR-W 2
1 +SR
-SR
IK1 A9
Airbag Front RH Sensor
W
B 05-1332
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1522 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

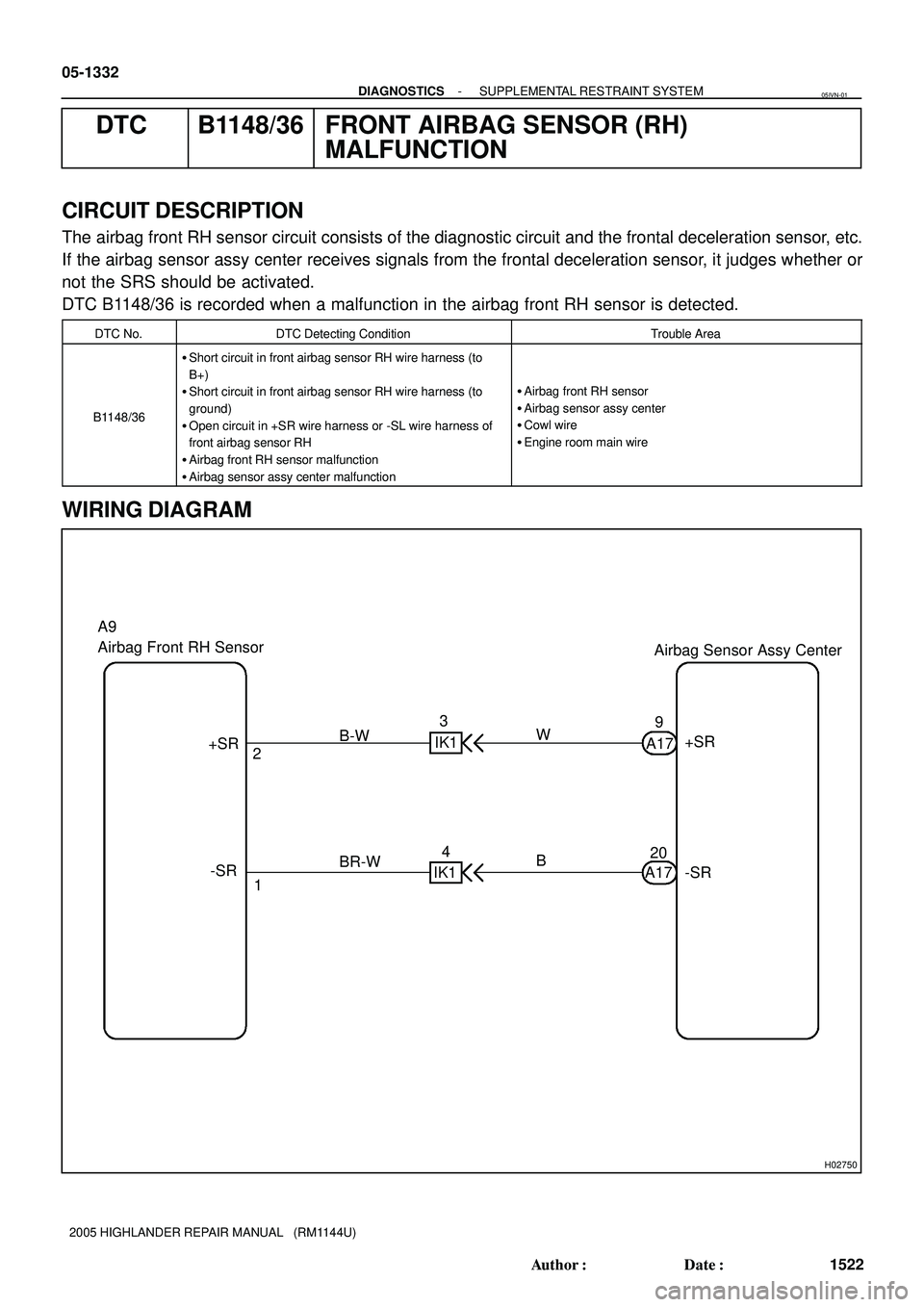

DTC B1148/36 FRONT AIRBAG SENSOR (RH)
MALFUNCTION
CIRCUIT DESCRIPTION
The airbag front RH sensor circuit consists of the diagnostic circuit and the frontal deceleration sensor, etc.
If the airbag sensor assy center receives signals from the frontal deceleration sensor, it judges whether or
not the SRS should be activated.
DTC B1148/36 is recorded when a malfunction in the airbag front RH sensor is detected.
DTC No.DTC Detecting ConditionTrouble Area
B1148/36
Short circuit in front airbag sensor RH wire harness (to
B+)
Short circuit in front airbag sensor RH wire harness (to
ground)
Open circuit in +SR wire harness or -SL wire harness of
front airbag sensor RH
Airbag front RH sensor malfunction
Airbag sensor assy center malfunction
Airbag front RH sensor
Airbag sensor assy center
Cowl wire
Engine room main wire
WIRING DIAGRAM
05IVN-01
Page 1116 of 2572
H02757H10600H16834H02757H10600H16834H02757H10600H16834H42117
Airbag
Front
RH
SensorAirbag
Sensor
Assy
Center
DLC3
CG
TCDTC B1148/36
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1333
1523 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

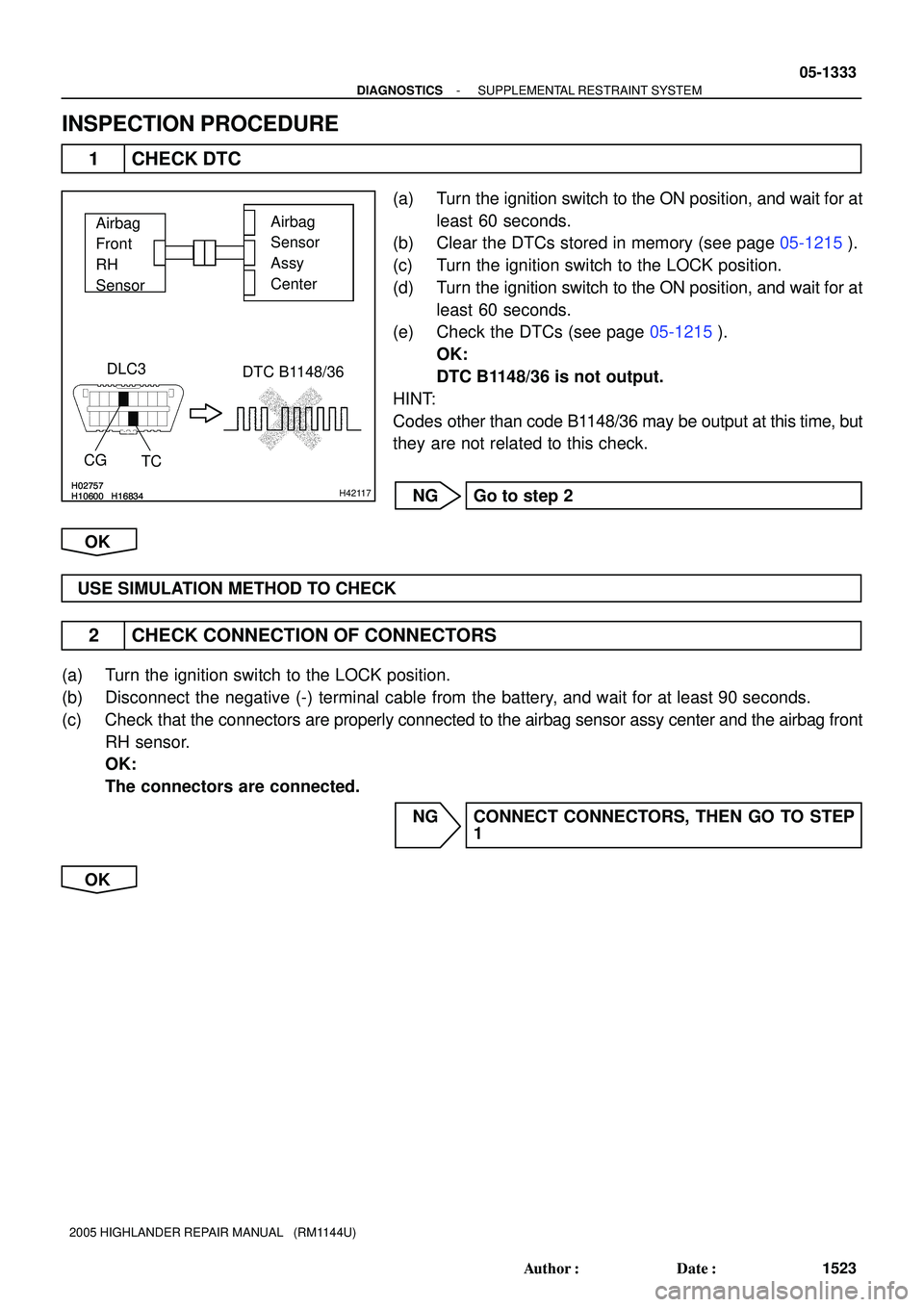

INSPECTION PROCEDURE
1 CHECK DTC
(a) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(b) Clear the DTCs stored in memory (see page 05-1215).
(c) Turn the ignition switch to the LOCK position.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Check the DTCs (see page 05-1215).
OK:
DTC B1148/36 is not output.
HINT:
Codes other than code B1148/36 may be output at this time, but
they are not related to this check.
NG Go to step 2
OK
USE SIMULATION METHOD TO CHECK
2 CHECK CONNECTION OF CONNECTORS
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the airbag sensor assy center and the airbag front
RH sensor.
OK:
The connectors are connected.
NG CONNECT CONNECTORS, THEN GO TO STEP
1
OK
Page 1117 of 2572
H03353C81408H08016H03353C81408H08016H41800
Airbag
Sensor
Assy
CenterAirbag
Front
RH Sensor
Service Wire
DC BA
E F
+SR
-SR
+SR -SRA9A17
H03355C81408H03355C81408H42510
Airbag
Sensor
Assy
CenterAirbag
Front
RH Sensor
+SR
-SR
A
B
C
D E F
A17
05-1334
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1524 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

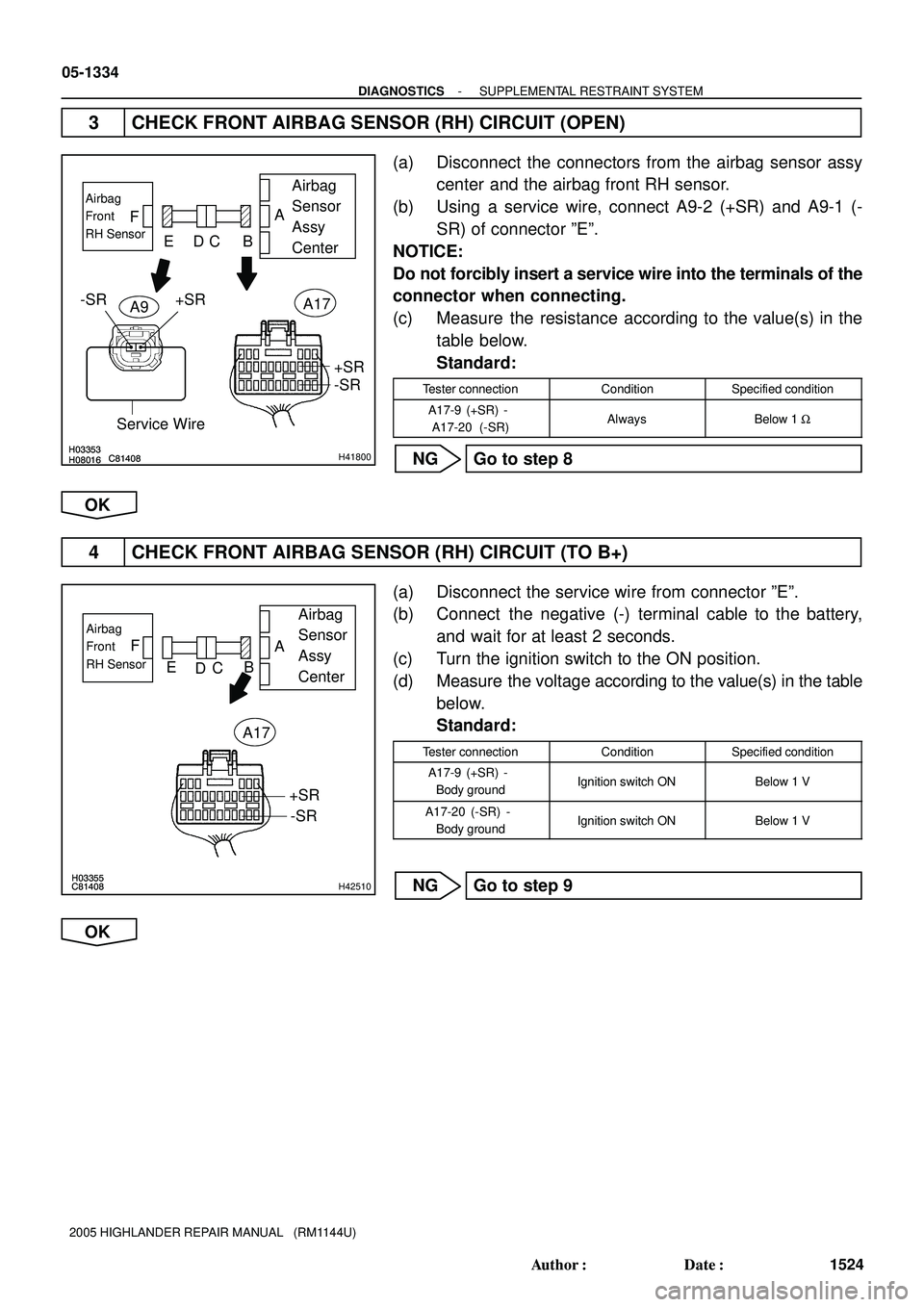

3 CHECK FRONT AIRBAG SENSOR (RH) CIRCUIT (OPEN)
(a) Disconnect the connectors from the airbag sensor assy
center and the airbag front RH sensor.
(b) Using a service wire, connect A9-2 (+SR) and A9-1 (-
SR) of connector ºEº.
NOTICE:
Do not forcibly insert a service wire into the terminals of the
connector when connecting.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
A17-9 (+SR) -
A17-20 (-SR)AlwaysBelow 1 W
NG Go to step 8
OK
4 CHECK FRONT AIRBAG SENSOR (RH) CIRCUIT (TO B+)
(a) Disconnect the service wire from connector ºEº.
(b) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position.
(d) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
A17-9 (+SR) -
Body groundIgnition switch ONBelow 1 V
A17-20 (-SR) -
Body groundIgnition switch ONBelow 1 V
NG Go to step 9
OK
