Page 1189 of 2572
H01018H10600H11648H01018H10600H11648H42133
Curtain Shield
Squib LH
Airbag
Sensor
Assy
Center
DLC3
CG TCDTC B1165/87
C D
05-1406
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1596 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

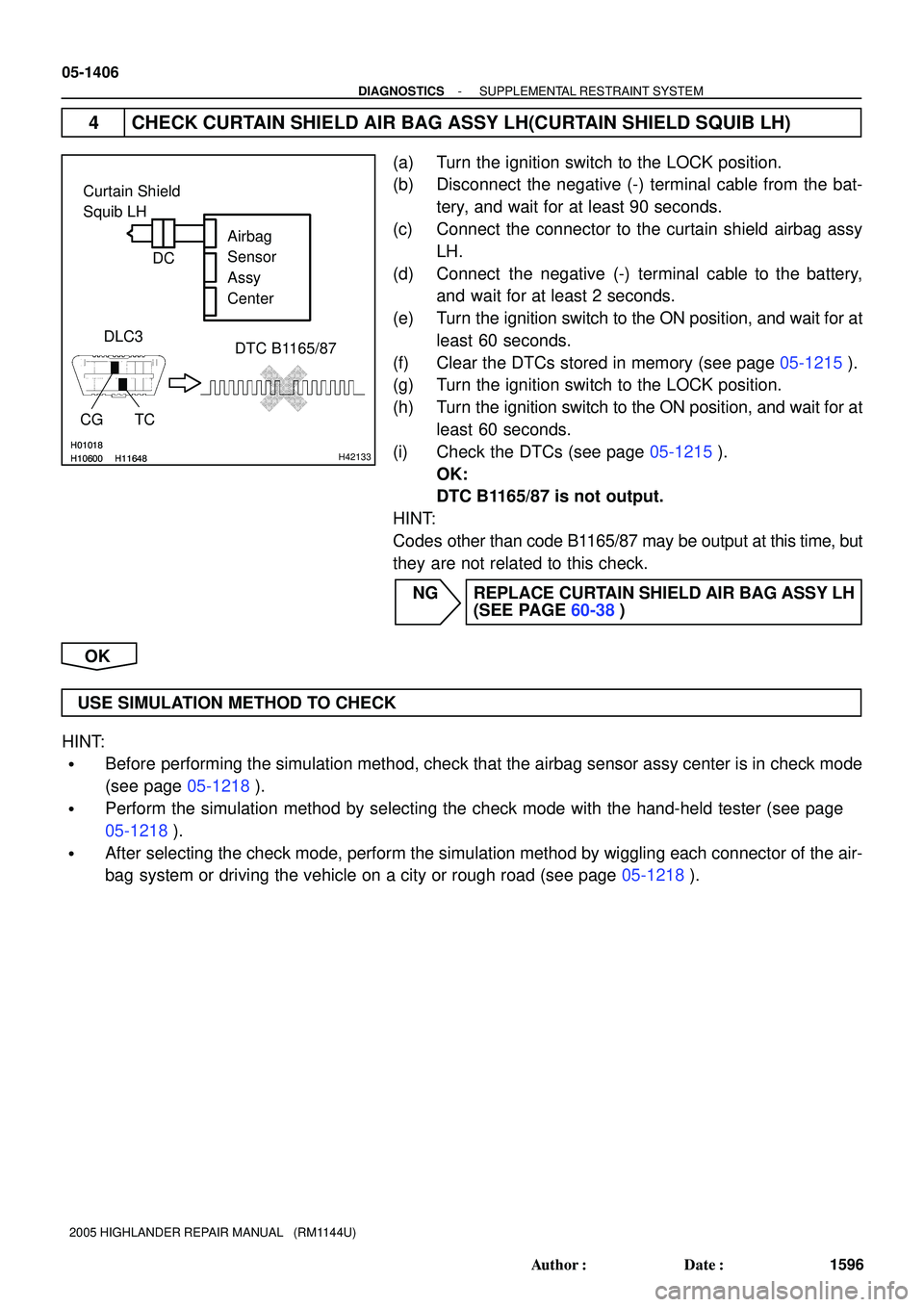

4 CHECK CURTAIN SHIELD AIR BAG ASSY LH(CURTAIN SHIELD SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the curtain shield airbag assy
LH.
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(f) Clear the DTCs stored in memory (see page 05-1215).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(i) Check the DTCs (see page 05-1215).
OK:
DTC B1165/87 is not output.
HINT:
Codes other than code B1165/87 may be output at this time, but
they are not related to this check.
NG REPLACE CURTAIN SHIELD AIR BAG ASSY LH
(SEE PAGE 60-38)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 1190 of 2572
H41469H41469H43069
Curtain Shield
Squib LH
Airbag
Sensor
Assy
Center Floor Wire No.2
A
B C D
ICL- ICL+
C18
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1407
1597 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

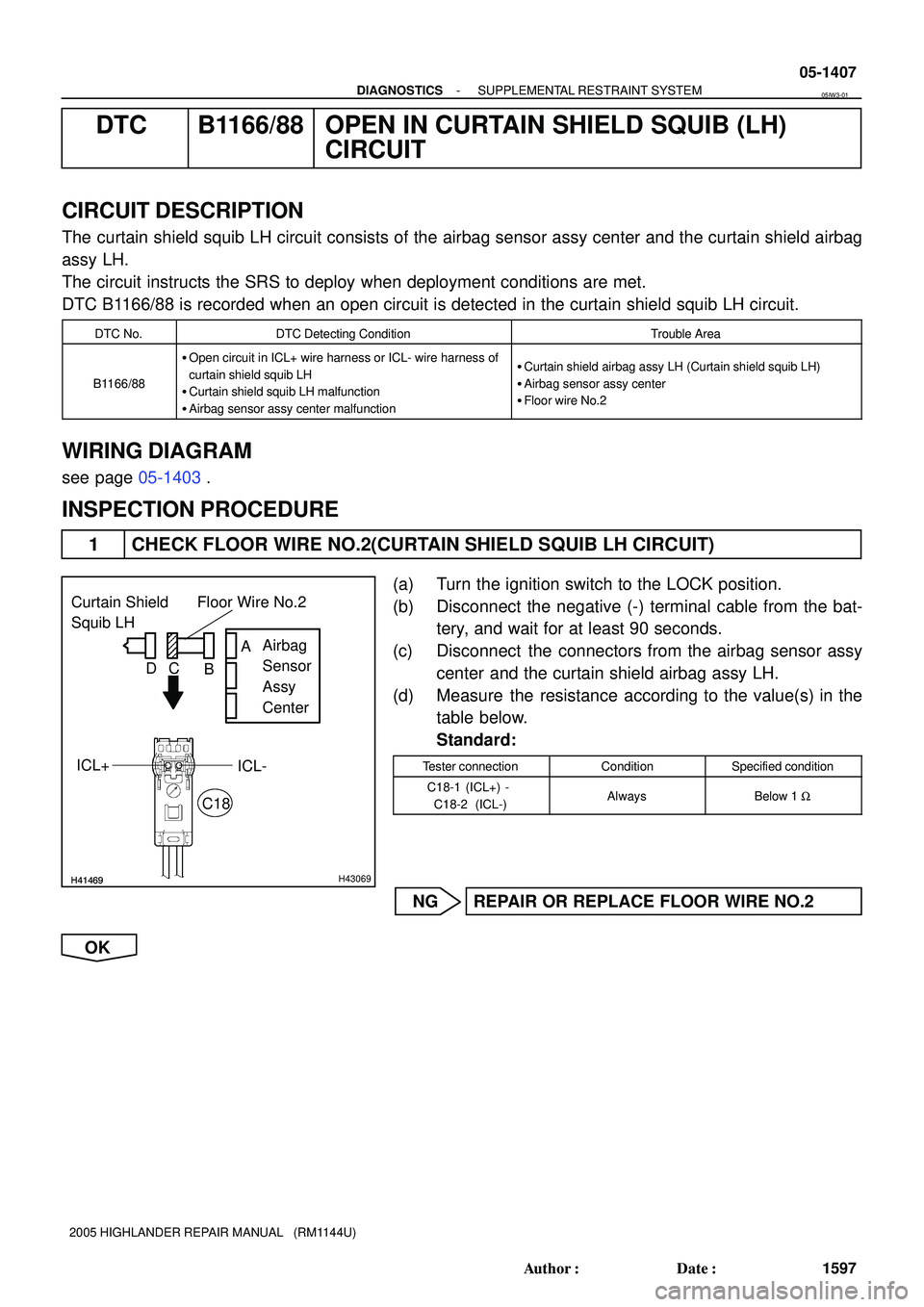

DTC B1166/88 OPEN IN CURTAIN SHIELD SQUIB (LH)
CIRCUIT
CIRCUIT DESCRIPTION
The curtain shield squib LH circuit consists of the airbag sensor assy center and the curtain shield airbag
assy LH.
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B1166/88 is recorded when an open circuit is detected in the curtain shield squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B1166/88
Open circuit in ICL+ wire harness or ICL- wire harness of
curtain shield squib LH
Curtain shield squib LH malfunction
Airbag sensor assy center malfunctionCurtain shield airbag assy LH (Curtain shield squib LH)
Airbag sensor assy center
Floor wire No.2
WIRING DIAGRAM
see page 05-1403.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(CURTAIN SHIELD SQUIB LH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the curtain shield airbag assy LH.
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
C18-1 (ICL+) -
C18-2 (ICL-)AlwaysBelow 1 W
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
05IW3-01
Page 1191 of 2572
H01017
H10600H11649 C89252
H01017
H10600H11649 C89252H42134
Curtain Shield
Squib LH
Airbag
Sensor
Assy
Center
DLC3
CG TCDTC B1166/88Floor Wire No.2
Service Wire
ICL- ICL+C
D
C18
05-1408
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1598 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

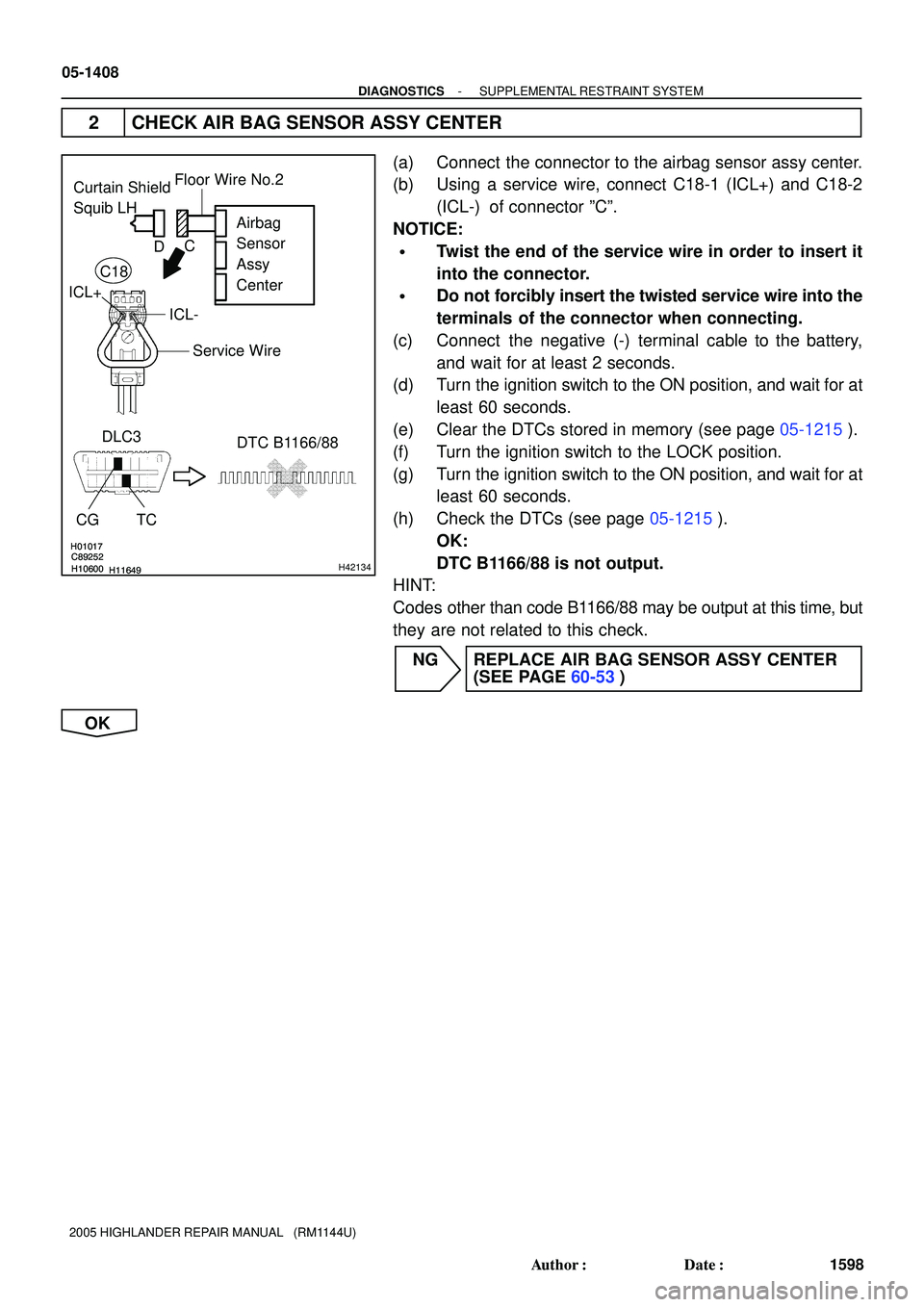

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect C18-1 (ICL+) and C18-2
(ICL-) of connector ºCº.
NOTICE:
Twist the end of the service wire in order to insert it
into the connector.
Do not forcibly insert the twisted service wire into the
terminals of the connector when connecting.
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(h) Check the DTCs (see page 05-1215).
OK:
DTC B1166/88 is not output.
HINT:
Codes other than code B1166/88 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 1192 of 2572
H01018
H10600 H11649H01018
H10600 H11649H40945
Curtain Shield
Squib LH
Airbag
Sensor
Assy
Center
CGDLC3
TCDTC B1166/88
C D
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1409
1599 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

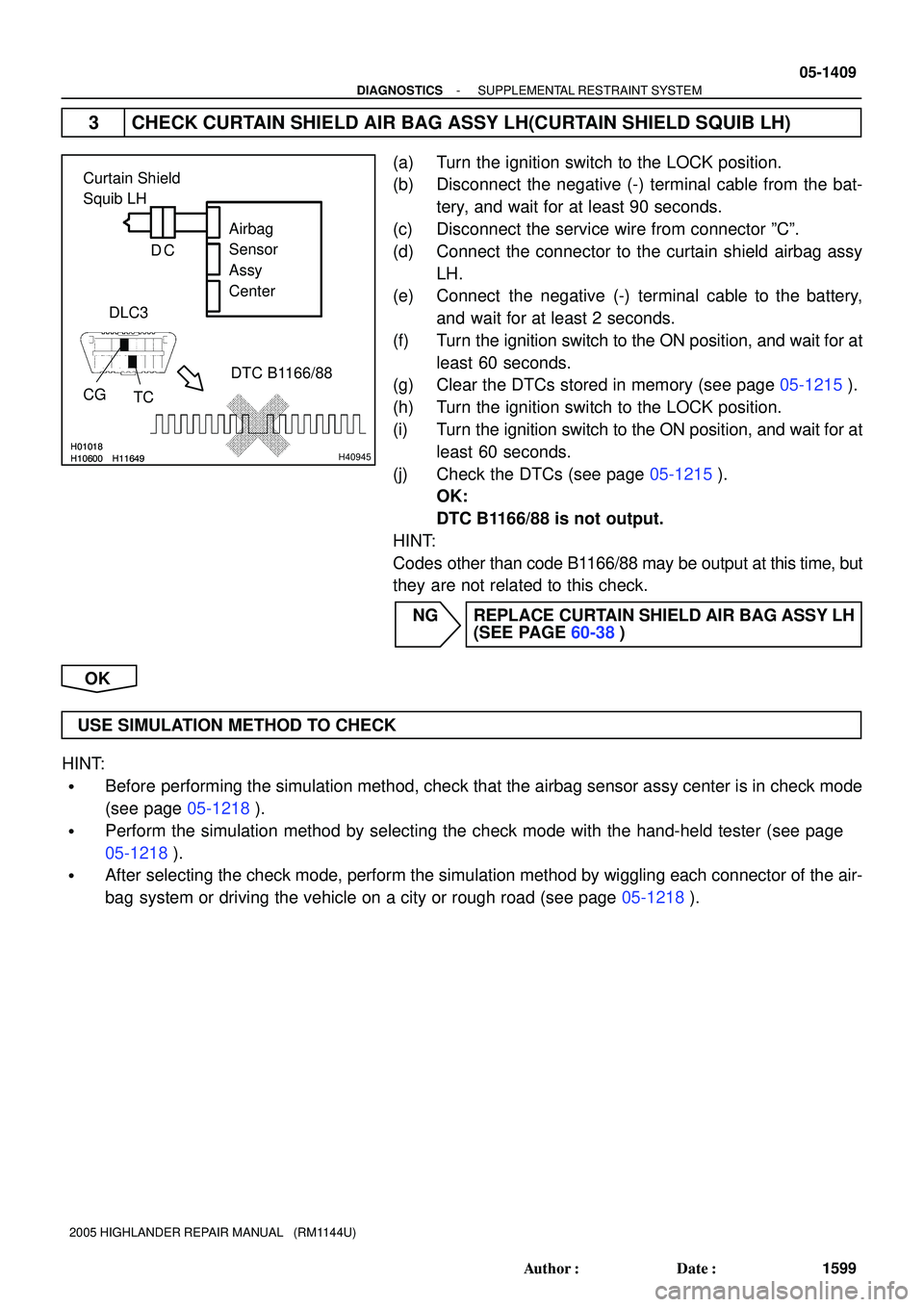

3 CHECK CURTAIN SHIELD AIR BAG ASSY LH(CURTAIN SHIELD SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the curtain shield airbag assy
LH.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B1166/88 is not output.
HINT:
Codes other than code B1166/88 may be output at this time, but
they are not related to this check.
NG REPLACE CURTAIN SHIELD AIR BAG ASSY LH
(SEE PAGE 60-38)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 1193 of 2572
H41469H41469H43069
Curtain Shield
Squib LH
Airbag
Sensor
Assy
Center Floor Wire No.2
A
B C D
ICL+
ICL-
C18
05-1410
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1600 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

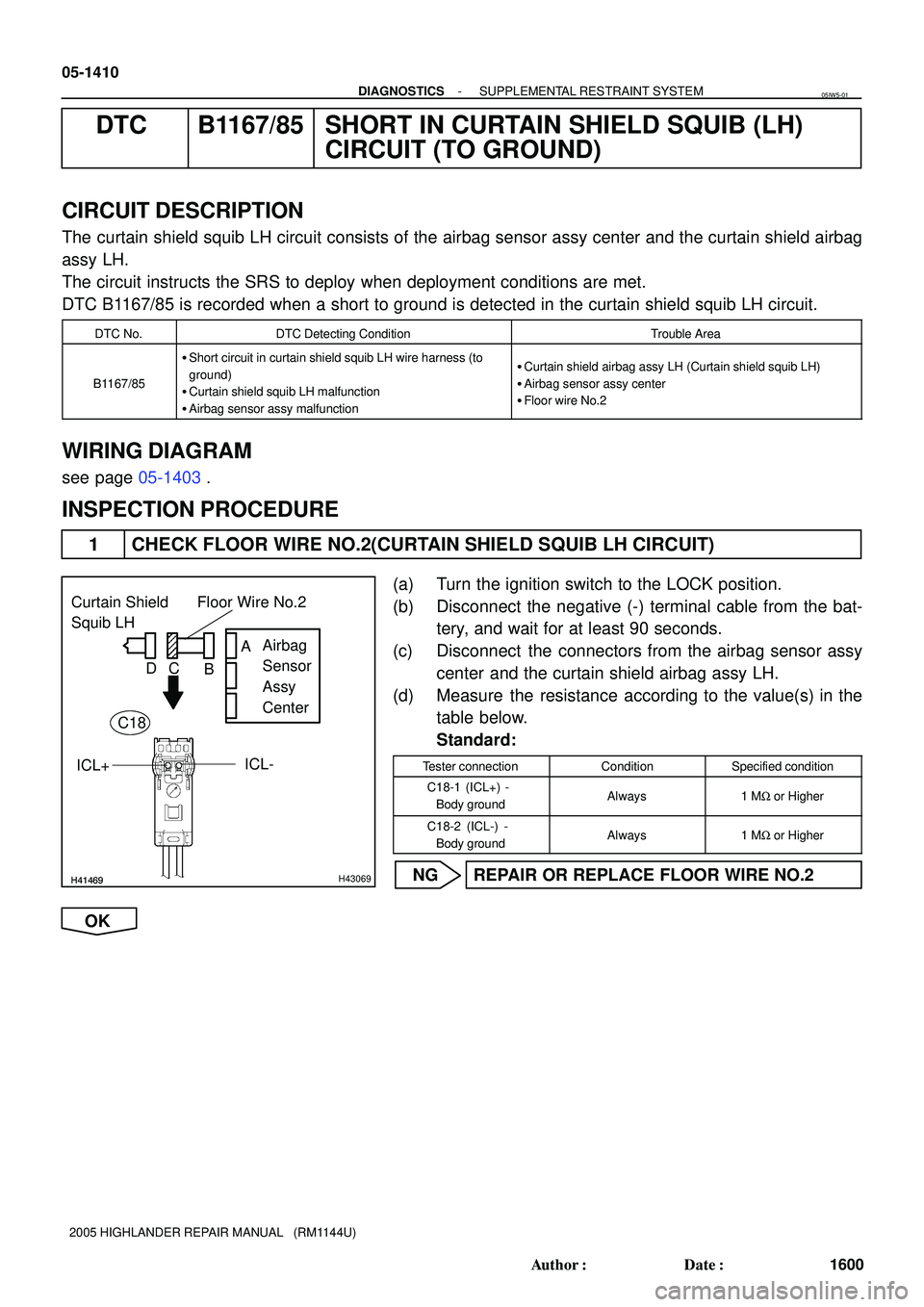

DTC B1167/85 SHORT IN CURTAIN SHIELD SQUIB (LH)
CIRCUIT (TO GROUND)
CIRCUIT DESCRIPTION
The curtain shield squib LH circuit consists of the airbag sensor assy center and the curtain shield airbag
assy LH.
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B1167/85 is recorded when a short to ground is detected in the curtain shield squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B1167/85
Short circuit in curtain shield squib LH wire harness (to
ground)
Curtain shield squib LH malfunction
Airbag sensor assy malfunctionCurtain shield airbag assy LH (Curtain shield squib LH)
Airbag sensor assy center
Floor wire No.2
WIRING DIAGRAM
see page 05-1403.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(CURTAIN SHIELD SQUIB LH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the curtain shield airbag assy LH.
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
C18-1 (ICL+) -
Body groundAlways1 MW or Higher
C18-2 (ICL-) -
Body groundAlways1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
05IW5-01
Page 1194 of 2572
H01017
C89252
H10600H11646
H01017
C89252
H10600H11646H42135
Curtain Shield
Squib LH
Airbag
Sensor
Assy
Center
DLC3
CG TCDTC B1167/85
Floor Wire No.2
Service Wire
ICL- ICL+C D
C18
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-141 1
1601 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

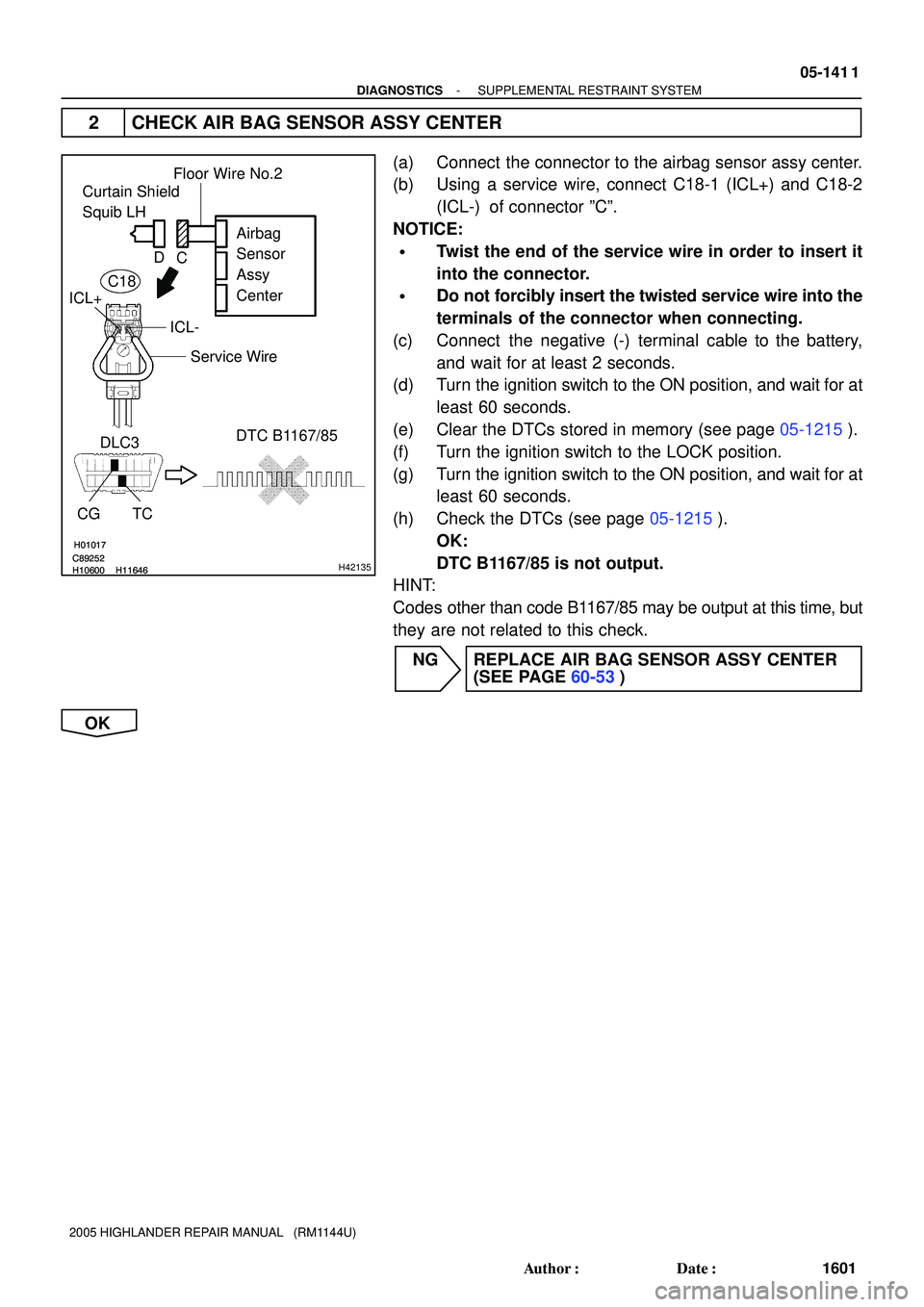

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect C18-1 (ICL+) and C18-2
(ICL-) of connector ºCº.
NOTICE:
Twist the end of the service wire in order to insert it
into the connector.
Do not forcibly insert the twisted service wire into the
terminals of the connector when connecting.
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(h) Check the DTCs (see page 05-1215).
OK:
DTC B1167/85 is not output.
HINT:
Codes other than code B1167/85 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 1195 of 2572
H01018
H10600 H11646H01018
H10600 H11646H40947
Curtain Shield
Squib LH
Airbag
Sensor
Assy
Center
CGDLC3
TCDTC B1167/85
C D
05-1412
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1602 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

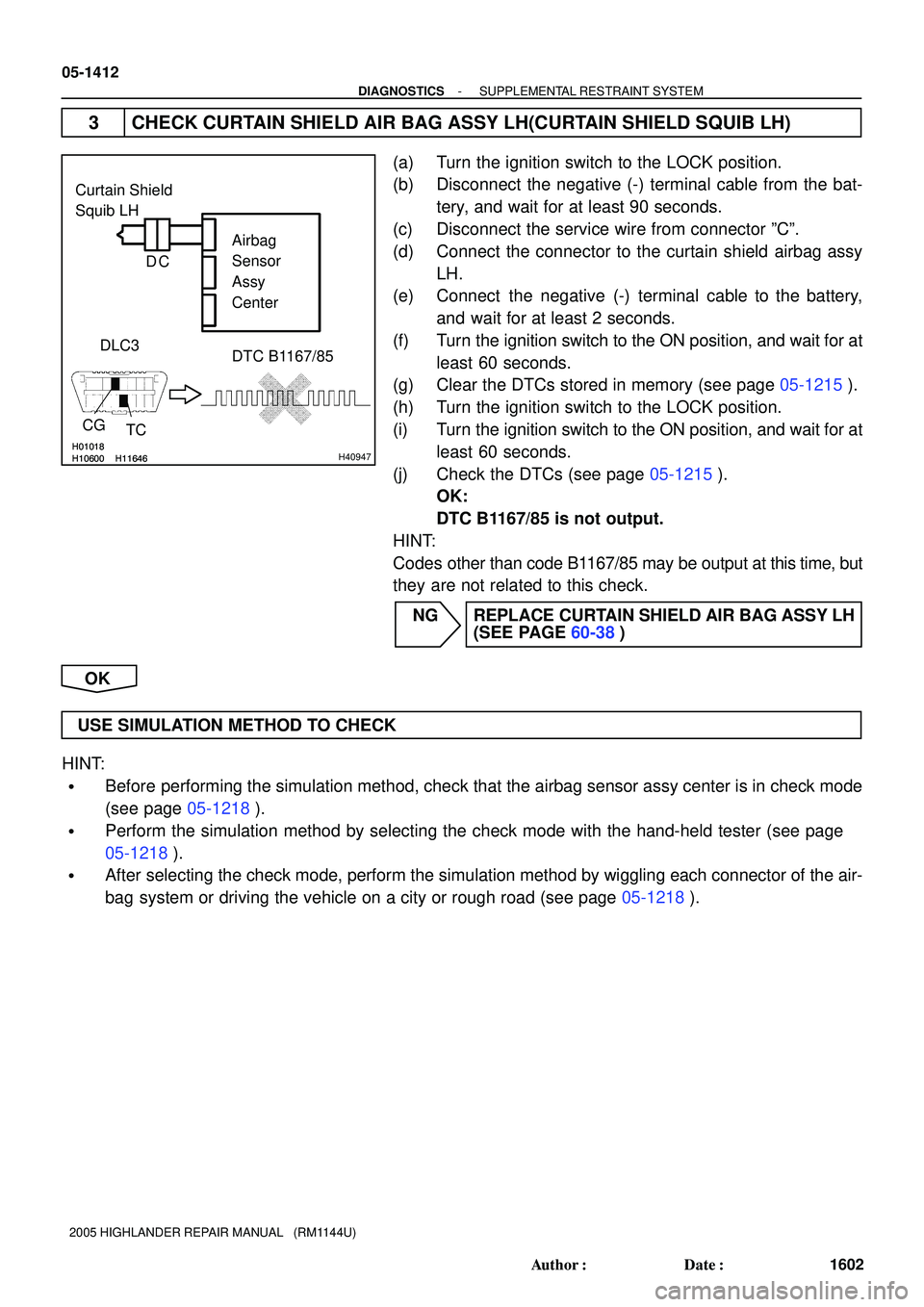

3 CHECK CURTAIN SHIELD AIR BAG ASSY LH(CURTAIN SHIELD SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the curtain shield airbag assy
LH.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B1167/85 is not output.
HINT:
Codes other than code B1167/85 may be output at this time, but
they are not related to this check.
NG REPLACE CURTAIN SHIELD AIR BAG ASSY LH
(SEE PAGE 60-38)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 1196 of 2572
H41469H41469H43069
Curtain Shield
Squib LH
Airbag
Sensor
Assy
Center Floor Wire No.2
A
B C D
ICL+
ICL- C18
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1413
1603 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

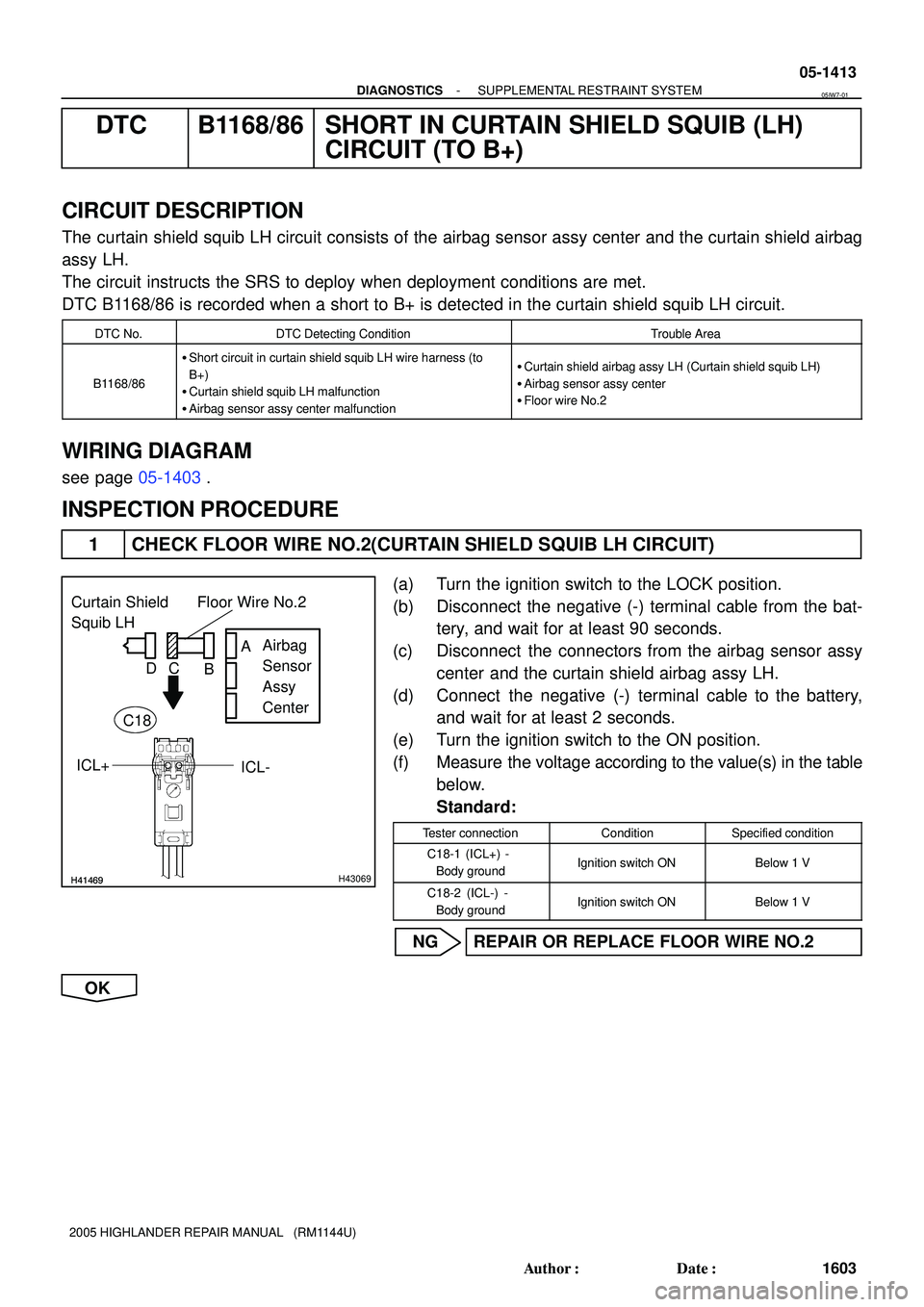

DTC B1168/86 SHORT IN CURTAIN SHIELD SQUIB (LH)
CIRCUIT (TO B+)
CIRCUIT DESCRIPTION
The curtain shield squib LH circuit consists of the airbag sensor assy center and the curtain shield airbag
assy LH.
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B1168/86 is recorded when a short to B+ is detected in the curtain shield squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B1168/86
Short circuit in curtain shield squib LH wire harness (to
B+)
Curtain shield squib LH malfunction
Airbag sensor assy center malfunctionCurtain shield airbag assy LH (Curtain shield squib LH)
Airbag sensor assy center
Floor wire No.2
WIRING DIAGRAM
see page 05-1403.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(CURTAIN SHIELD SQUIB LH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the curtain shield airbag assy LH.
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position.
(f) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
C18-1 (ICL+) -
Body groundIgnition switch ONBelow 1 V
C18-2 (ICL-) -
Body groundIgnition switch ONBelow 1 V
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
05IW7-01
Page 1197 of 2572
H01017
C89252
H10600H11647
H01017
C89252
H10600H11647H42136
Airbag
Sensor
Assy
Center
DLC3
CG TCDTC B1168/86
Floor Wire No.2Curtain Shield
Squib LH
Service Wire
ICL- ICL+C D
C18
05-1414
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1604 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

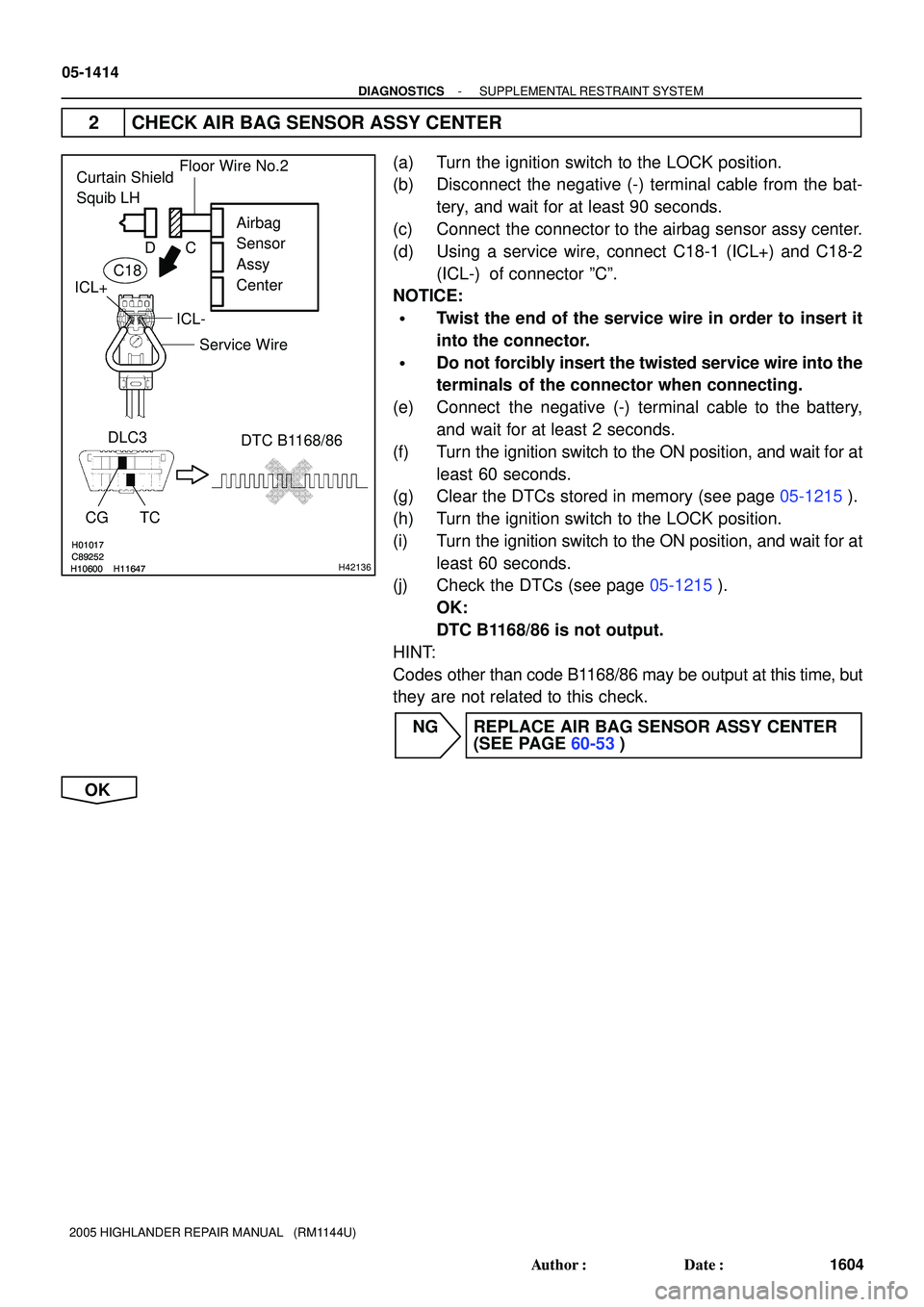

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the airbag sensor assy center.
(d) Using a service wire, connect C18-1 (ICL+) and C18-2
(ICL-) of connector ºCº.
NOTICE:
Twist the end of the service wire in order to insert it
into the connector.
Do not forcibly insert the twisted service wire into the
terminals of the connector when connecting.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B1168/86 is not output.
HINT:
Codes other than code B1168/86 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 1198 of 2572
H01018
H10600 H11647H01018
H10600 H11647H40949
Airbag
Sensor
Assy
Center
CGDLC3
TCDTC B1168/86
Curtain Shield
Squib LH
C D
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1415
1605 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

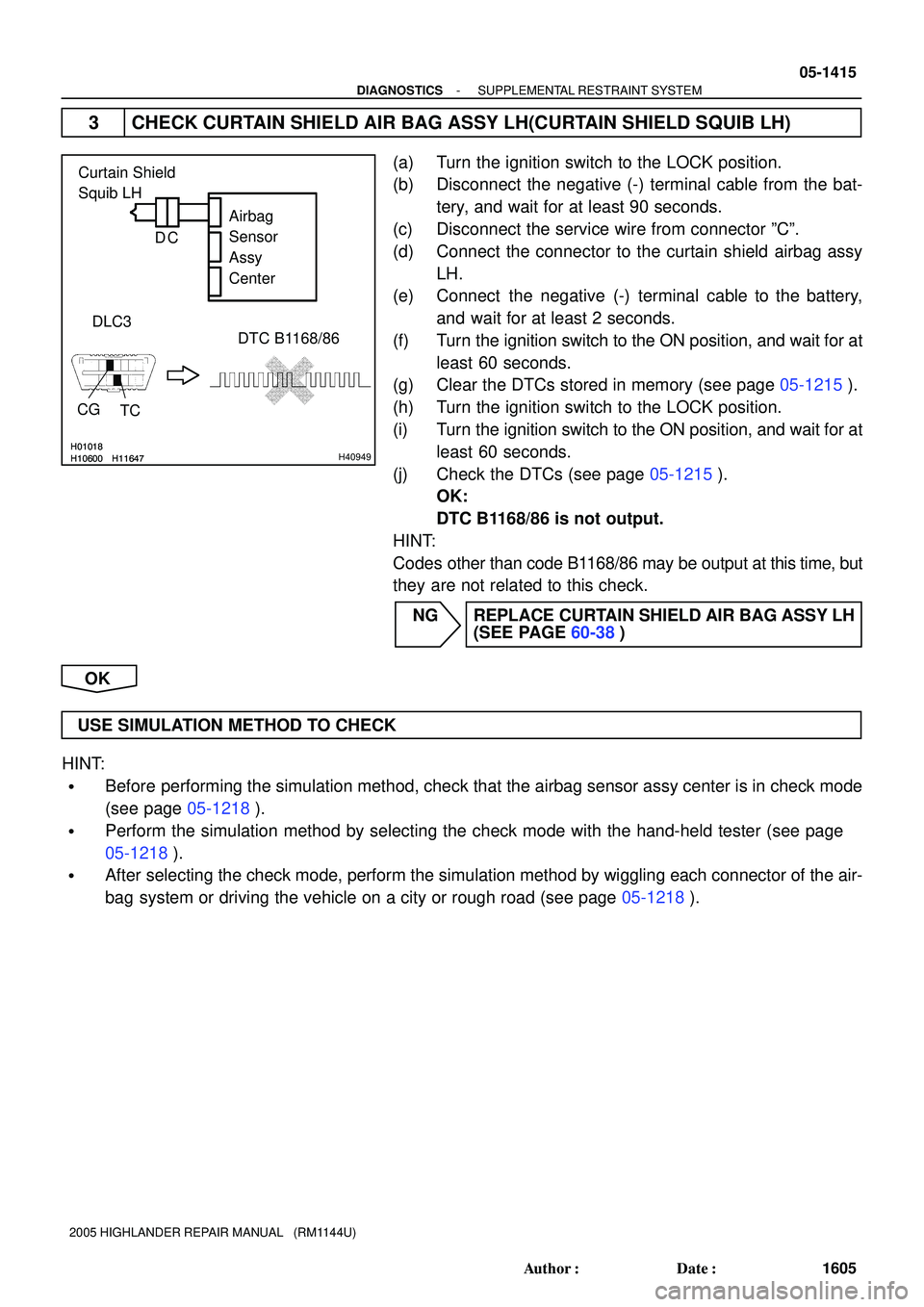

3 CHECK CURTAIN SHIELD AIR BAG ASSY LH(CURTAIN SHIELD SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the curtain shield airbag assy
LH.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B1168/86 is not output.
HINT:
Codes other than code B1168/86 may be output at this time, but
they are not related to this check.
NG REPLACE CURTAIN SHIELD AIR BAG ASSY LH
(SEE PAGE 60-38)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
