Page 1322 of 2572
G30962
1E
1G
2I2A IC4
S27 W Y
B WG
W BWL
WB
CANL CANH
CANLCANH
CANLCANH
CANL CANH BAT S14
Steering SensorJ16
J/CSkid Control ECU
With Actuator
D3
DLC310
311 12
1325
2
146
14
31 2 3 9
1
+BS Instrument Panel J/B
F7
FL BlockEngine Room J/BOBD
ECU-B
ALTBR
W-L
FL
MAIN
Battery1 J17
J/C
P
ES27 S27 IC4
3
11
2210
218
19
Y1
Yaw Rate Sensor
W B
IO213 IO212
BAT9
20
81A
B 1D9 10
10
P 16W
EIC35 VSC
STRG
VSC
STRG
YAW
DLC3
WSHORT PINYAW
DLC3
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
05-2121
2311 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

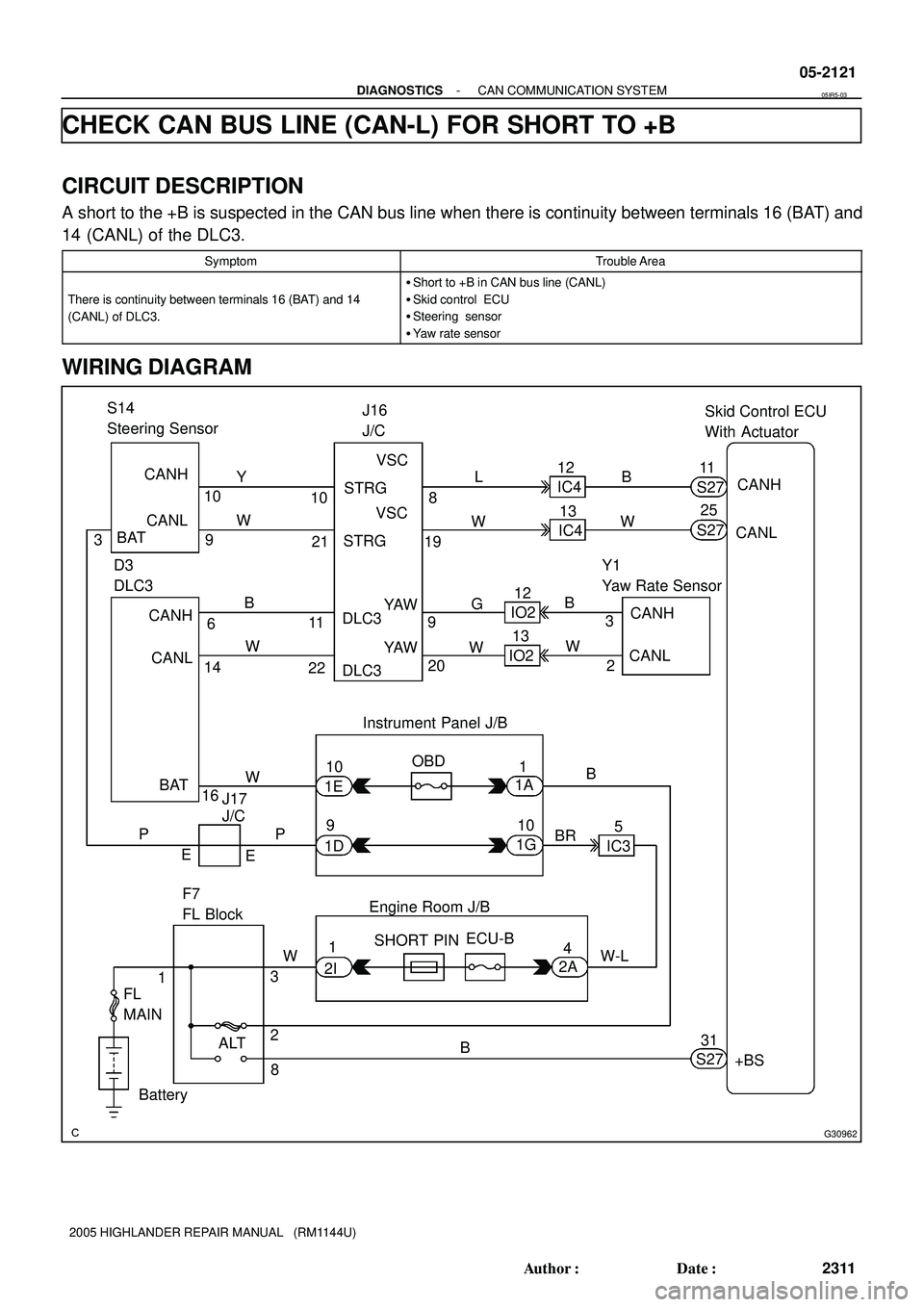

CHECK CAN BUS LINE (CAN-L) FOR SHORT TO +B
CIRCUIT DESCRIPTION
A short to the +B is suspected in the CAN bus line when there is continuity between terminals 16 (BAT) and
14 (CANL) of the DLC3.
SymptomTrouble Area
There is continuity between terminals 16 (BAT) and 14
(CANL) of DLC3.
Short to +B in CAN bus line (CANL)
Skid control ECU
Steering sensor
Yaw rate sensor
WIRING DIAGRAM
05IR5-03
Page 1324 of 2572
C81825
12345678
9 10111213141516
G25474G26206
DLC3:
CANL
BATD3
C81825
12345678
9 10111213141516
G25474G26206
DLC3:
CANL
BATD3
C81825
12345678
9 10111213141516
G25474G26206
DLC3:
CANL
BATD3
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
05-2123
2313 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

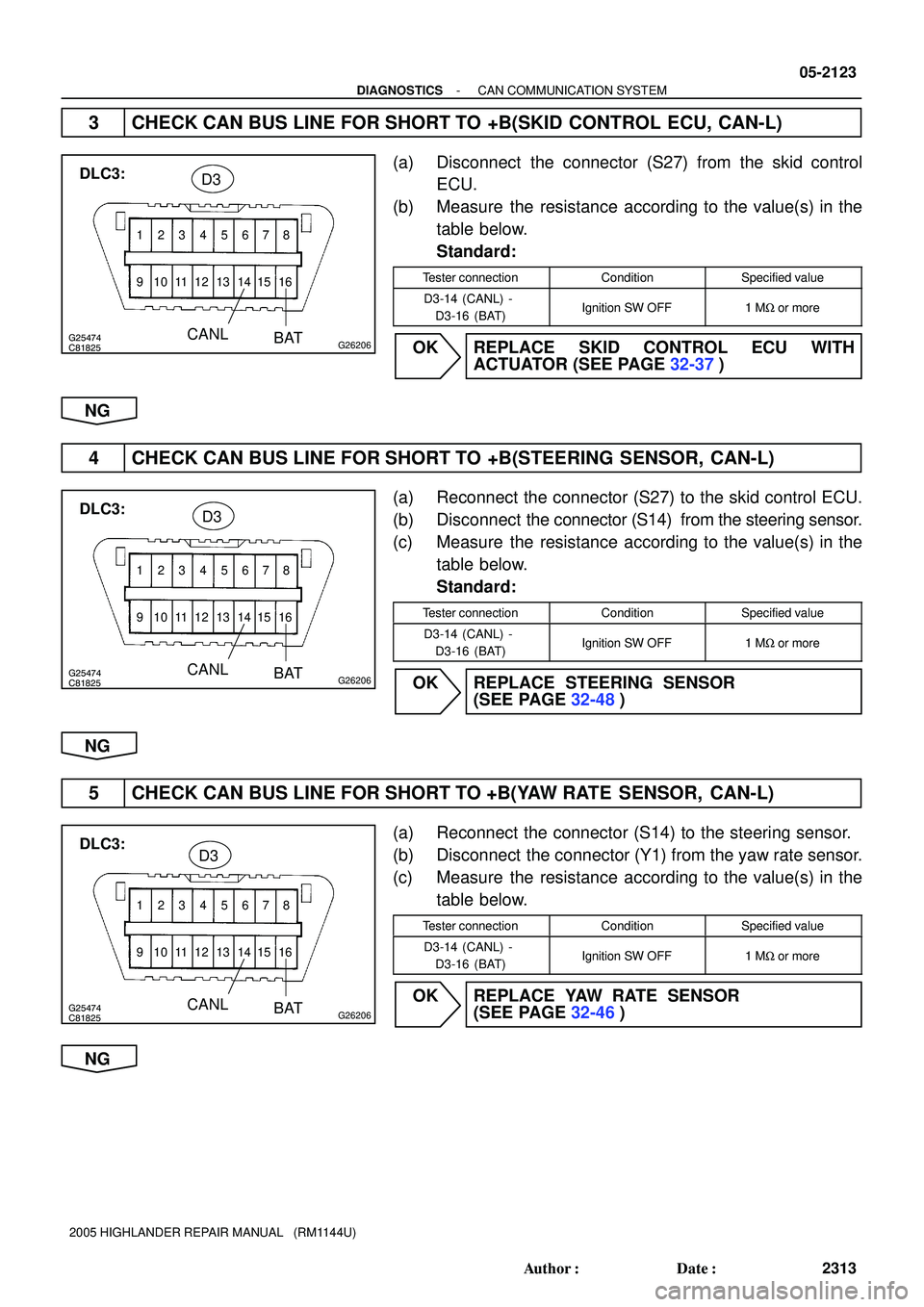

3 CHECK CAN BUS LINE FOR SHORT TO +B(SKID CONTROL ECU, CAN-L)
(a) Disconnect the connector (S27) from the skid control
ECU.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-14 (CANL) -
D3-16 (BAT)Ignition SW OFF1 MW or more
OK REPLACE SKID CONTROL ECU WITH
ACTUATOR (SEE PAGE 32-37)
NG
4 CHECK CAN BUS LINE FOR SHORT TO +B(STEERING SENSOR, CAN-L)
(a) Reconnect the connector (S27) to the skid control ECU.
(b) Disconnect the connector (S14) from the steering sensor.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-14 (CANL) -
D3-16 (BAT)Ignition SW OFF1 MW or more
OK REPLACE STEERING SENSOR
(SEE PAGE 32-48)
NG
5 CHECK CAN BUS LINE FOR SHORT TO +B(YAW RATE SENSOR, CAN-L)
(a) Reconnect the connector (S14) to the steering sensor.
(b) Disconnect the connector (Y1) from the yaw rate sensor.
(c) Measure the resistance according to the value(s) in the
table below.
Tester connectionConditionSpecified value
D3-14 (CANL) -
D3-16 (BAT)Ignition SW OFF1 MW or more
OK REPLACE YAW RATE SENSOR
(SEE PAGE 32-46)
NG
Page 1325 of 2572
G25476G26430
Junction Connector:
J16
CANH
CANL
E69126
Skid Control ECU
Connector Front
View:
CANL
S27
+BS
05-2124
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
2314 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

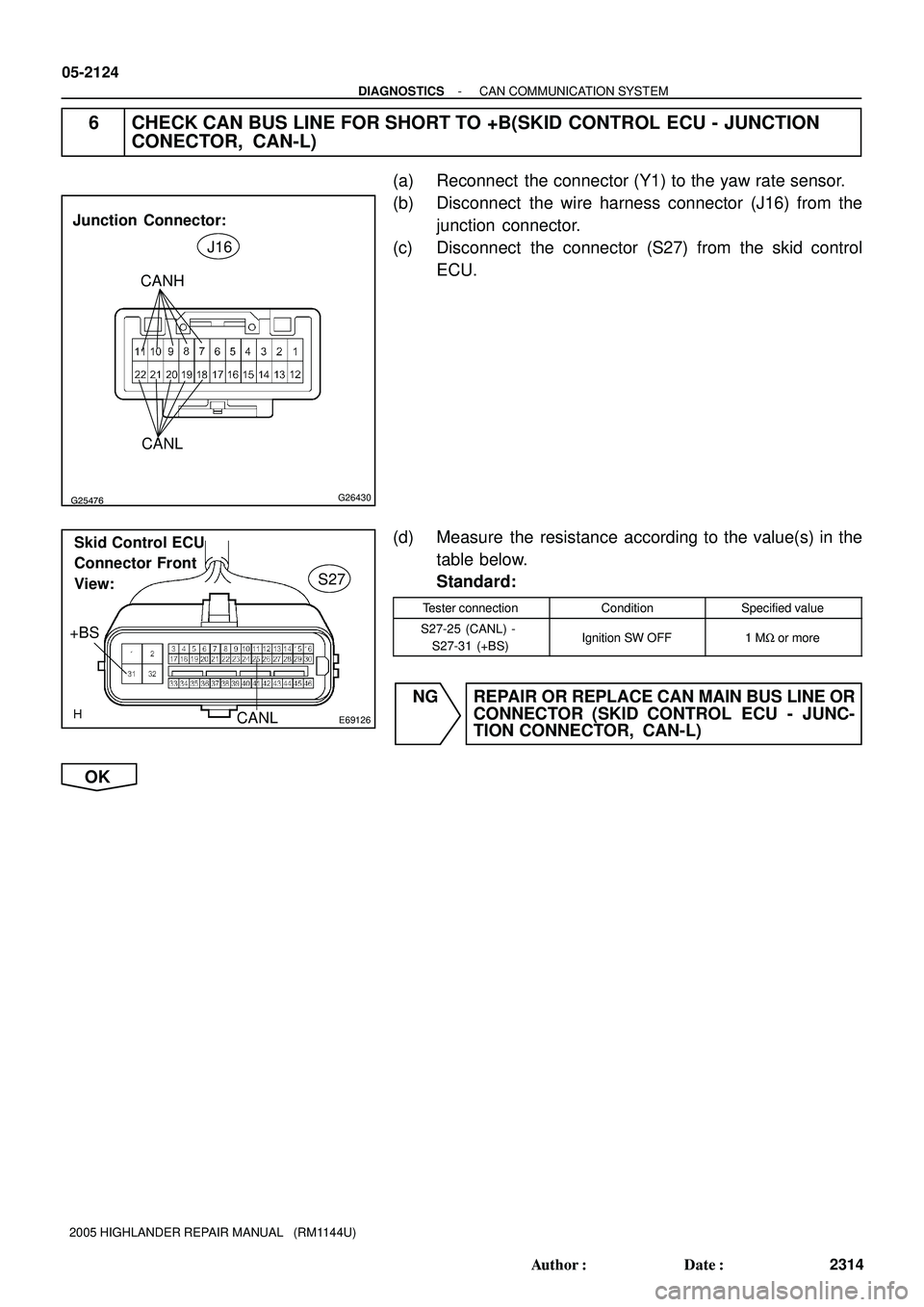

6 CHECK CAN BUS LINE FOR SHORT TO +B(SKID CONTROL ECU - JUNCTION
CONECTOR, CAN-L)
(a) Reconnect the connector (Y1) to the yaw rate sensor.
(b) Disconnect the wire harness connector (J16) from the
junction connector.
(c) Disconnect the connector (S27) from the skid control
ECU.
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
S27-25 (CANL) -
S27-31 (+BS)Ignition SW OFF1 MW or more
NG REPAIR OR REPLACE CAN MAIN BUS LINE OR
CONNECTOR (SKID CONTROL ECU - JUNC-
TION CONNECTOR, CAN-L)
OK
Page 1326 of 2572
G24991G26210
Steering Sensor Wire Harness View:
BAT
CANL
S14
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
05-2125
2315 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
7 CHECK CAN BUS LINE FOR SHORT TO +B(STEERING SENSOR - JUNCTION
CONNESTOR, CAN-L)
(a) Disconnect the connector (S14 ) from the steering sen-
sor.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
S14-9 (CANL) -
S14-3 (BAT)Ignition SW OFF1 MW or more
HINT:
Check the wire harness connector connected to the junction
connector while disconnecting it.
NG REPAIR OR REPLACE CAN MAIN BUS LINE OR
CONNECTOR (STEERING SENSOR - JUNC-
TION CONNECTOR, CAN-L)
OK
REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-L)
Page 1327 of 2572
G30963
IC4
S27 W Y
WG
W BWL
WB
CANL CANH
CANLCANH
CANL CANH
CANL CANHESS S14
Steering SensorJ16
J/CSkid Control ECU
With Actuator
D3
DLC31011
12
1325
2
146 9S27 S27
IC4
3
11
22 10
218
19
Y1
Yaw Rate Sensor
W BIO213 IO212
9
20VSC
STRG
VSC
STRG
YAW
DLC3S27 12
W-B
W-B
W-B1
32GND2
GND1
4 CGW-BW-B
W-B1
1 1
1 3 6
4C
4C 4N4N
W-B Passenger Side J/B
J19
J/C
W-BJ4
J/C
AAA
BF
ICEH
EB GNDYAW
DLC3 05-2126
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
2316 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

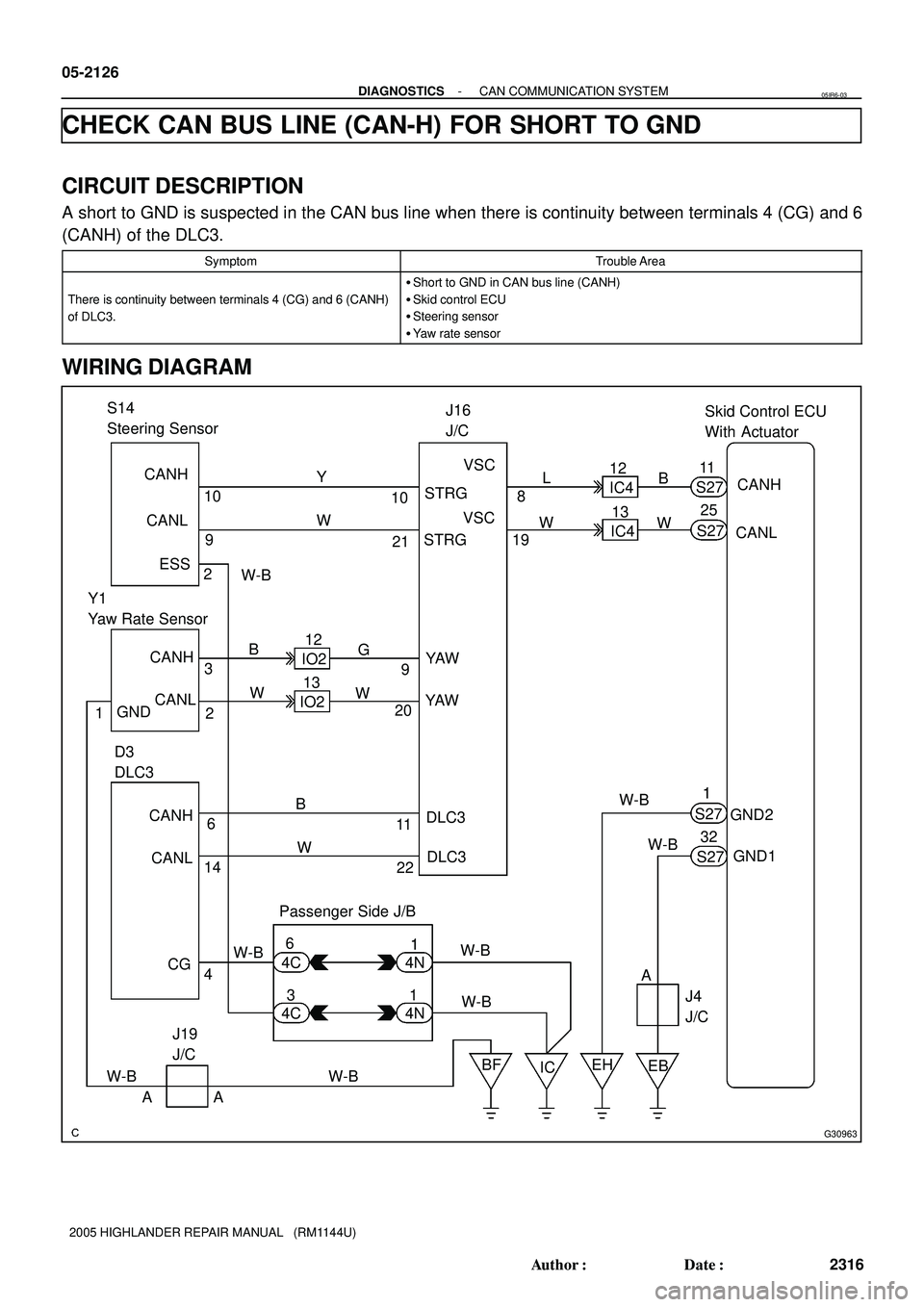

CHECK CAN BUS LINE (CAN-H) FOR SHORT TO GND
CIRCUIT DESCRIPTION
A short to GND is suspected in the CAN bus line when there is continuity between terminals 4 (CG) and 6
(CANH) of the DLC3.
SymptomTrouble Area
There is continuity between terminals 4 (CG) and 6 (CANH)
of DLC3.
Short to GND in CAN bus line (CANH)
Skid control ECU
Steering sensor
Yaw rate sensor
WIRING DIAGRAM
05IR6-03
Page 1329 of 2572
C81825
12345678
9 10111213141516
G25474G26206
DLC3:
CANH CGD3
C81825
12345678
9 10111213141516
G25474G26206
DLC3:
CANH CGD3
C81825
12345678
9 10111213141516
G25474G26206
DLC3:
CANH CGD3
05-2128
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
2318 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

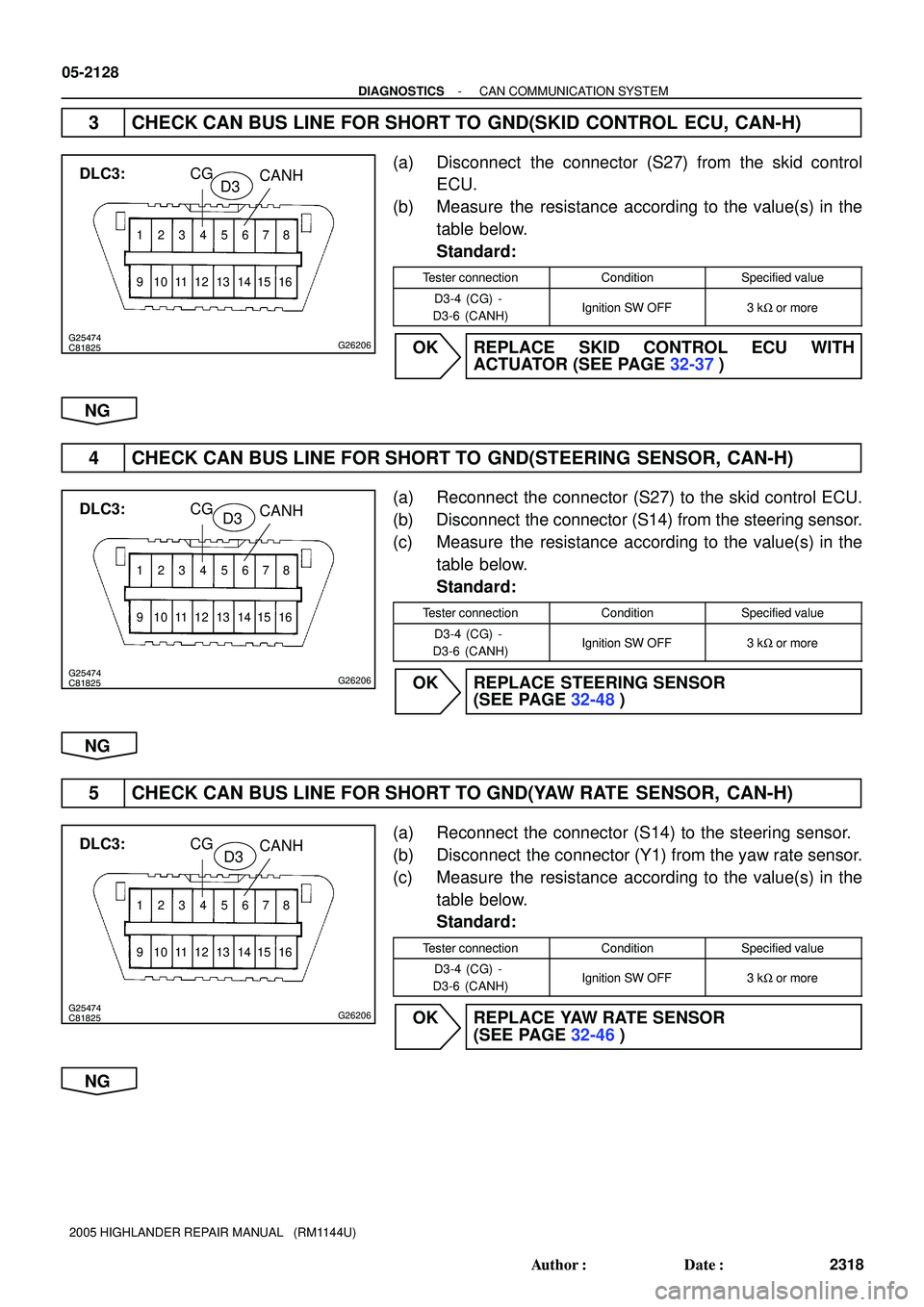

3 CHECK CAN BUS LINE FOR SHORT TO GND(SKID CONTROL ECU, CAN-H)
(a) Disconnect the connector (S27) from the skid control
ECU.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-4 (CG) -
D3-6 (CANH)Ignition SW OFF3 kW or more
OK REPLACE SKID CONTROL ECU WITH
ACTUATOR (SEE PAGE 32-37)
NG
4 CHECK CAN BUS LINE FOR SHORT TO GND(STEERING SENSOR, CAN-H)
(a) Reconnect the connector (S27) to the skid control ECU.
(b) Disconnect the connector (S14) from the steering sensor.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-4 (CG) -
D3-6 (CANH)Ignition SW OFF3 kW or more
OK REPLACE STEERING SENSOR
(SEE PAGE 32-48)
NG
5 CHECK CAN BUS LINE FOR SHORT TO GND(YAW RATE SENSOR, CAN-H)
(a) Reconnect the connector (S14) to the steering sensor.
(b) Disconnect the connector (Y1) from the yaw rate sensor.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-4 (CG) -
D3-6 (CANH)Ignition SW OFF3 kW or more
OK REPLACE YAW RATE SENSOR
(SEE PAGE 32-46)
NG
Page 1330 of 2572
G25476G26430
Junction Connector:
J16
CANH
CANL
E69126
Skid Control ECU
Connector Front
View:CANH
S27
GND1
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
05-2129
2319 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

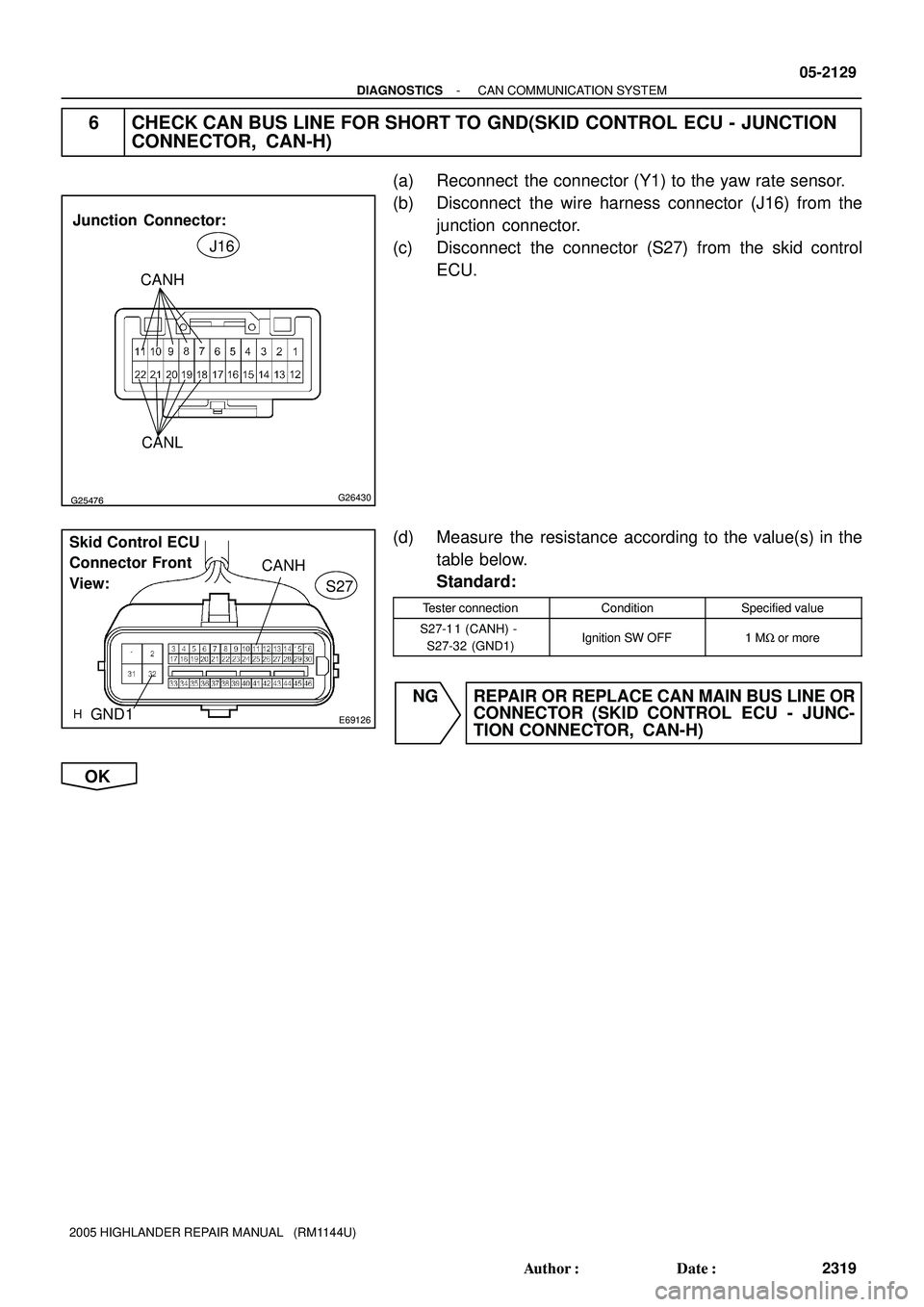

6 CHECK CAN BUS LINE FOR SHORT TO GND(SKID CONTROL ECU - JUNCTION
CONNECTOR, CAN-H)
(a) Reconnect the connector (Y1) to the yaw rate sensor.
(b) Disconnect the wire harness connector (J16) from the
junction connector.
(c) Disconnect the connector (S27) from the skid control
ECU.
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
S27-1 1 (CANH) -
S27-32 (GND1)Ignition SW OFF1 MW or more
NG REPAIR OR REPLACE CAN MAIN BUS LINE OR
CONNECTOR (SKID CONTROL ECU - JUNC-
TION CONNECTOR, CAN-H)
OK
Page 1331 of 2572
G24991G26210
S14
Steering Sensor Wire Harness View:
CANHESS
05-2130
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
2320 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

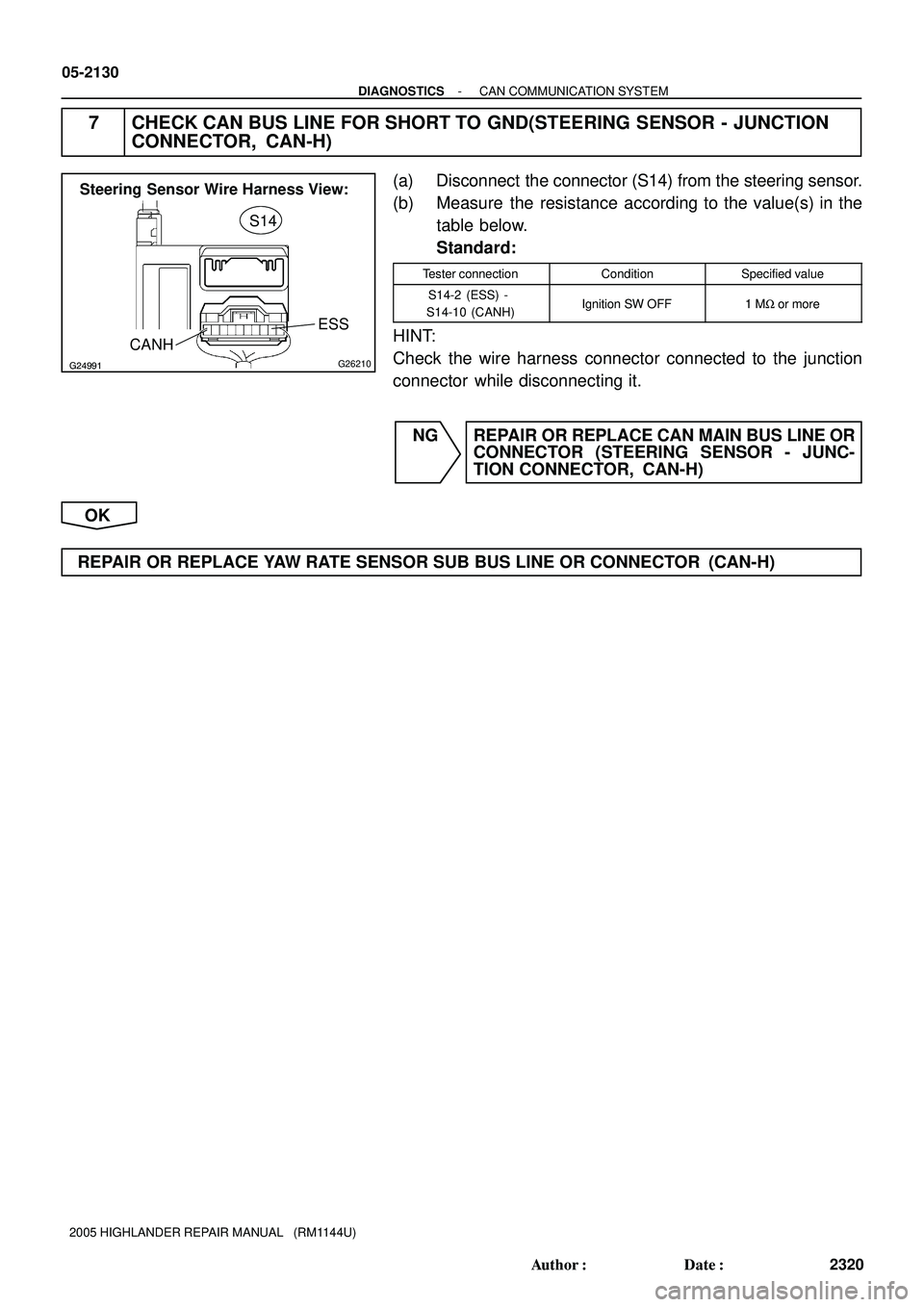

7 CHECK CAN BUS LINE FOR SHORT TO GND(STEERING SENSOR - JUNCTION
CONNECTOR, CAN-H)
(a) Disconnect the connector (S14) from the steering sensor.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
S14-2 (ESS) -
S14-10 (CANH)Ignition SW OFF1 MW or more
HINT:
Check the wire harness connector connected to the junction
connector while disconnecting it.
NG REPAIR OR REPLACE CAN MAIN BUS LINE OR
CONNECTOR (STEERING SENSOR - JUNC-
TION CONNECTOR, CAN-H)
OK
REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-H)
Page 1332 of 2572
G30957
S14
Steering Sensor
CANL CANH
10
9CANL CANH J16
J/CSkid Control ECU
with Actuator
Y1
Yaw Rate Sensor
Passenger Side J/B D3
DLC3
Instrument Panel J/B
FL MAIN
BatteryF7
FL Block
ALT 1
2 CANL CANH
3
2
CANL CANH
6
14
CG
4
BAT
16Y
W10
21
B
WG
W 12
IO2
IO29
20
B
W
W-B
W22 11STRGVSC
VSC
STRG
YAW
YAW
DLC3
DLC3
4C 4N1 6
W-B
10
1E 1A1 OBD
B
IC 8
19L
W12
IC4
IC413B
W11
S27
S2725
13
W 05-2102
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
2292 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

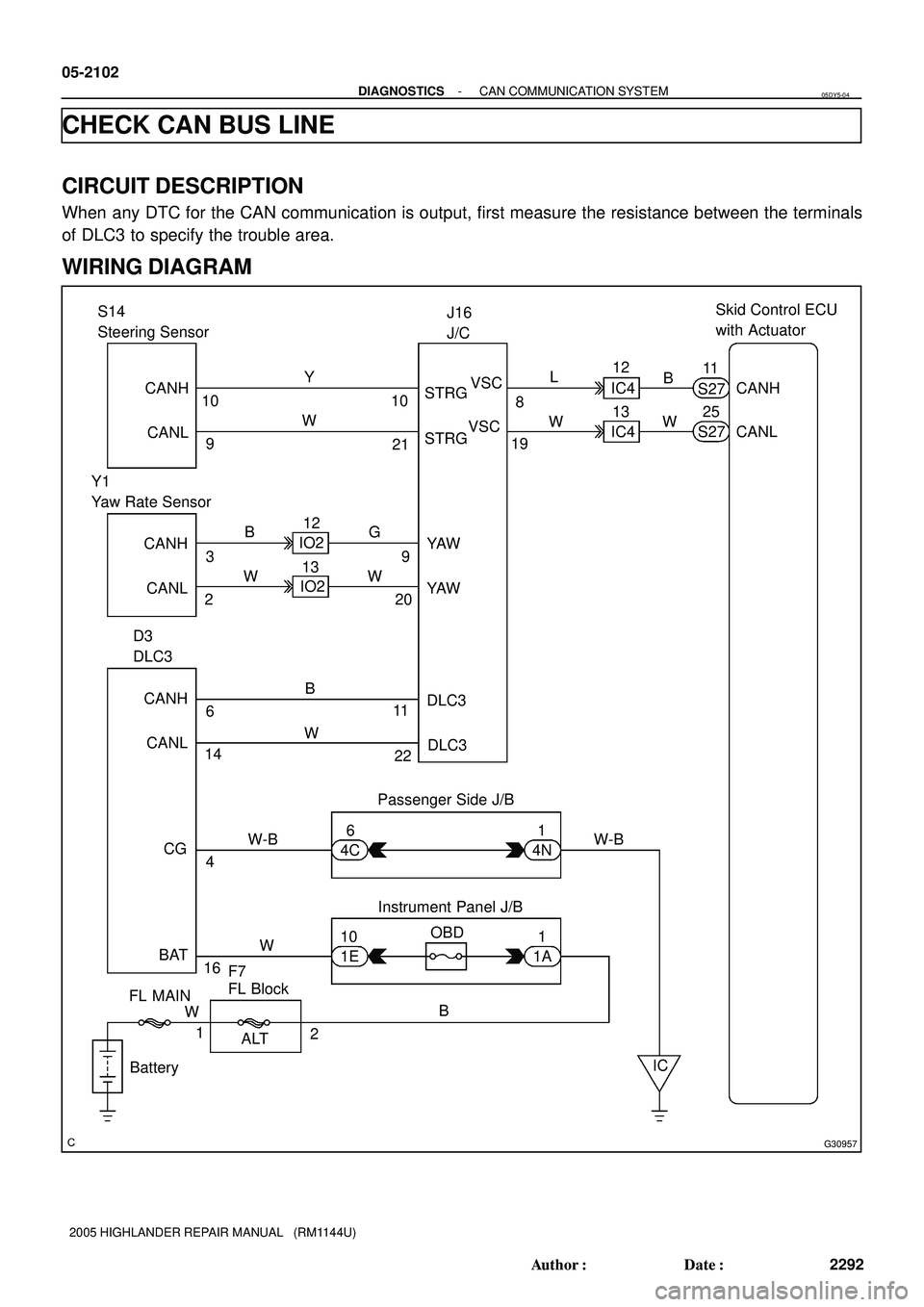

CHECK CAN BUS LINE
CIRCUIT DESCRIPTION
When any DTC for the CAN communication is output, first measure the resistance between the terminals
of DLC3 to specify the trouble area.
WIRING DIAGRAM
05DY5-04
Page 1341 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual 05MOJ-01
TLT CID Description of Test ValueUnit Conversion Description of Test Limit
Multiply by 0.625 and
subtract 40 [C]ECT sensor output when estimated ECT
has reached to malfunction criterionMalfu](/img/14/57457/w960_57457-1340.png "TOYOTA HIGHLANDER 2001 Service Repair Manual 05MOJ-01
TLT CID Description of Test ValueUnit Conversion Description of Test Limit
Multiply by 0.625 and
subtract 40 [C]ECT sensor output when estimated ECT
has reached to malfunction criterionMalfu")
05MOJ-01
TLT CID Description of Test ValueUnit Conversion Description of Test Limit
Multiply by 0.625 and
subtract 40 [C]ECT sensor output when estimated ECT
has reached to malfunction criterionMalfunction criterion for thermostat 1 $01 05-24
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
214 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

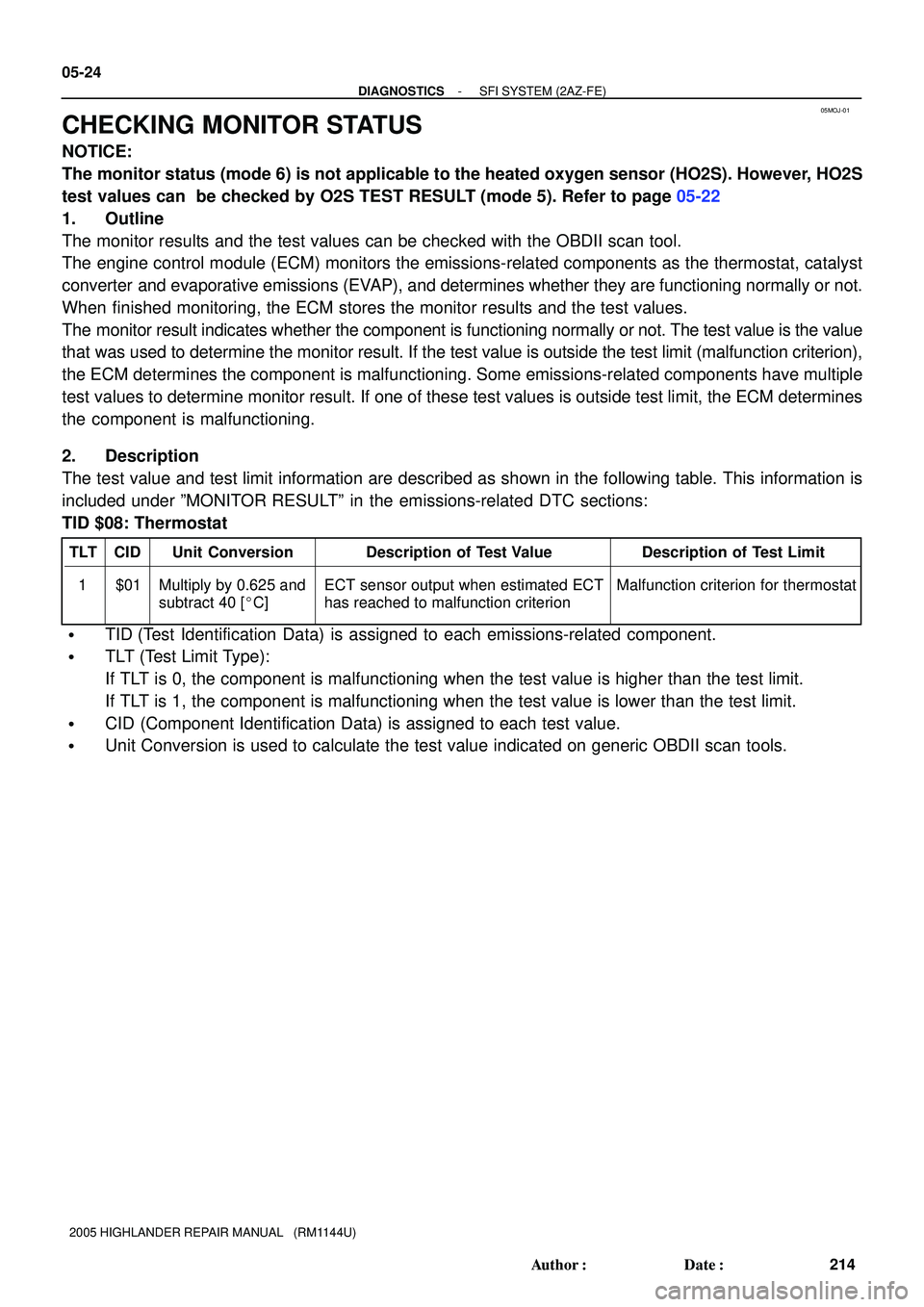

CHECKING MONITOR STATUS
NOTICE:
The monitor status (mode 6) is not applicable to the heated oxygen sensor (HO2S). However, HO2S
test values can be checked by O2S TEST RESULT (mode 5). Refer to page 05-22
1. Outline
The monitor results and the test values can be checked with the OBDII scan tool.
The engine control module (ECM) monitors the emissions-related components as the thermostat, catalyst
converter and evaporative emissions (EVAP), and determines whether they are functioning normally or not.
When finished monitoring, the ECM stores the monitor results and the test values.
The monitor result indicates whether the component is functioning normally or not. The test value is the value
that was used to determine the monitor result. If the test value is outside the test limit (malfunction criterion),
the ECM determines the component is malfunctioning. Some emissions-related components have multiple
test values to determine monitor result. If one of these test values is outside test limit, the ECM determines
the component is malfunctioning.
2. Description
The test value and test limit information are described as shown in the following table. This information is
included under ºMONITOR RESULTº in the emissions-related DTC sections:
TID $08: Thermostat
TID (Test Identification Data) is assigned to each emissions-related component.
TLT (Test Limit Type):
If TLT is 0, the component is malfunctioning when the test value is higher than the test limit.
If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.
CID (Component Identification Data) is assigned to each test value.
Unit Conversion is used to calculate the test value indicated on generic OBDII scan tools.
