'05 HIGHLANDER_U (L/O 0409)
335
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Do not connect it to or near any part
that moves when the engine is
cranked.
CAUTION
When making the connections, to
avoid serious injury, do not lean over
the battery or accidentally let the
jumper cables or clamps touch any-
thing except the correct battery termi-
nals or the ground.
5. Start your engine in the normal way.
After starting, run it at about 2000 rpm
for several minutes with the accelerator
pedal lightly depressed.
6. Carefully disconnect the cables in the
exact reverse order: the negative cable
and then the positive cable.
7. Carefully dispose of the battery cover
clothsÐthey may now contain sulfuric
acid.
8. If removed, replace all the battery vent
plugs.
If the cause of your battery discharging is
not apparent (for example, lights left on),
you should have it checked at your Toyota
dealer.If the first start attempt is not success-
ful...
Check that the clamp on the jumper
cables are tight. Recharge the discharged
battery with the jumper cables connected
for several minutes and restart your en-
gine in the normal way.
If the another attempt is not successful,
the battery may be depleted. Have it ch-
ecked at your Toyota dealer.If your engine stalls while driving...
1. Reduce your speed gradually, keeping
a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3. Turn the ignition key to ACCº or
LOCKº, and try starting the engine
again.
If the engine will not start, see If your
vehicle will not startº on page 332 in this
Section.CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
If your engine stalls while
driving

'05 HIGHLANDER_U (L/O 0409)
408
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Recommended oil viscosity:
SAE 5W- 30
Outside temperature
Please contact your Toyota dealer for fur-
ther details.COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
2AZ- FE engine
With rear heater 7.7 (8.1, 6.8)
8.5 (9.0, 7.5)
*
Without rear heater
6.3 (6.7, 5.5)
7.1 (7.5, 6.2)
*
3MZ- FE engine
With rear heater 10.7 (11.3, 9.4)
11.4 (12.0, 10.0)
*
Without rear heater
9.4 (9.9, 8.3)
10.1 (10.7, 8.9)
*
*
: Vehicles with towing package
Coolant type:
Toyota Super Long Life Coolantº is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use Toyota Super Long Life
Coolantº or similar high quality ethylene
glycol based non- silicate, non- amine,
non- nitrite, and non- borate coolant with
long- life hybrid organic acid technology.
(Coolant with long- life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.Please contact your Toyota dealer for
further details.
BATTERY
Open voltage
* at 20
C (68
F):
12.6Ð12.8V Fully charged
12.2Ð12.4V Half charged
11.8Ð12.0V Discharged
*: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates:
5 A max.
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt.,
Imp. qt.):
Up to 3.5 (3.7, 3.1)
Fluid type:
Toyota Genuine ATF Type T- IV
Change automatic transmission fluid only
as necessary.

'05 HIGHLANDER_U (L/O 0409)
411
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Instrument panel
Fuses (type A)
1. A/F 25 A: Air fuel ratio sensor
2. CRT 7.5 A: Rear seat entertainment
system, navigation system
3. STARTER 7.5 A: Multiport fuel injection
system/sequential multiport fuel injec-
tion system
4. EFI NO.2 10 A: Multiport fuel injection
system/sequential multiport fuel injec-
tion system
5. ETCS 10 A: Multiport fuel injection
system/sequential multiport fuel injec-
tion system
Engine compartment
(with daytime running light system)
6. RR HTR 15 A: Rear air conditioning
system
7. H- LP RH LWR 15 A: Right- hand head-
light (low beam)
8. H- LP LH LWR 15 A: Left- hand head-
light (low beam)
9. ALT- S 7.5 A: Charging system
10. POWER OUTLET2 20 A: Power outlets
11. TOWING 20 A: Trailer lights
12. HORN 10 A: Horns
13. SECURITY 15 A: Theft deterrent sys-
tem14. H- LP RH UPR 10 A: Right- hand head-
light (high beam)
15. ECU´B 7.5 A: Theft deterrent system,
air conditioning system, gauges and
meters, multiplex communication sys-
tem, electronic moon roof, front pas-
senger occupant classification system
16. EFI NO.1 20 A: Multiport fuel injection
system/sequential multiport fuel injec-
tion system, fuel pump
17. DOOR LOCK 25 A: Power door lock
system, theft deterrent system
18. H- LP LH UPR 10 A: Left- hand head-
light (high beam)
19. RAD NO.1 25 A: Audio system
20. DOME 10 A: Personal lights, interior
lights, vanity lights, ignition switch light,
wireless remote control system, gauges
and meters, navigation system
21. HAZARD 15 A: Emergency flashers,
instrument panel light, trailer lights
22. SPARE 7.5 A: Spare fuse
23. SPARE 15 A: Spare fuse
24. SPARE 25 A: Spare fuse

'05 HIGHLANDER_U (L/O 0409)
412
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
25. IGN 10 A: Gauges and meters, SRS
airbag system, multiport fuel injection
system/sequential multiport fuel injec-
tion system, front passenger occupant
classification system
26. RAD NO.2 7.5 A: Audio system, shift
lock system, navigation system, rear
seat entertainment system, air condi-
tioning system, multiplex communica-
tion system
27. CIG 15 A: Cigarette lighter
28. P RR DOOR 20 A: Power windows
29. PWR OUTLET1 15 A: Power outlets
30. FR FOG 20 A: Front fog lights
31. ECU- IG 10 A: Electric moon roof,
anti- lock brake system, vehicle stability
control system, shift lock system,
charging system, starting system
32. WIPER 25 A: Windshield wipers and
washer
33. D RR DOOR 20 A: Power windows
34. D FR DOOR 25 A: Power windows,
door courtesy lights, power door lock
system
35. S/ROOF 20 A: Electric moon roof36. HEATER 10 A: Air conditioning system,
electric cooling fan, rear window defog-
ger, outside rear view mirror defogger,
gauges and meters
37. IG1 7.5 A: Back- up lights, vehicle sta-
bility control system, multiport fuel in-
jection system/sequential multiport fuel
injection system, outside rear view mir-
ror heaters, power door lock system,
wireless remote control system, naviga-
tion system, multiplex communication
system
38. RR WIP 15 A: Rear window wiper
39. STOP 20 A: Stop lights, high mounted
stoplight, anti- lock brake system, ve-
hicle stability control system, shift lock
system, trailer lights, multiplex commu-
nication system, multiport fuel injection
system/sequential multiport fuel injec-
tion system
40. OBD 7.5 A: On- board diagnosis sys-
tem
41. SEAT HTR 15 A: Seat heaters
42. IG2 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, charging system, starter sys-
tem
43. WASHER 20 A: Low windshield washer
fluid level warning light44. FR DEF 20 A: Air conditioning system,
outside rear view mirror defoggers
45. P FR DOOR 20 A: Power windows,
door courtesy lights, multiplex commu-
nication system
46. TAIL 10 A: Tail lights, license plate
lights, instrument panel lights, front fog
lights, front side marker lights, rear
side marker lights, parking lights
47. PANEL 7.5 A: Instrument panel lights,
trailer lights
48. DRL 7.5 A: Daytime running light sys-
tem
Fuses (type B)
49. AM2 30 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, starting system
50. ABS2 50 A: Anti- lock brake system,
vehicle stability control system
51. ABS1 30 A: Anti- lock brake system,
vehicle stability control system
52. HTR 50 A: Air conditioning system
53. RDI 30 A: Electric cooling fans
54. RR DEF 30 A: Rear window defoggers
55. CDS 30 A: Electric cooling fans

2005 HIGHLANDER (EWD592U)
70
Charging
10A
ECU- IG
1B 57. 5A
ALT- S
2H 1
140A ALT
2
1
F 7
LIGS B
IC Regulator A 4A2A1B1 C 21
R- B
W- L
RLR
W- L W- L
W EB2 8 EB210
W
FL MAIN
3. 0W
W
Battery
W- G
B 29
GR
MPX2GR
B 18MPX1
MPX1
A 10B 6
MPX2
IB21
IF35MPX1
8 7
MPX2
P 5
4A 5
4F 7
IB2 8
W O
VSB
OY GRBR From Power Sour ce System (
See Page 62)
B 9(
A)
, B10(
B)
G 1(
A)
, G 2(
B)
E 6(
B)
, E 9(
C)
Body ECU Engine Control ModuleFusible Link Block
Generator
Power Window Master SW
with ECU

2005 HIGHLANDER (EWD592U)
72
Charging
G2 (B) Generator
(B) 1-Ground : 13.2-14.8 volts with the engine running at 2000 rpm
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
A10A42E6B42G2B40 (2AZ-FE)
A11B42E9C42G543
A1742F738 (3MZ-FE)P544
B9A42F740 (2AZ-FE)S30A43
B10B42G1A38 (3MZ-FE)S31B43
C11A42G1A40 (2AZ-FE)
C12B42G2B38 (3MZ-FE)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1B29Engine Room Main Wire and Instrument Panel J/B (Lower Finish Panel)
1G29Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
1K28Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)
2A27Engine Room Main Wire and Engine Room J/B (Engine Compartment Left)2H27Engine Room Main Wire and Engine Room J/B (Engine Compartment Left)
3A
3B303C30
Instrument Panel Wire and Center J/B (Behind the Instrument Panel Center)3EInstrument Panel Wire and Center J/B (Behind the Instrument Panel Center)
3J313K31
4A33Cowl Wire and Passenger Side J/B (Right Side of Grove Box)4F33Cowl Wire and Passenger Side J/B (Right Side of Grove Box)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
EB248 (3MZ-FE)Engine Wire and Engine Room Main Wire (Front Side of Engine Room R/B)EB250 (2AZ-FE)Engine Wire and Engine Room Main Wire (Front Side of Engine Room R/B)
IB252Front Door LH Wire and Cowl Wire (Left Kick Panel)
IC352Engine Room Main Wire and Cowl Wire (Left Cowl Side Panel)
IF352Instrument Panel Wire and Cowl Wire (Right Side of Instrument Panel J/B)
IL254Instrument Panel Wire and Cowl Wire (Upper Side of Passenger Side J/B)
: GROUND POINTS
CodeSee PageGround Points Location
IB52Right Instrument Panel Brace
Service Hints

'05 HIGHLANDER_U (L/O 0409)
138
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
(a) Brake System Warning Light and
Buzzer
This light comes on in the following cases
when the ignition key is in the ONº posi-
tion.

When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
ONº position even after the parking brake
is released.
If the vehicles speed rises above 5 km/h
(3 mph) with the parking brake applied, a
buzzer sounds.

When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following cases:

The light does not come on even if the
parking brake is applied when the igni-
tion key is in the ONº position.

The light does not come on even if the
ignition key is turned on with the park-
ing brake released.A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.

The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.

The brake system warning light re-
mains on together with the ABSº
warning light.
In this case, not only the anti- lock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver's Seat Belt Reminder Light
and Buzzer
The light and buzzer act as a reminder to
buckle up the driver's seat belt.
Once the ignition key is turned to ONº,
the reminder light flashes and buzzer
sounds if the driver 's seat belt is not fas-
tened. Unless the driver fastens the belt,
the light continues flashing and the buzzer
stops after about 4 to 8 seconds.
(c) Front Passenger 's Seat Belt
Reminder Light
The light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the ignition key is turned to ONº,
the reminder light flashes if a passenger
sits in the front passenger seat and does
not fasten the seat belt.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light may flash.
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.

2005 HIGHLANDER (EWD592U)
221
With the ignition SW turned on, the current flows to TERMINAL 17 of the front wiper and washer SW, TERMINAL 2 of the
front wiper motor through the WIPER fuse, the current flows to TERMINAL 1 of the washer motor through WASHER fuse.
1. Low Speed Position
With the wiper SW turned to LOW position, the current flows through TERMINAL 17 of the front wiper and washer SW to
TERMINAL 7 to TERMINAL 1 of the front wiper motor to TERMINAL 5 to GROUND and causes the wiper motor to run at low
speed.
2. High Speed Position
With the wiper SW turned to HIGH position, the current flows through TERMINAL 17 of the front wiper and washer SW to
TERMINAL 8 to TERMINAL 4 of the front wiper motor to TERMINAL 5 to GROUND and causes the wiper motor to run at
high speed.
3. INT Position
With the wiper SW turned to INT position, the relay operates and the current which is connected by relay function flows
through TERMINAL 17 of the front wiper and washer SW to TERMINAL 2 to GROUND. This flow of current operates the
intermittent circuit and the current flows through TERMINAL 17 of the front wiper and washer SW to TERMINAL 7 to
TERMINAL 1 of the front wiper motor to TERMINAL 5 to GROUND and the wiper functions.
The intermittent operation is controlled by a condenser's charged and discharged function installed in the relay and the
intermittent time is controlled by a time control SW to charge the charging time of condenser.
4. Washer Continuous Operation
With the washer SW pulled to on, the current flows through TERMINAL 1 of the washer motor to TERMINAL 2 to TERMINAL
11 of the front wiper and washer SW to TERMINAL 2 to GROUND and causes the washer motor to run and the window
washer to jet. This causes the current to flow to washer continuous operation circuit in TERMINAL 17 of the front wiper and
washer SW to TERMINAL 7 to TERMINAL 1 of the front wiper motor to TERMINAL 5 to GROUND and the wiper functions.
C14 Combination SW
2-Ground : Always continuity
17-Ground : Approx. 12 volts with the ignition SW at ON position
7-Ground : Approx. 12 volts with the front wiper and washer SW at LOW position
Approx. 12 volts 2 to 11 seconds intermittently with the front wiper and washer SW at INT position
16-Ground : Approx. 12 volts with the ignition SW on unless the front wiper motor at STOP position
8-Ground : Approx. 12 volts with the front wiper and washer SW at HIGH position
F6 Front Wiper Motor
2-3 : Closed unless the front wiper motor at STOP position
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
C1442F640 (2AZ-FE)F1440 (2AZ-FE)
F638 (3MZ-FE)F1438 (3MZ-FE)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1B29Engine Room Main Wire and Instrument Panel J/B (Lower Finish Panel)
1D29Cowl Wire and Instrument Panel J/B (Lower Finish Panel)1E29Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
4C33Cowl Wire and Passenger Side J/B (Right Side of Grove Box)4M32Cowl Wire and Passenger Side J/B (Right Side of Grove Box)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
IC252Engine Room Main Wire and Cowl Wire (Left Cowl Side Panel)
IK354Engine Room Main Wire and Cowl Wire (Right Cowl Side Panel)
System Outline
Service Hints

'05 HIGHLANDER_U (L/O 0409)
395
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
DO- IT- YOURSELF MAINTENANCE
Electrical components
Checking battery condition396 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions397 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses398 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid399 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7- 3

'05 HIGHLANDER_U (L/O 0409)

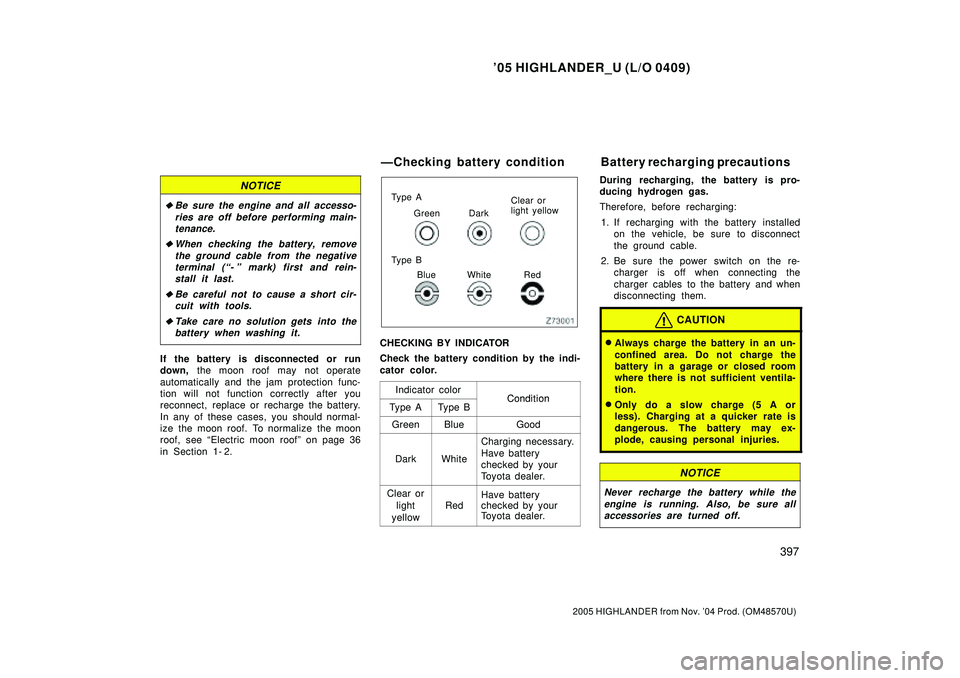

397
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
NOTICE

Be sure the engine and all accesso-
ries are off before performing main-
tenance.

When checking the battery, remove
the ground cable from the negative
terminal (- º mark) first and rein-
stall it last.

Be careful not to cause a short cir-
cuit with tools.

Take care no solution gets into the
battery when washing it.
If the battery is disconnected or run
down, the moon roof may not operate
automatically and the jam protection func-
tion will not function correctly after you
reconnect, replace or recharge the battery.
In any of these cases, you should normal-
ize the moon roof. To normalize the moon
roof, see Electric moon roofº on page 36
in Section 1- 2.
Ty p e A
Green DarkClear or
light yellow
Ty p e B
Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e BCondition
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear or
light
yellow
RedHave battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed
on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re-
charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION

Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.

Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
ÐChecking battery condition Battery recharging precautions
