'05 HIGHLANDER_U (L/O 0409)
400
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle's paint.
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION

To prevent burning yourself, do not
replace the light bulbs while they
are hot.

Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.
Replacing light bulbsÐ

'05 HIGHLANDER_U (L/O 0409)
401
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Light bulbsBulb
No.WTy p e
Headlights (low)900651A
Headlights (high)900560B
Front fog lights900651A
Front turn signals/
parking and front
side marker lights
Ð21/5C
Rear side marker
lights1685E
Rear turn signal
lightsÐ21D
Stop/tail lights744321/5E
Back- up lights744021E
High mounted stop
light92116E
License plate
lightsÐ5E
Interior lightsÐ8F
Personal lightsÐ5E
Vanity lightsÐ2F
Door courtesy
lightsÐ5E
Glove box light#741.2E
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs
1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.
ÐHeadlights

'05 HIGHLANDER_U (L/O 0409)
402
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

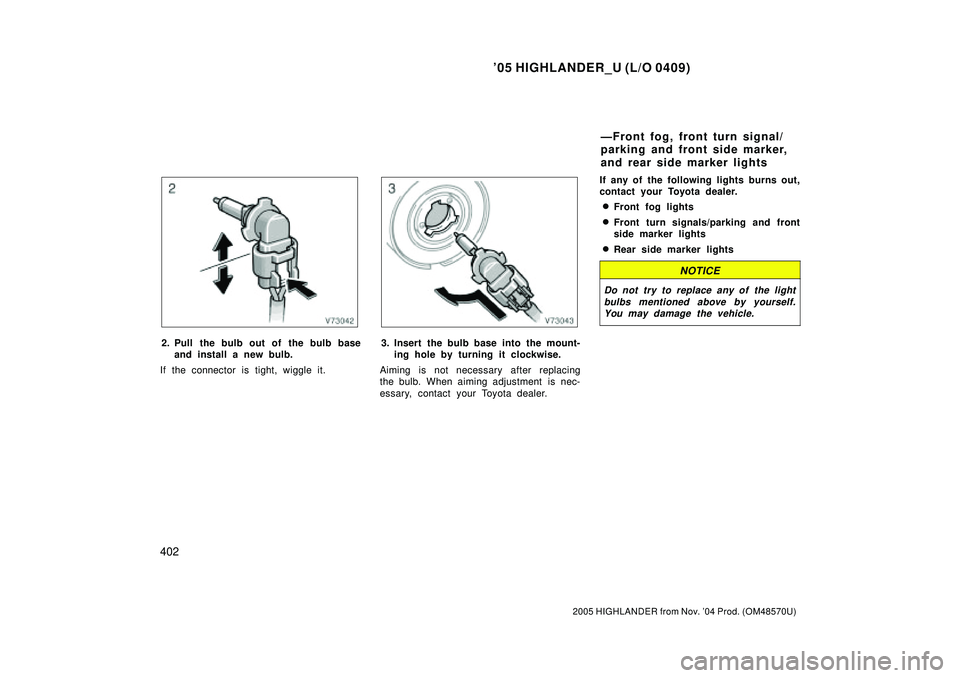

2. Pull the bulb out of the bulb base
and install a new bulb.
If the connector is tight, wiggle it.3. Insert the bulb base into the mount-
ing hole by turning it clockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.If any of the following lights burns out,
contact your Toyota dealer.

Front fog lights

Front turn signals/parking and front
side marker lights

Rear side marker lights
NOTICE
Do not try to replace any of the light
bulbs mentioned above by yourself.
You may damage the vehicle.
ÐFront fog, front turn signal/
parking and front side marker,
and rear side marker lights
