'05 HIGHLANDER_U (L/O 0409)
2
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and personal
lights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Automatic transmission selector lever
12. Rear ashtray
13. Input terminal adapter
14. Power outlets
15. Cup holder
16. Container
17. Front ashtray
18. Audio remote control switches
19. Hood lock release lever
20. Parking brake pedal
21. Window lock switch
Instrument panel overview

Vehicles with rear seat entertainment system (view A)

'05 HIGHLANDER_U (L/O 0409)
3
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and personal
lights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Automatic transmission selector lever
12. Rear ashtray
13. Cup holder
14. Container
15. Power outlet
16. Front ashtray
17. Audio remote control switches
18. Hood lock release lever
19. Parking brake pedal
20. Window lock switch
Vehicles without rear seat entertainment system (view A)

2005 HIGHLANDER (EWD592U)
250
Garage Door Opener
10A
DOME
2A 3
IK3 12
4H 6
4D 13
IE1 1
2 1
IE1 8
4D 5
4L 74N1
IC
R V B W W- B W- B W- B
W- B
V 9
4M 6
IA 1E 4
1D 14
W- B
W- B Fr om Power Source System (
See Page 62)
Gar age Door Opener

2005 HIGHLANDER (EWD592U)
251
V9 Garage Door Opener
1-Ground : Always approx. 12 volts
2-Ground : Always continuity
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
V945
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1D29Cowl Wire and Instrument Panel J/B (Lower Finish Panel)1E29Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
2A27Engine Room Main Wire and Engine Room J/B (Engine Compartment Left)
4D334H33
4LCowl Wire and Passenger Side J/B (Right Side of Grove Box)
4M32
g(g )
4N
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
IE152Roof Wire and Cowl Wire (Near the Bottom of Left Front Pillar)
IK354Engine Room Main Wire and Cowl Wire (Right Cowl Side Panel)
: GROUND POINTS
CodeSee PageGround Points Location
IA52Left Cowl Side Panel
IC52Right Cowl Side Panel
Service Hints

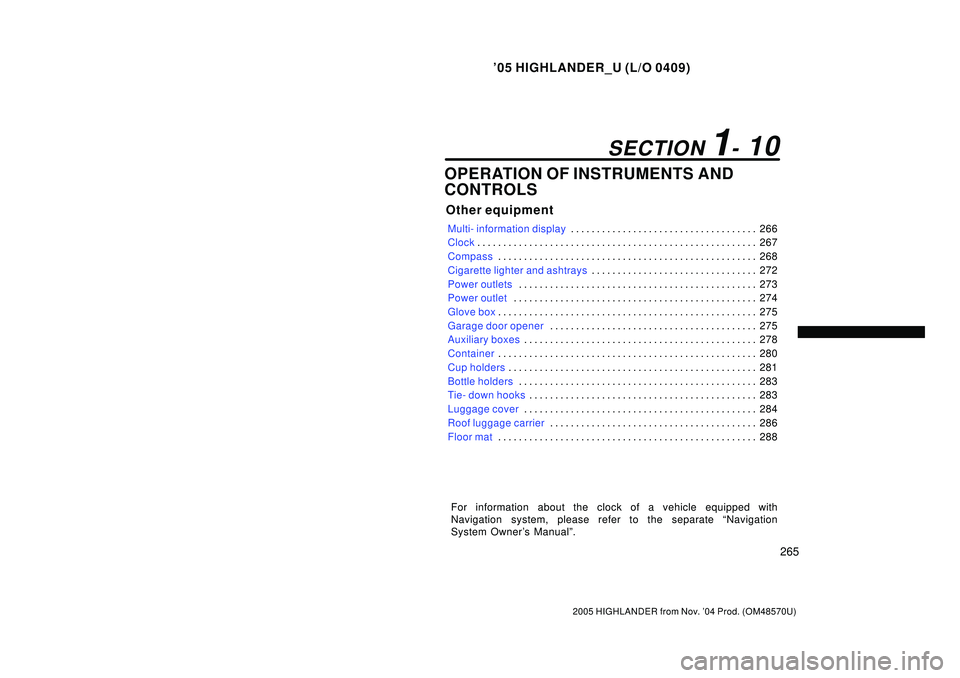

'05 HIGHLANDER_U (L/O 0409)
265
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi- information display266 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock267 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compass268 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays272 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets273 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet274 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box275 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener275 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes278 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Container280 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders281 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bottle holders283 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie- down hooks283 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage cover284 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof luggage carrier286 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat288 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For information about the clock of a vehicle equipped with
Navigation system, please refer to the separate Navigation
System Owner's Manualº.
SECTION 1- 10

'05 HIGHLANDER_U (L/O 0409)
275
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Appliances with high initial peak watt-
age: cathode- ray tube type televisions,
compressor- driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer-
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.
To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
globe box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
The garage door opener (
Universal Transceiver) is manufactured
under license from HomeLink and can
be programmed to operate garage
doors, gates, entry doors, door locks,
home lighting systems, and security
systems, etc.
Glove box Garage door opener

'05 HIGHLANDER_U (L/O 0409)
276
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
(a) Programming the HomeLink
The HomeLink in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
, install a new battery in the
hand- held transmitter prior to program-
ming.
The battery side of the hand- held trans-
mitter must be pointed away from the
HomeLink
 during the programming pro-
cess.
For Canadian users, follow the procedure
in Programming an entrance gate/pro-
gramming all devices in the Canadian
marketº.
1. Decide which of 3 HomeLink
 buttons
you want to program.
2. Place your hand- held garage transmit-
ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
.
Keep the indicator light on the HomeLink

in view while programming.3. Simultaneously press and hold the
hand- held garage transmitter button
along with the selected HomeLink
 but-
ton.
4. When the indicator light on the
HomeLink
 changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.
5. Test the operation of the HomeLink
 by
pressing the newly programmed button.
If programming a garage door opener,
check to see if the garage door opens
and closes.
If the garage door does not operate, iden-
tify if your garage transmitter is of the
Rolling Codeº type. Press and hold the
programmed HomeLink
 button. The ga-
rage door has the rolling code feature if
the indicator light (on the HomeLink
)
flashes rapidly and then remains lit after
2 seconds. If your garage transmitter is
the Rolling Codeº type, proceed to the
heading Programming a rolling code sys-
temº.
6. Repeat steps 2 through 5 for each re-
maining HomeLink
 button to program
another device.Programming a rolling code system
If your device is Rolling Codeº
equipped, it is necessary to follow
steps 1 through 4 under the heading
Programming the HomeLink
º before
proceeding with the steps listed below.
1. Locate the trainingº button on the ceil-
ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner 's
guide supplied by the garage door
opener manufacturer for the location of
this trainingº button.
2. Press the trainingº button on the ceil-
ing mounted garage door opener motor.
Following this step, you have 30 seconds
in which to initiate step 3 below.
3. Press and release the vehicle's pro-
grammed HomeLink
 button twice. The
garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door.

'05 HIGHLANDER_U (L/O 0409)
277
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
The ceiling mounted garage door opener
motor should now recognize the
HomeLink
 unit and be able activate the
garage door up/down.
4. Repeat steps 1 through 3 for each re-
maining HomeLink
 button to program
another rolling code system.
Programming an entrance gate/program-
ming all devices in the Canadian market
1. Decide which of the 3 HomeLink
 but-
tons you want to program.
2. Place your hand- held gate/device
transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the
HomeLink
.
Keep the indicator light on the HomeLink

in view while programming.
3. Press and hold the selected
HomeLink
 button.
4. Continuously press and release (cycle)
the hand- held gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the
HomeLink
 changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.6. Test the operation of the HomeLink
 by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re-
maining HomeLink
 button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink

buttons cannot be
erased, however, to reprogram a single
button, follow the procedure Programming
the HomeLink
º.
(b) Operating the HomeLink

To operate the HomeLink, press the
appropriate HomeLink button to activate
the programmed device. The HomeLink
indicator light should come on. The
HomeLink continues to send the signal
for up to 20 seconds as long as the
button is pressed.(c) Erasing the entire HomeLink

memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink

memory.

'05 HIGHLANDER_U (L/O 0409)
278
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
CAUTION
When programming the HomeLink
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.
This device complies with Part 15 of the
FCC Rules and with RSS- 210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WARNING: This transmitter has been
tested and complies with FCC and IC
rules. Changes or modifications not
expressly approved by the party re-
sponsible for compliance could void
the user's authority to operate the
device.To use the auxiliary boxes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop,
always keep the auxiliary box
closed while driving.
Type AÐIt is designed for holding
a light objects, do not place any
heavy objects in it. Heavy objects
may cause the holder to open and
contents to fly out resulting in inju-
ries.
NOTICE
Type AÐDuring hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.
Auxiliary boxes

2005 HIGHLANDER (EWD592U)
316
I GROUND POINT
Theft Deterr ent
Indicator Light
Remote Control
Mirror SW
TRAC Off SW
Combination Meter
Seat Heater SW
RH
Option Connector 2
Combination Meter
Fuel Sender A/C Control
Assembly
Blower Resistor
Cigarette Lighter
Fro nt Powe r Out let
Electronically
Controlled
Transmission
Pattern Select SW
Glove Box Light
Body ECU
Main SW
Seat Heater SW LH3F10
II16
IR211 3J6
3J 10
3A6
3G4
3D8
3H10
3B3
3F12
3K73D5
3F11
3E11
3J4
3E10
3K6
3J 11
3B12
3B6 W- B
W- B W- B
W- B
W- B
W- B
W- B
W- B
W- B W- BW- B
W- B
W- B
W- B
W- B
W- B
W- B
R
3F13
3K2
IBW- B
BR BR (
GND2)
Radi o and PlayerBR Telltale Light
AssemblyW- B Gateway ECU3G6
3G5
W- B W- B
Multi- Display 3I6
3I2W- B
W- B 3G9
W- B W- B W- B(
*3) Sliding Roof
Control ECU
Vanity Light LH
Vanity Light RH
Interior Light B 1W- B W- B(
*2)
W- B
W- B Overhead J/BW- B
B 1
W- B
Shift Lock ECU 3D9
W- B
BH114D DO
O Y V W- B* 2 : w/ Moon Roof
* 3 : w/o Moon Roof
3H8
Transmission Shift
Main SWW- B
Navigation
ECU (
GND1)
The ft
Deterrent ECU (
E) (
E)
(
GND)
(
CG) Garage Door Opener
Transmission Control
SW
Indicator Light
Wire Sub Assembly
Junction
Connector J13
Radi o and Player
