'05 HIGHLANDER_U (L/O 0409)
338
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

Make sure to set the jack prop-
erly in the jack point. Raising
the vehicle with jack improper-
ly positioned will damage the
vehicle or may allow the ve-
hicle to fall off the jack and
cause personal injury.

Never get under the vehicle
when the vehicle is supported
by the jack alone.

Use the jack only for lifting
your vehicle during wheel
changing.

Do not raise the vehicle with
someone in the vehicle.

When raising the vehicle, do
not place any objects on top
of or underneath the jack.

Raise the vehicle only high
enough to remove and change
the tire.NOTICE
Do not continue driving with a
deflated tire. Driving even a
short distance can damage a
tire and wheel beyond repair.
1. Get the required tools and
spare tire.
1. Spare tire
2. Front towing eyelet
3. Jack handle
4. Wheel nut wrench
5. Adapter socket
6. Jack
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
Ð R eq u ired to o ls an d sp are
tire

'05 HIGHLANDER_U (L/O 0409)
348
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
11. Check the air pressure of the re-
placed tire.
Adjust the air pressure to the specifi-
cation designated on page 410 in
Section 8. If the pressure is lower,
drive slowly to the nearest service
station and fill to the correct pressure.
Do not forget to reinstall the tire infla-
tion valve cap as dirt and moisture
could get into the valve core and
possibly cause air leakage. If the cap
is missing, have a new one put on as
soon as possible.
12.Restow all the tools, jack and
flat tire securely.
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified on page 410 in Sec-
tion 8 with a torque wrench. Have a
technician repair the flat tire and re-
place the spare tire with it.
Initial adjustment of the tire pres-
sure warning system is necessary
after you have replaced your tires
or wheels. See Tire pressure
warning systemº on page 161 in
Section 1- 7.CAUTION
Before driving, make sure all the
tools, jack and flat tire are se-
curely in place in their storage
location to reduce the possibility
of personal injury during a colli-
sion or sudden braking.
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
Two- wheel drive modelsÐ
Turn off the traction control system to
become unstuck to allow the tires to
spin enough to remove the vehicle from
the obstruction. (For details, see Trac-
tion control system (two- wheel drive
models)º on page 156 in Section 1- 7.)
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
ÐAfter changing wheels If your vehicle becomes stuck

'05 HIGHLANDER_U (L/O 0409)
352
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the transmission in Nº. The key
must be in ACCº (engine off) or ONº
(engine running).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.1. Remove the front towing eyelet cover
on the front bumper by pushing the
outside of the cover.2. Use the front towing eyelet in the lug-
gage compartment. Secure it to the
hole on the bumper by turning clock-
wise. (For the towing eyelet location,
see ÐRequired tools and spare tireº
on page 338 in this Section.)
ÐInstalling front towing eyelet

'05 HIGHLANDER_U (L/O 0409)

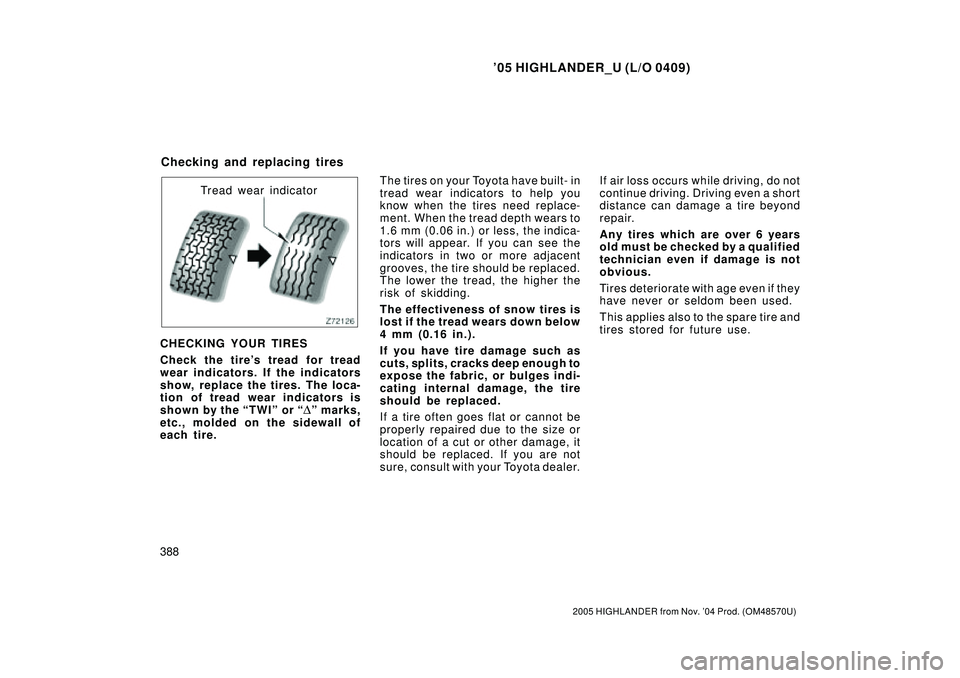

388
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Tread wear indicator
CHECKING YOUR TIRES
Check the tire's tread for tread
wear indicators. If the indicators
show, replace the tires. The loca-
tion of tread wear indicators is
shown by the TWIº or
Dº marks,
etc., molded on the sidewall of
each tire.The tires on your Toyota have built- in
tread wear indicators to help you
know when the tires need replace-
ment. When the tread depth wears to
1.6 mm (0.06 in.) or less, the indica-
tors will appear. If you can see the
indicators in two or more adjacent
grooves, the tire should be replaced.
The lower the tread, the higher the
risk of skidding.
The effectiveness of snow tires is
lost if the tread wears down below
4 mm (0.16 in.).
If you have tire damage such as
cuts, splits, cracks deep enough to
expose the fabric, or bulges indi-
cating internal damage, the tire
should be replaced.
If a tire often goes flat or cannot be
properly repaired due to the size or
location of a cut or other damage, it
should be replaced. If you are not
sure, consult with your Toyota dealer.If air loss occurs while driving, do not
continue driving. Driving even a short
distance can damage a tire beyond
repair.
An y ti res wh i ch are over 6 years
old must be checked by a qualified
technician even if damage is not
obvious.
Tires deteriorate with age even if they
have never or seldom been used.
This applies also to the spare tire and
tires stored for future use.
Checking and replacing tires
