If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the button
and then push again.
The wireless door locking or unlocking
function can be erased. For details, con-
tact your Toyota dealer.
SWITCHING BEEP SOUND ON AND OFF
You can switch the beep on and off. (The
beep is on initially and after battery re-
placement.)
To switch the beep on and off:
With the driver ’s door opened—
1. Insert the ignition key and remove it.
2. Within 5 seconds, insert the ignition key again and turn it to the “ON” posi-
tion.
3. After 10 seconds, push the same “LOCK”, “UNLOCK” or “PANIC” button
twice within 10 seconds.
Two beep sounds inform you that the
program has been switched on or off.
If this procedure is not followed exactly,
the beep will not operate as expected. Check the beep ON/OFF operation by
pushing the transmitter switch after you
finish this procedure. If the beep does not
operate as expected, repeat this proce-
dure from step 1.
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:
Push the “PANIC” switch once again.
Unlock any of side door or back door
with the key or wireless remote control
transmitter.
Turn the ignition key from the “LOCK”
to “ON” position.

’02 HIGHLANDER_U (L/O 0108)
292002 MY HIGHLANDER_U (OM48429U)
To deter the vehicle theft, the system
is designed to give an alarm if any of
the side doors, back door or hood is
forcibly unlocked or the battery termi-
nal is disconnected and then recon-
nected when the system is set.
The alarm blows the horn intermittently
and flashes the headlights, tail lights, turn
signal lights and interior lights. If any of
the side doors and back door is unlocked
forcibly, all the side doors and back door
will be automatically locked.SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobiliser system”
on page 15 for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:If any of the side doors and back door
is unlocked or the hood is forcibly
opened without the key or wireless re-
mote control transmitter.
If the battery terminal is disconnected
and then reconnected.
Hotwire the ignition.
The indicator light will come on when the
system is activating.
If any of the side doors and back door is
unlocked without the key or wireless re-
mote control transmitter, all the side doors
and back door will be automatically locked
again.
Theft deterrent system

’02 HIGHLANDER_U (L/O 0108)
2822002 MY HIGHLANDER_U (OM48429U)

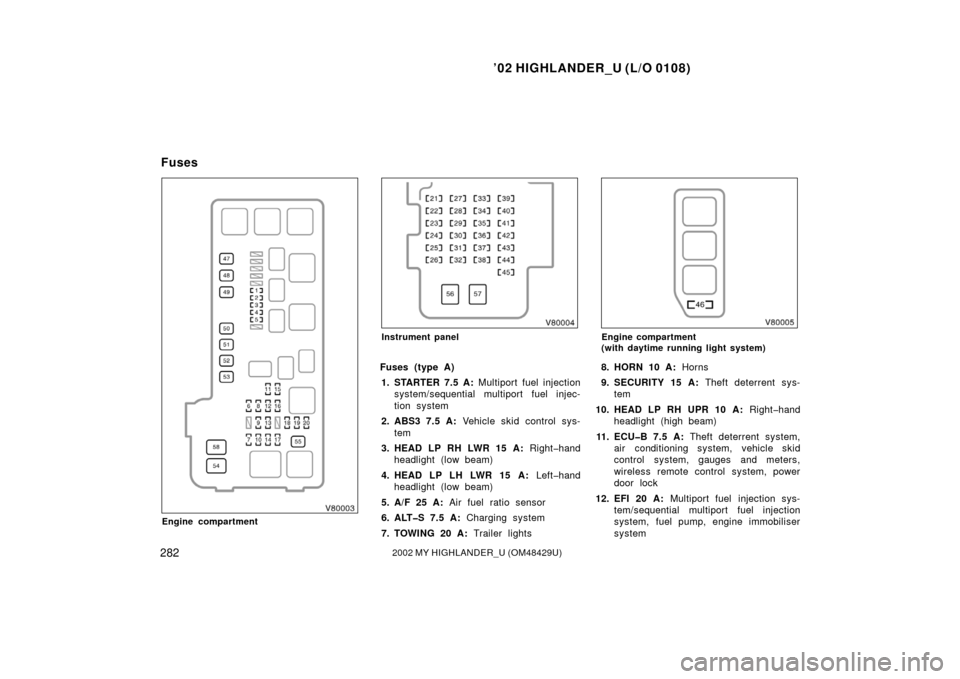

Engine compartment
Instrument panel
Fuses (type A)
1. STARTER 7.5 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
2. ABS3 7.5 A: Vehicle skid control sys-
tem
3. HEAD LP RH LWR 15 A: Righthand
headlight (low beam)
4. HEAD LP LH LWR 15 A: Lefthand
headlight (low beam)
5. A/F 25 A: Air fuel ratio sensor
6. ALTS 7.5 A: Charging system
7. TOWING 20 A: Trailer lights
Engine compartment
(with daytime running light system)
8. HORN 10 A: Horns
9. SECURITY 15 A: Theft deterrent sys-
tem
10. HEAD LP RH UPR 10 A: Righthand
headlight (high beam)
11. ECUB 7.5 A: Theft deterrent system,
air conditioning system, vehicle skid
control system, gauges and meters,
wireless remote control system, power
door lock
12. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, fuel pump, engine immobiliser
system
Fuses
