TOYOTA HIGHLANDER 2003 XU20 / 1.G Owners Manual

’03 HIGHLANDER_U (L/O 0208)
1752003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

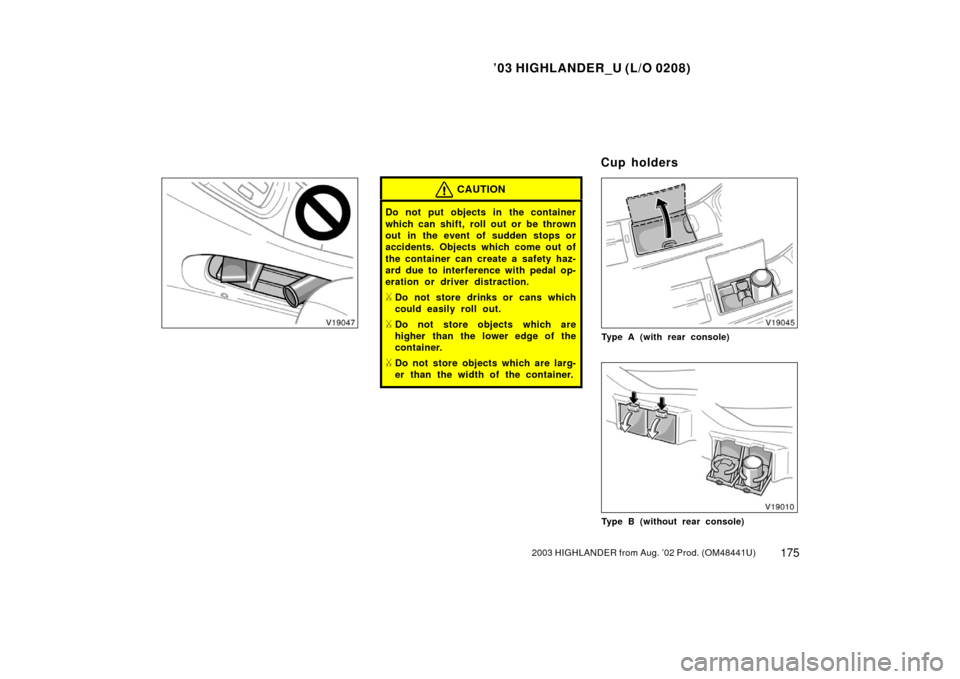

CAUTION
Do not put objects in the container
which can shift, roll out or be thrown
out in the event of sudden stops or
accidents. Objects which come out of
the container can create a safety haz-
ard due to interference with pedal op-
eration or driver distraction.
Do not store drinks or cans which
could easily roll out.
Do not store objects which are
higher than the lower edge of the
container.
Do not store objects which are larg-
er than the width of the container.
Type A (with rear console)
Type B (without rear console)
C u p ho ld ers

’03 HIGHLANDER_U (L/O 0208)
1762003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

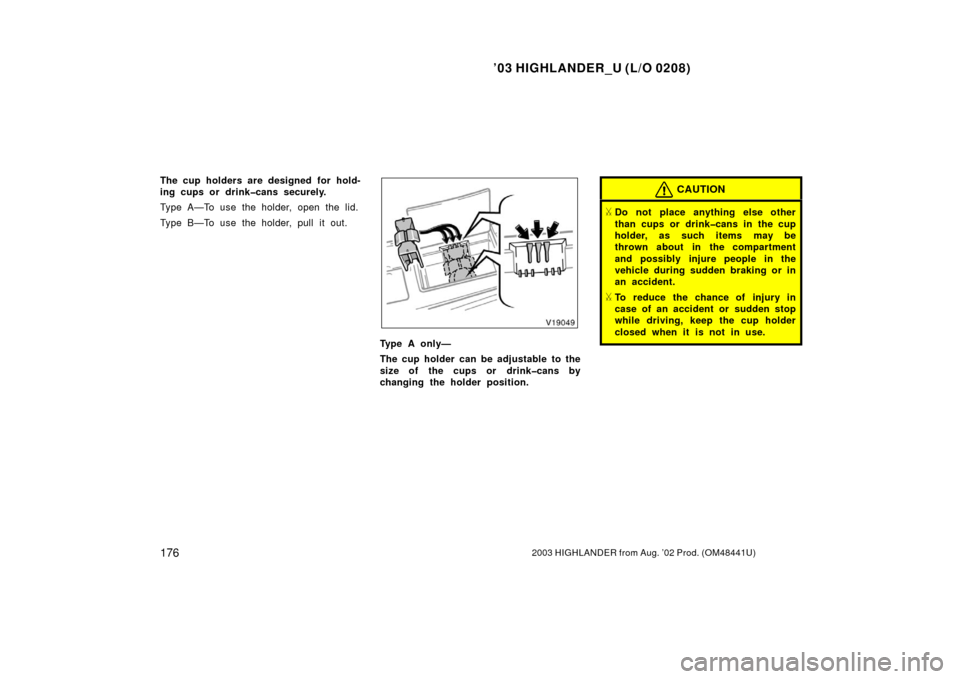

The cup holders are designed for hold-
ing cups or drinkcans securely.
Type A—To use the holder, open the lid.
Type B—To use the holder, pull it out.
Type A only—
The cup holder can be adjustable to the
size of the cups or drinkcans by
changing the holder position.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.

’03 HIGHLANDER_U (L/O 0208)
1772003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

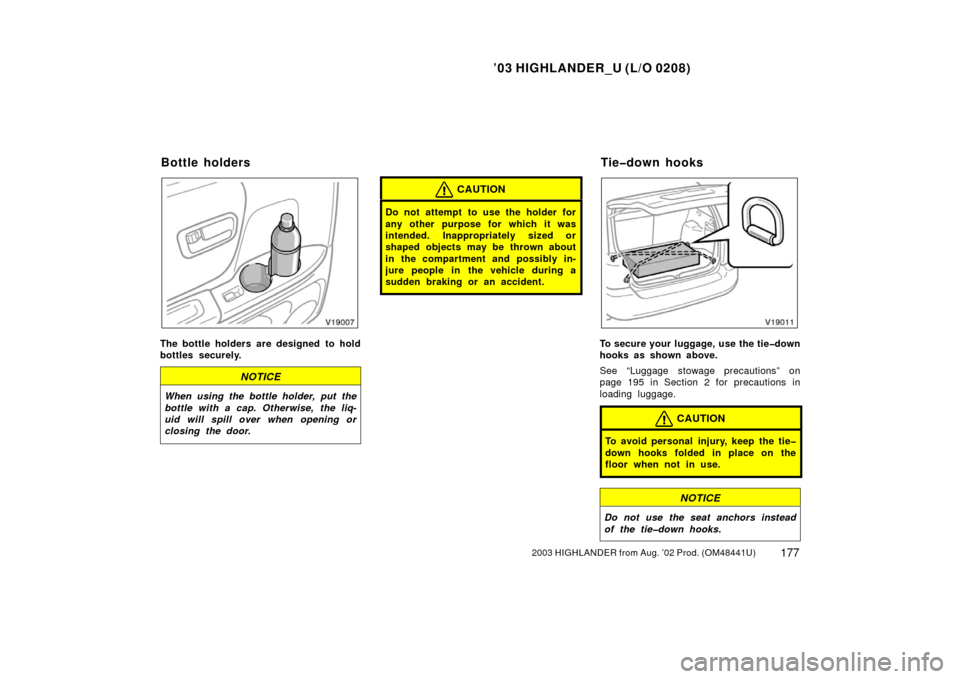

The bottle holders are designed to hold
bottles securely.
NOTICE
When using the bottle holder, put the
bottle with a cap. Otherwise, the liq-
uid will spill over when opening or
closing the door.
CAUTION
Do not attempt to use the holder for
any other purpose for which it was
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jure people in the vehicle during a
sudden braking or an accident.
To secure your luggage, use the tiedown
hooks as shown above.
See “Luggage stowage precautions” on
page 195 in Section 2 for precautions in
loading luggage.
CAUTION
To avoid personal injury, keep the tie
down hooks folded in place on the
floor when not in use.
NOTICE
Do not use the seat anchors instead
of the tiedown hooks.
Bottle holders Tiedown hooks

’03 HIGHLANDER_U (L/O 0208)
1782003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

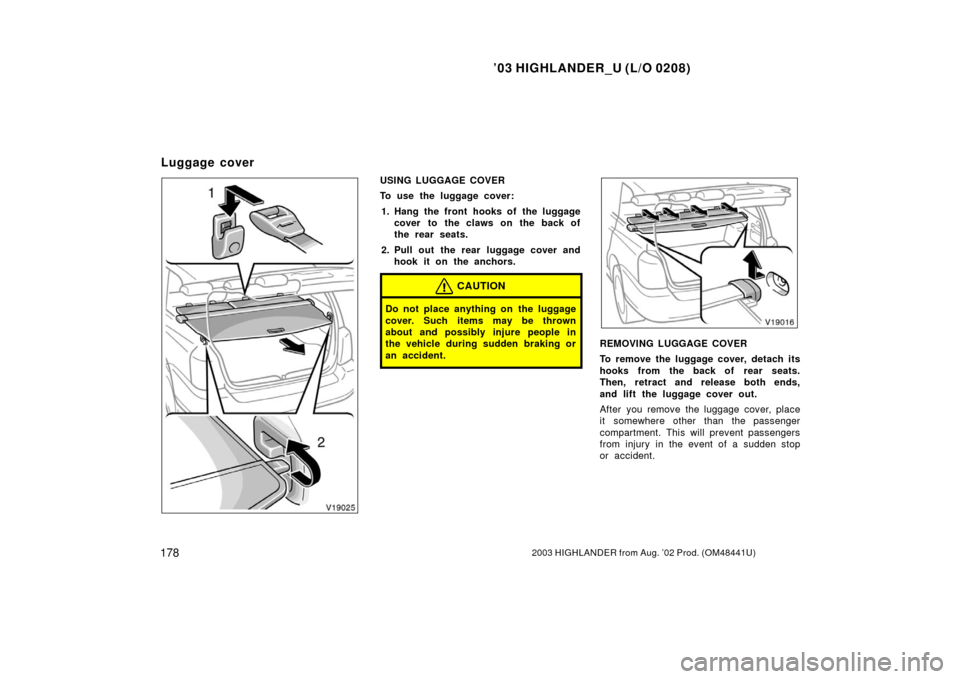

USING LUGGAGE COVER
To use the luggage cover:
1. Hang the front hooks of the luggage cover to the claws on the back of
the rear seats.
2. Pull out the rear luggage cover and hook it on the anchors.
CAUTION
Do not place anything on the luggage
cover. Such items may be thrown
about and possibly injure people in
the vehicle during sudden braking or
an accident.
REMOVING LUGGAGE COVER
To remove the luggage cover, detach its
hooks from the back of rear seats.
Then, retract and release both ends,
and lift the luggage cover out.
After you remove the luggage cover, place
it somewhere other than the passenger
compartment. This will prevent passengers
from injury in the event of a sudden stop
or accident.
Luggage cover

’03 HIGHLANDER_U (L/O 0208)
1792003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
Cross rails
Roof rails
The roof luggage carrier consists of
roof rails and sliding cross rails.
Upper
knob Side knobs
ADJUSTING THE POSITION OF CROSS
RAILS:
1. Turn the upper and side knobs coun- terclockwise to loosen the cross
rails .2. Sli de the cross rails to the appropri-
ate position for loading the luggages
and turn the side knobs clockwise to
tighten the cross rails securely.
Vehicles with electric moon roof—There
are cross rail stoppers on the roof rails
which help you prevent the cross rails
being touched with the tilted up moon
roof.
NOTICE
Vehicles with electric moon roof
only—Do not remove the cross rail
stoppers, or the moon roof may be
damaged when it is tilted.
Roof luggage carrier

’03 HIGHLANDER_U (L/O 0208)
1802003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
3. In order to fix the cross rails to the
appropriate length, turn the upper
knobs clockwise after tightening all
of the side knobs.
CAUTION
Make sure the cross rails are fixed
securely by pushing forward and rear-
ward them. Failure to do so may
cause an unexpected accident or se-
vere injury in the event of emergency
braking or a collision.
Follow the manufacture’s instructions and
precautions when installing the attach-
ments or their equivalent.
CAUTION
When you load cargo on the roof lug-
gage carrier, observe the following:
Place the cargo so that its weight
is distributed evenly between the
front and rear axles.
If loading long or wide cargo, never
exceed the vehicle overall length or
width. (See “Dimensions and
weight” on page 286 in Section 8
for information on your vehicle
overall length and width.)
Before driving, make sure the cargo
is securely fastened on the roof
luggage carrier.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
If driving for a long distance, on
rough roads, or at high speeds,
stop the vehicle now and then dur-
ing the trip to make sure the cargo
remains in its place.
Do not exceed 45 kg (100 lb.) cargo
weight on the roof luggage carrier.
NOTICE
When loading the luggages, be careful
not to scratch the surface of the
moon roof.

’03 HIGHLANDER_U (L/O 0208)
1812003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

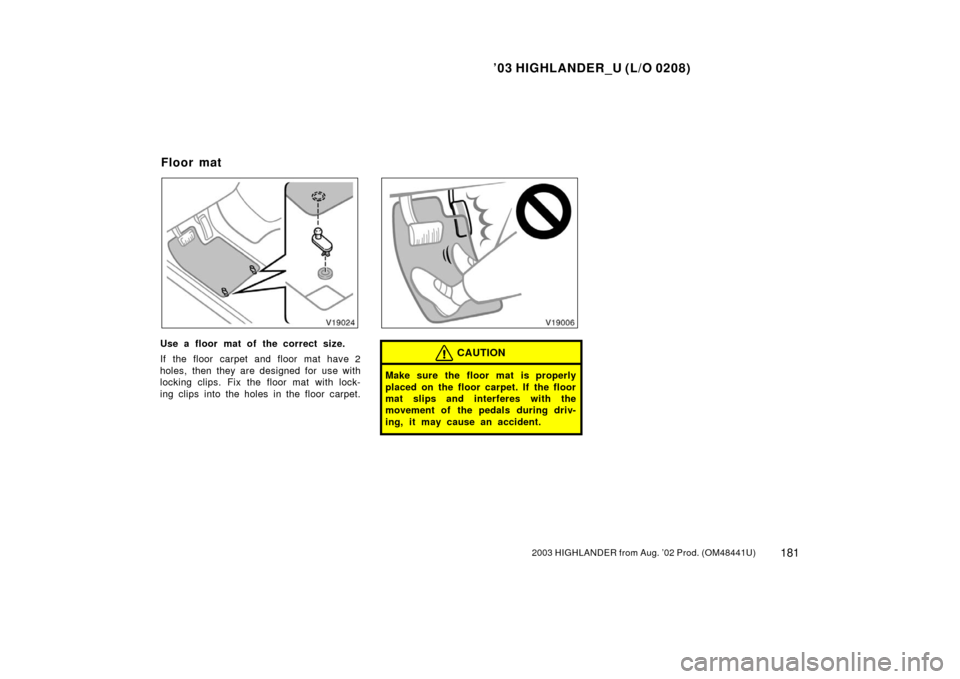

Use a floor mat of the correct size.
If the floor carpet and floor mat have 2
holes, then they are designed for use with
locking clips. Fix the floor mat with lock-
ing clips into the holes in the floor carpet.CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
Floor mat

’03 HIGHLANDER_U (L/O 0208)
1822003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

’03 HIGHLANDER_U (L/O 0208)
1832003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Offroad vehicle precautions 184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Breakin period 185
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Fuel 185
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 187
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Threeway catalytic converter 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 189
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 190
. . . . . . . . . . . . . . . . . . . . . . . . . .
Iridiumtipped spark plugs 191
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 191
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limitedslip differential 196
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Your Toyota’s identification 196
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 198
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 198
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Types of tires 198
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2

’03 HIGHLANDER_U (L/O 0208)
1842003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
This vehicle belongs to the ut ility ve-
hicle class, which has higher ground
clearance and narrower tread in relation
to the height of its center of gravity to
make it capable of performing in a wide
variety of offroad applications. Specific
design characteristics give it a higher
center of gravity than ordinary passen-
ger cars. This vehicle design feature
causes this type of vehicle to be more
likely to rollover. And, utility vehicles
have a significantly higher rollover rate
than other types of vehicles. An advan-
tage of the higher ground clearance is
a better view of the road allowing you
to anticipate problems. It is not de-
signed for cornering at the same
speeds as ordinary passenger cars any
more than lowslung sports cars de-
signed to perform satisfactorily under
offroad conditions. Therefore, sharp
turns at excessive speeds may cause
rollover.CAUTION
Always observe the following precau-
tions to minimize the risk of serious
personal injury or damage to your ve-
hicle:
In a rollover crash, an unbelted per-
son is significantly more likely to
die than a person wearing a seat
belt. Therefore, the driver and all
passengers should fasten their seat
belts whenever the vehicle is mov-
ing.
Avoid sharp turns or abrupt maneu-
vers, if at all possible. Failure to
operate this vehicle correctly may
result in loss of control or vehicle
rollover causing death or serious
injury.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
Offroad vehicle precautions
