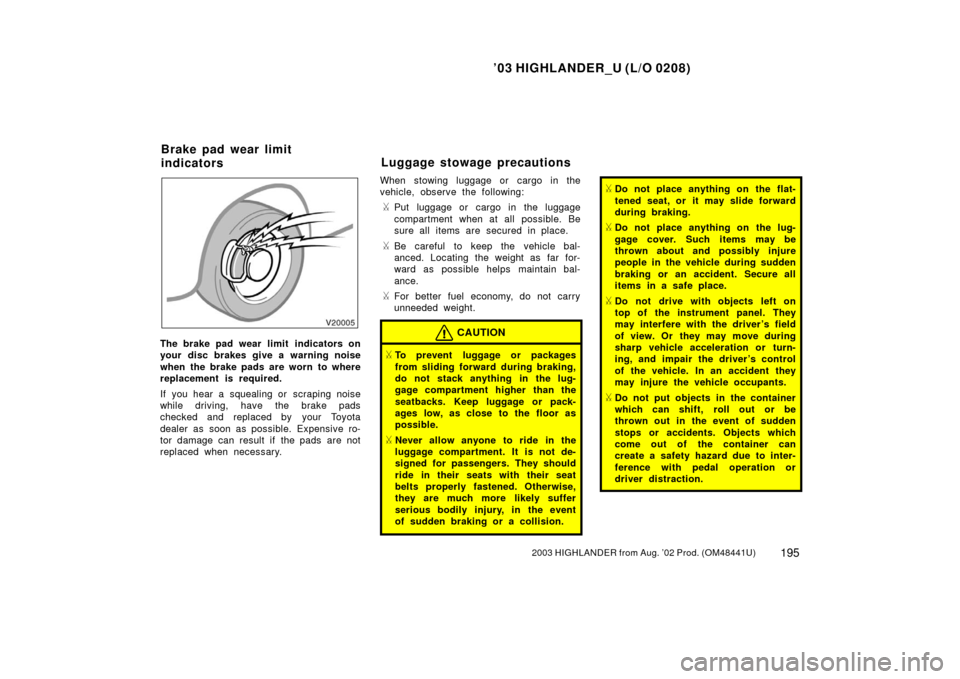

The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
replacement is required.
If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Toyota
dealer as soon as possible. Expensive ro-
tor damage can result if the pads are not
replaced when necessary. When stowing luggage or cargo in the
vehicle, observe the following:
Put luggage or cargo in the luggage
compartment when at all possible. Be
sure all items are secured in place.
Be careful to keep the vehicle bal-
anced. Locating the weight as far for-
ward as possible helps maintain bal-
ance.
For better fuel economy, do not carry
unneeded weight.
CAUTION
To prevent luggage or packages
from sliding forward during braking,
do not stack anything in the lug-
gage compartment higher than the
seatbacks. Keep luggage or pack-
ages low, as close to the floor as
possible.
Never allow anyone to ride in the
luggage compartment. It is not de-
signed for passengers. They should
ride in their seats with their seat
belts properly fastened. Otherwise,
they are much more likely suffer
serious bodily injury, in the event
of sudden braking or a collision.
Do not place anything on the flat-
tened seat, or it may slide forward
during braking.
Do not place anything on the lug-
gage cover. Such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or an accident. Secure all
items in a safe place.
Do not drive with objects left on
top of the instrument panel. They
may interfere with the driver’s field
of view. Or they may move during
sharp vehicle acceleration or turn-
ing, and impair the driver’s control
of the vehicle. In an accident they
may injure the vehicle occupants.
Do not put objects in the container
which can shift, roll out or be
thrown out in the event of sudden
stops or accidents. Objects which
come out of the container can
create a safety hazard due to inter-
ference with pedal operation or
driver distraction.
Brake pad wear limit
indicators
Luggage stowage pr
ecautions

’03 HIGHLANDER_U (L/O 0208)
2642003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

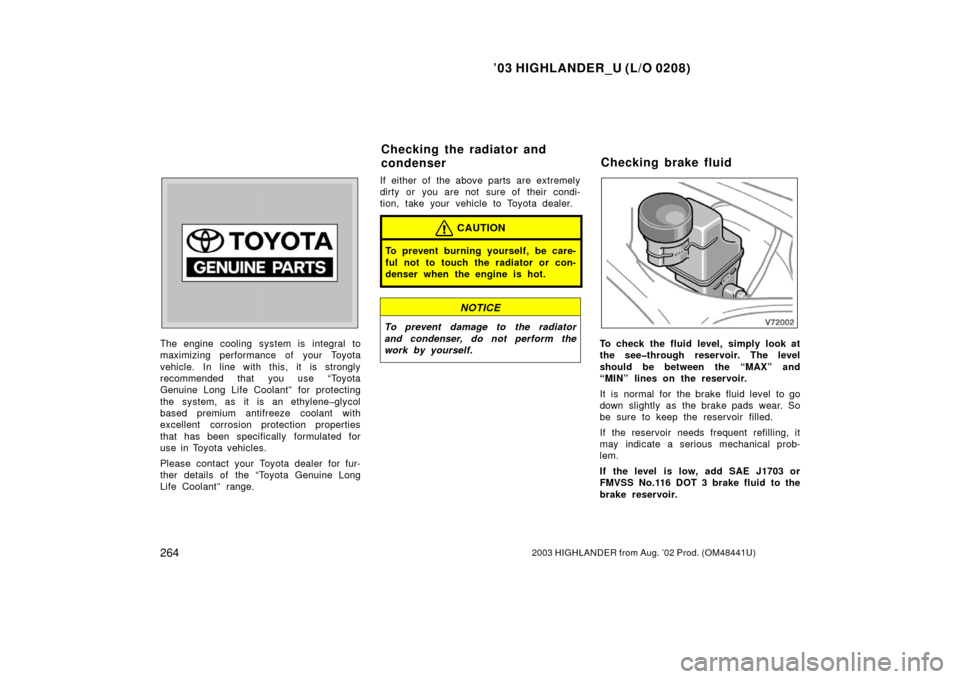

The engine cooling system is integral to
maximizing performance of your Toyota
vehicle. In line with this, it is strongly
recommended that you use “Toyota
Genuine Long Life Coolant” for protecting
the system, as it is an ethyleneglycol
based premium antifreeze coolant with
excellent corrosion protection properties
that has been specifically formulated for
use in Toyota vehicles.
Please contact your Toyota dealer for fur-
ther details of the “Toyota Genuine Long
Life Coolant” range. If either of the above parts are extremely
dirty or you are not sure of their condi-
tion, take your vehicle to Toyota dealer.
CAUTION
To prevent burning yourself, be care-
ful not to touch the radiator or con-
denser when the engine is hot.
NOTICE
To prevent damage to the radiator
and condenser, do not perform the
work by yourself.
To check the fluid level, simply look at
the seethrough reservoir. The level
should be between the “MAX” and
“MIN” lines on the reservoir.
It is normal for the brake fluid level to go
down slightly as the brake pads wear. So
be sure to keep the reservoir filled.
If the reservoir needs frequent ref
illing, it
may indicate a serious mechanical prob-
lem.
If the level is low, add SAE J1703 or
FMVSS No.116 DOT 3 brake fluid to the
brake reservoir.
Checking the radiator and
condenser Checking brake fluid
