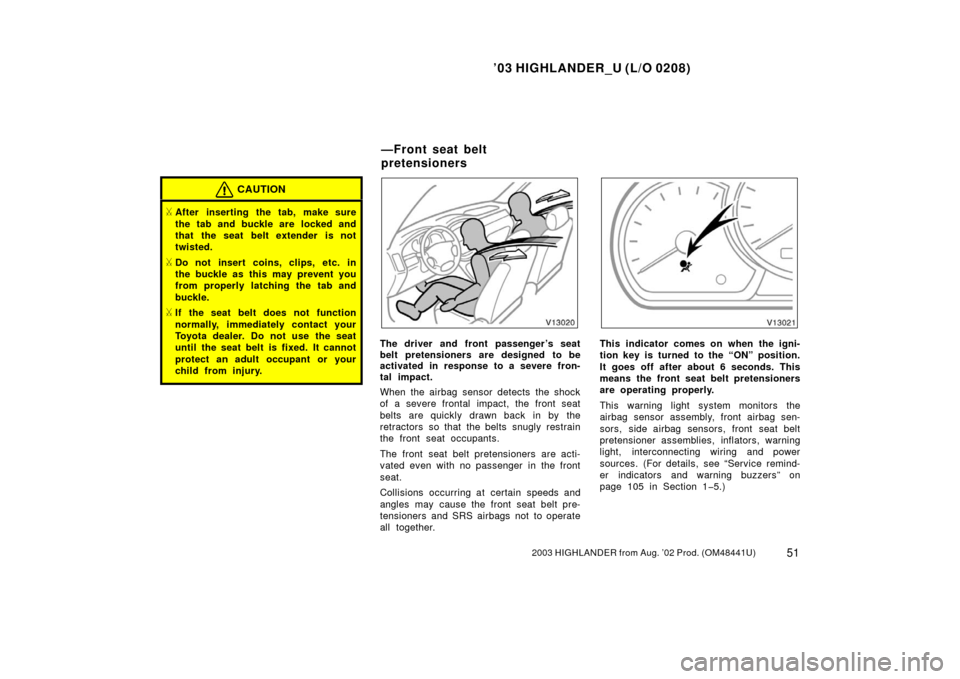

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
The driver and front passenger ’s seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belts are quickly drawn back in by the
retractors so that the belts snugly restrain
the front seat occupants.
The front seat belt pretensioners are acti-
vated even with no passenger in the front
seat.
Collisions occurring at certain s peeds and
angles may cause the front seat belt pre-
tensioners and SRS airbags not to operate
all together.This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side airbag sensors, front seat belt
pretensioner assemblies, inflators, warning
light, interconnecting wiring and power
sources. (For details, see “Service remind-
er indicators and warning buzzers” on
page 105 in Section 15.)
—Front seat belt
pretensioners

’03 HIGHLANDER_U (L/O 0208)
522003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

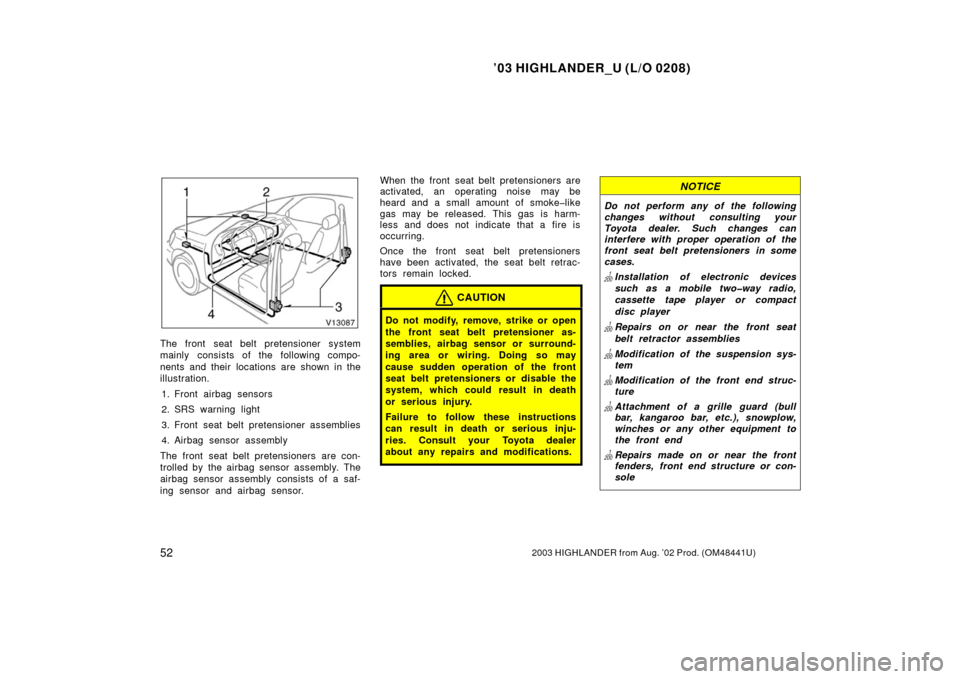

The front seat belt pretensioner system
mainly consists of the following compo-
nents and their locations are shown in the
illustration.
1. Front airbag sensors
2. SRS warning light
3. Front seat belt pretensioner assemblies
4. Airbag sensor assembly
The front seat belt pretensioners are con-
trolled by the airbag sensor assembly. The
airbag sensor assembly consists of a saf-
ing sensor and airbag sensor. When the front seat belt pretensioners are
activated, an operating noise may be
heard and a small amount of smokelike
gas may be released. This gas is harm-
less and does not indicate that a fire is
occurring.
Once the front seat belt pretensioners
have been activated, the seat belt retrac-
tors remain locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner as-
semblies, airbag sensor or surround-
ing area or wiring. Doing so may
cause sudden operation of the front
seat belt pretensioners or disable the
system, which could result in death
or serious injury.
Failure to follow these instructions
can result in death or serious inju-
ries. Consult your Toyota dealer
about any repairs and modifications.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
front seat belt pretensioners in some
cases.

Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole

’03 HIGHLANDER_U (L/O 0208)
542003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seat belt restraint
system by the driver and front pass enger
when the SRS airbags are inflated.
CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Toyota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.

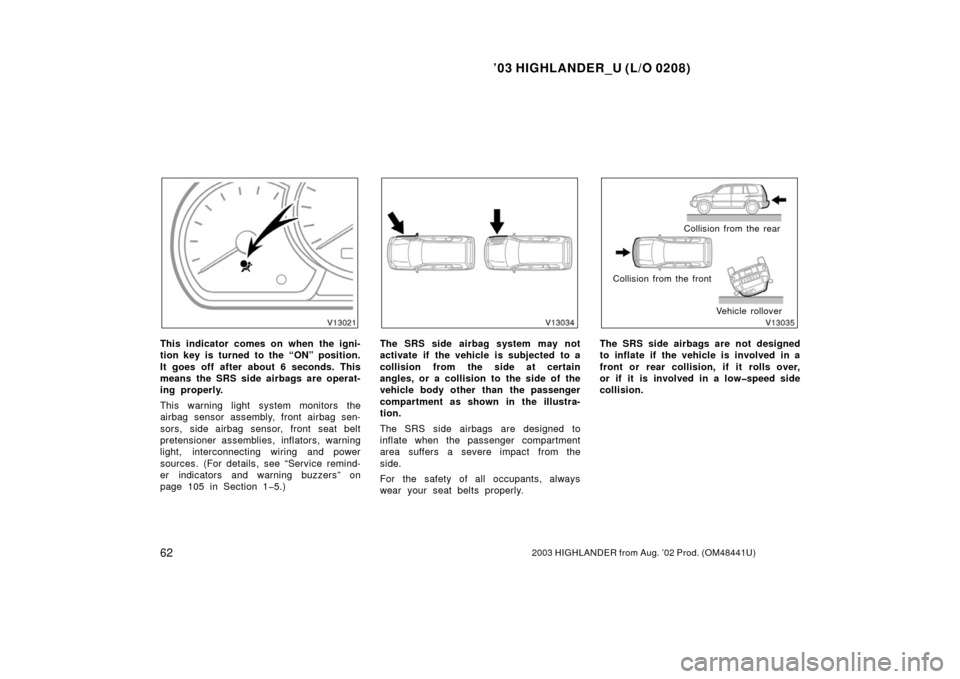

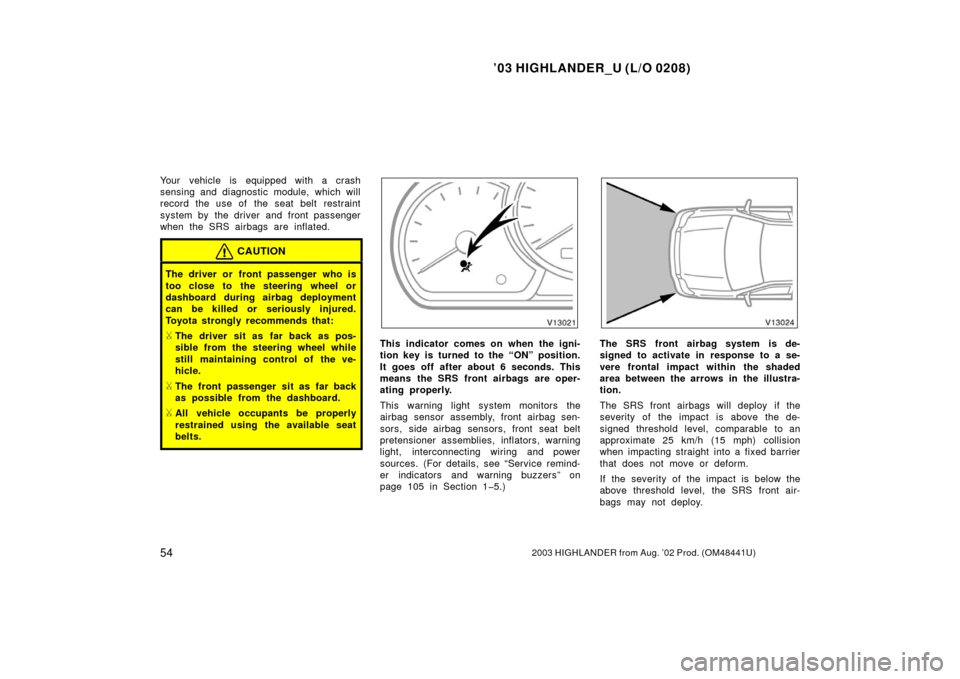

This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags are oper-
ating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side airbag sensors, front seat belt
pretensioner assemblies, inflators, warning
light, interconnecting wiring and power
sources. (For details, see “Service remind-
er indicators and warning buzzers” on
page 105 in Section 15.)The SRS front airbag system is de-
signed to activate in response to a se-
vere frontal impact within the shaded
area between the arrows in the illustra-
tion.
The SRS front airbags will deploy if the
severity of the impact is above the de-
signed threshold level, comparable to an
approximate 25 km/h (15 mph) collision
when impacting straight into a fixed barrier
that does not move or deform.
If the severity of the impact is below the
above threshold level, the SRS front air-
bags may not deploy.

’03 HIGHLANDER_U (L/O 0208)
552003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if it is involved in an underride
collision (e.g. a collision in which the nose
of the vehicle “underrides”, or goes under,
the bed of a truck, etc.).
It is possible that in some collisions at the
lower zone of airbag sensor detection and
activation the SRS airbags and front seat
belt pretensioners will not operate all toge-
ther.
For the safety of all occupants, always
wear your seat belts properly.
Collision from the rear
Collision from the side Vehicle rollover
The SRS front airbags are not designed
to inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or
if it is involved in a lowspeed frontal
collision.
Hitting a curb,
edge of pavement
or hard materialFalling into or
jumping over a
deep hole
Landing hard or vehicle falling
The SRS front airbags may deploy if a
serious impact occurs to the underside
of your vehicle. Some examples are
shown in the illustration.

’03 HIGHLANDER_U (L/O 0208)
562003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
The SRS airbag system consists mainly of
the following components, and their loca-
tions are shown in the illustration.
1. Front airbag sensors
2. SRS warning light
3. Airbag module for front passenger (airbag and inflator)
4. Airbag sensor assembly
5. Airbag module for driver (airbag and inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor. In a severe frontal impact, the sensor de-
tects deceleration and the system triggers
the airbag inflators. At this time a chemi-
cal reaction in the inflators quickly fills the
airbags with nontoxic gas to help restrain
the forward motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with nontoxic gas. This
does not indicate a fire. This gas is nor-
mally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi
gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Parts of the airbag module (steering wheel
hub, dashboard) may be hot for several
minutes, but the airbags themselves will
not be hot. The airbags are designed to
inflate only once. A crash severe enough to inflate the air-
bags may break the windshield as the
vehicle buckles. In vehicles with a pas-
senger airbag the windshield may also be
damaged by absorbing some of the force
of the inflating airbag.

’03 HIGHLANDER_U (L/O 0208)
592003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

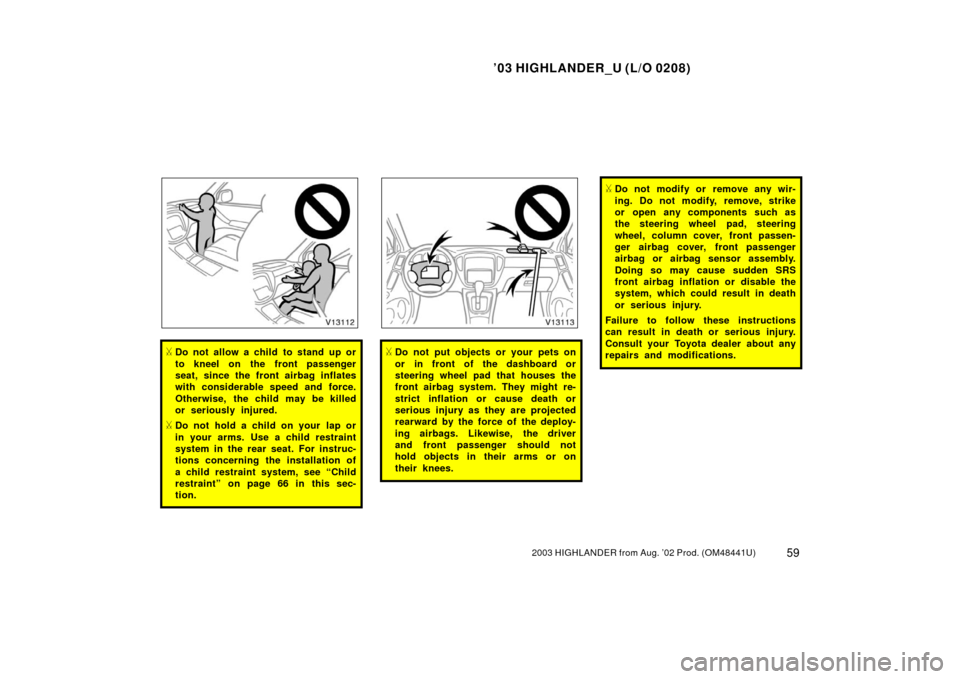

Do not allow a child to stand up or
to kneel on the front passenger
seat, since the front airbag inflates
with considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see “Child
restraint” on page 66 in this sec-
tion.
Do not put objects or your pets on
or in front of the dashboard or
steering wheel pad that houses the
front airbag system. They might re-
strict inflation or cause death or
serious injury as they are projected
rearward by the force of the deploy-
ing airbags. Likewise, the driver
and front passenger should not
hold objects in their arms or on
their knees.
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, front passen-
ger airbag cover, front passenger
airbag or airbag sensor assembly.
Doing so may cause sudden SRS
front airbag inflation or disable the
system, which could result in death
or serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repairs and modifications.

’03 HIGHLANDER_U (L/O 0208)
622003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags are operat-
ing properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side airbag sensor, front seat belt
pretensioner assemblies, inflators, warning
light, interconnecting wiring and power
sources. (For details, see “Service remind-
er indicators and warning buzzers” on
page 105 in Section 15.)The SRS side airbag system may not
activate if the vehicle is subjected to a
collision from the side at certain
angles, or a collision to the side of the
vehicle body other than the passenger
compartment as shown in the illustra-
tion.
The SRS side airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side.
For the safety of all occupants, always
wear your seat belts properly.
Collision from the rear
Collision from the front Vehicle rollover
The SRS side airbags are not designed
to inflate if the vehicle is involved in a
front or rear collision, if it rolls over,
or if it is involved in a lowspeed side
collision.

’03 HIGHLANDER_U (L/O 0208)
632003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
The SRS side airbag system consists
mainly of the following components, and
their locations are shown in the illustra-
tion.
1. SRS warning light
2. Side airbag modules (airbag and inflator)
3. Side airbag sensors
4. Airbag sensor assembly
The SRS side airbag system is controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor. In a severe side impact, the side airbag
sensor triggers the side airbag inflators.
At this time a chemical reaction in the
inflators quickly fills the air
bags with non
toxic gas to help restrain the lateral mo-
tion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with nontoxic gas. This
does not indicate a fire. This gas is nor-
mally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
Deployment of the airbags happen in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Front seats may be hot for several min-
utes, but the airbags themselves will not
be hot. The airbags are designed to inflate
only once.
CAUTION
The SRS side airbag system is de-
signed only as a supplement to the
primary protection of the driver
side and front passenger side seat
belt systems. To ensure maximum
protection in an accident, the driver
and all passengers in the vehicle
must wear their seat belts properly.
Wearing a seat belt properly during
an accident reduces the chances of
death or serious injury or being
thrown out of the vehicle. For
instructions and precautions con-
cerning the seat belt system, see
“Seat belts” on page 46 in this sec-
tion.

’03 HIGHLANDER_U (L/O 0208)
902003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Position 3 (“AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depend-
ing on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor. The lights automatically turn off when the
driver ’s door is opened with the ignition
key in the “ACC” or “LOCK” position. To
turn them on again, turn the key to the
“ON” position or actuate the headlight
switch. If you are going to park for over
one week, make sure the headlight switch
is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
(on some models)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
Headlights and turn signals
(with automatic light control
system)

’03 HIGHLANDER_U (L/O 0208)
1072003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned on with the park-
ing brake released. A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light
and Buzzer
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer sounds if the driver ’s seat belt is
not fastened. Unless the driver fastens the
belt, the light keeps flashing and the
buzzer stops after about 4 to 8 seconds.
(c) Front Passenger ’s Seat Belt Reminder Light
This light reminds you to buckle up the
front passenger ’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Howev-
er, if a front passenger uses an additional
seat cushion, the light may not flash even
when the seat belt is not buckled up.
If luggage load is placed on the front
passenger seat, depending on its weight
and how it is placed on the seat, builtin
sensors in the seat cushion may detect
the pressure, causing the reminder light to
keep flashing.
