OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Interior lights 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Ignition switch light 95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Personal light 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Windshield wipers and washer 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 97
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Outside rear view mirror defogger and windshield wiper deicer 98
. .
SECTION 1 4

’03 HIGHLANDER_U (L/O 0208)
962003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
With moon roof
Without moon roof

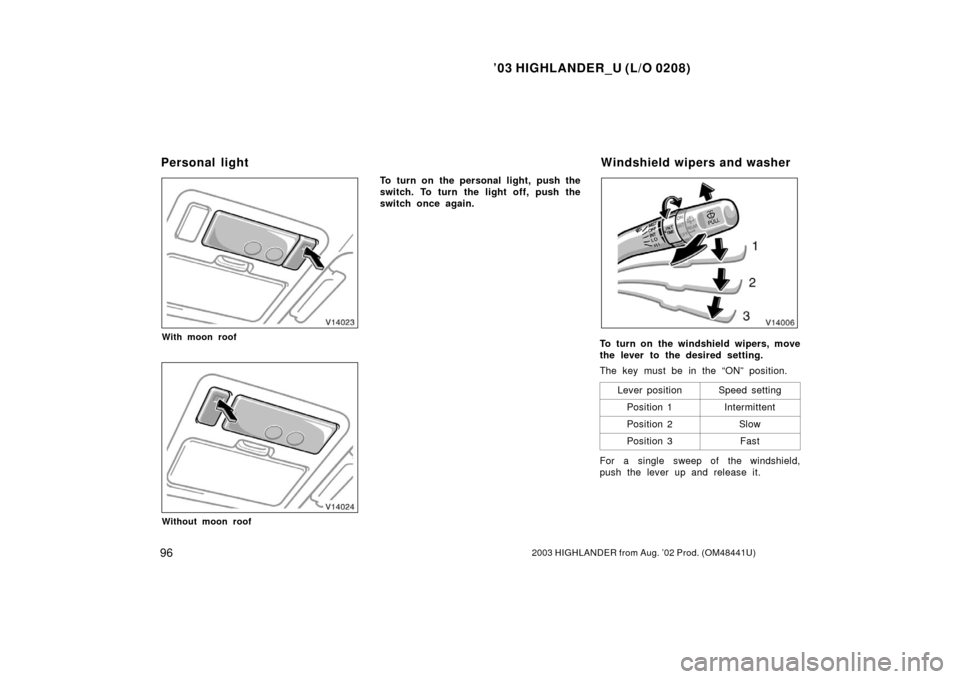

To turn on the personal light, push the
switch. To turn the light off, push the
switch once again.
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it.
Personal light Windshield wipers and washer

’03 HIGHLANDER_U (L/O 0208)
972003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
With interval adjuster: The “INT TIME”
band lets you adjust the wiping time inter-
val when the wiper lever is in the intermit-
tent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 279 in
Section 73.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.

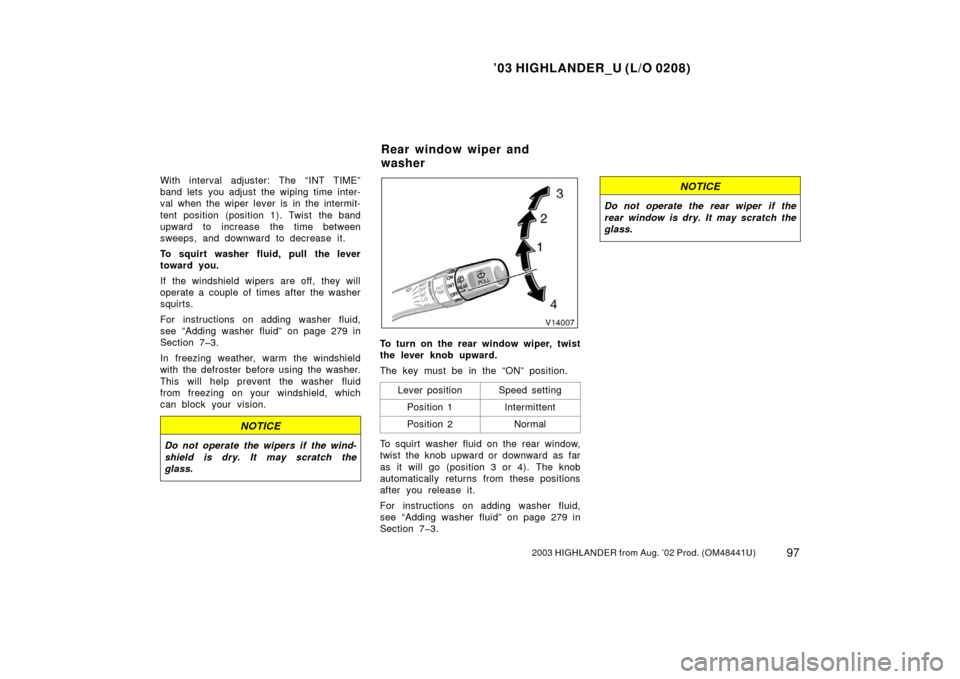

To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 279 in
Section 73.
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
Rear window wiper and
washer

’03 HIGHLANDER_U (L/O 0208)
2912003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
13. DOOR LOCK 25 A: Power door lock
system, theft deterrent system
14. HEAD LP LH UPR 10 A: Lefthand
headlight (high beam)
15. RADIO NO.1 25 A: Car audio system
16. DOME 10 A: Personal light, interior
lights, vanity mirror lights, ignition
switch light, wireless remote control
system, g auges and meters
17. HAZARD 15 A: Emergency flashers,
instrument panel light
18. SPARE 7.5 A: Spare fuse
19. SPARE 15 A: Spare fuse
20. SPARE 25 A: Spare fuse
21. IGN 7.5 A: Gauges and meters, SRS
airbag system
22. RADIO NO.2 7.5 A: Car audio system
23. CIG 15 A: Cigarette lighter
24. D RR DOOR 20 A: Power windows
25. PWR OUTLET 15 A: Power outlets
26. FR FOG 10 A: Front fog lights
27. SRSIG 15 A: SRS airbag system
28. ECUIG 15 A: Electric moon roof,
antilock brake system, vehicle skid
control system, shift lock system,
charging system, cruise control system,
emergency flashers, starting system 29. WIPER 25 A:
Windshield wipers and
washer
30. P RR DOOR 20 A: Power windows
31. P FR DOOR 25 A: Power windows,
door courtesy lights, power door lock
system
32. S/ROOF 20 A: Electric moon roof
33. HEATER 15 A: Air conditioning system,
electric cooling fan, rear defogger, out-
side rear view mirror defogger, gauges
and meters
34. IG1 7.5 A: Backup lights, vehicle skid
control system, multiport fuel injection
system/s equential multiport fuel injec-
tion system, outside rear view mirror
heaters, power door lock system, wire-
less remote control system
35. RR WIP 15 A: Rear window wiper
36. STOP 20 A: Stop lights, high mounted
stoplight, antilock brake system, ve-
hicle skid control system, shift lock
system, cruise control system, multiport
fuel injection system/sequential multi-
port fuel injection system
37. OBD 7.5 A: Onboard diagnosis sys-
tem
38. SEAT HTR 15 A: Seat heaters 39. IG2 15 A:
Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, charging system, starter sys-
tem
40. WASHER 20 A: Washer fluid level
warning light
41. RR FOG 7.5 A: No circuit
42. FR DEF 20 A: Air conditioning system,
outside rear view mirror defoggers
43. D FR DOOR 20 A: Power windows,
door courtesy lights
44. TAIL 10 A: Tail lights, license plate
lights, instrument panel lights, front fog
lights, front side marker lights, rear
side marker lights, parking lights
45. PANEL 7.5 A: Instrument panel lights
46. DRL 7.5 A: Daytime running light sys-
tem
Fuses
(type B)
47. AM2 30 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, starting system
48. ABS2 40 A: Antilock brake system,
vehicle skid control system
49. ABS1 40 A: Antilock brake system,
vehicle skid control system
50. HEATER 50 A: Air conditioning system
