’04 HIGHLANDER_U (L/O 0308)
3
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

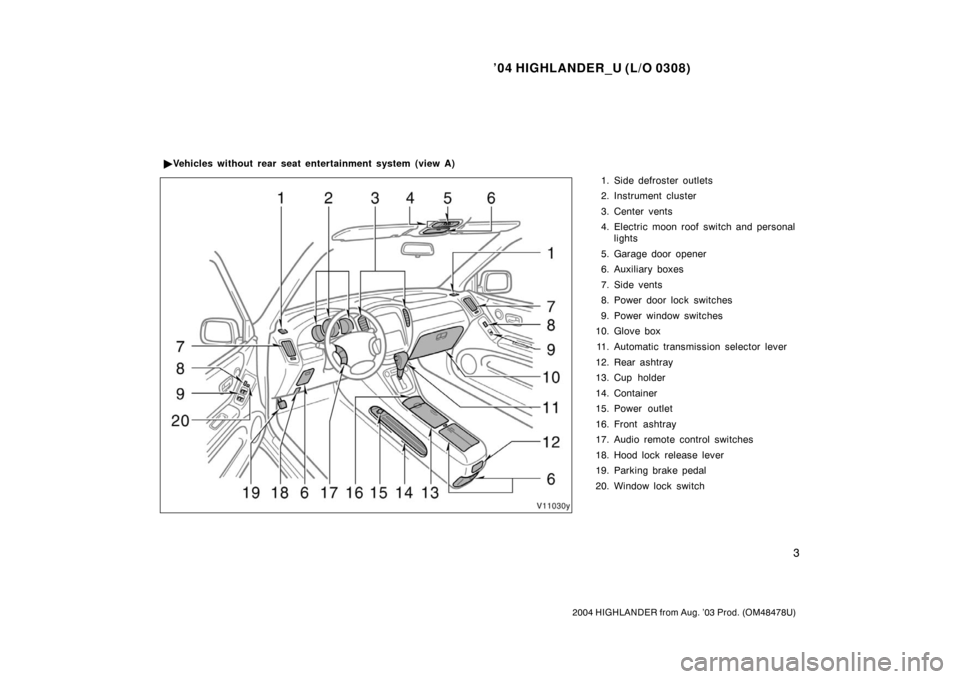

1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and personal
lights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Automatic transmission selector lever
12. Rear ashtray
13. Cup holder
14. Container
15. Power outlet
16. Front ashtray
17. Audio remote control switches
18. Hood lock release lever
19. Parking brake pedal
20. Window lock switch
Vehicles without rear seat entertainment system (view A)
Page 12 of 420
’04 HIGHLANDER_U (L/O 0308)
4
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

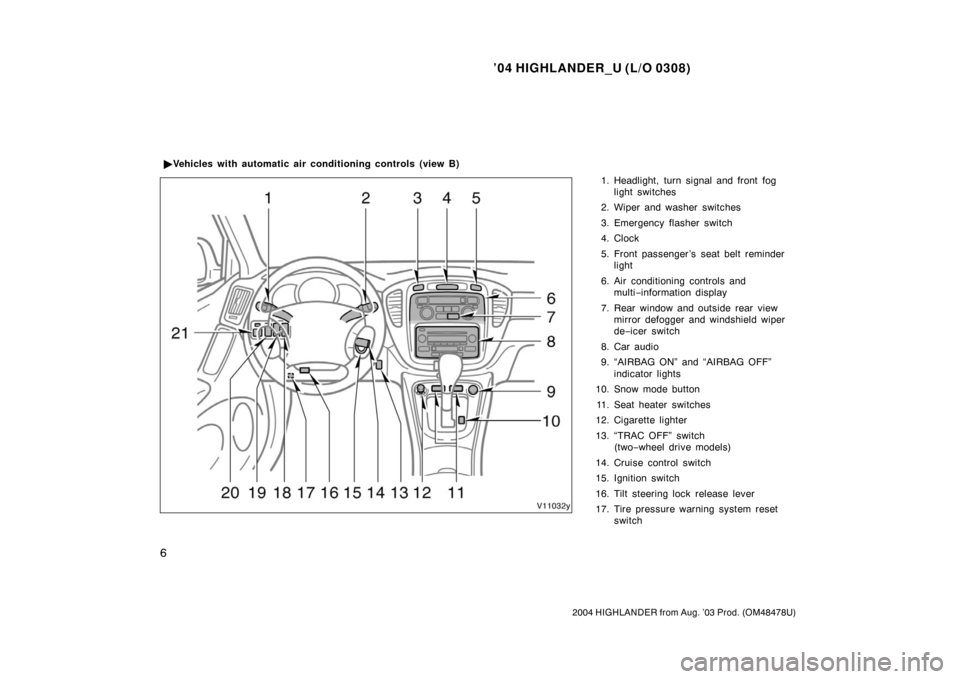

1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger ’s seat belt reminder light
6. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
7. Air conditioning controls
8. Car audio
9. “AIRBAG ON” and “AIRBAG OFF” indicator lights
10. Snow mode button 11. Seat heater switches
12. Cigarette lighter
13. “TRAC OFF” switch (two −wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
17. Tire pressure warning system reset switch
Vehicles with manual air conditioning controls (view B)
Page 13 of 420
’04 HIGHLANDER_U (L/O 0308)
5
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
18. Power outlet (115 VAC) main switch
19. Rear heater main switch
20. Theft deterrent system/engine
immobilizer system indicator light
21. Power rear view mirror control switches
Page 14 of 420
’04 HIGHLANDER_U (L/O 0308)
6
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger ’s seat belt reminder light
6. Air conditioning controls and multi −information display
7. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
8. Car audio
9. “AIRBAG ON” and “AIRBAG OFF” indicator lights
10. Snow mode button
11. Seat heater switches
12. Cigarette lighter
13. “TRAC OFF” switch (two −wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
17. Tire pressure warning system reset switch
Vehicles with automatic air conditioning controls (view B)
Page 15 of 420
’04 HIGHLANDER_U (L/O 0308)
7
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
18. Power outlet (115 VAC) main switch
19. Rear heater main switch
20. Theft deterrent system/engine
immobilizer system indicator light
21. Power rear view mirror control switches
Page 16 of 420
’04 HIGHLANDER_U (L/O 0308)
8
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

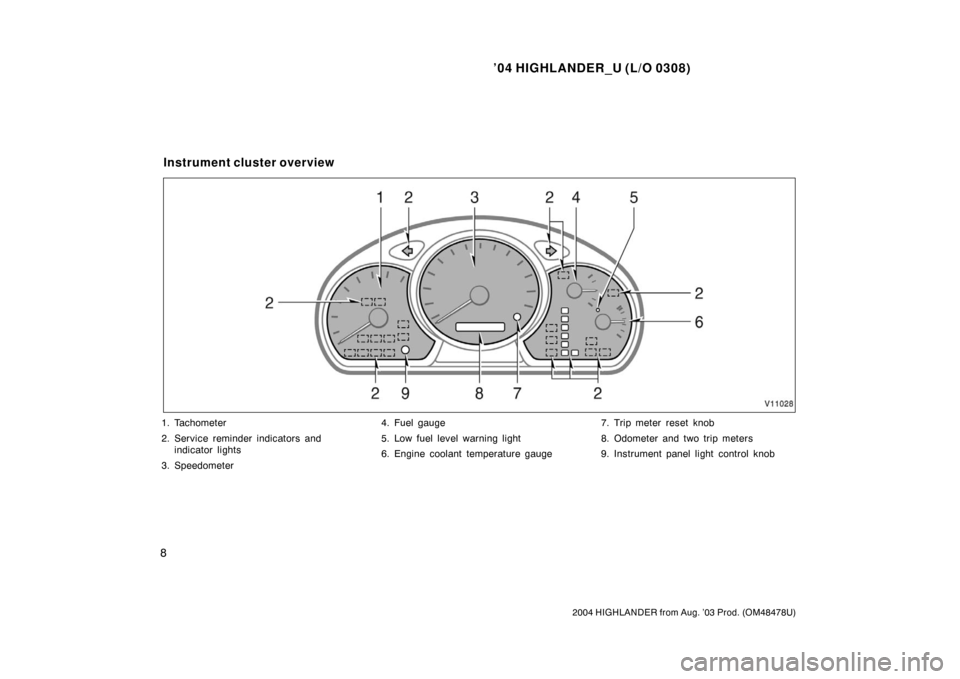

1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer 4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
9. Instrument panel light control knob
Instrument cluster overview
Page 17 of 420
’04 HIGHLANDER_U (L/O 0308)
9
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
Brake system warning light∗
1
Discharge warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
SRS warning light∗1
Driver ’s seat belt reminder light∗1Open door warning light∗1
Automatic transmission fluid temperature
warning light∗1
or
Low windshield washer fluid level warning
light∗1
or
Vehicle stability control system warning light∗1
Anti −lock brake system warning light∗
1or
Front passenger ’s seat belt reminder light∗1
Low tire pressure warning light∗1
Indicator symbols on the instrument panel
Page 18 of 420
’04 HIGHLANDER_U (L/O 0308)
10
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
∗
1: For details, see “Service reminder indicators and warning
buzzers” on page 129 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 159 in
Section 1 −7.Cruise control indicator light
∗
2
Overdrive −off indicator light
Slip indicator light
Turn signal indicator lights
Automatic transmission indicator lights
Snow mode indicator light
Traction control system off indicator light
Headlight high beam indicator light
or Engine oil replacement reminder light
∗
1
(for vehicles sold in U.S.A.)
“AIRBAG ON” indicator light
“AIRBAG OFF” indicator light
Page 19 of 420
’04 HIGHLANDER_U (L/O 0308)
11
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2
Page 20 of 420
’04 HIGHLANDER_U (L/O 0308)
12
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

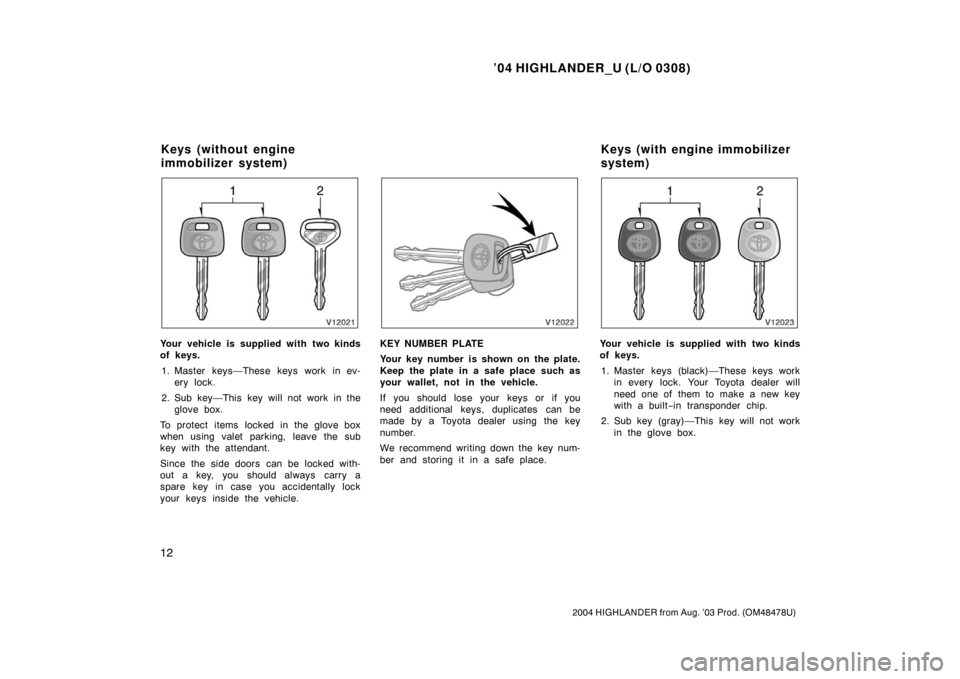

Your vehicle is supplied with two kinds
of keys.
1. Master keys—These keys work in ev- ery lock.
2. Sub key—This key will not work in the glove box.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.Your vehicle is supplied with two kinds
of keys. 1. Master keys (black)—These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
2. Sub key (gray)—This key will not work in the glove box.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)
