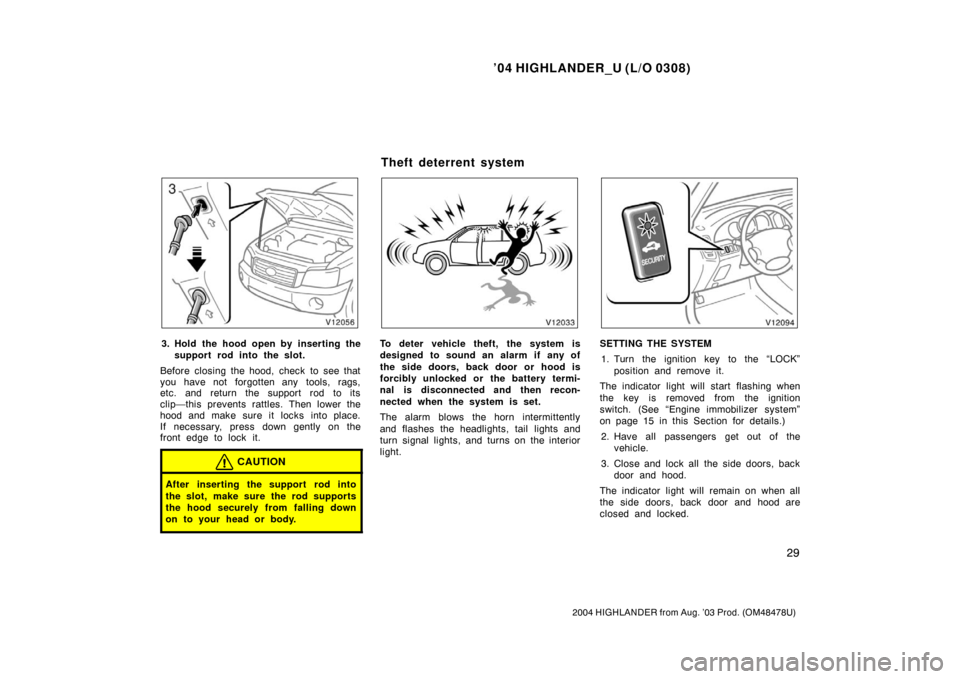

3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked or the battery termi-
nal is disconnected and then recon-
nected when the system is set.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
turn signal lights, and turns on the interior
light.SETTING THE SYSTEM 1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 15 in this Section for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked.
Theft deterrent system

’04 HIGHLANDER_U (L/O 0308)
31
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light starts flash-
ing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.

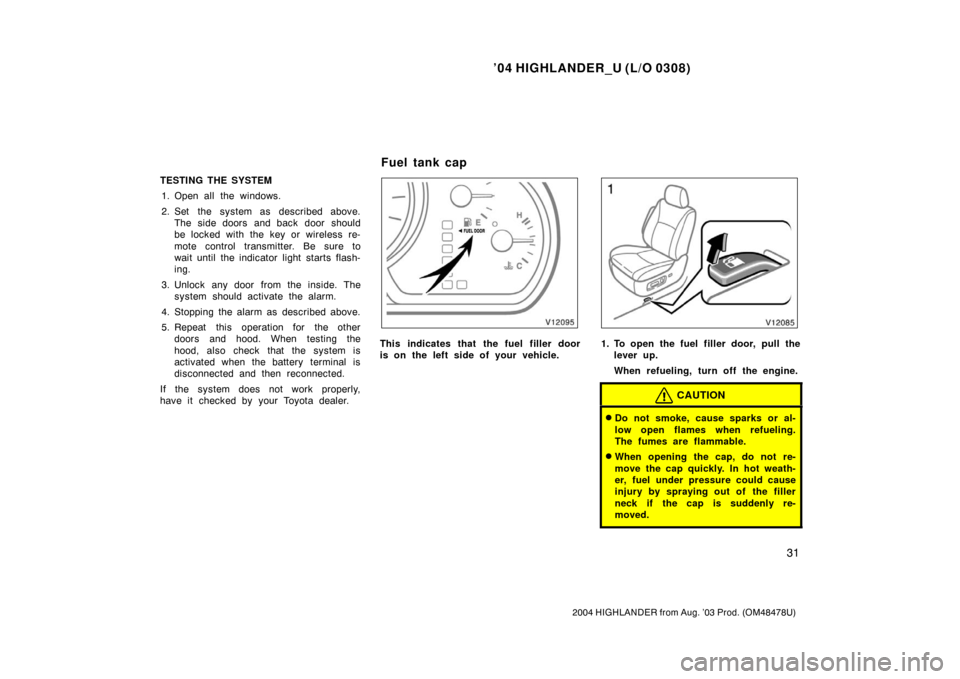

This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull the lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Fuel tank cap

’04 HIGHLANDER_U (L/O 0308)
132
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
(a) Brake System Warning Light and
Buzzer
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
If the vehicles speed rises above 5 km/h
(3 mph) with the parking brake applied, a
buzzer sounds.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned on with the park-
ing brake released. A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light
and Buzzer
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON”,
the reminder light flashes and buzzer
sounds if the driver ’s seat belt is not fas-
tened. Unless the driver fastens the belt,
the light keeps flashing and the buzzer
stops after about 4 to 8 seconds.
(c) Front Passenger ’s Seat Belt Reminder Light
This light reminds you to buckle up the
front passenger ’s seat belt.
Once the ignition key is turned to “ON”,
the reminder light flashes if a passenger
sits in the front passenger seat and does
not fasten the seat belt.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light may come on.
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.

’04 HIGHLANDER_U (L/O 0308)
133
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Low Engine Oil Pressure Warning
Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp will not go off even after the
several trips, contact your Toyota dealer
as soon as possible. If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself.
In this case, slow down and have your
vehicle checked/repaired by your Toyota
dealer as soon as possible.
If the engine speed does not increase with
the accelerator pedal depressed down,
there may be a problem somewhere in
your electronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to “ACC” or
“LOCK” position.

’04 HIGHLANDER_U (L/O 0308)
136
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
Tw o−wheel drive models only—The “TRAC
OFF” indicator light will come on when the
“VSC” warning light comes on even if the
“TRAC OFF” switch is not pushed.
(m) Low Tire Pressure Warning Light
This light warns that the tire inflation pres-
sure is critically low. The light comes on
when the ignition key is turned to the
“ON” position. It goes off after a few sec-
onds. This indicates that the low tire pres-
sure warning system is functioning proper-
ly.
If the light comes on while driving, adjust
tire inflation pressure to the specified lev-
el. (See “Tires” on page 402 in Section 8.)
After the tire inflation pressure is adjusted,
push the tire pressure warning system re-
set switch for a few seconds and make
sure the warning light goes off. If the light
still remains or blinks slowly (every 0.5
seconds), have the low tire pressure warn-
ing system checked at your Toyota dealer.
If the light blinks rapidly (every 0.25 sec-
onds), the low tire pressure warning sys-
tem needs to be initialized.
For details, see “Tire pressure warning
system” on page 155 in Section 1 −7. (n) Low Windshield Washer Fluid Level
Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” on page 391 in
Section 7 −3.)
(o) Engine Oil Replacement Reminder Light (for vehicles sold in U.S.A.)
This light reminds you when to replace
the engine oil.
This light will come on when the ignition
key is turned to “ON” and will go off after
about a few seconds.
When you drive for about 7200 km (4500
miles) after the engine oil replacement,
this light illuminates for about 3 seconds
and then flashes for about 12 seconds
with the ignition key turned to the “ON”
position. If you continue driving without
replacing the engine oil, and if the dis-
tance driven exceeds 8000 km (5000
miles), the light will come on after the
ignition key is turned to “ON” position.
The light will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible. The system must be reset after the en-
gine oil replacement. Reset the system by
the following procedure:
1. Turn the ignition key to the “OFF” posi- tion with the odometer reading shown.
(For details, see “Odometer and two
trip meters” on page 127 in this Sec-
tion.)
2. Turn the ignition key to the “ON” posi- tion while holding down the trip meter
reset knob.
Hold down the knob for at least 5 sec-
onds. The odometer indicates “000000”
and the light goes off.
If the system fails to reset, the light will
continue flashing.
(p) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver’s door with
the ignition key in the “ACC” or “LOCK”
position.

’04 HIGHLANDER_U (L/O 0308)
137
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on. The “ABS” and “VSC” warn-
ing lights, low tire pressure warning
light and engine oil replacement re-
minder light go off after a few seconds.
The SRS warning light goes off after
about 6 seconds. (The “TRAC OFF”
indicator light and slip indicator light
also come on and go off after a few
seconds.)
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.

’04 HIGHLANDER_U (L/O 0308)
150
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
The traction control system automatical-
ly helps prevent the spinning of front
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against front wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the trac-
tion control system is in the self −check
mode, but does not indicate a malfunction. When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
front wheels. At this time, the slip indi-
cator light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
Traction control system
(twowheel drive models)

’04 HIGHLANDER_U (L/O 0308)
152
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The “TRAC OFF” indicator light will come
on when the “VSC” warning light comes
on even if the “TRAC OFF” switch is not
pushed. The traction control system automatical-
ly helps prevent the spinning of 4
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against 4 wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the trac-
tion control system is in the self
−check
mode, but does not indicate a malfunction.
Traction control system
(fourwheel drive models)

’04 HIGHLANDER_U (L/O 0308)
154
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
The vehicle stability control system
helps provide comprehensive control of
the systems such as antilock brake
system, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
This system activates when the vehicle
speed is about more than 15 km/h (9
mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self−check mode, but does
not indicate a malfunction.CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the system is operating, it cannot
completely eliminate the possibility
of an accident. Always keep safe
driving in mind, as reckless driving
increases the risk of an accident. If
the slip indicator light blinks, spe-
cial care should be taken while
driving.
Only use tires of specified size. The
size, manufacture, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 380 in Section 72.)
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
Vehicle stability control
system

’04 HIGHLANDER_U (L/O 0308)
289
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
IMPORTANCE OF ENGINE OIL LEVEL
CHECK
One of the most important points in prop-
er vehicle maintenance is to keep the en-
gine oil at the optimum level so that oil
function will not be impaired. Therefore, it
is essential that the oil level be checked
regularly. Toyota recommends that the oil
level be checked every time you refuel
the vehicle.
NOTICE
Failure to check the oil level regularly
could lead to serious engine trouble
due to insufficient oil.
For detailed information on oil level check,
see “Checking the engine oil level” on
page 372 in Section 7−2.
Your engine is fitted with iridiumtipped
spark plugs.
NOTICE
Use only iridiumtipped spark plugs
and do not adjust gaps for your en-
gine performance and smooth drive-
ability.
The tandem master cylinder brake system
is a hydraulic system with two separate
sub −systems. If either sub −system s hould
fail, the other will still work. However, the
pedal will be harder to press, and your
stopping distance will increase. Also, the
brake system warning light may come on.
CAUTION
Do not drive your vehicle with only a
single brake system. Have your
brakes fixed immediately.
BRAKE BOOSTER
The brake booster uses engine vacuum to
power −assist the brakes. If the engine
should quit while you are driving, you can
bring the vehicle to a stop with normal
pedal pressure. There is enough reserved
vacuum for one or two stops—but no
more!
Iridiumtipped spark plugs Brake system
