Introduction
Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this manual
in your vehicle at all times.
The Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system receives satellite signals
from the Global Positioning System (GPS) operated by the U.S. Department of Defense. Using these signals and other vehicle sensors, the
system indicates your present position and assists in locating a desired destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. The system is designed
to direct you to a destination that is unfamiliar to you in an efficient manner. The system uses the maps of DENSO. The calculated routes
may not be the shortest nor the least traffic congested. Your own personal local knowledge or “short cut” may at times be faster than the calcu-
lated routes.
The navigation system’s database includes about 75 Point of Interest categories to allow you to easily select destinations such as restaurants
and banks. If a destination is not in the database, you can enter the street address or a major intersection close to it and the system will guide
you there. The system will provide both a visual map and audio instructions. The audio instructions will announce the distance remaining
and the direction to turn in approaching a fork or intersection. These voice instructions will help you keep your eyes on the road and are timed
to provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to pages 9 through 11.

83

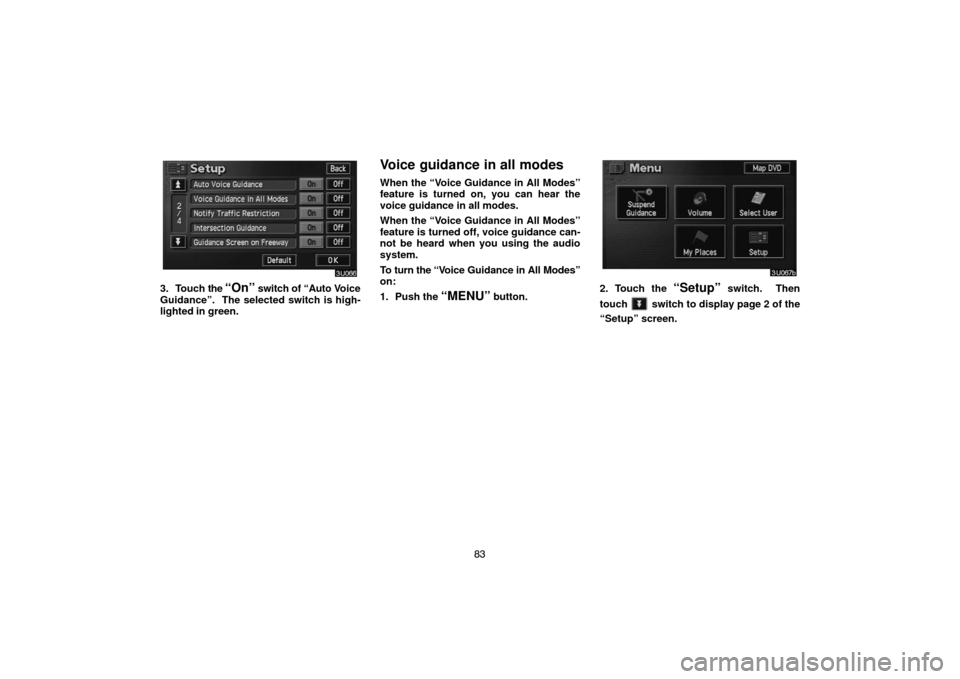

3. Touch the “On” switch of “Auto Voice
Guidance”. The selected switch is high-
lighted in green.
Voice guidance in all modes
When the “Voice Guidance in All Modes”
feature is turned on, you can hear the
voice guidance in all modes.
When the “Voice Guidance in All Modes”
feature is turned off, voice guidance can-
not be heard when you using the audio
system.
To turn the “Voice Guidance in All Modes”
on:
1. Push the
“MENU” button.2. Touch the “Setup” switch. Then
touch
switch to display page 2 of the
“Setup” screen.

11 0

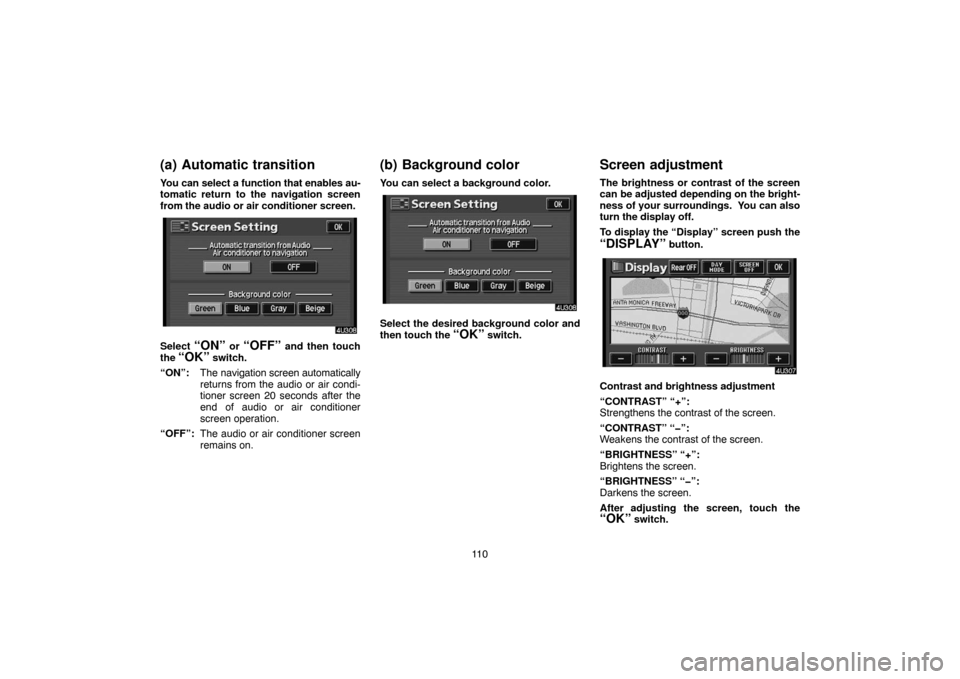

(a) Automatic transition
You can select a function that enables au-
tomatic return to the navigation screen
from the audio or air conditioner screen.
Select “ON” or “OFF” and then touch
the
“OK” switch.
“ON”:The navigation screen automatically
returns from the audio or air condi-
tioner screen 20 seconds after the
end of audio or air conditioner
screen operation.
“OFF”:The audio or air conditioner screen
remains on.
(b) Background color
You can select a background color.
Select the desired background color and
then touch the
“OK” switch.
Screen adjustment
The brightness or contrast of the screen
can be adjusted depending on the bright-
ness of your surroundings. You can also
turn the display off.
To display the “Display” screen push the
“DISPLAY” button.
Contrast and brightness adjustment
“CONTRAST” “+”:
Strengthens the contrast of the screen.
“CONTRAST” “”:
Weakens the contrast of the screen.
“BRIGHTNESS” “+”:
Brightens the screen.
“BRIGHTNESS” “”:
Darkens the screen.
After adjusting the screen, touch the
“OK” switch.

111 The rear screen turns off when you touch
“Rear OFF”.
The screen goes off when you touch the
“SCREEN OFF” switch. To turn the dis-
play screen back on, push any button such as
“INFO”, etc. The selected screen appears.
INFORMATION
When you do not touch any switch on
the screen for 20 seconds the “Display”
screen goes off.
Color and tone adjustment (with rear seat
entertainment system)
You can adjust the color and the tone while
the DVD video, DVD audio and video CD are
being played.
“COLOR” “RED”:
Strengthens the red color of the screen.
“COLOR” “GREEN”:
Strengthens the green color of the screen.
“TONE” “+”: Strengthens the tone of the
screen.
“TONE” “”: Weakens the tone of the
screen.
After adjusting the screen, touch the
“OK” switch.
The rear screen turns off when you touch
“Rear OFF”.The screen turns off when you touch
“SCREEN OFF”. To turn the screen back
on, push any button such as “INFO”, etc.
The selected screen appears.
INFORMATION
When you do not touch any switch on
the screen for 20 seconds the “Display”
screen goes off.

11 5
AUDIO SYSTEM
Audio system
Quick reference11 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using your audio system11 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio system operating hints146 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION V

11 6

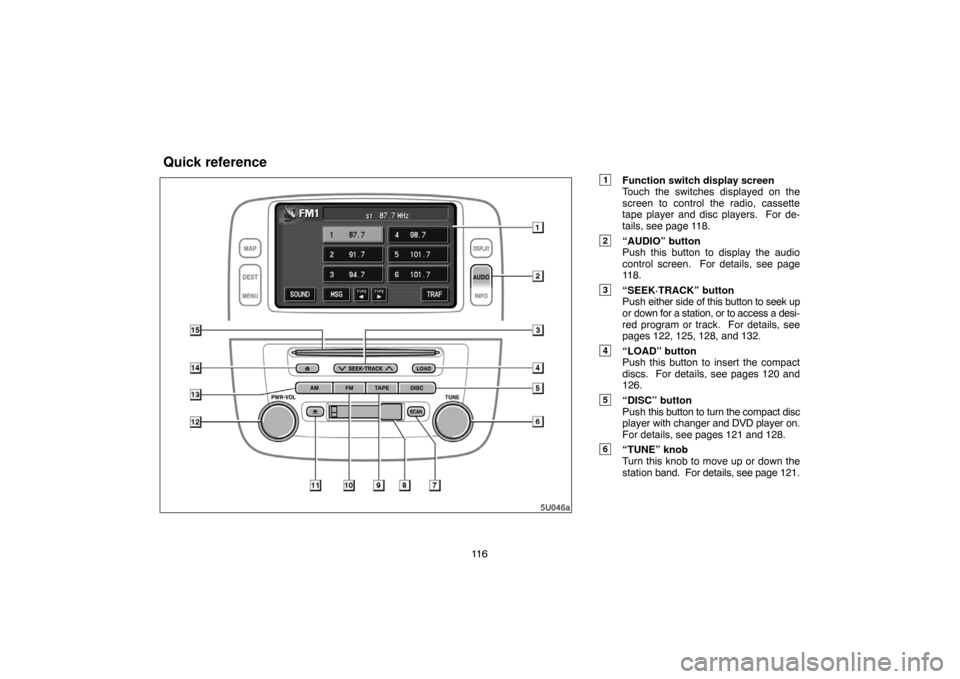

1Function switch display screen
Touch the switches displayed on the
screen to control the radio, cassette
tape player and disc players. For de-
tails, see page 118.
2“AUDIO” button
Push this button to display the audio
control screen. For details, see page
118.
3“SEEK·TRACK” button
Push either side of this button to seek up
or down for a station, or to access a desi-
red program or track. For details, see
pages 122, 125, 128, and 132.
4“LOAD” button
Push this button to insert the compact
discs. For details, see pages 120 and
126.
5“DISC” button
Push this button to turn the compact disc
player with changer and DVD player on.
For details, see pages 121 and 128.
6“TUNE” knob
Turn this knob to move up or down the
station band. For details, see page 121.
Quick reference

11 7
7“SCAN” button
Push this button to scan radio stations or
scan the tracks on a compact disc. For
details, see pages 122, 129 and 132.
8Cassette tape slot
Insert a cassette tape into the slot. For
details, see page 124.
9“TAPE” button
Push this button to turn the cassette tape
player on. For details, see pages 118
and 124.
10“FM” button
Push this button to choose a FM station.
For details, see pages 118 and 121.
11“” button for the cassette tape
Push this button to stop and eject the
cassette tape. For details, see page
124.
12“PWR·VOL” knob
Push this knob to turn the audio system
on and off, and turn it to adjust the volu-
me. For details, see page 118.
13“AM” button
Push this button to choose an AM sta-
tion. For details, see pages 118 and
121.
14“” button for the compact discs
Push this button to eject the compact
discs. For details, see page 127.
15Compact disc slot
Insert compact discs into the slot after
pushing “LOAD” button. For details, see
pages 120 and 126.
Using your audio system —
— Some basics
This section describes some of the basic fea-
tures of your audio system. Some information
may not pertain to your system.
Your audio system works when the ignition
switch is in the “ACC” or “ON” position.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio system
on longer than necessary when the en-
gine is not running.

11 8
(a) Turning the system on and off

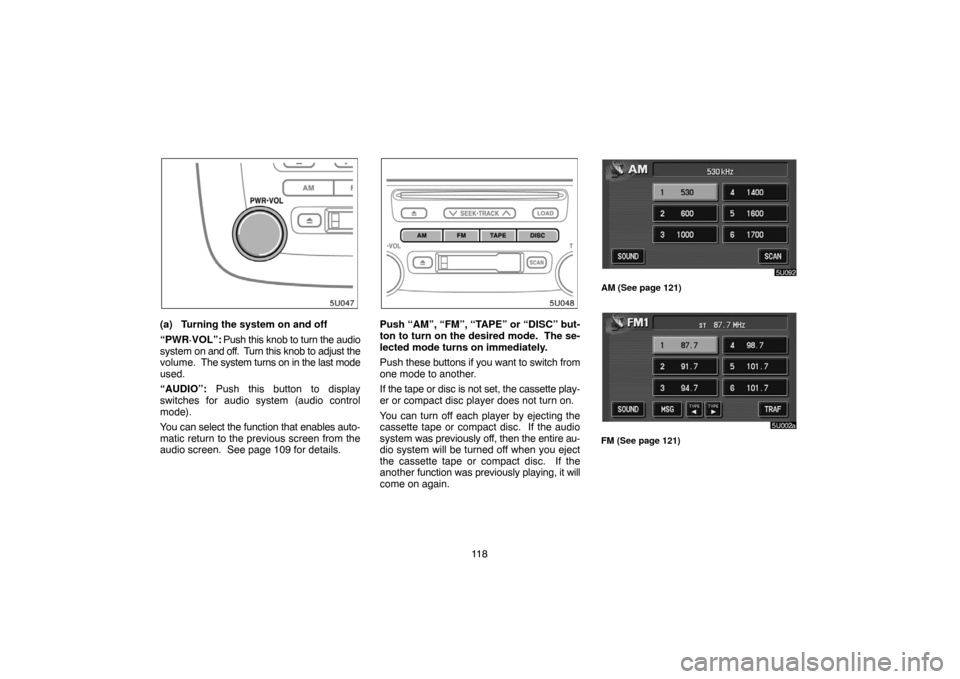

“PWR·VOL”: Push this knob to turn the audio
system on and off. Turn this knob to adjust the
volume. The system turns on in the last mode
used.
“AUDIO”: Push this button to display
switches for audio system (audio control
mode).
You can select the function that enables auto-
matic return to the previous screen from the
audio screen. See page 109 for details.Push “AM”, “FM”, “TAPE” or “DISC” but-
ton to turn on the desired mode. The se-
lected mode turns on immediately.
Push these buttons if you want to switch from
one mode to another.
If the tape or disc is not set, the cassette play-
er or compact disc player does not turn on.
You can turn off each player by ejecting the
cassette tape or compact disc. If the audio
system was previously off, then the entire au-
dio system will be turned off when you eject
the cassette tape or compact disc. If the
another function was previously playing, it will
come on again.
AM (See page 121)
FM (See page 121)

11 9
TAPE (See page 124)

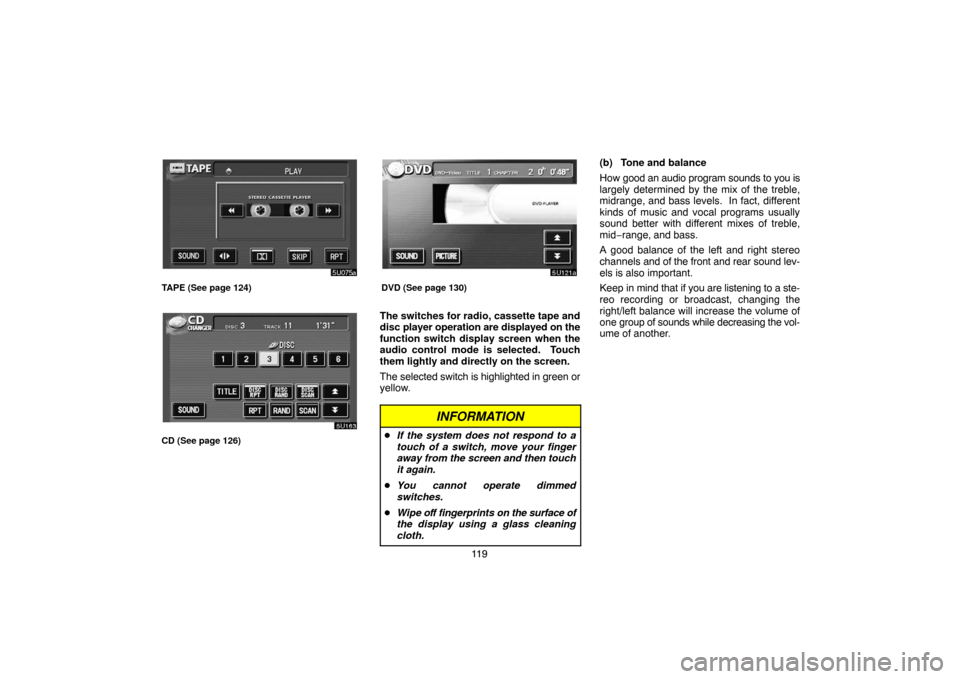

CD (See page 126)
DVD (See page 130)
The switches for radio, cassette tape and
disc player operation are displayed on the
function switch display screen when the
audio control mode is selected. Touch
them lightly and directly on the screen.
The selected switch is highlighted in green or
yellow.
INFORMATION
If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
You cannot operate dimmed
switches.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
(b) Tone and balance
How good an audio program sounds to you is
largely determined by the mix of the treble,
midrange, and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different mixes of treble,
mid−range, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound lev-
els is also important.
Keep in mind that if you are listening to a ste-
reo recording or broadcast, changing the
right/left balance will increase the volume of
one group of sounds while decreasing the vol-
ume of another.

120
Touching the “SOUND” switch displayed
on the screen at the audio control mode
will display the sound control mode. Ad-
just the tone and balance as follows.
To adjust the tone, touch the “+” or “”
switch on the screen. To adjust the bal-
ance between the front and rear speakers,
touch the “FRONT” or “REAR” switch on
the screen, and to adjust the balance be-
tween the left and right, touch the “L” or
“R” switch on the screen.
“BASS”: Adjusts low−pitched tones.
“MID”: Adjusts mid−pitched tones.
“TREB”: Adjusts high−pitched tones.
As the yellow display goes up, each tone is
more emphasized.(c) Your radio antenna
Mast type antenna—
To remove: Turn it counterclockwise carefully.
To install: Turn it clockwise securely.
NOTICE
Mast type antenna:
To prevent damage to the antenna,
make sure it is removed before driv-
ing your Toyota through an automat-
ic car wash.
Onglass antenna (builtin on the
rear quarter glass):
Attaching the film (especially con-
ductive or metallic type) on the rear
quarter glass will noticeably reduce
the sensitivity of the radio.
(d) Your cassette player
When you insert a cassette, the exposed tape
should face to the right.
NOTICE
Do not oil any part of the player and do
not insert anything other than cassette
tapes into the slot, or the tape player
may be damaged.
(e) Your compact disc player with chang-
er
When you insert a disc, push the “LOAD” but-
ton and gently push the disc in with the label
side up. (The player will automatically eject
a disc if the label side is down.) This compact
disc player can store up to six discs. The play-
er will play from track 1 through the end of the
disc. Then it will play from track 1 of the next
disc.
The player is intended for use with 12 cm (4.7
in.) discs only.
