TOYOTA HIGHLANDER 2005 XU20 / 1.G Owners Manual

’05 HIGHLANDER_U (L/O 0409)
401
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Light bulbsBulb
No.WTy p e
Headlights (low)900651A
Headlights (high)900560B
Front fog lights900651A
Front turn signals/
parking and front
side marker lights
—21/5C
Rear side marker
lights1685E
Rear turn signal
lights—21D
Stop/tail lights744321/5E
Back −up lights744021E
High mounted stop
light92116E
License plate
lights—5E
Interior lights—8F
Personal lights—5E
Vanity lights—2F
Door courtesy
lights—5E
Glove box light#741.2E
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs
1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.
—Headlights

’05 HIGHLANDER_U (L/O 0409)
402
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

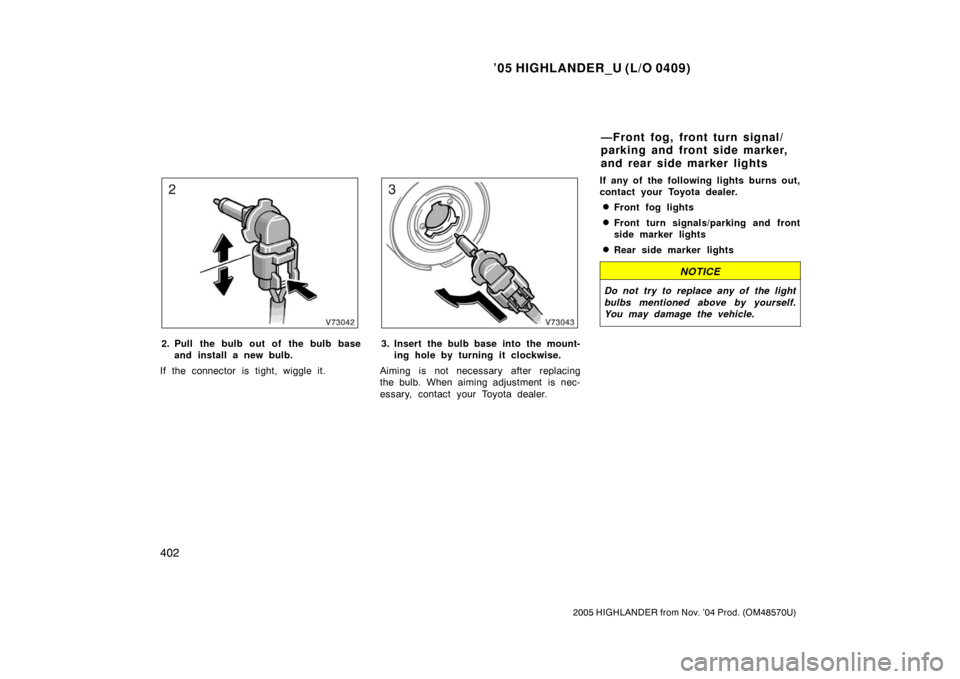

2. Pull the bulb out of the bulb base
and install a new bulb.
If the connector is tight, wiggle it.3. Insert the bulb base into the mount- ing hole by turning it clockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer. If any of the following lights burns out,
contact your Toyota dealer.
Front fog lights
Front turn signals/parking and front
side marker lights
Rear side marker lights
NOTICE
Do not try to replace any of the light
bulbs mentioned above by yourself.
You may damage the vehicle.
—Front fog, front turn signal/
parking and front side marker,
and rear side marker lights

’05 HIGHLANDER_U (L/O 0409)
403
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

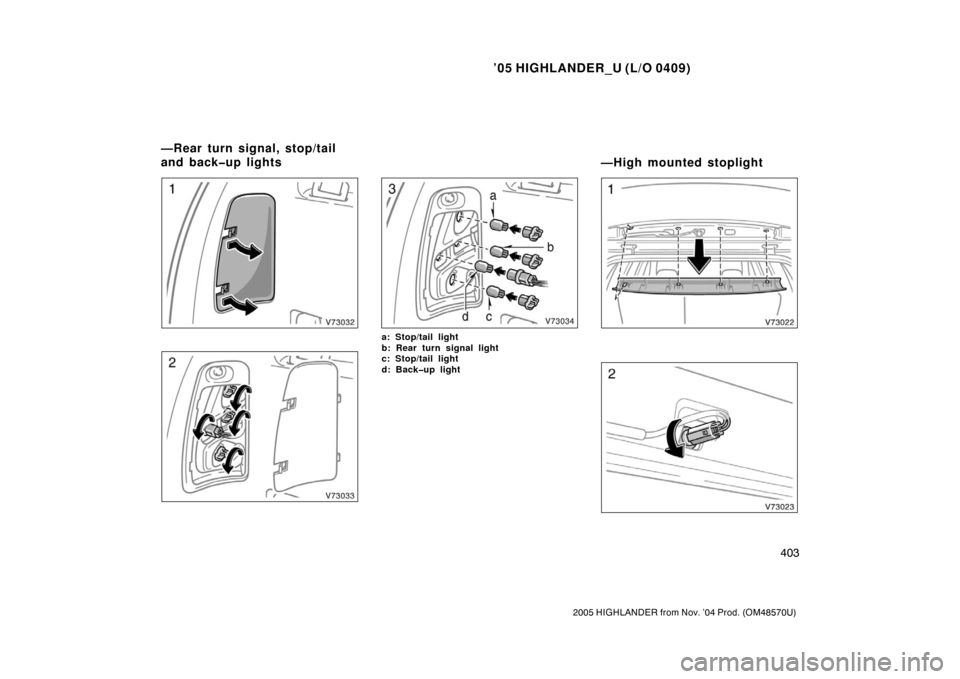

a: Stop/tail light
b: Rear turn signal light
c: Stop/tail light
d: Backup light
—Rear turn signal, stop/tail
and backup lights
—High mounted stoplight

’05 HIGHLANDER_U (L/O 0409)
404
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

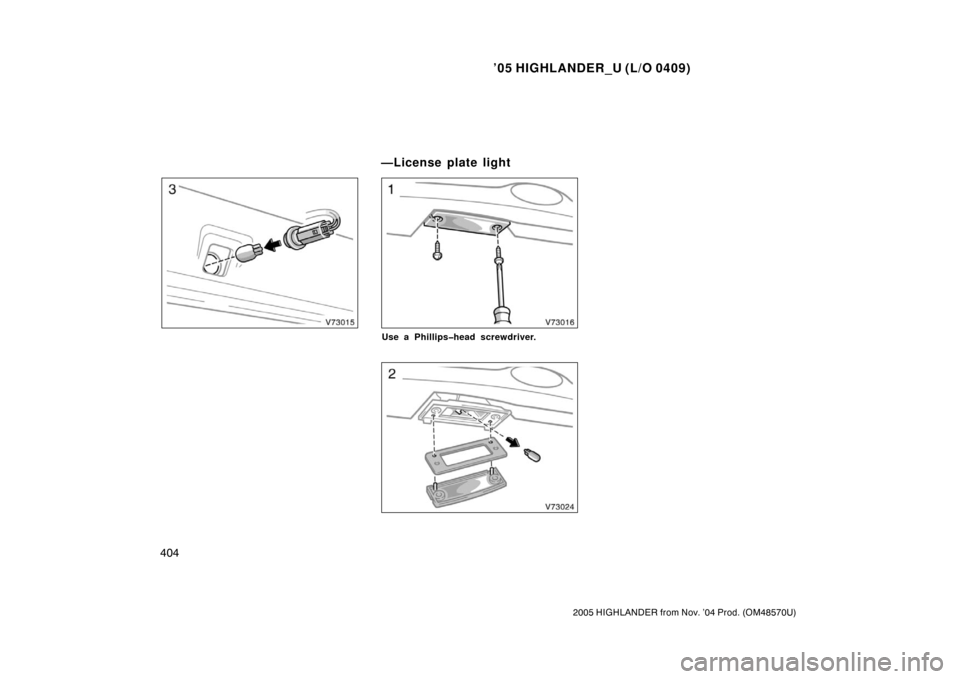

Use a Phillipshead screwdriver.
—License plate light

’05 HIGHLANDER_U (L/O 0409)
405
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
SPECIFICATIONS
Specifications
Dimensions and weights 406
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 406
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 407
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 407
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 410
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 410
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’05 HIGHLANDER_U (L/O 0409)
406
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Model:
2AZ− FE and 3MZ −FE
Type: 2AZ− FE engine
4 cylinder in line, 4 cycle, gasoline
3MZ −FE engine
6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.): 2AZ− FE engine
88.5 96.0 (3.48 3.78)
3MZ −FE engine
92.0 83.0 (3.62 3.27)
Displacement, cm
3 (cu. in.):
2AZ− FE engine
2362 (144.1)
3MZ −FE engine
3311 (202.1)
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ 1mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity
weight (occupants
+ luggage) kg (lb.) Tw o
−wheel drive models Four −wheel drive models
4690 (184.6)
4690 (184.6)
1825 (71.9) 1825 (71.9)
1690 (66.5)
∗ 2
1745 (68.7)∗3
2715 (106.9) 2715 (106.9)
1580 (62.2) 1575 (62.0)
1565 (61.6) 1555 (61.2)
390 (860)
∗ 4
526 (1159)∗5390 (860)∗4
526 (1159)∗5
∗ 1
: Unladen vehicle∗2: Without roof rails∗3: With roof rails∗4: Without third seat∗5: With third seat∗6:2AZ −FE engine∗
7:3MZ −FE engine∗
8: Without towing package∗9: With towing package 1680 (66.1)
∗
2
1735 (68.3)∗3
Towing capacity
(trailer weight +
cargo weight) kg (lb.) 680 (1500)∗
6, 8
1360 (3000)∗6, 9
907 (2000)∗7, 8
1585 (3500)∗7, 9
680 (1500)∗6, 8
1360 (3000)∗6, 9
907 (2000)∗7, 8
1585 (3500)∗7, 9
Engine

’05 HIGHLANDER_U (L/O 0409)
407
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Fuel type:
2AZ− FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
3MZ −FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher. For improved vehicle perfor-
mance, the use of premium unleaded
gasoline with an Octane Rating of 91
(Research Octane Number 96) or
higher is recommended.
Fuel tank capacity, L (gal., Imp. gal.): 72.5 (19.1, 16.0) ENGINE
Valve clearance (engine cold), mm (in.):
2AZ− FE engine
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.30—0.40 (0.012—0.016)
3MZ −FE engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.): 1.1 (0.043)
Drive belt tension measured with
Borroughs drive belt tension gauge
No.BT− 33−73F (used belt), Ibf:
2AZ− FE engine
Automatic adjustment
3MZ −FE engine
125 10 ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
2AZ− FE engine
With filter 3.8 (4.0, 3.3)
Without filter 3.6 (3.8, 3.2)
3MZ −FE engine
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: API grade SL “Energy −Conserving” or
ILSAC multigrade engine oil
Fuel Service specifications

’05 HIGHLANDER_U (L/O 0409)
408
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Recommended oil viscosity:
SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
2AZ− FE engine
With rear heater 7.7 (8.1, 6.8) 8.5 (9.0, 7.5)
∗
Without rear heater6.3 (6.7, 5.5)
7.1 (7.5, 6.2)
∗
3MZ−FE engine
With rear heater 10.7 (11.3, 9.4) 11.4 (12.0, 10.0)
∗
Without rear heater 9.4 (9.9, 8.3)
10.1 (10.7, 8.9)
∗
∗
: Vehicles with towing package
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone. Please contact your Toyota dealer for
further details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8V Fully charged
12.2—12.4V Half charged
11.8—12.0V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt.,
Imp. qt.): Up to 3.5 (3.7, 3.1)
Fluid type: Toyota Genuine ATF Type T −IV
Change automatic transmission fluid only
as necessary.

’05 HIGHLANDER_U (L/O 0409)
409
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type T −IV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type TIV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details.
TRANSFER
(fourwheel drive models)
Oil capacity, L (qt., Imp. qt.):
0.9 (1.0, 0.8)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: Above −18 C (0 F)
SAE 90
Below −18 C (0 F)
SAE 80W or 80W −90 REAR DIFFERENTIAL
(fourwheel drive models)
Oil capacity, L (qt., Imp. qt.):
0.9 (1.0, 0.8)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: Above −18 C (0 F)
SAE 90
Below −18 C (0 F)
SAE 80W or 80W −90
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.): 83 (3.3)
Pedal free play, mm (in.): 2—3 (0.08—0.12)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when depressed
with the force of 294 N (30 kgf, 66 lbf): 5—7 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3 STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

’05 HIGHLANDER_U (L/O 0409)
410
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Engine compartment
Tires
Ti r e siz eTi r e inf lat ion pr es s ur e
Front Rear
P225/70R16 101S
225/65R17 101S 210 (2.1, 30) 210 (2.1, 30)
210 (2.1, 30) 210 (2.1, 30) Wheel size
16 6 1/2 JJ
17 6 1/ 2 JJ
When driving under the above load condition at sustained high speeds above
160 km/h (100 mph), in countries where such speeds are permitted by −low,
inflate the front and rear tires to the following tire inflation pressure provided
that it does not exceed the maximum cold tire inflation pressure molded
on the tire sidewall.
P225/70R16 101S tires 240 kPa (2.4 kgf/cm
2 or bar, 35 psi)
225/65R17 101S tires 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Wheel nut torque, N
·m (kgf·m, ft·lbf):
103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum
wheel precautions”, pages 385 through 393, in Section 7 −2.
Tire size and cold tire inflation pressure:
kPa (kgf/cm
2 or bar, psi)
Fuses
