’05 HIGHLANDER_U (L/O 0409)
71
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all in-
fants and children be placed in the
rear seat of the vehicle and proper-
ly restrained. The rear seat is the
safest for infants and children. For
instructions concerning the installa-
tion of a child restraint system, see
“Child restraint” on page 91 in this
Section.The SRS front airbags are designed to
deploy in severe (usually frontal) colli-
sions where the magnitude and duration
of the forward deceleration of the ve-
hicle exceeds the designed threshold
level.
The SRS front airbags will deploy if the
severity of the impact is above the de-
signed threshold level, comparable to an
approximate 25 km/h (15 mph) collision
when the vehicles has the impact straight
into a fixed barrier that does not move or
deform.
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if the vehicle is involved in an
underride collision (e.g. a collision in
which the front of the vehicle “underrides”,
or goes under, the bed of a truck, etc.).
It is possible that in some collisions
where the forward deceleration of the ve-
hicle is very close to the designed thresh-
old level, the SRS front airbags and the
seat belt pretensioners may not activate
together.
Always wear your seat belts properly.
Collision from the rear
Collision from the side Vehicle rollover
The SRS front airbags are generally not
designed to inflate if the vehicle is in-
volved in a side or rear collision, if it
rolls over, or if it is involved in a low
speed frontal collision. But, when ever a
collision of any type causes sufficient
forward deceleration of the vehicle, de-
ployment of the SRS front airbags may
occur.

’05 HIGHLANDER_U (L/O 0409)
72
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Hitting a curb,
edge of pavement
or hard surfaceFalling into or
jumping over a
deep hole
Landing hard or vehicle falling
The SRS front airbags may also deploy
if a serious impact occurs to the under-
side of your vehicle. Some examples
are shown in the illustration.The SRS front airbag system consists
mainly of the following components, and
their locations are shown in the illustra-
tion. 1. Front airbag sensors
2. SRS warning light
3. Airbag module for front passenger (airbag and inflator)
4. “AIRBAG ON” and “AIRBAG OFF” indi- cator lights
5. Front passenger occupant classification system (ECU and sensors)
6. Front passenger ’s seat belt buckle switch
7. Driver ’s seat belt buckle switch 8. Driver ’s seat position sensor
9. Airbag sensor assembly
10. Airbag module for driver (airbag and inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor.
The front airbag sensors constantly moni-
tor the forward deceleration of the vehicle.
If an impact results in a forward decelera-
tion beyond the designed threshold level,
the system triggers the airbag inflators. At
this time a chemical reaction in the infla-
tors very quickly fills the airbags with
non− toxic gas to help restrain the forward
motion of the occupants. The front airbags
then quickly deflate, so that there is no
obstruction of the driver ’s vision should it
be necessary to continue driving.
When the airbags inflate, they produce a
loud noise and release some smoke and
residue along with non −toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately.

’05 HIGHLANDER_U (L/O 0409)
73
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious inju-
ries, primarily to the head and chest, it
may also cause other, less severe injuries
to the face, chest, arms and hands. These
are usually in the nature of minor burns
or abrasions and swelling, but the force of
a deploying airbag can cause more seri-
ous injuries, especially if an occupant’s
hands, arms, chest or head is in close
proximity to the airbag module at the time
of deployment. This is why it is important
for the occupant to: avoid placing any
object or part of the body between the
occupant and the airbag module; sit
straight and well back into the seat; wear
the available seat belt properly; and sit as
far as possible from the airbag module,
while still maintaining control of the ve-
hicle.
Parts of the airbag module (steering wheel
hub, airbag cover and inflator) may be hot
for several minutes after deployment, so
do not touch! The airbags inflate only
once. The windshield may be damaged by
absorbing some of the force of the inflat-
ing airbag.CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Toyota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
For instructions and precautions con-
cerning the seating position, see
“—Front seat precautions” on page
40 in this Section.Do not sit on the edge of the seat
or lean against the dashboard when
the vehicle is in use, since the
front passenger airbag could inflate
with considerable speed and force.
Anyone who is up against, or very
close to, an airbag when it inflates,
can be killed or seriously injured.
Sit up straight and well back in the
seat, and always use your seat belt
properly.

’05 HIGHLANDER_U (L/O 0409)
74
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Toyota strongly recommends that all
infants and children be placed in
the rear seat of the vehicle and be
properly restrained.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see “Child
restraint” on page 91 in this Sec-
tion.
Do not put anything or any part of
your body on or in front of the
dashboard or steering wheel pad
that houses the front airbag sys-
tem. They might restrict inflation or
cause death or serious injury as
they are projected rearward by the
force of the deploying airbags. Like-
wise, the driver and front passenger
should not hold objects in their
arms or on their knees.
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag or airbag sensor
assembly. Doing so may prevent the
front airbag system from activating
correctly, cause sudden activation
of the system or disable the sys-
tem, which could result in death or
serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with a physical disability,
consult your Toyota dealer. It may
dangerously interfere with the SRS
front airbags operation.

’05 HIGHLANDER_U (L/O 0409)
75
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags are oper-
ating properly. This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system, “AIRBAG ON” indi-
cator light, “AIRBAG OFF” indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, warning light, interconnecting wiring
and power sources. (For details, see “Ser-
vice reminder indicators and warning buzz-
ers” on page 135 in Section 1
−6.)
If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds or flashes.
The light comes on or starts flashing
while driving.

’05 HIGHLANDER_U (L/O 0409)
76
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
If the light stays on, it indicates that the
SRS driver and front passenger airbag
system and/or front passenger occupant
classification system and “AIRBAG ON”
and “AIRBAG OFF” indicator lights have a
problem. If the light flashes, the SRS side
airbag system and/or curtain shield airbag
system have a problem.
The SRS warning light and “AIRBAG OFF”
indicator light will come on if there is a
malfunction in the front passenger occu-
pant classification system.
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.

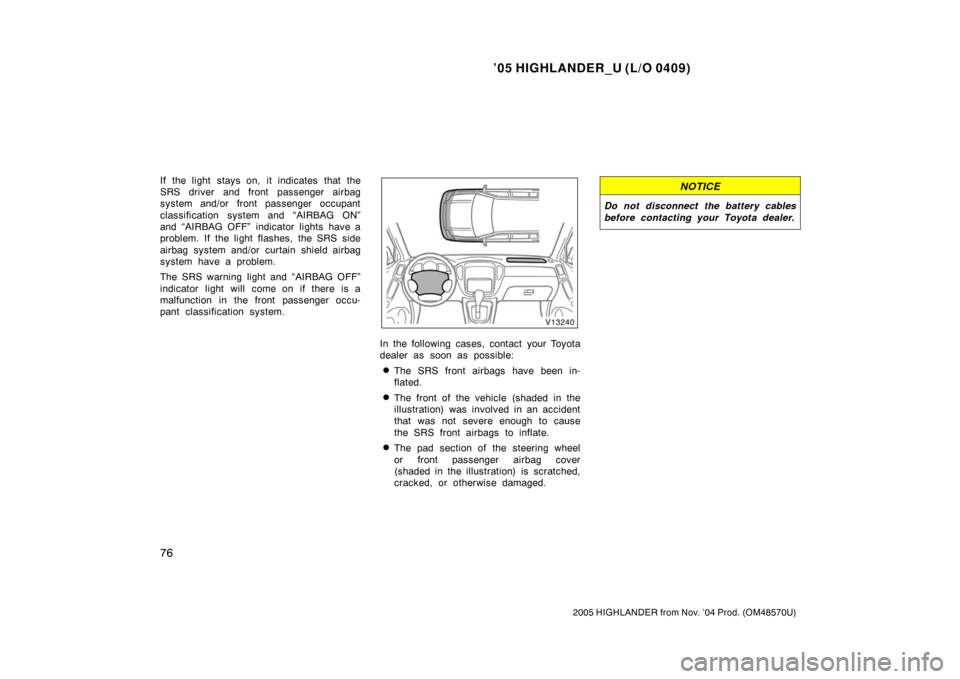

The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

’05 HIGHLANDER_U (L/O 0409)
77
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

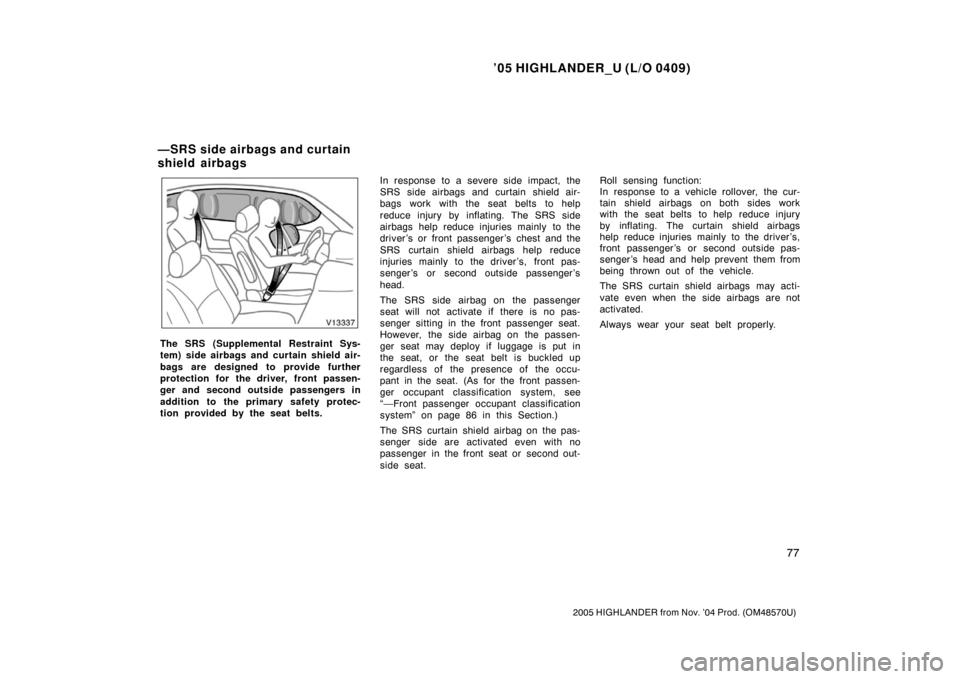

The SRS (Supplemental Restraint Sys-
tem) side airbags and curtain shield air-
bags are designed to provide further
protection for the driver, front passen-
ger and second outside passengers in
addition to the primary safety protec-
tion provided by the seat belts. In response to a severe side impact, the
SRS side airbags and curtain shield air-
bags work with the seat belts to help
reduce injury by inflating. The SRS side
airbags help reduce injuries mainly to the
driver ’s or front passenger ’s chest and the
SRS curtain shield airbags help reduce
injuries mainly to the driver’s, front pas-
senger ’s or second outside passenger ’s
head.
The SRS side airbag on the passenger
seat will not activate if there is no pas-
senger sitting in the front passenger seat.
However, the side airbag on the passen-
ger seat may deploy if luggage is put in
the seat, or the seat belt is buckled up
regardless of the presence of the occu-
pant in the seat. (As for the front passen-
ger occupant classification system, see
“—Front passenger occupant classification
system” on page 86 in this Section.)
The SRS curtain shield airbag on the pas-
senger side are activated even with no
passenger in the front seat or second out-
side seat.Roll sensing function:
In response to a vehicle rollover, the cur-
tain shield airbags on both sides work
with the seat belts to help reduce injury
by inflating. The curtain shield airbags
help reduce injuries mainly to the driver ’s,
front passenger ’s or second outside pas-
senger ’s head and help prevent them from
being thrown out of the vehicle.
The SRS curtain shield airbags may acti-
vate even when the side airbags are not
activated.
Always wear your seat belt properly.
—SRS side airbags and curtain
shield airbags

’05 HIGHLANDER_U (L/O 0409)
78
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

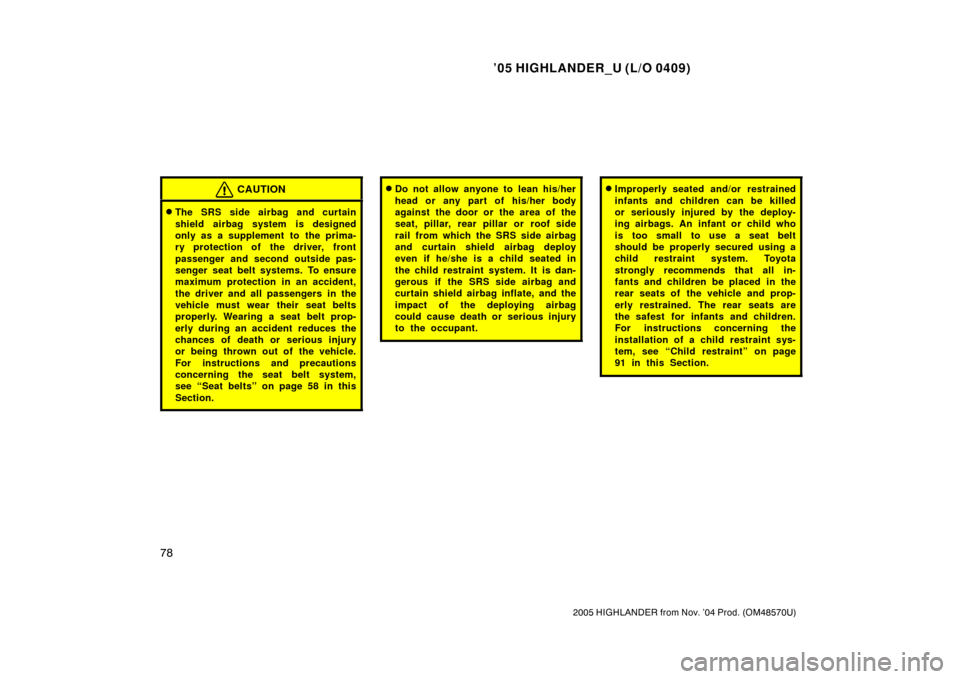

CAUTION
The SRS side airbag and curtain
shield airbag system is designed
only as a supplement to the prima-
ry protection of the driver, front
passenger and second outside pas-
senger seat belt systems. To ensure
maximum protection in an accident,
the driver and all passengers in the
vehicle must wear their seat belts
properly. Wearing a seat belt prop-
erly during an accident reduces the
chances of death or serious injury
or being thrown out of the vehicle.
For instructions and precautions
concerning the seat belt system,
see “Seat belts” on page 58 in this
Section.
Do not allow anyone to lean his/her
head or any part of his/her body
against the door or the area of the
seat, pillar, rear pillar or roof side
rail from which the SRS side airbag
and curtain shield airbag deploy
even if he/she is a child seated in
the child restraint system. It is dan-
gerous if the SRS side airbag and
curtain shield airbag inflate, and the
impact of the deploying airbag
could cause death or serious injury
to the occupant.Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all in-
fants and children be placed in the
rear seats of the vehicle and prop-
erly restrained. The rear seats are
the safest for infants and children.
For instructions concerning the
installation of a child restraint sys-
tem, see “Child restraint” on page
91 in this Section.

’05 HIGHLANDER_U (L/O 0409)
79
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

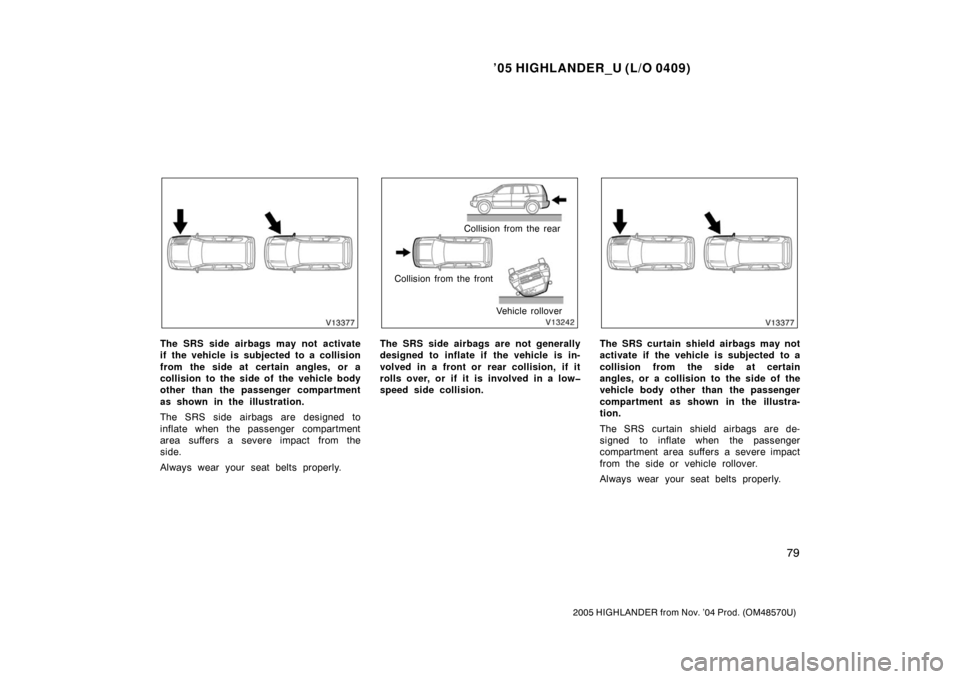

The SRS side airbags may not activate
if the vehicle is subjected to a collision
from the side at certain angles, or a
collision to the side of the vehicle body
other than the passenger compartment
as shown in the illustration.
The SRS side airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side.
Always wear your seat belts properly.
Collision from the rear
Collision from the front Vehicle rollover
The SRS side airbags are not generally
designed to inflate if the vehicle is in-
volved in a front or rear collision, if it
rolls over, or if it is involved in a low
speed side collision.The SRS curtain shield airbags may not
activate if the vehicle is subjected to a
collision from the side at certain
angles, or a collision to the side of the
vehicle body other than the passenger
compartment as shown in the illustra-
tion.
The SRS curtain shield airbags are de-
signed to inflate when the passenger
compartment area suffers a severe impact
from the side or vehicle rollover.
Always wear your seat belts properly.

’05 HIGHLANDER_U (L/O 0409)
80
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
The angle of
vehicle tip−up
is marginal Skidding vehicle
hitting a curb
stone
The SRS curtain shield airbags may in-
flate if the angle of vehicle tipup is
marginal or if the skidding vehicle’s
tires hit a curb stone laterally as shown
in the illustration.
Collision from
the front
Collision from
the rear
Pitch end over end
The SRS curtain shield airbags are not
generally designed to inflate if the ve-
hicle is involved in a front or rear colli-
sion, if it pitches end over end, or if
it is involved in a lowspeed side colli-
sion.
Hitting a curb,
edge of pavement
or hard surface Falling into or
jumping over a
deep hole
Landing hard or vehicle falling
The SRS side and curtain shield airbags
may deploy if a serious impact occurs
to the underside of your vehicle. Some
examples are shown in the illustration.
