2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Important information about your Toyota
Occupant restraint systems
Toyota encourages you and your family to take the time to
read Section 1−3 of this Owner’s Manual carefully. In
terms of helping you understand how you can receive the
maximum benefit of the occupant restraint systems this
vehicle provides, Section 1 −3 of this Owner ’s Manual is
the most important Section for you and your family to
read.
Section 1 −3 describes the function and operation concern-
ing seats, seat belts, SRS airbags and child restraint sys-
tems of this vehicle and some potential hazards you
should be aware of. These systems work together along
with the overall structure of this vehicle in order to provide
occupant restraint in the event of a crash. The effect of
each system can be enhanced when it is used properly
and together with other systems. No single occupant re-
straint system can, by itself, provide you or your family
with the equal level of restraint which these systems can
provide when used together. That is why it is important for
you and your family to understand the purpose and proper
use of each of these systems and how they relate to each
other.
The purpose of all occupant restraint systems is to help
reduce the possibility of death or serious injury in the
event of a collision. None of these systems, either individ-
ually or together, can ensure that there is no injury in the
event of collision. However, the more you know about
these systems and how to use them properly, the greater
your chances become of surviving an accident without
death or serious injury.
Seat belts provide the primary restraint to all occupants of
the vehicle, and every occupant of the vehicle should wear
seat belts properly at all times. Children should always be
secured in child restraint systems that are appropriate for
their age and size. SRS (Supplemental Restraint System)
airbags are, as their names imply, designed to work with,
and be supplemental to, seat belts and are not substitutes
for them. SRS airbags can be very effective in reducing
the risk of head and chest injuries by preventing contact of
the head and chest with interior portions of the vehicle.

’05 HIGHLANDER_U (L/O 0409)
iv
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
In order to be effective, the SRS airbags must deploy with
tremendous speed. The rapid deployment of the SRS air-
bags makes the SRS airbags themselves potential sources
of serious injury if an occupant is too close to an airbag,
or if an object or some part of his or her body has been
placed between the occupant and the airbag at the time of
deployment. This is just one example of how the instruc-
tions in Section 1−3 of this Owner ’s Manual will help en-
sure proper use of the occupant restraint systems, and
increase the safety they can provide to you and your fami-
ly in the event of an accident.
Toyota recommends you to read the provisions in Section
1 −3 carefully and refer to them as needed during your time
of ownership of this vehicle.Event data recorder
Your vehicle has computers that monitor and control cer-
tain aspects of your vehicle. These computers assist in
driving and maintaining optimal vehicle performance. Be-
sides storing data useful for troubleshooting, there is a
system to record data in a crash or a near car crash
event. This is called an Event Data Recorder (EDR).
The SRS airbag sensor assembly contains the EDR. In a
crash or a near car crash event, this device records some
or all of the following information:
 Engine speed
 Whether the brake pedal was applied or not
 Vehicle speed
 To what extent the accelerator pedal was depressed
 Position of the transmission selector lever
 Whether the driver and front passenger wore the seat
belts or not
 Driver’s seat position
 Front passenger ’s occupant classification

’05 HIGHLANDER_U (L/O 0409)
vii
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Accessories, spare parts and
modification of your Toyota
A wide variety of non −genuine spare parts and accessories
for Toyota vehicles are currently available in the market.
You should know that Toyota does not warrant these prod-
ucts and is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or
adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non −genuine
Toyota products. Modification with non −genuine Toyota
products could affect its performance, safety or durability,
and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the
modification may not be covered under warranty.
Spark ignition system of your To y o t a
The spark ignition system in your Toyota meets all require-
ments of the Canadian Interference −Causing Equipment
Standard.
Installation of a mobile twoway radio system
As the installation of a mobile two −way radio system in
your vehicle could affect electronic systems such as multi-
port fuel injection system/sequential multiport fuel injection
system, electronic throttle control system, cruise control
system, anti −lock brake system, traction control system,
vehicle stability control system, SRS airbag system and
seat belt pretensioner system, be sure to check with your
Toyota dealer for precautionary measures or special in-
structions regarding installation.

’05 HIGHLANDER_U (L/O 0409)
viii
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Tires and loading on your
To y o t a
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of
steering ability and braking ability, leading to an
accident. Check the tire inflation pressure periodi-
cally and be sure to keep the load limits given in
this Owner ’s Manual. For details about tire inflation
pressure and load limits, see pages 385 and 312.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your
Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by the qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.

’05 HIGHLANDER_U (L/O 0409)
4
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

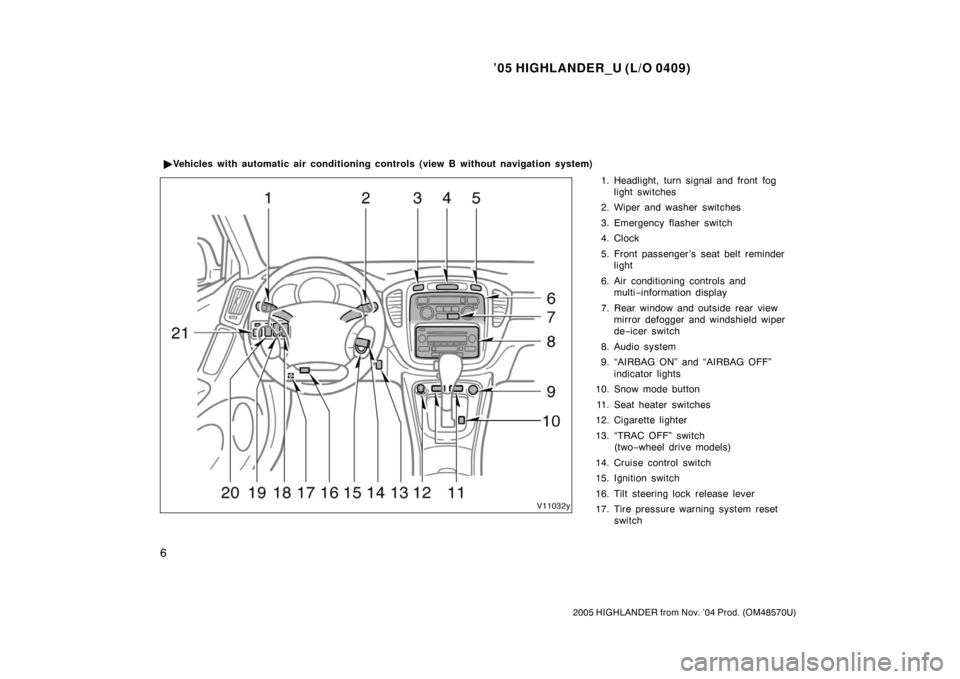

1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger ’s seat belt reminder light
6. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
7. Air conditioning controls
8. Audio system
9. “AIRBAG ON” and “AIRBAG OFF” indicator lights
10. Snow mode button 11. Seat heater switches
12. Cigarette lighter
13. “TRAC OFF” switch (two −wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
17. Tire pressure warning system reset switch

Vehicles with manual air conditioning controls (view B)

’05 HIGHLANDER_U (L/O 0409)
6
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

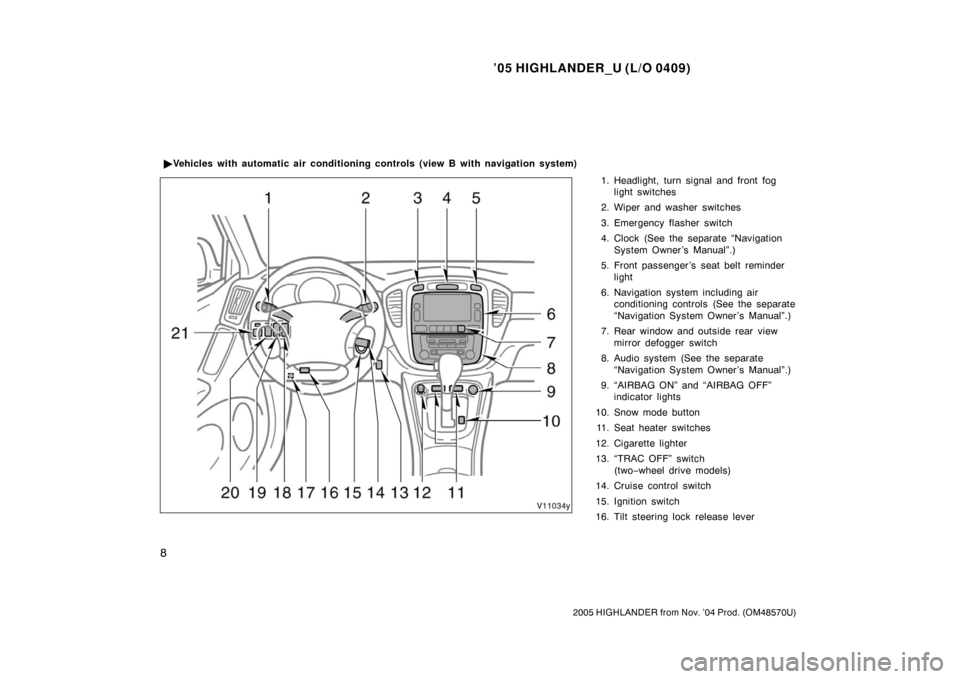

1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger ’s seat belt reminder light
6. Air conditioning controls and multi −information display
7. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
8. Audio system
9. “AIRBAG ON” and “AIRBAG OFF” indicator lights
10. Snow mode button
11. Seat heater switches
12. Cigarette lighter
13. “TRAC OFF” switch (two −wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
17. Tire pressure warning system reset switch

Vehicles with automatic air conditioning controls (view B without navigation system)

’05 HIGHLANDER_U (L/O 0409)
8
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock (See the separate “Navigation System Owner ’s Manual”.)
5. Front passenger ’s seat belt reminder light
6. Navigation system including air conditioning controls (See the separate
“Navigation System Owner ’s Manual”.)
7. Rear window and outside rear view mirror defogger switch
8. Audio system (See the separate “Navigation System Owner ’s Manual”.)
9. “AIRBAG ON” and “AIRBAG OFF” indicator lights
10. Snow mode button 11. Seat heater switches
12. Cigarette lighter
13. “TRAC OFF” switch (two −wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever

Vehicles with automatic air conditioning controls (view B with navigation system)

’05 HIGHLANDER_U (L/O 0409)
11
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Brake system warning light∗
1
Discharge warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
SRS warning light∗1
Driver ’s seat belt reminder light∗1Open door warning light∗1
Automatic transmission fluid temperature
warning light∗1 (four −wheel drive models)
or
Low windshield washer fluid level warning
light∗
1
or
Vehicle stability control system warning light∗1
Anti −lock brake system warning light∗
1or
Front passenger ’s seat belt reminder light∗1
Low tire pressure warning light∗1
Indicator symbols on the instrument panel

’05 HIGHLANDER_U (L/O 0409)
26
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the side doors and back
door with the key or wireless remote
control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
and back door with the power door
lock switch.
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

’05 HIGHLANDER_U (L/O 0409)
39
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Rear seats 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Flattening seatbacks 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Seat heaters 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Head restraints 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Armrests 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Seat belts 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS airbags 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Child restraint 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 3
