audio TOYOTA HIGHLANDER 2007 XU40 / 2.G Navigation Manual

127

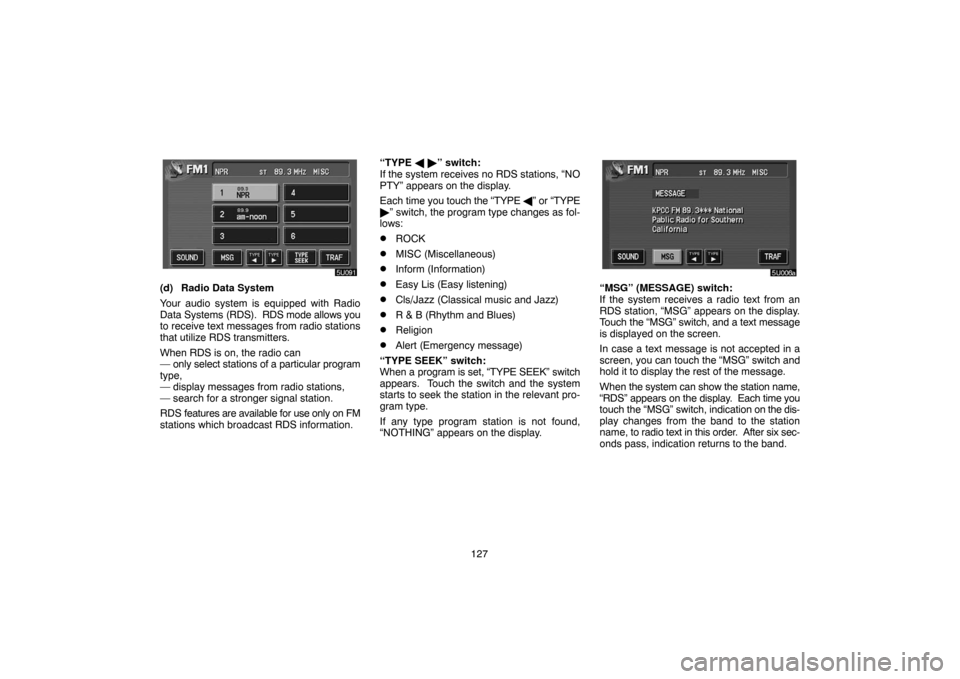

(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode allows you
to receive text messages from radio stations
that utilize RDS transmitters.
When RDS is on, the radio can
— only select stations of a particular program
type,
— display messages from radio stations,
— search for a stronger signal station.
RDS features are available for use only on FM
stations which broadcast RDS information.“TYPE  ” switch:
If the system receives no RDS stations, “NO
PTY” appears on the display.
Each time you touch the “TYPE ” or “TYPE
” switch, the program type changes as fol-
lows:
ROCK
MISC (Miscellaneous)
Inform (Information)
Easy Lis (Easy listening)
Cls/Jazz (Classical music and Jazz)
R & B (Rhythm and Blues)
Religion
Alert (Emergency message)
“TYPE SEEK” switch:
When a program is set, “TYPE SEEK” switch
appears. Touch the switch and the system
starts to seek the station in the relevant pro-
gram type.
If any type program station is not found,
“NOTHING” appears on the display.
“MSG” (MESSAGE) switch:
If the system receives a radio text from an
RDS station, “MSG” appears on the display.
Touch the “MSG” switch, and a text message
is displayed on the screen.
In case a text message is not accepted in a
screen, you can touch the “MSG” switch and
hold it to display the rest of the message.
When the system can show the station name,
“RDS” appears on the display. Each time you
touch the “MSG” switch, indication on the dis-
play changes from the band to the station
name, to radio text in this order. After six sec-
onds pass, indication returns to the band.

134 (h) Other compact disc player functions
“RPT” switch: Use it for automatic repeat of
the track you are currently listening to.
Touch the switch while the track is playing.
When the track is finished, the player will au-
tomatically go back to the beginning of the
track and play the track again. To cancel it,
touch the switch once again.
“DISC RPT” switch: Use it for automatic re-
peat of the disc you are currently listening to.
Touch the switch while the disc is playing.
When the disc is finished, the player will auto-
matically go back to the beginning of the disc
and play the disc again. To cancel it, touch the
button once again.
“DISC RAND” switch: Use it for automatic
track selection for all the discs and play by the
system.
When the switch is touched, the system se-
lects a track in the discs of all the trays which
are set and plays it. To cancel it, touch the
switch once again.
When a track is skipped or the system is inop-
erative, touch the switch to reset.“RAND” switch: Use it for automatic and
random selection of the disc which you are
currently listening to.
When the switch is touched, the system se-
lects a track in the disc you are currently lis-
tening to. To cancel it, touch the switch once
again.
CD text only — To display the title of the disc
and truck, touch the “TITLE” switch. When
the “TITLE OFF” switch is touched, the dis-
play changes to the disc number screen.(i) If the player malfunctions
If the player or another unit equipped with the
player malfunctions, your audio system will
display following error messages.
If “CD CHECK” appears on the display: It
indicates that the disc is dirty, damaged or it
was inserted up− side down. Clean the disc
or insert it correctly.
If “CD ERROR” appears on the display:
The following causes are possible.
There is a trouble inside the system. Eject
the disc.
The inside of the player unit may be too
hot due to the very high ambient tempera-
ture. Eject the disc and allow the player to
cool down.
If the malfunction is not rectified: Take
your vehicle to your dealer.

135
— DVD player operation
The DVD player can play DVD video, audio
CD, video CD, CD text, dtsCD or DVD au-
dio only when a disc is loaded in the DVD
player.
Audio CD, CD text, dts−CD 136. . . .
DVD video, DVD audio 137. . . . . . . .
Video CD 147. . . . . . . . . . . . . . . . . . .
Refer to “Rear seat entertainment system” for
details.
For appropriate discs for this player, see “Au-
dio system operating hints” on page 151.
(a) Inserting the disc
The indicator light turns on while the disc is
loaded.
If the label faces forward, the disc cannot be
played. In this case, “DISC CHECK” appears
on the screen.
If a disc which is not playable is inserted,
“DISC CHECK” will also appear on the
screen. For appropriate discs for this player,
see “Audio system operating hints” on page
151.
NOTICE
Never try to disassemble or oil any part
of the DVD player. Do not insert any-
thing other than a disc into the slot.
(b) Ejecting a disc
Push the “
” button.

136
(c) Playing a disc
Push the “DISC” button if a disc is already
loaded in the player.
“DVD” appears on the screen. (If the CD play-
er is turned on, push the “DISC” button again
to switch to the DVD player.)
(d) Operating an audio CD
(audio CD, CD text, dtsCD)
PLAYING AN AUDIO CD
Push the “AUDIO” button to display this
screen.
CD text only — The disc title and track title will
appear on the screen when pushing the
“DISC” button.
SELECTING A DESIRED TRACK
“SEEK·TRACK” button: Use for direct ac-
cess to a desired track.
Push either side of the “SEEK·TRACK” but-
ton and hold it until the desired track number
appears on the display. As you release the
button, the player will start playing the se-
lected track from the beginning.
Fast forward: Touch the
switch and
hold it to fast forward the disc. When you re-
lease the switch, the player will resume play-
ing from that position.
Reverse: Touch the
switch and hold
it to reverse the disc. When you release the
switch, the player will resume playing.

137
SEARCHING FOR A DESIRED TRACK
Touch the “SCAN” switch on the screen or
push the “SCAN” button.
“SCAN” will be highlighted in yellow on the
screen. The player will play the next track for
10 seconds, then scan again. To select a
track, touch the “SCAN” switch on the screen
or push the “SCAN” button a second time. If
the player reaches the end of the disc, it will
continue scanning at track 1.
After all the tracks are scanned in one pass,
normal play resumes.OTHER FUNCTIONS
“RPT” switch: Use it for automatic repeat of
the track you are currently listening to.
Touch the switch while the track is playing.
When the track is finished, the player will au-
tomatically go back to the beginning of the
track and play the track again.
To cancel it, touch the switch once again.
“RAND” switch: Use it for automatic and
random selection of the disc which you are
currently listening to.
When the switch is touched, the system se-
lects a track in the disc you are currently lis-
tening to.
To cancel it, touch the switch once again.
If a CD−TEXT disc is inserted, the title of the
disc and track will be displayed. Up to 29 let-
ters can be displayed.(e) Operating a DVD disc
NOTE: The playback condition of some
DVD video discs may be determined by a
DVD video software producer. This DVD
player plays a disc as the software pro-
ducer intended. So some functions may
not work properly. Be sure to read the in-
struction manual for the DVD video disc
separately provided. For the detailed in-
formation about DVD video discs, see “(h)
DVD player and DVD video disc informa-
tion”.
Precautions on DVD disc
When recording with a DVD video, DVD au-
dio or video CD, audio tracks may not record
in some cases while the menu is displayed.
As audio will not play in this case, verify that
the video tracks are playing and then activate
playback.
When playback of a disc is completed, play-
back will stop or the menu screen will be dis-
played.
The title/chapter number and playback time
display may not appear while playing back
certain DVD video discs.

138
CAUTION
Conversational speech on some DVDs
is recorded at a low volume to empha-
size the impact of sound effects. If you
adjust the volume assuming that the
conversations represent the maximum
volume level that the DVD will play, you
may be startled by louder sound effects
or when you change to a different audio
source. The louder sounds may have a
significant impact on the human body or
pose a driving hazard. Keep this in mind
when you adjust the volume.
This “DVD Hint!” screen appears when the
video screen is first displayed after you
turn the ignition key to “ACC” or “ON”.
Touch “OK” when you read the message.DVD video
DVD audio
PLAYING A DVD DISC
Push the “AUDIO” button to display DVD
screen.
It you touch the “PICTURE” switch when the
vehicle is completely stopped and the parking
brake is applied, the video screen returns.

139
DISPLAYING DVD CONTROLS
If you touch a part of the screen, where con-
trols are not located while you are watching
video, DVD controls will appear.
“Page2”: Touching this will display on the
second page of DVD controls.
“Page1”: Touching this will display the top
page of DVD controls.
“Hide Buttons” switch: Touching this will
turn off the controls from the screen.
If “
” appears on the screen when you touch
a control, the operation relevant to the control
is not permitted.
DESCRIPTION OF DVD VIDEO
CONTROLS
Top page controls
“Menu” and “Top Menu”: If you touch any
of the above controls, the menu screen for
DVD video appears. (For the operation, see
the manual that come with the DVD video disc
provided separately.)
“
”: The menu control key appears on
the screen. (See page 140.)
“
”: Touching this will pause the video
screen. When you touch this again, the video
screen advances frame by frame.
“”: Touching this will fast reverse during
playback and reverse slowly during pause.
“”: Touching this switch will resume normal
play after stop or pause.
“”: Touching this will fast forward during
playback and forward slowly during pause.
Second page controls
“Setup”: The initial set up screen appears.
(See page 143.)
“Search”: The title search screen appears.
(See page 141.)
“Return”: Touching this will display the pre-
determined scene and start playing from
there.
“Audio”: The audio changing screen ap-
pears. (See page 142.)
“Sub title”: The subtitle changing screen ap-
pears. (See page 142.)
“Angle”: The angle selection screen ap-
pears. (See page 143.)

140
DESCRIPTION OF DVD AUDIO
CONTROLS
Top page controls
“Top Menu”: If you touch this switch, the
menu screen for DVD audio appears. (For
operation, refer to the DVD audio disc manual
that is provided separately.)
“Audio”: The audio changing screen ap-
pears. (See page 143.)
“
”: The menu control key appears on
the screen. (See page 140.)
“
”: Touch this switch to pause the disc.
“”: Touching this will fast reverse.
“”: Touching this will resume normal play
after stop or pause.
“”: Touching this will fast forward.
Second page controls
“Setup”: The initial set up screen appears.
(See page 143.)
“Search”: The group search screen ap-
pears. (See page 141.)
“Return”: Touching this will display the pre-
determined scene and start playing from
there.
“Prev. Still”: Touch this switch to reverse the
still pictures. (See page 142.)
“Next Still”: Touch this switch to forward the
still pictures. (See page 142.)
“Sub title”: The subtitle changing screen ap-
pears. (See page 142.)
“Angle”: The angle selection screen ap-
pears. (See page 143.)SELECTING A MENU ITEM
Enter the menu item using “”, “”, “”
and “” switches and touch “Enter”. The
player starts playing DVD for that menu
item. (For details, see the manual that
comes with the DVD provided separately.)
Each time you touch “Move Buttons”, the
controls on the screen move upward and
downward.
When you touch “< disappear. To display them again, touch “ON”
switch.
When you touch “Back”, the previous screen
returns.

141
SEARCHING BY TITLE
DVD video only —
Enter the title number using “”, “+” and
“+10” and touch “Enter”. The player
starts playing video for that title number.
When you push either side of the
“SEEK·TRACK ” button, you can select
a chapter.
When you touch “Back”, the previous screen
returns.SEARCHING BY GROUP
DVD audio only —
Enter the group number by using the “”
and “+” switches. The selected group
number will appear on the screen. Push
the “Enter” switch. The player starts play-
ing the disc from the entered group num-
ber.
When you push either side of the
“SEEK·TRACK ” button, you can select
a track.
When you touch “Back”, the previous screen
returns.SELECTING THE BONUS GROUP
DVD audio only —
Enter the bonus group number on the search-
ing group screen and push the “Enter” switch.
The “Enter Key Code” screen will appear. To
enter the number of the group you want to
play, push the group number. If you enter the
wrong number, push the “Clear” switch to de-
lete the number.
Push the “Enter” switch on the screen. The
player starts playing the disc from the se-
lected bonus group number.

142
CHANGING THE STILL PICTURE
DVD audio only —
Push the “Prev. Still” or “Next Still” switch on
the screen to forward or reverse the still pic-
tures.CHANGING THE SUBTITLE LANGUAGE
Each time you touch “Sub title”, the lan-
guage is selected from the ones stored in
the discs and changed.
To turn off the subtitle, touch “Hide”.
When you touch “Back”, the previous screen
returns.CHANGING THE AUDIO LANGUAGE
DVD video only —
Each time you touch “Audio”, the lan-
guage is selected from the ones stored in
the discs and changed.
When you touch “Back”, the previous screen
returns.
