1Function switch display screen
Touch the switches displayed on the
screen to control the radio, cassette
tape player and disc players. For de-
tails, see page 122.
2“AUDIO” button
Push this button to display the audio
control screen. For details, see page
122.
3“SEEK·TRACK” button
Push either side of this button to seek up
or down for a station, or to access a desi-
red program or track. For details, see
pages 126, 130, 133, and 136.
4“LOAD” button
Push this button to insert the compact
discs. For details, see pages 125 and
130.
5“DISC” button
Push this button to turn the compact disc
player with changer and DVD player on.
For details, see pages 125 and 132.
6“TUNE” knob
Turn this knob to move up or down the
station band. For details, see page 126.
Quick reference

121
7“SCAN” button
Push this button to scan radio stations or
scan the tracks on a compact disc. For
details, see pages 126, 133 and 137.
8Cassette tape slot
Insert a cassette tape into the slot. For
details, see page 128.
9“TAPE” button
Push this button to turn the cassette tape
player on. For details, see pages 122
and 128.
10“FM” button
Push this button to choose an FM sta-
tion. For details, see pages 122 and
125.
11“” button for the cassette tape
Push this button to stop and eject the
cassette tape. For details, see page
128.
12“PWR·VOL” knob
Push this knob to turn the audio system
on and off, and turn it to adjust the volu-
me. For details, see page 122.
13“AM” button
Push this button to choose an AM sta-
tion. For details, see pages 122 and
125.
14“” button for the compact discs
Push this button to eject the compact
discs. For details, see page 131.
15Compact disc slot
Insert compact discs into the slot after
pushing “LOAD” button. For details, see
pages 125 and 130.
Using your audio system —
— Some basics
This section describes some of the basic fea-
tures of your audio system. Some information
may not pertain to your system.
Your audio system works when the ignition
switch is in the “ACC” or “ON” position.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio system
on longer than necessary when the en-
gine is not running.

122

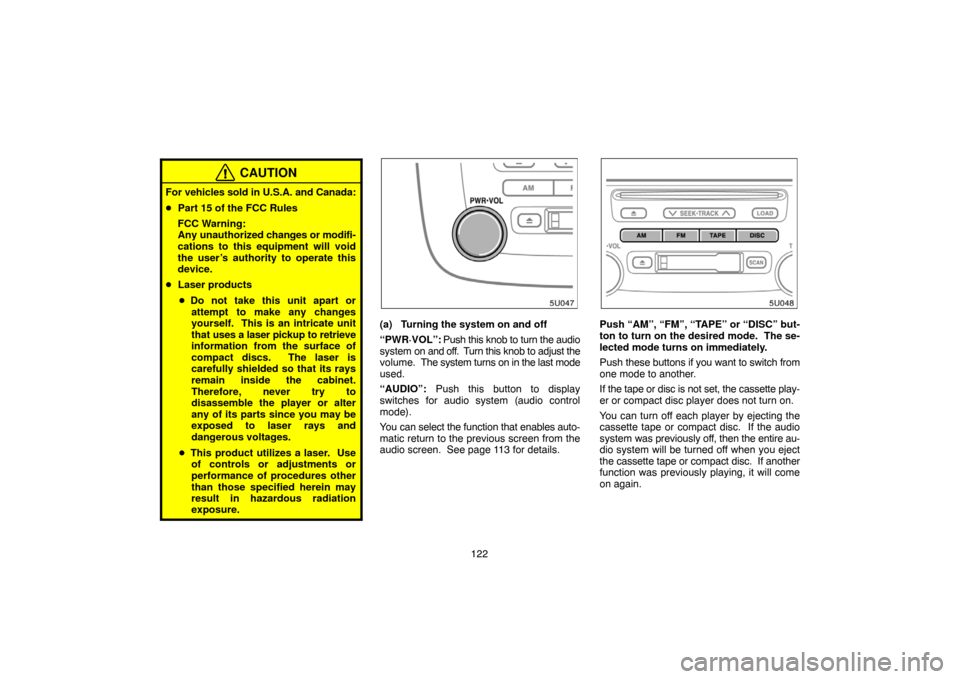

CAUTION
For vehicles sold in U.S.A. and Canada:
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifi-
cations to this equipment will void
the user’s authority to operate this
device.
Laser products
Do not take this unit apart or
attempt to make any changes
yourself. This is an intricate unit
that uses a laser pickup to retrieve
information from the surface of
compact discs. The laser is
carefully shielded so that its rays
remain inside the cabinet.
Therefore, never try to
disassemble the player or alter
any of its parts since you may be
exposed to laser rays and
dangerous voltages.
This product utilizes a laser. Use
of controls or adjustments or
performance of procedures other
than those specified herein may
result in hazardous radiation
exposure.
(a) Turning the system on and off
“PWR·VOL”: Push this knob to turn the audio
system on and off. Turn this knob to adjust the
volume. The system turns on in the last mode
used.
“AUDIO”: Push this button to display
switches for audio system (audio control
mode).
You can select the function that enables auto-
matic return to the previous screen from the
audio screen. See page 113 for details.Push “AM”, “FM”, “TAPE” or “DISC” but-
ton to turn on the desired mode. The se-
lected mode turns on immediately.
Push these buttons if you want to switch from
one mode to another.
If the tape or disc is not set, the cassette play-
er or compact disc player does not turn on.
You can turn off each player by ejecting the
cassette tape or compact disc. If the audio
system was previously off, then the entire au-
dio system will be turned off when you eject
the cassette tape or compact disc. If another
function was previously playing, it will come
on again.

123

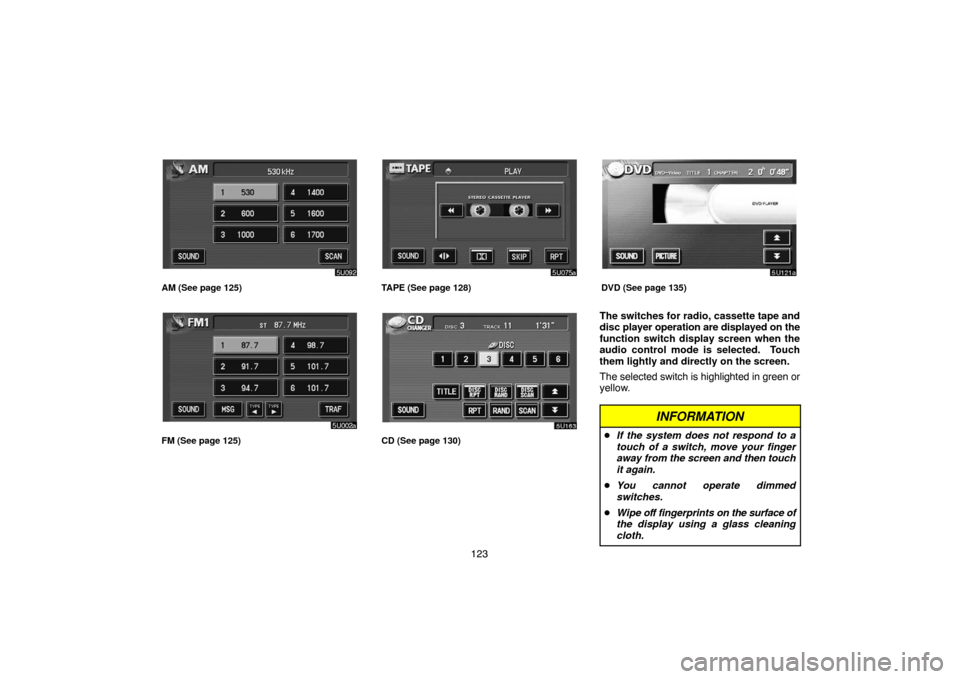

AM (See page 125)
FM (See page 125)
TAPE (See page 128)
CD (See page 130)
DVD (See page 135)
The switches for radio, cassette tape and
disc player operation are displayed on the
function switch display screen when the
audio control mode is selected. Touch
them lightly and directly on the screen.
The selected switch is highlighted in green or
yellow.
INFORMATION
If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
You cannot operate dimmed
switches.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.

124 (b) Tone and balance
How good an audio program sounds to you is
largely determined by the mix of the treble,
midrange, and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different mixes of treble,
mid−range, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound lev-
els is also important.
Keep in mind that if you are listening to a ste-
reo recording or broadcast, changing the
right/left balance will increase the volume of
one group of sounds while decreasing the vol-
ume of another.

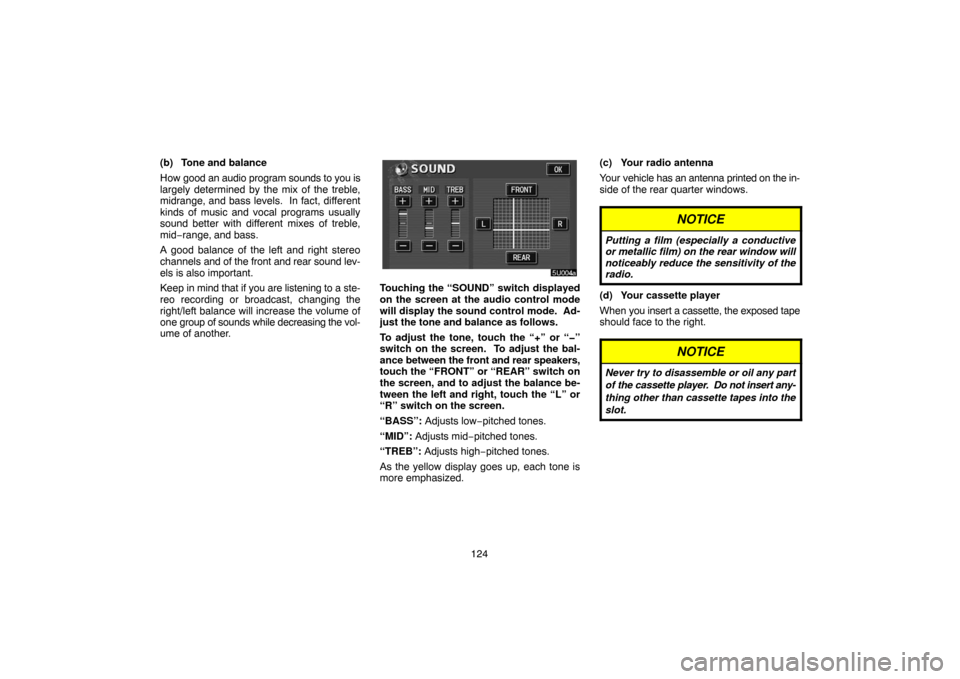

Touching the “SOUND” switch displayed
on the screen at the audio control mode
will display the sound control mode. Ad-
just the tone and balance as follows.
To adjust the tone, touch the “+” or “”
switch on the screen. To adjust the bal-
ance between the front and rear speakers,
touch the “FRONT” or “REAR” switch on
the screen, and to adjust the balance be-
tween the left and right, touch the “L” or
“R” switch on the screen.
“BASS”: Adjusts low−pitched tones.
“MID”: Adjusts mid−pitched tones.
“TREB”: Adjusts high−pitched tones.
As the yellow display goes up, each tone is
more emphasized.(c) Your radio antenna
Your vehicle has an antenna printed on the in-
side of the rear quarter windows.
NOTICE
Putting a film (especially a conductive
or metallic film) on the rear window will
noticeably reduce the sensitivity of the
radio.
(d) Your cassette player
When you insert a cassette, the exposed tape
should face to the right.
NOTICE
Never try to disassemble or oil any part
of the cassette player. Do not insert any-
thing other than cassette tapes into the
slot.

125 (e) Your compact disc player with chang-
er
When you insert a disc, push the “LOAD” but-
ton and gently push the disc in with the label
side up. This compact disc player can store
up to six discs. The player will play from track
1 through to the end of the disc. Then it will
play from track 1 of the next disc.

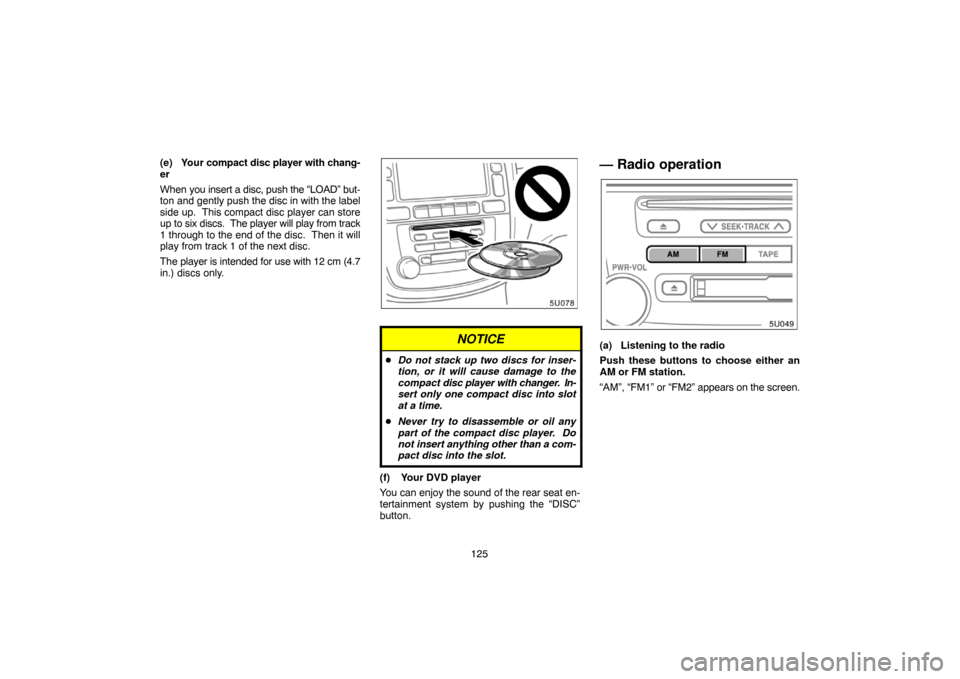

The player is intended for use with 12 cm (4.7
in.) discs only.
NOTICE
Do not stack up two discs for inser-
tion, or it will cause damage to the
compact disc player with changer. In-
sert only one compact disc into slot
at a time.
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than a com-
pact disc into the slot.
(f) Your DVD player
You can enjoy the sound of the rear seat en-
tertainment system by pushing the “DISC”
button.
— Radio operation
(a) Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the screen.

128
(e) Traffic announcement
“TRAF” switch:
A station that regularly broadcasts traffic in-
formation is automatically located.
When you push the “TRAF” switch, “TRAF
SEEK” appears on the display and the radio
will start seeking any traffic program station.
If any traffic program station is not found,
“NOTHING” appears on the display.
If the traffic program station is found, the
name for traffic program station is displayed
and “TRAF” is lit for a while until traffic an-
nouncement is received.
— Cassette tape player
operation
(a) Inserting or ejecting a cassette tape
Put the cassette tape in the slot with the
exposed tape side to the right and lightly
push it in.
To stop and eject the cassette tape, push
the “
” button.
The player will automatically start when you
insert the cassette tape. At this time, “TAPE”
appears on the screen.
If a metal or chrome equivalent cassette tape
is put in the cassette player, the player will au-
tomatically recognize it and “MTL” appears
on the screen.
(b) Playing a cassette tape
Push the “TAPE” button if a cassette tape
is already in the slot.
Dolby
B NR∗:
If you are listening to a tape that was recorded
with Dolby Noise Reduction, touch the
switch on the screen. The symbol is high-
lighted in yellow.
The Dolby NR mode reduces tape noise by
about 10 dB. For best sound reproduction,
play your tapes with the Dolby NR on or off ac-
cording to the mode used for recording the
tape.
To play a tape recorded without Dolby NR,
touch the switch once again.

129
∗ Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing
Corporation.
“DOLBY” and the double D sym-
bol are trademarks of Dolby Laboratories
Licensing Corporation.
(c) Manual program selection
Program switch: Touch the “
” switch
on the screen to select the other side of a cas-
sette tape. The display indicates which side
is currently selected ( indicates top side,
indicates bottom side).
Fast forward switch: Touch the “”
switch on the screen to fast forward a cas-
sette tape. “FF” appears on the screen.
To stop fast forwarding, touch the same
switch or push the “TAPE” button.
Rewind switch: Touch the “” switch on
the screen to rewind a cassette tape. “REW”
appears on the screen.
To stop rewinding, touch the same switch or
push the “TAPE” button.Autoreverse feature: After the cassette
player reaches the end of a tape, it automati-
cally reverses and begins to play the other
side, regardless of whether the cassette was
playing or fast forwarding.
(d) Automatic program selection
“RPT” switch: The repeat feature automati-
cally replays the current program.
Touch the “RPT” switch while the program is
playing. When the program ends, it will auto-
matically be rewound and replayed. Touch
the switch again to turn off the repeat feature.
There must be at least 5 seconds of blank
space between programs for the repeat fea-
ture to work correctly.
“SKIP” switch: The skip feature allows you
to fast forward past long stretches of blank
tape. This is especially useful at the end of
cassettes.
Touch the “SKIP” switch. The player will auto-
matically skip any blank portions of 15 se-
conds or more and play the next program. To
cancel it, touch the switch once again.

130
“SEEK·TRACK” button: The automatic pro-
gram selection feature allows you to program
your cassette player to skip forward or back-
ward to locate the track you want to listen to.
You can skip up to 9 programs at a time.
Push this button on the “” side to skip for-
ward. “FF” and the number will appear on the
screen. Push the button until the number of
programs you want to skip appears on the
screen. After that, the player will automatical-
ly skip forward.
When the end of the tape is reached, the play-
er automatically reverses sides and resumes
normal play.

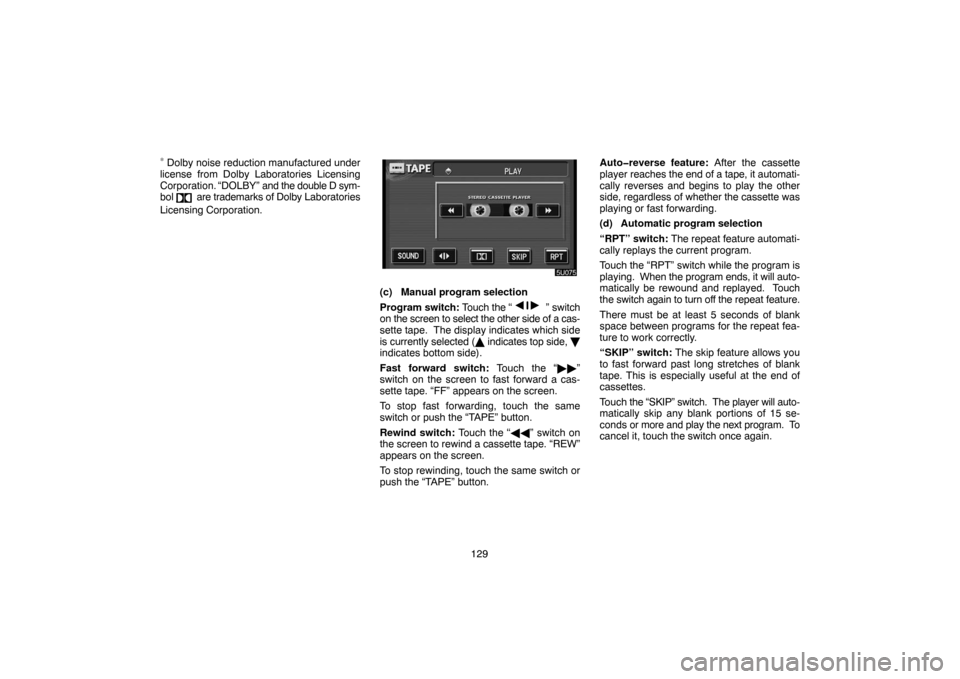

Push this button on the “” side to skip back-
ward. Push the button until “REW” and the
number of programs you want to skip appears
on the screen.
If you set “REW 1”, the player will rewind
to the beginning of the current program.
When counting the number of programs
you want to rewind, remember to count
the current program as well. For example,
if you want to rewind to a program that is
two before the program you are listening
to, push this button until “REW 3” appears
on the screen.
When the beginning of the tape is reached,
the player automatically resumes normal
play.
There must be at least 5 seconds of blank
space between programs for this feature to
work correctly.
“RPT”, “SKIP” or Automatic program
selection features: These features may not
work well with some spoken word, live or clas-
sical recordings.
— Compact disc player with
changer operation
(a) Inserting compact discs
The ignition switch must be in the “ACC” or
“ON” position.
Your compact disc player with changer can
store up to 6 discs.
Setting a single compact disc:

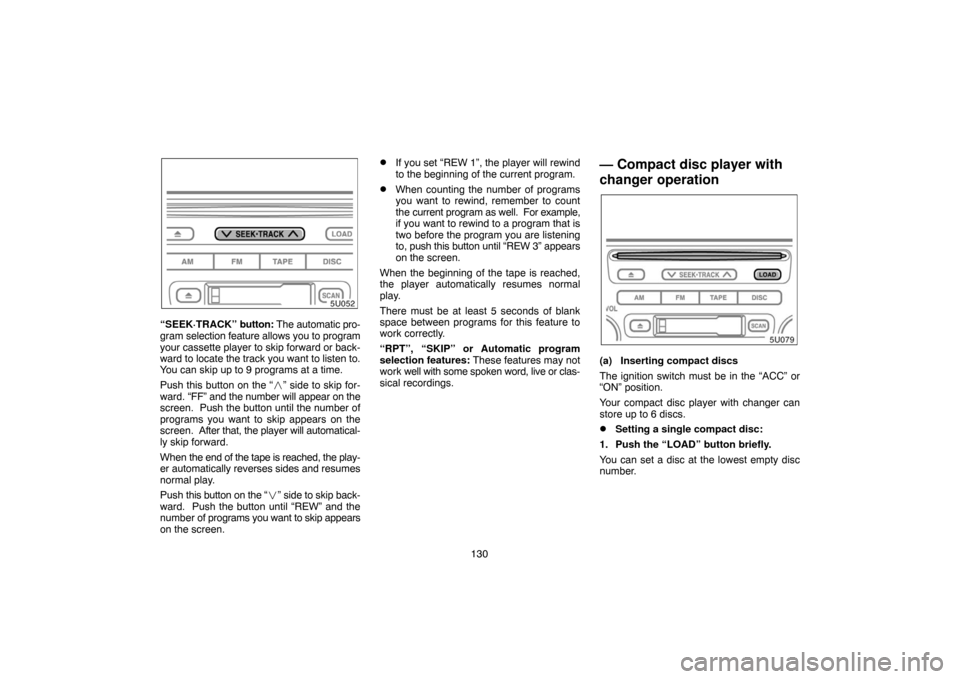

1. Push the “LOAD” button briefly.
You can set a disc at the lowest empty disc
number.

131 2. The red indicators of the slot start
blinking. After the red indicators change
to green, insert only one disc. If you need
to insert the next disc, repeat the same
procedure to insert another disc.
After insertion, the set disc is automatically
loaded.
If the label faces down, the disc cannot be
played. In this case, “CD CHECK” appears
on the display.
Setting all the discs:
1. Push the “LOAD” button until you hear
a beep.
2. The red indicators of the slot start
blinking. After the red indicators change
to green, insert only one disc. After the
disc is loaded, the red indicators of the
slot start blinking again. It changes to
green, you can insert the next disc. Re-
peat this procedure until you insert all the
disc.
If you do not insert the discs within 15 sec-
onds after pushing the “LOAD” button, the op-
eration will be canceled automatically.
NOTICE
Do not insert one disc stacked on top of
another one or feed them in continuous-
ly, to prevent discs from getting stuck in
the player.
(b) Ejecting compact discs
A single disc alone:
1. Touch the disc number you want to
eject on the screen.
The selected disc number is highlighted in
green.
2. Push the “
” button for the compact
disc briefly.
At this time, the red indicators of the slot start
blinking. After the disc is ejected, the red indi-
cators change to green.
All the discs:
Push the “
” button for the compact
disc until you hear a beep.
