key TOYOTA HIGHLANDER 2007 XU40 / 2.G Navigation Manual

viiiTo search for a destination, the switches
below perform the following operations.
1“Address” switch
You can input the house number and the
street address by using the input keys.
26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2“POI Name” switch
You can select one of the many POIs (Points
of Interest) that have already been stored in
the system’s database. 30. . . . . . . . . . . . . .
3“POI Category” switch
You can select a destination from the POI
category. 33. . . . . . . . . . . . . . . . . . . . . . . . . .
4“Previous” switch
You can select a destination from any of the
last 99 previously set destinations and from
the previous starting point. 38. . . . . . . . . . .
5“Memory” switch
You can select the location from those regis-
tered as “Memory points”. (To register
memory points, see page 70.) 37. . . . . . . .
6“Emergency” switch
You can select one of the three categories of
emergency service points that have been al-
ready stored in the system’s database.
36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— “Destination” screen

2
Touch switch operation
This system is operated mainly by the
switches on the screen. To prevent dam-
age to the screen, lightly touch switches
on the screen with your finger. When you
touch a switch on the screen, a beep
sounds.
Do not use objects other than your finger
to touch the screen.
INFORMATION
If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
You cannot operate dimmed
switches.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
When you look at the screen through
polarised material such as polarised
sunglasses, the screen may be dark
and hard to see. If so, take off your
sunglasses.
Inputting letters and numbers
When searching for an address or a name, or
entering a memo, you can input letters and
numbers via the touch screen.
To input letters
To display the alphabet keys, touch the
“AZ” switch or the “” switch.
Enter letters by touching the alphabet keys di-
rectly.
:Touching this switch erases one let-
ter. Holding this switch will continue
to erase letters.
To input numerals and symbols
To display the number keys and symbol keys,
touch the
“09” switch.
Enter numerals and symbols by touching the
number keys and symbol keys directly.
:Touching this switch erases one let-
ter. Holding this switch will continue
to erase letters.
:Touching this switch displays other
symbols.

75
To delete an attribute, touch the “Yes”
switch. To return to the previous screen,
touch the “No” or “Back” switch.
To change “Name”
Touch the alphabet and/or numeral keys.
When the entry has been completed, touch
the
“OK” switch on the screen.
The previous screen will be displayed.
“Show Name”
You can set the name of a memory point to
be displayed or not on the map.
To show the name, touch the
“On”
switch. Not to show it, touch the “Off”switch.
To change “Location”
Touch the eight direction switch to move
the cursor to the desired point on the
map.
Touch the
“Enter” switch and the previous
screen will be displayed.

76
To change “Phone #” (telephone num-
ber)
Touch numeral keys.
When the entry has been completed, touch
the
“OK” switch on the screen.
The previous screen will be displayed.
(c) Deleting memory points
1. Push the “MENU” button to display
the “Menu” screen and touch the
“My
Places”
switch.
2. Touch the “Delete” switch of the
“Memory Points”.
3. Touch the corresponding switch. To
delete all memory points, touch the
“De-
lete All” switch.
For efficient memory point search, memory
points can be sorted by the
“Date”,
“Icon”, “Name” or “Attribute” switch.
To delete, touch the
“Yes” switch. To cancel
the deletion, touch the “No” switch.

79
To change “Name”
Touch alphabet or numeral keys.
When the entry has been completed, touch
the
“OK” switch on the screen.
The previous screen will be displayed.
“Show Name”
The avoid area name can be set to be dis-
played or not on the map. To show the
name, touch the
“On” switch. Not to
show it, touch the
“Off” switch.
To change “Location”
Set the cursor to the desired location, then
touch the
“Enter” switch. The previous
screen will be displayed.
To change “Area size”
Touch either or switch to change
the size of area you want to avoid, and touch
the
“OK” switch. The previous screen will
be displayed.

101 Information items
Change oil.
Replace oil filter.
Rotate tires.
Replace tires.
Replace battery.
Replace brake linings.
Replace wiper blades.
Replace engine coolant.
Replace brake fluid.
Replace ATF.
Scheduled maintenance.
Replace air filter.
Personal items.
When you touch the
“PERSONAL
ITEMS”
switch on the “Maintenance”
screen, the screen changes to the “Personal
Event” screen. Touch the keys to input the de-
sired name and then input conditions.
3. Input the conditions.
Notice of “Date”: You can input the next
maintenance date.
Notice of “Distance”: You can input the driv-
ing distance until the next maintenance
check.
After you input the date and/or distance,
touch the
“OK” switch. The screen then re-
turns to the “Maintenance” screen.

104

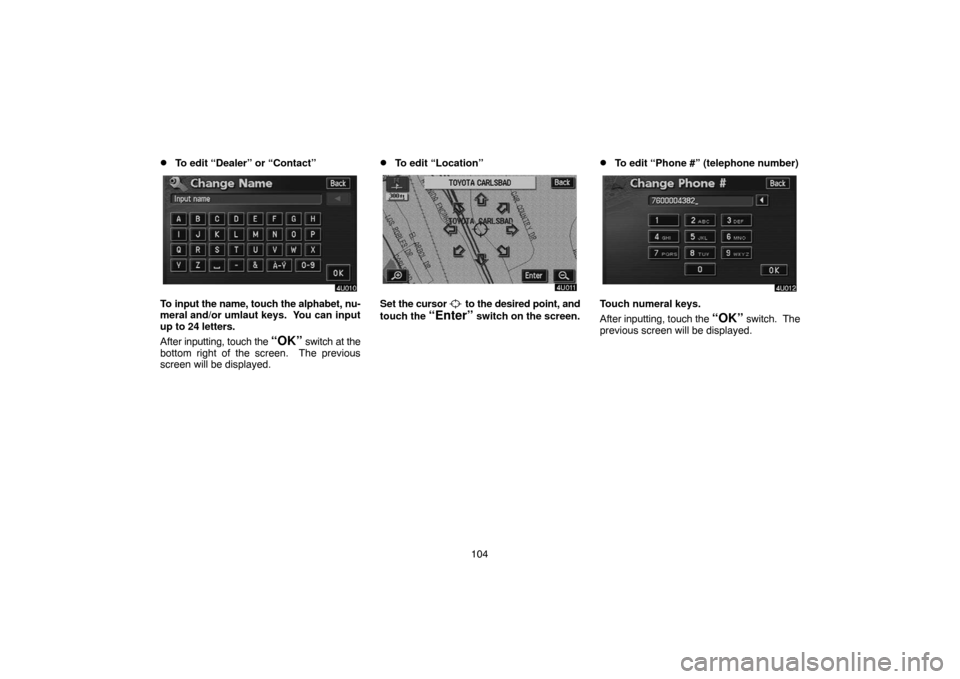

To edit “Dealer” or “Contact”
To input the name, touch the alphabet, nu-
meral and/or umlaut keys. You can input
up to 24 letters.
After inputting, touch the
“OK” switch at the
bottom right of the screen. The previous
screen will be displayed.
To edit “Location”
Set the cursor to the desired point, and
touch the
“Enter” switch on the screen.
To edit “Phone #” (telephone number)
Touch numeral keys.
After inputting, touch the
“OK” switch. The
previous screen will be displayed.

107

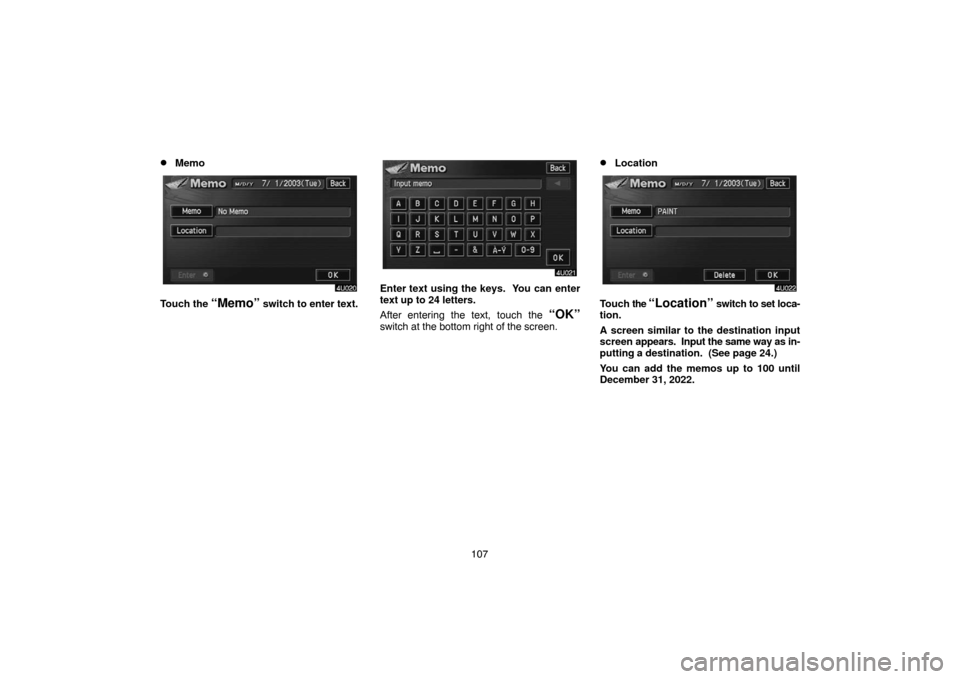

Memo
Touch the “Memo” switch to enter text.
Enter text using the keys. You can enter
text up to 24 letters.
After entering the text, touch the
“OK”
switch at the bottom right of the screen.
Location
Touch the “Location” switch to set loca-
tion.
A screen similar to the destination input
screen appears. Input the same way as in-
putting a destination. (See page 24.)
You can add the memos up to 100 until
December 31, 2022.

111

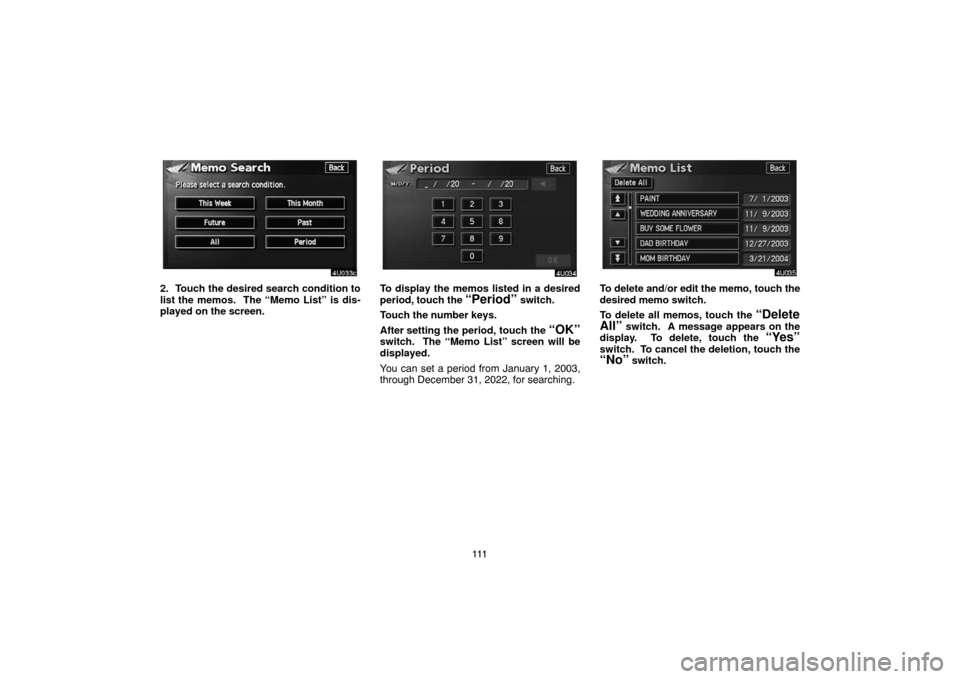

2. Touch the desired search condition to
list the memos. The “Memo List” is dis-
played on the screen.To display the memos listed in a desired
period, touch the
“Period” switch.
Touch the number keys.
After setting the period, touch the
“OK”switch. The “Memo List” screen will be
displayed.
You can set a period from January 1, 2003,
through December 31, 2022, for searching.
To delete and/or edit the memo, touch the
desired memo switch.
To delete all memos, touch the
“Delete
All”
switch. A message appears on the
display. To delete, touch the “Yes”
switch. To cancel the deletion, touch the“No” switch.

138

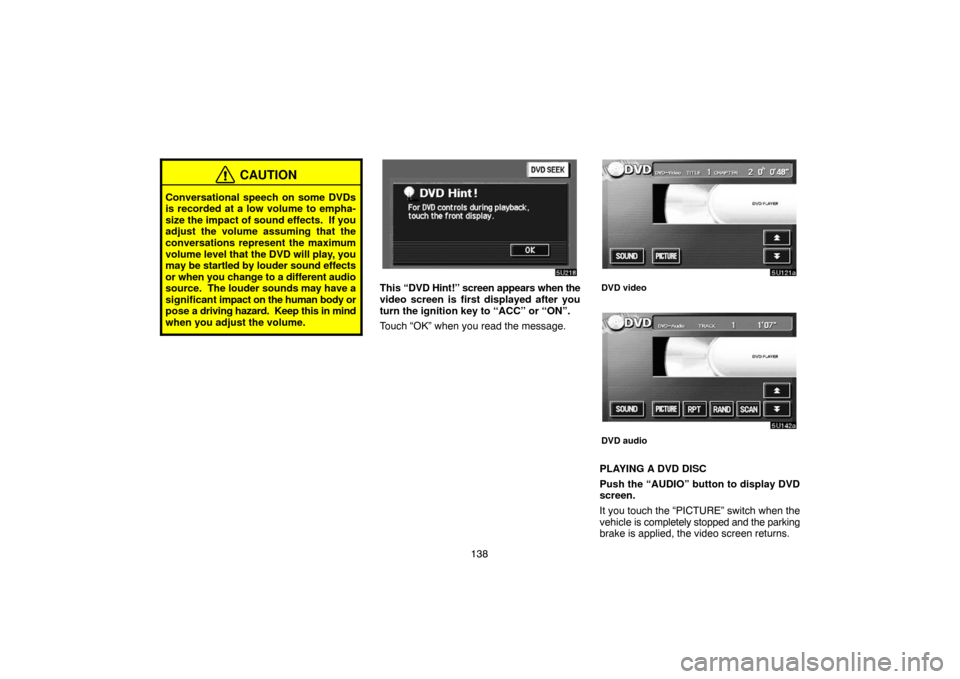

CAUTION
Conversational speech on some DVDs
is recorded at a low volume to empha-
size the impact of sound effects. If you
adjust the volume assuming that the
conversations represent the maximum
volume level that the DVD will play, you
may be startled by louder sound effects
or when you change to a different audio
source. The louder sounds may have a
significant impact on the human body or
pose a driving hazard. Keep this in mind
when you adjust the volume.
This “DVD Hint!” screen appears when the
video screen is first displayed after you
turn the ignition key to “ACC” or “ON”.
Touch “OK” when you read the message.DVD video
DVD audio
PLAYING A DVD DISC
Push the “AUDIO” button to display DVD
screen.
It you touch the “PICTURE” switch when the
vehicle is completely stopped and the parking
brake is applied, the video screen returns.
