TOYOTA HIGHLANDER 2007 XU40 / 2.G Owners Manual

’07 HIGHLANDER_U (L/O 0608)
347
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
 Do not race the engine and avoid
spinning the wheels.
 If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.

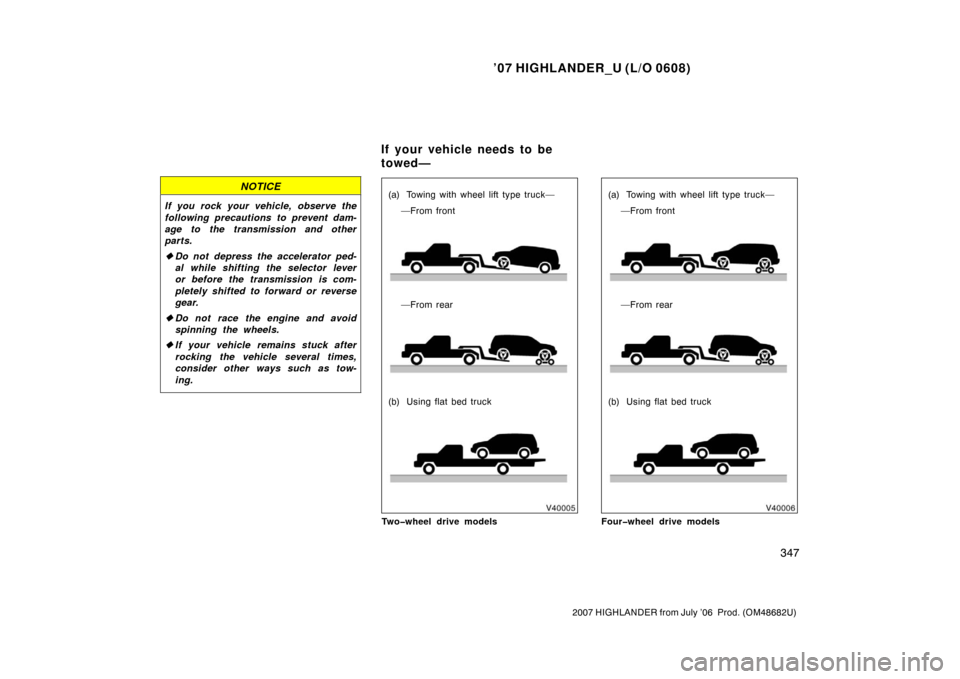

(a) Towing with wheel lift type truck—
—From front
—From rear
(b) Using flat bed truck
Twowheel drive models(a) Towing with wheel lift type truck— —From front
—From rear
(b) Using flat bed truck
Fourwheel drive models
If your vehicle needs to be
towed—

’07 HIGHLANDER_U (L/O 0608)
348
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in “—Emergency tow-
ing” on page 349 in this Section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver. TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.
Twowheel drive models—
(a) Towing with wheel lift type truck
From front—
Release the parking brake.
NOTICE
When lifting wheels, take care to en-
sure adequate ground clearance for
towing at the opposite end of the
raised vehicle. Otherwise, the bumper
and/or underbody of the towed vehicle
will be damaged during towing.
From rear—
Use a towing dolly under the front wheels.
NOTICE
Never tow a vehicle from the rear
with the front wheels on the ground,
as this may cause serious damage to
the transmission.
(b) Using flat bed truck
Fourwheel drive models—
(a) Towing with wheel lift type truck
Use a towing dolly under the wheels not
lifted by the truck.
(b) Using flat bed truck

’07 HIGHLANDER_U (L/O 0608)
349
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
(c) Towing with sling
type truck
All models—
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to one of the emergency towing
eyelets on the front of the vehicle. Use
extreme caution when towing the ve-
hicle.
To install the front towing eyelet, see
“—Installing front towing eyelet” on page
350 in this Section.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
 Never tow a vehicle from the rear
with four wheels on the ground.
This may cause serious damage to
the transmission.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hard− surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicles. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing eyelet and towing cable or
chain. The eyelet and towing cable or
chain may break and cause serious
injury or damage.
—Emergency towing

’07 HIGHLANDER_U (L/O 0608)
350
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the transmission in “N”. The key
must be in “ACC” (engine off) or “ON”
(engine running).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.1. Remove the front towing eyelet cover
on the front bumper by pushing the
outside of the cover.2. Use the front towing eyelet in the lug-gage compartment. Secure it to the
hole on the bumper by turning clock-
wise. (For the towing eyelet location,
see “—Required tools and spare tire”
on page 336 in this Section.)
—Installing front towing eyelet

’07 HIGHLANDER_U (L/O 0608)
351
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
3. Tighten the front towing eyelet securely
by a wheel nut wrench.
CAUTION
When installing the eyelet on the ve-
hicle, be sure to tighten the front
eyelet securely. If the eyelet is loose,
it may come off when being towed
and result in death or serious injury.
Before emergency towing, check that
the eyelet is not broken or damaged
and that the installation bolts are not
loose.
Fasten the towing cable or chain se-
curely to the eyelet.
Do not jerk the eyelet. Apply steady
and even force.
To avoid damaging the eyelet, do not
pull from the side or at a vertical
angle. Always pull straight ahead.
CAUTION
If the emergency towing eyelet is
used to get out when your vehicle
becomes struck in mud, sand or oth-
er condition from which the vehicle
cannot be driven out under its own
power, make sure to observe the pre-
cautions mentioned below. Otherwise,
excessive stress will be put on the
eyelet and the towing cable or chain
may break, causing serious injury or
damage.
If the towing vehicle can hardly
move, do not forcibly continue the
towing. Contact your Toyota dealer
or a commercial tow truck service
for assistance.
Tow the vehicle as straight ahead
as possible.
Keep away from the vehicle during
towing.
—Emergency towing eyelet
precautions

’07 HIGHLANDER_U (L/O 0608)
352
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
The following methods are effective to get
out when your vehicle is struck in mud,
sand or other condition from which the
vehicle cannot be driven out under its own
power. Use extreme caution when towing
vehicles. In addition, keep away from the
vehicles and towing cable or chain when
towing.
Remove the soil and sand in the front
and the back of the tires.
Place a stone or wood under the tires.
If you cannot shift the selector lever
out of the “P” position to other posi-
tions even though the brake pedal is
depressed, use the shift lock override
button as follows:
1. Turn the ignition key to the “LOCK” position. Make sure the parking
brake is applied.

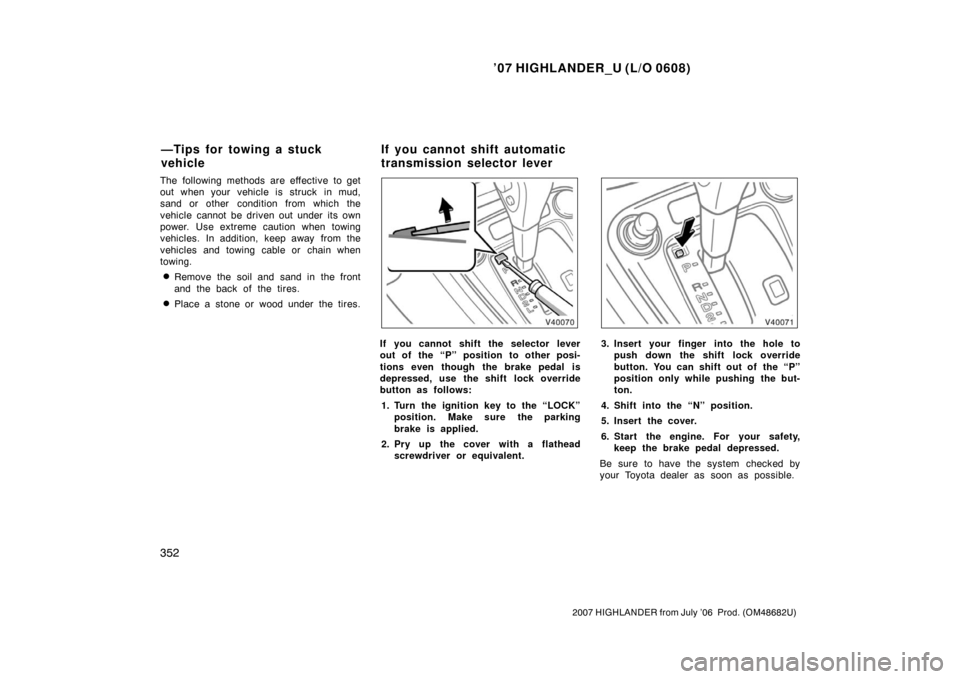

2. Pry up the cover with a flathead screwdriver or equivalent.3. Insert your finger into the hole topush down the shift lock override
button. You can shift out of the “P”
position only while pushing the but-
ton.
4. Shift into the “N” position.
5. Insert the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible.
—Tips for towing a stuck
vehicle If you cannot shift automatic
transmission selector lever

’07 HIGHLANDER_U (L/O 0608)
353
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
You can purchase a new key at your
Toyota dealer if you can give them the
key number. If your vehicle is equipped
with the engine immobilizer system, the
dealer will also need your master key.
Vehicles with engine immobilizer system—
Even if you lose only one key, contact
your Toyota dealer to make a new key. If
you lose all your master keys, you cannot
make new keys; the whole engine immobi-
lizer system must be replaced.
See the suggestion given in “Keys” on
page 14 in Section 1−2.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Toyota
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass. You can purchase a new wireless re-
mote control transmitter at your Toyota
dealer.
Have the registered identification numbers
of your transmitters deleted from your ve-
hicle by your Toyota dealer as soon as
possible to avoid the possibility of theft or
an accident. Then, have the identification
number of your new transmitter registered.
At the same time, you must bring all of
the remaining transmitters to have them
registered again as well.
You can use the wireless remote control
system with the new transmitter. Contact
your Toyota dealer for detailed information.
If you lose your keys
If you lose your wireless
remote control transmitter

’07 HIGHLANDER_U (L/O 0608)
354
2007 HIGHLANDER from July ’06 Prod. (OM48682U)

’07 HIGHLANDER_U (L/O 0608)
355
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
CORROSION PREVENTION AND
APPEARANCE CARE
Corrosion prevention and appearance care
Protecting your Toyota from corrosion 356
. . . . . . . . . . . . . . . . . . . . . . . . .
Washing and waxing your Toyota 357
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the interior 359
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 5

’07 HIGHLANDER_U (L/O 0608)
356
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
Toyota, through the diligent research, de-
sign and use of the most advanced
technology available, helps prevent corro-
sion and provides you with the finest qual-
ity vehicle construction. Now, it is up to
you. Proper care of your Toyota can help
ensure long −term corrosion prevention.
The most common causes of corrosion
to your vehicle are:
The accumulation of road salt, dirt and
moisture in hard −to −reach areas under
the vehicle.
Chipping of paint, or undercoating
caused by minor accidents or by
stones and gravel.
Care is especially important if you live
in particular areas or operate your ve-
hicle under certain environmental condi-
tions:
Road salt or dust control chemicals will
accelerate corrosion, as will the pres-
ence of salt in the air near the sea −
coast or in areas of industrial pollution.
High humidity accelerates corrosion es-
pecially when temperatures range just
above the freezing point.
Wetness or dampness to certain parts
of your vehicle for an extended period
of time, may cause corrosion even
though other parts of the vehicle may
be dry.
High ambient temperatures can cause
corrosion to those components of the
vehicle which do not dry quickly due to
lack of proper ventilation.
The above signifies the necessity to keep
your vehicle, particularly the underside, as
clean as possible and to repair any dam-
age to paint or protective coatings as
soon as possible.
To help prevent corrosion on your
Toyota, follow these guidelines:
Wash your vehicle frequently. It is, of
course, necessary to keep your vehicle
clean by regular washing, but to prevent
corrosion, the following points should be
observed:
If you drive on salted roads in the
winter or if you live near the ocean,
you should hose off the undercarriage
at least once a month to minimize cor-
rosion.
High pressure water or steam is effec-
tive for cleaning the vehicle’s underside
and wheel housings. Pay particular
attention to these areas as it is difficult
to see all the mud and dirt. It will do
more harm than good to simply wet the
mud and debris without removing. The
lower edge of doors, rocker panels and
frame members have drain holes which
should not be allowed to clog with dirt
as trapped water in these areas can
cause corrosion.
Wash the underside of the vehicle thor-
oughly when winter is over.
See “Washing and waxing your Toyota” on
page 357 for more tips.
Check the condition of your vehicle’s
paint and trim. If you find any chips or
scratches in the paint, touch them up im-
mediately to prevent corrosion from start-
ing. If the chips or scratches have gone
through the bare metal, have a qualified
body shop make the repair.
Protecting your Toyota from
corrosion
