TOYOTA HIGHLANDER 2008 XU40 / 2.G Navigation Manual

ADVANCED FUNCTIONS
101

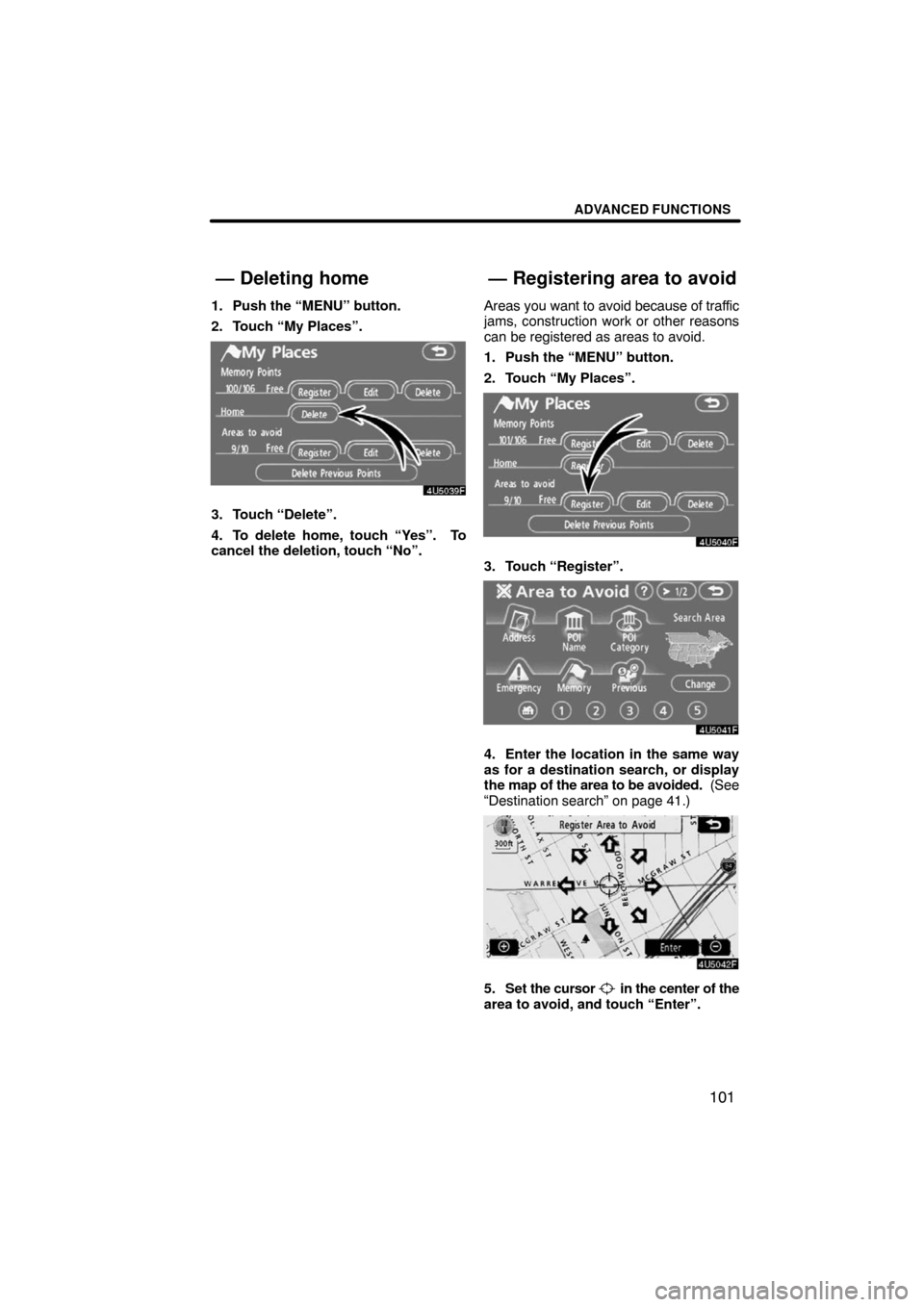

1. Push the “MENU” button.
2. Touch “My Places”.
3. Touch “Delete”.
4. To delete home, touch “Yes”. To
cancel the deletion, touch “No”.Areas you want to avoid because of traffic
jams, construction work or other reasons
can be registered as areas to avoid.
1. Push the “MENU” button.
2. Touch “My Places”.
3. Touch “Register”.
4. Enter the location in the same way
as for a destination search, or display
the map of the area to be avoided. (See
“Destination search” on page 41.)
5. Set the cursor in the center of the
area to avoid, and touch “Enter”.

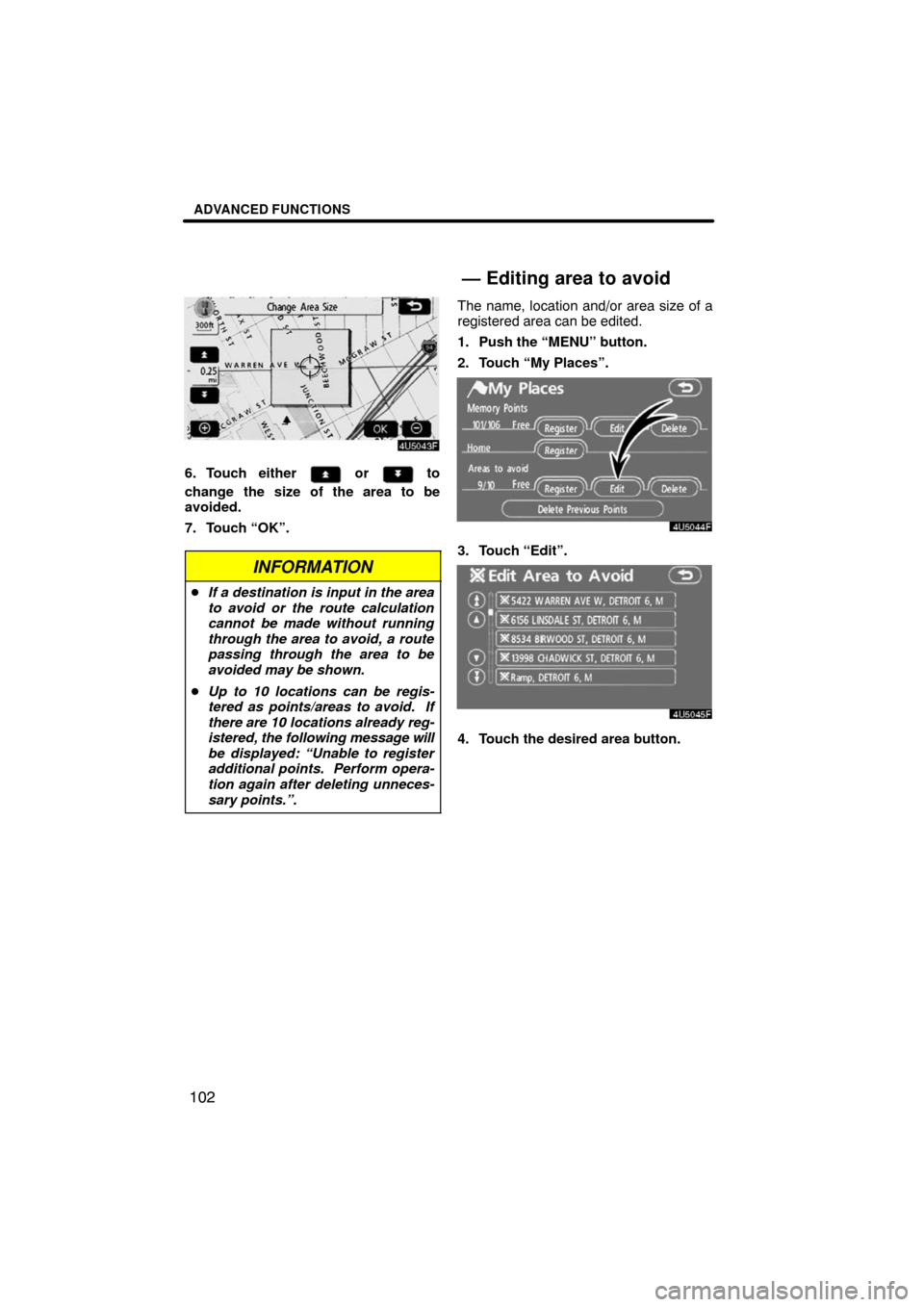

— Deleting home— Registering area to avoid

ADVANCED FUNCTIONS
102
6. Touch either or to
change the size of the area to be
avoided.
7. Touch “OK”.
INFORMATION
If a destination is input in the area
to avoid or the route calculation
cannot be made without running
through the area to avoid, a route
passing through the area to be
avoided may be shown.
Up to 10 locations can be regis-
tered as points/areas to avoid. If
there are 10 locations already reg-
istered, the following message will
be displayed: “Unable to register
additional points. Perform opera-
tion again after deleting unneces-
sary points.”.
The name, location and/or area size of a
registered area can be edited.
1. Push the “MENU” button.
2. Touch “My Places”.
3. Touch “Edit”.
4. Touch the desired area button.
— Editing area to avoid

ADVANCED FUNCTIONS
103

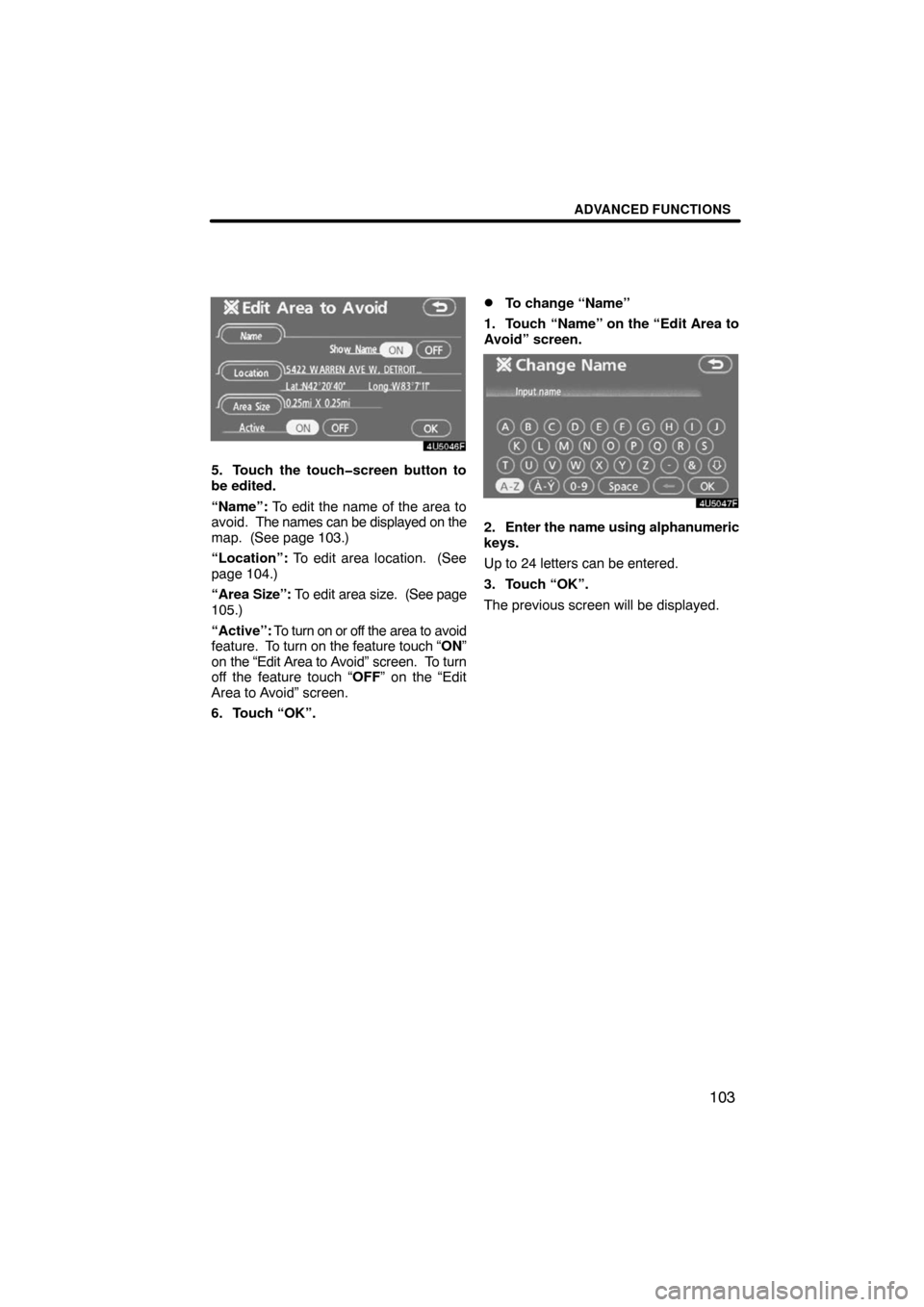

5. Touch the touchscreen button to
be edited.
“Name”: To edit the name of the area to
avoid. The names can be displayed on the
map. (See page 103.)
“Location”: To edit area location. (See
page 104.)
“Area Size”: To edit area size. (See page
105.)
“Active”: To turn on or off the area to avoid
feature. To turn on the feature touch “ON”
on the “Edit Area to Avoid” screen. To turn
off the feature touch “OFF” on the “Edit
Area to Avoid” screen.
6. Touch “OK”.
To change “Name”
1. Touch “Name” on the “Edit Area to
Avoid” screen.
2. Enter the name using alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.

ADVANCED FUNCTIONS
104
DISPLAYING NAMES OF AREAS TO BE
AVOIDED
The name of an area to be avoided that
may be displayed on the map can be set.
To show the name, touch “ON” on the
“Edit Area to Avoid” screen. To not
show it, touch “OFF”.
To change “Location”
1. Touch “Location” on the “Edit Area
to Avoid” screen.
2. Touch the eight directional touch
screen button to move the cursor
to
the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

ADVANCED FUNCTIONS
105

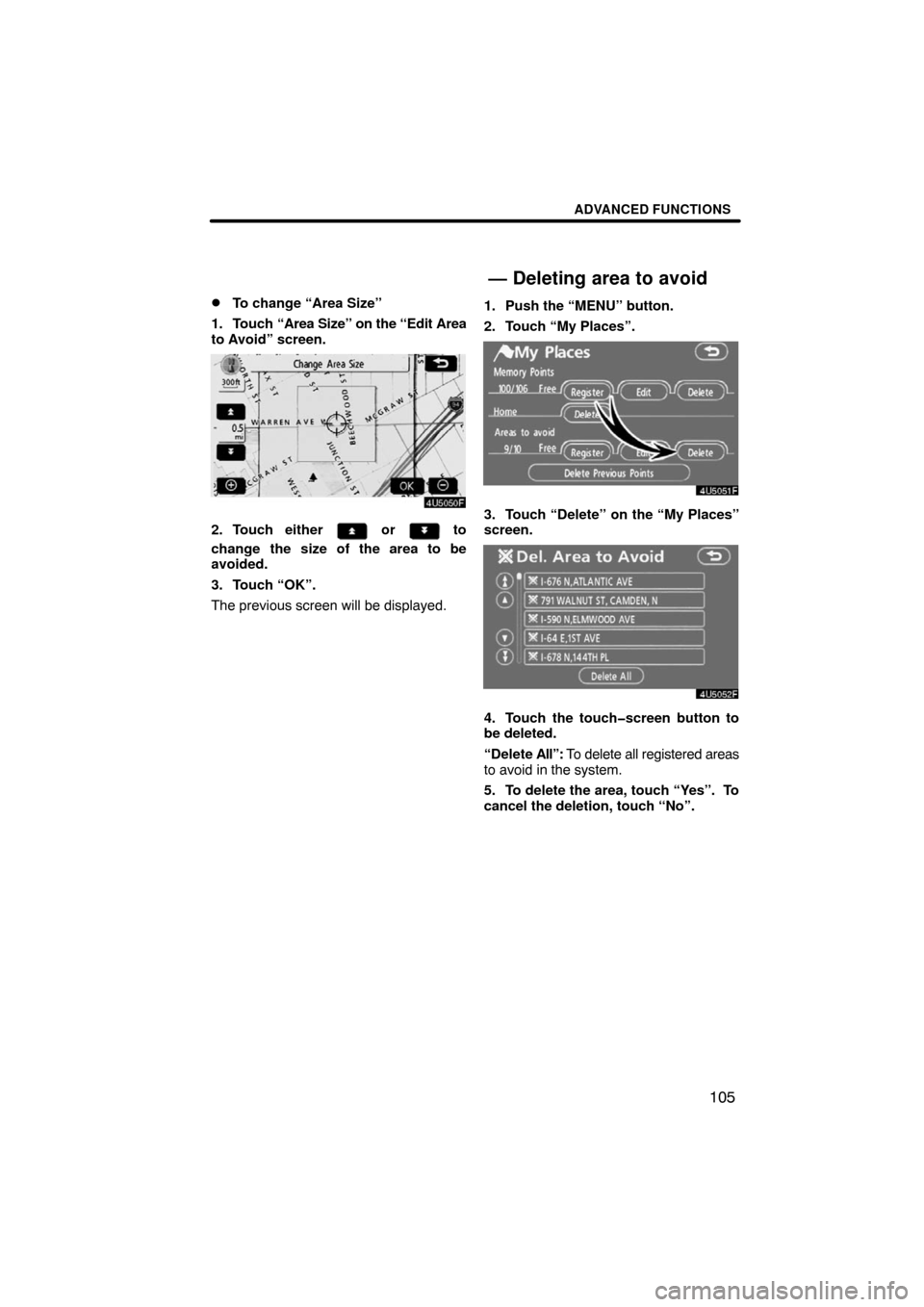

To change “Area Size”
1. Touch “Area Size” on the “Edit Area
to Avoid” screen.
2. Touch either or to
change the size of the area to be
avoided.
3. Touch “OK”.
The previous screen will be displayed.1. Push the “MENU” button.
2. Touch “My Places”.3. Touch “Delete” on the “My Places”
screen.
4. Touch the touchscreen button to
be deleted.
“Delete All”: To delete all registered areas
to avoid in the system.
5. To delete the area, touch “Yes”. To
cancel the deletion, touch “No”.
— Deleting area to avoid

ADVANCED FUNCTIONS
106

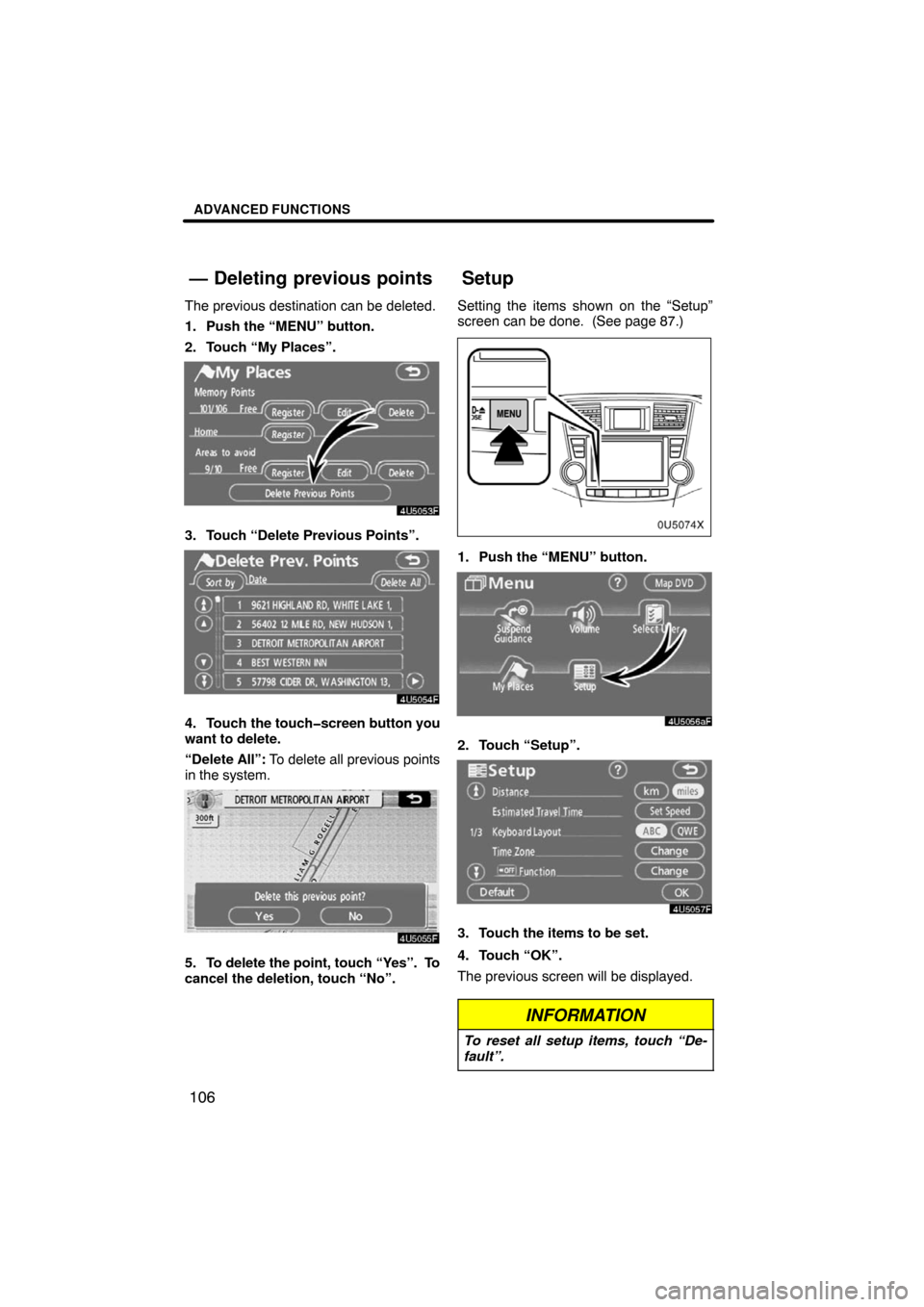

The previous destination can be deleted.
1. Push the “MENU” button.
2. Touch “My Places”.
3. Touch “Delete Previous Points”.
4. Touch the touchscreen button you
want to delete.
“Delete All”: To delete all previous points
in the system.
5. To delete the point, touch “Yes”. To
cancel the deletion, touch “No”.Setting the items shown on the “Setup”
screen can be done. (See page 87.)
1. Push the “MENU” button.
2. Touch “Setup”.
3. Touch the items to be set.
4. Touch “OK”.
The previous screen will be displayed.
INFORMATION
To reset all setup items, touch “De-
fault”.
— Deleting previous pointsSetup

ADVANCED FUNCTIONS
107

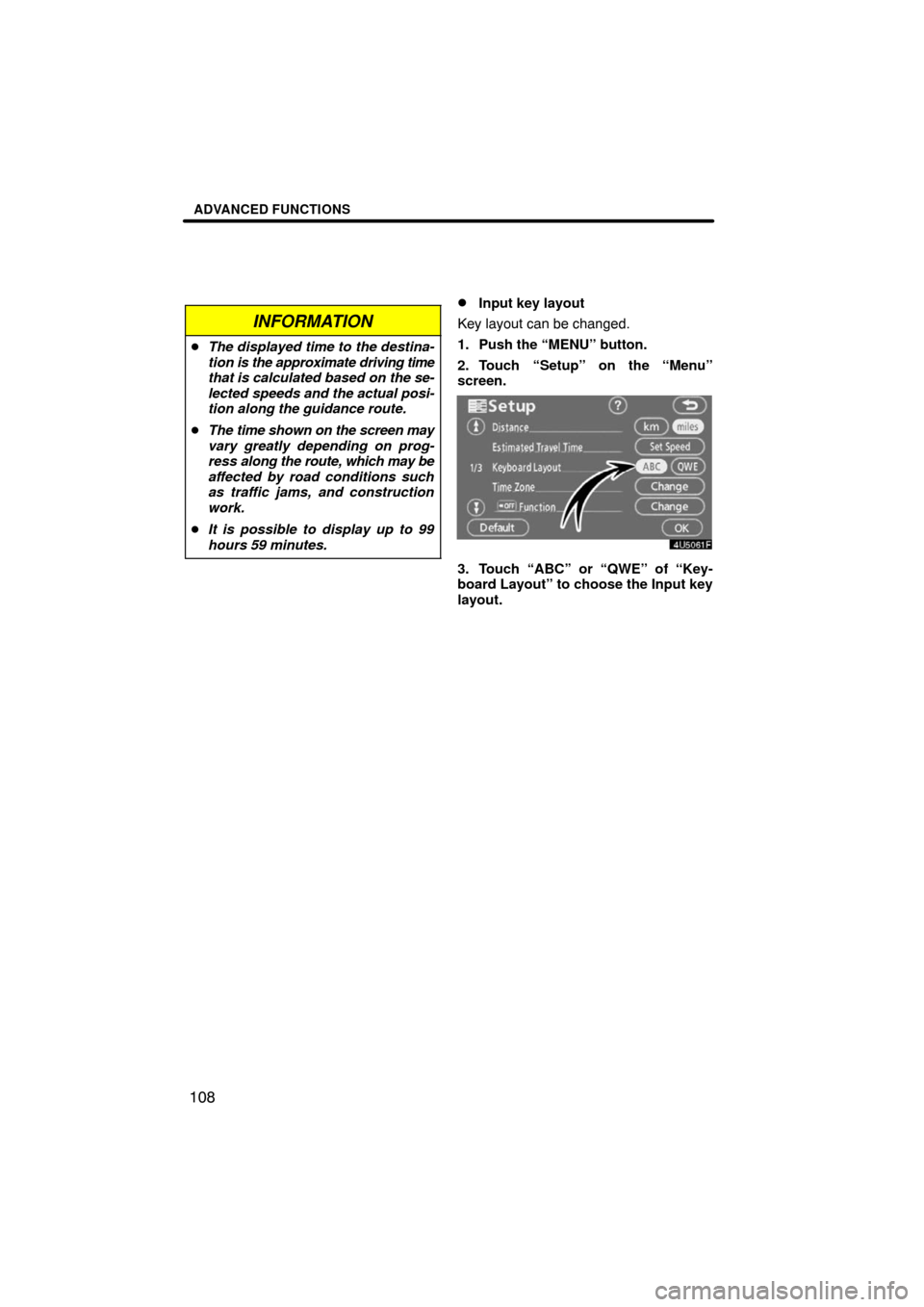

Distance unit
Distance unit can be changed.
1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
3. Touch “km” or “miles” of “Dis-
tance” to choose the distance unit.
The selected button is highlighted.
4. Touch “OK”.
INFORMATION
This function is available only in En-
glish or Spanish. To switch language,
see “Select language” on page 183.
Estimated travel time
The speed that is used for the calculation
of the estimated travel time and the esti-
mated arrival time can be set.
1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
3. Touch “Set Speed” of the “Esti-
mated Travel Time”.
4. Touch or to set the average
vehicle speeds for “Residential”, “Main
street”, and “Freeway”.
To set the default speeds, touch “De-
fault”.
5. After setting of the desired speeds is
completed, touch “OK”.

ADVANCED FUNCTIONS
108
INFORMATION
The displayed time to the destina-
tion is the approximate driving time
that is calculated based on the se-
lected speeds and the actual posi-
tion along the guidance route.
The time shown on the screen may
vary greatly depending on prog-
ress along the route, which may be
affected by road conditions such
as traffic jams, and construction
work.
It is possible to display up to 99
hours 59 minutes.

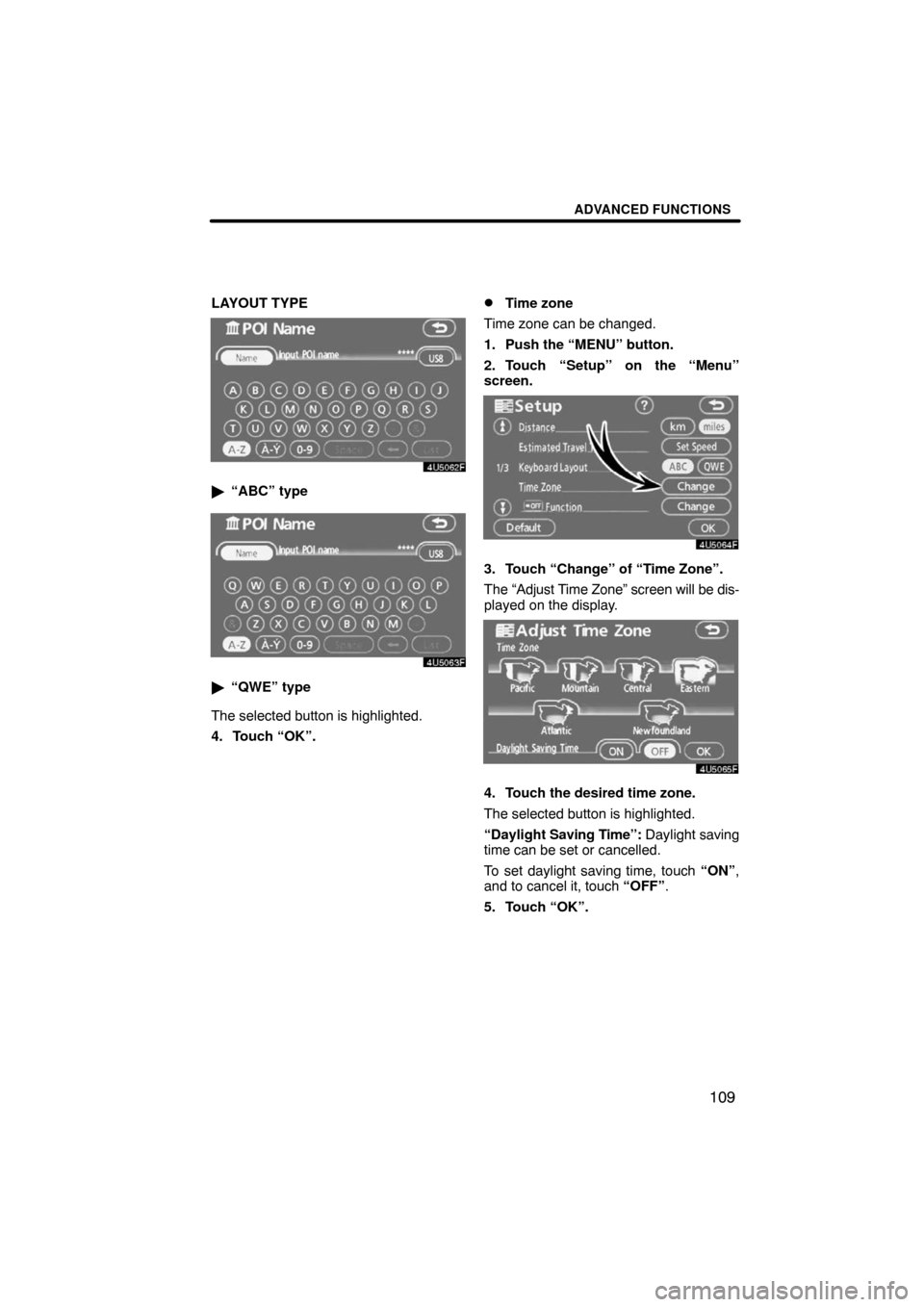

Input key layout
Key layout can be changed.
1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
3. Touch “ABC” or “QWE” of “Key-
board Layout” to choose the Input key
layout.

ADVANCED FUNCTIONS
109
LAYOUT TYPE
“ABC” type
“QWE” type
The selected button is highlighted.
4. Touch “OK”.
Time zone
Time zone can be changed.
1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
3. Touch “Change” of “Time Zone”.
The “Adjust Time Zone” screen will be dis-
played on the display.
4. Touch the desired time zone.
The selected button is highlighted.
“Daylight Saving Time”: Daylight saving
time can be set or cancelled.
To set daylight saving time, touch “ON”,
and to cancel it, touch “OFF”.
5. Touch “OK”.

ADVANCED FUNCTIONS
11 0

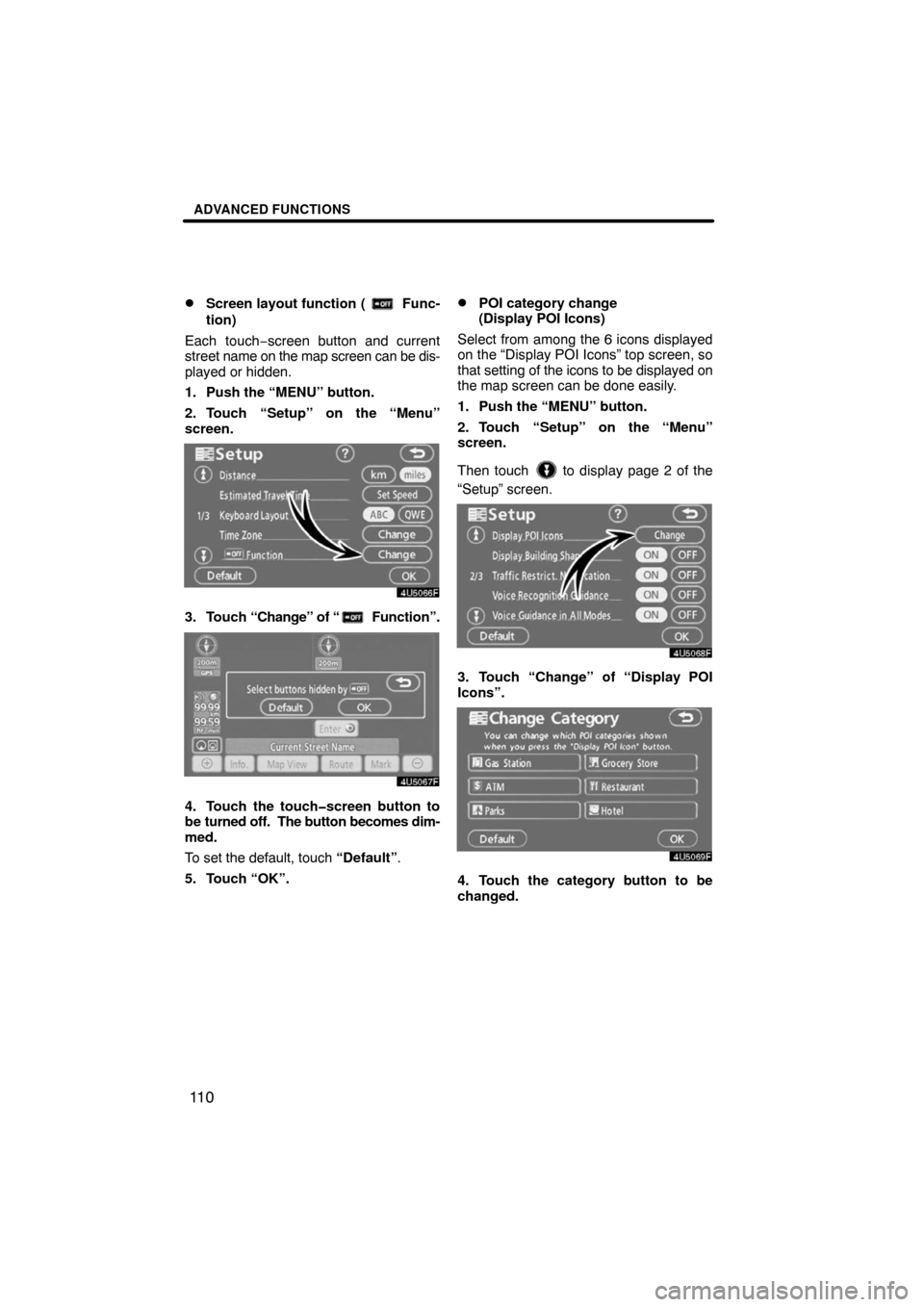

Screen layout function ( Func-
tion)
Each touch−screen button and current
street name on the map screen can be dis-
played or hidden.
1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
3. Touch “Change” of “ Function”.
4. Touch the touchscreen button to
be turned off. The button becomes dim-
med.
To set the default, touch “Default”.
5. Touch “OK”.
POI category change
(Display POI Icons)
Select from among the 6 icons displayed
on the “Display POI Icons” top screen, so
that setting of the icons to be displayed on
the map screen can be done easily.
1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
to display page 2 of the
“Setup” screen.
3. Touch “Change” of “Display POI
Icons”.
4. Touch the category button to be
changed.
