ECU TOYOTA HIGHLANDER 2008 XU40 / 2.G Navigation Manual

OTHER FUNCTIONS
129
4Indicates the level of reception.

Too bad Excellent
The level of reception does not always cor-
respond with the one of your cellular
phone.
INFORMATION
This system supports the following
service.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not
support HFP, you cannot enter the
Bluetooth phone, and take OPP
service individually.
An antenna for the Bluetooth connec-
tion is built in the display. The indica-
tion of the Bluetooth connection may
turn yellow and the system may not
function when you use the Bluetooth
phone in the following conditions and
places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove
box and console box).
Your cellular phone touches or is
covered with metal materials.
Leave the Bluetooth phone on the
place where “Blue” indication is dis-
played.
Bluetooth is a trademark owned by
Bluetooth SIG, Inc.
When you sell your car:
A lot of personal data is registered
when you use the Handsfree system.
When you sell your car, initialize the
system so your personal information is
no longer recorded. (See “(d) Delete
personal data” on page 182.)
If you initialize it, the former state will never
come back again. Be careful when initializ-
ing data, because once the data is initial-
ized it can not be recovered.
You can initialize the following data in the
system.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code

OTHER FUNCTIONS
165
(b) All at once
1. Touch “Delete All” on the “Outgoing
Calls” or “Incoming Calls” screen.
2. Touch “Yes”.(vi) Setting the security
When you set the security, you can pre-
vent people from using some functions
of the Handsfree system. It is useful
when you leave your car with the hotel
or you don’t want others to see the data
you registered.
When you set or unlock the security, you
have to input the security code. Be sure to
change the default code when you use the
security for the first time.

OTHER FUNCTIONS
166
Changing the security code
The security code is 4 digits and the de-
fault is “0000”.
Change a new code that is hard for other
people to know.
When you change the security code, don’t
forget the code. The dealers cannot unlock
the security when you forget it.
If you forget the security code, initialize
your personal data. When you initialize it,
not only the phonebook data but also the
memory points in the navigation system,
etc. will be deleted. (See “
 Initializing the
security code” on page 168.)
1. Touch “Phone Book Lock”.
2. Touch “Change”.
3. Input the current code.
Each time you touch , an inputted digit is
deleted.
4. Input a new code.
5. Touch “Yes”.

OTHER FUNCTIONS
167
Phone Book Lock
When you set the phone book lock, you
can have the following functions
locked.
Display of the phone book screen and
transferring, registering, editing,
deleting the phone book data.
Display of speed dial screen,
registering, deleting the speed dial and
speed dialing.
Display of the other party’s name for
calls being received or made.
Display of dialed numbers screen and
received calls screen, deleting dialed
numbers and received numbers.
Display of phone information screen.
Changing the security code.
When you set this function, the speed dial
screen is not displayed while you are driv-
ing.
1. Touch “ON”.
2. Input the security code and touch
“OK”.

OTHER FUNCTIONS
168

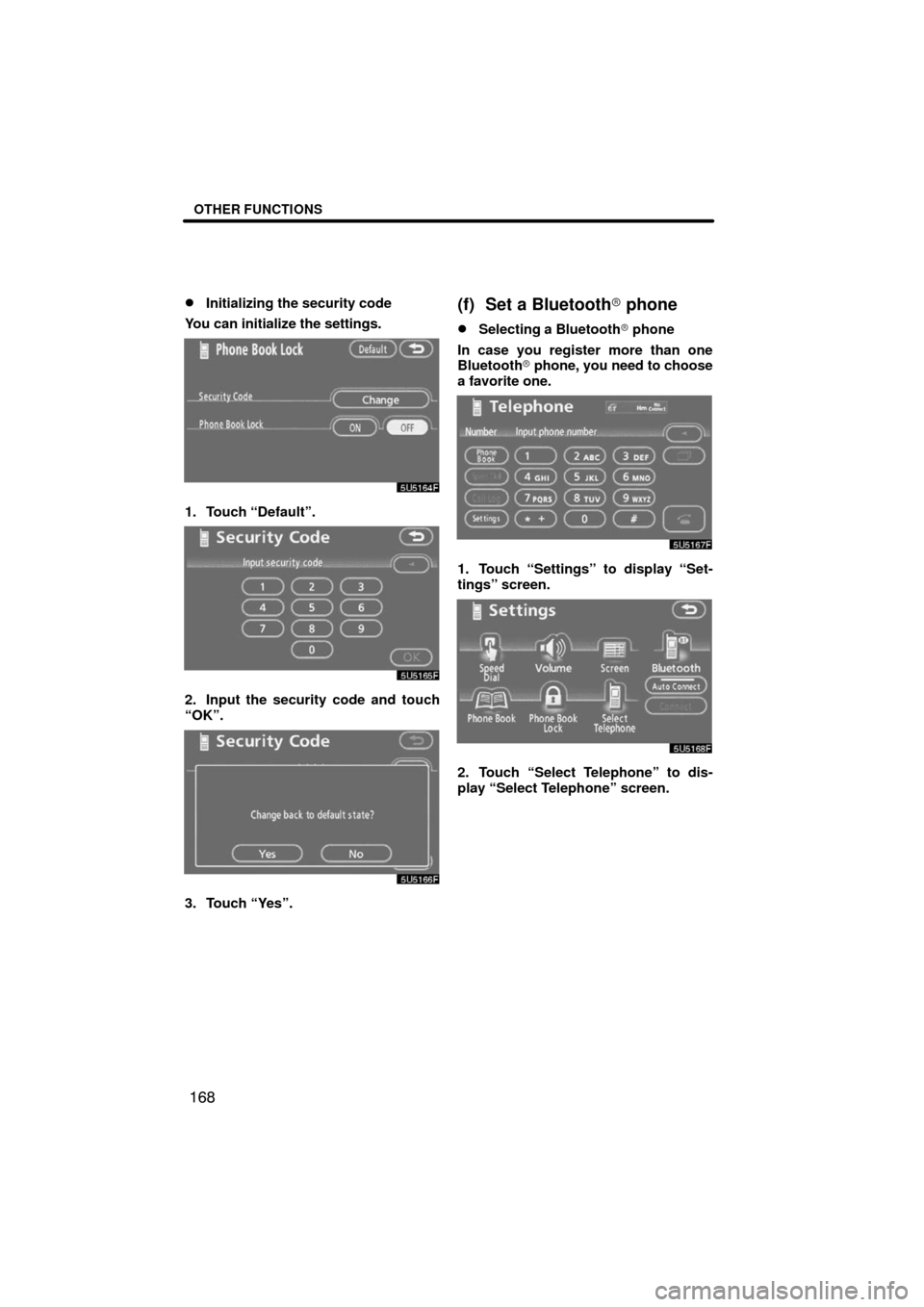

Initializing the security code
You can initialize the settings.
1. Touch “Default”.
2. Input the security code and touch
“OK”.
3. Touch “Yes”.
(f) Set a Bluetooth phone
Selecting a Bluetooth phone
In case you register more than one
Bluetooth phone, you need to choose
a favorite one.
1. Touch “Settings” to display “Set-
tings” screen.
2. Touch “Select Telephone” to dis-
play “Select Telephone” screen.

OTHER FUNCTIONS
170

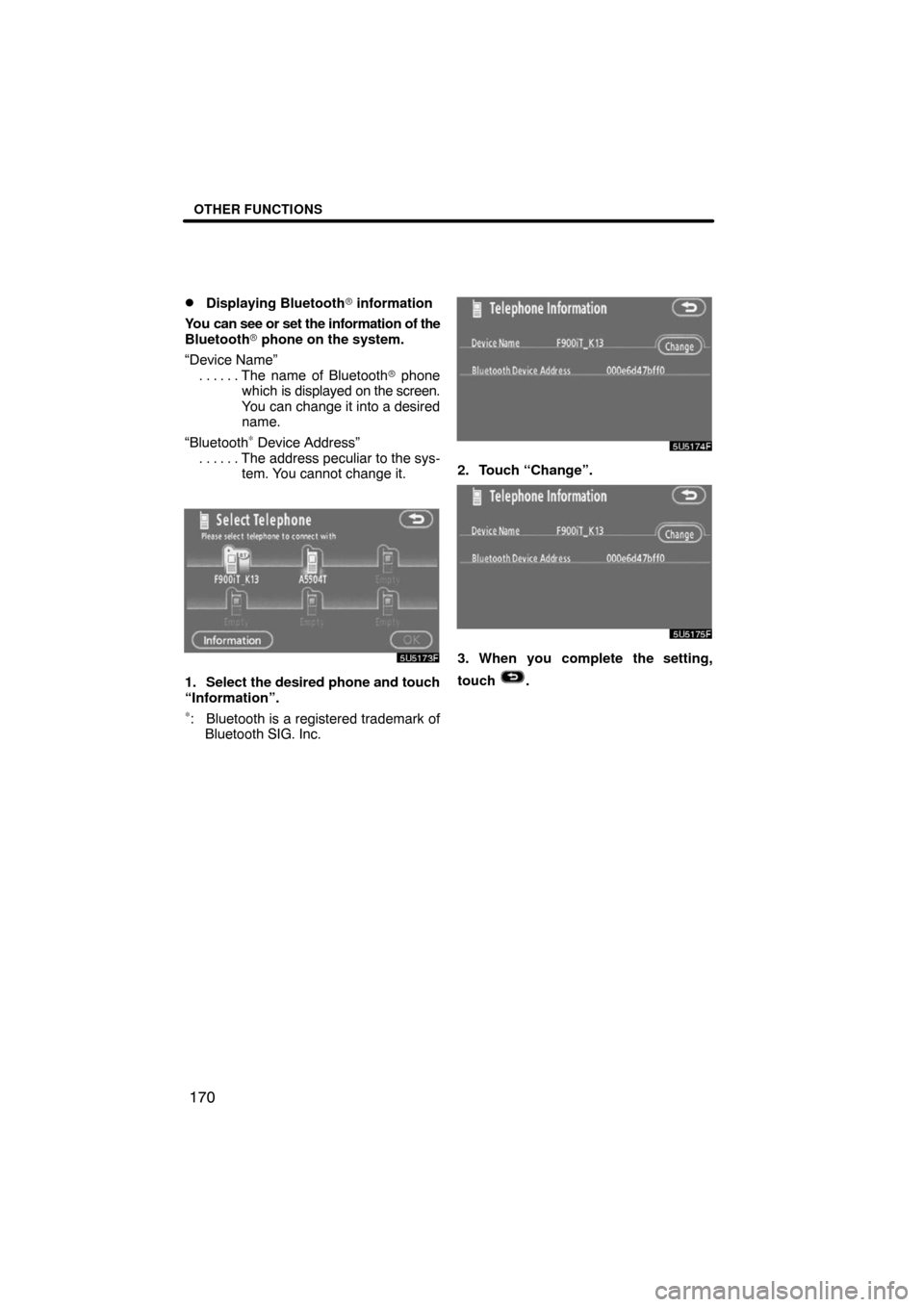

Displaying Bluetooth information
You can see or set the information of the
Bluetooth phone on the system.
“Device Name”
The name of Bluetooth phone . . . . . .
which is displayed on the screen.
You can change it into a desired
name.
“Bluetooth
∗ Device Address”
The address peculiar to the sys- . . . . . .
tem. You cannot change it.
1. Select the desired phone and touch
“Information”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
2. Touch “Change”.
3. When you complete the setting,
touch
.

OTHER FUNCTIONS
171
Changing a Device Name
You can change a Device Name. If you
change a Device Name, the name regis-
tered in your cellular phone is not
changed.
1. Touch “Change”.
2. Use the software keyboard to input
the Device name.
Changing the Bluetooth settings
You can change the display and settings of
Bluetooth information on the system.
The information displays the following
items.
“Device Name”
The name in the Bluetooth . . . . . .
network. You can change it.
“Passkey”
The password when you register . . . . . .
your cellular phone in the sys-
tem. You can change it into the
figure of 4−8 digits.
“Bluetooth
∗ Device Address”
The address peculiar to the . . . . . .
system. You can not change it. If
you have registered two
Bluetooth phones with the
same Device Name or Passkey
and you cannot distinguish one
from the other, refer to it.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

OTHER FUNCTIONS
182

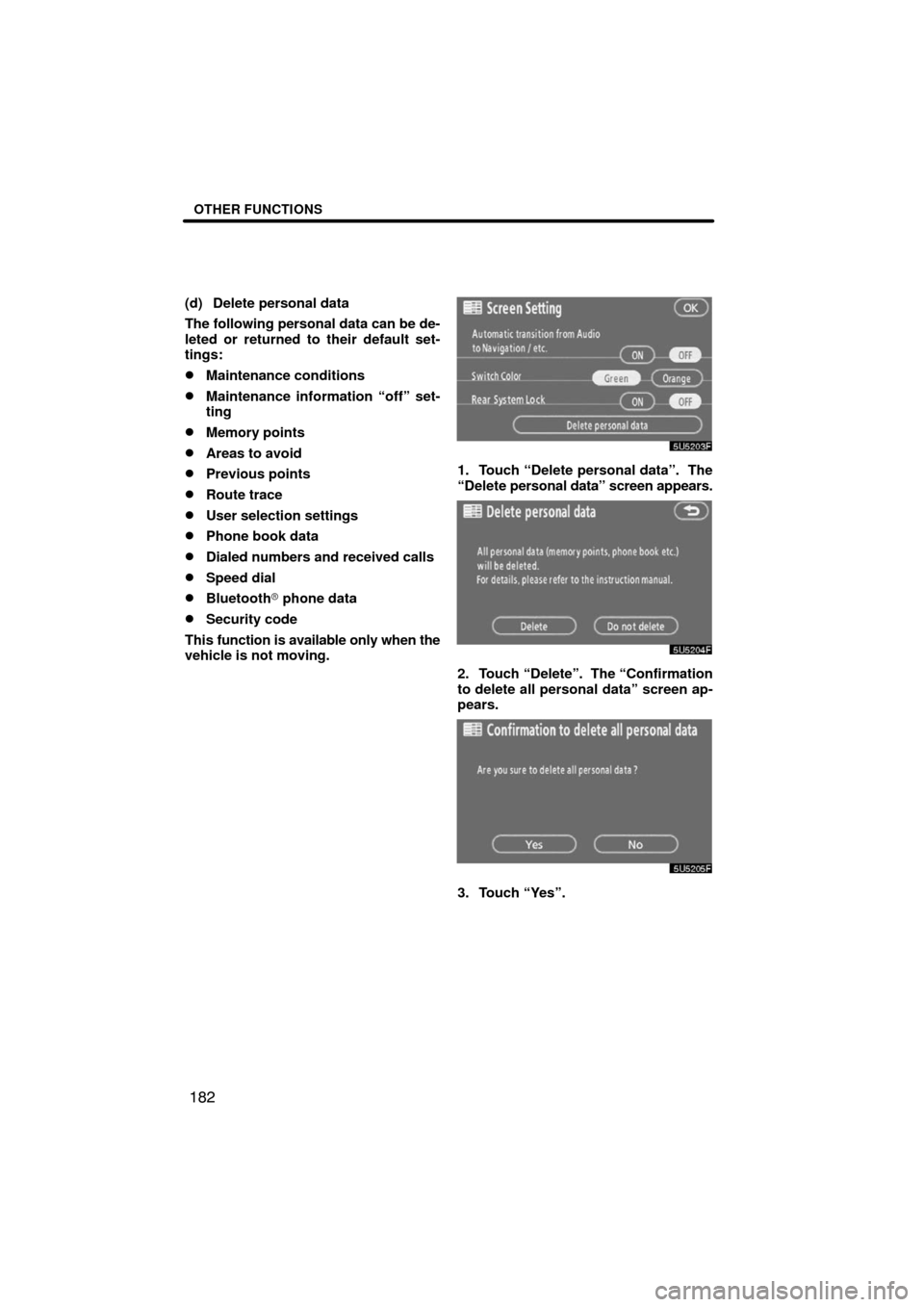

(d) Delete personal data
The following personal data can be de-
leted or returned to their default set-
tings:
Maintenance conditions
Maintenance information “off” set-
ting
Memory points
Areas to avoid
Previous points
Route trace
User selection settings
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
This function is available only when the
vehicle is not moving.
1. Touch “Delete personal data”. The
“Delete personal data” screen appears.
2. Touch “Delete”. The “Confirmation
to delete all personal data” screen ap-
pears.
3. Touch “Yes”.

AUDIO/VIDEO SYSTEM
202
If the satellite radio tuner malfunctions
When problems occur with the XM tuner, a message will appear on the display. Refer-
ring to the table below to identify the problem, take the suggested corrective action.
ANTENNA
The XM antenna is not connected. Check whether the XM anten-
na cable is attached securely.
A short circuit occurs in the antenna or the surrounding antenna
cable. See a Toyota certified dealer for assistance.
UPDATING
You have not subscribed to the XM Satellite Radio. The radio is be-
ing updated with the latest encryption code. Contact the XM Satel-
lite Radio for subscription information. When a contract is canceled,
you can choose the “CH000” and all free−to−air channels.
The premium channel you selected is not authorized. Wait for about
2 seconds until the radio returns to the previous channel or “CH001”.
If it does not change automatically, select another channel. If you
want to listen to the premium channel, contact the XM Satellite
Radio.
NO SIGNALThe XM signal is too weak at the current location. Wait until your
vehicle reaches a location with a stronger signal.
LOADINGThe unit is acquiring audio or program information. Wait until the unit
has received the information.
OFF AIRThe channel you selected is not broadcasting any programming.
Select another channel.
−−−−−There is no song/program title or artist name/feature associated with
the channel at that time. No action needed.
−−−
The channel you selected is no longer available. Wait for about 2
seconds until the radio returns to the previous channel or “CH001”.
If it does not change automatically, select another channel.
The XM Listener Care Center is also available on the phone, please call
1−800−967−2346 during the following hours:
Monday — Saturday: 6 a.m. — 2 a.m. Sunday: 8 a.m. — 8 p.m. Eastern Time

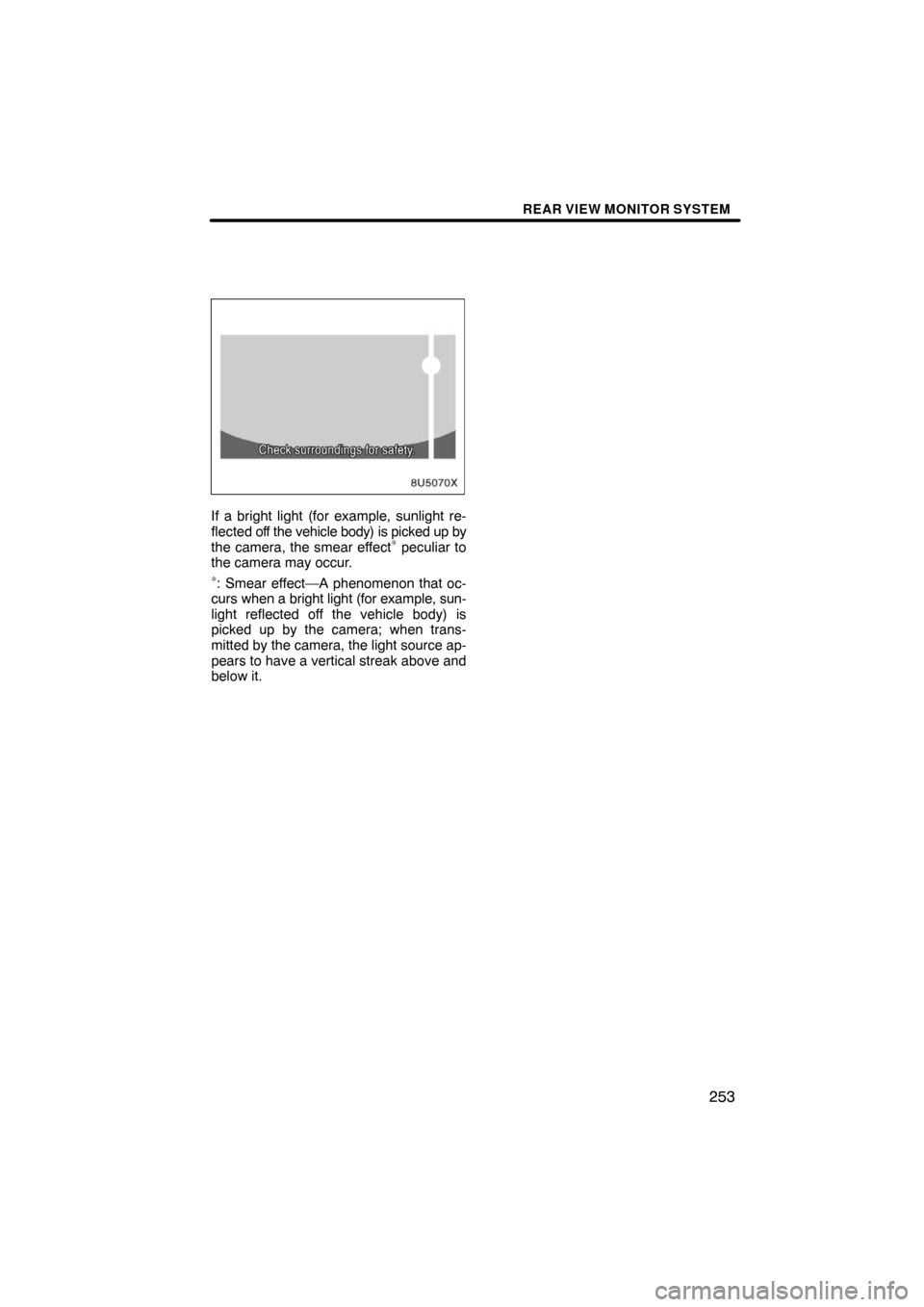

REAR VIEW MONITOR SYSTEM
253
If a bright light (for example, sunlight re-
flected off the vehicle body) is picked up by
the camera, the smear effect
∗ peculiar to
the camera may occur.
∗: Smear effect—A phenomenon that oc-
curs when a bright light (for example, sun-
light reflected off the vehicle body) is
picked up by the camera; when trans-
mitted by the camera, the light source ap-
pears to have a vertical streak above and
below it.
