TOYOTA HIGHLANDER 2008 XU40 / 2.G Quick Reference Guide

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

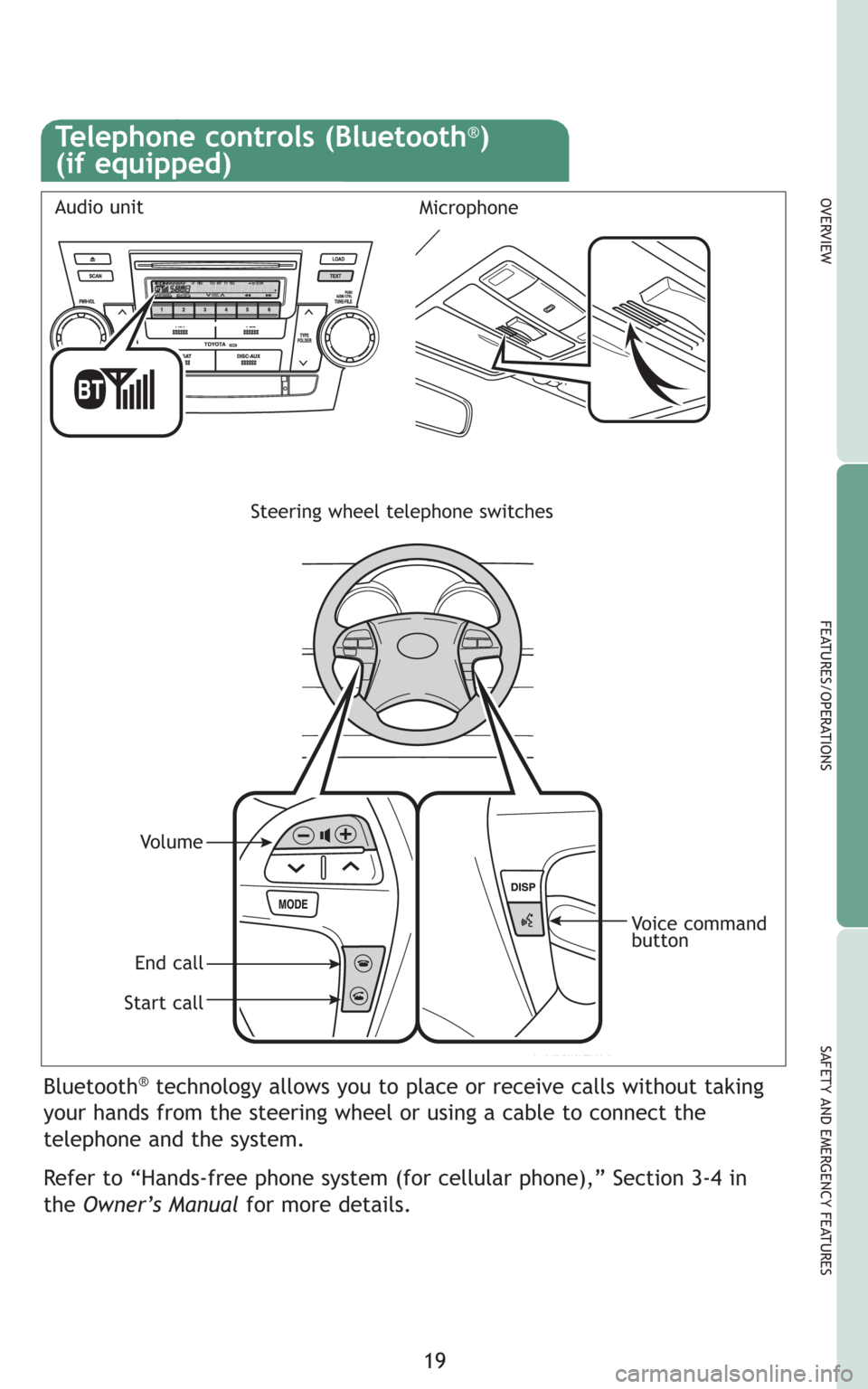

Bluetooth®technology allows you to place or receive calls without taking
your hands from the steering wheel or using a cable to connect the
telephone and the system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-4 in
the Owner’s Manualfor more details.
Telephone controls (Bluetooth®)
(if equipped)
MicrophoneAudio unit
Steering wheel telephone switches
Vo l u m e
Start call
End callVoice command
button

20
FEATURES/OPERATIONS

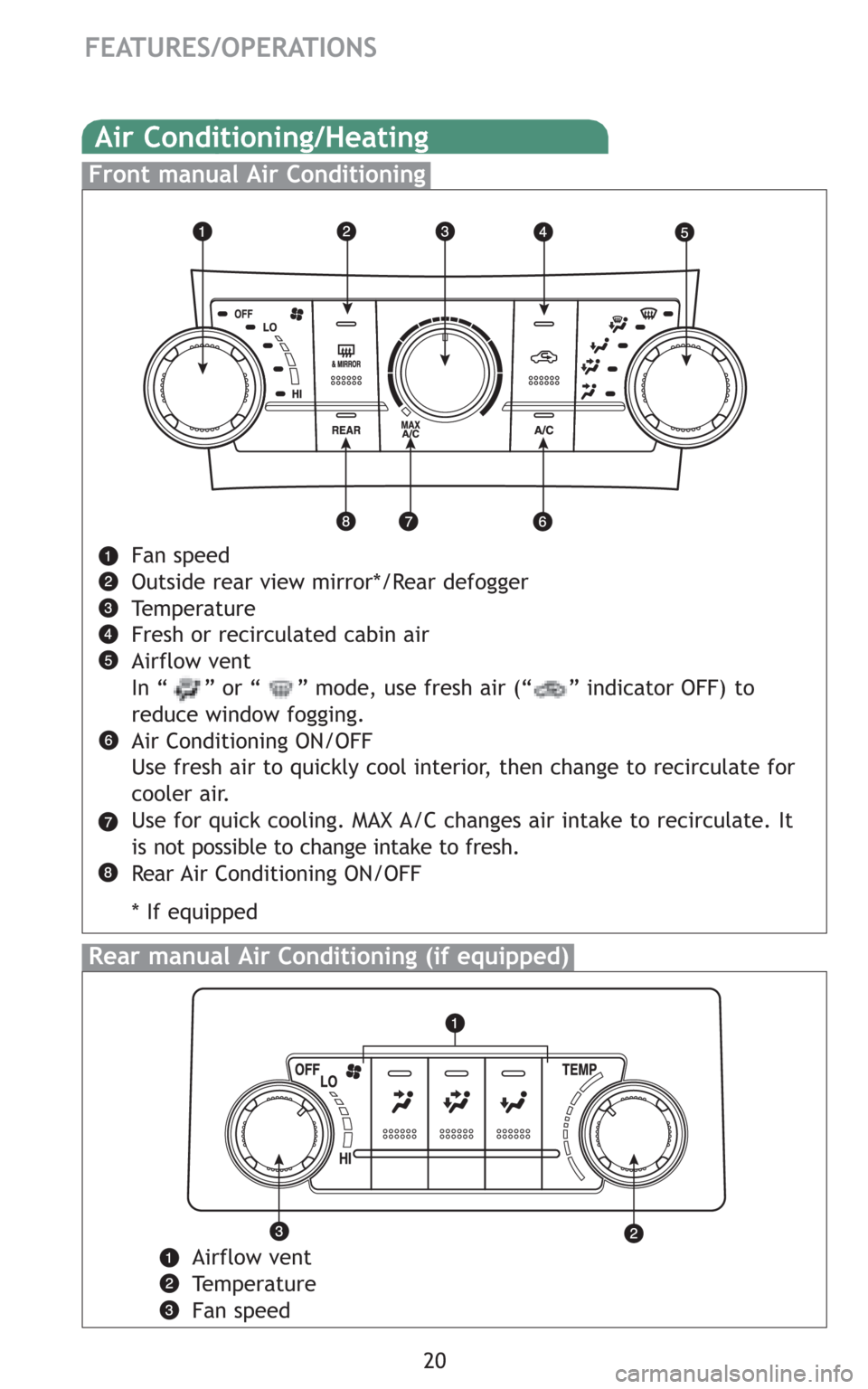

Air Conditioning/Heating
Rear manualAir Conditioning (if equipped)
Front manual Air Conditioning
Airflow vent
Temperature
Fan speed
Fan speed
Outside rear view mirror*/Rear defogger
Temperature
Fresh or recirculated cabin air
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Use for quick cooling. MAX A/C changes air intake to recirculate. It
is not possible to change intake to fresh.
Rear Air Conditioning ON/OFF
* If equipped

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

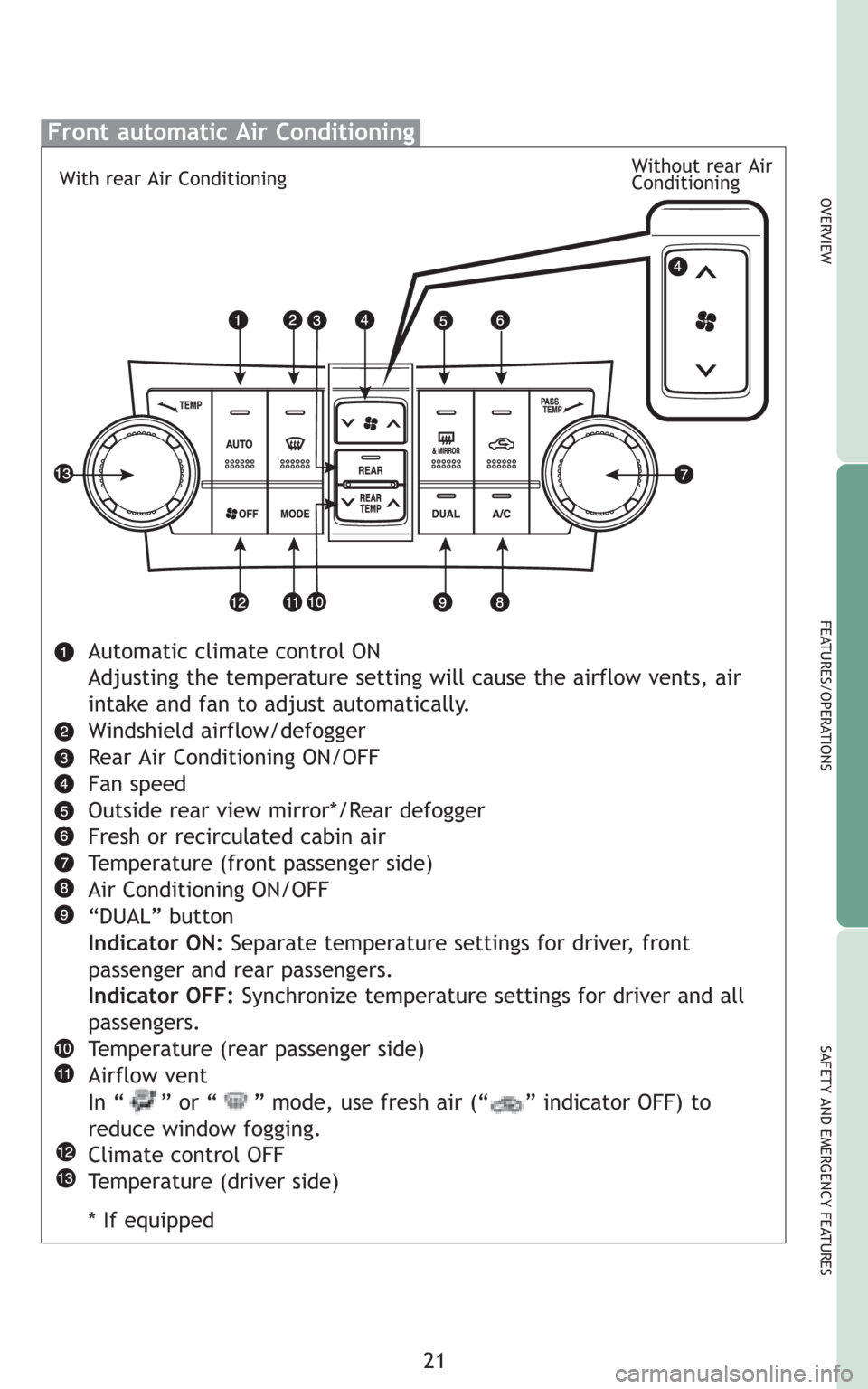

Front automatic Air Conditioning
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Windshield airflow/defogger
Rear Air Conditioning ON/OFF
Fan speed
Outside rear view mirror*/Rear defogger
Fresh or recirculated cabin air
Temperature (front passenger side)
Air Conditioning ON/OFF
“DUAL” button
Indicator ON:Separate temperature settings for driver, front
passenger and rear passengers.
Indicator OFF:Synchronize temperature settings for driver and all
passengers.
Temperature (rear passenger side)
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Climate control OFF
Temperature (driver side)
* If equipped
With rear Air ConditioningWithout rear Air
Conditioning

22
FEATURES/OPERATIONS

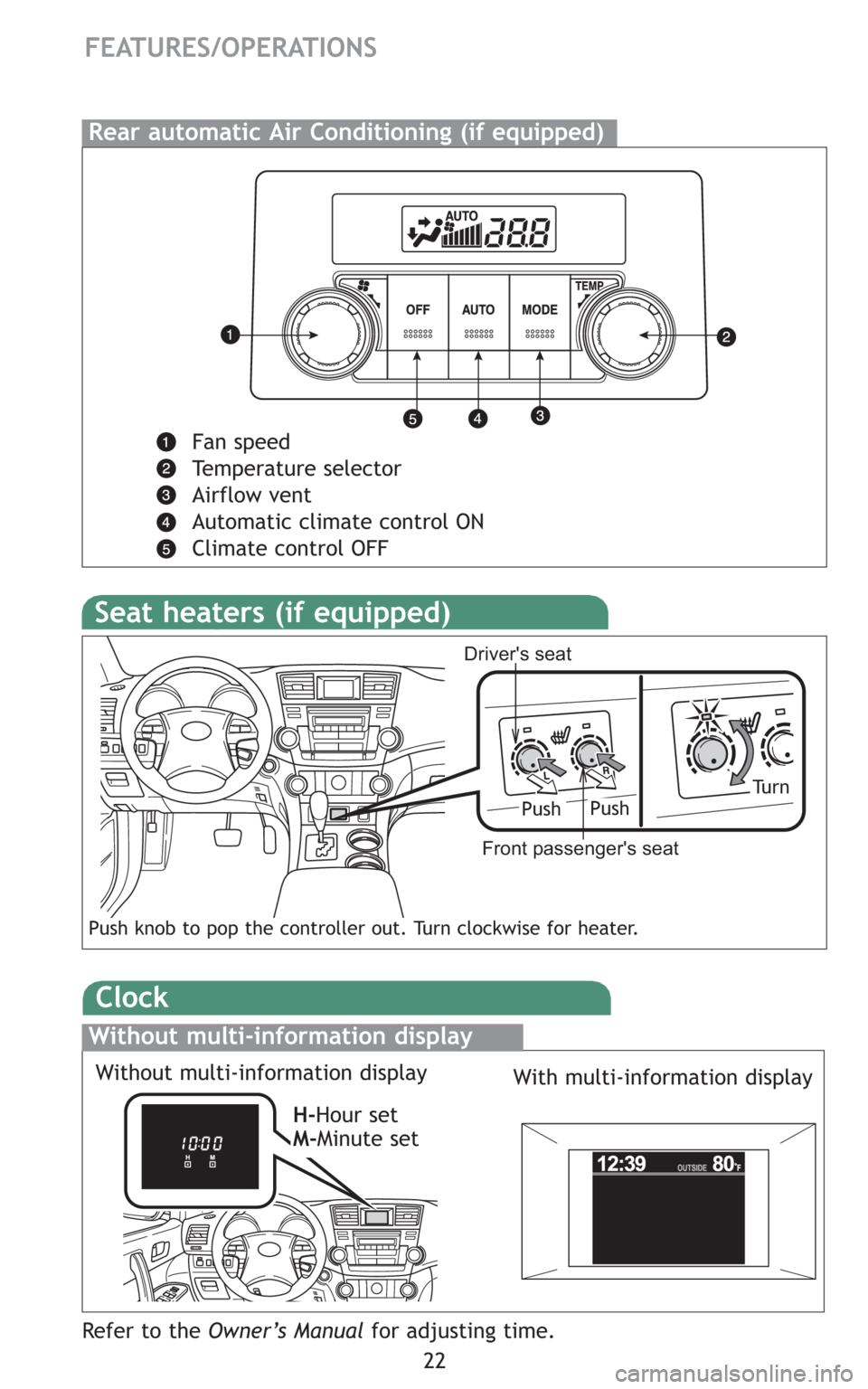

Rear automatic Air Conditioning (if equipped)
Fan speed
Temperature selector
Airflow vent
Automatic climate control ON
Climate control OFF
Seat heaters (if equipped)
Front passenger's seat Driver's seat
PushTu r n
Push knob to pop the controller out. Turn clockwise for heater.
Push
Clock
H-Hour set
M-Minute set
Refer to the Owner’s Manualfor adjusting time.
Without multi-information display
Without multi-information displayWith multi-information display

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

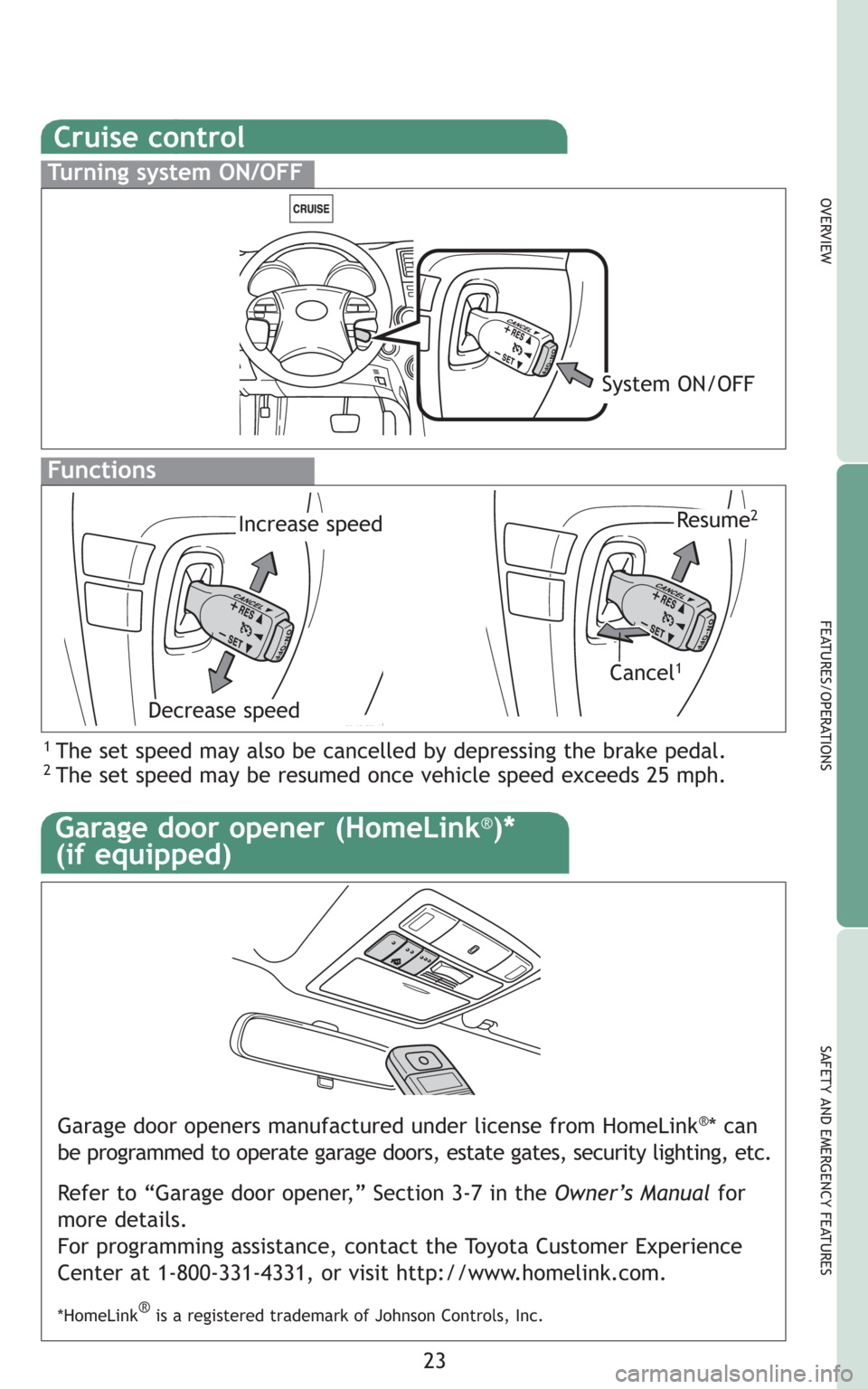

Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manualfor
more details.
For programming assistance, contact the Toyota Customer Experience
Center at 1-800-331-4331, or visit http://www.homelink.com.
*HomeLink®
is a registered trademark of Johnson Controls, Inc.
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2

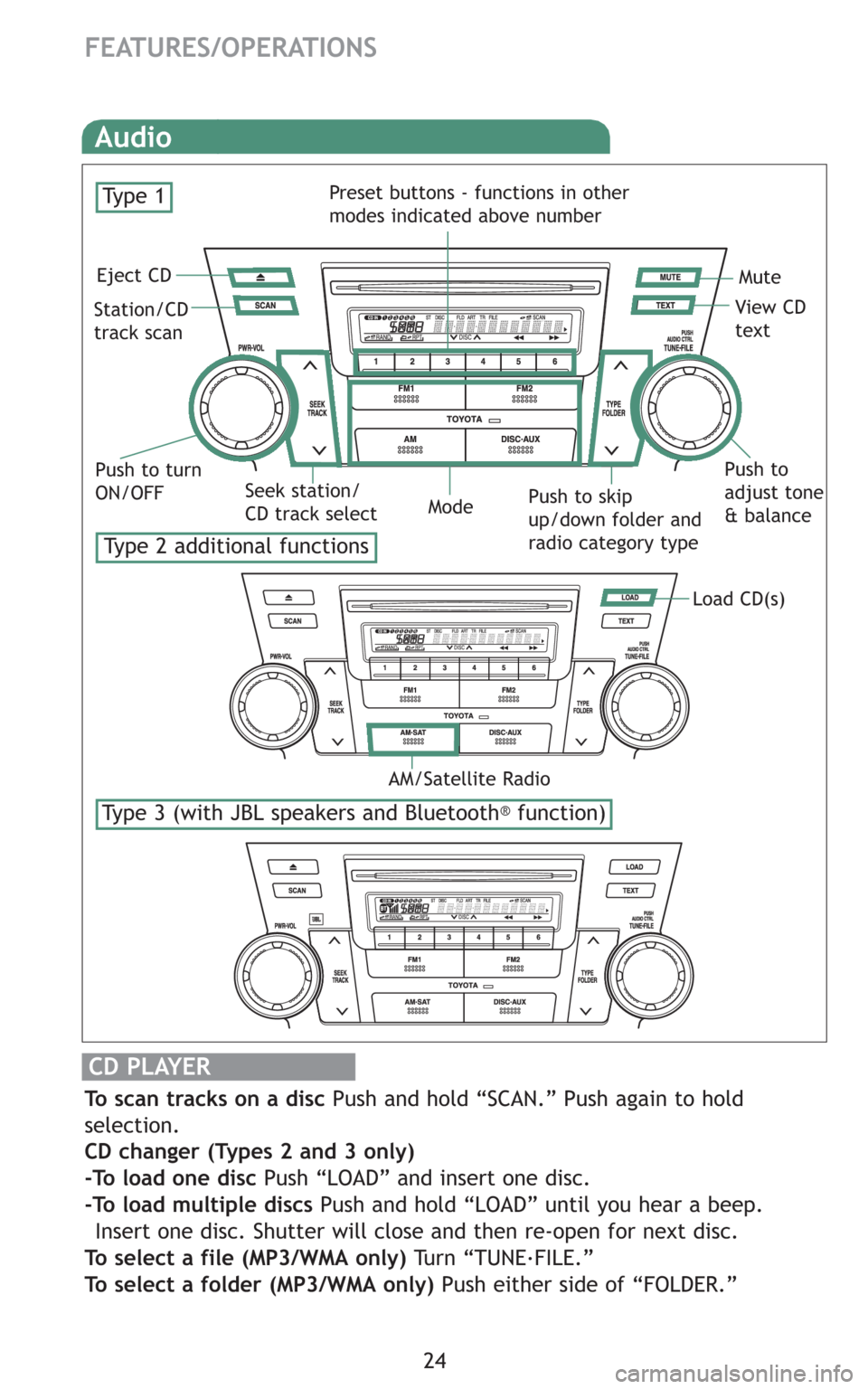

24
FEATURES/OPERATIONS
Type 2 additional functions
Type 3 (with JBL speakers and Bluetooth®function)
Audio
Eject CD
Push to turn
ON/OFFView CD
text
Seek station/
CD track select Station/CD
track scan
Mode
AM/Satellite Radio Preset buttons - functions in other
modes indicated above number
Load CD(s)
Ty p e 1
Push to skip
up/down folder and
radio category type
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Types 2 and 3 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
Push to
adjust tone
& balance
Mute

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

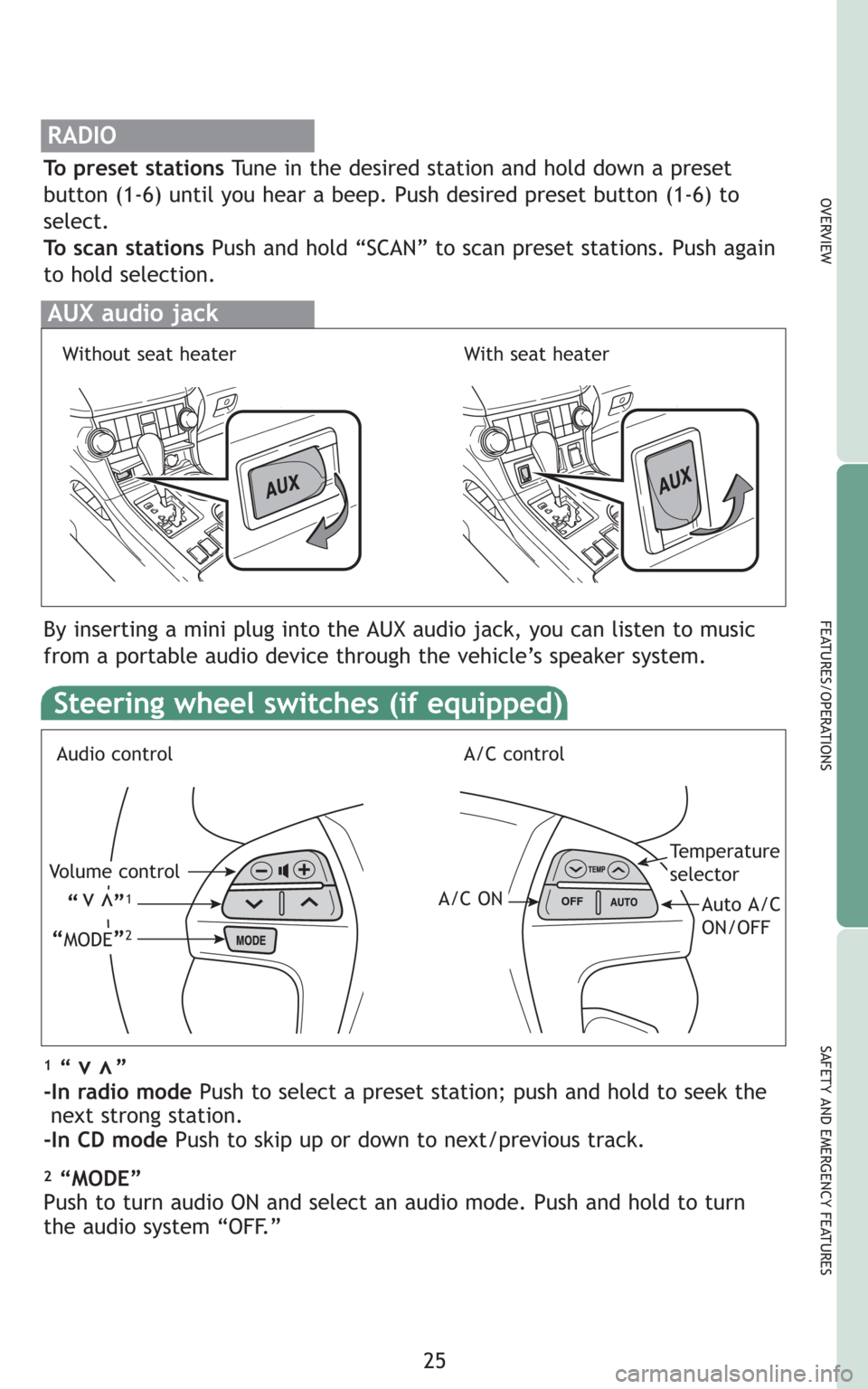

RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
Steering wheel switches (if equipped)
Audio controlA/C control
1“ ”
-In radio modePush to select a preset station; push and hold to seek the
next strong station.
-In CD modePush to skip up or down to next/previous track.
2“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system “OFF.”
vv
Volume control
“MODE”2
“”1vv
Temperature
selector
Auto A/C
ON/OFFA/C ON
By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system.
AUX audio jack
Without seat heaterWith seat heater

26
FEATURES/OPERATIONS

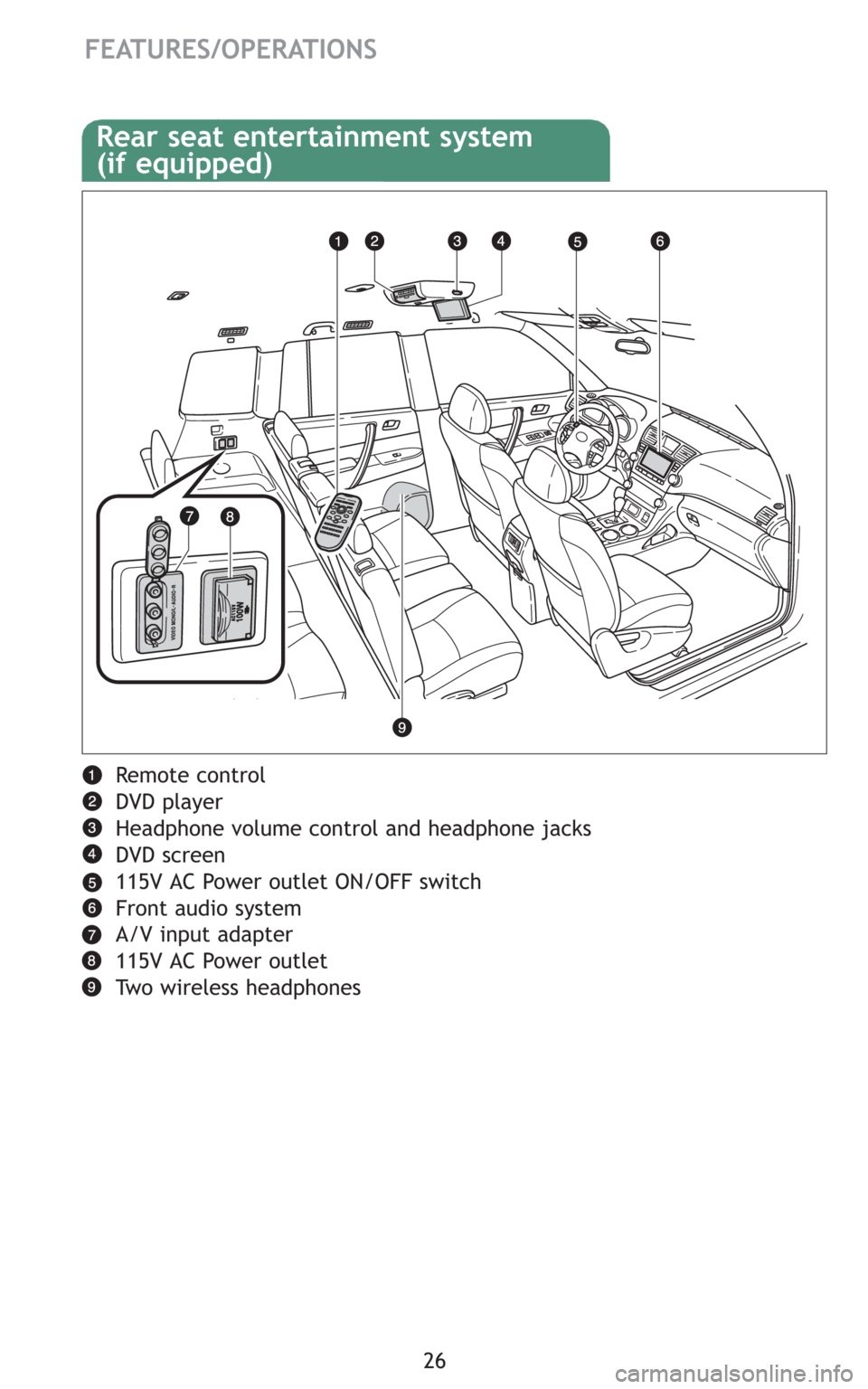

Rear seat entertainment system
(if equipped)
Remote control
DVD player
Headphone volume control and headphone jacks
DVD screen
115V AC Power outlet ON/OFF switch
Front audio system
A/V input adapter
115V AC Power outlet
Two wireless headphones

27
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

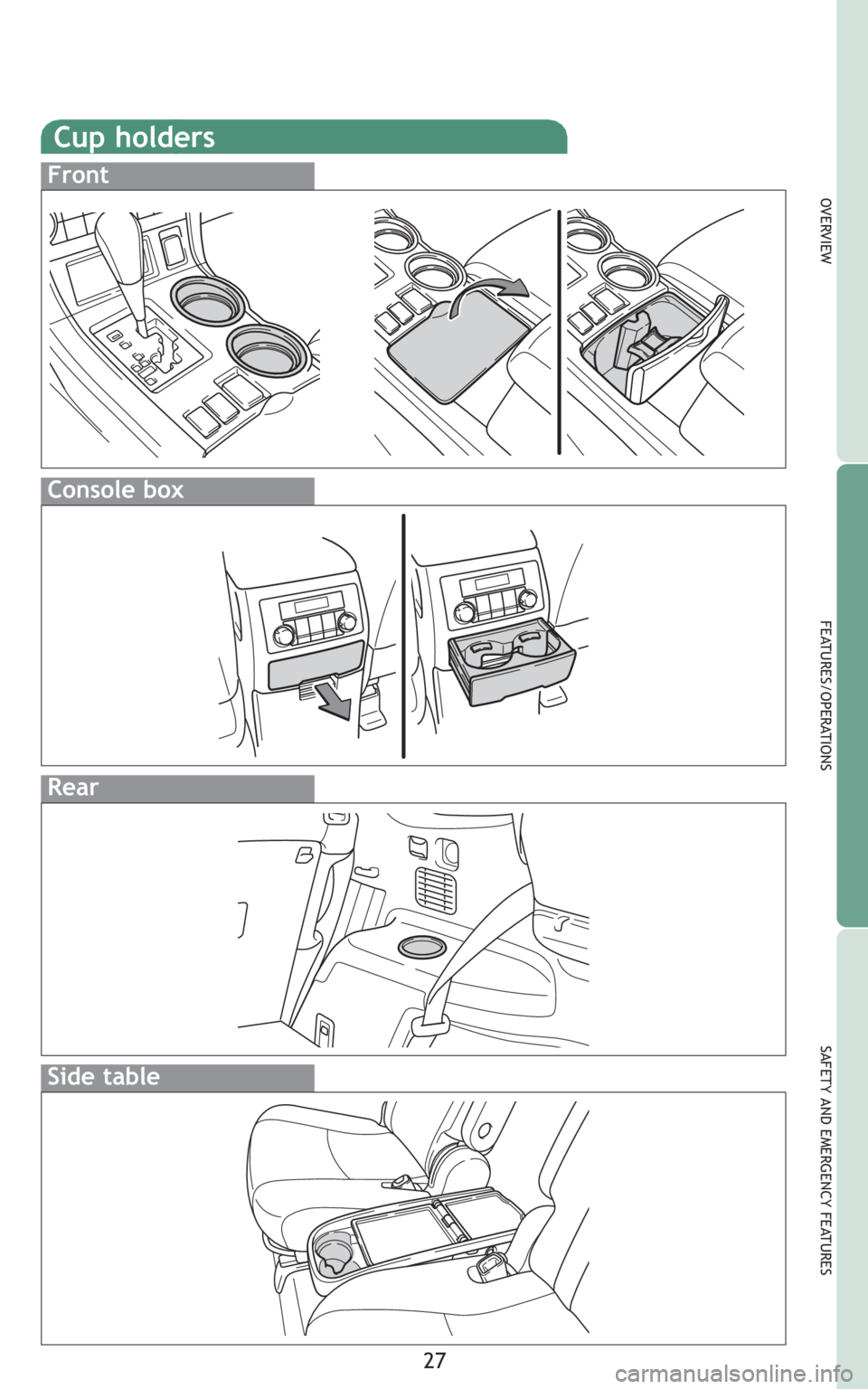

Cup holders
Front
Console box
Rear
Side table

28
SAFETY AND
EMERGENCY FEATURES

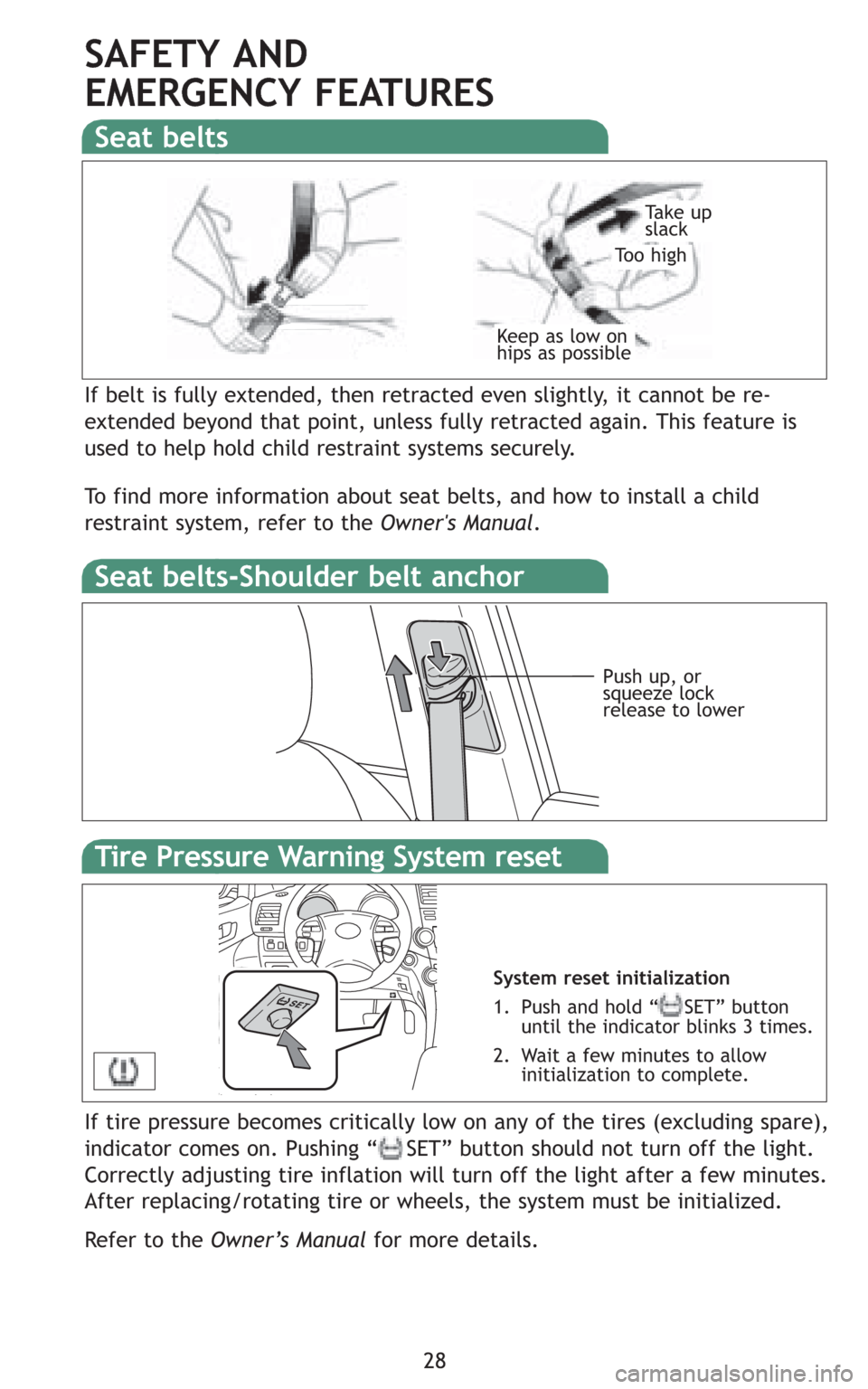

If belt is fully extended, then retracted even slightly, it cannot be re-
extended beyond that point, unless fully retracted again. This feature is
used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up
slack
Too high
Seat belts
Push up, or
squeeze lock
release to lower
Tire Pressure Warning System reset
If tire pressure becomes critically low on any of the tires (excluding spare),
indicator comes on. Pushing “ SET” button should not turn off the light.
Correctly adjusting tire inflation will turn off the light after a few minutes.
After replacing/rotating tire or wheels, the system must be initialized.
Refer to the Owner’s Manualfor more details.
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks 3 times.
2. Wait a few minutes to allow
initialization to complete.
Seat belts-Shoulder belt anchor
