TOYOTA HIGHLANDER 2009 XU40 / 2.G Navigation Manual

HIGHLANDER_Navi_U
(L/O 0808)
7
4 Advanced Functions
〈Descriptions of functions for more effective use〉
Quick reference (“Menu” screen) 86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen) 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspending and resuming guidance 88
. . . . . . . . . . . . . . . . . . . . . . . . . .
Volume 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
User selection 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
My places 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Registering memory points 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing memory points 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting memory points 99
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering home 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Deleting home 101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Registering area to avoid 101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing area to avoid 102
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting area to avoid 105
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting previous points 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
5 Other Functions
Maintenance information 11 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance information setting 118
. . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer setting 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Calendar with memo 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Adding a memo 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Editing a memo 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Memo list 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Hands −free system (for cellular phone) 127
. . . . . . . . . . . . . . . . . . . . . .
Speech command system 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Help screen 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Screen adjustment 178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Screen setting 180
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Beep setting 183
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Select language 183
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .

HIGHLANDER_Navi_U
(L/O 0808)
8
6 Audio/video System
Quick reference186
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Using your audio/video system 187
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video remote controls 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 241
. . . . . . . . . . . . . . . . . . . . . . . . .
7 Rear View Monitor System
Rear view monitor system 250
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Appendix
Limitations of the navigation system 256
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 258
. . . . . . . . . . . . . . . . . . . . . .
Index 269
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
For information about the optional “Rear seat entertainment
system” , please refer to the Owner’s Manual .

HIGHLANDER_Navi_U
(L/O 0808)
9

10
No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
37
2Scale indicatorThis figure indicates the map scale.35
3Zoom out buttonTouch this button to reduce the map
scale.35
4“DISP” buttonPush this button to display the “Display”
screen.178
5“INFO” buttonPush this button to display the “Informa-
tion” screen.118, 122, 131, 180, 183
6“Mark”
Touch this button to register the current
position or the cursor position as a
memory point.
30
7“Route”Touch this button to change the route.72, 74
Quick guide —
— Overview buttons and guidance screen

11
No.NameFunctionPage
8“Map View”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
78, 81, 82, 83
9“ OFF”
Touch this button to obtain a broader
view. Some of the buttons on the screen
are not displayed. They are displayed
again by touching “ON”.
11 0
10“MENU” buttonPush this button to display the “Menu”
screen.12, 14, 88, 89,
90, 92, 106, 268
11Zoom in buttonTouch this button to magnify the map
scale.35
12Foot print map
buttonTouch this button to display the foot print
map and the building information.36
13
Screen
configuration
buttonTouch this button to change the screen
mode.33
14Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
71
15“DEST” buttonPush this button to display the “Destina-
tion” screen.16, 17, 40, 41
16“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
28, 70
17
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
256
18
Speech
command system
indicatorThe microphone is shown by pushing
the talk switch. The speech command
system can be operated while this indi-
cator is shown.
174

12

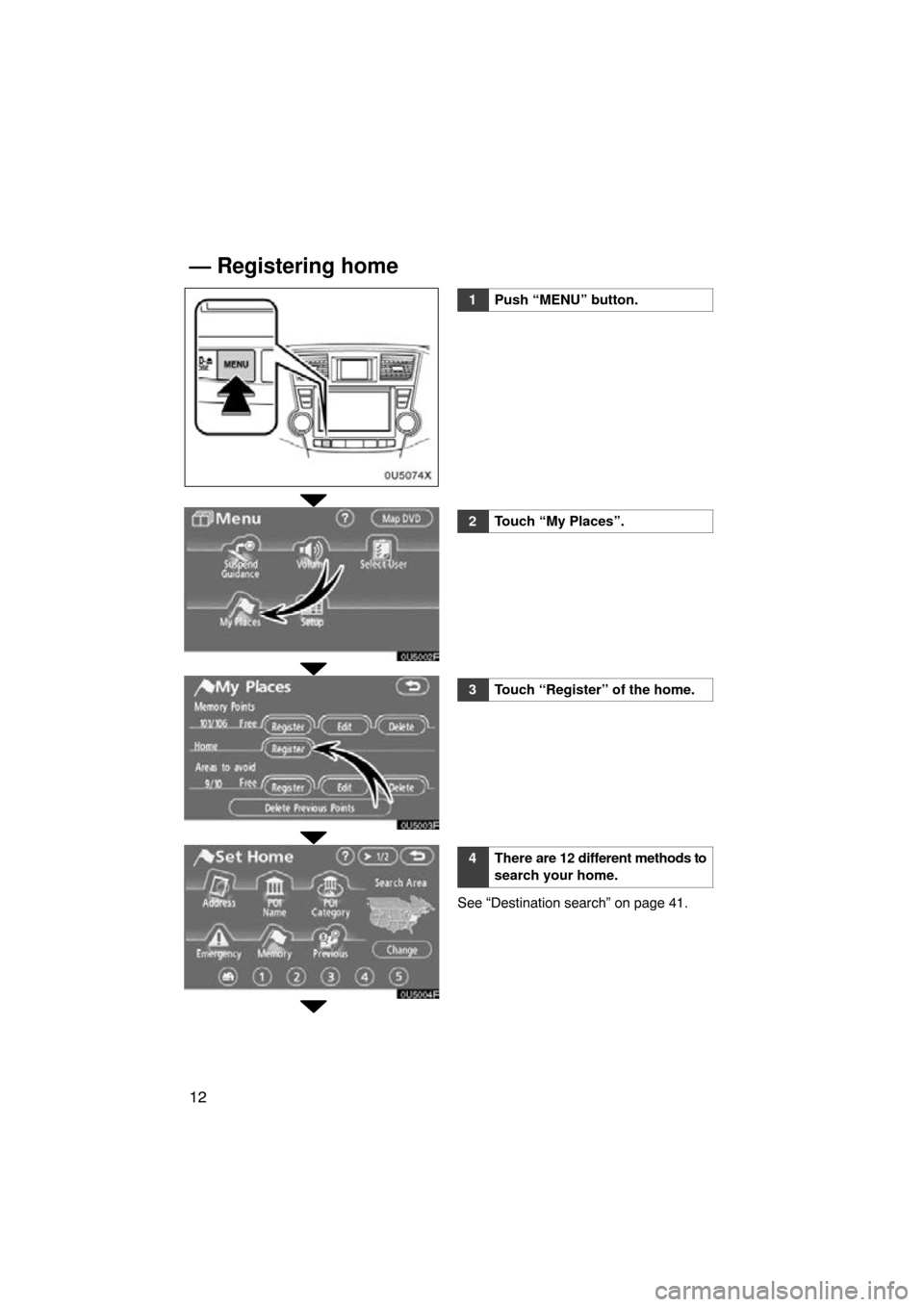

0U5074X
0U5002F
0U5003F
0U5004F
1Push “MENU” button.
2Touch “My Places”.
3Touch “Register” of the home.
4There are 12 different methods to
search your home.
See “Destination search” on page 41.
— Registering home

13

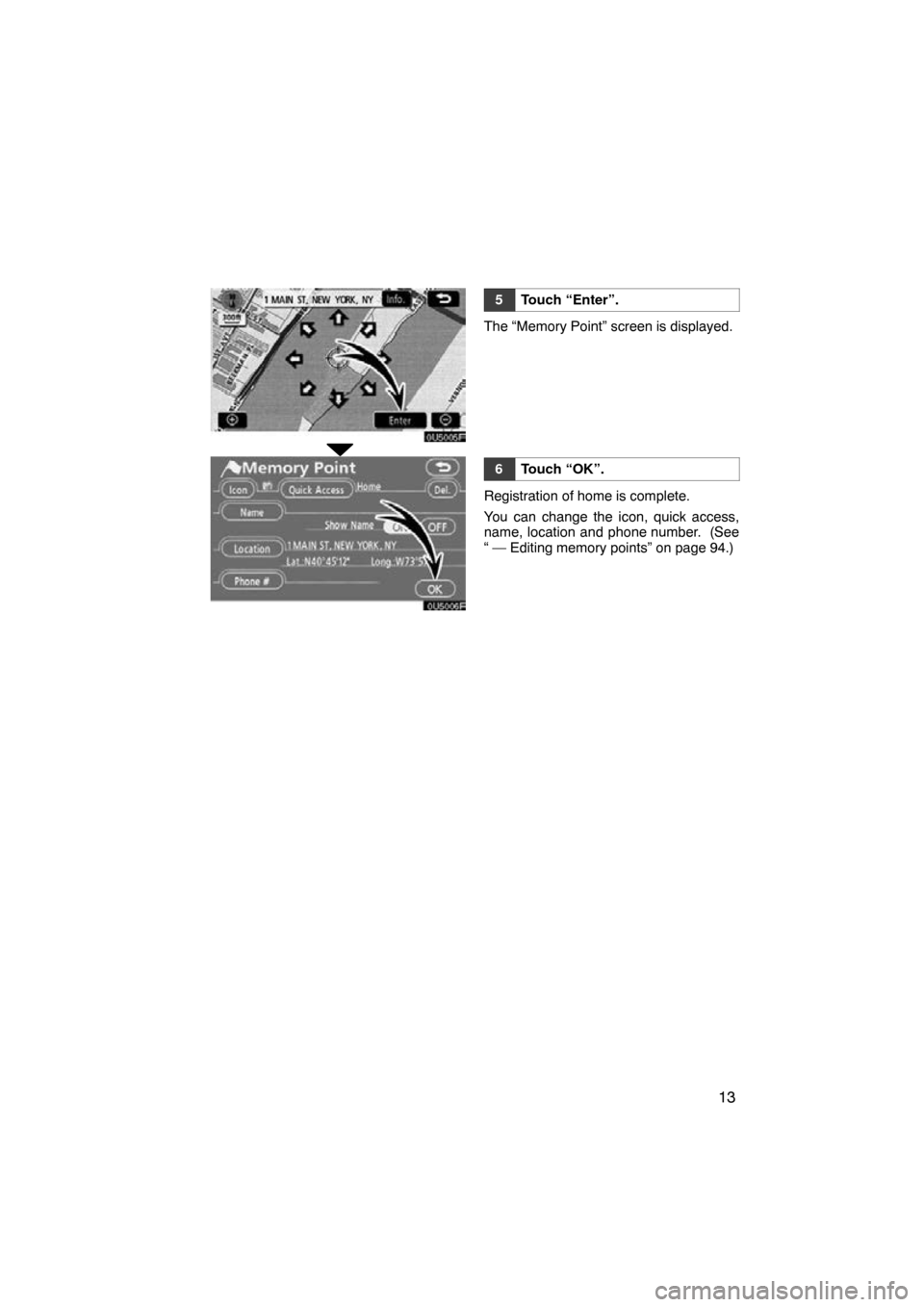

0U5005F
0U5006F
5Touch “Enter”.
The “Memory Point” screen is displayed.
6Touch “OK”.
Registration of home is complete.
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 94.)

14
0U5074X
0U5007F
0U5008F
0U5009F
1Push “MENU” button.
2Touch “My Places”.
3Touch “Register” of the memory
points.
4There are 13 different methods to
search preset memory points.
See “Destination search” on page 41.
— Registering preset memory points
(Quick access)

15

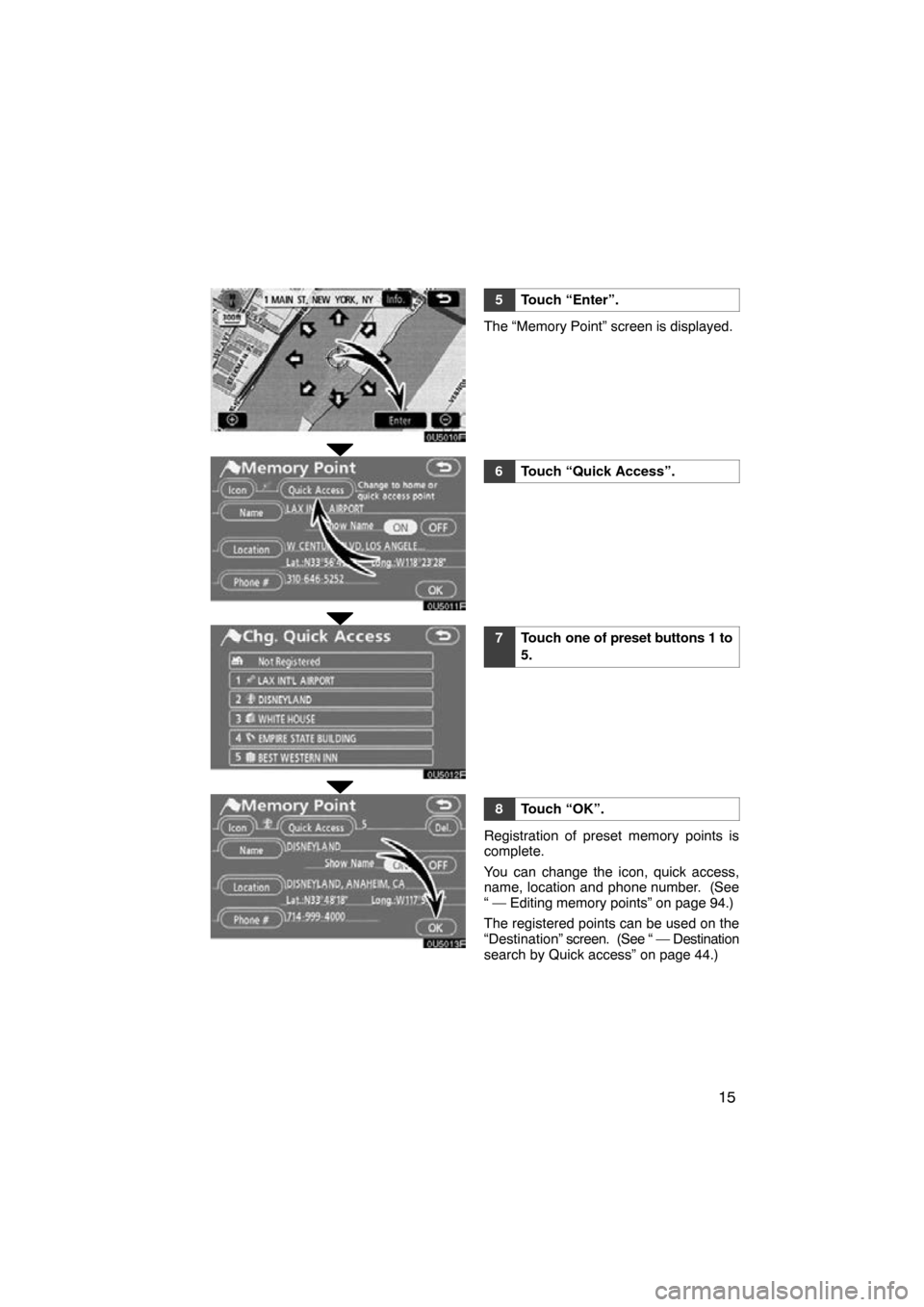

0U5010F
0U5011F
0U5012F
0U5013F
5Touch “Enter”.
The “Memory Point” screen is displayed.
6Touch “Quick Access”.
7Touch one of preset buttons 1 to
5.
8Touch “OK”.
Registration of preset memory points is
complete.
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 94.)
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Quick access” on page 44.)

16
0U5075X
0U5014F
0U5015F
0U5016F
1Push “DEST” button.
2There are 13 different methods to
search destinations.
See “Destination search” on page 41.
3Touch “Enter”.
The navigation system performs a search
for the route.
4Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 60.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
— Operation flow: guiding the route
