601
Alphabetical index
Radiator.................................... 447
Radio ........................................ 284
Rear automatic air
conditioning system ............. 274
Rear manual air conditioning
system ................................... 271
Rear seat Adjustment ............................. 82
Folding down second
seatback............................... 84
Folding down third
seatback............................... 86
Removing the second center seat ........................... 87
Stowing the second center seat ........................... 87
Rear seat entertainment
system ................................... 311
Rear turn signal lights Replacing light bulbs ............ 486
Wattage ................................ 566
Rear view mirror Compass .............................. 411
Rear view monitor system...... 214
Rear window defogger............ 277
Rear window wiper.................. 210
Replacing Fuses.................................... 475
Key battery ........................... 472
Light bulbs ............................ 486
Tires ..................................... 522
Reporting safety defects for
U.S. owners ........................... 588 Seat belts
Adjusting the seat belt .............94
Automatic Locking
Retractor ...............................95
Child restraint system
installation ...........................151
Cleaning and maintaining the seat belts ......................420
Emergency Locking Retractor ...............................95
How to wear your seat belt......94
How your child should wear
the seat belt ..........................97
Pregnant women, proper seat
belt use .................................96
Reminder light .......................513
Seat belt extenders .................97
Seat belt pretensioners ...........95
Seat heaters..............................396
Seating capacity.......................237
Seats Adjustment ........................79, 82
Adjustment precaution ......81, 90
Child seats/child restraint system installation ..............151
Cleaning ................................419
Head restraint..........................91
Properly sitting in the seat .....126
Seat heaters ..........................396RS
Page 602 of 608
602 Alphabetical index
Service reminder indicators .............................. 190
Shift lever Automatic transmission ......... 180
If the shift lever cannot be shifted from P................. 537
Shift lock system ..................... 537
Shopping bag hooks ............... 400
Side airbags.............................. 128
Side marker lights Replacing .............................. 486
Switch.................................... 203
Wattage ................................. 566
Side mirrors
Adjusting and folding ............. 103
Side table .................................. 386
Smart key system Entry function ..........................33
Starting the engine ................173
Spare tire
Inflation pressure................... 562
Storage location .................... 522
Spark plug ................................ 559
Specifications........................... 552
Speech command switch ........ 347
Speedometer ............................ 188
Steering
Column lock release...... 175, 178 Steering wheel
Adjustment ............................ 100
Audio switches ...................... 309
Climate remote control switches .............................. 280
Stop lights Replacing light bulbs ............. 486
Wattage................................. 566
Storage feature ........................ 375
Storage precautions ................ 235
Stuck If your vehicle becomes stuck ................................... 548
Sun visors ................................ 388
Switch
Emergency flasher switch ..... 498
Engine switch ................ 174, 177
Fog light switch ..................... 207
Hazard light switch ................ 498
Ignition switch ............... 174, 177
Light switches ....................... 203
Power door lock switch ........... 67
Power window switch ............ 106
SNOW switch ........................ 181
Window lock switch ............... 106
Wiper and washer switch.......................... 208, 210
Page 603 of 608
603
Alphabetical index
Tachometer .............................. 188
Tail lights
Replacing light bulbs ............ 486
Switch ................................... 203
Wattage ................................ 566
Talk switch ............................... 347
Telephone switch .................... 347
Theft deterrent system Alarm .................................... 122
Engine immobilizer system... 115
Theft prevention labels ........... 125
Tire inflation pressure ............ 463
Tire information Glossary ............................... 576
Size ...................................... 573
Tire identification number ..... 572
Uniform tire quality
grading ............................... 574 Tires
Chains ...................................238
Checking ...............................453
If you have a flat tire ..............522
Inflation pressure...................463
Information ............................570
Replacing ..............................522
Rotating tires .........................453
Size .......................................562
Snow tires .............................238
Tire pressure warning
system ........................453, 513
Tools .........................................522
Total load capacity...................237
Towing Dinghy towing........................252
Emergency towing.................500
Trailer towing.........................242
Traction control........................218
TRAC .........................................218
Trip information .......................194
Trip meter .................................188
Turn signal lights Replacing light bulbs .............486
Switch....................................185
Wattage .................................566T
Page 604 of 608
604 Alphabetical index
Valet key .....................................30
Vanity lightsVanity lights ........................... 389
Wattage ................................. 566
Vanity mirrors........................... 389
Vehicle identification
number ................................... 553
Warning buzzers Brake system ........................ 510
Open door ............................. 513
Seat belt reminder ................. 513
Warning lights
Anti-lock brake system .......... 511
Brake assist system .............. 511
Brake system ........................ 510
Charging system .... ............... 511
Electric power steering system ................................ 511
Electronic engine control system ................................ 511
Engine oil pressure ............... 511
Malfunction indicator lamp .... 511
Master warning light .............. 513
Open door ............................. 513
Pretensioners ........................ 511
Seat belt reminder light ......... 513
SRS airbags .......................... 511
Tire pressure warning light .... 513
Warning messages .................. 521 Washer
Checking ............................... 452
Preparing and checking
before winter ....................... 238
Switch ........................... 208, 210
Washing and waxing ............... 416
Weight Cargo capacity ...................... 233
Load limits ............................. 237
Weight ................................... 552
Wheels ...................................... 467
Window glasses ...................... 106
Window lock switch................. 106
Windows
Power windows ..................... 106
Rear window defogger .......... 277
Washer.......................... 208, 210
Windshield wiper de-icer ........ 279
Windshield wipers ................... 208
Wireless remote control key Replacing the battery ............ 472
Wireless remote control key.... 54
WMA disc.................................. 297V
W
Page 605 of 608
605

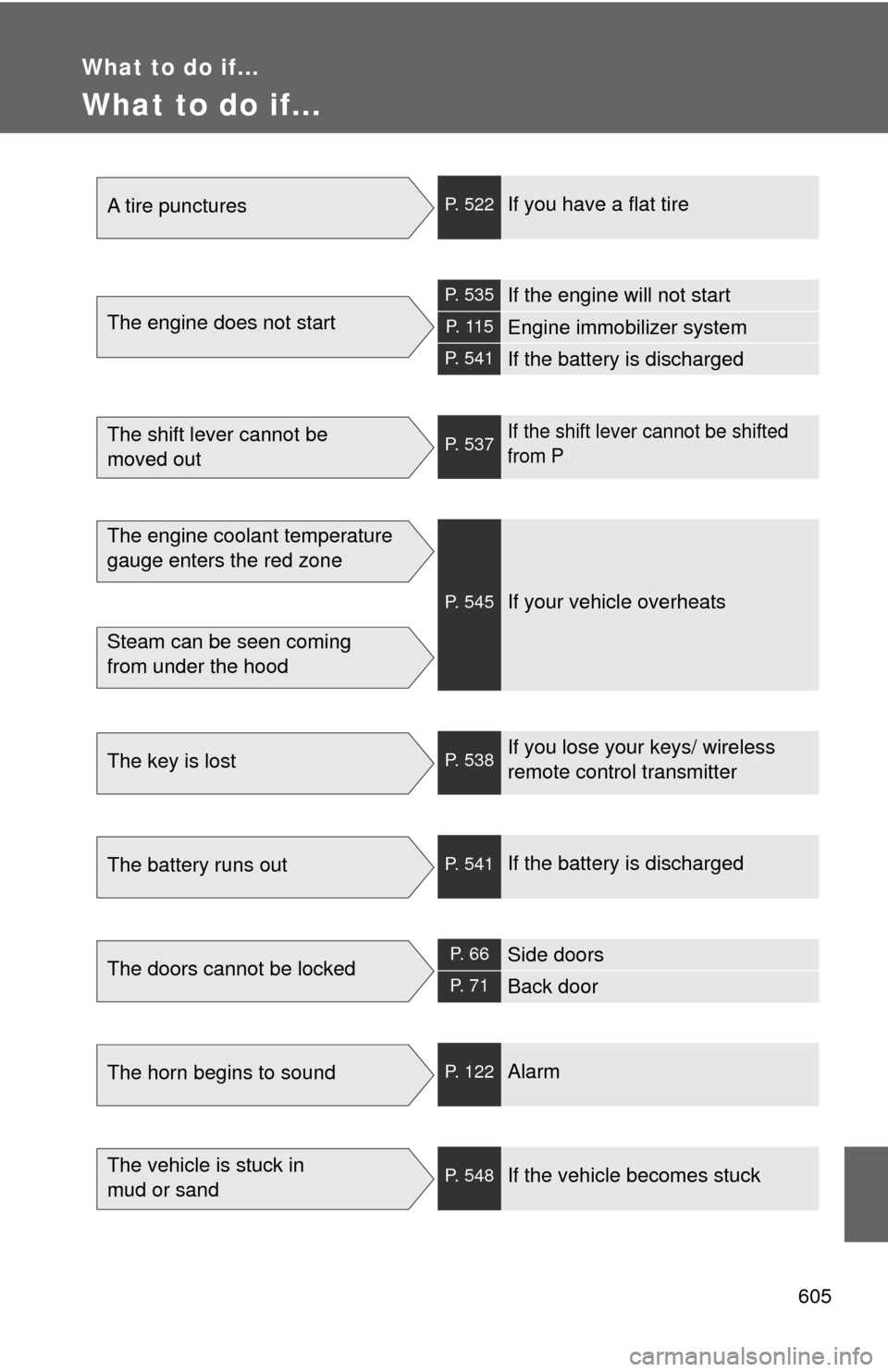

What to do if...
What to do if...
A tire puncturesP. 522If you have a flat tire
The engine does not start
P. 535If the engine will not start
P. 1 1 5Engine immobilizer system
P. 541If the battery is discharged
The shift lever cannot be
moved outP. 537If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 545If your vehicle overheats
The key is lostP. 538If you lose your keys/ wireless
remote control transmitter
The battery runs outP. 541If the battery is discharged
The doors cannot be lockedP. 6 6Side doors
P. 7 1Back door
The horn begins to soundP. 122Alarm
The vehicle is stuck in
mud or sandP. 548If the vehicle becomes stuck
Page 606 of 608
606 What to do if...
A warning light or indicator light
comes onP. 510If a warning light turns on or a
warning buzzer sounds...

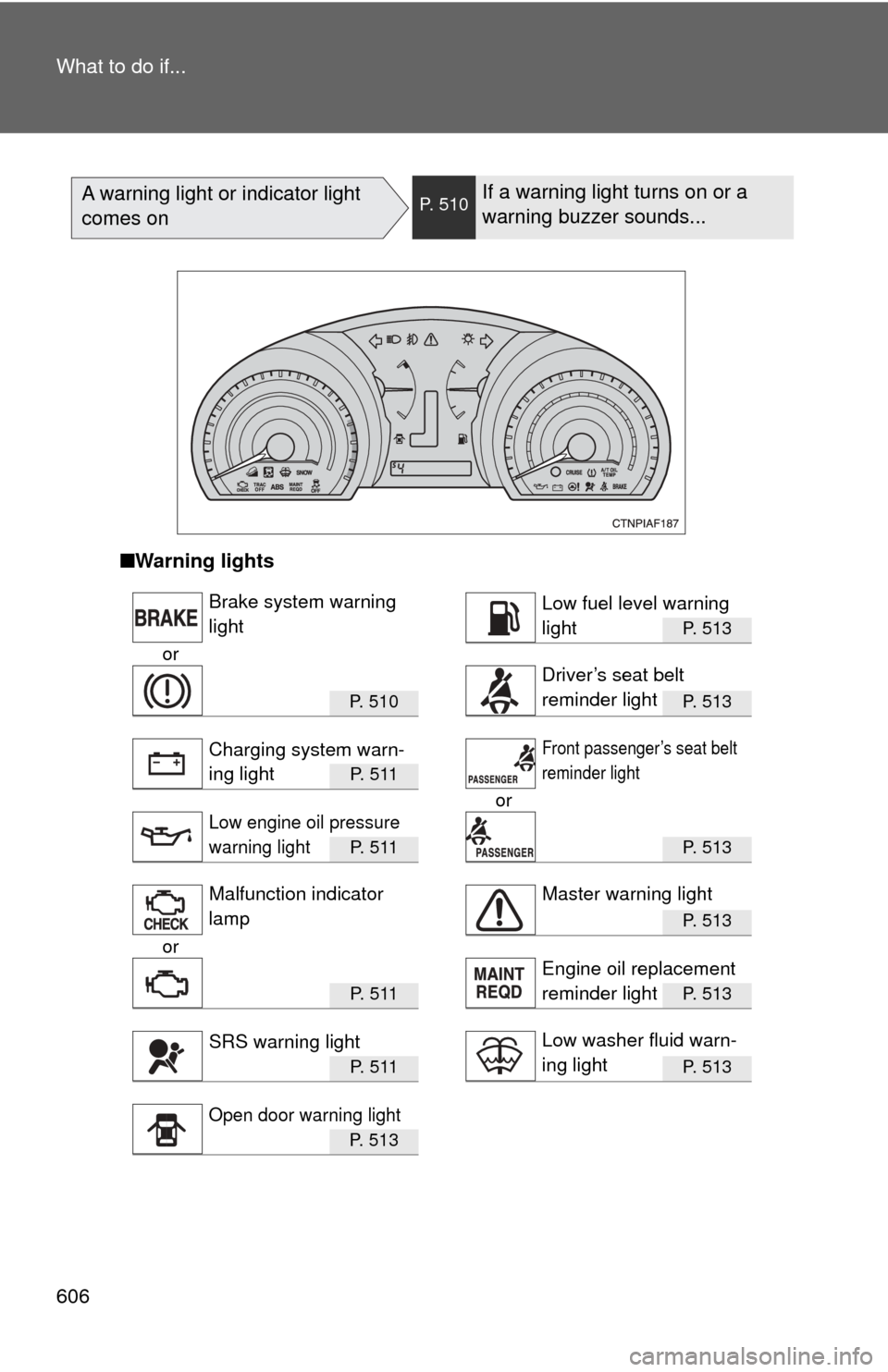

■Warning lights
P. 513
or
P. 5 1 0P. 513
P. 5 1 1
or
P. 5 1 1P. 513
P. 513
or
P. 5 1 1P. 513
P. 5 1 1P. 513
P. 5 1 3
Brake system warning
lightLow fuel level warning
light
Driver’s seat belt
reminder light
Charging system warn-
ing lightFront passenger’s seat belt
reminder light
Low engine oil pressure
warning light
Malfunction indicator
lampMaster warning light
Engine oil replacement
reminder light
SRS warning lightLow washer fluid warn-
ing light
Open door warning light
Page 607 of 608
607
What to do if...
P. 513
or
P. 5 1 1P. 513
P. 5 1 1

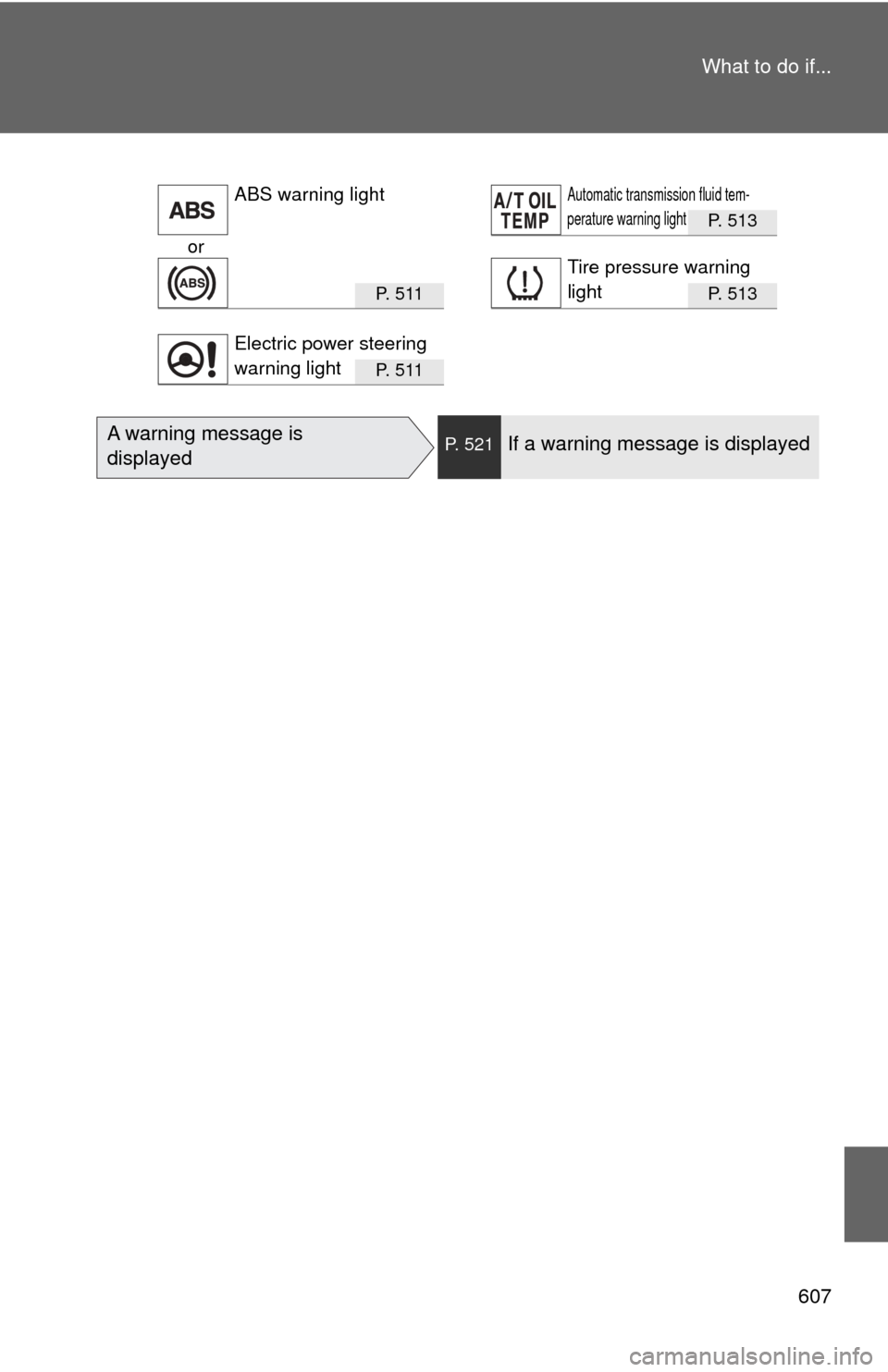

ABS warning lightAutomatic transmission fluid tem-
perature warning light
Tire pressure warning
light
Electric power steering
warning light
A warning message is
displayedP. 521If a warning message is displayed
Page 608 of 608
608

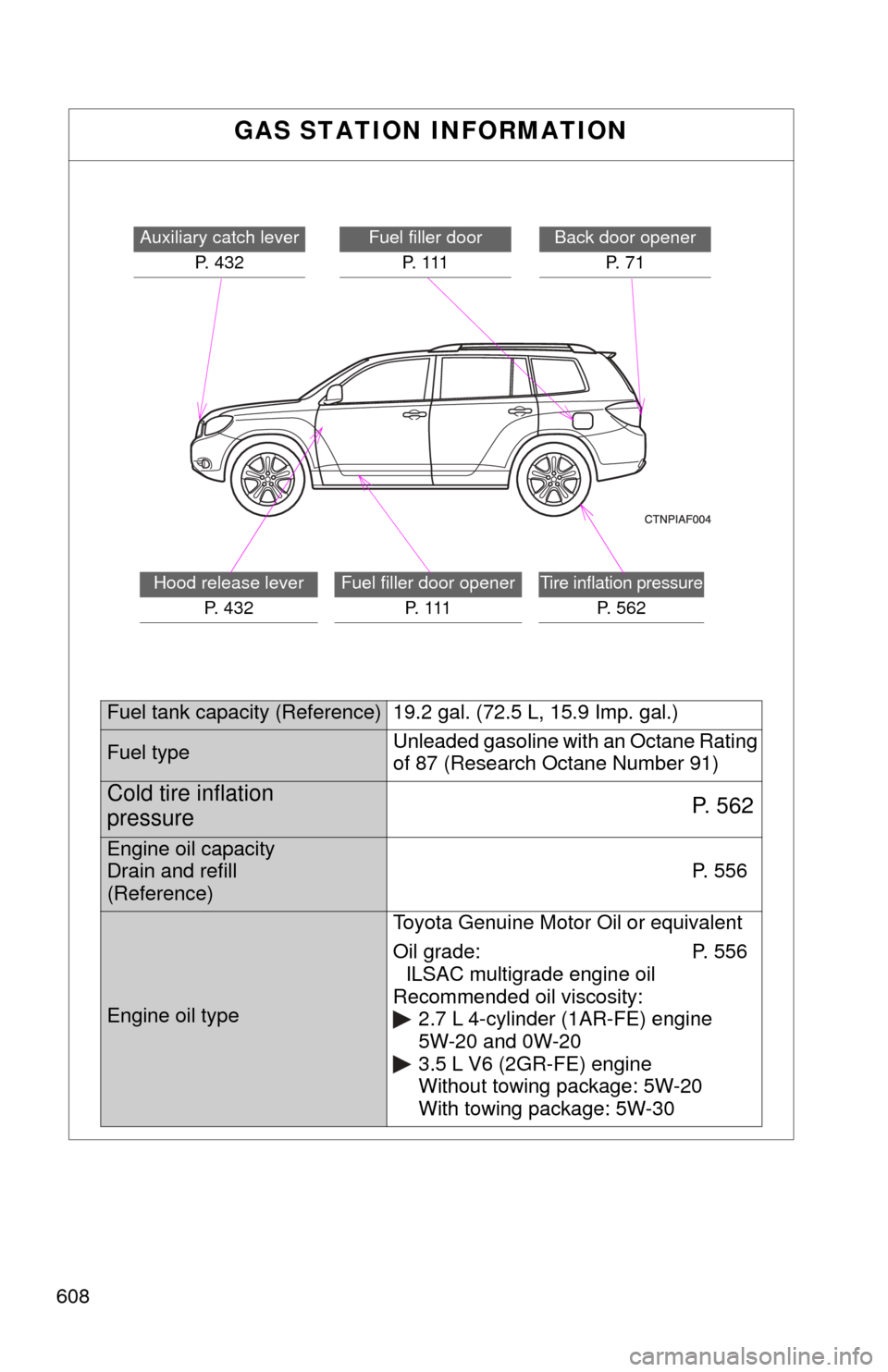

GAS STATION INFORMATION
Auxiliary catch leverP. 432Fuel filler doorP. 1 1 1
Hood release lever P. 4 3 2Fuel filler door opener P. 1 1 1Tire inflation pressure
P. 562
Back door openerP. 7 1
Fuel tank capacity (Reference) 19. 2 gal. (72.5 L, 15.9 Imp. gal.)
Fuel typeUnleaded gasoline with an Octane Rating
of 87 (Research Octane Number 91)
Cold tire inflation
pressure
P. 5 6 2
Engine oil capacity
Drain and refill
(Reference) P. 556
Engine oil typeToyota Genuine Motor Oil or equivalent
Oil grade: P. 556
ILSAC multigrade engine oil
Recommended oil viscosity: 2.7 L 4-cylinder (1AR-FE) engine
5W-20 and 0W-20
3.5 L V6 (2GR-FE) engine
Without towing package: 5W-20
With towing package: 5W-30
