OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, \
etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manualfor
more details.
For programming assistance, contact the Toyota Customer Experience
Center at 1-800-331-4331, or visit http://www.homelink.com.
* HomeLink ®
is a registered trademark of Johnson Controls, Inc.

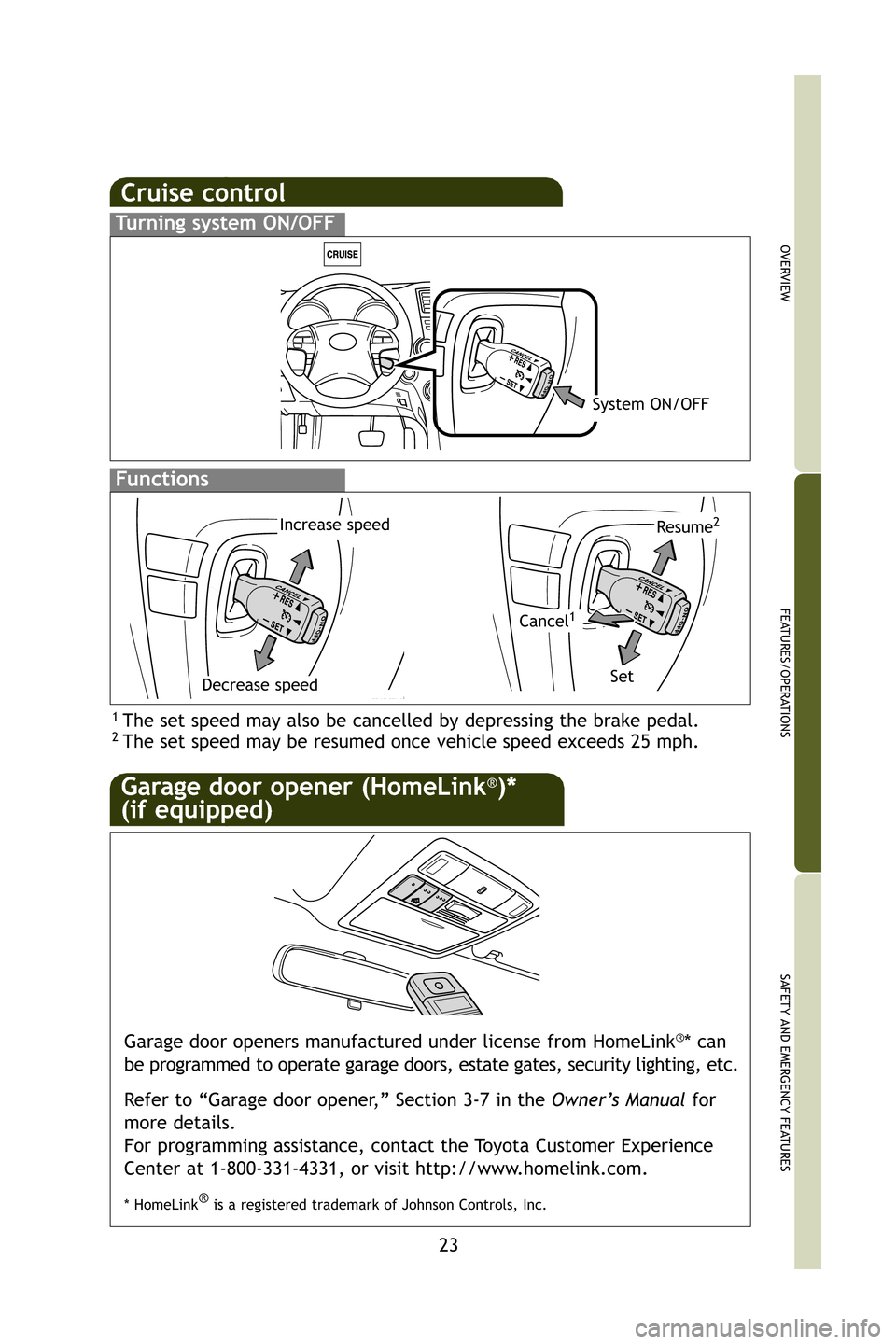

Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
412783M2.qxd 8/21/08 4:12 PM Page 23

28
SAFETY AND
EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seatbelts
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks 3 times.
2. Wait a few minutes to allow initialization to complete.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the \
“ SET” button until indicator blinks three times. Let the vehicle sit f\
or
a few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on, take the vehicle to your local Toyota dealer.
Note : The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not\
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
