warning TOYOTA HIGHLANDER 2009 XU40 / 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 8Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel9
Smart Key system1,27
Air Conditioning/Heating20-22Audio 24-25Auto lock functions111Automatic Transmission 10Clock 22Cruise control23Cup holders27Door locks 11Door-Power back12Downhill Assist Control system (DAC) 26Garage door opener (HomeLink®)323Hill-start Assist Control (HAC) 27Lights1& turn signals16Moonroof 12Multi-information display218Parking brake11Power outlets-12V DC 17Power outlets-115V AC17Rear seat entertainment system26Seat adjustments-Front 13Seat adjustments-Rear13Seat heaters 22Seats-Folding down second row seats 15Seats-Head restraints14
Seats-Stowing third row seats14Steering lock release 11Steering wheel controls25Te l e p h o n e controls (Bluetooth®)19Tilt and telescopic steering wheel 12Windows-Power 18
Windshield wipers & washers 15
Doors-Child safety locks 29Seatbelts28Seatbelts-Shoulder belt anchor29Spare tire & tools29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Seats-Removing Center-StowTMsecond row seat 14
412783M2.qxd 8/21/08 4:12 PM Page 1

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Tire Pressure Monitoring (warning) System
Cruise control
Ignition (standard key)
Tilt and telescopic steering lock release
Power back door button
1
Instrument panel light control
115V AC Power outlet ON/OFF switch1
Windshield wiper de-icer switch1
Power rearview mirror control
Outside rearview mirror1/Rear window defogger button
Air Conditioning controls
1If equipped2For vehicles with a navigation system, refer to the “ Navigation System
Owner’s Manual .”
Vehicles without
navigation systemManual Air Conditioning
Vehicles with
navigation system
412783M2.qxd 8/21/08 4:12 PM Page 3

4
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Engine coolant temperature
Service indicator and reminder
Fuel gauge
Speedometer
Trip meter reset knob
Automatic Transmission shift position indicator
Odometer and two trip meters/Automatic Transmission shift range
display
Charging system warning1
Brake system warning1
Front passenger occupant classification or front passenger airbag
ON/OFF indicator1
1If indicator does not turn off within a few seconds of starting engine, \
there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph) Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2009
Owner’s Manual .
412783M2.qxd 8/21/08 4:12 PM Page 4

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2If this light flashes, refer to “Cruise control,” Section 2-4, 200\
9 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Vehicle Stability Control OFF indicator
1
SNOW indicator
Cruise control indicator2
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning1
Engine oil replacement reminder1
Low fuel level warning
Electric power steering system warning1
Tail light indicator
Front fog light indicator
Downhill Assist Control indicator1
Traction control OFF indicator1
Slip indicator/Hill-start Assist Control indicator/Downhill Assist
Control indicator1
412783M2.qxd 8/21/08 4:12 PM Page 5

28
SAFETY AND
EMERGENCY FEATURES

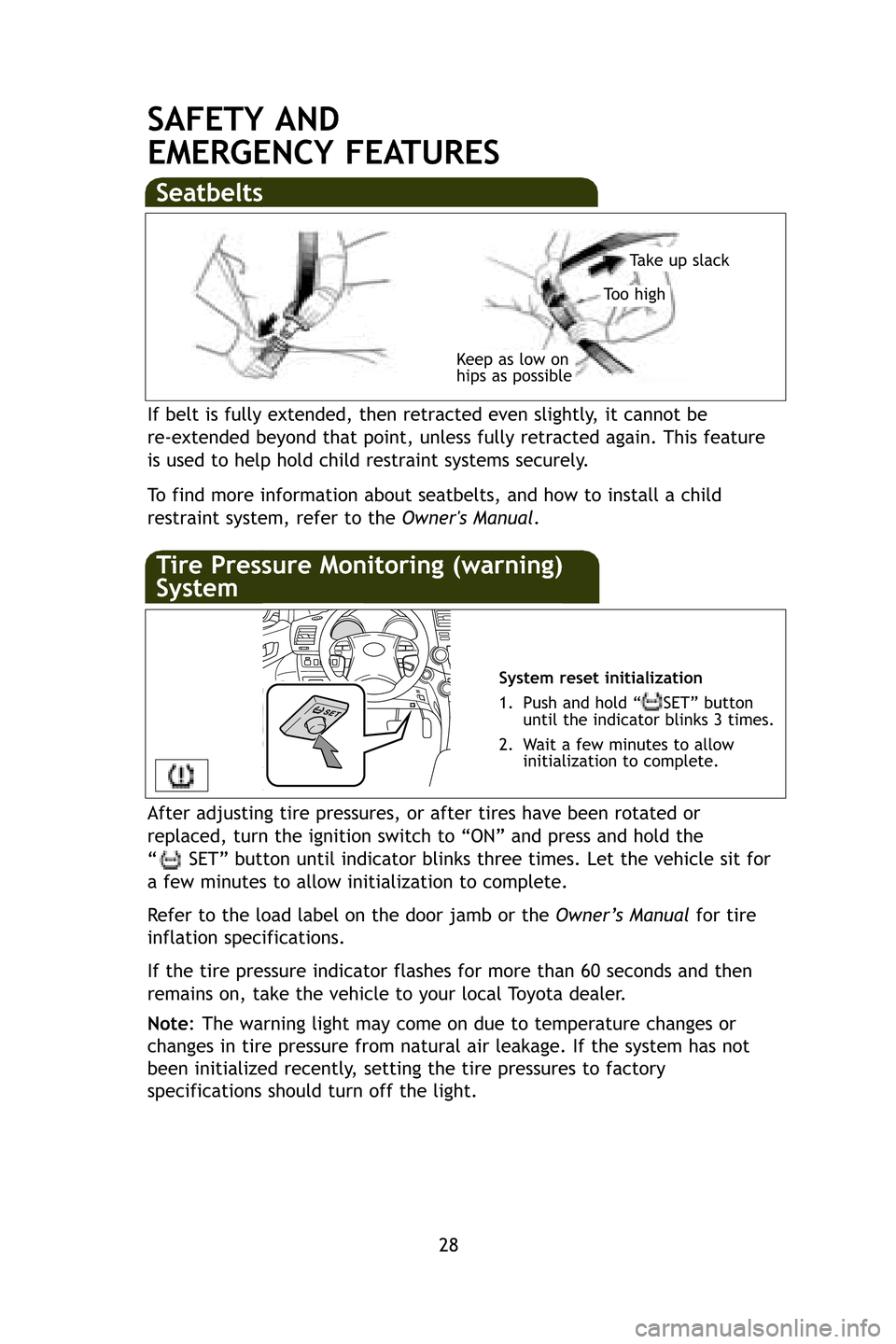

If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seatbelts
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks 3 times.
2. Wait a few minutes to allow initialization to complete.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the \
“ SET” button until indicator blinks three times. Let the vehicle sit f\
or
a few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on, take the vehicle to your local Toyota dealer.
Note : The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not\
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
412783M2.qxd 8/21/08 4:12 PM Page 28
