display TOYOTA HIGHLANDER 2010 XU40 / 2.G Navigation Manual

ADVANCED FUNCTIONS
91

To register
1. Touch “Memorize”.
The confirmation screen will be displayed.
2. To register
, touch “Yes”. To return to
the previous screen, touch “No” or
.
When a touch−screen button that is al-
ready registered is touched, the following
screen appears.
To replace, touch “Yes” . To cancel the re-
placement, touch “No” or
.
To change user
Touch “User number”.
The above message appears, then the
map screen will be displayed.

ADVANCED FUNCTIONS
92

To delete user
1. Touch “Delete”.
The confirmation screen will be displayed.
2. To delete, touch “Yes”. To return to
the previous screen, touch “No” or
.
Points or areas on the map can be regis-
tered.
The registered points can be used on the
“Destination”
screen. (See “ — Destination
search by Home” on page 44 and “ — Des-
tination search by Quick access” on page
44.)
Registered areas are avoided at the time of
route search.
1. Push the “MENU” button.
2. Touch “My Places”.
My places —

ADVANCED FUNCTIONS
93
On this screen, the following operations
can be performed.
1Registers memory points. (See “ —
Registering memory points” on page
93.)
2Edits memory points. (See “ — Edit-
ing memory points” on page 94.)
3Deletes memory points. (See “ —
Deleting memory points” on page
99.)
4Registers or deletes home. (See “
— Registering home” or “ — Deleting
home” on pages 100 or 101.)
5Registers areas to avoid. (See “ —
Registering area to avoid” on page
101.)
6Edits areas to avoid. (See “ — Edit-
ing area to avoid” on page 102.)
7Deletes areas to avoid. (See “ —
Deleting area to avoid” on page 105.)
8Deletes previous points. (See “ —
Deleting previous points” on page
106.)
9Number of remaining memory
points
10Number of remaining areas to
avoid 1. Push the “MENU” button.
2. Touch “My Places” on the “Menu”
screen.
3. Touch “Register”.
4. Enter the location in the same way
as for a destination search.
(See “Des-
tination search” on page 41.)
After memory point registration is com-
pleted, the “Memory Point” screen will be
displayed.
— Registering memory
points

ADVANCED FUNCTIONS
95
5. Touch the touchscreen button to
be edited.
“Icon”: To select icons to be displayed on
the map. (See page 95.)
“Quick Access”: To set an attribute.
Memory points with a set attribute can be
used as a “Quick access” or “Home” but-
ton. (See page 96.)
“Name”: To edit memory point names.
The names can be displayed on the map.
(See page 97.)
“Location”: To edit location information.
(See page 98.)
“Phone #”: To edit telephone numbers.
(See page 99.)
6. Touch “OK”.

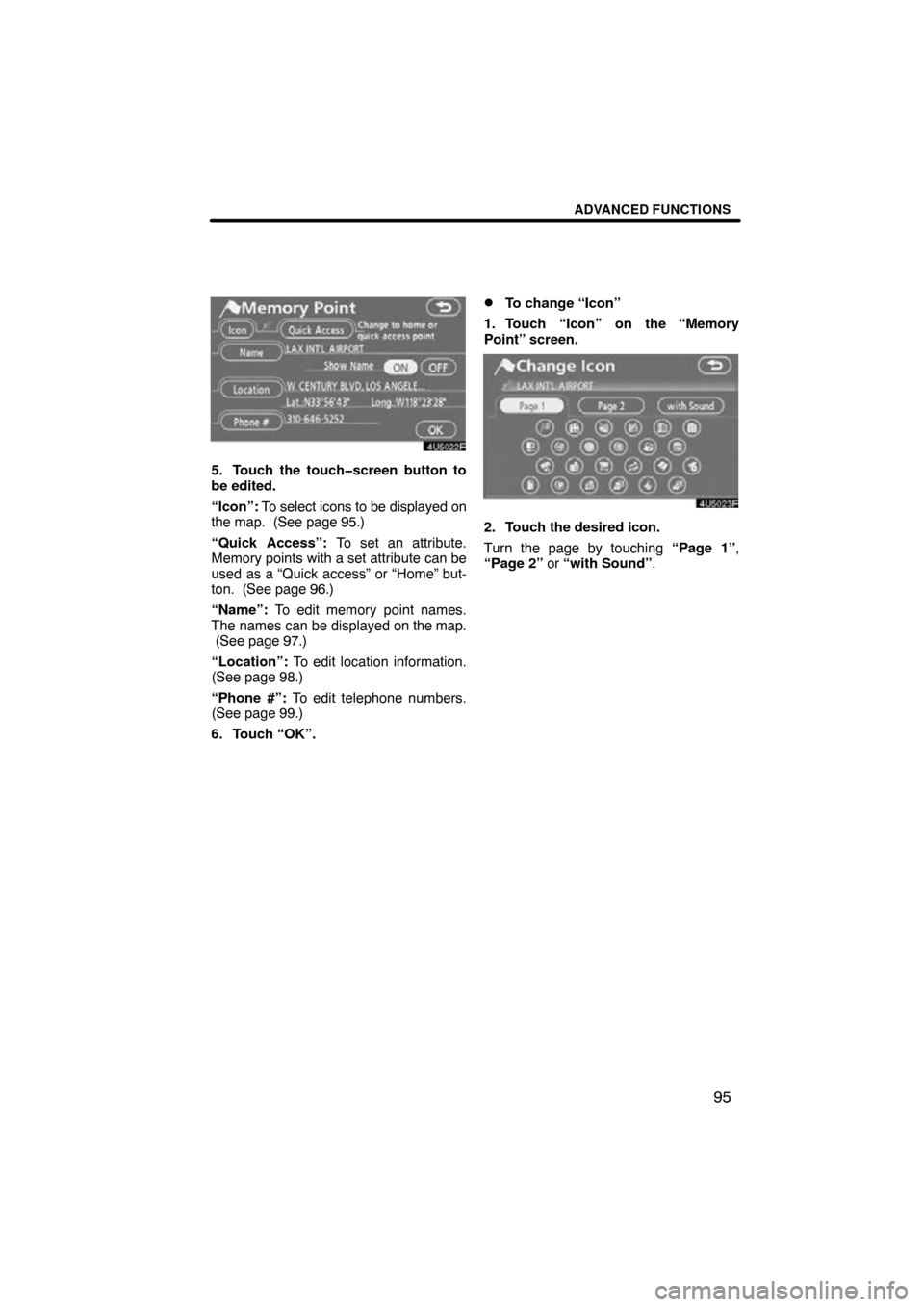

To change “Icon”
1. Touch “Icon” on the “Memory
Point” screen.
2. Touch the desired icon.
Turn the page by touching “Page 1”,
“Page 2” or “with Sound”.

ADVANCED FUNCTIONS
97
DELETING “Quick Access”
1. Touch “Del.”.
2. To delete an attribute, touch “Yes”.
To return to the previous screen, touch
“No” or
.
To change “Name”
1. Touch “Name” on the “Memory
Point” screen.
2. Enter the name using the alphanu-
meric keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.

ADVANCED FUNCTIONS
98

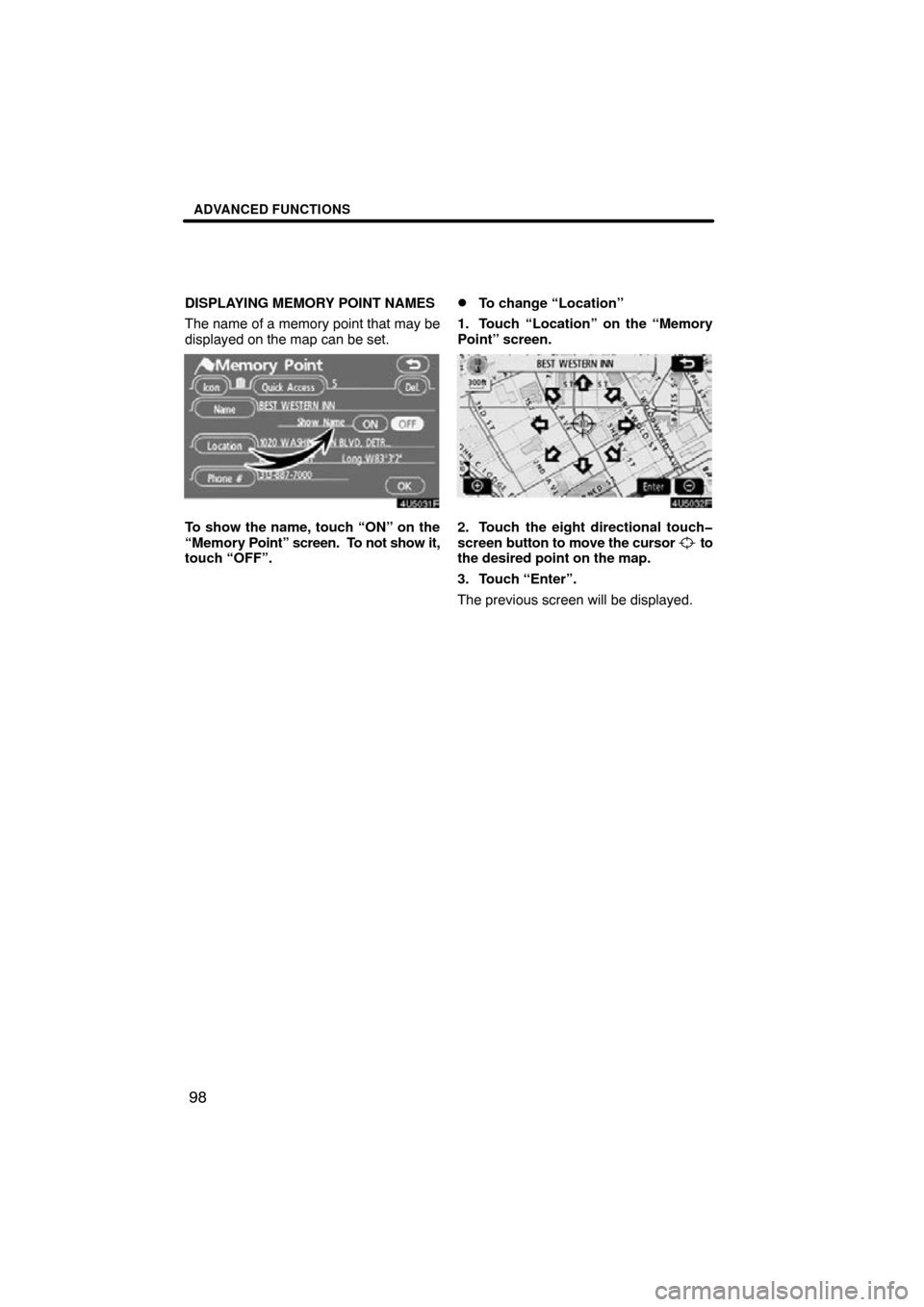

DISPLAYING MEMORY POINT NAMES
The name of a memory point that may be
displayed on the map can be set.
To show the name, touch “ON” on the
“Memory Point” screen. To not show it,
touch “OFF”.
To change “Location”
1. Touch “Location” on the “Memory
Point” screen.
2. Touch the eight directional touch
screen button to move the cursor
to
the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

ADVANCED FUNCTIONS
99

To change “Phone #” (telephone
number)
1. Touch “Phone #” on the “Memory
Point” screen.
2. Enter the number using numeral
keys.
3. Touch “OK”.
The previous screen will be displayed. 1. Push the “MENU” button.
2. Touch “My Places” on the “Menu”
screen.3. Touch “Delete”.
4. Touch the touchscreen button to
be deleted.
“Delete All”: To delete all memory points
in the system.
5. To delete the memory point, touch
“Yes”. To cancel the deletion, touch
“No”.
— Deleting memory points

ADVANCED FUNCTIONS
101

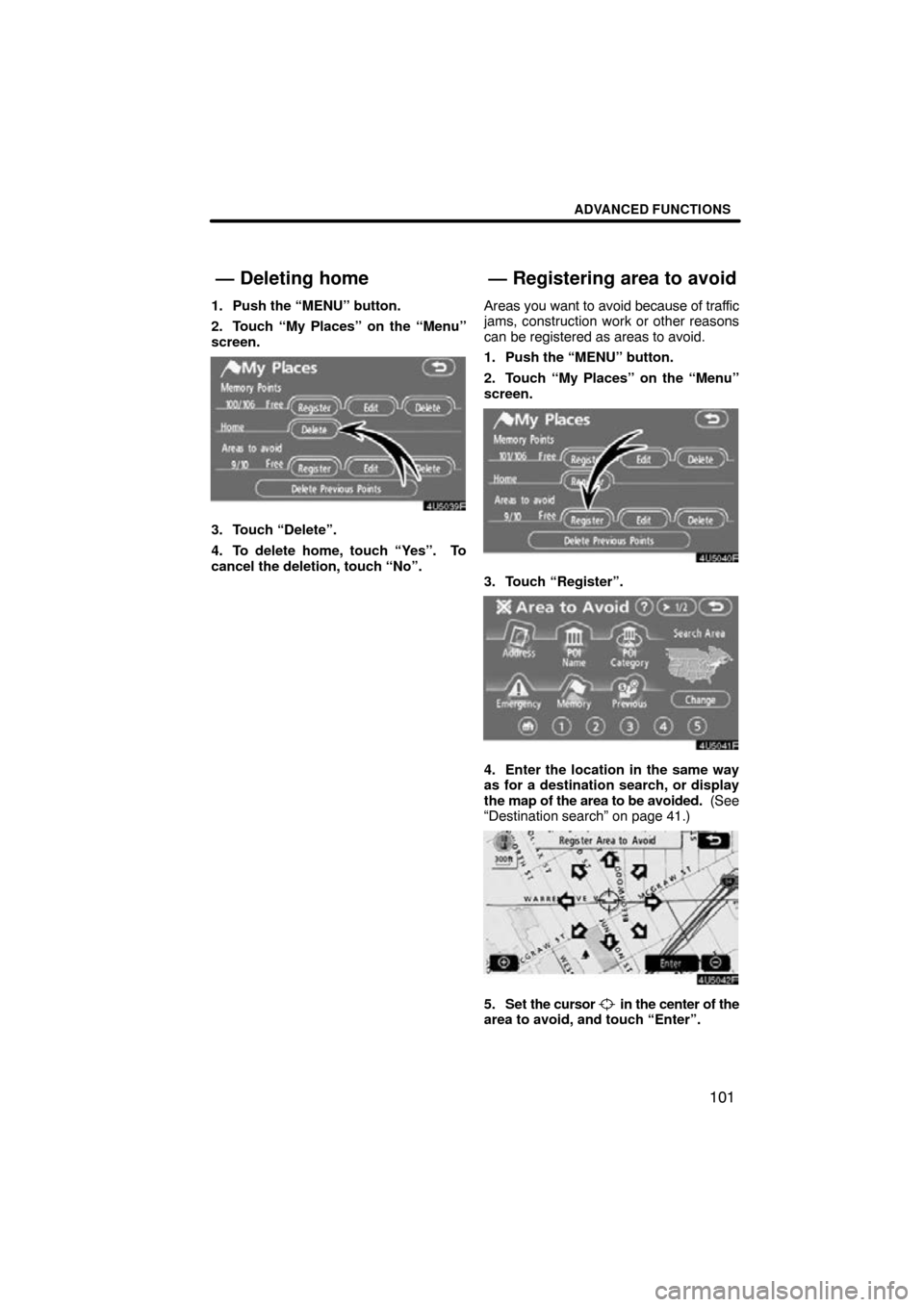

1. Push the “MENU” button.
2. Touch “My Places” on the “Menu”
screen.
3. Touch “Delete”.
4. To delete home, touch “Yes”. To
cancel the deletion, touch “No”.Areas you
want to avoid because of traffic
jams, construction work or other reasons
can be registered as areas to avoid.
1. Push the “MENU” button.
2. Touch “My Places” on the “Menu”
screen.
3. Touch “Register”.
4. Enter the location in the same way
as for a destination search, or display
the map of the area to be avoided. (See
“Destination search” on page 41.)
5. Set the cursor in the center of the
area to avoid, and touch “Enter”.
— Deleting home— Registering area to avoid

ADVANCED FUNCTIONS
102

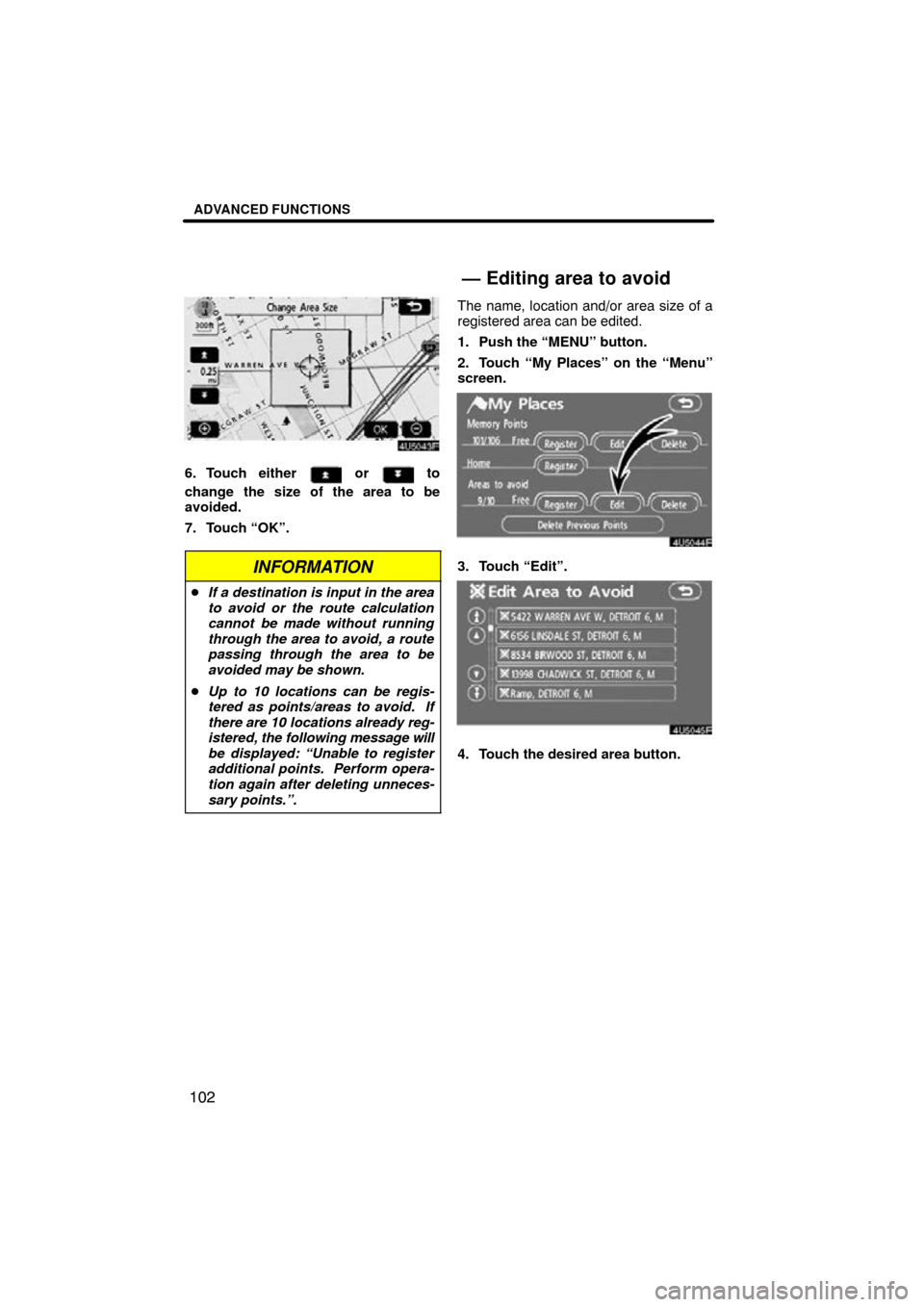

6. Touch either or to
change the size of the area to be
avoided.
7. Touch “OK”.
INFORMATION
 If a destination is input in the area
to avoid or the route calculation
cannot be made without running
through the area to avoid, a route
passing through the area to be
avoided may be shown.
 Up to 10 locations can be regis-
tered as points/areas to avoid. If
there are 10 locations already reg-
istered, the following message will
be displayed: “Unable to register
additional points. Perform opera-
tion again after deleting unneces-
sary points.”.
The name, location and/or area size of a
registered area can be edited.
1. Push the “MENU” button.
2. Touch “My Places” on the “Menu”
screen.
3. Touch “Edit”.
4. Touch the desired area button.
— Editing area to avoid

ADVANCED FUNCTIONS
103
5. Touch the touchscreen button to
be edited.
“Name”: To edit the name of the area to
avoid. The names can be displayed on the
map. (See page 103.)
“Location”: To edit area location. (See
page 104.)
“Area Size”: To edit area size. (See page
105.)
“Active”: To turn on or off the area to avoid
feature. To turn on the feature touch “ON ”
on the “Edit Area to A void” screen. To turn
off the feature touch “OFF” on the “Edit
Area to Avoid” screen.
6. Touch “OK”.
To change “Name”
1. Touch “Name” on the “Edit Area to
Avoid” screen.
2. Enter the name using alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
