OTHER FUNCTIONS
137
(iv) By received calls
You can call by received calls. When a
call is received, the system memorizes
up to 5 numbers. If it is more than 5, the
oldest number is deleted.
This cannot be operated while driving.
1. Touch “Call Log” to display “Outgo-
ing Call” screen.
2. Touch “Incoming Calls” to display
“Incoming Calls” screen.
When a telephone number registered
in the phone book is received, the
name and the number are displayed.
Received calls which you did notanswer are also memorized in the
system and “Abs.” is displayed on the
left side of the number.
Received calls which you refused are also memorized in the system and
“
” is displayed on the left side of the
number.
Unnoticed telephone number such as a public telephone is not memorized in
the system.
3. Select the desired number from the
list.
Touch or push the switch of the
steering wheel.
An international phone call may not be made depending on the cellular phone
which you have.

OTHER FUNCTIONS
141
(vii) By POI call
You can call by touching when
it is displayed on the screen from Navi-
gation system. (See page 31 for de-
tails.)
(c) Receive on the Bluetooth
phone
When a call is received, this screen is
displayed with a sound. Touch
or
push the
switch of the steering
wheel to talk on the phone.
To hang up the phone:
Touch
or push the switch of
the steering wheel again.
To refuse to receive the call: Touch
and hold it.
To adjust the volume of received call: Touch
“–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed cor-
rectly depending on the cellular phone
which you have.

AUDIO/VIDEO SYSTEM
194
Turn the knob clockwise to step up the
station band or counterclockwise to
step down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces
the amount of channel separation to pre-
vent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. In this case, “ST” disappears from the
screen.
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the touchscreen but-
tons (1 — 6) you want and hold it until
a beep is heard. This sets the station to
the touchscreen button and the fre-
quency appears on the touchscreen
button.
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the pre-
set station to a different one, follow the
same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.

AUDIO/VIDEO SYSTEM
200

Presetting a channel
1. Tune in the desired channel.
2. Touch one of the channel selector
buttons (1 — 6) and hold it until a beep
is heard.
This sets the channel to the touch −screen
button and the name and number of the
channel appears on the touch −screen but-
ton.
Each touch− screen button can store three
SAT channels. To change the preset chan-
nel to a different one, follow the same pro-
cedure.
The preset channel memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.
Selecting a channel
Tune in the desired channel using one of
the following methods.
Preset tuning: Touch the channel selec-
tor button (1 — 6) for the channel you want.
The button (1 — 6) is highlighted and chan-
nel number appears on the display.
To select channel within the current
category: Push the “
” or “” button of
“SEEK/TRACK”. The radio will step up or
down the channel within the current chan-
nel category. Touch “TYPE SEEK”. The
radio will step up the channel within the
current channel category.

APPENDIX
264

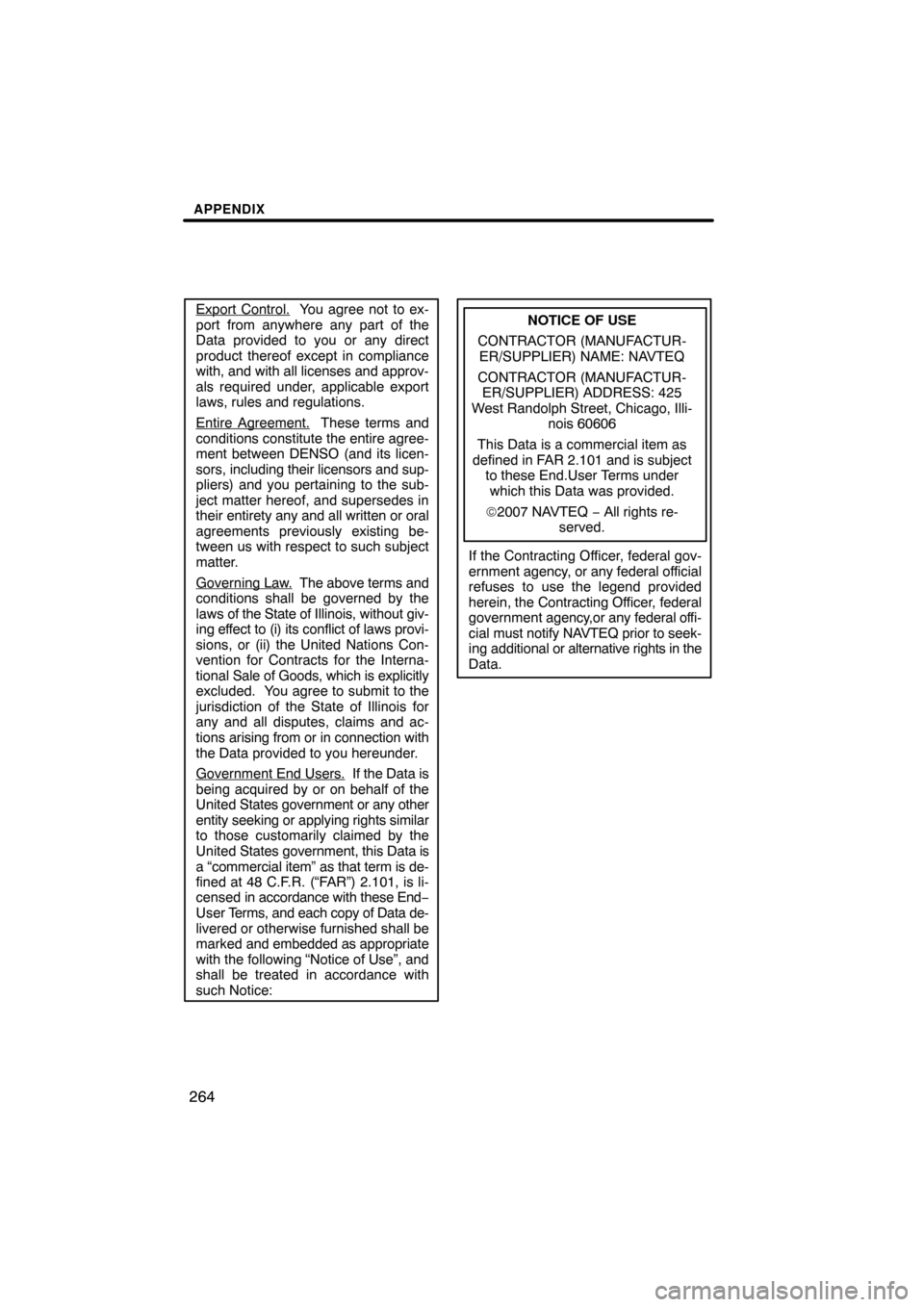

Export Control. You agree not to ex-
port from anywhere any part of the
Data provided to you or any direct
product thereof except in compliance
with, and with all licenses and approv-
als required under, applicable export
laws, rules and regulations.
Entire Agreement.
These terms and
conditions constitute the entire agree-
ment between DENSO (and its licen-
sors, including their licensors and sup-
pliers) and you pertaining to the sub-
ject matter hereof, and supersedes in
their entirety any and all written or oral
agreements previously existing be-
tween us with respect to such subject
matter.
Governing Law.
The above terms and
conditions shall be governed by the
laws of the State of Illinois, without giv-
ing effect to (i) its conflict of laws provi-
sions, or (ii) the United Nations Con-
vention for Contracts for the Interna-
tional Sale of Goods, which is explicitly
excluded. You agree to submit to the
jurisdiction of the State of Illinois for
any and all disputes, claims and ac-
tions arising from or in connection with
the Data provided to you hereunder.
Government End Users.
If the Data is
being acquired by or on behalf of the
United States government or any other
entity seeking or applying rights similar
to those customarily claimed by the
United States government, this Data is
a “commercial item” as that term is de-
fined at 48 C.F.R. (“FAR”) 2.101, is li-
censed in accordance with these End −
User T erms, and each copy of Data de-
livered or otherwise furnished shall be
marked and embedded as appropriate
with the following “Notice of Use”, and
shall be treated in accordance with
such Notice:
NOTICE OF USE
CONTRACTOR (MANUFACTUR- ER/SUPPLIER) NAME: NAVTEQ
CONTRACTOR (MANUFACTUR- ER/SUPPLIER) ADDRESS: 425
West Randolph Street, Chicago, Illi- nois 60606
This Data is a commercial item as
defined in FAR 2.101 and is subject to these End.User Terms underwhich this Data was provided.
© 2007 NAVTEQ − All rights re-
served.
If the Contracting Officer, federal gov-
ernment agency , or any federal of ficial
refuses to use the legend provided
herein, the Contracting Of ficer, federal
government agency,or any federal offi-
cial must notify NAVTEQ prior to seek-
ing additional or alternative rights in the
Data.
