TOYOTA HIGHLANDER 2010 XU40 / 2.G Quick Reference Guide

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-4 in
theOwner’s Manualfor more details, or go to Toyota.com and enter
“Bluetooth” in the keyword search.
Telephone controls (Bluetooth®)
(if equipped)
MicrophoneAudio unit
Steering wheel telephone controls
Vo l u m e
Start call
End callVoice command
button

20
FEATURES/OPERATIONS
Air Conditioning/Heating
Rear manualAir Conditioning (if equipped)
Frontmanual Air Conditioning
Airflow vent
Temperature selector
Fan speed
Fan speed
Outside rearview mirror (if equipped)/Rear window defogger
Temperature selector
Fresh or recirculated cabin air
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Use for quick cooling. Air intake will automatically be set to
recirculate.
Rear Air Conditioning ON/OFF

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Frontautomatic Air Conditioning
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Windshield airflow/defogger
Rear Air Conditioning ON/OFF
Fan speed
Outside rearview mirror (if equipped)/Rear window defogger
Fresh or recirculated cabin air
Temperature selector (front passenger side)
Air Conditioning ON/OFF
“DUAL” button
Indicator ON: Separate temperature settings for driver, front
passenger and rear passengers.
Indicator OFF: Synchronize temperature settings for driver and all
passengers.
Temperature selector (rear passenger)
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Climate control OFF
Temperature selector (driver side)
With rear Air ConditioningWithout rear Air
Conditioning

22
FEATURES/OPERATIONS
Rear automatic Air Conditioning(if equipped)
Fan speed
Temperature selector
Airflow vent
Automatic climate control ON
Climate control OFF
Seat heaters (if equipped)
Push
Tu r n
Push knob to pop the controller out. Turn clockwise for heater.
Push
Clock
H-Hour set
M-Minute set
With multi-information displayPress and hold “DISP” button. Select
“CLOCK” on menu screen. Adjust as indicated on screen.
Without multi-information displayWith multi-information display
Driver’s seat
Front passenger’s seat

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®*can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-7 in theOwner’s Manualfor
more details.
For programming assistance, contact HomeLink
®at 1-800-355-3515, or
visit http://www.homelink.com.
*HomeLink®
is a registered trademark of Johnson Controls, Inc.
Cruise control
1The set speed may also be cancelled by depressing the brake pedal.2The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set

24
FEATURES/OPERATIONS
Type 2 additional functions
Type 3 (with JBL speakers and Bluetooth®function)
Audio
Eject CD
Push to turn
ON/OFFView CD
text
Seek station/
CD track select Station/CD
track scan
Mode
AM/Satellite Radio Preset buttons - functions in other
modes indicated above number
Load CD(s)
Ty p e 1
Push to skip
up/down folder and
radio category type
CD PLAYER
To scan tracks on a discPush and hold “SCAN.” Push again to hold
selection.
CD changer (Types 2 and 3 only)
-To load one discPush “LOAD” and insert one disc.
-To load multiple discsPush and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
Toselectafile(MP3/WMAonly)Tu r n “ T U N E.
FILE.”
To select a folder (MP3/WMA only)Push either side of “FOLDER.”
Push to
adjust tone
& balance
Mute

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
RADIO
To preset stationsTune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stationsPush and hold “SCAN” to scan preset stations. Push again
to hold selection.
Steering wheel controls (if equipped)
Audio controlA/C control
“”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.vv
Volume controlTemperature
selector
Auto A/C
ONA/C OFF
By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system while
in AUX mode.
AUX audio jack
Without seat heaterWith seat heater

26
FEATURES/OPERATIONS
Rear seat entertainment system
(if equipped)
Remote control
DVD player
Headphone volume control and headphone jacks
DVD screen
115V AC Power outlet ON/OFF switch
Front audio system
A/V input adapter
115V AC Power outlet
Wireless headphones
DAC helps the vehicle to descend steep hills while maintaining a low speed
without brake pedal operation. Press the “DAC” button (system will
engage only when shifter is in S1 or R mode). Pressing the button again
will turn system off.
Refer to theOwner’s Manualfor more details.
Downhill Assist Control system (DAC)
(if equipped)
DAC indicator blinking = DAC not engagedSlip indicator blinking, DAC indicator
solid = DAC engaged

27
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

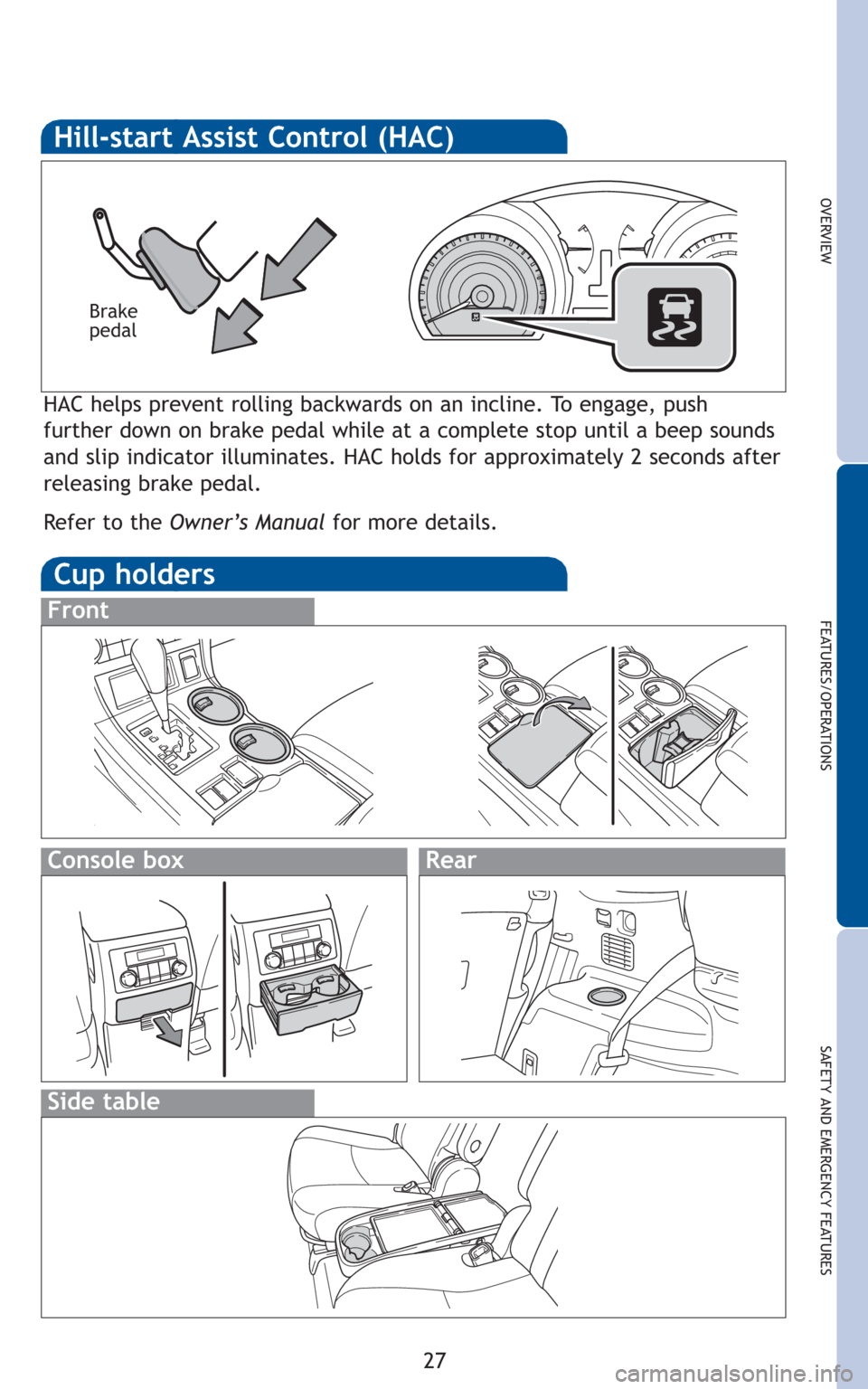

Cup holders
Front
Console boxRear
Side table
HAC helps prevent rolling backwards on an incline. To engage, push
further down on brake pedal while at a complete stop until a beep sounds
and slip indicator illuminates. HAC holds for approximately 2 seconds after
releasing brake pedal.
Refer to theOwner’s Manualfor more details.
Brake
pedal
Hill-start Assist Control (HAC)

28
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to theOwner's Manual.
Keep as low on
hips as possible
Take up slack
To o h i g h
Seat belts
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks 3 times.
2. Wait a few minutes to allow
initialization to complete.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for
a few minutes to allow initialization to complete.
Refer to the load label on the door jamb or theOwner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
Note: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
