OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9Fuel tank door release and cap 8Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 9
Smart Key system1,27
Air Conditioning/Heating 20-22Audio 24-25Auto lock functions111Automatic Transmission 10Clock 22Cruise control 23Cup holders 27Door locks 11Door-Power back 12Downhill Assist Control system (DAC) 26Garage door opener (HomeLink®)323Hill-start Assist Control (HAC) 27Lights1& turn signals 16Moonroof 12Multi-information display218Parking brake 11Power outlets-12V DC 17Power outlets-115V AC 17Rear seat entertainment system 26Seat adjustments-Front 13Seat adjustments-Rear 13Seat heaters 22Seats-Folding down second row seats 15Seats-Head restraints 14
Seats-Stowing third row seats 14Steering lock release 11Steering wheel controls 25Telephone controls (Bluetooth®)19Tilt and telescopic steering wheel 12Windows-Power 18
Windshield wipers & washers 15
Doors-Child safety locks 29Seat belts 28Seat belts-Shoulder belt anchor 29Spare tire & tools 29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Seats-Removing Center-StowTMsecond row seat14

2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Steering wheel climate controls1
Multi-information display button1
Voice command button1
Telephone controls1,2
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls1
Wiper and washer controls
Multi-information display1
Audio system or navigation system-integrated audio system1,2
Theft deterrent system/Engine immobilizer indicator1
Emergency flasher button
“AIR BAG ON” and “AIR BAG OFF” indicator and front passenger seat
belt reminder lights
Powerbackdoormainswitch
1
“ENGINE START STOP” button (Smart Key)1
VSC/TRAC OFF switch
Steering wheel
controls (if equipped)Automatic Air Conditioning

4
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Engine coolant temperature
Service indicator and reminder
Fuel gauge
Speedometer
Odometer/trip meter switch and trip meter resetting button
Automatic Transmission shift position indicator
Odometer and two trip meters
Charging system warning1
Brake system warning1
Front passenger occupant classification or front passenger airbag
ON/OFF indicator1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Vehicle Stability Control OFF indicator
1
SNOW indicator
Cruise control indicator2
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning1
Engine oil replacement reminder1
Low fuel level warning
Electric power steering system warning1
Front fog light indicator
Downhill Assist Control indicator1
Traction control OFF indicator1
Slip indicator/Hill-start Assist Control indicator/Downhill Assist
Control indicator1

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedalCarryingGreen indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
Power (without starting engine)
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using remote.
Glass hatch unlock
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Front door lockFront door unlock*
PushGrasp
Push
Back door lock/unlock
Push Lock
Push Unlock
Carry remote to unlockCarry remote to lock/unlock

8
Hood release
Pull up latch and
raise hoodPull
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
PullTu r n
Store
Engage support rod
OVERVIEW

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

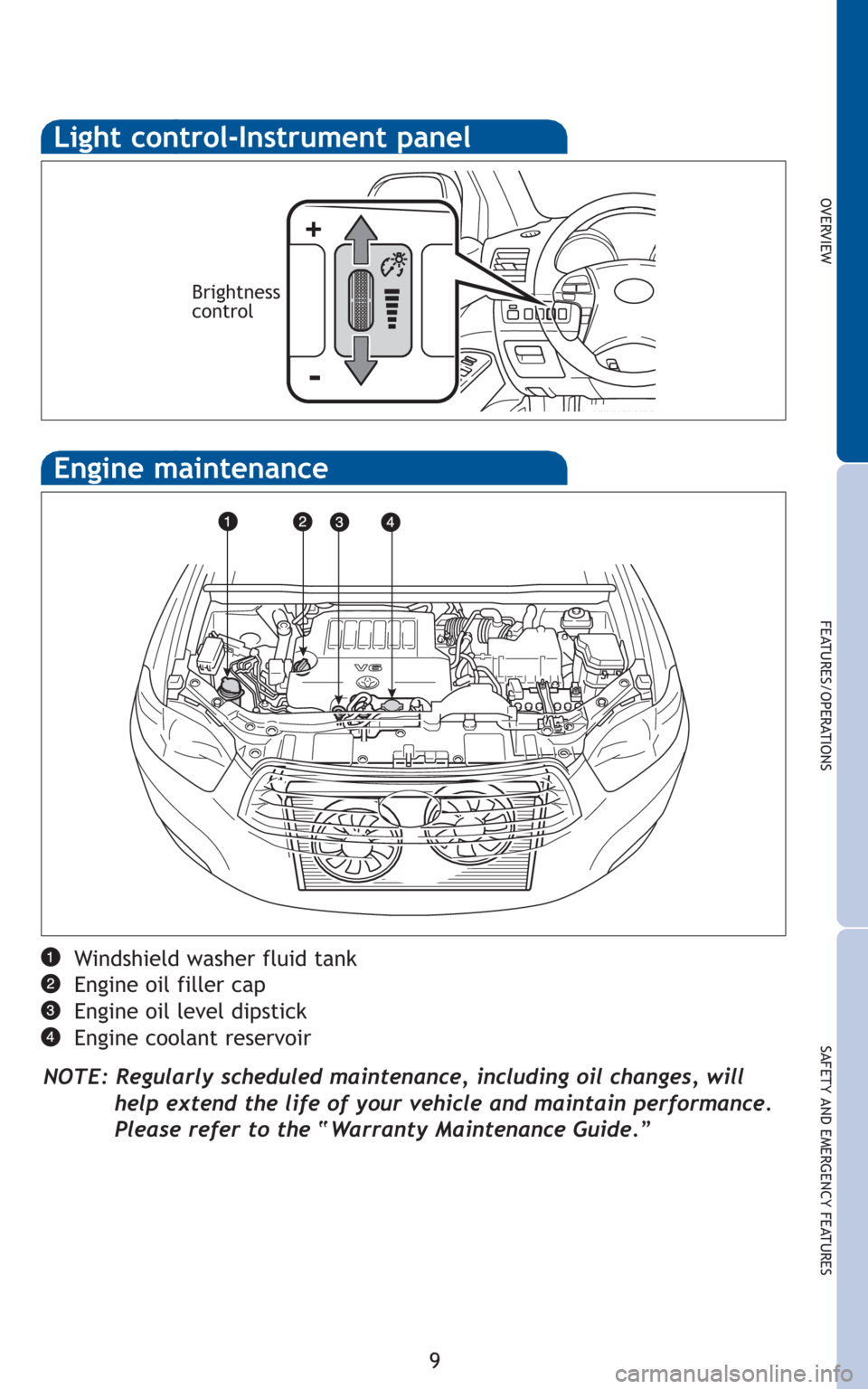

Windshield washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+

10
FEATURES/OPERATIONS

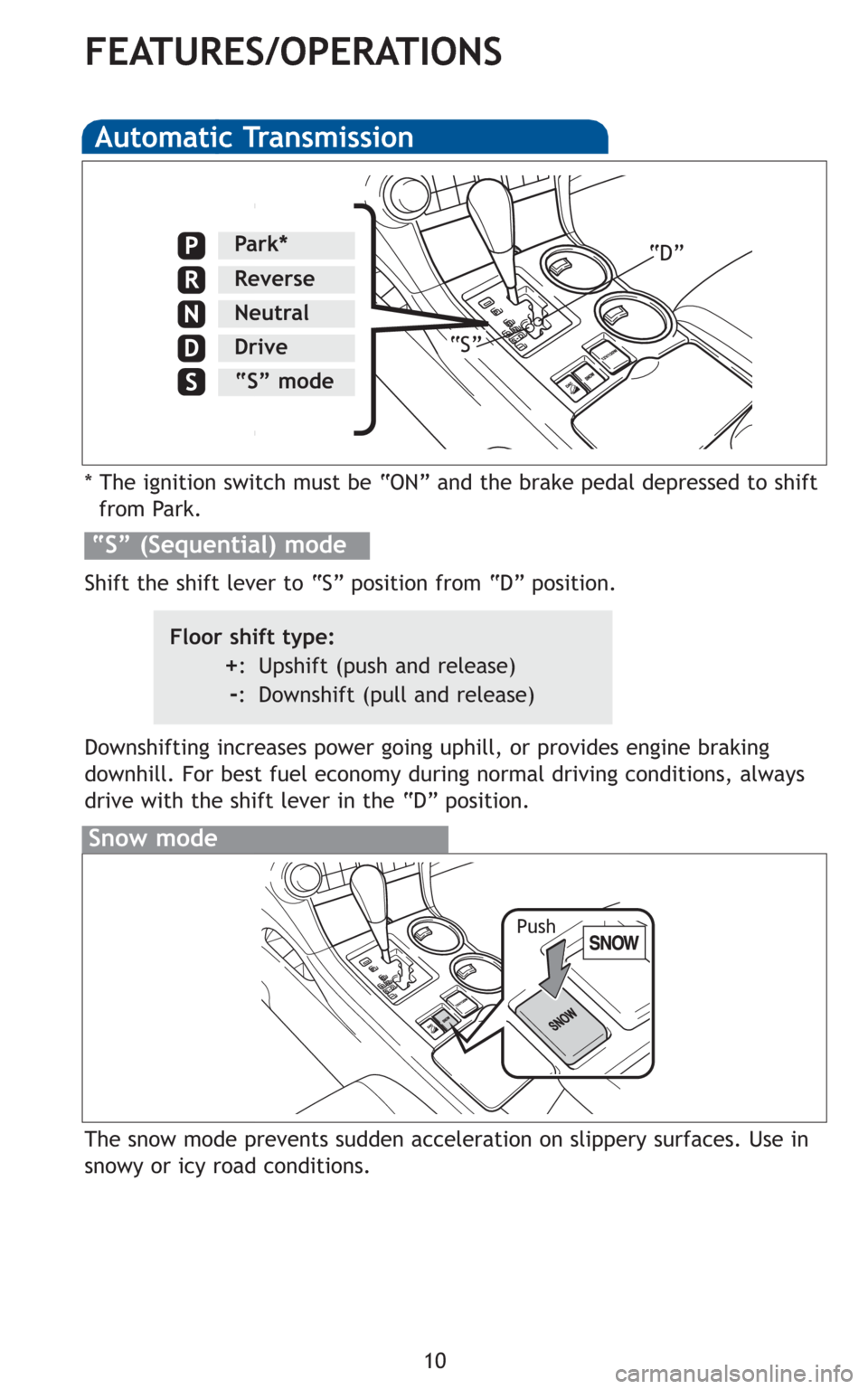

Automatic Transmission
* The ignition switch must be “ON” and the brake pedal depressed to shift
from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Park*
Reverse
Neutral
Drive
“S” mode“D”
Snow mode
Push
The snow mode prevents sudden acceleration on slippery surfaces. Use in
snowy or icy road conditions.
“S”

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

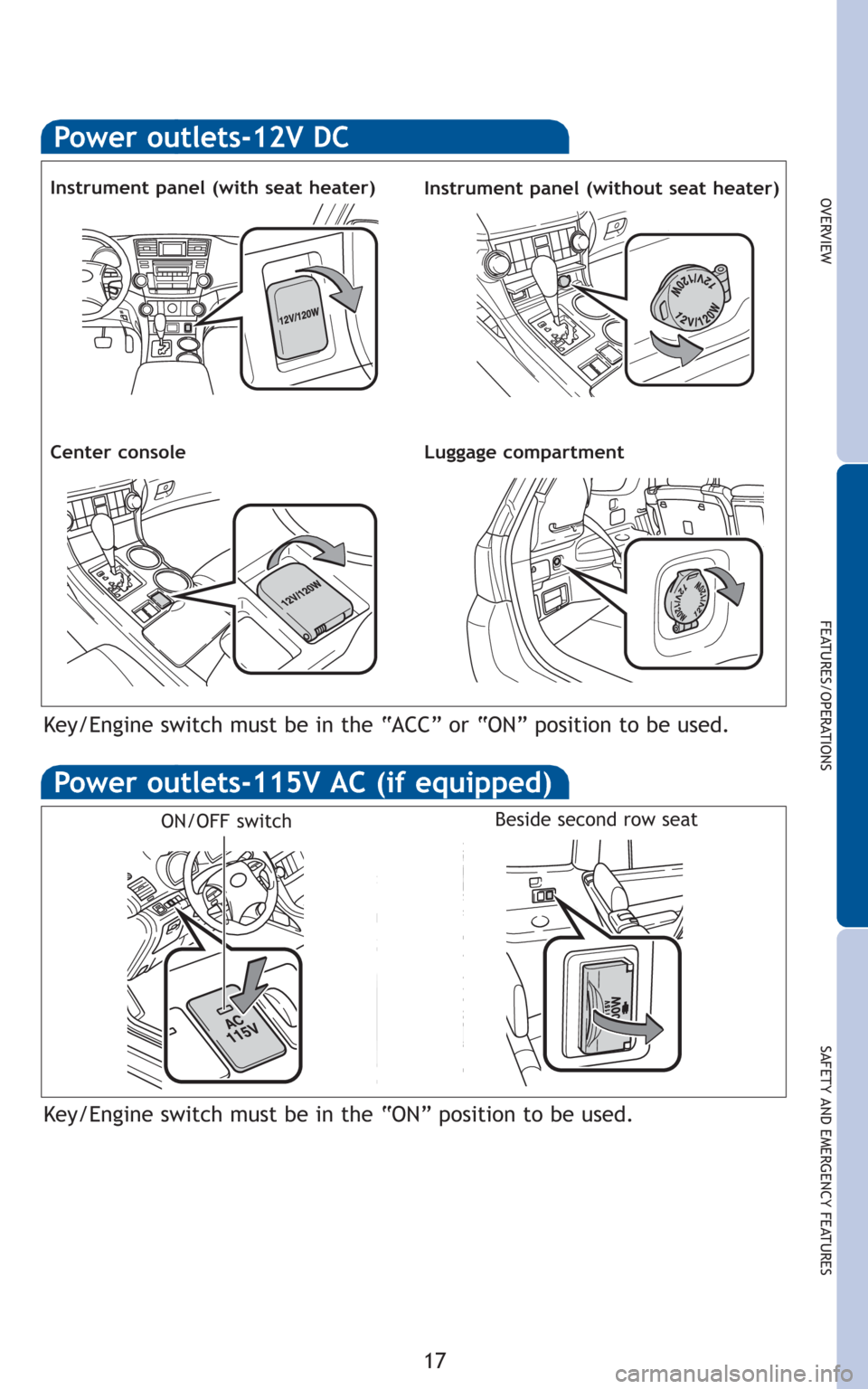

Power outlets-12V DC
Luggage compartment
Instrument panel (with seat heater)
Instrument panel (without seat heater)
Key/Engine switch must be in the “ACC” or “ON” position to be used.
Power outlets-115V AC (if equipped)
ON/OFF switchBeside second row seat
Center console
Key/Engine switch must be in the “ON” position to be used.

18
FEATURES/OPERATIONS

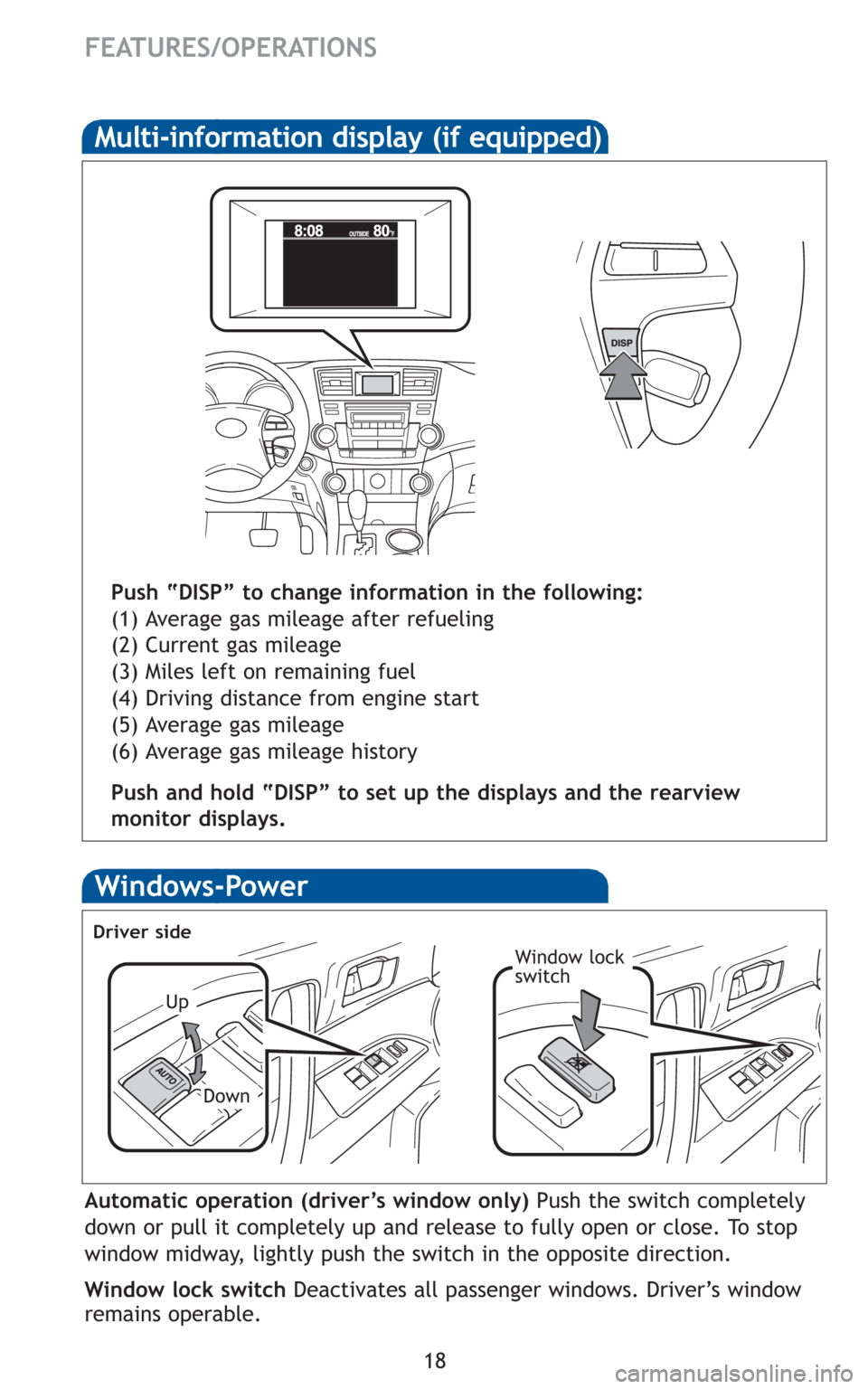

Multi-information display (if equipped)
Push “DISP” to change information in the following:
(1) Average gas mileage after refueling
(2) Current gas mileage
(3) Miles left on remaining fuel
(4) Driving distance from engine start
(5) Average gas mileage
(6) Average gas mileage history
Push and hold “DISP” to set up the displays and the rearview
monitor displays.
Windows-Power
Up
Down
Driver side
Window lock
switch
Automatic operation (driver’s window only)Push the switch completely
down or pull it completely up and release to fully open or close. To stop
window midway, lightly push the switch in the opposite direction.
Window lock switchDeactivates all passenger windows. Driver’s window
remains operable.
