113
1
Before driving
1-6. Theft deterrent system
Engine immobilizer system
The vehicle's keys have built-in transponder chips that prevent the
engine from starting if the key has not been previously registered in
the vehicle's on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
Vehicles without navigation system
Vehicles without smart key
system: The indicator light
flashes after the key has been
removed from the engine
switch to indicate that the sys-
tem is operating.
The indicator light stops flash-
ing after the registered key
has been inserted into the
engine switch to indicate that
the system has been can-
celed.
Vehicles with smart key sys-
tem: The indicator light flashes
after the “ENGINE START
STOP” switch has been turned
OFF to indicate that the sys-
tem is operating.
The indicator light stops flash-
ing after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.

: If equipped

115
1-6. Theft deterrent system
1
Before driving
■
System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the key is in contact with a metallic object
● If the key is in close proximity to or touching a key with the security sys-
tem (key with a built-in transponder chip) of another vehicle
■ Certifications for the engine immobilizer system
●For vehicles sold in the U.S.A.
Vehicles without smart key system
FCC ID: MOZRI-21BTY
Vehicles with smart key system
FCC ID: NI4TMIMB-1
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
● For vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system.
If modified or removed, the proper operation of the system cannot be guar-
anteed.

172 2-1. Driving procedures
■Steering lock release
■ If the engine does not start
The engine immobilizer system may not have been deactivated. ( P. 113)
■ When the “ENGINE START STOP” s witch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer immediately.
■ Auto power off function
If the vehicle is left in ACCESSORY mode for more than an hour with the
shift lever in P, the “ENGINE START STOP” switch will automatically turn off.
■ Key battery depletion
P. 4 2
■ When the electronic key battery is discharged
P. 497
■ Conditions affecting operation
P. 4 0
■ Note for the entry function
P. 4 2
Make sure that the steering wheel lock is
released.
To release the steering wheel lock, gently
turn the wheel left or right while pressing
the “ENGINE START STOP” switch.
When the steering wheel lock is not
released, the “ENGINE START STOP”
switch indicator will flash in green.

175
2-1. Driving procedures
2
When driving
■
Turning the key from “ACC” to “LOCK”
■ Steering lock release
■ If the engine does not start (vehic les with engine immobilizer system)
The engine immobilizer system may not have been deactivated. ( P. 113)
■ Key reminder function
A buzzer sounds if the driver’s door is opened while the key is in the “LOCK”
or “ACC” position to remind you to remove the key.
CAUTION
■When starting the engine
Always start the engine while sitting in the driver's seat. Do not depress the
accelerator while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution when driving
Do not turn the engine switch to the “LOCK” position while driving. If, in an
emergency, you must turn the engine off while the vehicle is moving, turn the
key only to the “ACC” position.
Shift the shift lever to P.
(P. 177)
Push in the key and turn to the
“LOCK” position.STEP1
STEP2
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while turn-
ing the steering wheel slightly in either
direction.

189
2-2. Instrument cluster
2
When driving
*1: These lights turn on when the engine switch is turned to the “ON”
position (vehicles without smart key system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles
with smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected
by your Toyota dealer for details.
*2: The light flashes to indicate that the system is operating.
■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( P. 528)
Shift position and shift range indica-
tors ( P. 177)
SRS airbag on-off indi-
cator (P. 135)
Enhanced VSC off indi-
cator
(P. 225)
(if equipped)
Cruise control indicator
( P. 215)
(if equipped)
Engine immobilizer/
alarm indicator
(P. 113, 116)“TRAC OFF” indicator
( P. 224)
(Canada)(U.S.A.)(Canada)(U.S.A.)(Canada)
(U.S.A.)(U.S.A.)
(if equipped)
*1
*1
*1
*1*1*1*1, 2*1*1*1*1
*1*1, 2*1*1*1, 2*1, 2
*4*5*3*1*6

554
5-2. Steps to take in an emergency

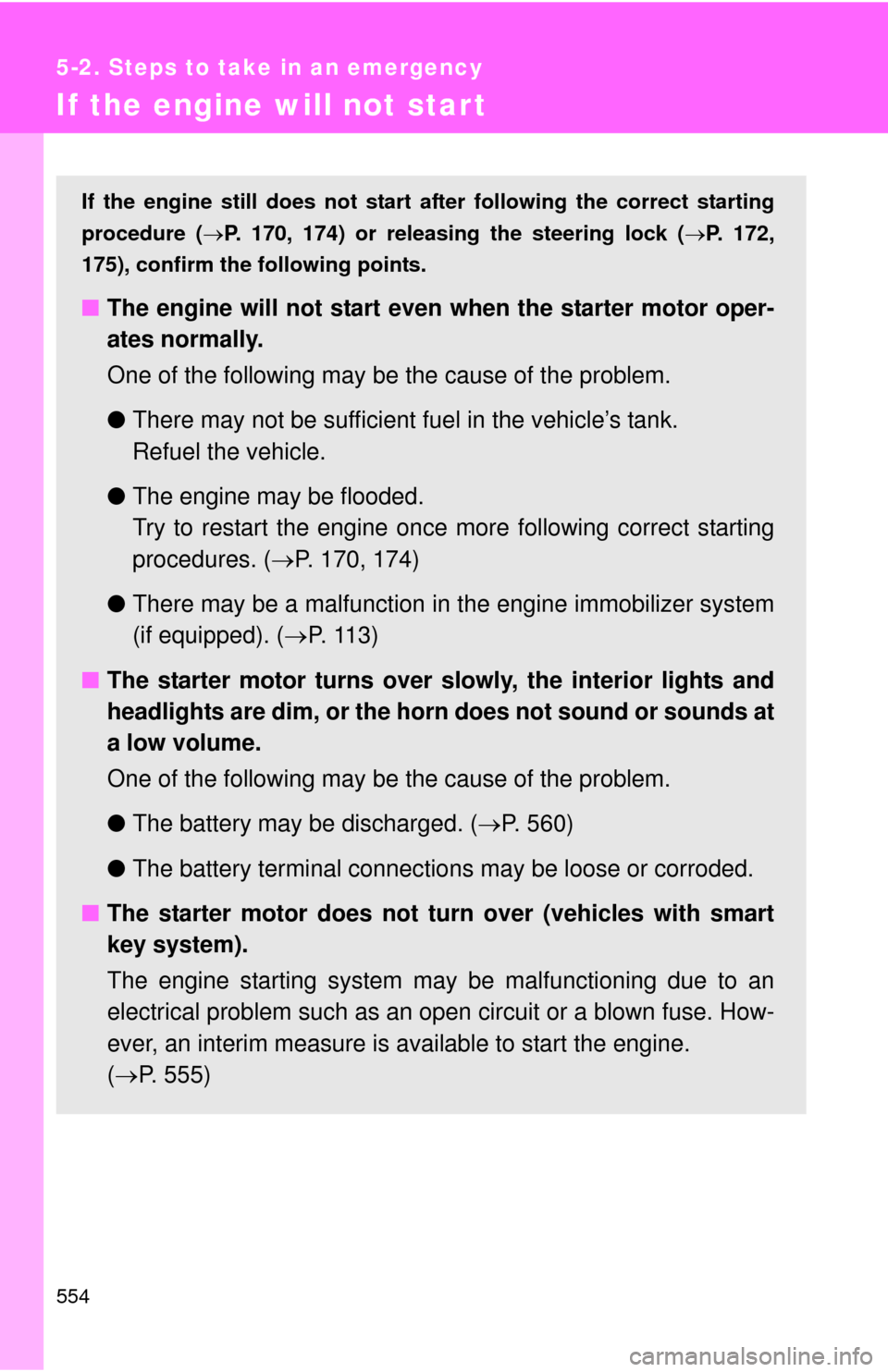

If the engine will not star t
If the engine still does not start after following the correct starting
procedure (P. 170, 174) or releasing the steering lock ( P. 172,
175), confirm the fo llowing points.
■The engine will not start even when the starter motor oper-
ates normally.
One of the following may be the cause of the problem.
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. ( P. 170, 174)
● There may be a malfunction in the engine immobilizer system
(if equipped). ( P. 11 3 )
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.
●The battery may be discharged. ( P. 560)
● The battery terminal connec tions may be loose or corroded.
■ The starter motor does not turn over (vehicles with smart
key system).
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(  P. 555)

627
Alphabetical index
Electric power steering........... 223
Electronic key
If your electronic key battery is discharged .......... 558
Emergency flashers
Switch ................................... 518
Emergency, in case of If a warning message is
displayed ............................ 539
If the back door opener is inoperative ........................... 63
If the electronic key does not operate properly ........... 558
If the engine will not start...... 554
If the shift lever cannot be
shifted from P ..................... 556
If the vehicle has a
discharged battery ............. 560
If the warning buzzer sounds... ........................... 528
If the warning light turns on ....................................... 528
If you have a flat tire ............ 540
If you lose your keys/
wireless remote control
transmitter .......................... 557
If you think something is wrong ................................. 526
If your vehicle becomes
stuck................................... 567
If your vehicle has to be stopped in an
emergency ......................... 569
If your vehicle needs to be towed ................................. 519
If your vehicle overheats ...... 564 Engine
Compartment ........................463
Engine switch ................170, 174
Hood......................................457
How to start the
engine .........................170, 174
Identification number .............573
If the engine will not start ......554
Ignition switch................170, 174
Overheating...........................564
Engine compartment cover.....465
Engine coolant
Capacity ................................580
Checking ...............................469
Preparing and checking before winter .......................243
Engine coolan t temperature
gauge ......................................185
Engine immobilizer system.....113
Engine oil Capacity ................................576
Checking ...............................466
Preparing and checking before winter .......................243
Enhanced vehicle stability control ....................................223
Enhanced VSC .........................223
EPS ............................................223
Event data recorder ...................26E

631
Alphabetical index
Service reminder
indicators .............................. 187
Shift lever Automatic transmission ........ 177
If the shift lever cannot be shifted from P ................ 556
Shift lock system..................... 556
Shopping bag hooks............... 424
Side airbags ............................. 123
Side marker lights Replacing ............................. 510
Switch ................................... 200
Wattage ................................ 586
Side mirrors
Adjusting and folding .............. 98
Side table ................................. 410
Smart key system Entry function ......................... 35
Starting the engine ............... 170
Spare tire
Inflation pressure .................. 584
Storage location ................... 540
Spark plug................................ 581
Specifications .......................... 572
Speech command switch ....... 368
Speedometer ........................... 185
Steering
Column lock release ..... 172, 175
Steering wheel
Adjustment ............................. 94
Audio switches ..................... 341
Climate remote control switches ............................. 292
Stop lights Replacing light bulbs ............ 510
Wattage ................................ 586
Storage feature ........................ 399
Storage precautions ............... 240
Stuck If your vehicle becomes stuck................................... 567 Sun visors.................................412
Switch
Emergency flasher switch .....518
Engine switch ................170, 174
Fog light switch .....................206
Hazard light switch ................518
Ignition switch................170, 174
Light switches........................200
Power door lock switch ...........55
Power window switch ............ 101
SNOW switch ........................178
Window lock switch ...............101
Wiper and washer switch .......................... 208, 212
Tachometer...............................185
Tail lights Replacing light bulbs .............510
Switch....................................200
Wattage .................................586
Talk switch................................368
Telephone switch .....................368
Theft deterrent system Alarm .....................................116
Engine immobilizer system ... 113
Theft prevention labels............120
Tire inflation pressure .............487
Tire information Glossary ................................596
Size .......................................593
Tire identification number ......592
Uniform tire quality grading ................................594
T
*: Refer to the “Navigation System Owner’s Manual”
