AUDIO/VIDEO SYSTEM
147
5“LOAD·/ CLOSE” button
Push this button to display the
“Load·Eject” screen or close the dis-
play. For details, see page 166.
6“PWR/VOL” knob
Push this knob to turn the audio sys-
tem on and off, and turn it to adjust the
volume. For details, see page 149.
7“SAT” button
Push this button to choose a SAT sta-
tion. For details, see pages 149 and
161.
8“DISC·AUX” button
Push this button to turn the
Bluetooth  audio player, AUX, USB
memory/iPod, CD changer or DVD
player* on. For details, see pages
149, 155, 169, 184 and 189.
*: Vehicles with rear seat entertainment system
9“FM 1·2” button
Push this button to choose an FM sta-
tion. Each time this button is pushed,
the mode switches between FM1 and
FM2. For details, see pages 149 and
155.
10“AM” button
Push this button to choose an AM sta-
tion. For details, see pages 149 and
155. This section describes some of the basic
features of your audio system. Some in-
formation may not
pertain to your system.
Vehicles with smart key system—
Your audio system works when the “EN-
GINE START STOP” switch is turned to
ACCESSORY or IGNITION ON mode.
Vehicles without smart key system—
Your audio system works when the engine
switch is turned to the “ACC” or “ON” posi-
tion.
CAUTION
For vehicles sold in U.S.A. and
Canada:
Part 15 of the FCC Rules
FCC Warning:
Changes or modifications in
construction not expressly approved
by the party responsible for com-
pliance could void the user’s author-
ity to operate the equipment.
CAUTION: Radio Frequency Radi-
ation Exposure
This device is approved for Mobile
Application only and, to comply with
applicable FCC radio frequency ex-
posure regulations, must be used
with a distance of at least 7.9 in. (20
cm) between the antenna and the
body of any person at all time during
use.
Using your audio/video
system —
— Some basics

AUDIO/VIDEO SYSTEM
149
(b) Turning the system on and off

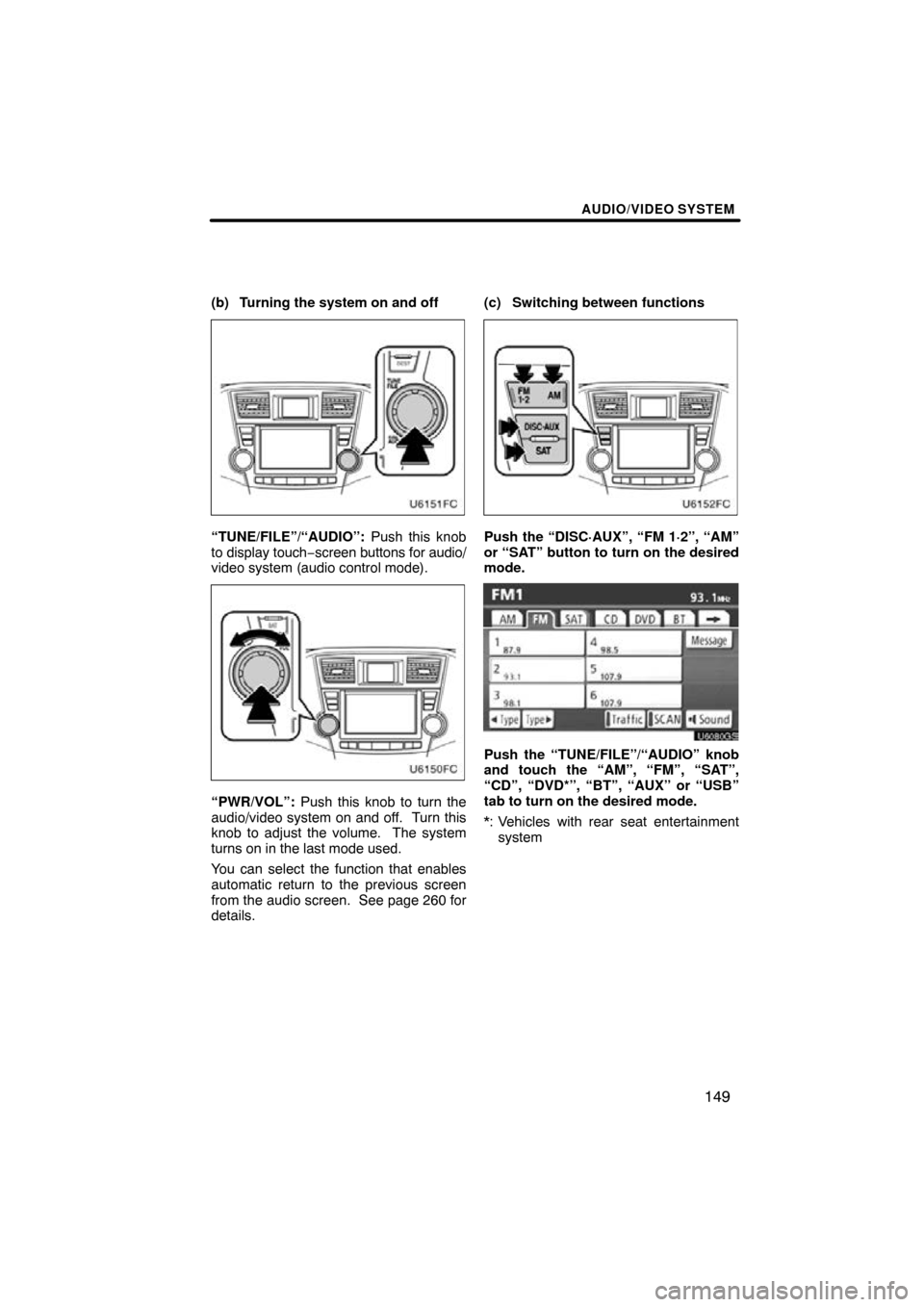

“TUNE/FILE”/“AUDIO”: Push this knob
to display touch− screen buttons for audio/
video system (audio control mode).
“PWR/VOL”: Push this knob to turn the
audio/video system on and off. Turn this
knob to adjust the volume. The system
turns on in the last mode used.
You can select the function that enables
automatic return to the previous screen
from the audio screen. See page 260 for
details. (c) Switching between functions
Push the “DISC·AUX”, “FM 1·2”, “AM”
or “SAT” button to turn on the desired
mode.
U6080GS
Push the “TUNE/FILE”/“AUDIO” knob
and touch the “AM”, “FM”, “SAT”,
“CD”, “DVD*”, “BT”, “AUX” or “USB”
tab to turn on the desired mode.
*: Vehicles with rear seat entertainment
system

AUDIO/VIDEO SYSTEM
151
U6084GS
U6086GS
U6085GS
U6078GS
U6079GS
The touchscreen buttons for radio, CD
changer, DVD player*, Bluetooth
audio player, AUX and USB memory/
iPod, operation are displayed on the
function touchscreen button display
screen when the audio control mode is
selected. Touch them lightly and
directly on the screen.
*: Vehicles with rear seat entertainment
system
Touch the tab to select the desired mode
when the audio control mode is selected.
The selected switch is highlighted.
INFORMATION
If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
You cannot operate dimmed
touchscreen buttons.
Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.

AUDIO/VIDEO SYSTEM
152
(d) DSP control
1. Push the “TUNE/FILE”/“AUDIO”
knob.
U6087GS
2. Touch “Sound” to display the sound
adjustment screen.
U6010GI

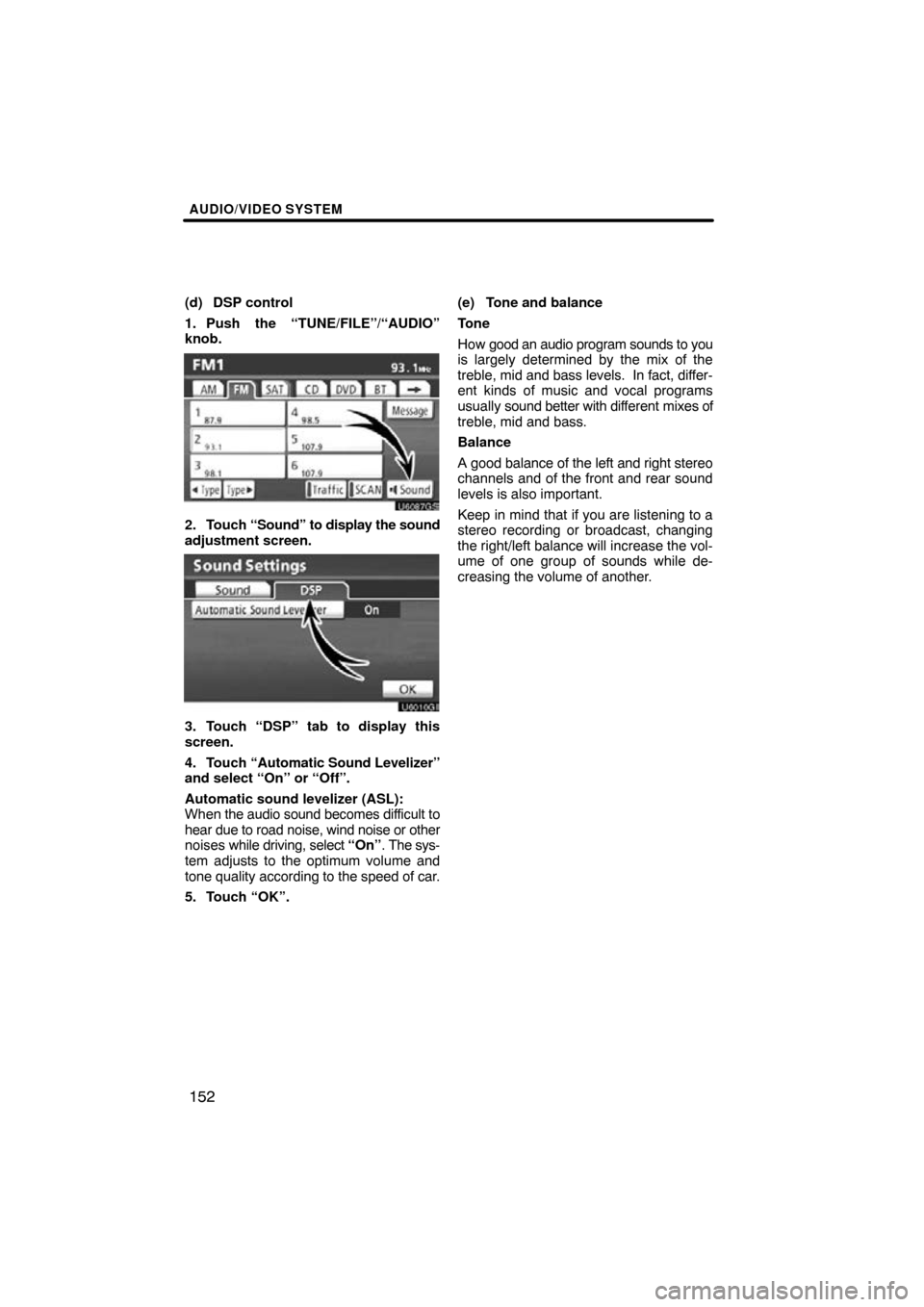

3. Touch “DSP” tab to display this
screen.
4. Touch “Automatic Sound Levelizer”
and select “On” or “Off”.
Automatic sound levelizer (ASL):
When the audio sound becomes difficult to
hear due to road noise, wind noise or other
noises while driving, select “On”. The sys-
tem adjusts to the optimum volume and
tone quality according to the speed of car.
5. Touch “OK”. (e) Tone and balance
Tone
How good
an audio program sounds to you
is largely determined by the mix of the
treble, mid and bass levels. In fact, differ-
ent kinds of music and vocal programs
usually sound better with dif ferent mixes of
treble, mid and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.

AUDIO/VIDEO SYSTEM
153
U6007GS

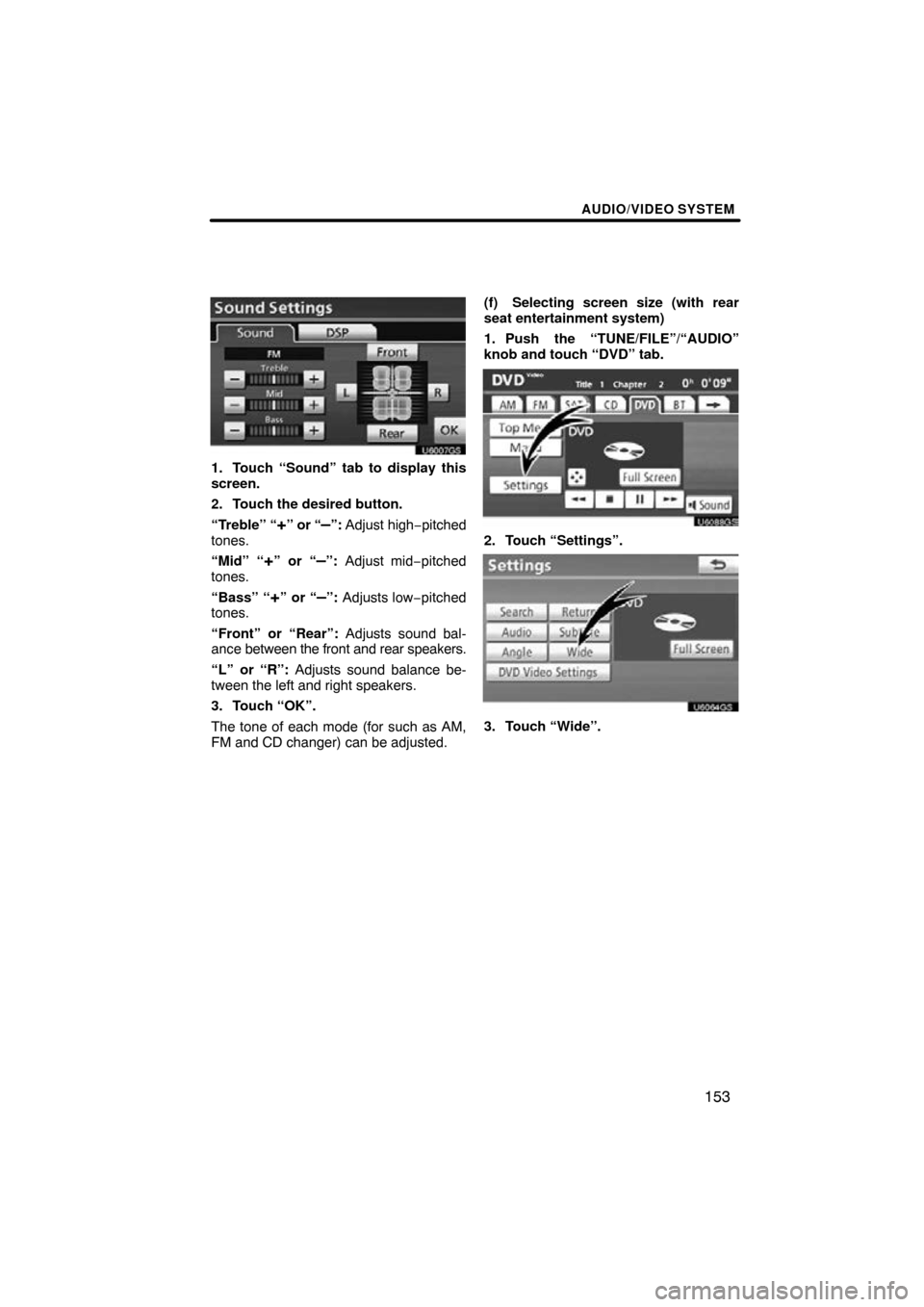

1. Touch “Sound” tab to display this
screen.
2. Touch the desired button.
“Treble” “
+” or “–”: Adjust high−pitched
tones.
“Mid” “
+” or “–”: Adjust mid−pitched
tones.
“Bass” “
+” or “–”: Adjusts low −pitched
tones.
“Front” or “Rear”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance be-
tween the left and right speakers.
3. Touch “OK”.
The tone of each mode (for such as AM,
FM and CD changer) can be adjusted. (f) Selecting screen size (with rear
seat entertainment system)
1. Push the “TUNE/FILE”/“AUDIO”
knob and touch “DVD” tab.
U6088GS
2. Touch “Settings”.
U6064GS
3. Touch “Wide”.

AUDIO/VIDEO SYSTEM
154
U6009GS

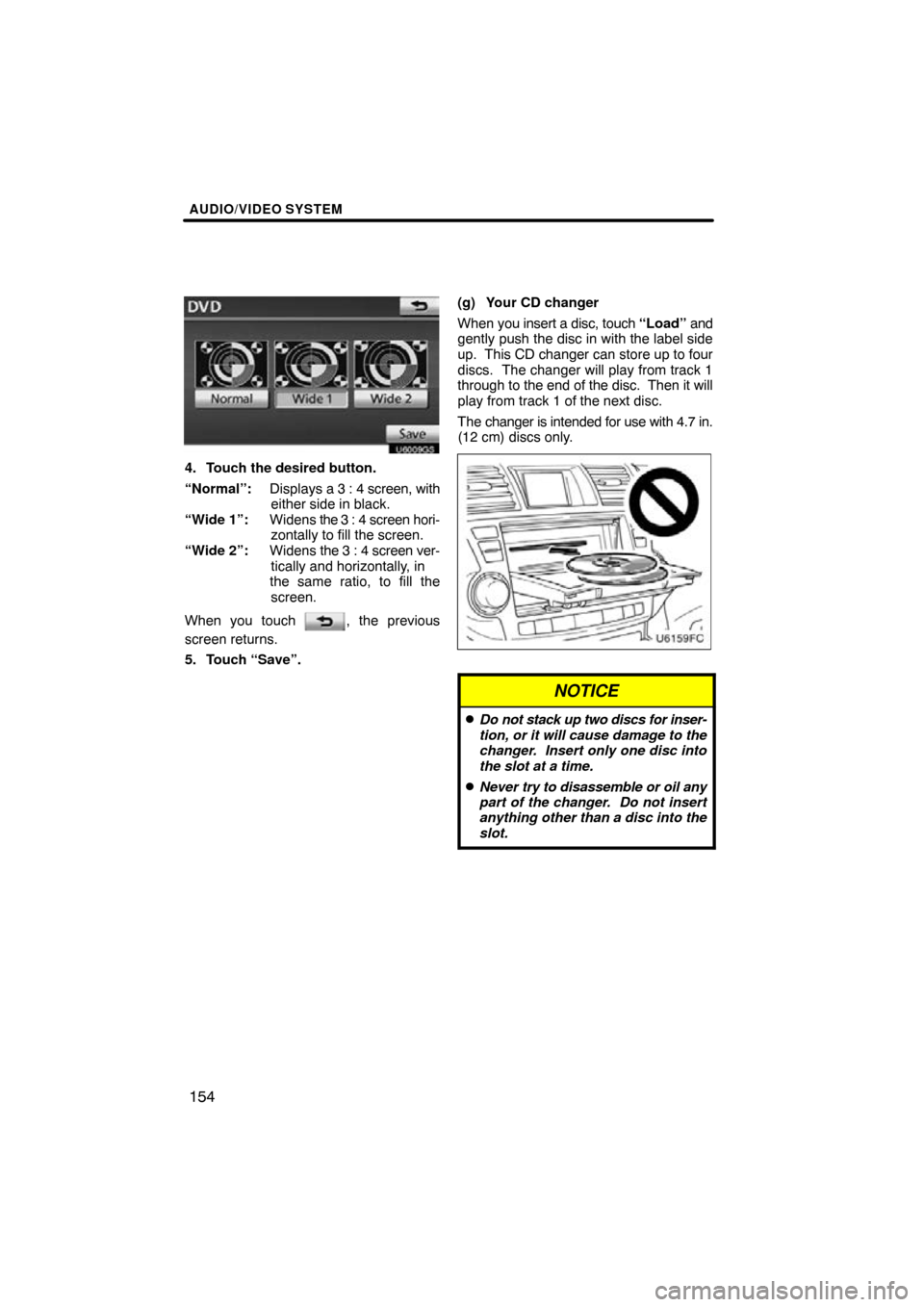

4. Touch the desired button.
“Normal”:Displays a 3 : 4 screen, with
either side in black.
“Wide 1”: Widens the 3 : 4 screen hori-
zontally to fill the screen.
“Wide 2”: Widens the 3 : 4 screen ver-
tically and horizontally, in
the same ratio, to fill the screen.
When you touch
, the previous
screen returns.
5. Touch “Save”. (g) Your CD changer
When
you insert a disc, touch “Load” and
gently push the disc in with the label side
up. This CD changer can store up to four
discs. The changer will play from track 1
through to the end of the disc. Then it will
play from track 1 of the next disc.
The changer is intended for use with 4.7 in.
(12 cm) discs only.
NOTICE
Do not stack up two discs for inser-
tion, or it will cause damage to the
changer. Insert only one disc into
the slot at a time.
Never try to disassemble or oil any
part of the changer. Do not insert
anything other than a disc into the
slot.

AUDIO/VIDEO SYSTEM
155
(h) Your DVD player
(with rear seat entertainment system)
The sound of the rear seat entertainment
system can be enjoyed by pushing the
“DISC·AUX” button or touching the
“DVD” tab on AUDIO screen.
(i) AUX port
The sound of portable audio players
connected to the AUX port can be enjoyed.
Push the “DISC·AUX” button or push the
“TUNE/FILE”/“AUDIO” knob to display
audio screen and touch the “AUX” tab to
switch to AUX mode. When the portable
audio player is not connected to the AUX
port, the tab will tone down. For details,
refer to the “Owner’s Manual” .
(j) USB port
It is available to connect a USB memory/
iPod with the USB port. When the USB
memory/iPod is not connected with the
USB port, the tab will tone down. For de-
tails, see “(a) Connecting a USB memory
or iPod” on page 211. (a) Listening to the radio
Push the “AM” or “FM 1·2” button or
push the “TUNE/FILE”/“AUDIO” knob
to display audio screen and touch the
“AM” or “FM” tab to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
If your vehicle is equipped with a satellite
radio broadcast system, when you push
the
“SAT” button or touch the “SAT” tab
on AUDIO screen, “SAT1”, “SAT2” or
“SAT3” station appears on the display. For
details about satellite radio broadcast, see
“—Radio operation (XM  Satellite Radio
broadcast)” on page 160.
— Radio operation

AUDIO/VIDEO SYSTEM
157
(c) Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning: Touch the touch−screen
button (1 — 6) for the station you want.
The touch−screen button is highlighted
and the station frequency appears on the
screen.
Seek tuning: Push the “SEEK/TRACK”
button on ei ther side. The radio will begin
seeking up or down for a station of the
nearest frequency and will stop on recep-
tion. Each time you push the button, the
stations will be searched automatically
one after another.
To scan all the frequencies: Touch
“SCAN” on the screen briefly. “SCAN” ap-
pears on the screen. The radio will find the
next station and stay there for a few se-
conds, and then scan again. To select a
station, touch “SCAN” again.
To scan the preset stations: Touch
“SCAN” on the screen for longer than a
second. “P. SCAN” appears on the screen.
The radio will tune in the next preset sta-
tion, stay there for a few seconds, and then
move to the next preset station. To select
a station, touch “SCAN” again.(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode pro-
vides you to receive text messages from
radio stations that utilize RDS transmit-
ters.
When RDS is on, the radio can
— only select stations of a particular pro-
gram type,
— display messages from radio stations,
— search for a stronger signal station.
RDS features are available for use only on
FM stations which broadcast RDS infor-
mation.

AUDIO/VIDEO SYSTEM
158
U6080GS

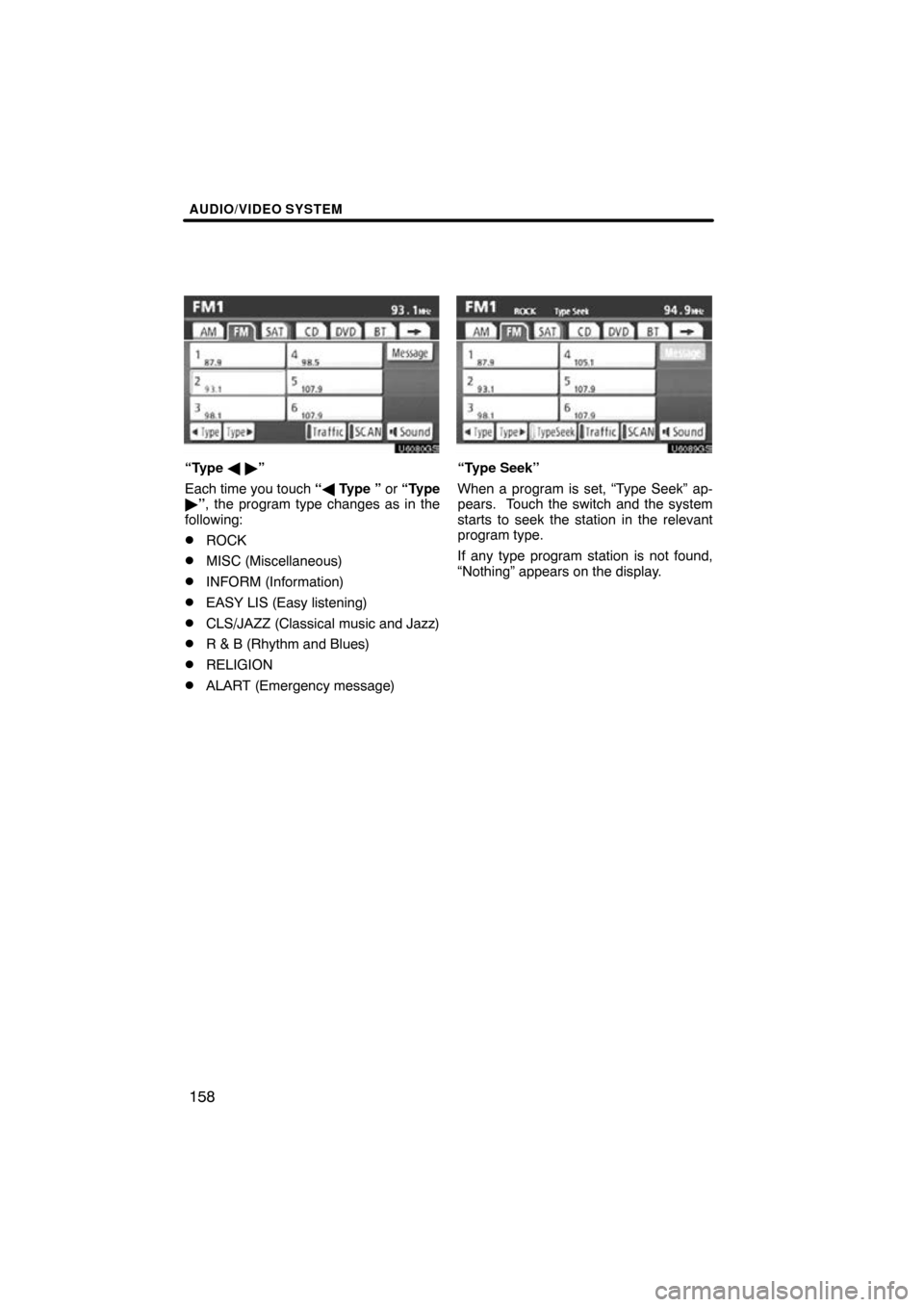

“Type   ”
Each time you touch “ Type ” or “Type
 ”, the program type changes as in the
following:
ROCK
MISC (Miscellaneous)
INFORM (Information)
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R & B (Rhythm and Blues)
RELIGION
ALART (Emergency message)
U6089GS
“Type Seek”
When a program is set, “Type Seek” ap-
pears. Touch the switch and the system
starts to seek the station in the relevant
program type.
If any type program station is not found,
“Nothing” appears on the display.

AUDIO/VIDEO SYSTEM
159
U6090GSF

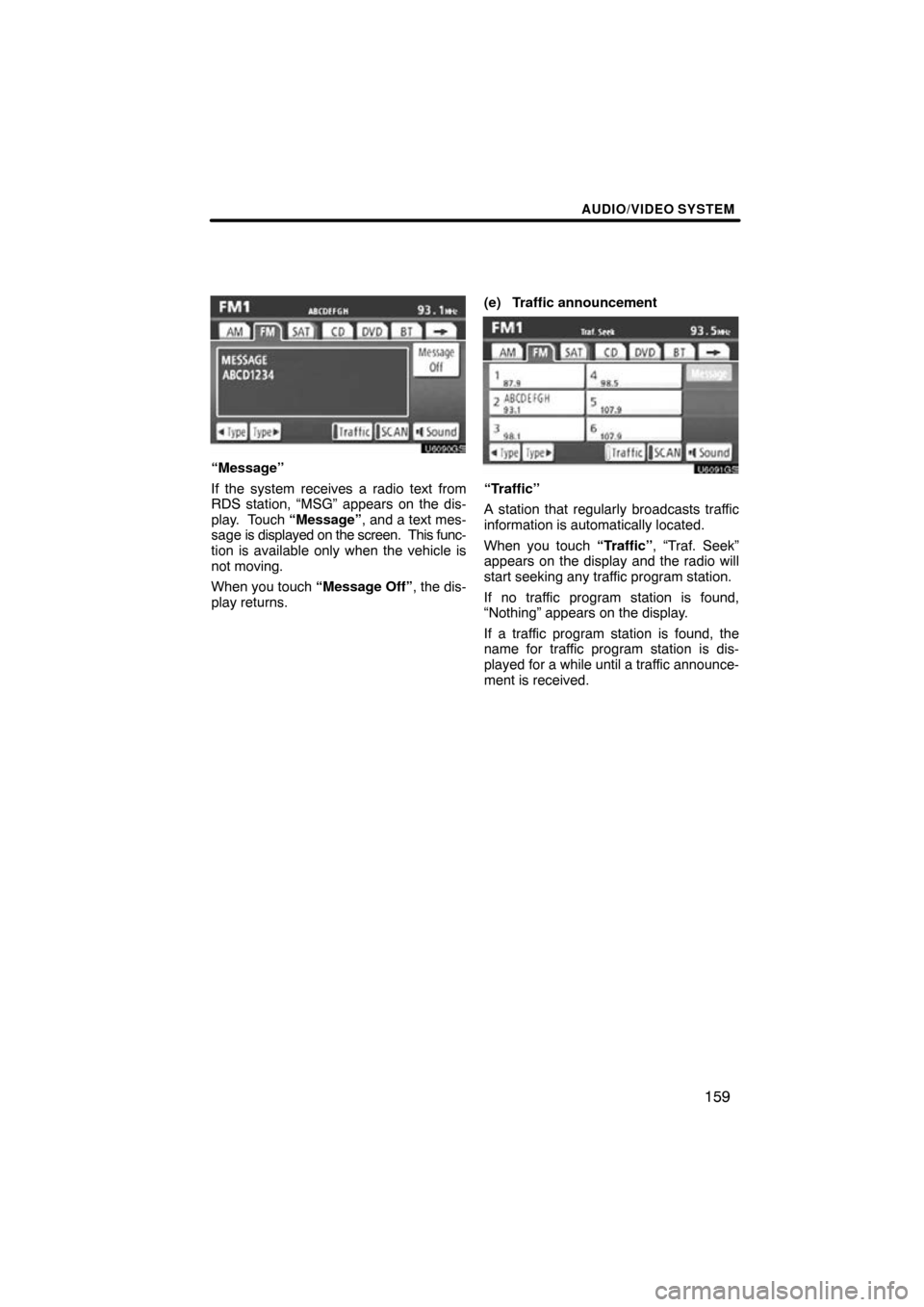

“Message”
If the system receives a radio text from
RDS station, “MSG” appears on the dis-
play. Touch “Message”, and a text mes-
sage is displayed on the screen. This func-
tion is available only when the vehicle is
not moving.
When you touch “Message Off”, the dis-
play returns. (e) Traffic announcement
U6091GS
“Traffic”
A station that regularly broadcasts traffic
information is automatically located.
When you touch
“Traffic”, “Traf. Seek”
appears on the display and the radio will
start seeking any traffic program station.
If no traffic program station is found,
“Nothing” appears on the display.
If a traffic program station is found, the
name for traffic program station is dis-
played for a while until a traffic announce-
ment is received.
