display TOYOTA HIGHLANDER 2013 XU50 / 3.G Navigation Manual

5
Table of Contents
Quick guide —
— Overview buttons and guidance screen 10. . . . . . . . . . .
— Registering home 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Registering preset destinations 14 . . . . . . . . . . . . . . . . . .
— Operation flow: guiding the route 16 . . . . . . . . . . . . . . . . .
— Setting home as the destination 17 . . . . . . . . . . . . . . . . . .
Navigation system function index 18 . . . . . . . . . . . . . . . . . . .
Quick reference (“Destination” screen) 20 . . . . . . . . . . . . . .
Quick reference (“Setup” screen) 22 . . . . . . . . . . . . . . . . . . .
Quick reference (“Information” screen) 23 . . . . . . . . . . . . . .
1 Basic Functions 〈Basic information before operation〉
Initial screen 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Touch screen operation 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Inputting letters and numbers/List screen operation 28
. . . . . . . . . . . . .
Screen adjustment 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Function help 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Map screen operation 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Current position display 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation (one −touch scroll) 34
. . . . . . . . . . . . . . . . . . .
Switching the screens 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Foot print map 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Orientation of the map 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map icons 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Speech command system 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command list 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Quick
Guide

6
2 Destination Search
Destination search52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Selecting the search area 52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Home 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Preset destinations 54
. . . . . . . . . . . . . . . . . . .
Destination search by “Address” 55
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Point of Interest” 59
. . . . . . . . . . . . . . . . . . . .
Destination search by “Previous Destinations” 65
. . . . . . . . . . . . . . .
Destination search by “Address Book” 66
. . . . . . . . . . . . . . . . . . . . . .
Destination search by “Emergency” 66
. . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Intersection & Freeway” 67
. . . . . . . . . . . . . .
Destination search by “Map” 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Coordinates” 71
. . . . . . . . . . . . . . . . . . . . . . . .
Deleting set destinations 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route guidance 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
3 Route Guidance
Route guidance screen 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Typical voice guidance prompts 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance and time to destination 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting destinations 84
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding destinations 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Reordering destinations 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting destinations 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Setting route 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Detour setting 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Route overview 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Route preference 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Pausing and resuming guidance 91
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Show on map 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Display POI
∗ icons 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Route trace 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
XM  NavTraffic 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
∗: Point of Interest

10
No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
43
2Scale indicatorThis figure indicates the map scale.42
3“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and disp lay the current posi-
tion.
33, 82
4“DEST” buttonPush this button to display the “Destina-
tion” screen.12, 14, 16, 17, 20, 52
5Zoom out buttonTouch this button to reduce the map
scale.42
6“DISP” buttonPush this button to display the “Display”
screen.31
Quick guide —
— Overview buttons and guidance screen

11
No.NameFunctionPage
7“INFO/PHONE”
buttonPush this button to display the “Informa-
tion” screen.23, 127, 143, 343, 345
8“ Off”
Touch this button to obtain a broader
view. Some of the buttons on the
screen are not displayed. They are dis-
played again by touching “On ”.
275
9“Mark”
Touch th is button to register the current
position or the cursor position as a
memory point.
35
10“Route”Touch this button to change the route.84, 86
11“Show on Map”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
92, 96, 97, 99
12“SETUP” buttonPush this button to display the “Setup”
screen.22, 102, 260,
265, 267, 269, 278, 317, 324
13Zoom in buttonTouch this button to magnify the map
scale.42
14Foot print map
buttonTouch this button to display the foot print
map and the building information.42
15
Screen
configuration
buttonTouch this button to change the screen
mode.39
16
Distance and
time to
destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
83
17XM NavTraffic
markThis mark is displayed when XM  Nav-
Traffic information is received.98
18
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
332

13
5Touch “Enter”.
The “Edit Home” screen is displayed.
6Touch “OK”.
Registration of home is complete.
You can also register home by touching the
“SETUP” button. (See “ (a) Registering
home” on page 103.)
You can change the name, location, phone
number and icon. (See
“ (b) Editing home”
on page 104.)

15

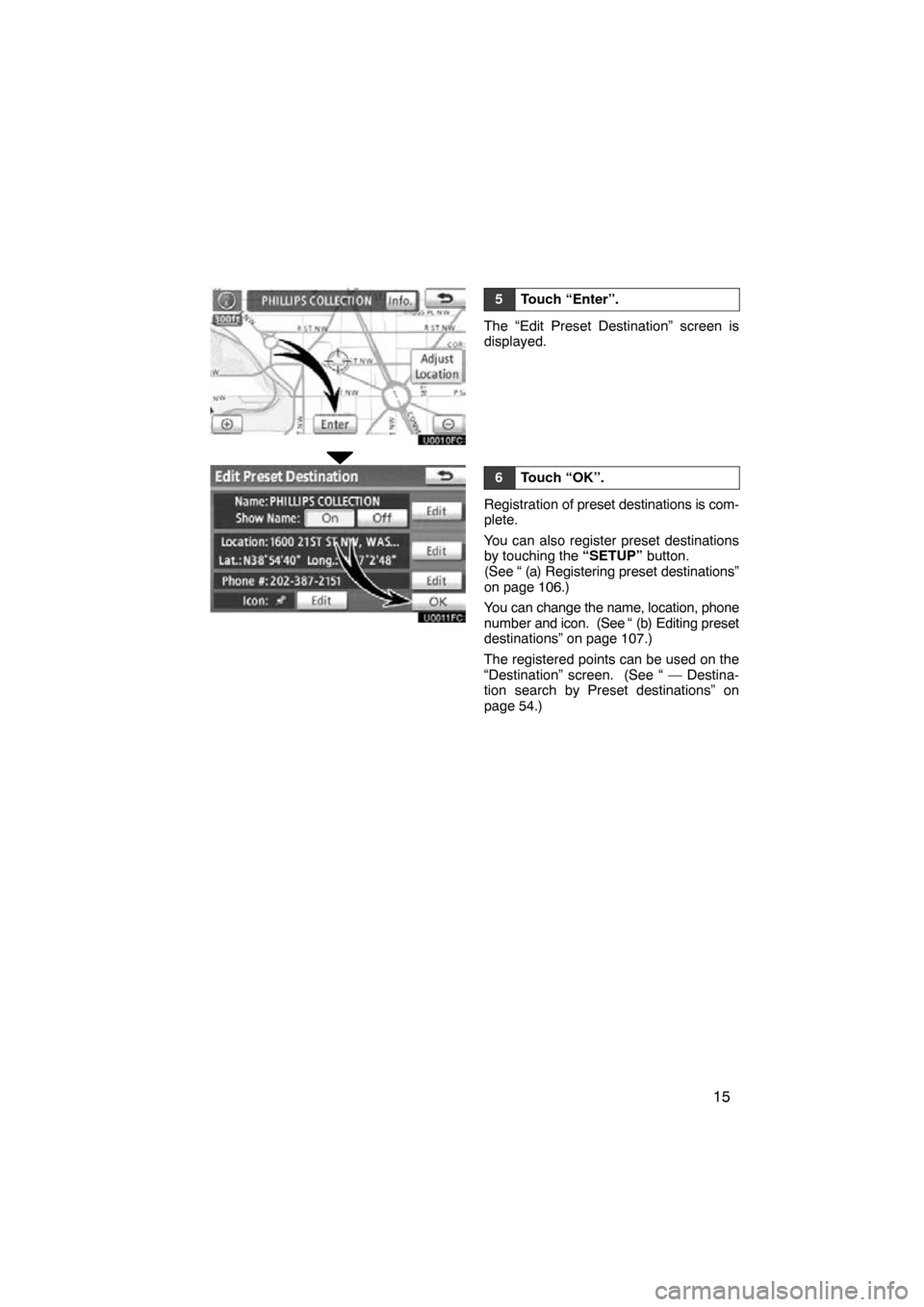

5Touch “Enter”.
The “Edit Preset Destination” screen is
displayed.
6Touch “OK”.
Registration of preset destinations is com-
plete.
You can also register preset destinations
by touching the “SETUP” button.
(See “ (a) Registering preset destinations”
on page 106.)
You can change the name, location, phone
number and icon. (See
“ (b) Editing preset
destinations” on page 107.)
The registered points can be used on the
“Destination” screen. (See “ — Destina-
tion search by Preset destinations” on
page 54.)

18
Map
Displaying mapsPage
Viewing the map screen10
Displaying the current vehicle position33
Viewing the current position vicinity map34
Changing the scale42
Changing the map orientation43
Displaying Point of Interest92
Displaying the estimated travel/arrival time to the destination83
Selecting the dual map screen39
Viewing foot print map42
Hiding map screen touch screen buttons275
Searching destinationPage
Searching the destination
(by home, Point of Interest, phone #, etc.)52
Changing the selected region52
Operating the map location of the selected destination72
Route guidance
Before starting route guidancePage
Setting the destination72
Viewing alternative routes72
Starting route guidance72
Before starting or during route guidancePage
Viewing the route72
Adding destinations84
Changing the route86
Displaying the estimated travel/arrival time to the destination83
Navigation system function index

19
During route guidancePage
Pausing route guidance91
Adjusting route guidance volume268
Deleting the destination71, 85
Displaying the entire route map87
Useful functions
Address bookPage
Registering your own address book entries108
Marking icons on the map11 0
InformationPage
Displaying vehicle maintenance324
Displaying the calendar143
Handsfree system (for cellular phone)Page
Initiating Bluetooth127
Making a call on the Bluetooth  phone132
Receiving a call on the Bluetooth  phone139
Speech command systemPage
Operating the system with your voice44

20

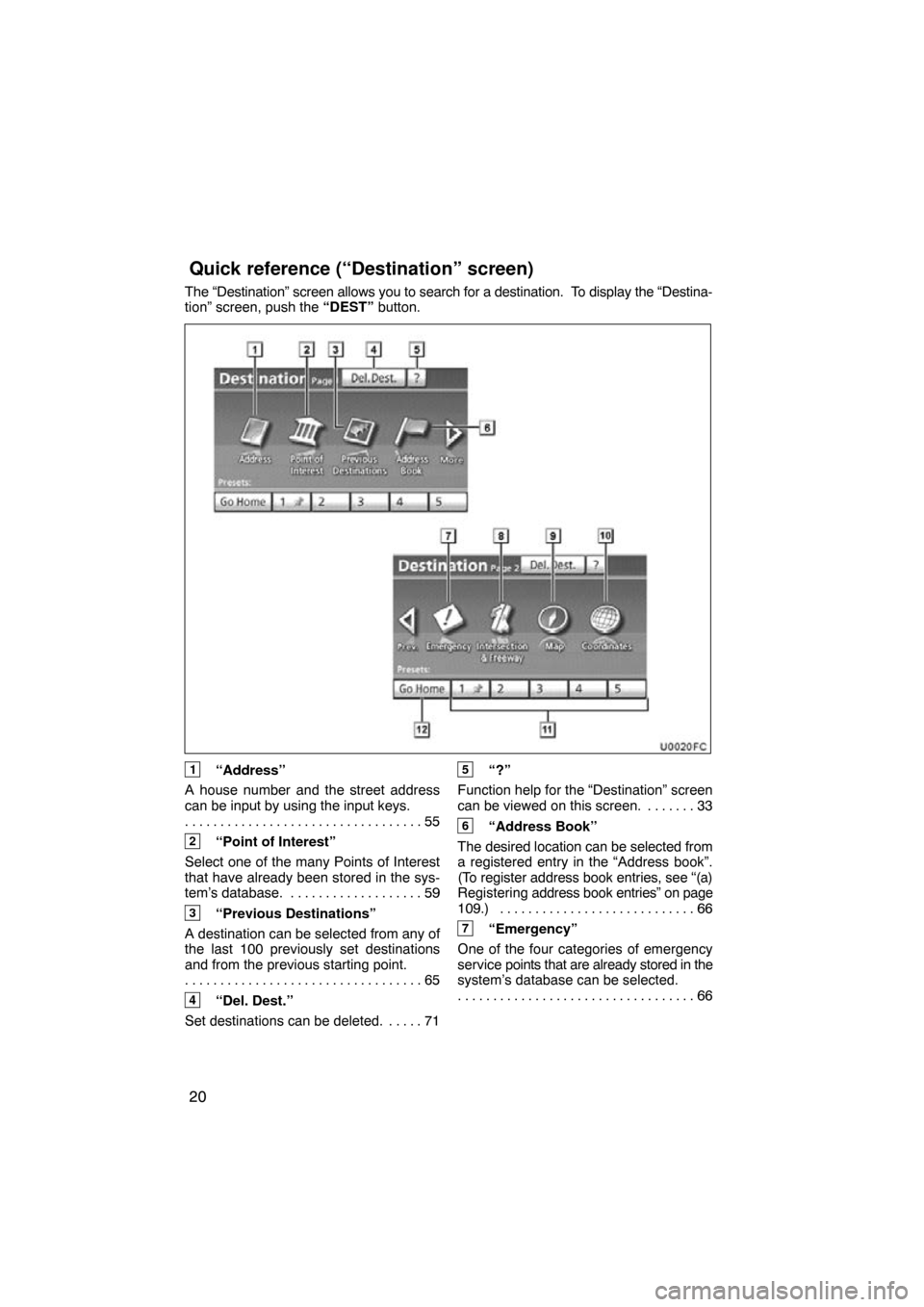

The “Destination” screen allows you to search for a destination. To display the “Destina-
tion” screen, push the “DEST” button.
1“Address”
A house number and the street address
can be input by using the input keys. 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2“Point of Interest”
Select one of the many Points of Interest
that have already been stored in the sys-
tem’s database. 59 . . . . . . . . . . . . . . . . . . .
3“Previous Destinations”
A destination can be selected from any of
the last 100 previously set destinations
and from the previous starting point. 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4“Del. Dest.”
Set destinations can be deleted. 71 . . . . .
5“?”
Function help for the “Destination” screen
can be viewed on this screen. 33 . . . . . . .
6“Address Book”
The desired location can be selected from
a registered entry in the “Address book”.
(To register address book entries, see “(a)
Registering address book entries” on page
109.) 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Emergency”
One of the four categories of emergency
service points that are already stored in the
system’s database can be selected. 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Destination” screen)

21
8“Intersection & Freeway”
The names of two intersecting streets or a
freeway (interstate) entrance or exit can be
entered. This is helpful if only the general
vicinity, not the specific address, is known.
67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9“Map”
A destination can be selected simply by
touching the location on the displayed
map. 70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10“Coordinates”
A destination can be set using latitudes
and longitudes as coordinates. 71 . . . . . .
11Preset destination touch screen
buttons
One of 5 preset destination points can be
selected by touching the screen directly. If
a preset destination point has not been
registered, a message will be displayed
and the setting screen will automatically
appear. To use this function, it is neces-
sary to set the “preset destination”. (To
register a “Preset Destination”, see “(a)
Registering preset destinations” on page
106.) 54 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12“Go Home”
A personal home address can be selected
without entering the address each time. If
“Home” has not been registered, a mes-
sage will be displayed and the setting
screen will automatically appear. To use
this function, it is necessary to set a
“Home” address. (To register “Home”, see
“(a) Registering home” on page 103.) 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
