engine TOYOTA HIGHLANDER 2013 XU50 / 3.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2013
Highlander
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1 6
Light control-Instrument panel 9
Smart Key system
1,2 7
Air Conditioning/Heating 20-22
Audio 24-25
Auto lock/unlock
1 11
Automatic Transmission 10
Bluetooth
® audio 25
Clock 22
Cruise control 23
Cup holders 27
Door locks 10
Door-Power back 12
Downhill Assist Control system (DAC) 26Garage door opener (HomeLink®)3
23
Hill-start Assist Control (HAC) 27Lights1 & turn signals 16
Moonroof 12
Multi-Information Display
2 18
Parking brake 11
Power outlets-12V DC 17
Power outlet-120V AC 17
Rear seat entertainment system 26
Seat adjustments-Front 13
Seat adjustments-Rear 13
Seat heaters 22
Seats-Folding down second row seats 15
Seats-Head restraints 14
Seats-Removing Center-Stow second row seat 14
Seats-Returning third row seats 15
Seats-Stowing third row seats 14
Steering lock release 11
Steering wheel controls 19
Telephone controls (Bluetooth
®) 19
Tilt and telescopic steering wheel 12
Windows-Power 18
Windshield wipers & washers 15
Doors-Child safety locks 29
Floor mat installation 31
Seat belts 28
Seat belts-Shoulder belt anchor 29
Spare tire & tools 29
Star Safety System
TM 30-31
Tire Pressure Monitoring (warning) System 28
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
126893_TEXT.indd 18/13/12 10:47 PM

2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Steering wheel climate controls2
Multi-Information Display button
Voice command button1,2
Telephone controls1
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls2
Wiper and washer controls
Multi-Information Display
Display Audio system
1 or Display Audio system with navigation and Entune1
Theft deterrent system/Engine immobilizer indicator2
Emergency flasher button
“AIR BAG ON” and “AIR BAG OFF” indicator and front passenger seat belt
reminder lights
Power back door main switch
2
“ENGINE START STOP” button (Smart Key)2
Tire Pressure Monitoring (warning) System
Cruise control
Ignition (standard key)2
Tilt and telescopic steering lock release
Fuel filler door opener
Power back door button
2
Instrument panel light control
Enhanced VSC/TRAC OFF switch
Windshield wiper de-icer switch
2
Power outside rearview mirror controls
Outside rearview mirror2/Rear window defogger button
Air Conditioning controls
1 Refer to the “Display Audio System Owner’s Manual .”2
If equipped
Steering wheel controls
(if equipped)Automatic Air ConditioningManual Air Conditioning
126893_TEXT.indd 28/13/12 10:47 PM

4
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Engine coolant temperature
Service indicator and reminder
Fuel gauge
Speedometer
Odometer/trip meter switch and trip meter resetting button
Automatic Transmission shift position indicator
Odometer and two trip meters
Charging system warning1
Brake system warning1
Front passenger occupant classification indicator
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.2 If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
Driver seat belt reminder
(alarm will sound if speed is over 12 mph) Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Low fuel level warning
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
126893_TEXT.indd 48/13/12 10:48 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5

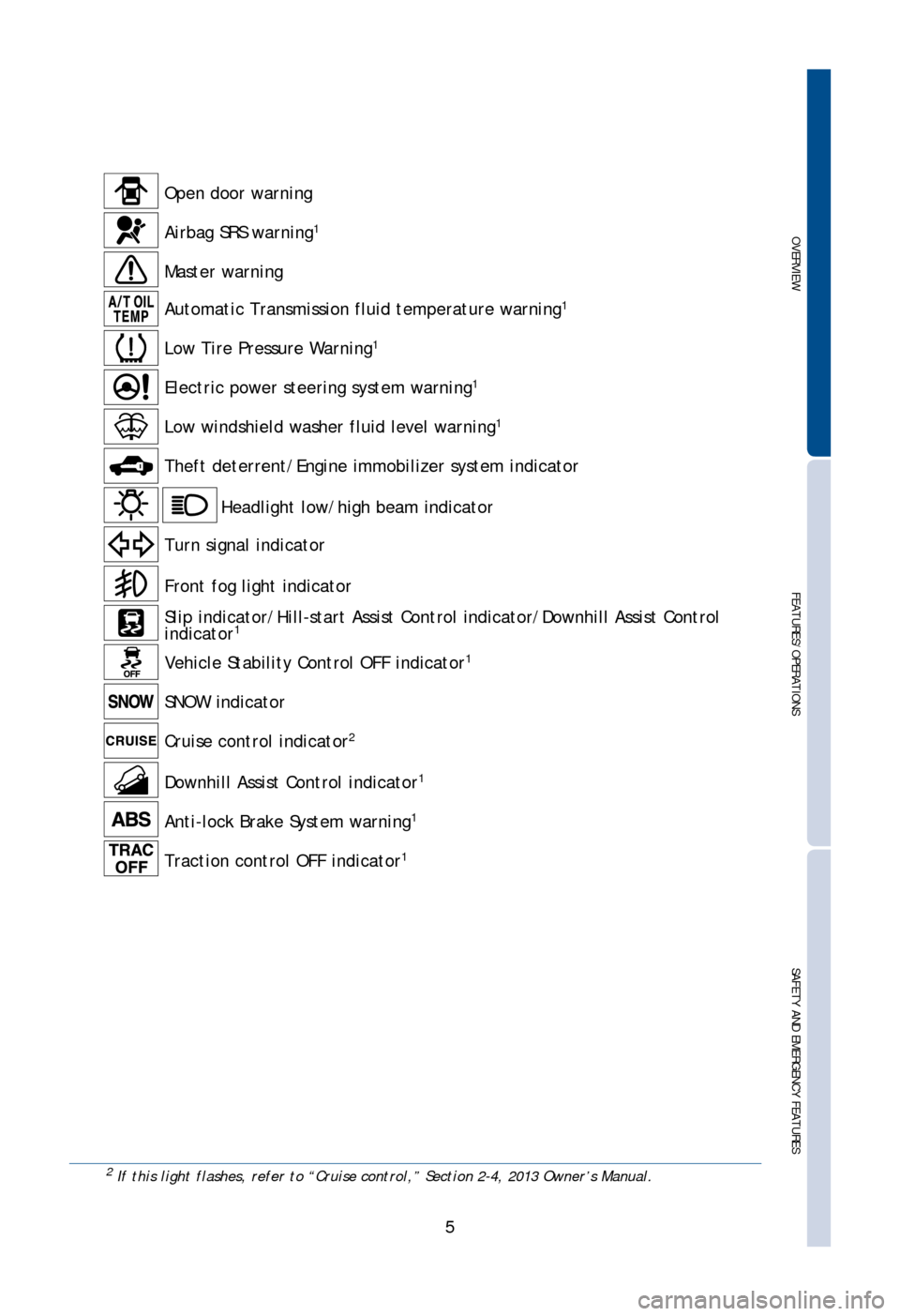

Front passenger occupant classification indicator
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.2 If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Vehicle Stability Control OFF indicator
1
SNOW indicator
Cruise control indicator2
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning1
Electric power steering system warning1
Front fog light indicator
Downhill Assist Control indicator1
Traction control OFF indicator1
Slip indicator/Hill-start Assist Control indicator/Downhill Assist Control
indicator1
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
126893_TEXT.indd 58/13/12 10:48 PM

6
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Without Smart Key system With Smart Key system
Without Smart Key system With Smart Key system
Smart Key system (if equipped)
Start function
ACC
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
Power (without starting engine)
Glass hatch operation
(if equipped)Power back door operation
(if equipped)
Push and hold
Without Smart Key
systemWith Smart Key
system
Panic button
Push and hold
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
With power back door Without power back door
With power back door Without power back door
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Glass hatch unlock
Locking operation
Carry remote to lock
Carry remote to unlock
With power
back door Without power
back door
126893_TEXT.indd 68/13/12 10:48 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
OVERVIEW
With Smart Key systemWith Smart Key system
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedalCarrying Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
Power (without starting engine)
With Smart Key
system
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Glass hatch unlock
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Front door lockFront door unlock*
PushGrasp
Push
Back door lock/unlock
Push
Lock
Push
Unlock
Carry remote to unlock Carry remote to lock/unlock
126893_TEXT.indd 78/13/12 10:48 PM

8

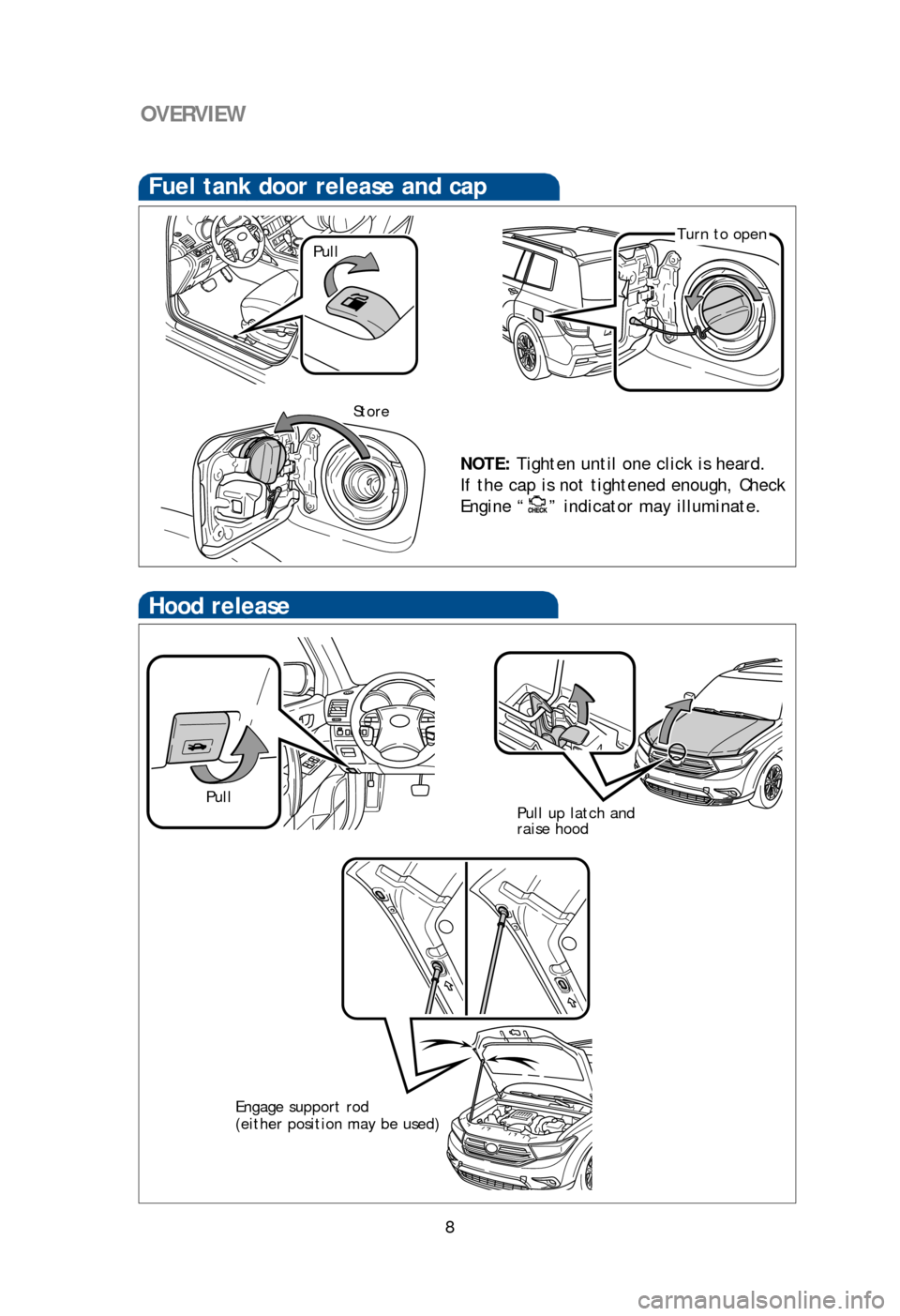

Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is heard.
If the cap is not tightened enough, Check
Engine “
” indicator may illuminate.
PullTurn to open
Store
Windshield washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Engage support rod
(either position may be used)
OVERVIEW
Pull
126893_TEXT.indd 88/13/12 10:48 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9
NOTE: Tighten until one click is heard.
If the cap is not tightened enough, Check
Engine “
” indicator may illuminate.
Turn to open
Windshield washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
126893_TEXT.indd 98/13/12 10:48 PM

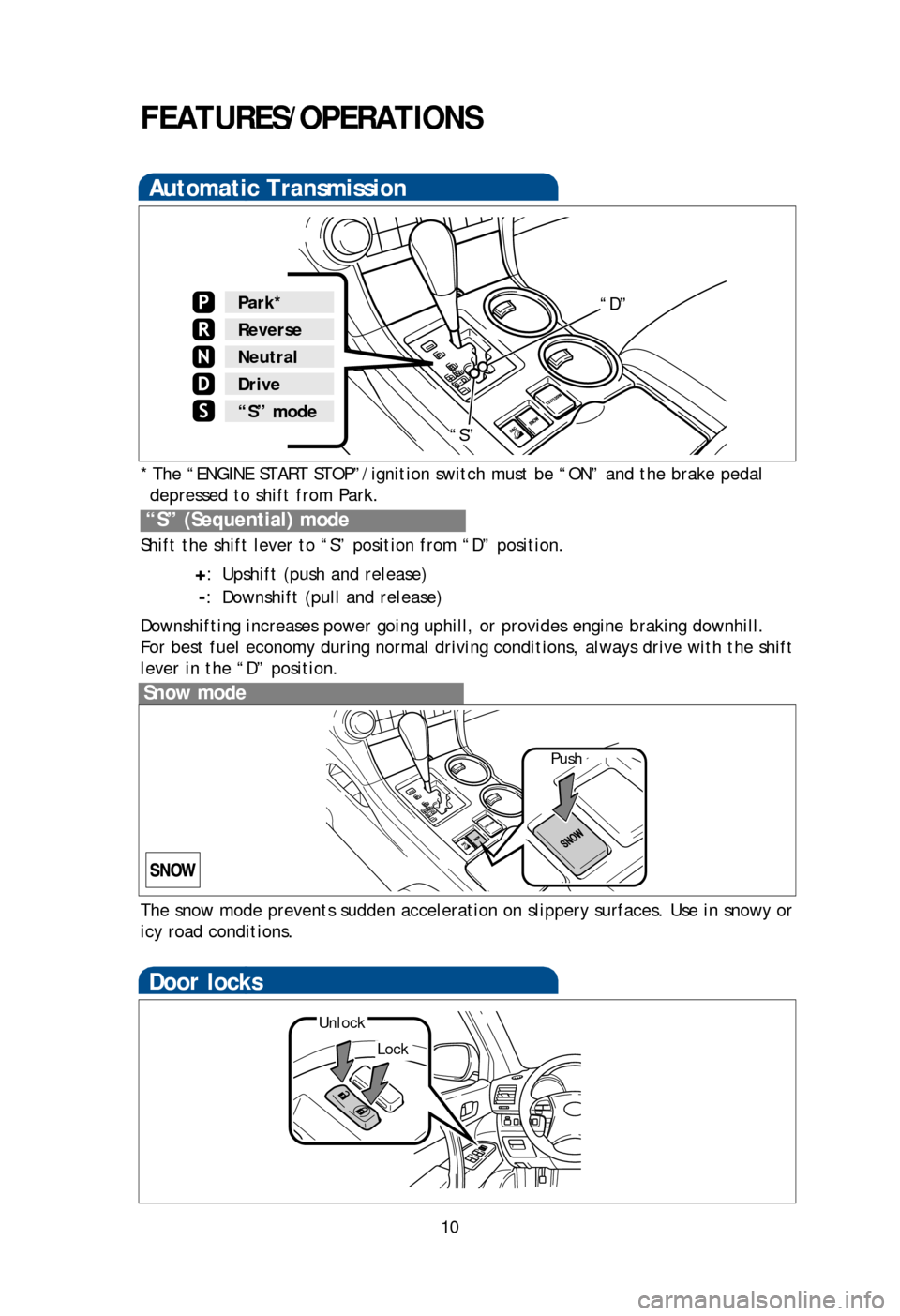

10
FEATURES/OPERATIONS
Automatic Transmission
* The “ENGINE START STOP”/ignition switch must be “ON” and the brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)

-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
N
“S” mode “D”
Snow mode
Push
Steering lock release
Door locks
With Smart Key system
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the ignition switch is set from “ON” to “ACC” or “LOCK” and
driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the “ENGINE START STOP” switch is set to OFF and driver’s
door is opened.
Refer to the Owner’s Manual for more details.
Parking brake
The snow mode prevents sudden acceleration on slippery surfaces. Use in snowy or
icy road conditions.
“S”
Lock
Unlock
126893_TEXT.indd 108/13/12 10:48 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
FEATURES/OPERATIONS
* The “ENGINE START STOP”/ignition switch must be “ON” and the brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)

-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Steering lock release
Turn
Turn
With Smart Key system Without Smart Key system
PushPush
Turn

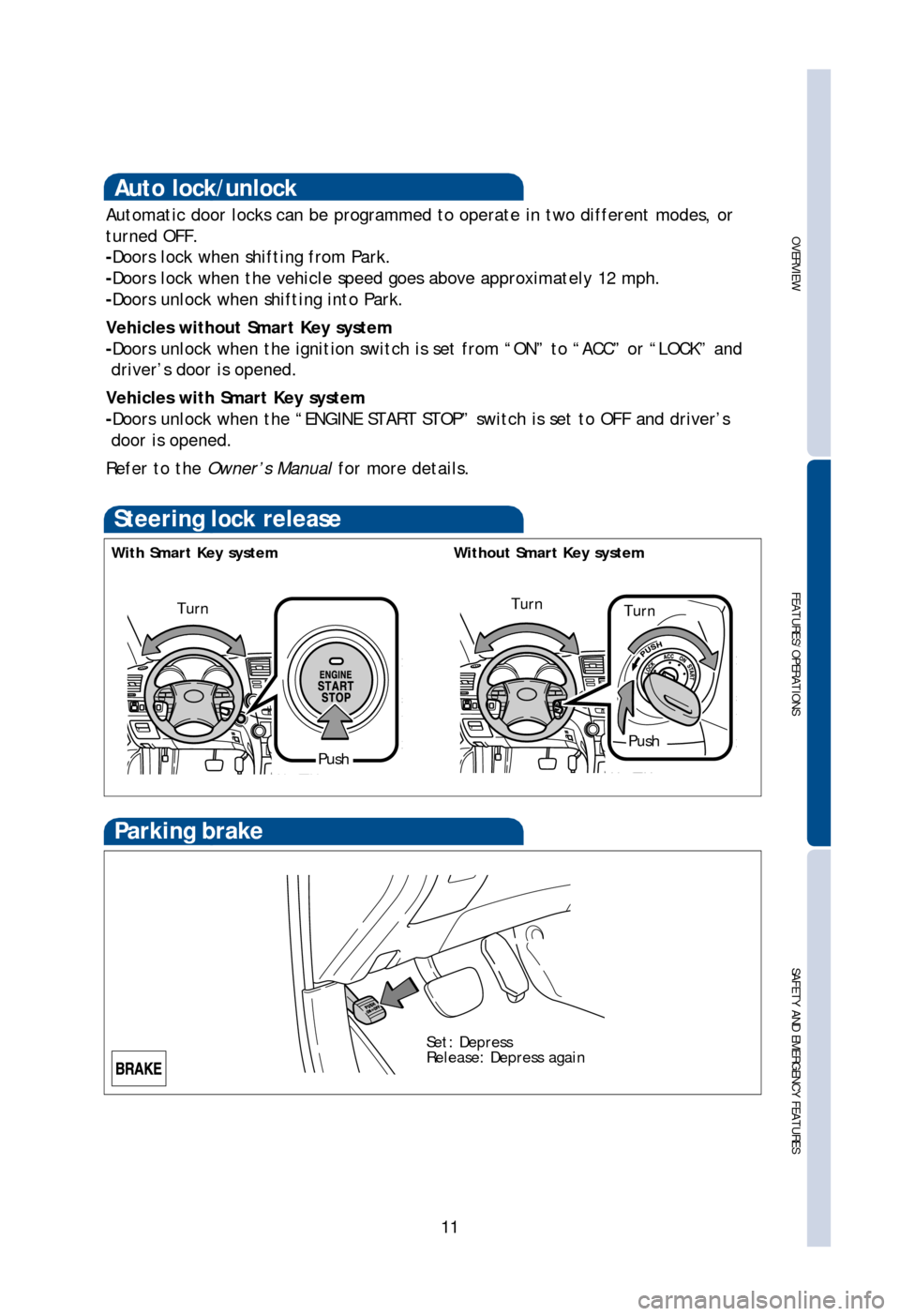

Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the ignition switch is set from “ON” to “ACC” or “LOCK” and
driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the “ENGINE START STOP” switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Parking brake
The snow mode prevents sudden acceleration on slippery surfaces. Use in snowy or
icy road conditions.
Set: Depress
Release: Depress again
126893_TEXT.indd 118/13/12 10:48 PM
