OVERVIEW

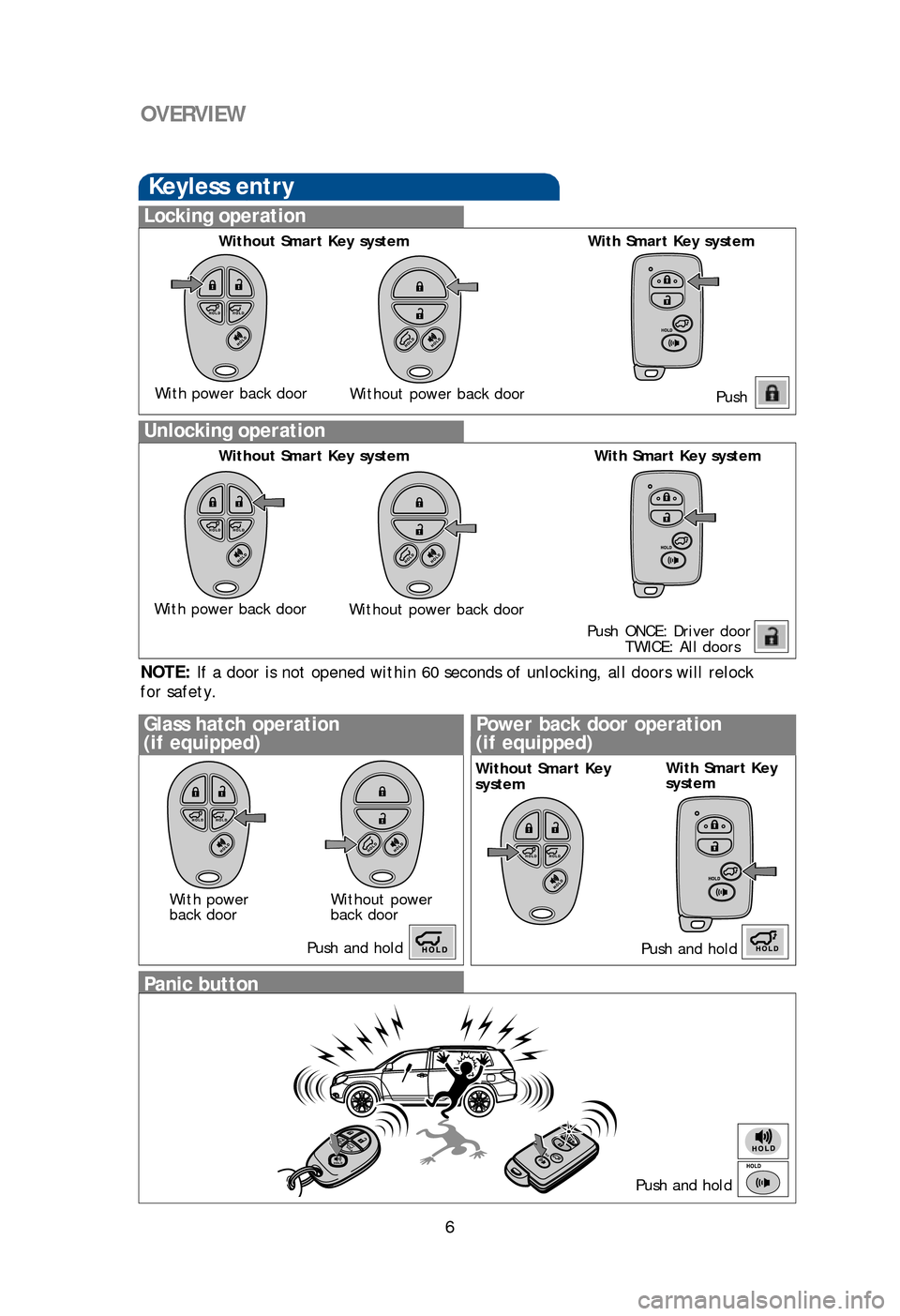

Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Without Smart Key system With Smart Key system
Without Smart Key system With Smart Key system

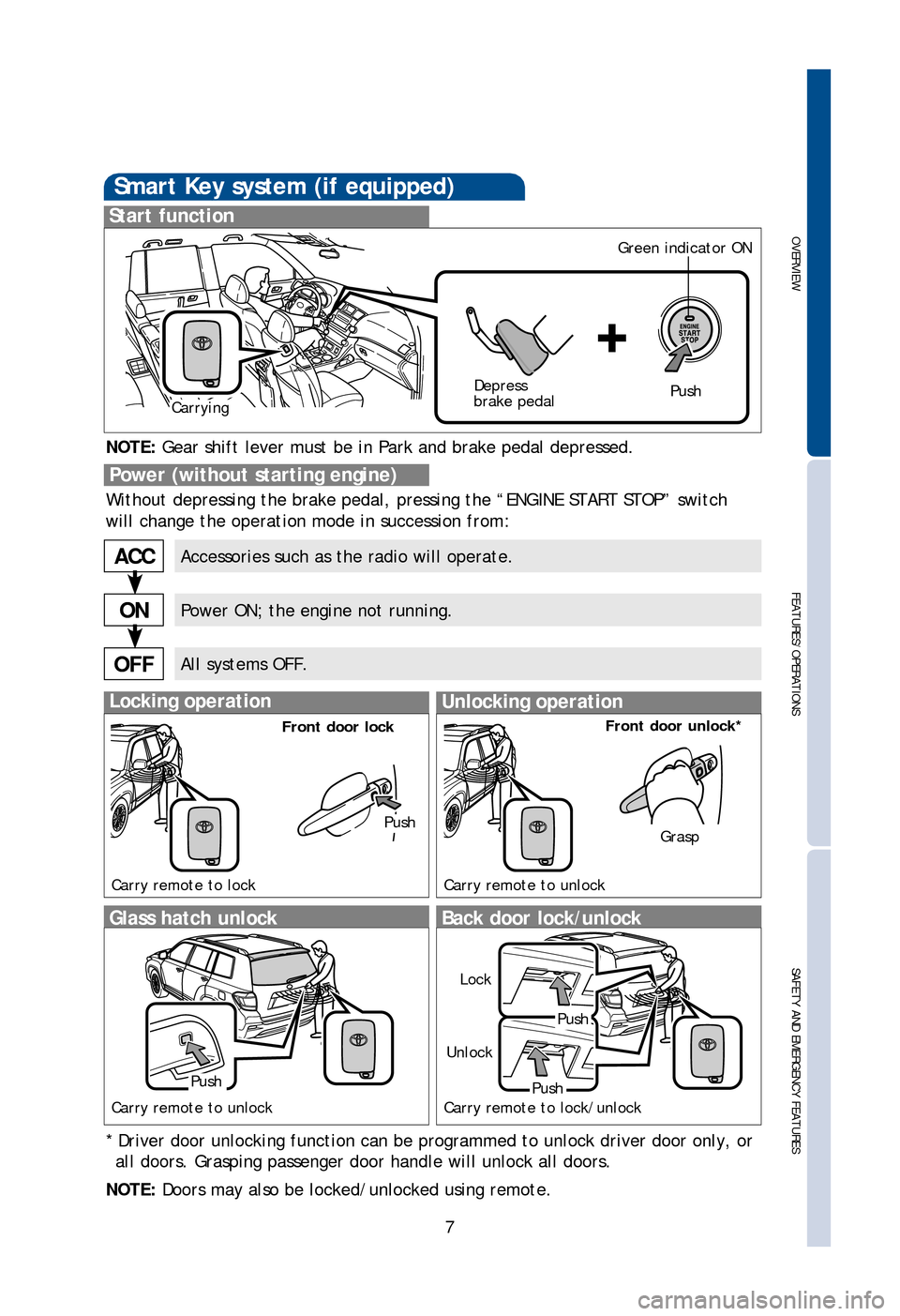

Smart Key system (if equipped)
Start function
ACC
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
Power (without starting engine)
Glass hatch operation
(if equipped)Power back door operation
(if equipped)
Push and hold
Without Smart Key
systemWith Smart Key
system
Panic button
Push and hold
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
With power back door Without power back door
With power back door Without power back door
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Glass hatch unlock
Locking operation
Carry remote to lock
Carry remote to unlock
With power
back door Without power
back door
126893_TEXT.indd 68/13/12 10:48 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
OVERVIEW
With Smart Key systemWith Smart Key system
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedalCarrying Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
Power (without starting engine)
With Smart Key
system
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Glass hatch unlock
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Front door lockFront door unlock*
PushGrasp
Push
Back door lock/unlock
Push
Lock
Push
Unlock
Carry remote to unlock Carry remote to lock/unlock
126893_TEXT.indd 78/13/12 10:48 PM

16

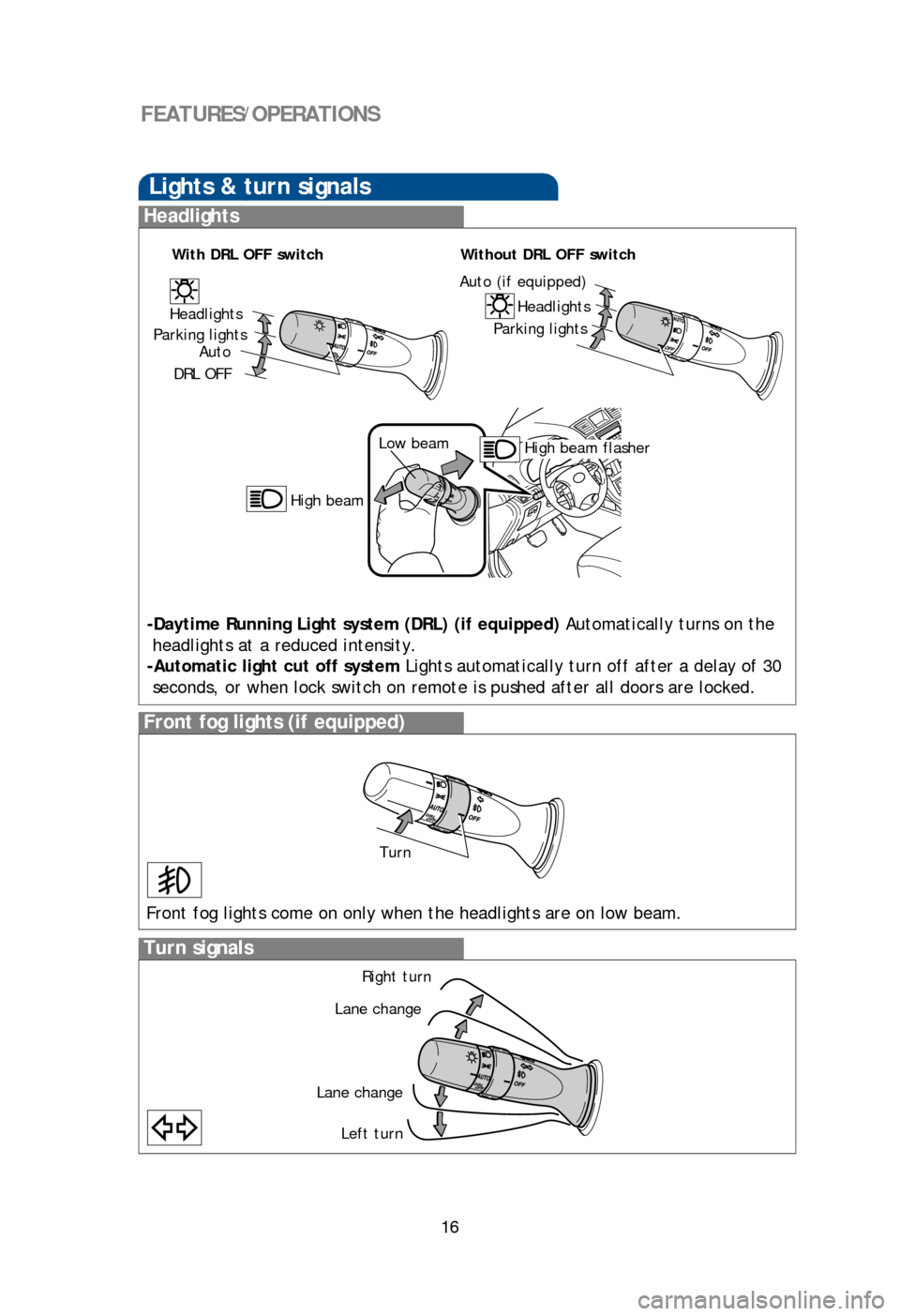

Lights & turn signals
Turn signals
Headlights
Front fog lights (if equipped)
-Daytime Running Light system (DRL) (if equipped) Automatically turns on the
headlights at a reduced intensity.
-Automatic light cut off system Lights automatically turn off after a delay of 30 seconds, or when lock switch on remote is pushed after all doors are locked.
Front fog lights come on only when the headlights are on low beam.

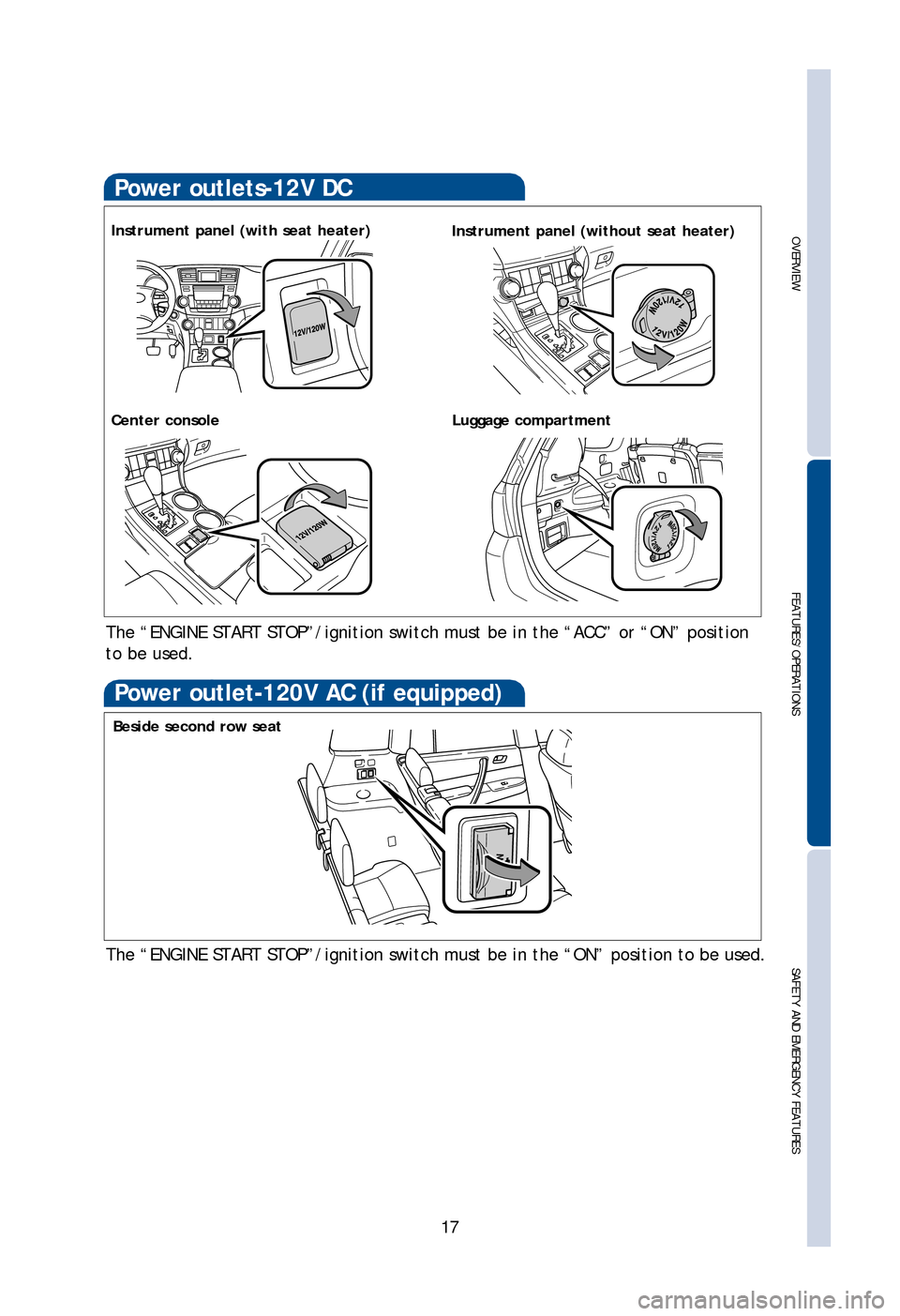

Power outlets-12V DC
Instrument panel (with seat heater)
The “ENGINE START STOP”/ignition switch must be in the “ACC” or “ON” position
to be used.
Power outlet-120V AC (if equipped)
Beside second row seat
Center console
The “ENGINE START STOP”/ignition switch must be in the “ON” position to be used.
FEATURES/OPERATIONS
High beam flasher
Low beam
High beam
Headlights
Parking lights
Auto (if equipped)
Headlights
Parking lights
Auto
DRL OFF
With DRL OFF switchWithout DRL OFF switch
Turn
Right turn
Lane change
Lane change Left turn
126893_TEXT.indd 168/13/12 10:49 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
-Daytime Running Light system (DRL) (if equipped) Automatically turns on the
headlights at a reduced intensity.
-Automatic light cut off system Lights automatically turn off after a delay of 30 seconds, or when lock switch on remote is pushed after all doors are locked.
Front fog lights come on only when the headlights are on low beam.
Power outlets-12V DC
Luggage compartment
Instrument panel (with seat heater) Instrument panel (without seat heater)
The “ENGINE START STOP”/ignition switch must be in the “ACC” or “ON” position
to be used.
Power outlet-120V AC (if equipped)
Beside second row seat
Center console
The “ENGINE START STOP”/ignition switch must be in the “ON” position to be used.
126893_TEXT.indd 178/13/12 10:49 PM

26
FEATURES/OPERATIONS
Cup holders
Front
Console box
Side table
Downhill Assist Control system helps the vehicle to descend steep hills while
maintaining a low speed without brake pedal operation. Press the “DAC” button
(system will engage only when shifter is in S1 or R mode, or vehicle speed is below
15 mph). Pressing the button again will turn system off.
Refer to the Owner’s Manual for more details.
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
Hill-start Assist Control (HAC)
Downhill Assist Control system (DAC)
(if equipped)
“DAC” indicator blinking = Downhill assist
control system not engagedSlip indicator blinking, “DAC” indicator
solid = Downhill assist control system
engaged
Refer to Section 3-5 of the Owner’s Manual for more information.
Display
Headphone jacks and headphone volume control
DVD player
Remote control
AV input port
120V AC power outlet
Rear seat entertainment system
(if equipped)
126893_TEXT.indd 268/13/12 10:50 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
27
Cup holders
Front
Console boxRear
Side table
Downhill Assist Control system helps the vehicle to descend steep hills while
maintaining a low speed without brake pedal operation. Press the “DAC” button
(system will engage only when shifter is in S1 or R mode, or vehicle speed is below
15 mph). Pressing the button again will turn system off.
Refer to the Owner’s Manual for more details.
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
Brake
pedal
Hill-start Assist Control (HAC)
Slip indicator blinking, “DAC” indicator
solid = Downhill assist control system
engaged
Refer to Section 3-5 of the Owner’s Manual for more information.
Display
Headphone jacks and headphone volume control
DVD player
Remote control
AV input port
120V AC power outlet
126893_TEXT.indd 278/13/12 10:50 PM
