4

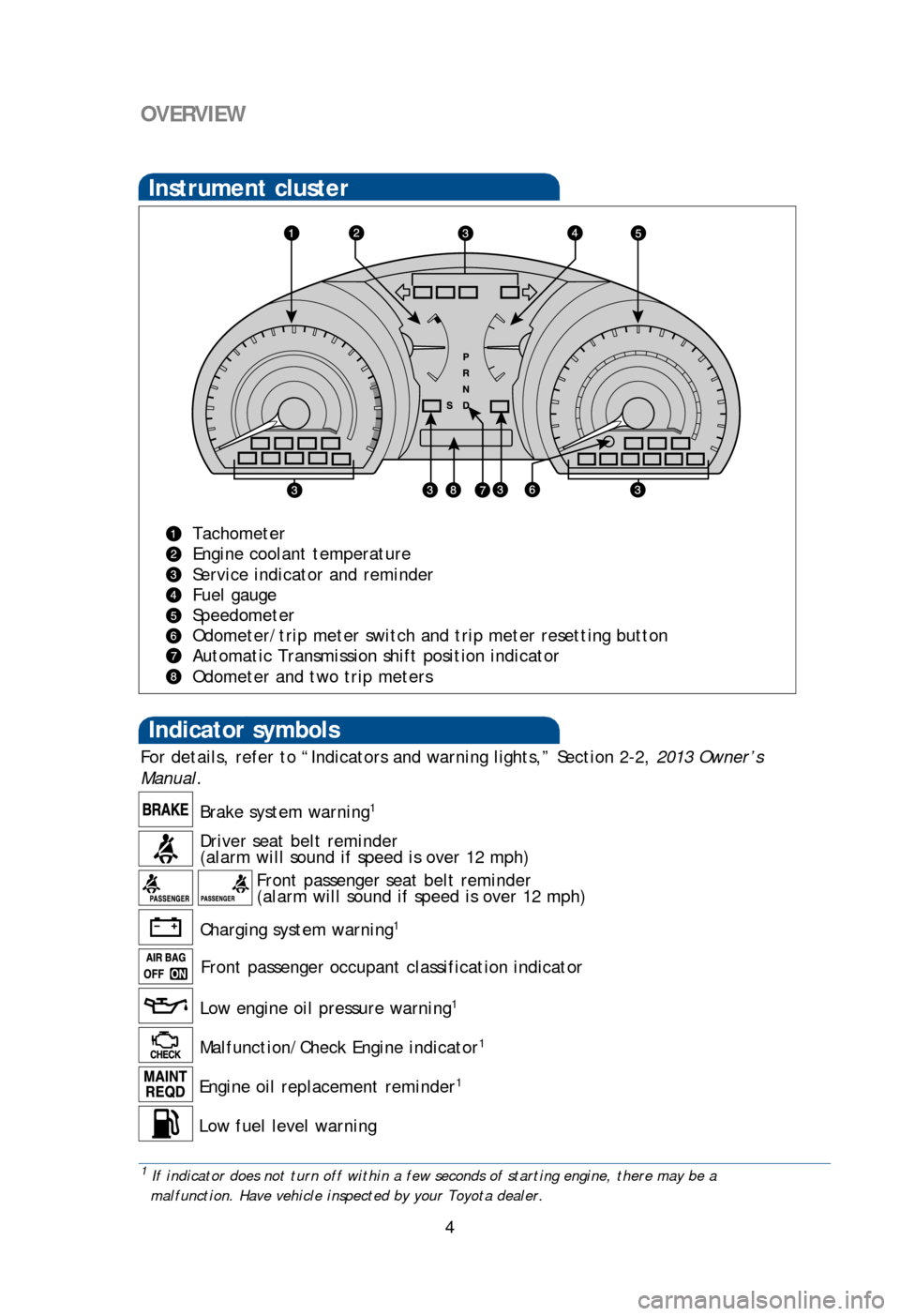

OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Engine coolant temperature
Service indicator and reminder
Fuel gauge
Speedometer
Odometer/trip meter switch and trip meter resetting button
Automatic Transmission shift position indicator
Odometer and two trip meters
Charging system warning1
Brake system warning1
Front passenger occupant classification indicator
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.2 If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
Driver seat belt reminder
(alarm will sound if speed is over 12 mph) Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Low fuel level warning
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
