start stop button TOYOTA HIGHLANDER 2013 XU50 / 3.G Quick Reference Guide

2

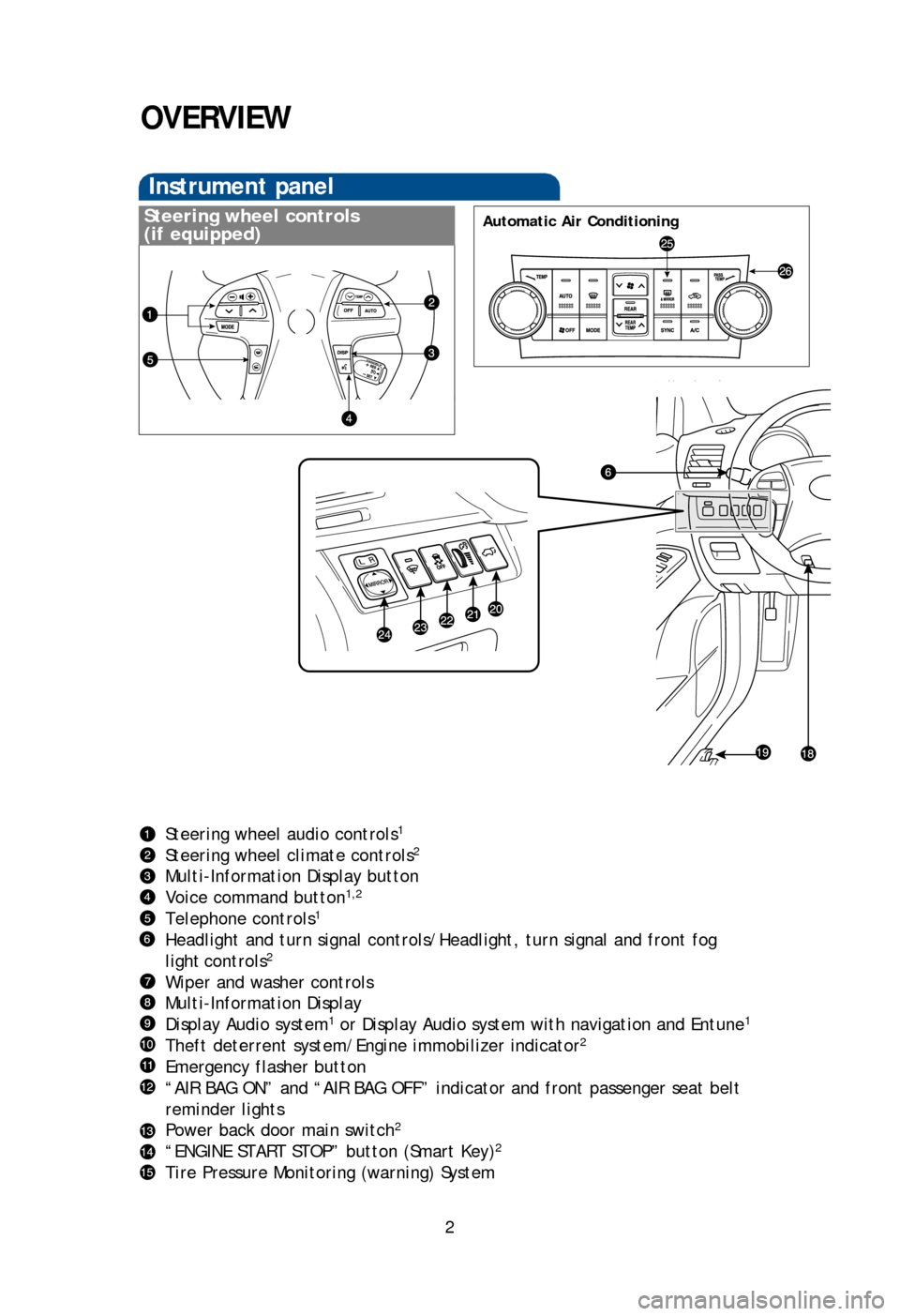

OVERVIEW
Instrument panel
Steering wheel audio controls1
Steering wheel climate controls2
Multi-Information Display button
Voice command button1,2
Telephone controls1
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls2
Wiper and washer controls
Multi-Information Display
Display Audio system
1 or Display Audio system with navigation and Entune1
Theft deterrent system/Engine immobilizer indicator2
Emergency flasher button
“AIR BAG ON” and “AIR BAG OFF” indicator and front passenger seat belt
reminder lights
Power back door main switch
2
“ENGINE START STOP” button (Smart Key)2
Tire Pressure Monitoring (warning) System
Cruise control
Ignition (standard key)2
Tilt and telescopic steering lock release
Fuel filler door opener
Power back door button
2
Instrument panel light control
Enhanced VSC/TRAC OFF switch
Windshield wiper de-icer switch
2
Power outside rearview mirror controls
Outside rearview mirror2/Rear window defogger button
Air Conditioning controls
1 Refer to the “Display Audio System Owner’s Manual .”2
If equipped
Steering wheel controls
(if equipped)Automatic Air ConditioningManual Air Conditioning
126893_TEXT.indd 28/13/12 10:47 PM

6
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Without Smart Key system With Smart Key system
Without Smart Key system With Smart Key system
Smart Key system (if equipped)
Start function
ACC
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
Power (without starting engine)
Glass hatch operation
(if equipped)Power back door operation
(if equipped)
Push and hold
Without Smart Key
systemWith Smart Key
system
Panic button
Push and hold
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
With power back door Without power back door
With power back door Without power back door
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Glass hatch unlock
Locking operation
Carry remote to lock
Carry remote to unlock
With power
back door Without power
back door
126893_TEXT.indd 68/13/12 10:48 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Telephone controls (Bluetooth®)
Push “DISP” to change information in the following:
(1) Average gas mileage after refueling
(2) Current gas mileage
(3) Miles left on remaining fuel
(4) Driving distance from engine start
(5) Average gas mileage
(6) Average gas mileage history
Push and hold “DISP” to set up the displays and the rearview monitor displays.
Automatic operation (driver’s window only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the telephone and the system.
Refer to “Display Audio System Owner’s Manual” for more information about
phone connections and compatibility.
MicrophoneAudio unit
Steering wheel telephone controls
Volume
Start call
End callVoice command button*
* If equipped
Steering wheel controls
Audio controlA/C control*
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
vv
Volume controlTemperature
selector
Auto A/C
ONA/C OFF
* If equipped
126893_TEXT.indd 198/13/12 10:49 PM

26
FEATURES/OPERATIONS
Cup holders
Front
Console box
Side table
Downhill Assist Control system helps the vehicle to descend steep hills while
maintaining a low speed without brake pedal operation. Press the “DAC” button
(system will engage only when shifter is in S1 or R mode, or vehicle speed is below
15 mph). Pressing the button again will turn system off.
Refer to the Owner’s Manual for more details.
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
Hill-start Assist Control (HAC)
Downhill Assist Control system (DAC)
(if equipped)
“DAC” indicator blinking = Downhill assist
control system not engagedSlip indicator blinking, “DAC” indicator
solid = Downhill assist control system
engaged
Refer to Section 3-5 of the Owner’s Manual for more information.
Display
Headphone jacks and headphone volume control
DVD player
Remote control
AV input port
120V AC power outlet
Rear seat entertainment system
(if equipped)
126893_TEXT.indd 268/13/12 10:50 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
27
Cup holders
Front
Console boxRear
Side table
Downhill Assist Control system helps the vehicle to descend steep hills while
maintaining a low speed without brake pedal operation. Press the “DAC” button
(system will engage only when shifter is in S1 or R mode, or vehicle speed is below
15 mph). Pressing the button again will turn system off.
Refer to the Owner’s Manual for more details.
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
Brake
pedal
Hill-start Assist Control (HAC)
Slip indicator blinking, “DAC” indicator
solid = Downhill assist control system
engaged
Refer to Section 3-5 of the Owner’s Manual for more information.
Display
Headphone jacks and headphone volume control
DVD player
Remote control
AV input port
120V AC power outlet
