224
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
3. CALLING ON THE Bluetooth® PHONE
1Press the “APPS” button.
2Select “Phone” .
3Select the desired tab to call from.
The phone top screen can be displayed by
pressing the
switch on the steering
wheel or switch on the instrument
panel.
After a Bluetooth® phone has been
registered, a call can be made using
the hands-free system. There are sev-
eral methods by which a call can be
made, as described below.How to make a call listPage
By favorites list225
By call history225
By contacts list*1226
By dial pad*1228
By e-mail/SMS/MMS236
By POI call*2271
By off hook switch228
By Entune App Suite*1, 2338
By voice command system174
By “Home” screen228
*
1: The operation cannot be performed while driving.
*
2: With navigation function

236
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
■EDITING QUICK REPLY MESSAG-
ES
1Select “Quick Message” .
2Select corresponding to the de-
sired message to edit.
3Select “OK” when editing is complet-
ed.
*: With navigation function
■CALLING FROM E-MAIL/SMS/MMS
MESSAGE DISPLAY
1Display the message inbox screen.
( P.233)
2Select the desired message.
3Select .
If there are 2 or more phone numbers,
select the desired number.
4Check that the “Call” screen is dis-
played.
This operation cannot be performed
while driving.
INFORMATION
●To reset the editquick reply messages,
select “Default” .
● “Quick Message 1” (“I am driving and
will arrive in approximately [ETA]
minutes.”)* :
This message cannot be edited and will
automatically fill in [ETA] with the
navigation calculated estimated time of
arrival on the confirm message screen.
If there are waypoints set, [ETA] to the
next waypoint will be shown.
If there is no route currently set in the
navigation system, “Quick Message 1”
cannot be selected.
CALLING THE MESSAGE
SENDER
Calls can be made to an e-mail/SMS/
MMS message sender’s phone num-
ber.
This operation can be performed while
driving.

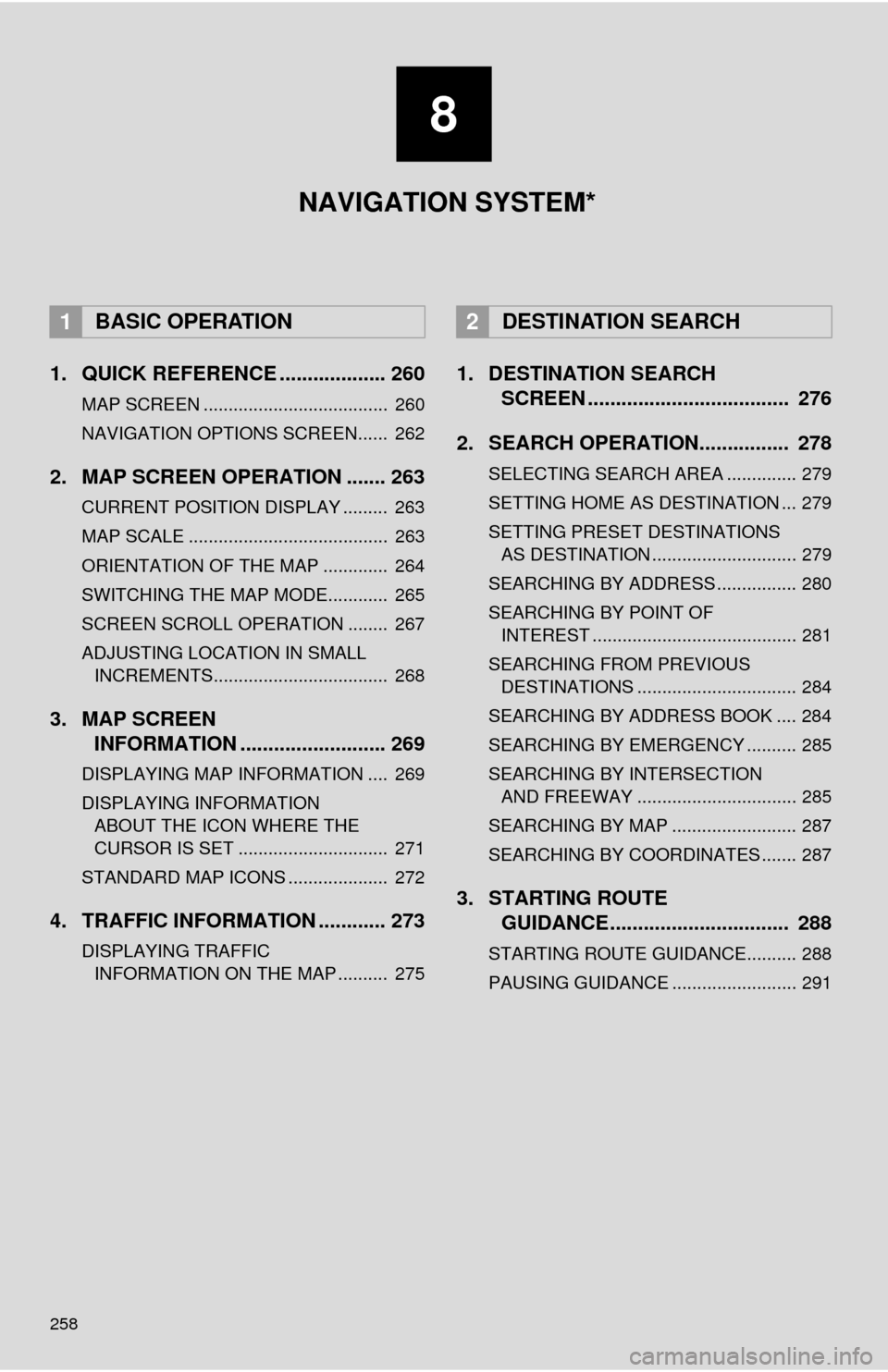

258
1. QUICK REFERENCE ................... 260
MAP SCREEN ..................................... 260
NAVIGATION OPTIONS SCREEN...... 262
2. MAP SCREEN OPERATION ....... 263
CURRENT POSITION DISPLAY ......... 263
MAP SCALE ........................................ 263
ORIENTATION OF THE MAP ............. 264
SWITCHING THE MAP MODE............ 265
SCREEN SCROLL OPERATION ........ 267
ADJUSTING LOCATION IN SMALL INCREMENTS................................... 268
3. MAP SCREEN INFORMATION .......................... 269
DISPLAYING MAP INFORMATION .... 269
DISPLAYING INFORMATION
ABOUT THE ICON WHERE THE
CURSOR IS SET .............................. 271
STANDARD MAP ICONS .................... 272
4. TRAFFIC INFORMATION ............ 273
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 275
1. DESTINATION SEARCH SCREEN .................................... 276
2. SEARCH OPERATION.. .............. 278
SELECTING SEARCH AREA .............. 279
SETTING HOME AS DESTINATION ... 279
SETTING PRESET DESTINATIONS
AS DESTINATION ............................. 279
SEARCHING BY ADDRESS ................ 280
SEARCHING BY POINT OF INTEREST ......................................... 281
SEARCHING FROM PREVIOUS DESTINATIONS ................................ 284
SEARCHING BY ADDRESS BOOK .... 284
SEARCHING BY EMERGENCY .......... 285
SEARCHING BY INTERSECTION AND FREEWAY ................................ 285
SEARCHING BY MAP ......................... 287
SEARCHING BY COORDINATES ....... 287
3. STARTING ROUTE GUIDANCE ....... ......................... 288
STARTING ROUTE GUIDANCE.......... 288
PAUSING GUIDANCE ......................... 291
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM*

8

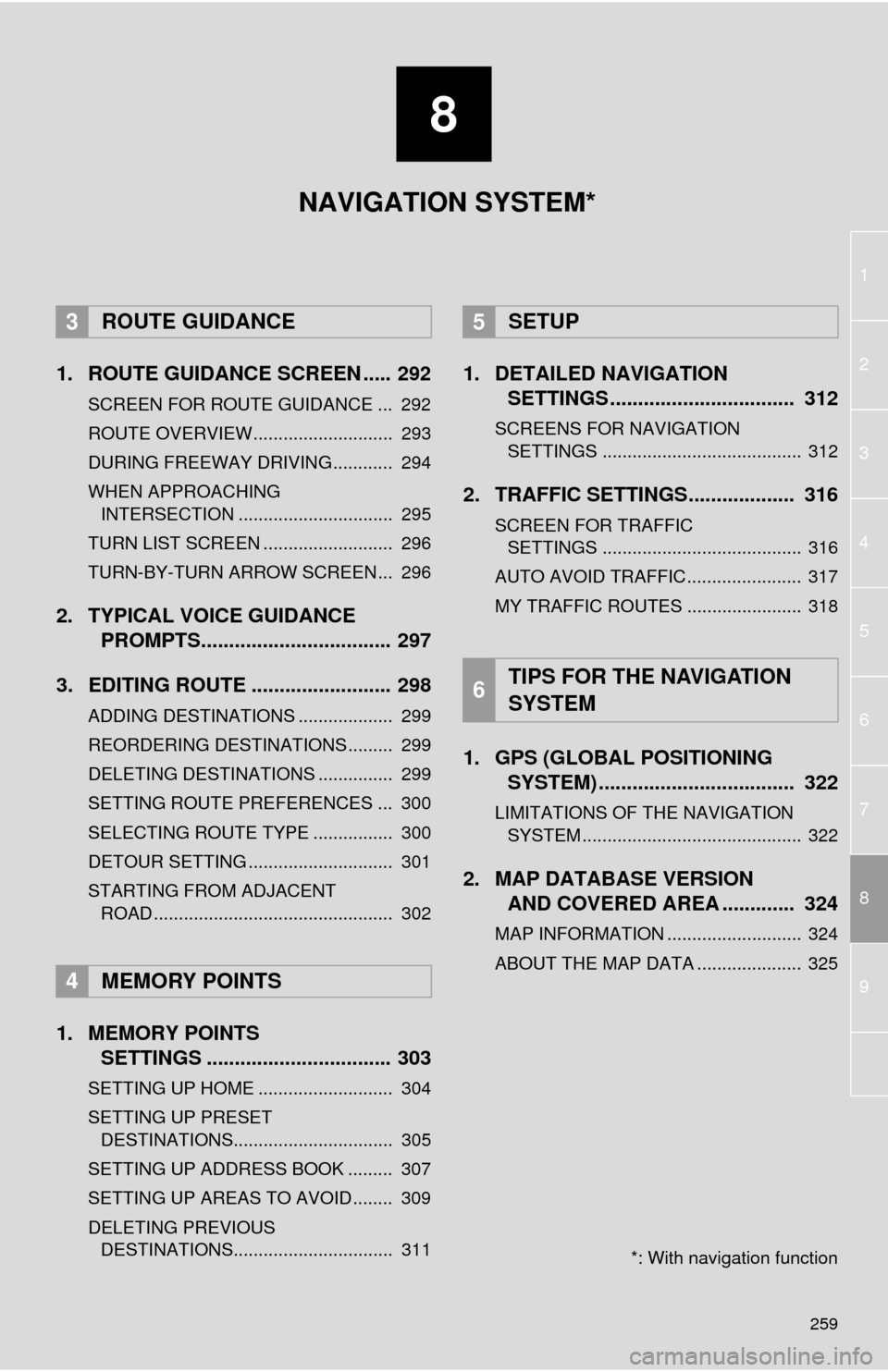

259
1
2
8
4
5
6
7
3
9
1. ROUTE GUIDANCE SCREEN ..... 292
SCREEN FOR ROUTE GUIDANCE ... 292
ROUTE OVERVIEW............................ 293
DURING FREEWAY DRIVING............ 294
WHEN APPROACHING INTERSECTION ............................... 295
TURN LIST SCREEN .......................... 296
TURN-BY-TURN ARROW SCREEN ... 296
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 297
3. EDITING ROUTE ......................... 298
ADDING DESTINATIONS ................... 299
REORDERING DESTINATIONS ......... 299
DELETING DESTINATIONS ............... 299
SETTING ROUTE PREFERENCES ... 300
SELECTING ROUTE TYPE ................ 300
DETOUR SETTING ............................. 301
STARTING FROM ADJACENT ROAD ................................................ 302
1. MEMORY POINTS SETTINGS ................................. 303
SETTING UP HOME ........................... 304
SETTING UP PRESET
DESTINATIONS................................ 305
SETTING UP ADDRESS BOOK ......... 307
SETTING UP AREAS TO AVOID ........ 309
DELETING PREVIOUS DESTINATIONS................................ 311
1. DETAILED NAVIGATION SETTINGS ................................. 312
SCREENS FOR NAVIGATION
SETTINGS ........................................ 312
2. TRAFFIC SETTINGS................... 316
SCREEN FOR TRAFFIC SETTINGS ........................................ 316
AUTO AVOID TRAFFIC....................... 317
MY TRAFFIC ROUTES ....................... 318
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 322
LIMITATIONS OF THE NAVIGATION
SYSTEM ............................................ 322
2. MAP DATABASE VERSION AND COVERED AREA ............. 324
MAP INFORMATION ........................... 324
ABOUT THE MAP DATA ..................... 325
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM*
*: With navigation function

260
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
264
Options buttonSelect to display the “Navigation Options” screen.262
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.322
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD Radio
broadcast, HD mark is displayed on the right.
273
Scale indicatorThis figure indicates the map scale.263

261
1. BASIC OPERATION
8
NAVIGATION SYSTEM
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
263
Footprint map
buttonSelect to display the footprint map screen.264
Current position
button/voice
guidance buttonSelect to display the current position address.
 Select to repeat voice guidance.297
Destination but-
tonSelect to display the “Destination” screen.276
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.269
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
292
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.292
No.NameFunctionPage

262
1. BASIC OPERATION

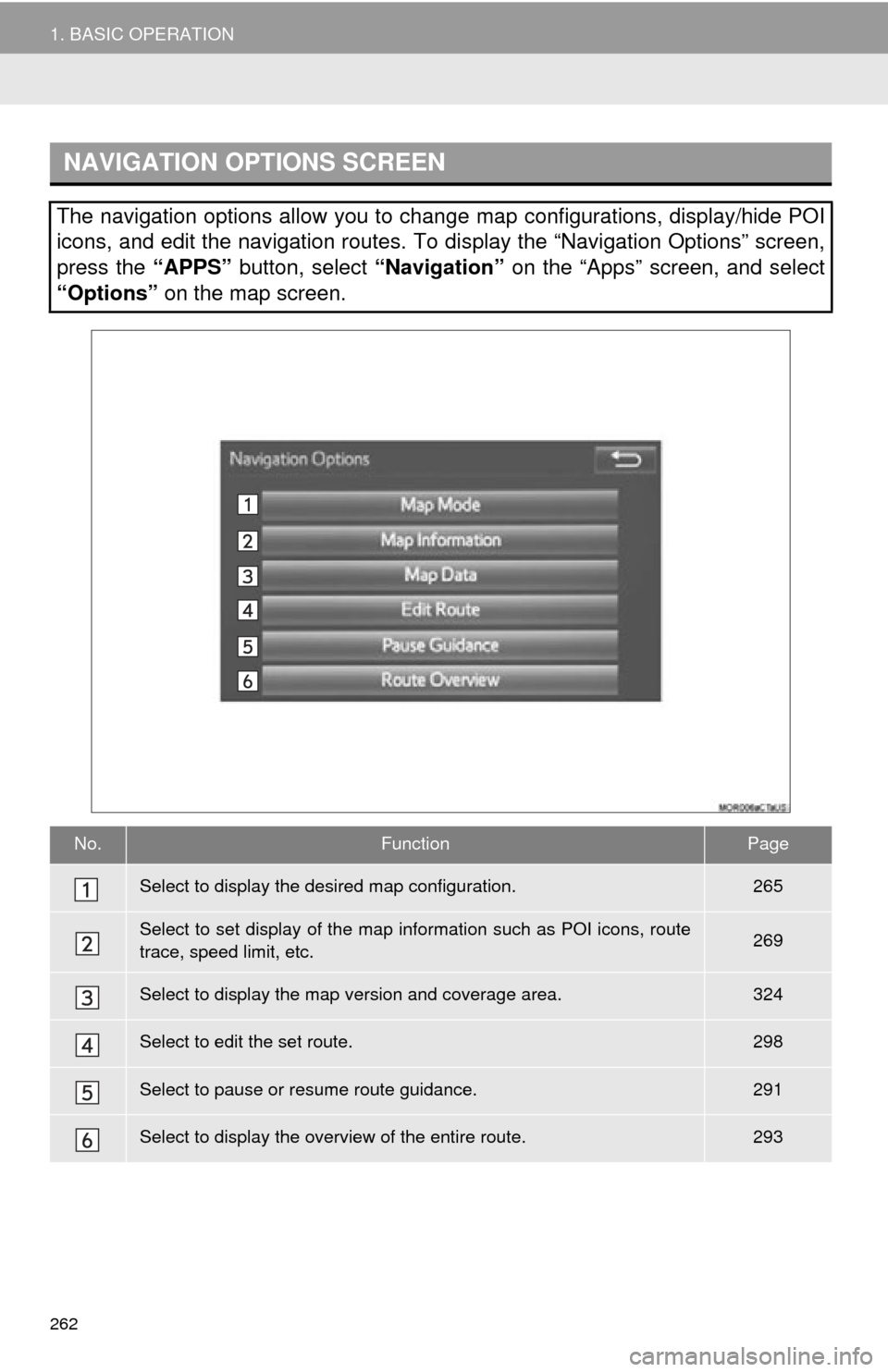

NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to display the desired map configuration.265
Select to set display of the map information such as POI icons, route
trace, speed limit, etc.269
Select to display the map version and coverage area.324
Select to edit the set route.298
Select to pause or resume route guidance.291
Select to display the overview of the entire route.293

263
1. BASIC OPERATION
8
NAVIGATION SYSTEM
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P. 3 1 4
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.
● In areas where the footprint map is avail-
able the map scale changes from
to when at the minimum range.

265
1. BASIC OPERATION
8
NAVIGATION SYSTEM
3D screen
: North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up.
 The letter(s) beside this symbol indicate
the vehicle’s heading direction (e.g. N for
north).
1Select “Options” on the map screen.
2Select “Map Mode” .
3Select the desired configuration but-
ton.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 266
Select to display the dual
map screen.266
Select to display the com-
pass mode screen.267
Select to display the turn list
screen.296
Select to display the free-
way exit list screen.294
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
295
Select to display the turn-
by-turn arrow screen.296

267
1. BASIC OPERATION
8
NAVIGATION SYSTEM
■COMPASS
To scroll over the map screen, place the
cursor mark in the desired position and
then touch and hold the map screen. The
map will continue scrolling in that direction
until the finger is released.
Information about the destination, cur-
rent position and a compass is dis-
played on the screen.
INFORMATION
● The destination mark is displayed in the
direction of the destination. When driv-
ing, refer to the longitude and latitude
coordinates, and the compass, to make
sure that the vehicle is headed in the
direction of the destination.
● When the vehicle travels out of the cov-
erage area, the guidance screen
changes to the whole compass mode
screen.
SCREEN SCROLL
OPERATION
Use the scroll feature to move the de-
sired point to the center of the screen
for looking at a point on the map that is
different from the current position.
No.Information/Function
Cursor mark
Distance from the current position to
the cursor mark.
Select to set as a destination.
When selecting “Go to ” on the
following map screen, the navigation
system performs a search for the
route. ( P.288)
If a destination has already been set,
“Go to ” and “Add to Route” will
be displayed.
“Go to ” : Select to delete the ex-
isting destination(s) and set a new
one.
“Add to Route” : Select to add a
destination.
Select to register as a memory point.
To change the icon, name, etc.:
 P.307
Select to return to the current posi-
tion.
