*1: Unladen vehicles
*2: With a seating capacity of 7 occupants
*3: With a seating capacity of 8 occupants
*4: Without a towing package
*5: With a towing package
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length191.1 in. (4855 mm)
Overall width 75.8 in. (1925 mm)
Overall height*1
Without roof antenna
68.1 in. (1730 mm)
With roof antenna
70.1 in. (1780 mm)
Wheelbase 109.8 in. (2790 mm)
Front tread64.4 in. (1635 mm)
Rear tread 64.2 in. (1630 mm)
Vehicle capacity weight
(Occupant + luggage)1385 lb. (625 kg)*2
1455 lb. (660 kg)*3
Trailer Weight Rating
(Trailer weight + cargo weight)
2.7 L 4-cylinder (1AR-FE)
engine
1500 lb. (680 kg)
3.5 L V6 (2GR-FE) engine
2000 lb. (900 kg)
*4
5000 lb. (2000 kg)*5

6339-1. Specifications
9
Vehicle specifications
HIGHLANDER_U (OM48E98U)■
Vehicle identification number

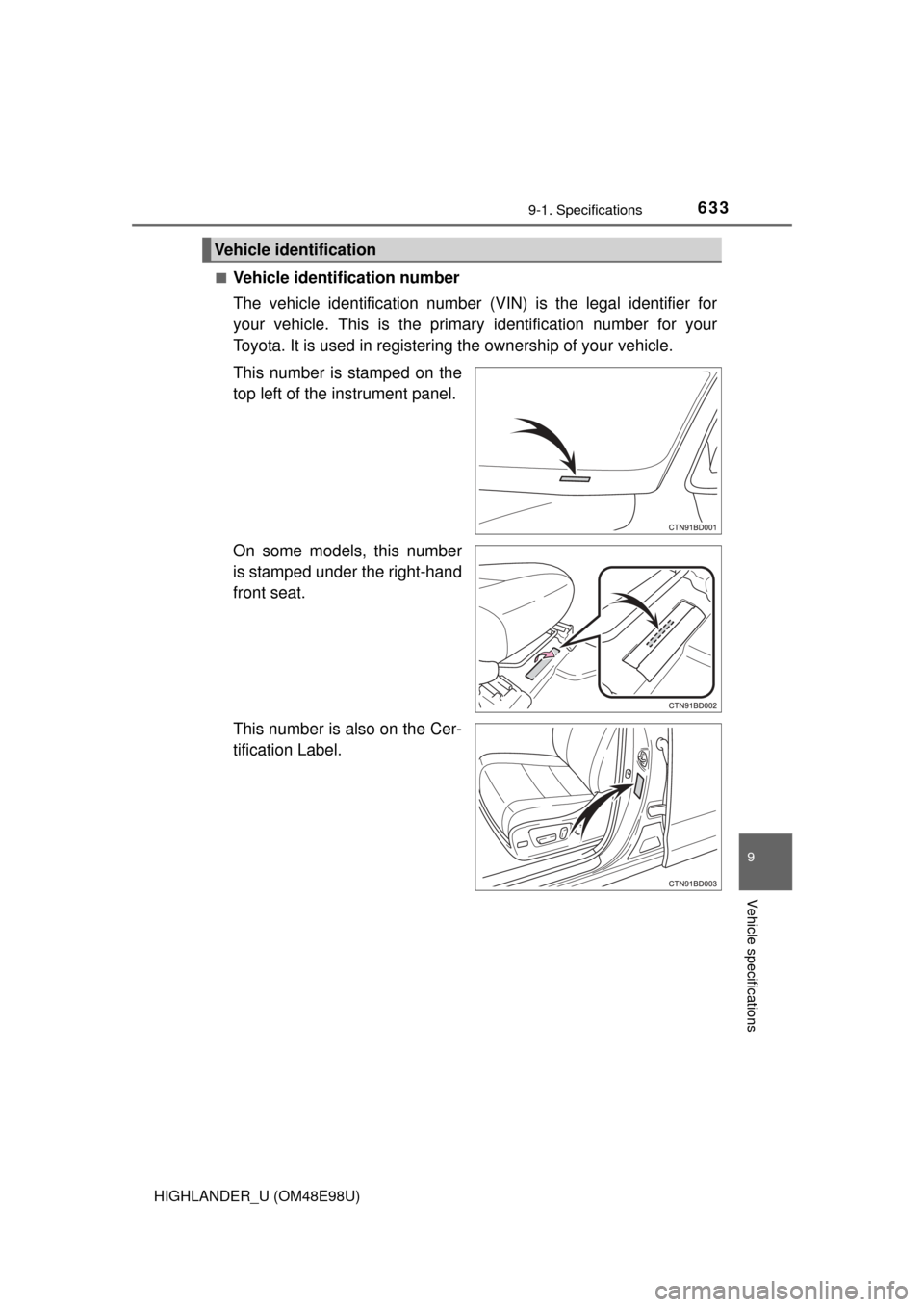

The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar
y identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
On some models, this number
is stamped under the right-hand
front seat.
This number is also on the Cer-
tification Label.
Vehicle identification

6349-1. Specifications
HIGHLANDER_U (OM48E98U)■

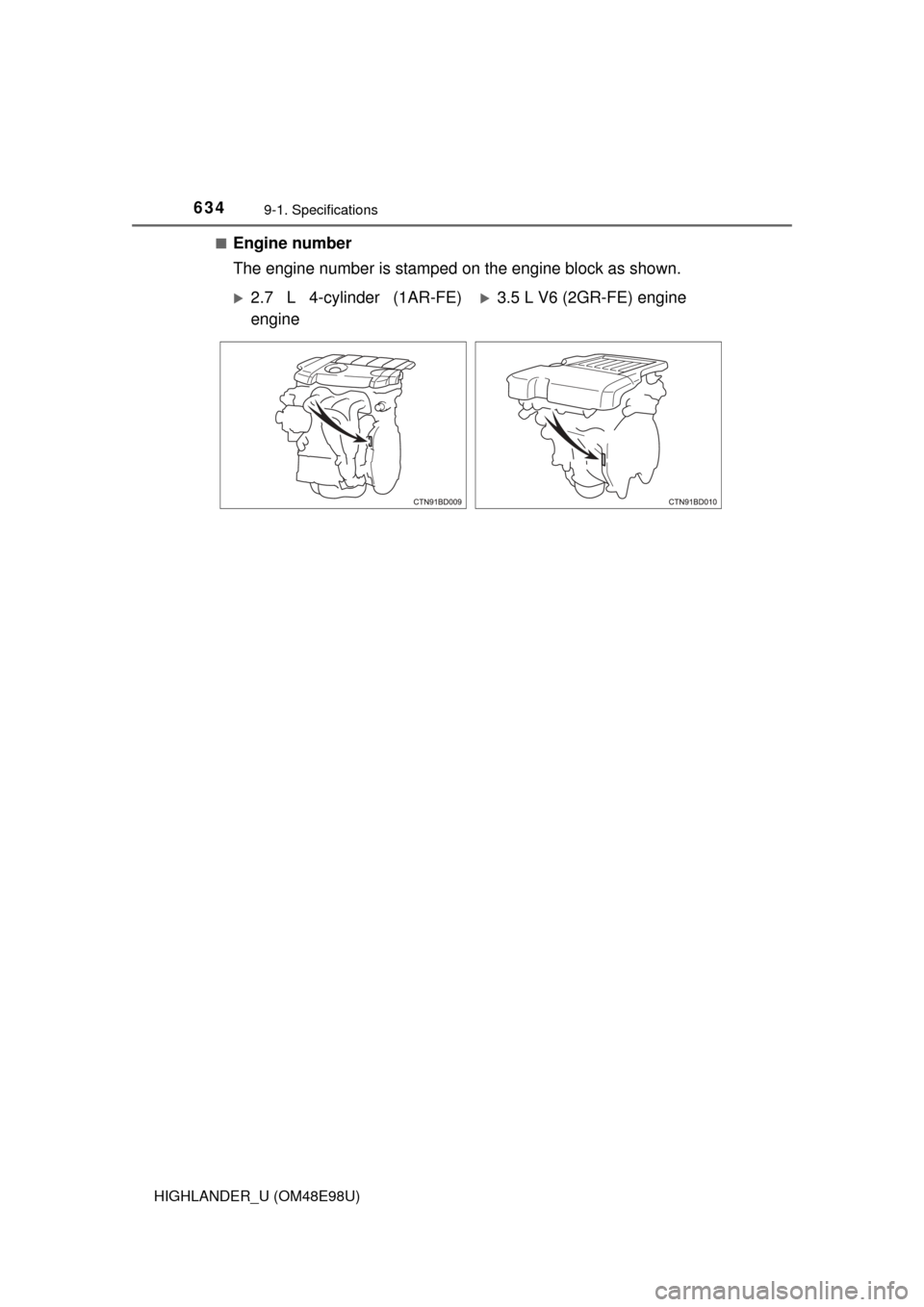

Engine number
The engine number is stamped on the engine block as shown.
2.7 L 4-cylinder (1AR-FE)
engine3.5 L V6 (2GR-FE) engine

6359-1. Specifications
9
Vehicle specifications
HIGHLANDER_U (OM48E98U)

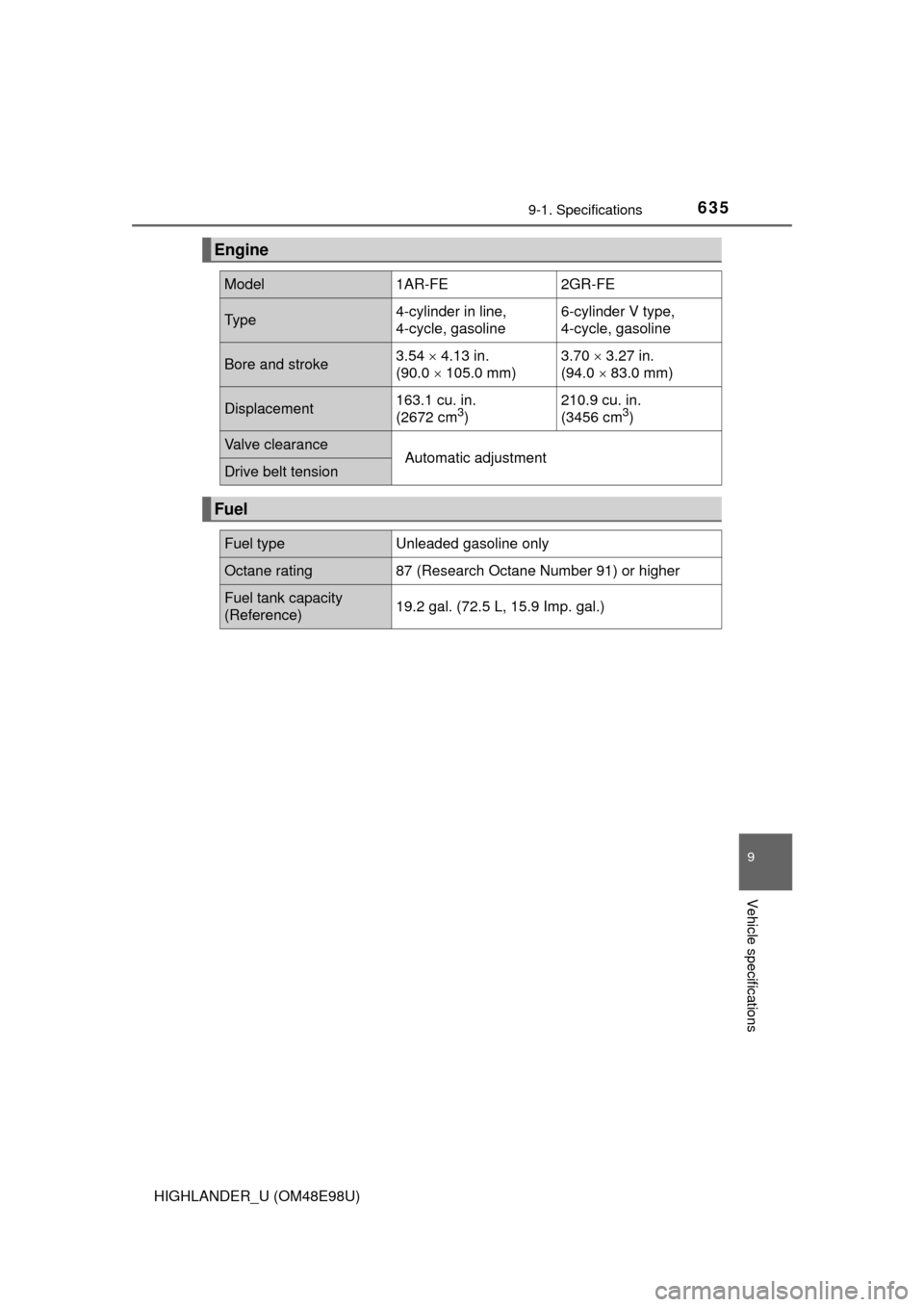

Engine
Model1AR-FE2GR-FE
Ty p e 4-cylinder in line,
4-cycle, gasoline6-cylinder V type,
4-cycle, gasoline
Bore and stroke
3.54 
4.13 in.
(90.0  105.0 mm) 3.70 
3.27 in.
(94.0  83.0 mm)
Displacement 163.1 cu. in.
(2672 cm3)210.9 cu. in.

(3456 cm3)
Valve clearance
Automatic adjustment
Drive belt tension
Fuel
Fuel typeUnleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)19.2 gal. (72.5 L, 15.9 Imp. gal.)

6369-1. Specifications
HIGHLANDER_U (OM48E98U)
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

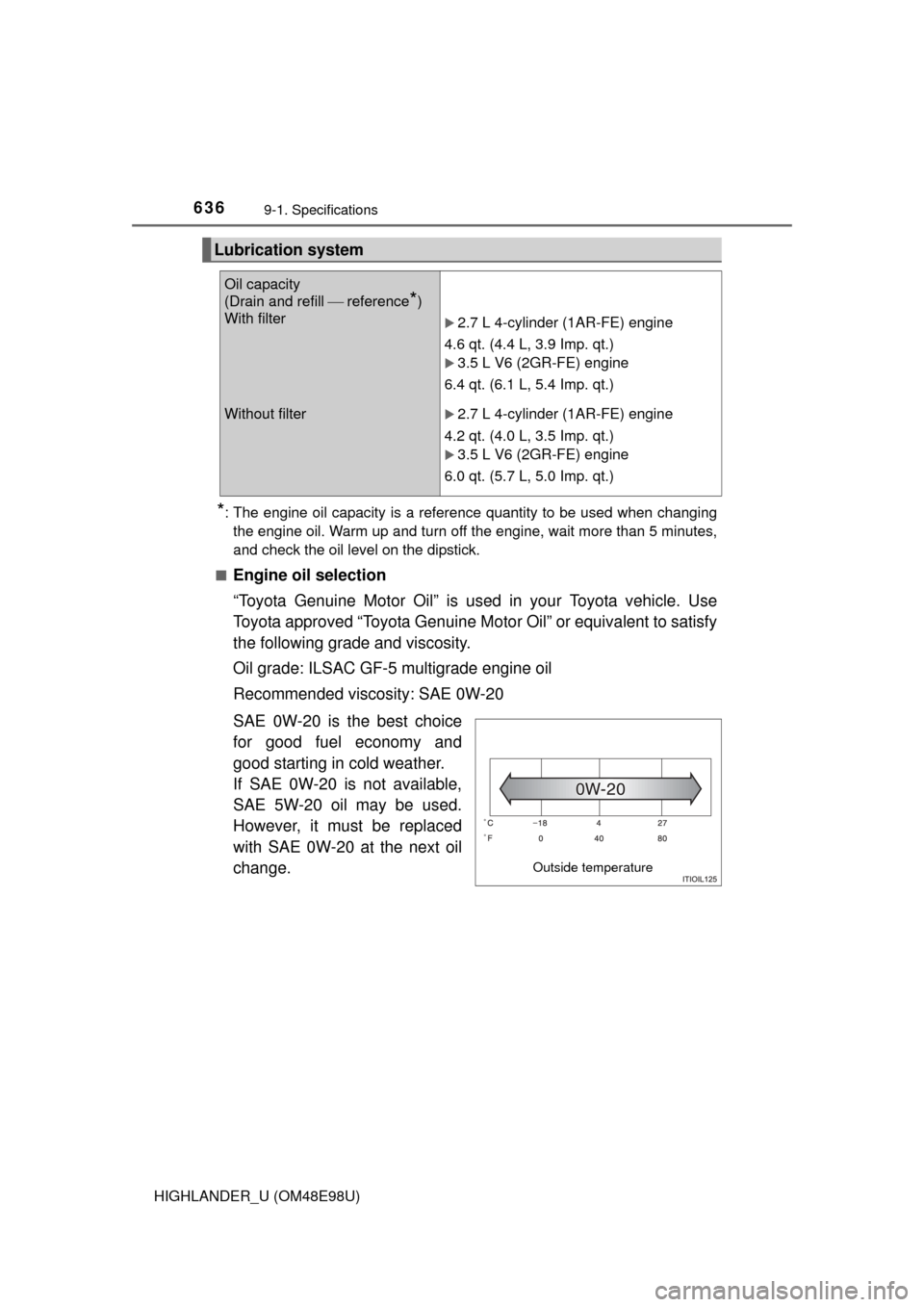

Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter
2.7 L 4-cylinder (1AR-FE) engine
4.6 qt. (4.4 L, 3.9 Imp. qt.)
3.5 L V6 (2GR-FE) engine
6.4 qt. (6.1 L, 5.4 Imp. qt.)
Without filter2.7 L 4-cylinder (1AR-FE) engine
4.2 qt. (4.0 L, 3.5 Imp. qt.)
3.5 L V6 (2GR-FE) engine
6.0 qt. (5.7 L, 5.0 Imp. qt.)
Outside temperature

6379-1. Specifications
9
Vehicle specifications
HIGHLANDER_U (OM48E98U)
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils wi th a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant Specification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oi l you should use.

6389-1. Specifications
HIGHLANDER_U (OM48E98U)

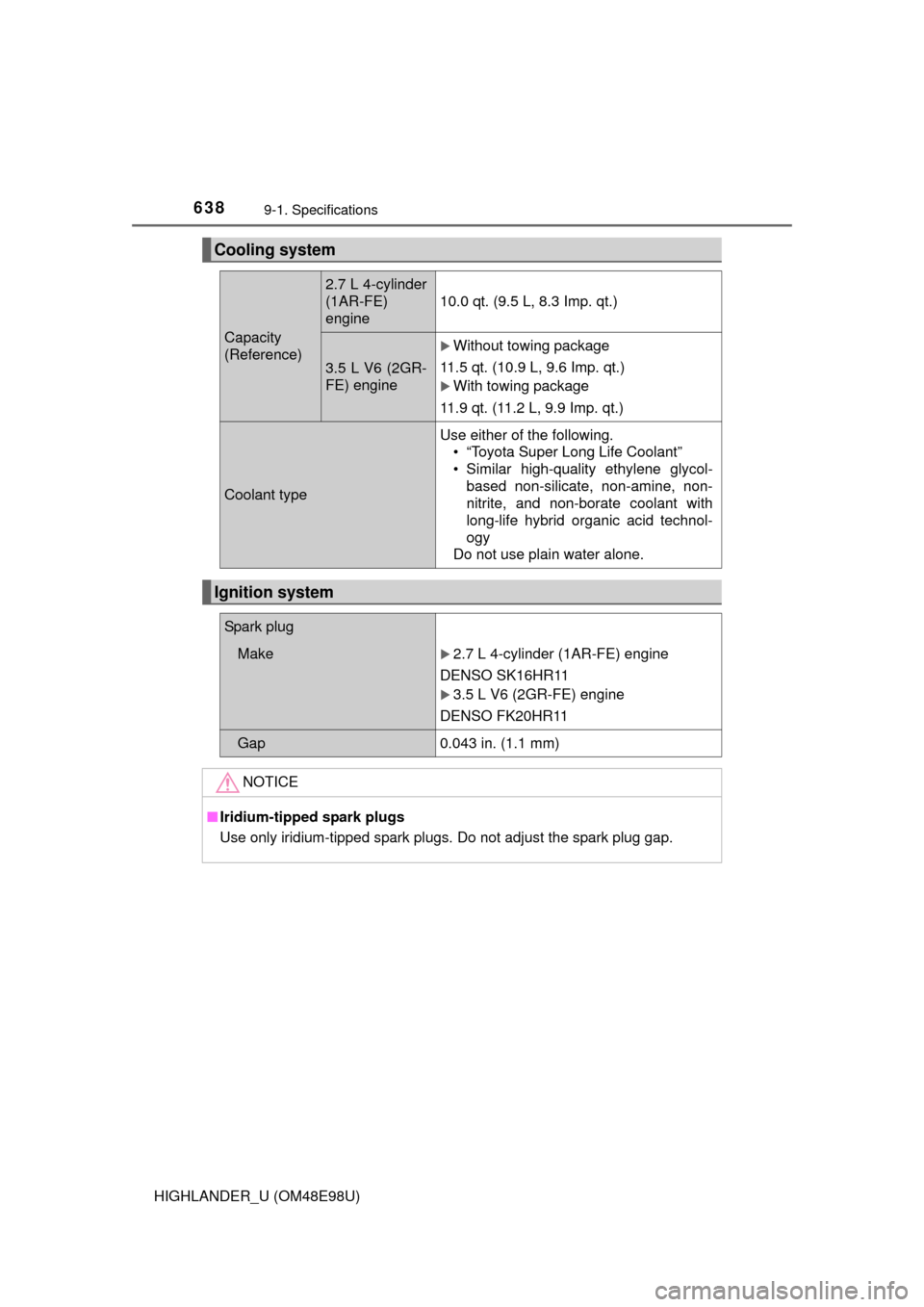

Cooling system
Capacity
(Reference)
2.7 L 4-cylinder
(1AR-FE)
engine10.0 qt. (9.5 L, 8.3 Imp. qt.)
3.5 L V6 (2GR-
FE) engine
Without towing package
11.5 qt. (10.9 L, 9.6 Imp. qt.)
With towing package
11.9 qt. (11.2 L, 9.9 Imp. qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Ignition system
Spark plug
Make2.7 L 4-cylinder (1AR-FE) engine
DENSO SK16HR11
3.5 L V6 (2GR-FE) engine
DENSO FK20HR11
Gap0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

6399-1. Specifications
9
Vehicle specifications
HIGHLANDER_U (OM48E98U)
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Toyota dealer.

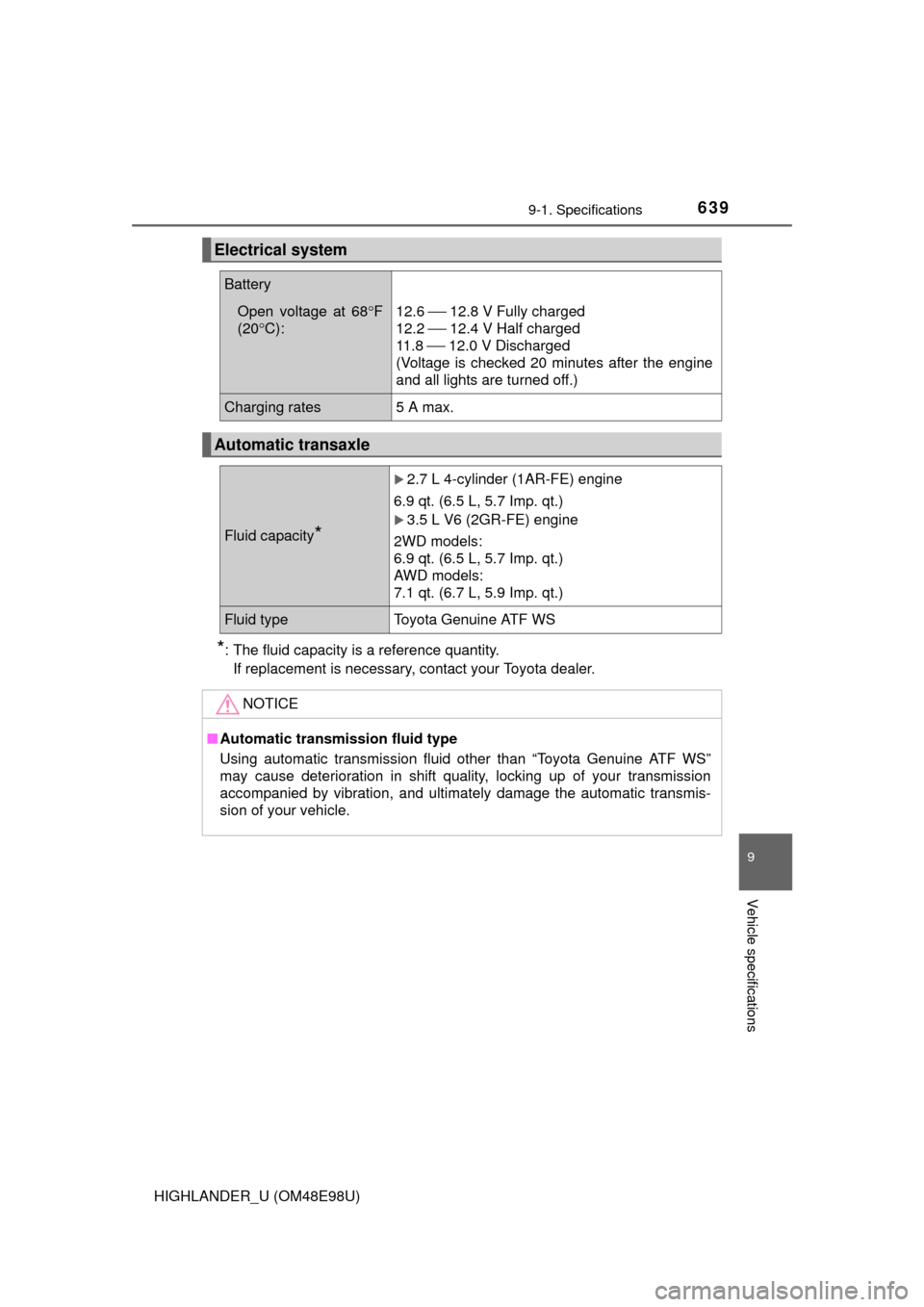

Electrical system
Battery
Open voltage at 68 F
(20 C): 12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Automatic transaxle
Fluid capacity*
2.7 L 4-cylinder (1AR-FE) engine
6.9 qt. (6.5 L, 5.7 Imp. qt.)
3.5 L V6 (2GR-FE) engine
2WD models:
6.9 qt. (6.5 L, 5.7 Imp. qt.)
AWD models:
7.1 qt. (6.7 L, 5.9 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic transmis-
sion of your vehicle.

6409-1. Specifications
HIGHLANDER_U (OM48E98U)Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent
of matching quality to satisfy the above specification. Please contact your
Toyota dealer for further details.
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent
of matching quality to satisfy the above specification. Please contact your
Toyota dealer for further details.
Transfer (AWD models)
Oil capacity
0.8 qt. (0.8 L, 0.7 Imp. qt.)
Oil type and viscosityToyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent
Rear differential (AWD models)
Oil capacity
0.5 qt. (0.5 L, 0.4 Imp. qt.)
Oil type and viscosityToyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent
