Page 21 of 352
21
2. QUICK REFERENCE
HIGHLANDER_Navi_U
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound, automatic
screen change settings, etc.59
Select to customize the home screen.37
Select to set the voice settings.66
Select to adjust the contrast and brightness of the screens, etc.41
Select to link the driver’s cellular phone settings. (audio presets, lan-
guage, etc.)68
Select to set audio settings.121
Select to set the phone sound, contacts, message settings, etc.241
Select to set Bluetooth® phones and Bluetooth® audio devices.51
Select to turn the screen off. To turn it on, press any button.
Select to set vehicle information.202, 219
*
Select to change the phone data plan pop-up message timing.
(“Connected Navigation” is downloadable application via smartphones
using a cellular data connection.)
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.304, 313
*Select to set Entune App Suite settings.340
*Select to set data services settings.185
*Select to set traffic information.317
Select to set Driver Easy Speak settings.186
*: Available in the 48 states, D.C. and Alaska
Page 22 of 352
22
3. NAVIGATION OPERATION
HIGHLANDER_Navi_U
1. REGISTERING HOME*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select “Go Home”.
Select “Yes”.
There are different kinds of meth-
ods to search for your home.
(P.277)
*: Entune Premium Audio only
1
2
3
4
5
6
3. NAVIGATION OPERATION
Page 23 of 352
23
3. NAVIGATION OPERATION
HIGHLANDER_Navi_U
QUICK GUIDE
1Select “Enter”.
Select “OK”.
Registration of home is complete.
Registering home in a different way
P.305
Editing the name, location, phone num-
ber and icon
P.305
Setting home as the destination
P.280
7
8
Page 24 of 352
24
3. NAVIGATION OPERATION
HIGHLANDER_Navi_U
2. REGISTERING PRESET DESTINATIONS*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”. Select one of the preset destina-
tion buttons.
Select “Yes”.
There are different kinds of meth-
ods to search for a destination.
(P.277)
*: Entune Premium Audio only
1
2
3
4
5
6
Page 25 of 352
25
3. NAVIGATION OPERATION
HIGHLANDER_Navi_U
QUICK GUIDE
1Select “Enter”.
Select a position for this preset
destination.
Select “OK”.
Registration of preset destinations is
complete.
Registering preset destinations in a dif-
ferent way
P.306
Editing the name, location, phone num-
ber and icon
P.307
Setting preset destinations as the desti-
nation
P.280
7
8
9
Page 26 of 352
26
3. NAVIGATION OPERATION
HIGHLANDER_Navi_U
3. OPERATION FLOW: GUIDING THE ROUTE*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
There are different kinds of meth-
ods to search for a destination.
(P.277)Select “Go”.
Select “OK”.
Selecting routes other than the one recom-
mended. ( P.289)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*: Entune Premium Audio only
1
2
3
4
5
6
Page 27 of 352
27
3. NAVIGATION OPERATION
HIGHLANDER_Navi_U
QUICK GUIDE
1
4. SETTING HOME AS THE DESTINATION*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Select “Go Home”. Select “OK”.
Selecting routes other than the one recom-
mended. ( P.289)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*: Entune Premium Audio only
1
2
3
4
5
Page 28 of 352
28
HIGHLANDER_Navi_U

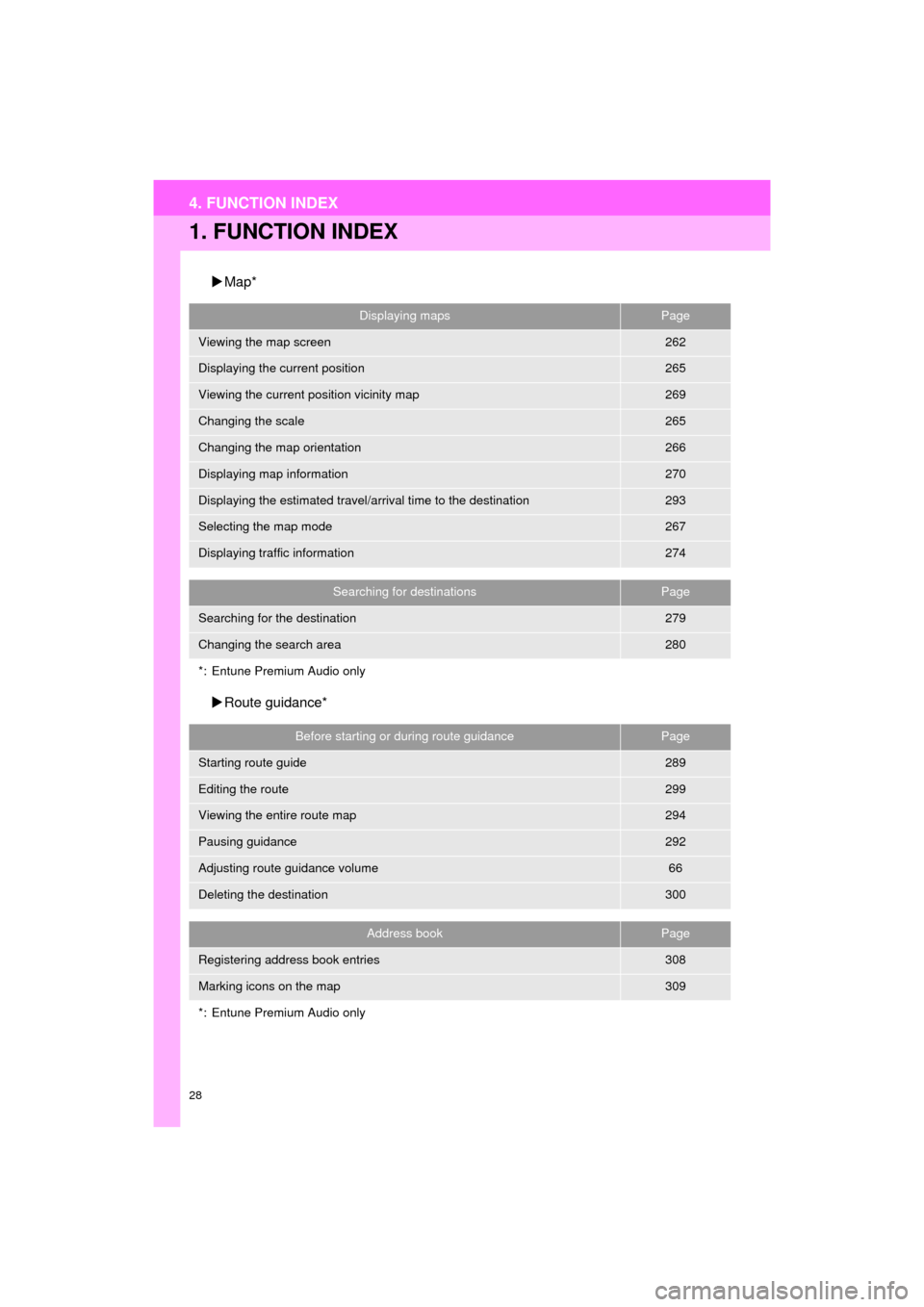

4. FUNCTION INDEX
1. FUNCTION INDEX
Map*
Route guidance*
Displaying mapsPage
Viewing the map screen262
Displaying the current position265
Viewing the current position vicinity map269
Changing the scale265
Changing the map orientation266
Displaying map information270
Displaying the estimated travel/arrival time to the destination293
Selecting the map mode267
Displaying traffic information274
Searching for destinationsPage
Searching for the destination279
Changing the search area280
*: Entune Premium Audio only
Before starting or during route guidancePage
Starting route guide289
Editing the route299
Viewing the entire route map294
Pausing guidance292
Adjusting route guidance volume66
Deleting the destination300
Address bookPage
Registering address book entries308
Marking icons on the map309
*: Entune Premium Audio only
Page 29 of 352
29
4. FUNCTION INDEX
HIGHLANDER_Navi_U
QUICK GUIDE
1
Useful functions
InformationPage
Displaying vehicle maintenance*69
Hands-free system (for cellular phone)Page
Registering/connecting Bluetooth® phone44
Making a call on a Bluetooth® phone226
Receiving a call on the Bluetooth® phone232
Voice command systemPage
Operating the system with your voice170
Peripheral monitoring systemPage
Viewing behind the rear of the vehicle190
*: Entune Premium Audio only
