912. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM48F09U)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

922. Instrument cluster
HIGHLANDER_U (OM48F09U)
Vehicles with monochrome display
Vehicles with color display

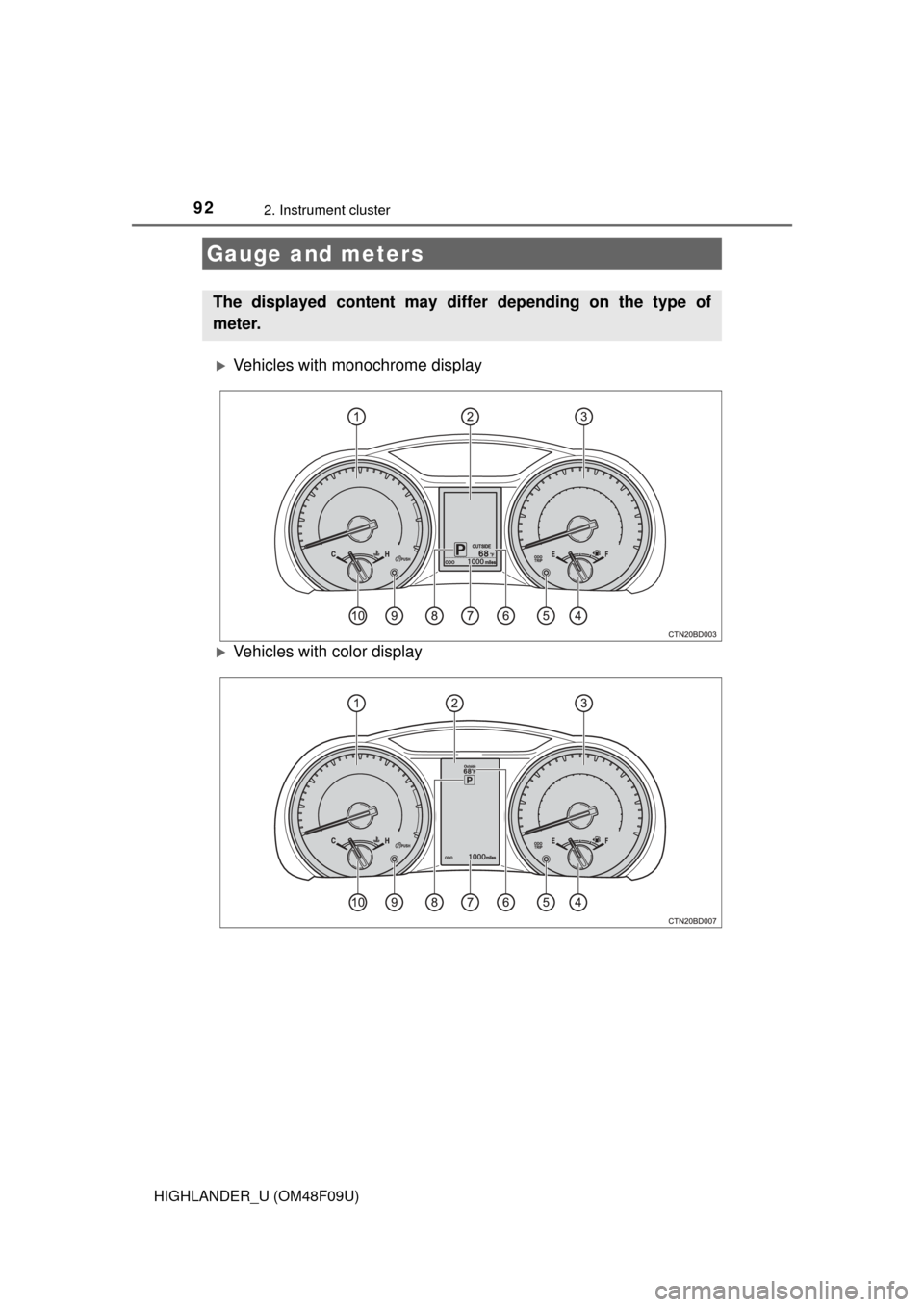

Gauge and meters
The displayed content may differ depending on the type of
meter.

932. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM48F09U)
Tachometer
Displays the engine speed in revolutions per minute.
Multi-information display
Presents the driver with a variety of driving-related data.
Speedometer
Fuel gauge
Trip meter reset knob
Switches the trip information.
Outside temperature
Odometer and trip meter display
Shift position and shift range
Displays the selected shift position or selected shift range. (P. 234)
Meter panel lights control button
Engine coolant temperature gauge
Displays the engine coolant temperature.
Switches between the trip meter
“A” and “B” displays. When the trip
meter is displayed, pressing and
holding the knob will reset the trip
meter.

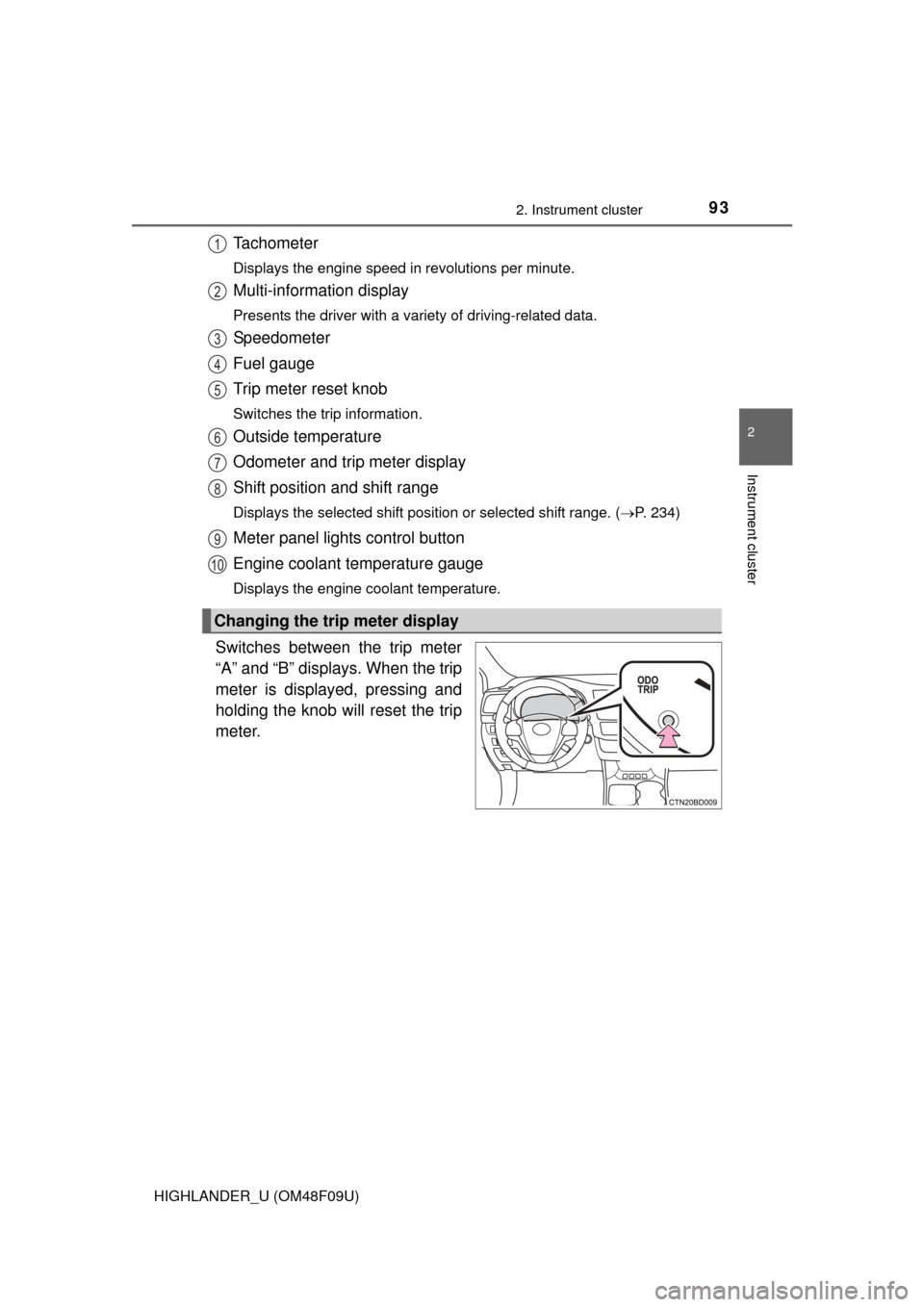

Changing the trip meter display
1
2
3
4
5
6
7
8
9
10

942. Instrument cluster
HIGHLANDER_U (OM48F09U)
The brightness of the meter panel lights can be adjusted.
Pressing the button will adjust the
brightness of the meter panel
lights.
The brightness level of the meters
when the surroundings are bright
(day mode) and dark (night mode)
can be adjusted individually. How-
ever, when in day mode, adjusting
the brightness level will also
change the brightness level of
night mode.
■ The meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■ Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
Instrument panel light control
NOTICE
■ To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 632)

952. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM48F09U)
The multi-information display presents the driver with a variety of
driving-related data.
●Drive information
● Warning messages ( P. 578)
● Eco Driving Indicator Zone Dis-
play ( P. 105)
Items displayed can be switched
by pressing the “DISP” switch.

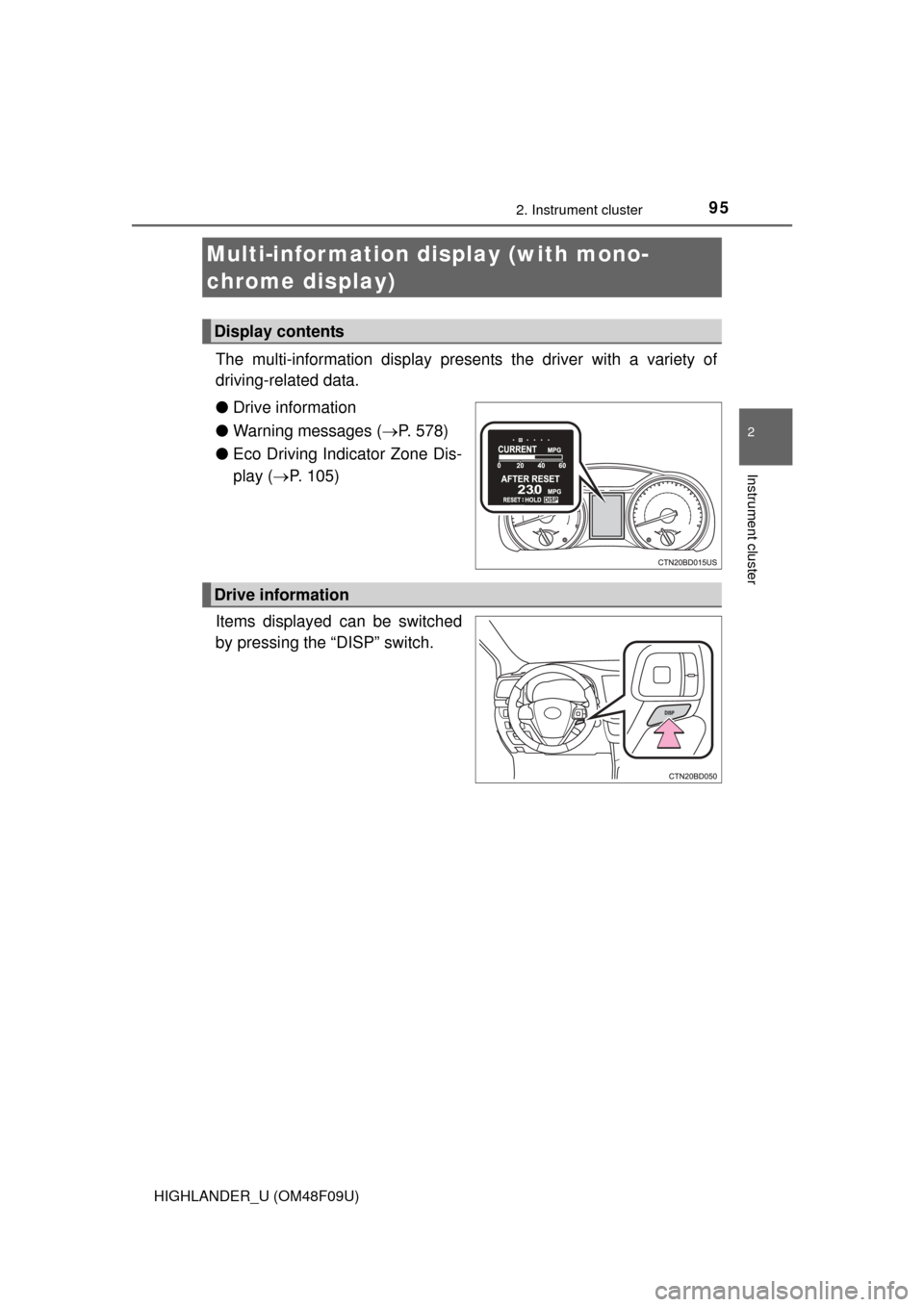

Multi-infor mation di splay (with mono-
chrome display)
Display contents
Drive information

962. Instrument cluster
HIGHLANDER_U (OM48F09U)
●Current fuel consumption
Displays the current rate of fuel consumption.
Average fuel economy (after reset
*)
Displays the average fuel economy since the function was reset
respectively
Use the displayed average fuel economy as a reference.
● Distance (driving range)
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining and t he distance driven after the func-
tion was reset respectively
• This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
Average fuel economy (after refuel)
Displays the average fuel economy since the vehicle was refueled
respectively
Use the displayed average fuel economy as a reference.
● Distance (after reset*)
Displays the estimated maximum di stance driven after the function
was reset respectively
Average vehicle speed (after reset
*)
Displays the average vehicle spe ed since the function was reset
● Customization
Eco Driving Indicator Light, La nguage and Units settings can be
changed. ( P. 9 8 )
● Eco Driving Indicator Zone Display
P. 1 0 5
*: Press and hold the “DISP” switch to reset.

972. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM48F09U)■
Changing the settings
Press the “DISP” switch to
display the setting display
while the vehicle is stopped,
and then press and hold the
“DISP” switch to display the
customize mode display.
Press the “DISP” switch to
select the item to be set, then
press and hold the “DISP”
switch.
Press the “DISP” switch to
select the desired setting,
and then press and hold the
“DISP” switch.
To go back to the previous screen or exit the customize mode,
press the “DISP” switch to select “EXIT”, and then press and hold
the “DISP” switch.
Settings display
1
2
3

982. Instrument cluster
HIGHLANDER_U (OM48F09U)■
Customizable items
●
Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
● Language
Select to change the language on the display.
● Units
Select to change the unit of measure for fuel consumption.
Settings can be changed. (Customizable features: P. 669)
■Setting display automatic cancelation
In the following situations, setting display in which the settings can b\
e
changed through the “DISP” switch will automatically be turned off.
●When a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■During setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

992. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM48F09U)
Drive information
Select to display various drive
data. (P. 101)
Navigation system-
linked display (if
equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Dynamic radar cruise control operation guide (if equipped)
Select to display operation procedures of the dynamic radar cruise
control. ( P. 268)
The tab will change to when the vehicle is in constant
speed control mode. ( P. 275)
If activated, the operational status of the LDA (Lane Departure Alert)
system will also be displayed. (If equipped) ( P. 285)
LDA (Lane Departure Alert) operational status (if equipped)*
Select to display the operational status of the LDA (Lane Departure
Alert). (P. 283)
If activated, the operation procedures of the dynamic radar cruise
control system will also be displayed. (If equipped) (P. 268)
*: The LDA operational status will not be displayed if the dynamic radar cruise control operation guide is displayed.

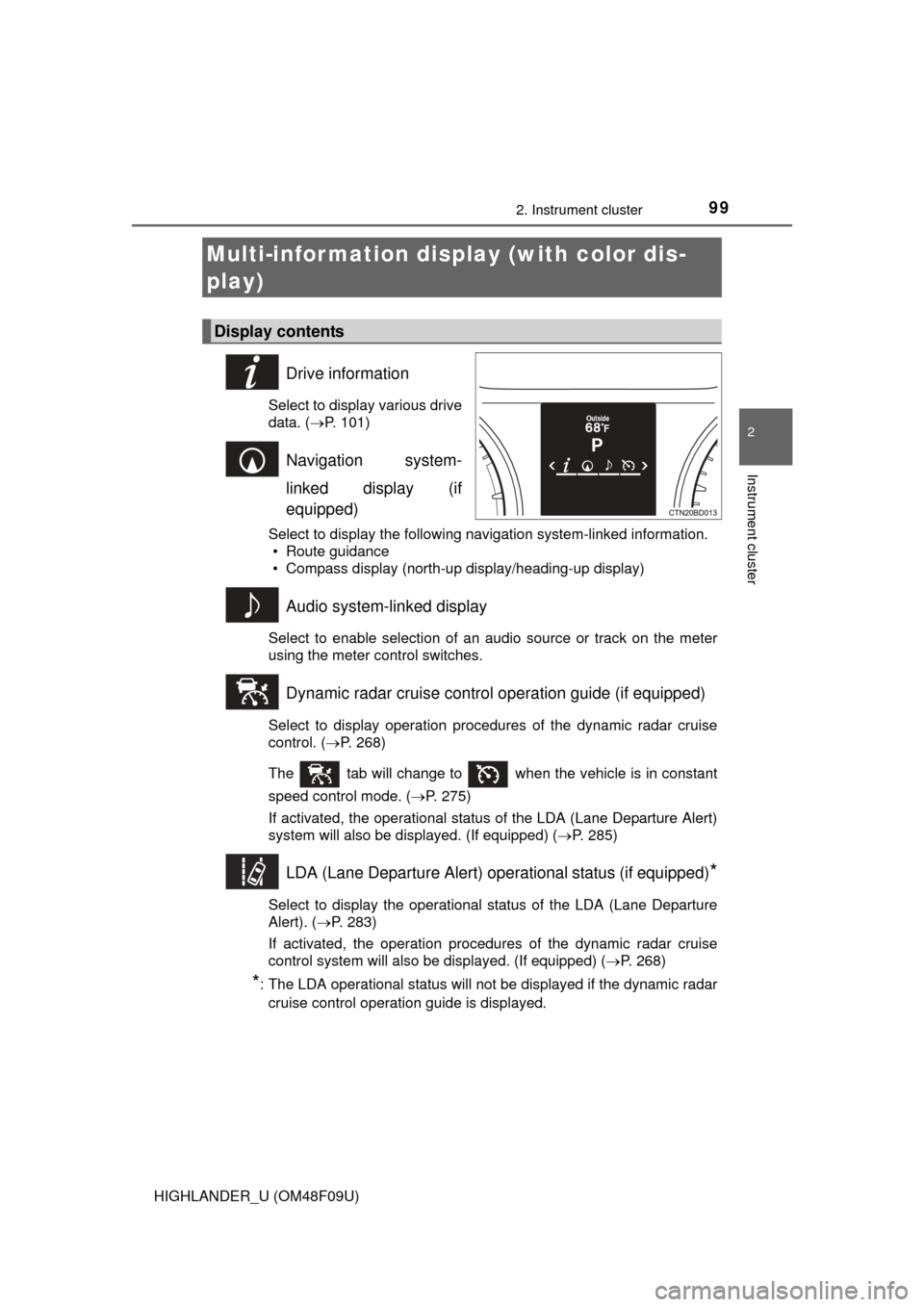

Multi-infor mation disp lay (with color dis-
play)
Display contents

1002. Instrument cluster
HIGHLANDER_U (OM48F09U)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (P. 578)
Settings display
Select to change the meter display settings. ( P. 102)
■

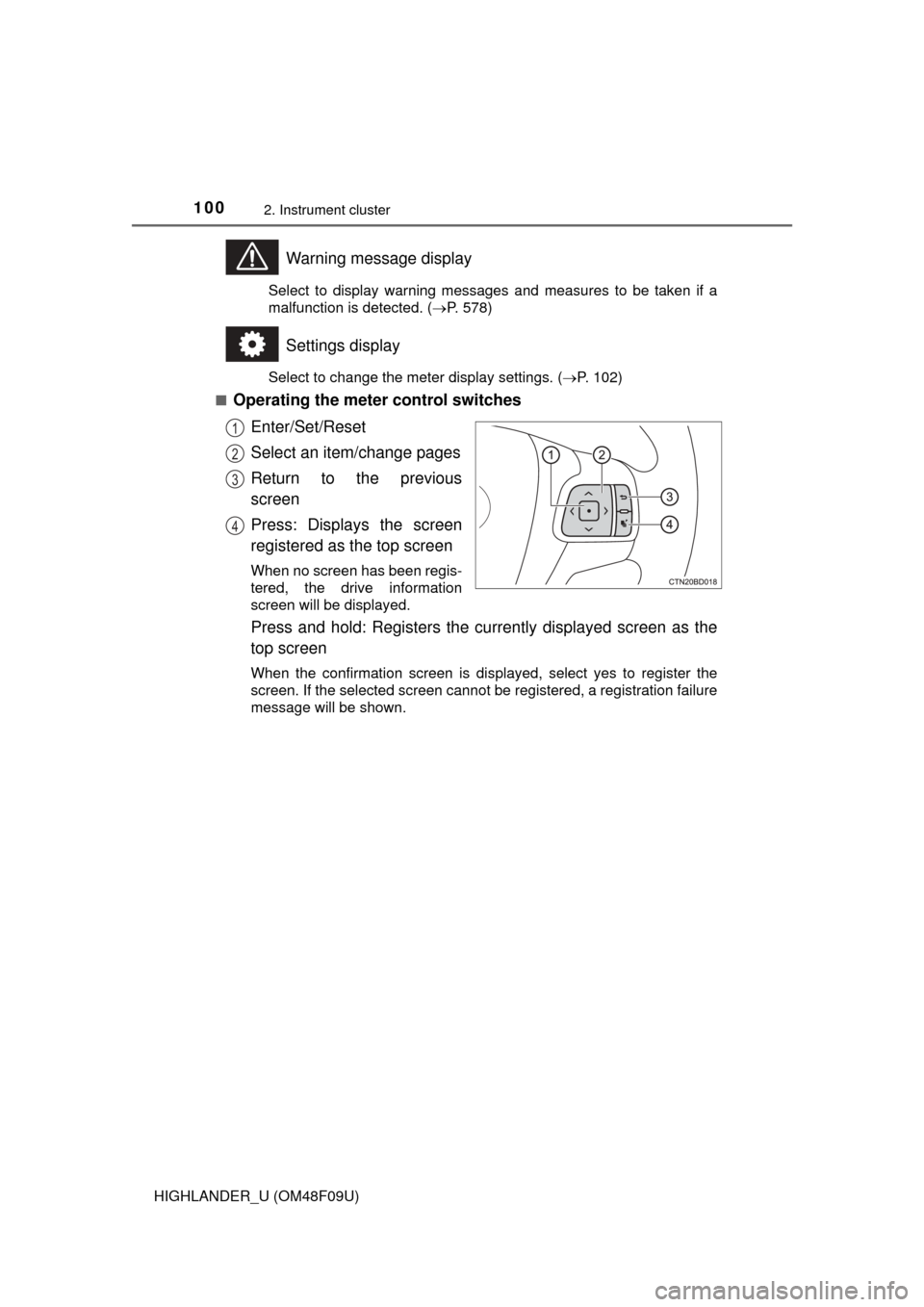

Operating the meter control switches
Enter/Set/Reset
Select an item/change pages
Return to the previous
screen
Press: Displays the screen
registered as the top screen
When no screen has been regis-
tered, the drive information
screen will be displayed.
Press and hold: Registers the currently displayed screen as the
top screen
When the confirmation screen is displayed, select yes to register the
screen. If the selected screen cannot be registered, a registration failure
message will be shown.
1
2
3
4
