TOYOTA HIGHLANDER 2016 XU50 / 3.G Owners Manual

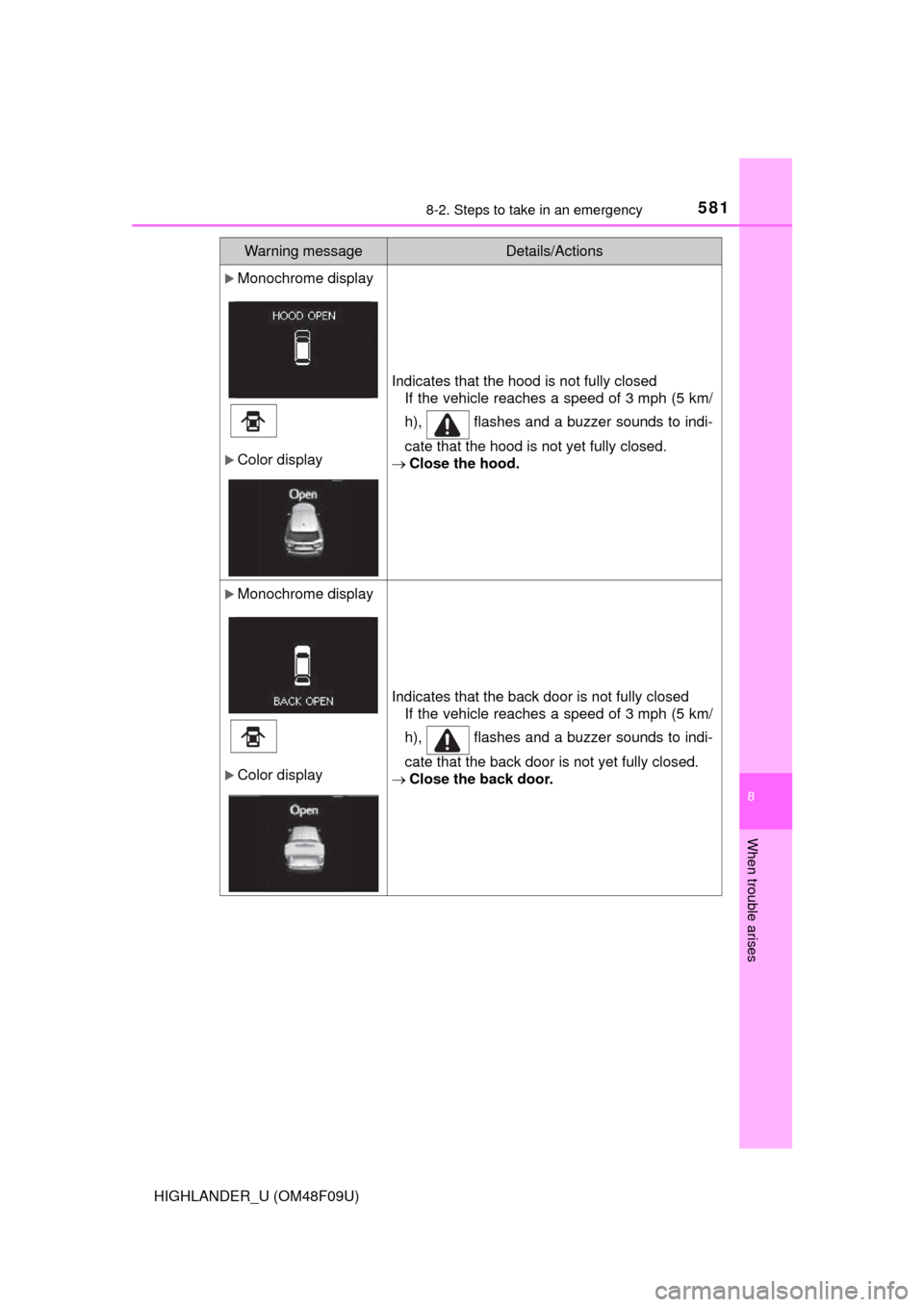

5818-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)
Monochrome display
Color display
Indicates that the hood is not fully closedIf the vehicle reaches a speed of 3 mph (5 km/
h), flashes and a buzzer sounds to indi-
cate that the hood is not yet fully closed.
 Close the hood.
Monochrome display
Color display
Indicates that the back door is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/
h), flashes and a buzzer sounds to indi-
cate that the back door is not yet fully closed.
 Close the back door.
Warning messageDetails/Actions

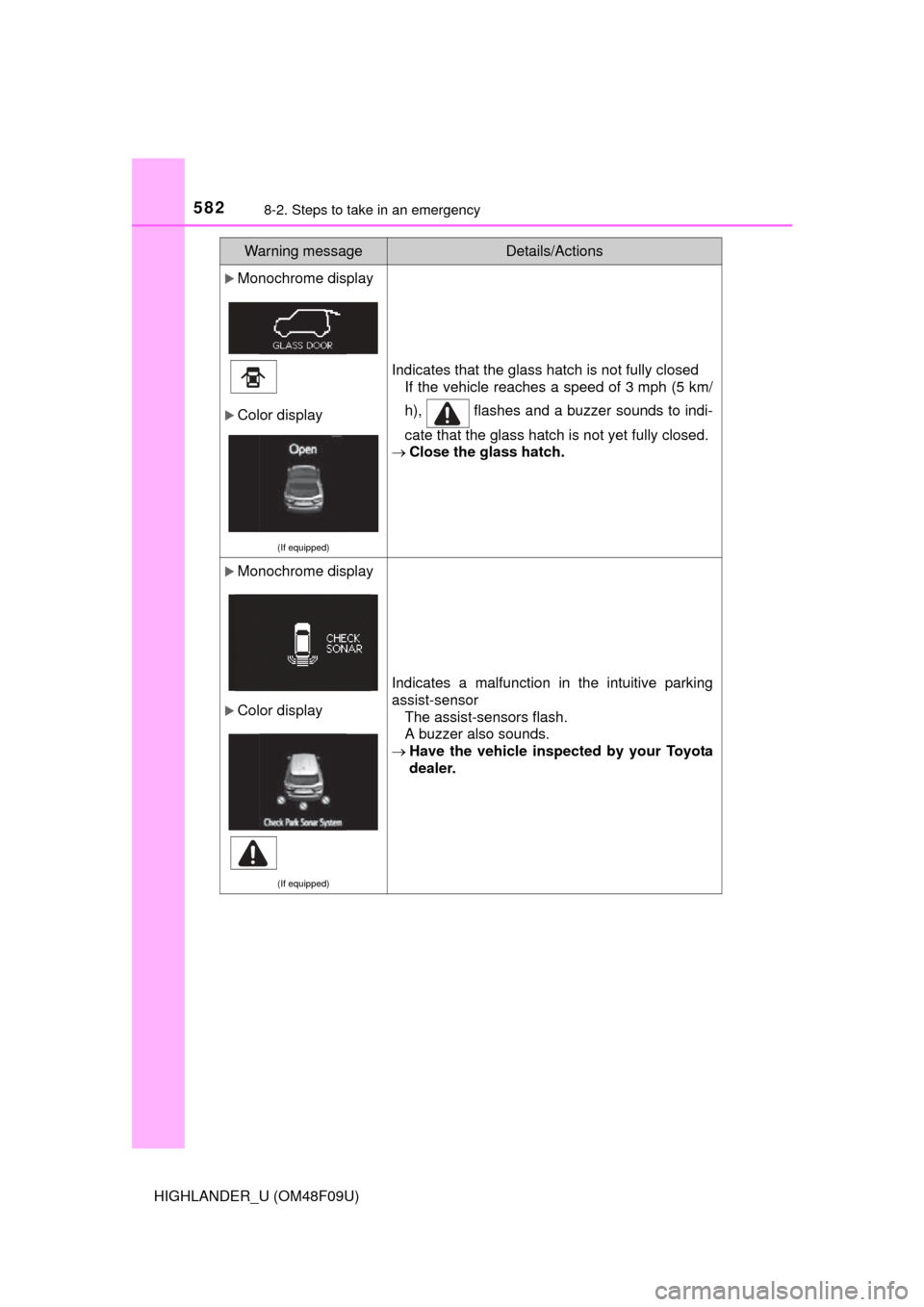

5828-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)
Monochrome display
Color display
(If equipped)
Indicates that the glass hatch is not fully closedIf the vehicle reaches a speed of 3 mph (5 km/
h), flashes and a buzzer sounds to indi-
cate that the glass hatch is not yet fully closed.
 Close the glass hatch.
Monochrome display
Color display
(If equipped)
Indicates a malfunction in the intuitive parking
assist-sensor
The assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions

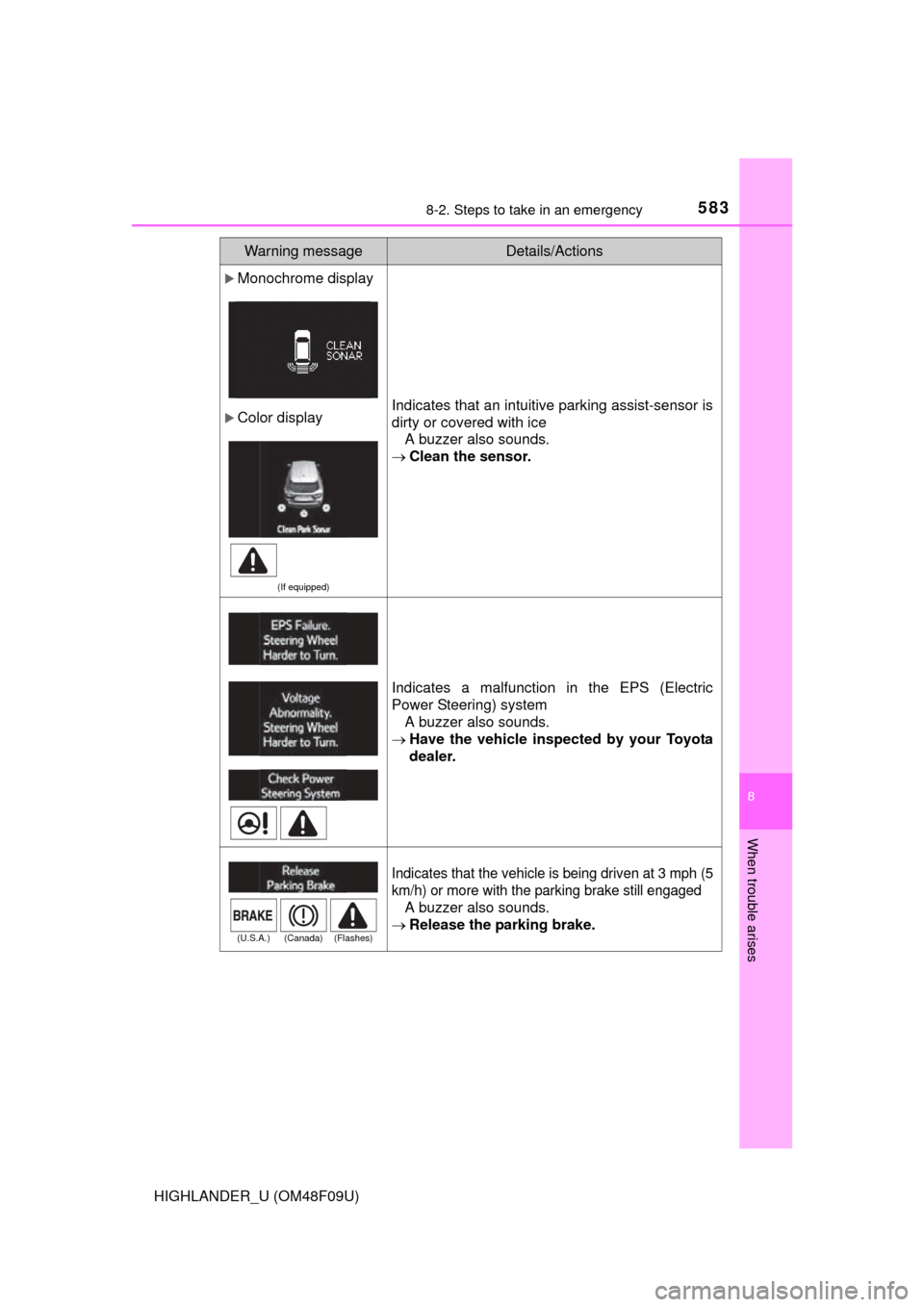

5838-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)
Monochrome display
Color display
(If equipped)
Indicates that an intuitive parking assist-sensor is
dirty or covered with iceA buzzer also sounds.
 Clean the sensor.
Indicates a malfunction in the EPS (Electric
Power Steering) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates that the vehicle is being driven at 3 mph (5
km/h) or more with the parking brake still engaged
A buzzer also sounds.
 Release the parking brake.
Warning messageDetails/Actions
(U.S.A.) (Canada) (Flashes)

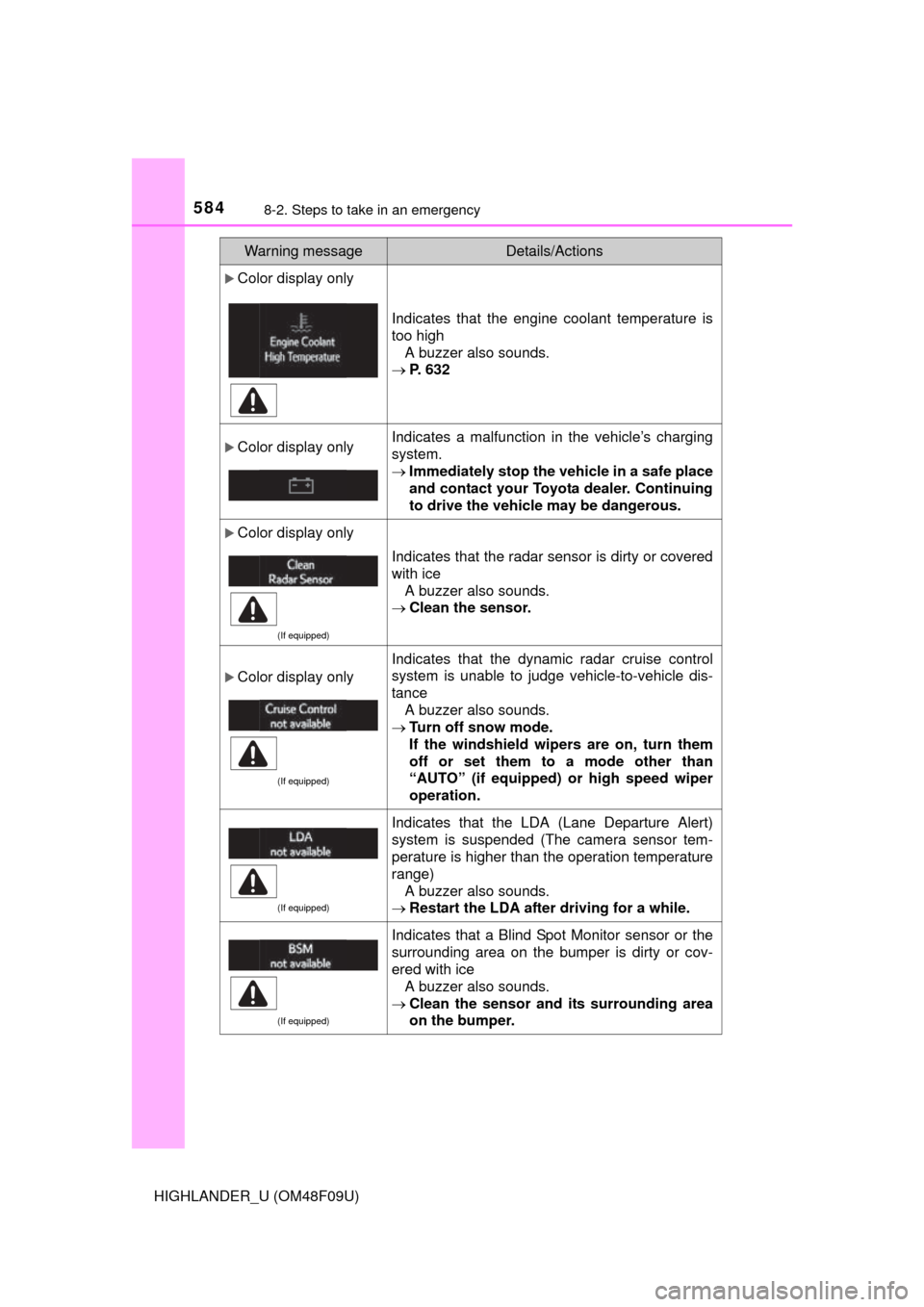

5848-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)
Color display only
Indicates that the engine coolant temperature is
too highA buzzer also sounds.
 P. 632
Color display onlyIndicates a malfunction in the vehicle’s charging
system.
Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
Color display only
(If equipped)
Indicates that the radar sensor is dirty or covered
with ice A buzzer also sounds.
 Clean the sensor.
Color display only
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tance
A buzzer also sounds.
 Turn off snow mode.
If the windshield wipers are on, turn them
off or set them to a mode other than
“AUTO” (if equipped) or high speed wiper
operation.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system is suspended (The camera sensor tem-
perature is higher than the operation temperature
range)
A buzzer also sounds.
 Restart the LDA after driving for a while.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the
surrounding area on the bumper is dirty or cov-
ered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area
on the bumper.
Warning messageDetails/Actions

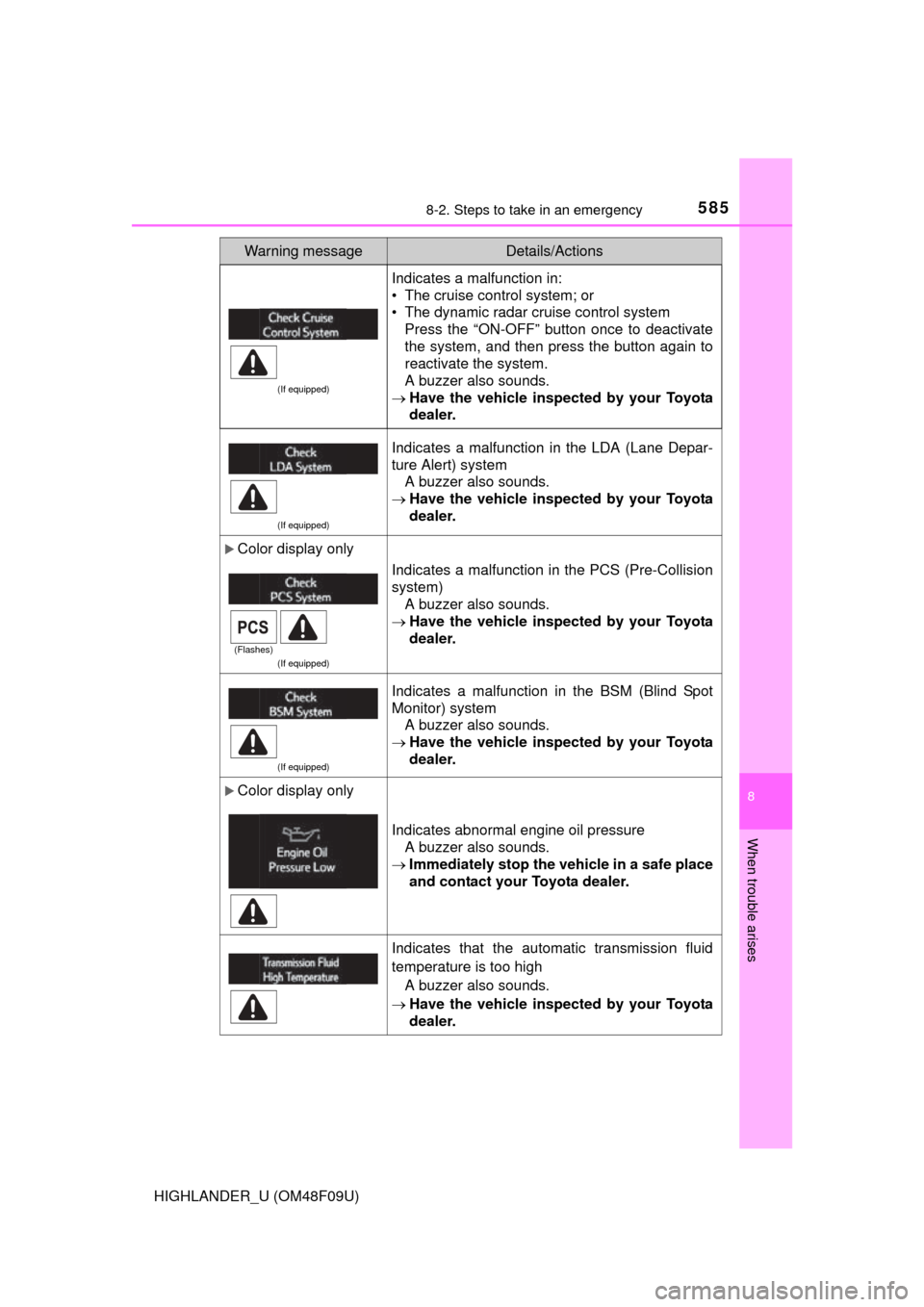

5858-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)
(If equipped)
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control systemPress the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the LDA (Lane Depar-
ture Alert) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Color display only
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision
system)
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot
Monitor) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Color display only
Indicates abnormal engine oil pressure
A buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates that the automatic transmission fluid
temperature is too high
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions
(Flashes)

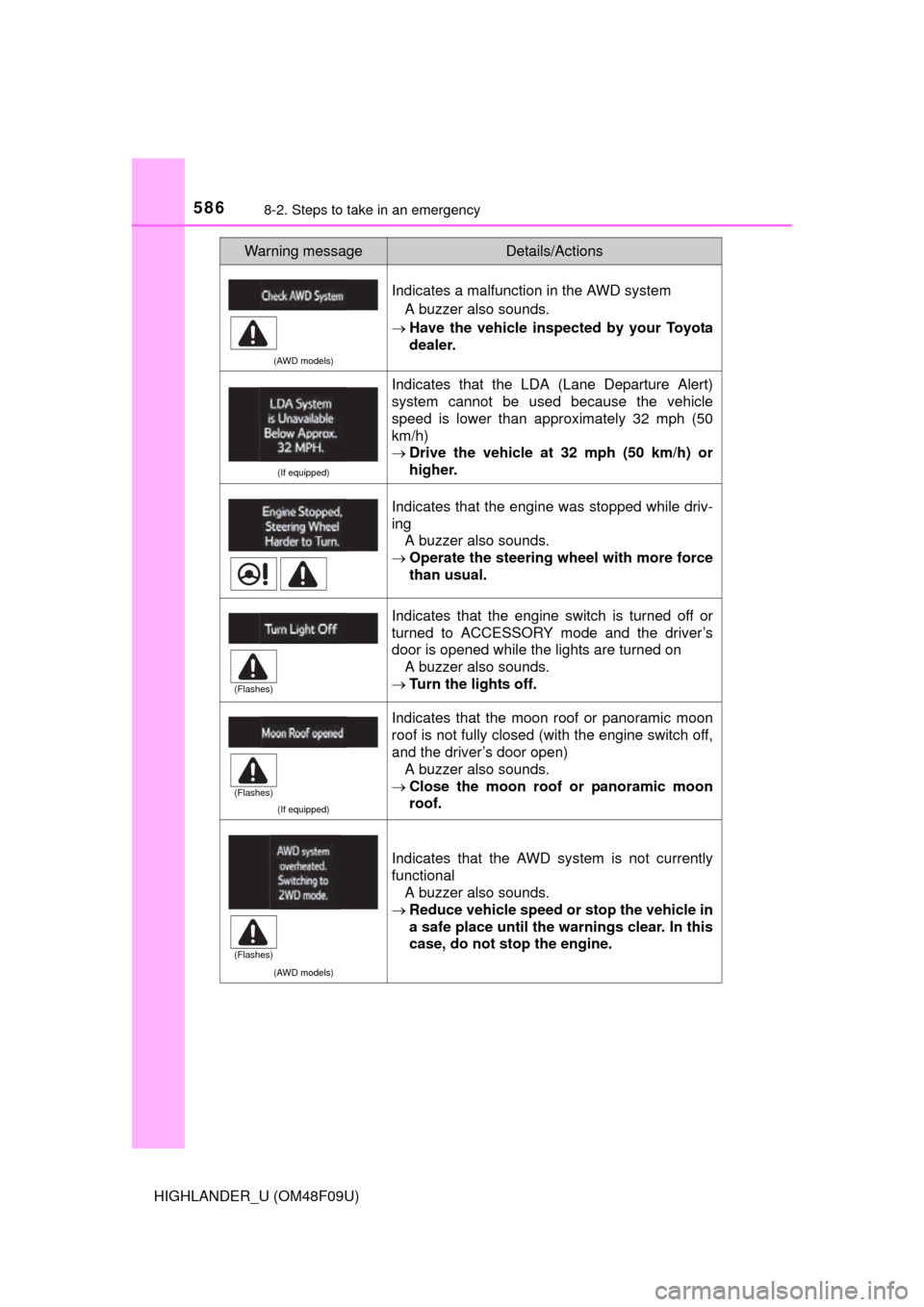

5868-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)
(AWD models)
Indicates a malfunction in the AWD systemA buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system cannot be used because the vehicle
speed is lower than approximately 32 mph (50
km/h)
Drive the vehicle at 32 mph (50 km/h) or
higher.
Indicates that the engine was stopped while driv-
ing
A buzzer also sounds.
 Operate the steering wheel with more force
than usual.
Indicates that the engine switch is turned off or
turned to ACCESSORY mode and the driver’s
door is opened while the lights are turned on
A buzzer also sounds.
 Turn the lights off.
(If equipped)
Indicates that the moon roof or panoramic moon
roof is not fully closed (with the engine switch off,
and the driver’s door open)
A buzzer also sounds.
 Close the moon roof or panoramic moon
roof.
(AWD models)
Indicates that the AWD system is not currently
functional
A buzzer also sounds.
 Reduce vehicle speed or stop the vehicle in
a safe place until the warnings clear. In this
case, do not stop the engine.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

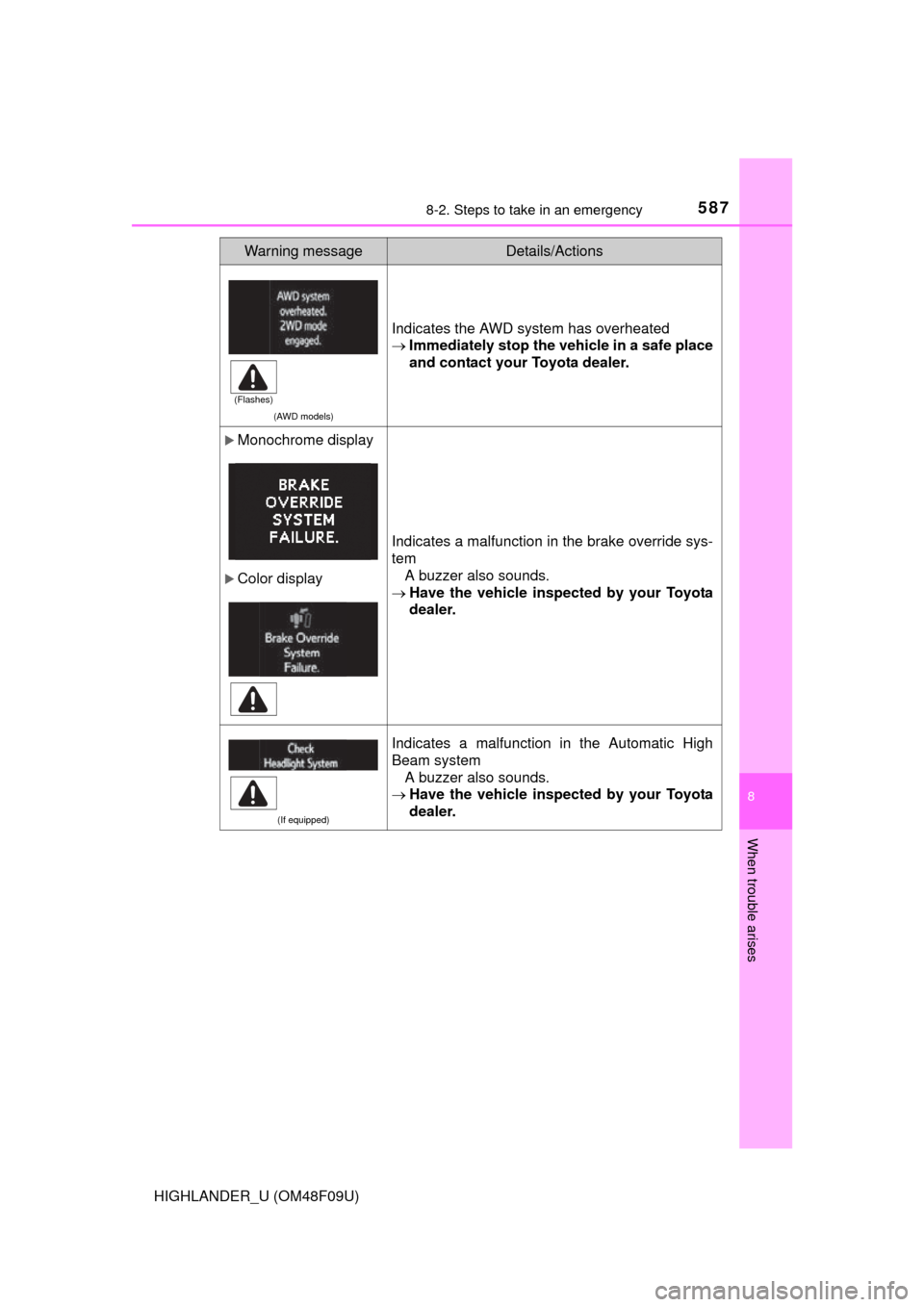

5878-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)
(AWD models)
Indicates the AWD system has overheated
Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Monochrome display
Color display
Indicates a malfunction in the brake override sys-
tem
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the Automatic High
Beam system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions
(Flashes)

5888-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)
Monochrome display
Color displayIndicates that the accelerator and brake pedal
are being depressed simultaneously
Release the accelerator or brake pedal.
Indicates that the washer fluid level is low
Add washer fluid.
Indicates that remaining fuel is approximately 2.9
gal. (10.7 L, 2.4 Imp. gal.) or less
Refuel the vehicle.
Indicates that the TRAC (Traction Control) sys-
tem has been deactivated
Turn the TRAC on. ( P. 304)
(U.S.A. only)
Indicates that all maintenance according to the
driven distance on the maintenance schedule*
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the message has been reset.
If necessary, perform maintenance.
(U.S.A. only)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule*.
Comes on approximately 5000 miles (8000 km)
after the message has been reset.
(The indicator will not work properly unless the
message has been reset.)
Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed ( P. 496)
Warning messageDetails/Actions
(Flashes)

5898-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.

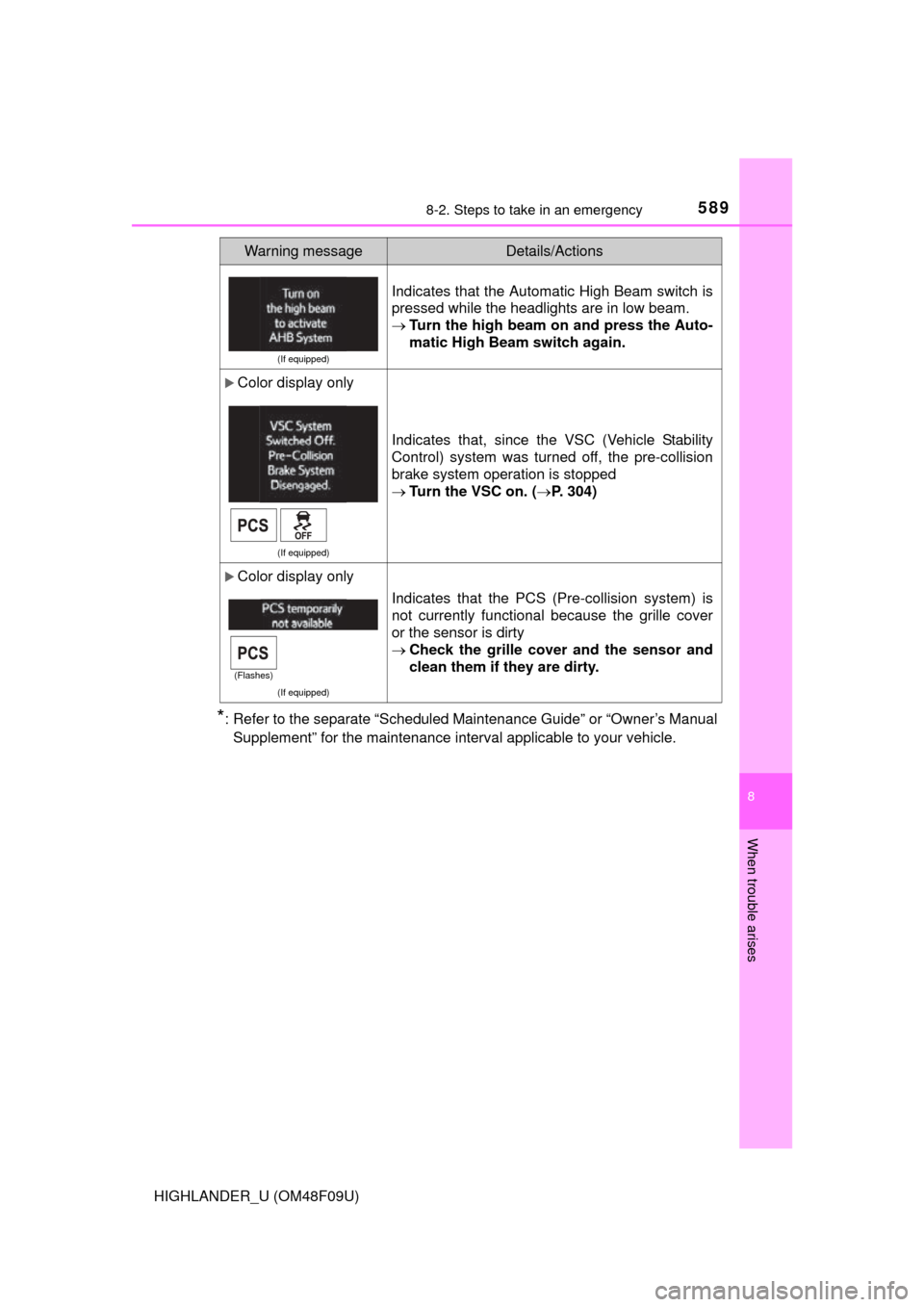

(If equipped)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
 Turn the high beam on and press the Auto-
matic High Beam switch again.
Color display only
(If equipped)
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
brake system operation is stopped
Turn the VSC on. ( P. 304)
Color display only
(If equipped)
Indicates that the PCS (Pre-collision system) is
not currently functional because the grille cover
or the sensor is dirty
Check the grille cover and the sensor and
clean them if they are dirty.
Warning messageDetails/Actions
(Flashes)

5908-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)
■Messages displays
The message illustrations used are intended as examples, and may differ
from the image that is actually displayed on the multi-information display.
■ Warning message in dynamic radar cr uise control mode (if equipped)
In the following situations, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
● When your vehicle and the vehicle ahead are traveling at the same speed or
the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
● Immediately after cruise control speed is set
● At the instant the accelerator pedal is depressed
■ The LDA (Lane Departure Alert) lane departure warning function (if
equipped)
In the following situations, a warning message will not be displayed even if a
lane line is crossed.
● When the vehicle speed deviates from the operating range of the LDA sys-
tem functions
● When the lane lines cannot be recognized
■ Conditions that the tire pressure warning system may not function prop-
erly
P. 496
■ Warning buzzer
P. 574
