Instrument cluster
HIGHLANDER_U (OM0E017U)
■Settings can be changed
Customizable features: →P. 681
■ Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display, will be temporarily displayed on the multi-information display.
The pop-up display function can be set on/off.
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can b\
e
changed through the meter control switch will automatically be turned off.
●When a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This l ag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■During setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

1022. Instrument cluster
HIGHLANDER_U (OM0E017U)
During Eco-friendly acceleration
operation (Eco driving), Eco Driv-
ing Indicator Light will turn on.
When the acceleration exceeds
Zone of Eco driving, and when the
vehicle is stopped, the light turns
off.
Suggests Zone of Eco driving with
current Eco driving ratio based on
acceleration.
Eco driving ratio based on
acceleration
If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display
blinks.
Zone of Eco driving
■Operation of Eco Driving Indicator
Eco Driving Indicator will not operate in the following conditions:
●The shift lever is anything other than D.
● The vehicle speed is approximately 80 mph (130 km/h) or higher.
■ Eco Driving Indicator Light customization
→P. 9 9

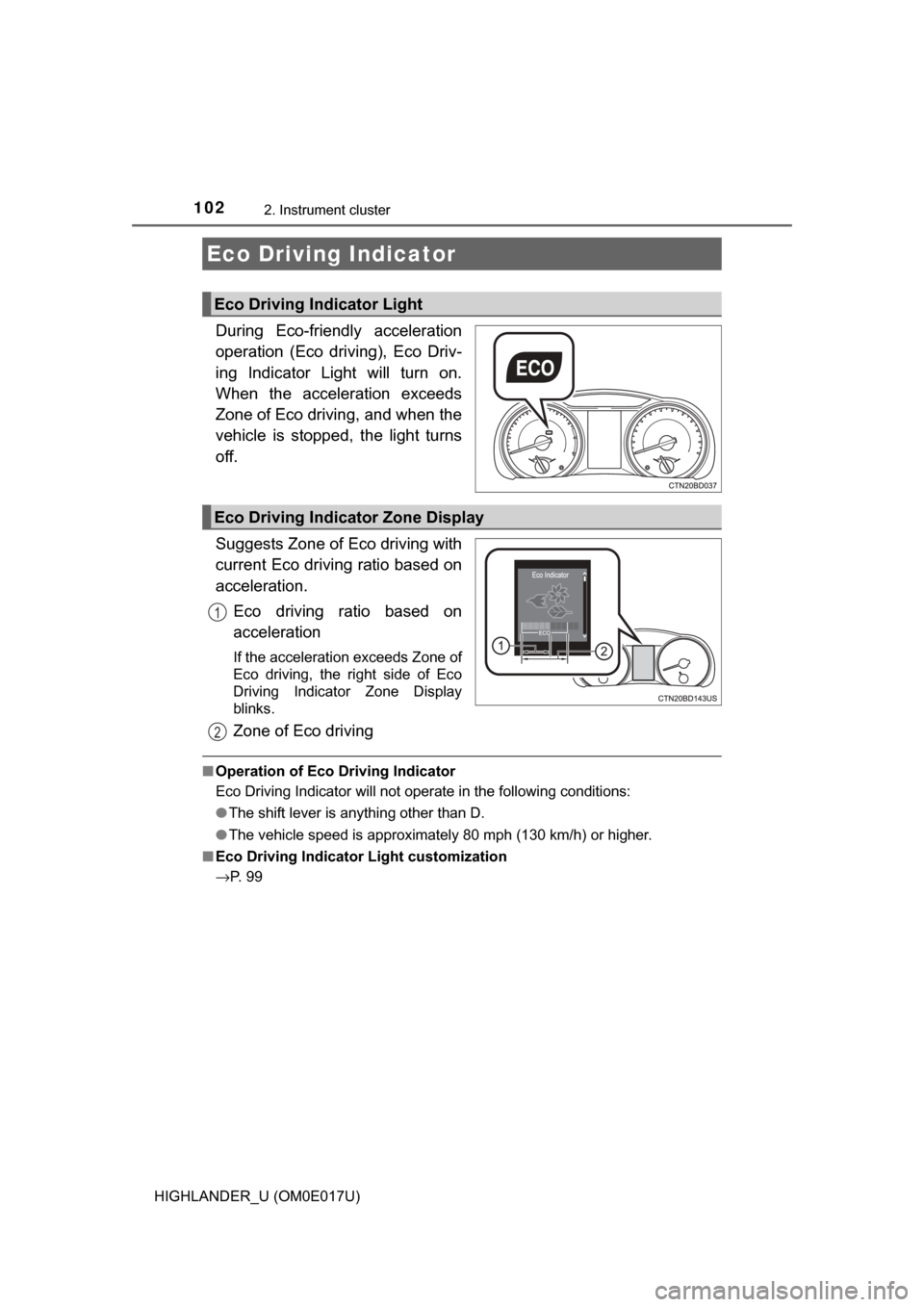

Eco Driving Indicator
Eco Driving Indicator Light
Eco Driving Indicator Zone Display
1
2

1032. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM0E017U)
Audio system
Entune Audio
Press the “CAR” button.
If the “Past Record” screen is dis-
played, select “Trip Information”.
Entune Audio Plus or Entune Premium Audio
Press the “APPS” button.
Touch “ECO” on the “Apps”
screen.
If the “Past Record” screen is dis-
played, select “Trip Information”.

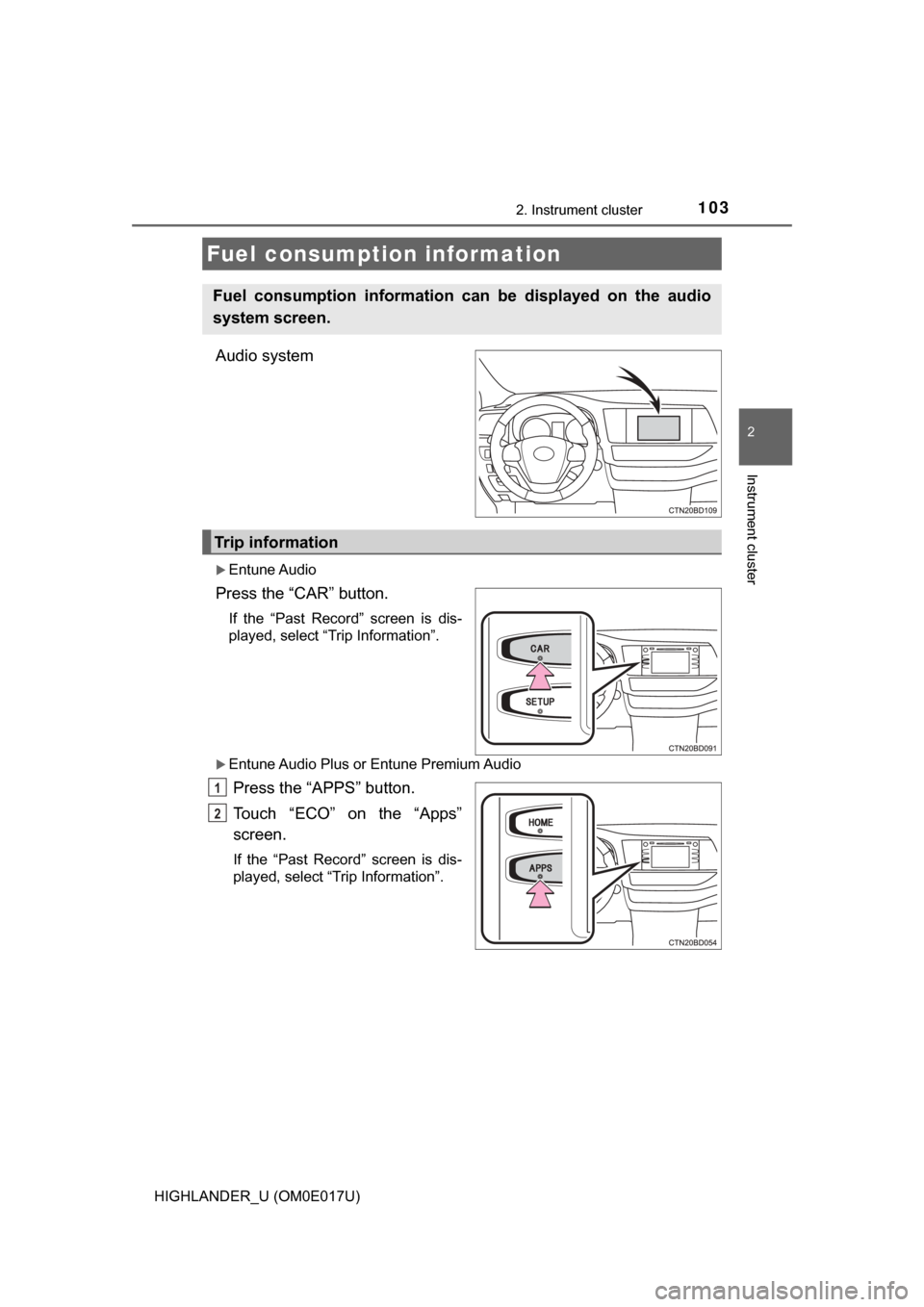

Fuel consumption information
Fuel consumption information can be displayed on the audio
system screen.
Trip information
1
2

1042. Instrument cluster
HIGHLANDER_U (OM0E017U)
Resetting the consumption data

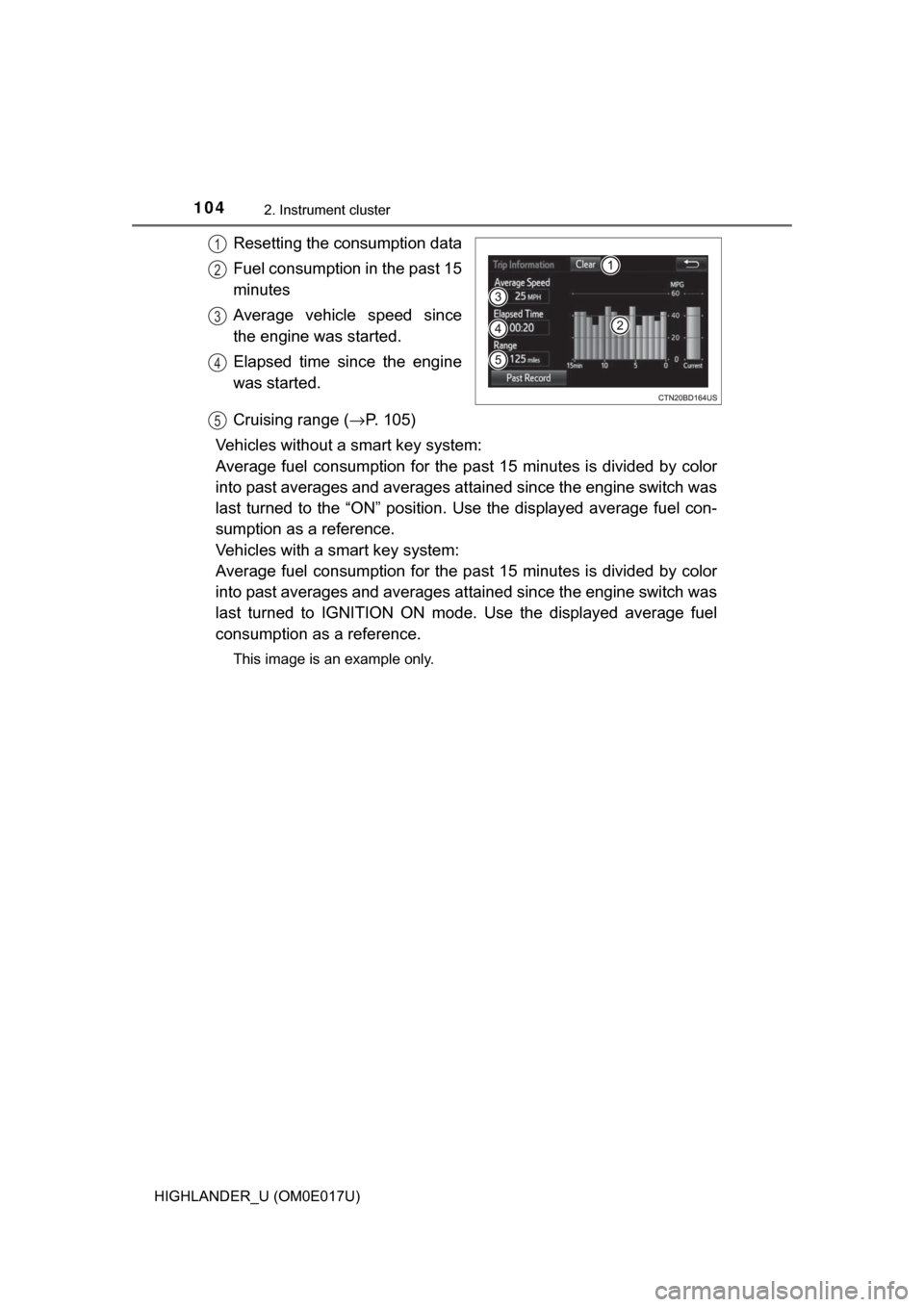

Fuel consumption in the past 15
minutes
Average vehicle speed since
the engine was started.
Elapsed time since the engine
was started.
Cruising range (→P. 105)
Vehicles without a smart key system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages at tained since the engine switch was
last turned to the “ON” position. Use the displayed average fuel con-
sumption as a reference.
Vehicles with a smart key system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages at tained since the engine switch was
last turned to IGNITION ON mode. Use the displayed average fuel
consumption as a reference.
This image is an example only.
1
2
3
4
5

1052. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM0E017U)
Entune Audio
Press the “CAR” button.
If the “Trip Information” screen is displayed, select “Past Record”.
Entune Audio Plus or Entune Premium Audio
Press the “APPS” button.
Touch “ECO” on the “Apps” screen.
If the “Trip Information” screen is displayed, select “Past Record”.
Resetting the past record
data
Best recorded fuel consump-
tion
Average fuel consumption
Previous fuel consumption
record
Updating the average fuel
consumption data
The average fuel consumption histor y is divided by color into past
averages and the average fuel cons umption since the last updated.
Use the displayed average fuel consumption as a reference.
This image is an example only.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

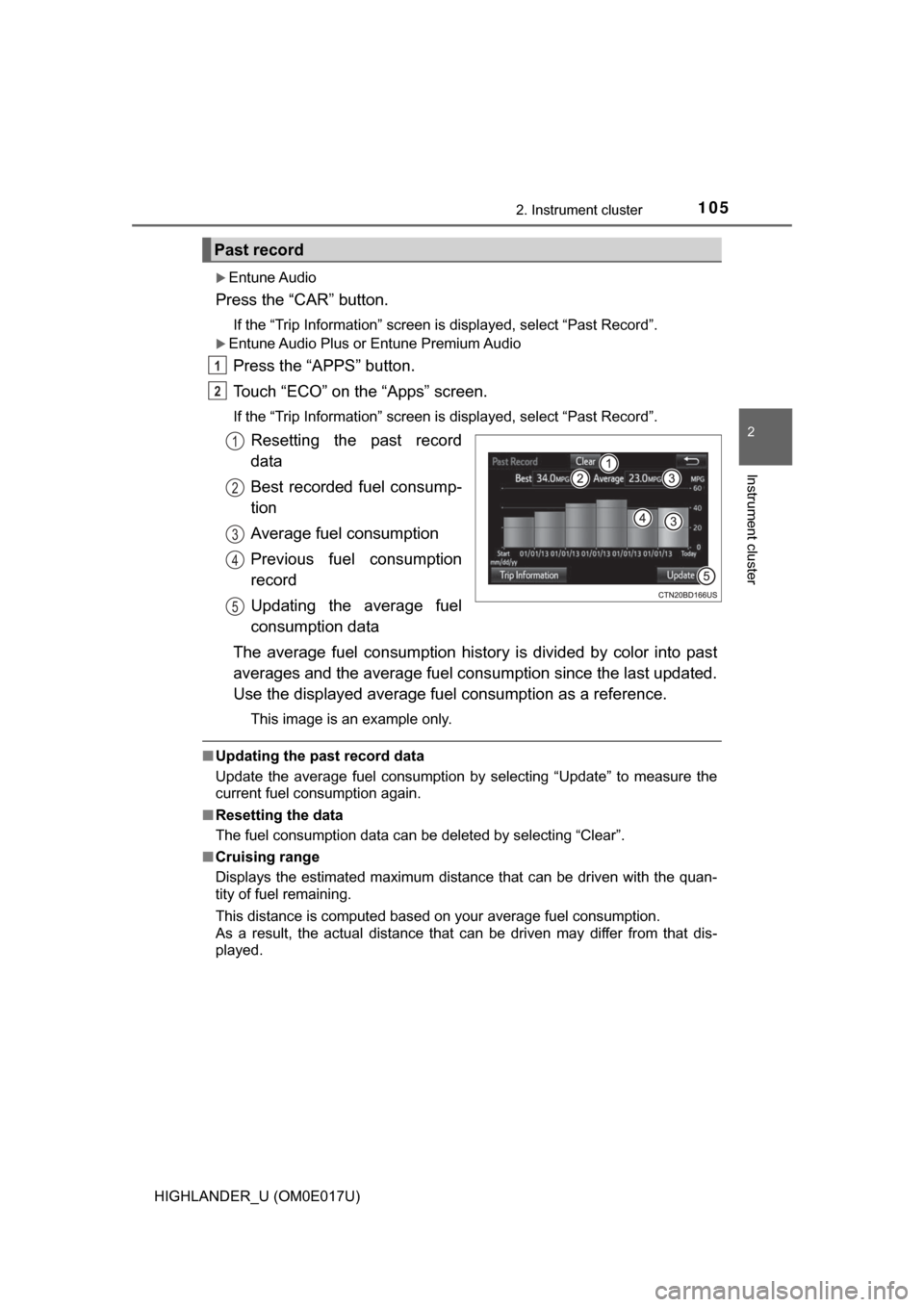

Past record
1
2
1
2
3
4
5

1062. Instrument cluster
HIGHLANDER_U (OM0E017U)

107
3
Operation of
each component
HIGHLANDER_U (OM0E017U) 3-1. Key information
Keys .................................. 108
3-2. Opening, closing and locking the doors
Side doors ......................... 115
Back door .......................... 123
Glass hatch ....................... 136
Smart key system ............. 141
3-3. Adjusting the seats Front seats ........................ 149
Rear seats......................... 151
Driving position memory ... 158
Head restraints.................. 162
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 166
Inside rear view mirror .............................. 168
Outside rear view mirrors ............................. 170
3-5. Opening and closing the windows
Power windows ................. 172
Moon roof .......................... 176
Panoramic moon roof .................................. 180

108
HIGHLANDER_U (OM0E017U)
3-1. Key information

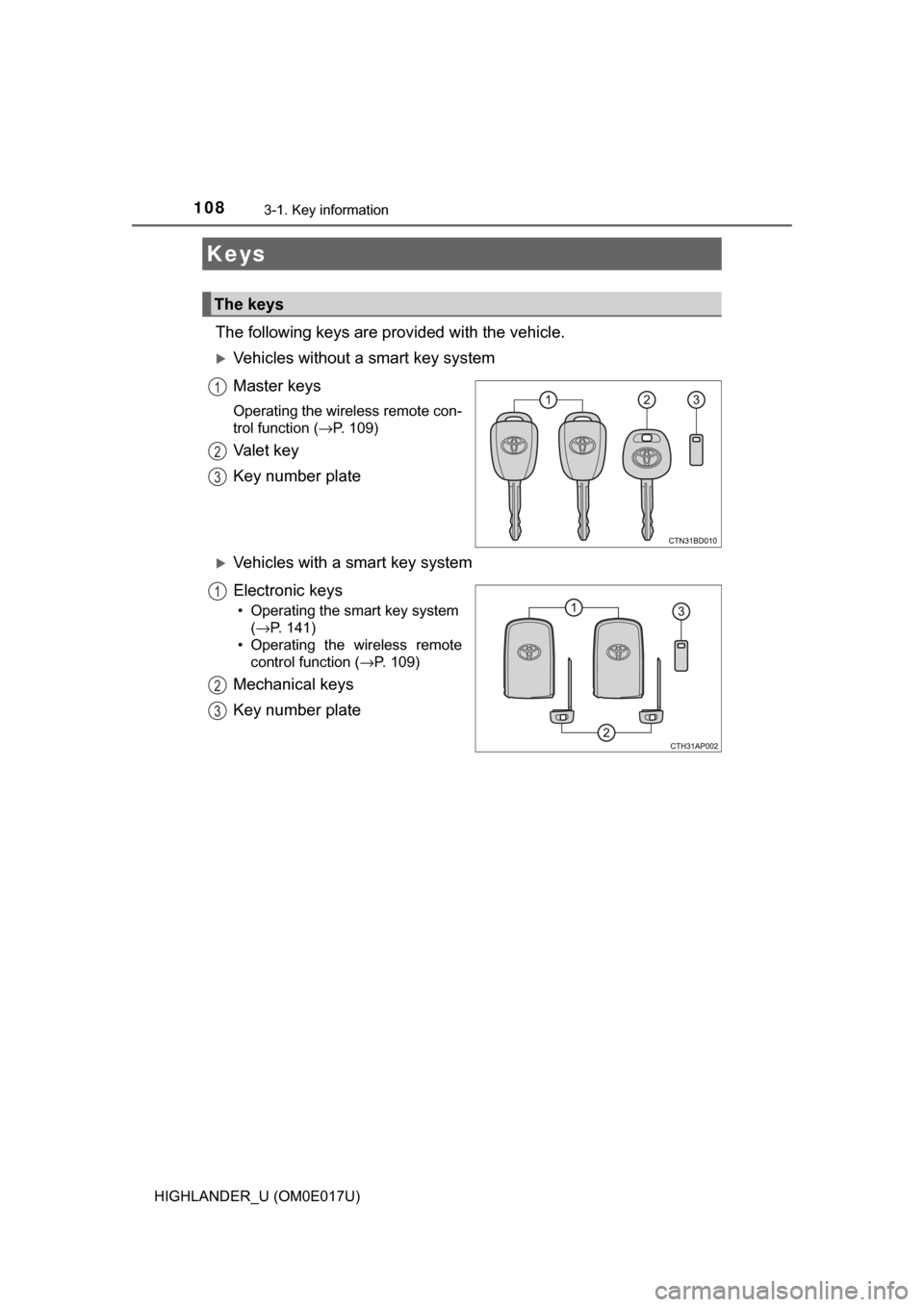

The following keys are provided with the vehicle.
Vehicles without a smart key system
Master keys
Operating the wireless remote con-
trol function (→P. 109)
Va l e t k e y
Key number plate
Vehicles with a smart key system
Electronic keys
• Operating the smart key system
(→P. 141)
• Operating the wireless remote control function ( →P. 109)
Mechanical keys
Key number plate
Keys
The keys
1
2
3
1
2
3

1093-1. Key information
3
Operation of each component
HIGHLANDER_U (OM0E017U)
Vehicles without a smart key system
Locks the doors (→P. 116)
Unlocks the doors ( →P. 116)
Opens the windows and moon
roof
* ( → P. 11 6 )
Sounds the alarm ( →P. 110)
Opens and closes the power
back door (if equipped)
( → P. 124)
*: This setting must be customized at your Toyota dealer.
Vehicles with a smart key system
Locks the doors (→ P. 116)
Unlocks the doors ( →P. 116)
Opens the windows and moon
roof
* ( → P. 11 6 )
Opens and closes the power
back door (→ P. 124)
Sounds the alarm ( →P. 110)
*: This setting must be customized at your Toyota dealer.

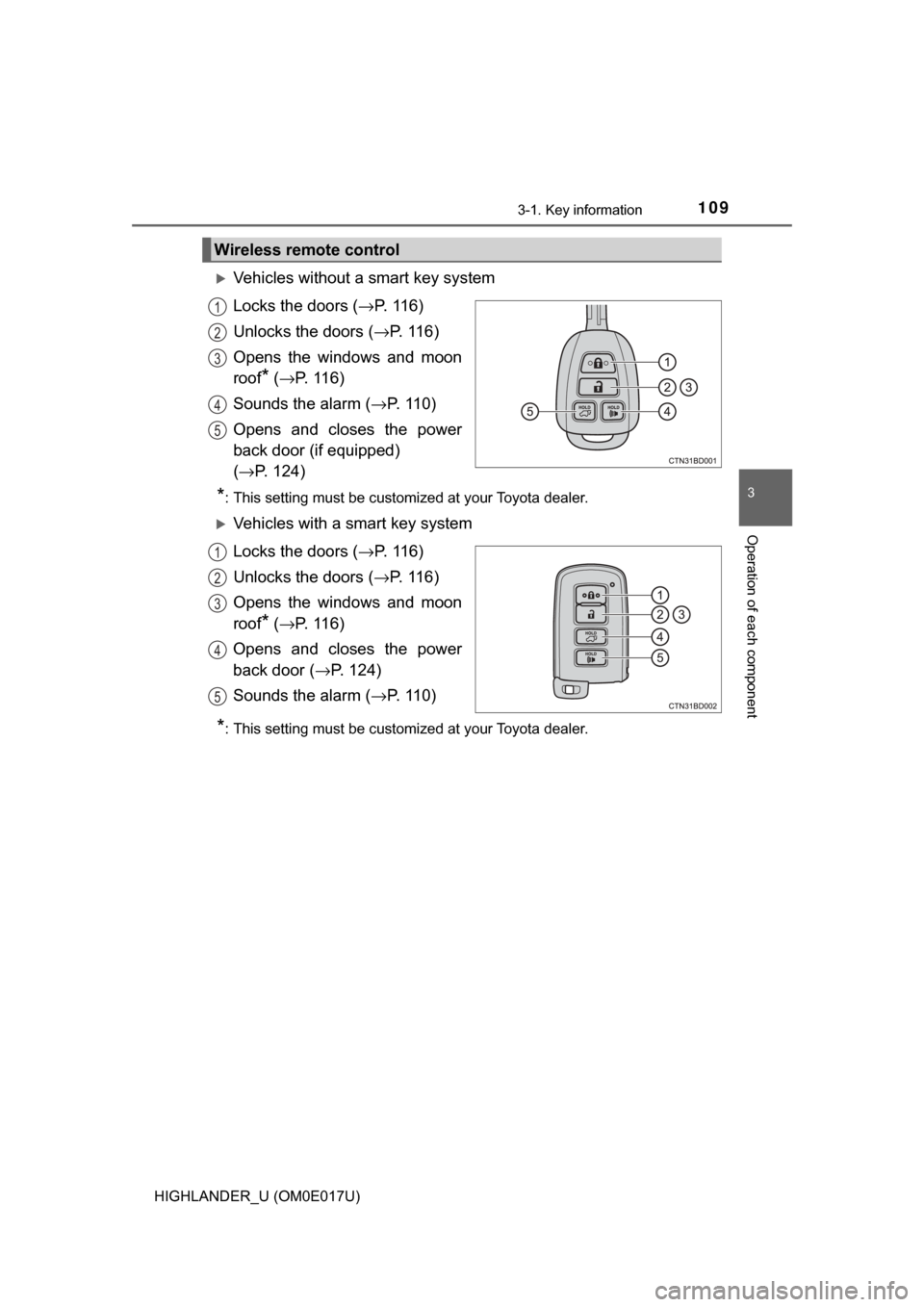

Wireless remote control
1
2
3
4
5
1
2
3
4
5

1103-1. Key information
HIGHLANDER_U (OM0E017U)
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. (→P. 635)

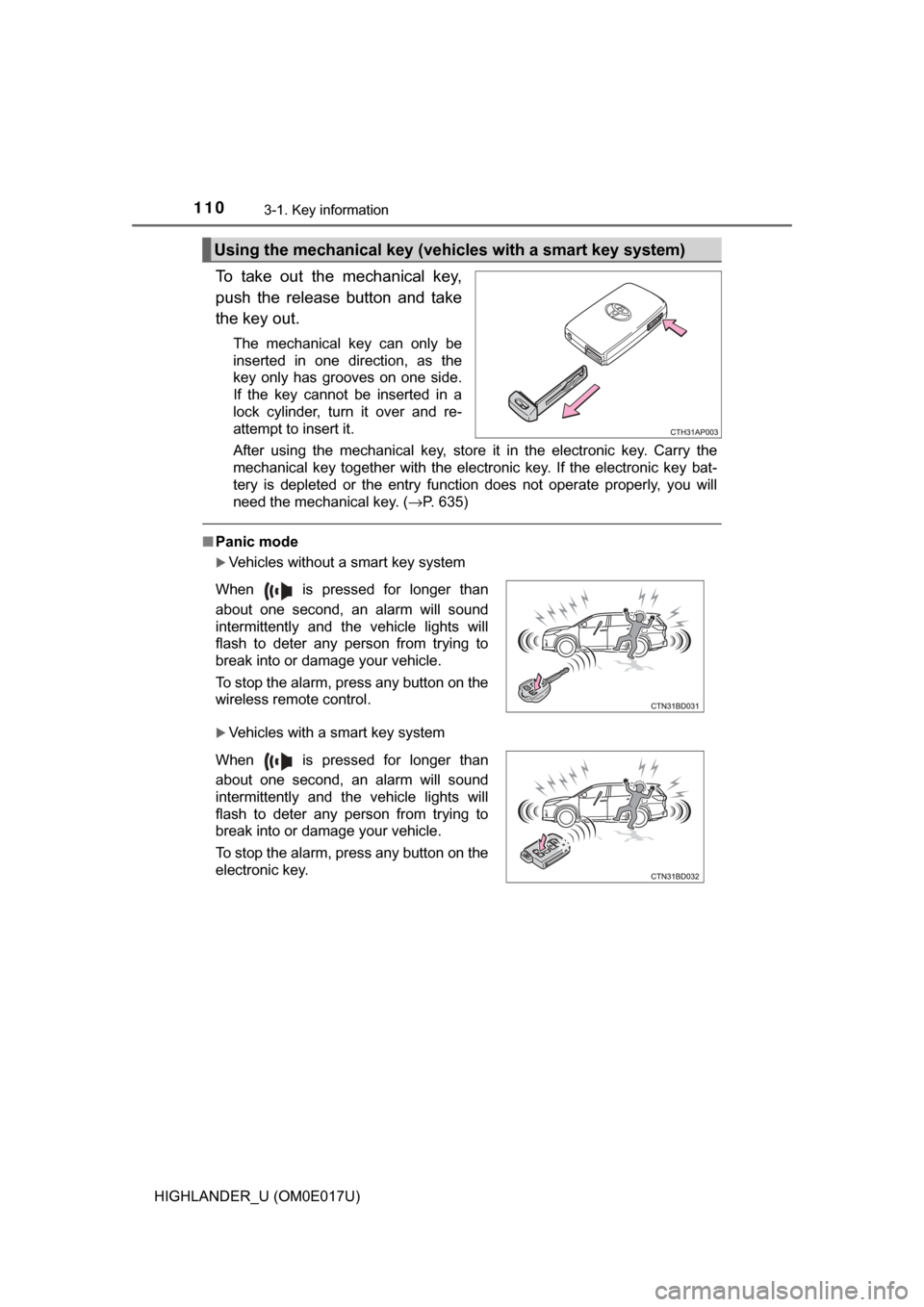

■Panic mode
Vehicles without a smart key system
Vehicles with a smart key system
Using the mechanical key (vehic les with a smart key system)
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.
