NOTICE
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. ( →P. 533)
■When stowing the flat tire
●Ensure that there is no object caug ht between the tire and the vehicle
underbody.
●Securely tighten the spare tire clam p bolt to hold the spare wheel car-
rier by the hook.
●Stow the flat tire in the spare tire location. Failure to do so may cause
damage to the spare tire carrier. Proper storage redu ces the possibility
of injury in a collision or during sudden braking.
●Have the flat tire repaired and the spare tire replaced with it as soon as
possible.

6328-2. Steps to take in an emergency
HIGHLANDER_U (OM0E017U)
NOTICE
■Proper storage of the spare tire
●Do not attempt to turn the spare tire clamp bolt without a tire on the
hoist assembly, as doing so may cause the wire cable to slip off of the
shaft inside the unit and the wire cable may not be able to be raised or
lowered. If the spare tire clamp bolt has been turned without a tire on
the hoist assembly and the wire cable cannot be raised or lowered,
contact your Toyota dealer.
●If the hoist assembly is slanted when
stowing a tire, the hoist assembly may
become stuck in the wheel opening
and the tire may not be raised prop-
erly, causing damage to the wheel or
the wire cable.

6338-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(→ P. 218, 221)
● There may be a malfunction in the engine immobilizer system.
(→ P. 80)
One of the following may be the cause of the problem:
● The battery may be discharged. ( →P. 638)
● The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as electronic key battery depletion or a blown fuse.
However, an interim measure is available to start the engine.
( → P. 634)
If the engine w ill not start
If the engine will not start eve n though correct starting proce-
dures are being followed ( →P. 218, 221), consider each of the fol-
lowing points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.
The starter motor does not turn over (vehicles with a smart key
system)

6348-2. Steps to take in an emergency
HIGHLANDER_U (OM0E017U)
One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( →P. 638)
● There may be a malfunction in the steering lock system.
Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:
Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the ve hicle inspected by your Toyota
dealer.
The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
Emergency start function (vehicles with a smart key system)
1
2
3
4

6358-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)
Use the mechanical key (→P. 1 1 0 )
in order to perform the following
operations:
Locks all the doors
Closes the windows and moon
roof
*1 (turn and hold)*2
(→ P. 174, 177)
Unlocks the door
Turning the key rearward unlocks the driver’s door. Turning the key once
again within 5 seconds unlocks the other doors.
Opens the windows and moon roof*1 (turn and hold)*2
( → P. 174, 177)
*1: If equipped
*2: This setting must be customized at your Toyota dealer.

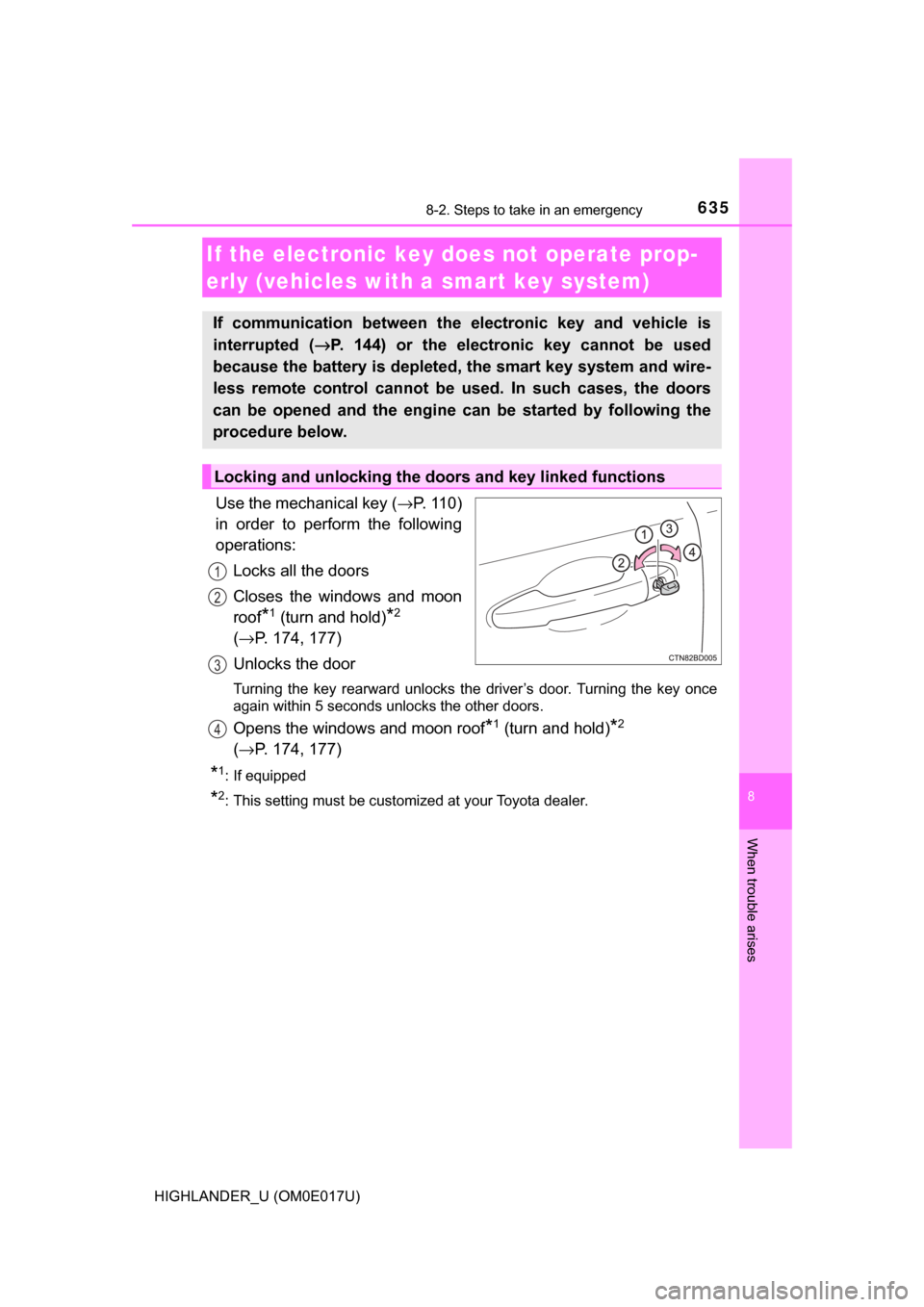

If the electronic key d oes not operate prop-
erly (vehicles with a smart key system)
If communication between the electronic key and vehicle is
interrupted ( →P. 144) or the electronic key cannot be used
because the battery is depleted, the smart key system and wire-
less remote control cannot be used. In such cases, the doors
can be opened and the engine ca n be started by following the
procedure below.
Locking and unlocking the doors and key linked functions
1
2
3
4

6368-2. Steps to take in an emergency
HIGHLANDER_U (OM0E017U)
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Toyota emblem side
of the electronic key to the
engine switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart key system is
deactivated in customization set-
ting, the engine switch will turn to
ACCESSORY mode.
Firmly depress the brake pedal.
Check that and a message are shown on the multi-information dis-
play.
Press the engine switch.
In the event that the engine still ca nnot be started, contact your Toyota
dealer.

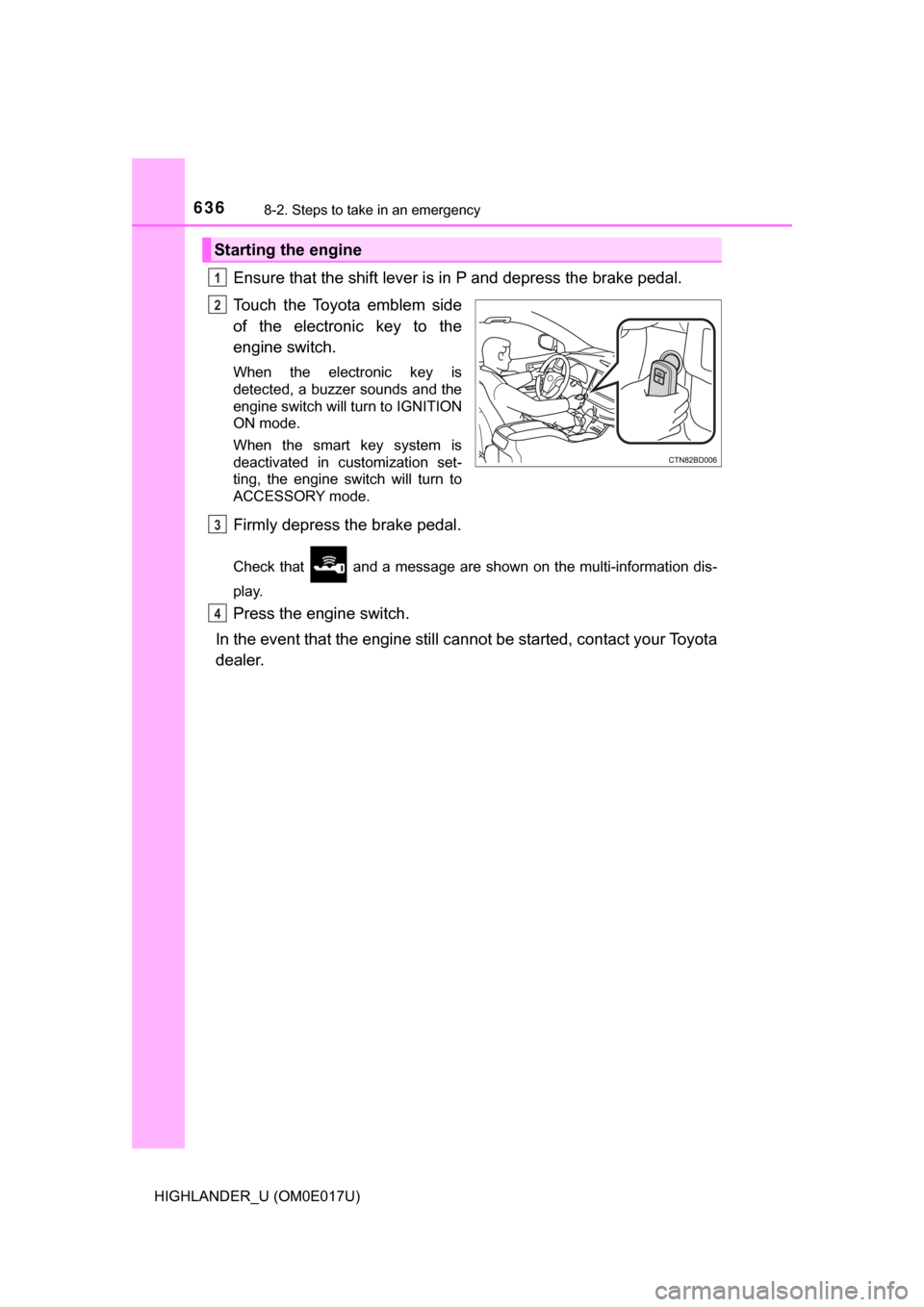

Starting the engine
1
2
3
4

6378-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)
■Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when
stopping the engine.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(→P. 549)
■ Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed. ( →P. 222)
■ When the electronic key does not work properly
●Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features →P. 680)
● Check if battery-saving mode is set. If it is set, cancel the function.
(→P. 143)
WARNING
■ When using the mechanical key an d operating the power windows or
moon roof
Operate the power window or moon roof after checking to make sure that
there is no possibility of any passenger having any of their body parts
caught in the window or moon roof.
Also, do not allow children to operate the mechanical key. It is possible for
children and other passengers to get caught in the power window or moon
roof.
3

6388-2. Steps to take in an emergency
HIGHLANDER_U (OM0E017U)
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.
Vehicles with an alarm, confirm
that the master key (vehicles
without a smart key system) or
electronic key (vehicles with a
smart key system) is being car-
ried.
When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and doors locked.
(→P. 84)
Open the hood. ( →P. 516)
Vehicles with 3.5 L V6 (2GR-
FKS) engine: Remove the
engine cover.
If the vehicle bat tery is discharged

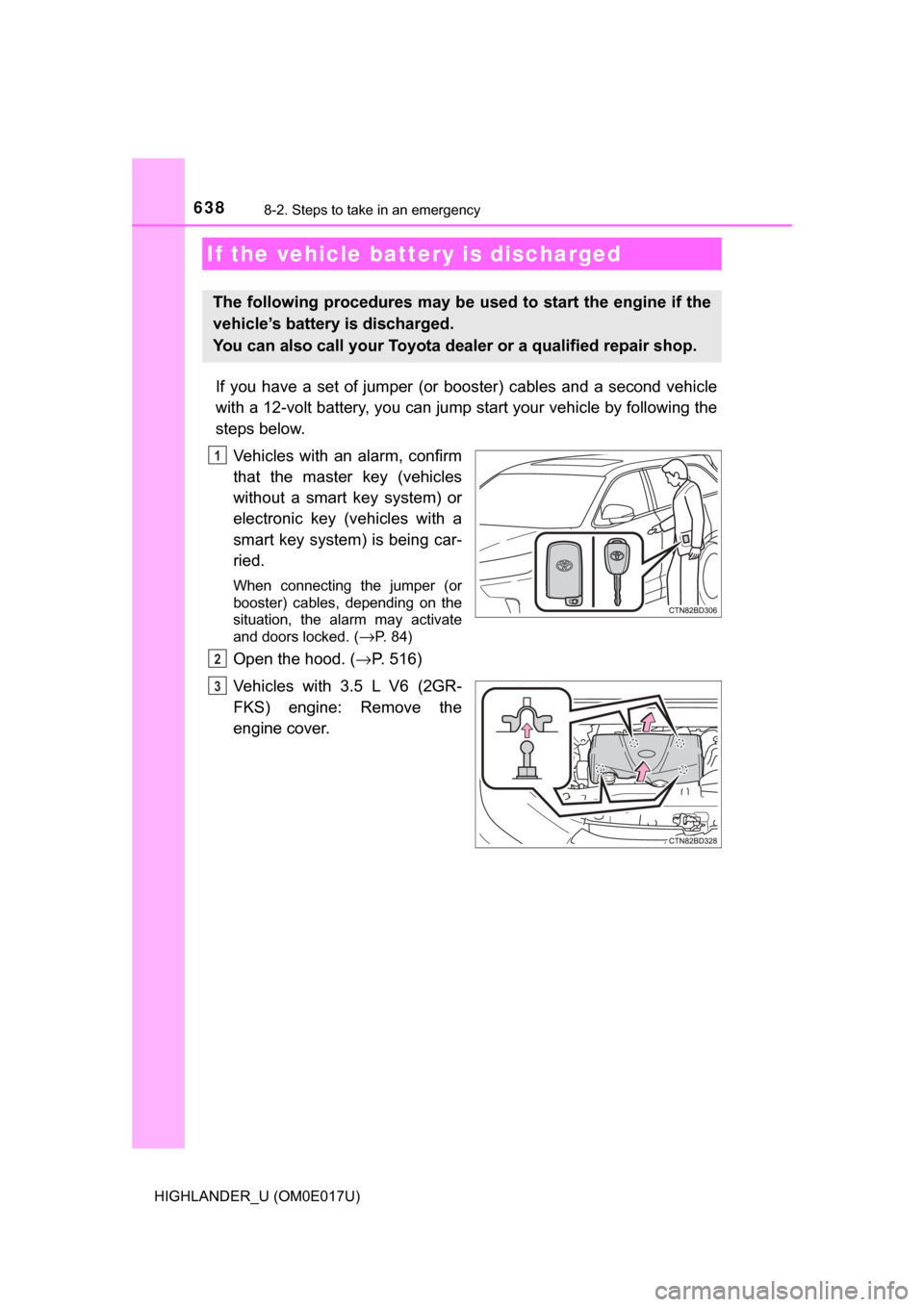

The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call your Toyota de aler or a qualified repair shop.
1
2
3

6398-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)

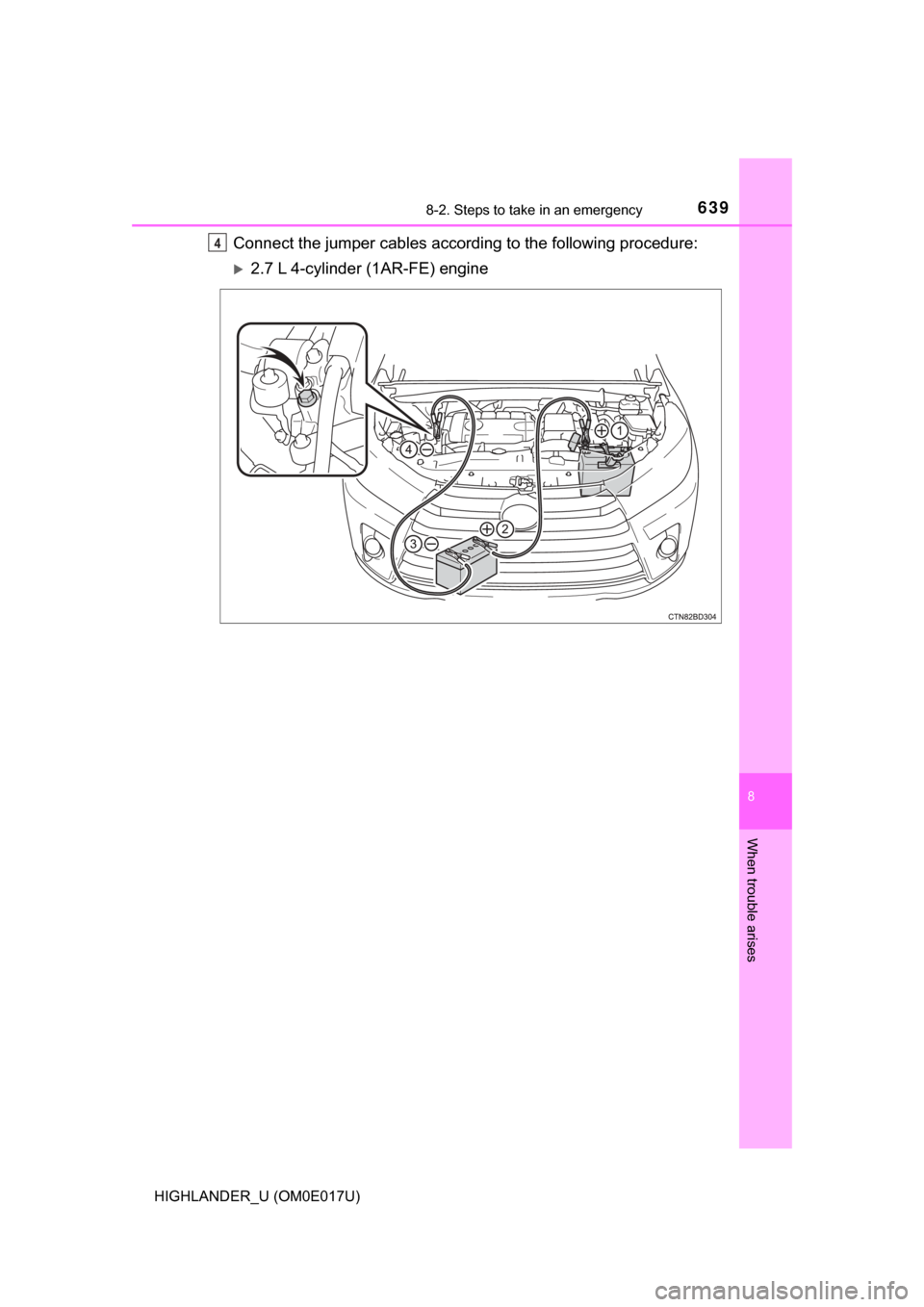

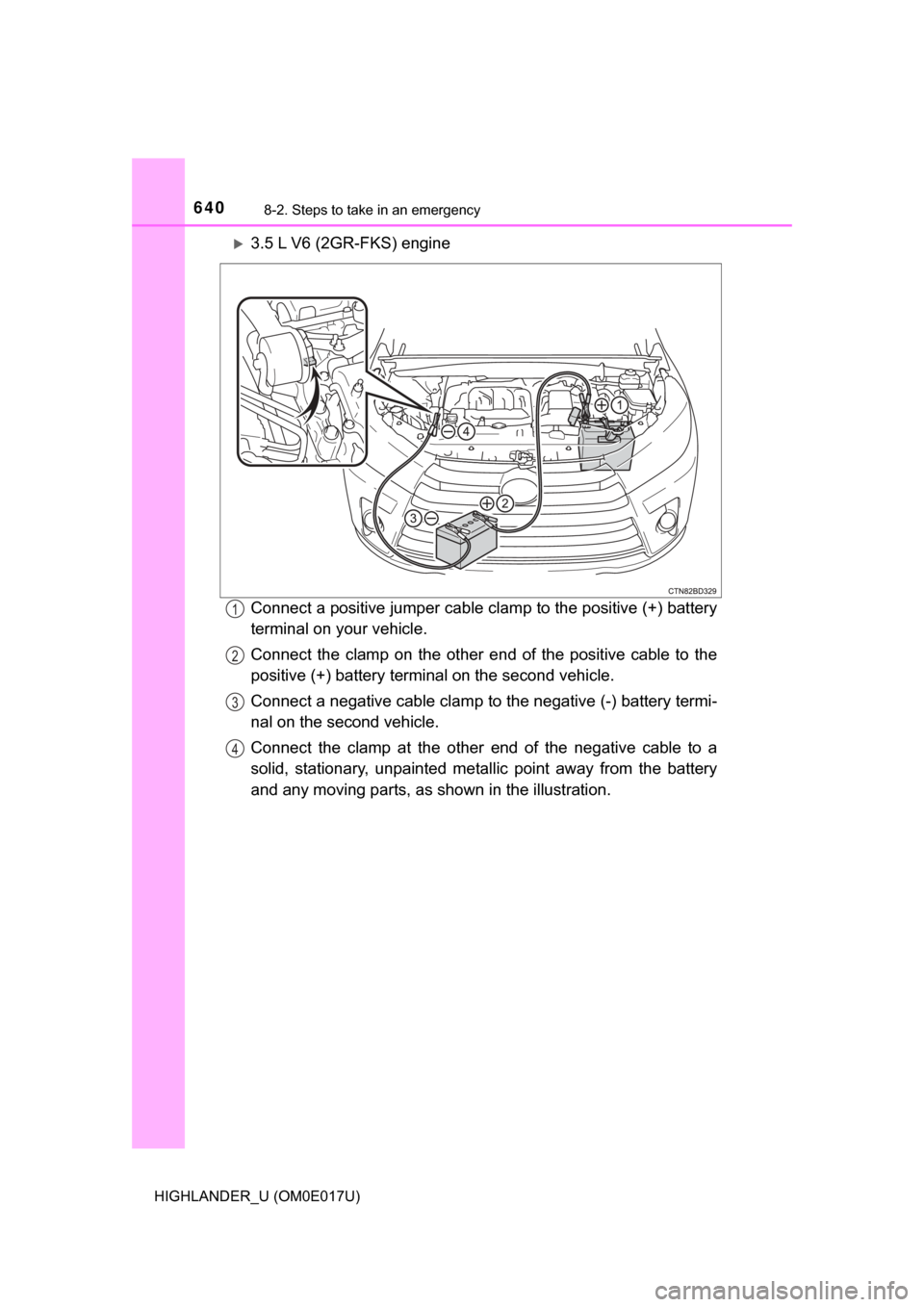

Connect the jumper cables according to the following procedure:
2.7 L 4-cylinder (1AR-FE) engine
4

6408-2. Steps to take in an emergency
HIGHLANDER_U (OM0E017U)
3.5 L V6 (2GR-FKS) engine
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.
1
2
3
4
