climate settings TOYOTA HIGHLANDER 2017 XU50 / 3.G Quick Reference Guide

22
Automatic
Manual
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Rear windshield
airflow/defogger and
side mirror defogger Front windshield
airflow/defogger
Front windshield
airflow/defogger “SYNC” button*
Fan OFF Temperature selector dial
Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically.
*Indicator ON: Synchronize temperature settings for driver and all passengers.
Indicator OFF: Separate temperature settings for driver, front passenger and rear
passengers. Air Conditioning ON/OFF
Air Conditioning ON/OFF
Lower airflow mode
Dual airflow mode
Upper airflow mode
Recirculate cabin air
(outside air when OFF)
Rear windshield airflow/
defogger and side mirror
defogger
Lower airflow mode and
window defoggerRear Air Conditioning ON/OFF
Rear Air Conditioning ON/OFF
Temperature selector (rear)
Temperature selector
Airflow mode selector
Fan speed
Fan speed Recirculate cabin air
(outside air when OFF)

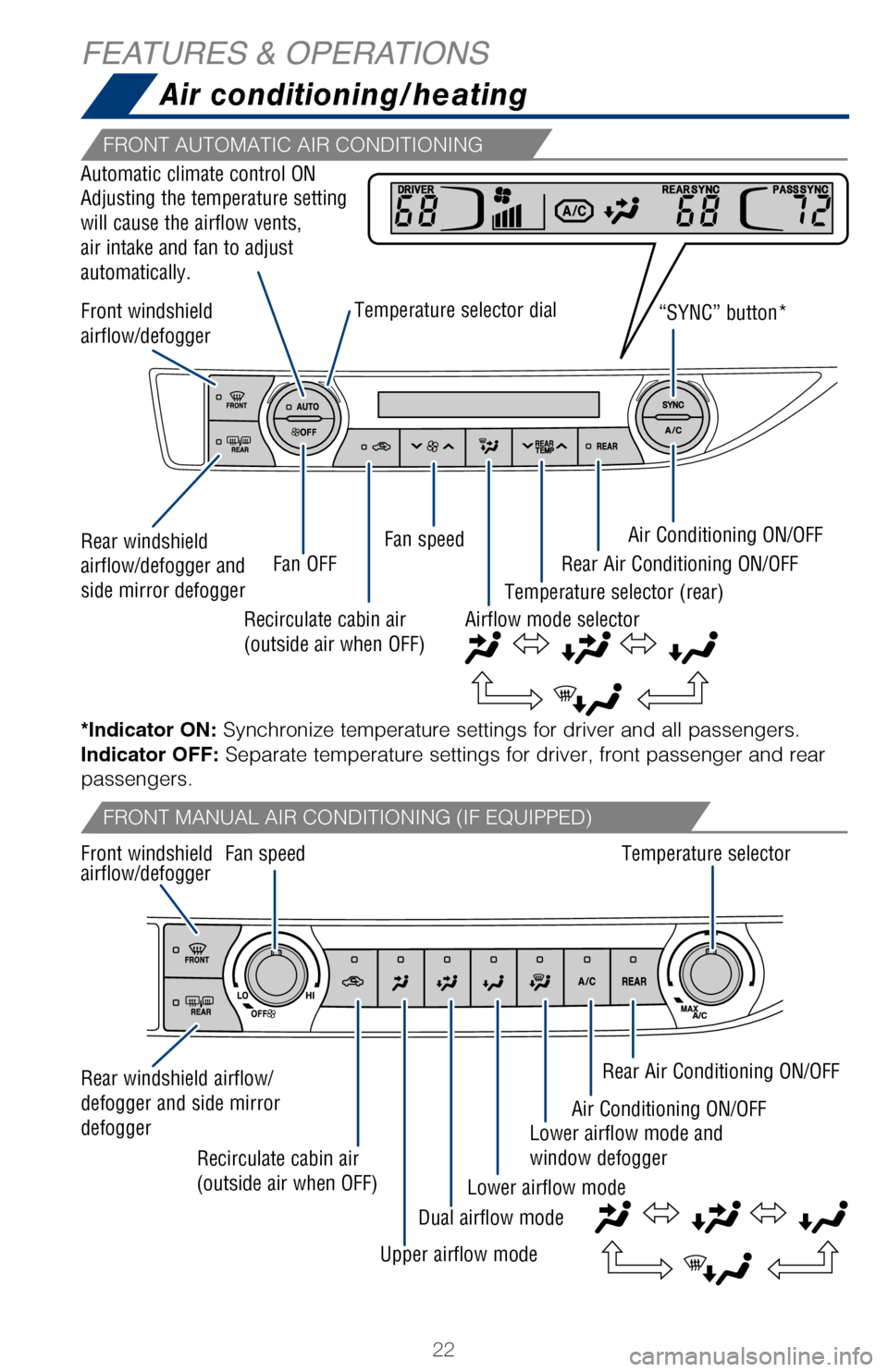

Air conditioning/heating
FEATURES & OPERATIONS
FRONT AUTOMATIC AIR CONDITIONING
FRONT MANUAL AIR CONDITIONING (IF EQUIPPED)
REAR AIR CONDITIONING (IF EQUIPPED)
TURNING SYSTEM ON/OFF
FUNCTIONS
NOTE: DRCC is the default cruise control setting. To switch to constant \
speed
control mode, see section “Dynamic Radar Cruise Control (DRCC) in t\
his
guide for more details.
