TOYOTA HIGHLANDER HYBRID 2006 XU40 / 2.G Owners Manual

’06 HIGHLANDER HB_U (L/O 0503)
11 9
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
2. Widen the gap between the seat
cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 115 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION

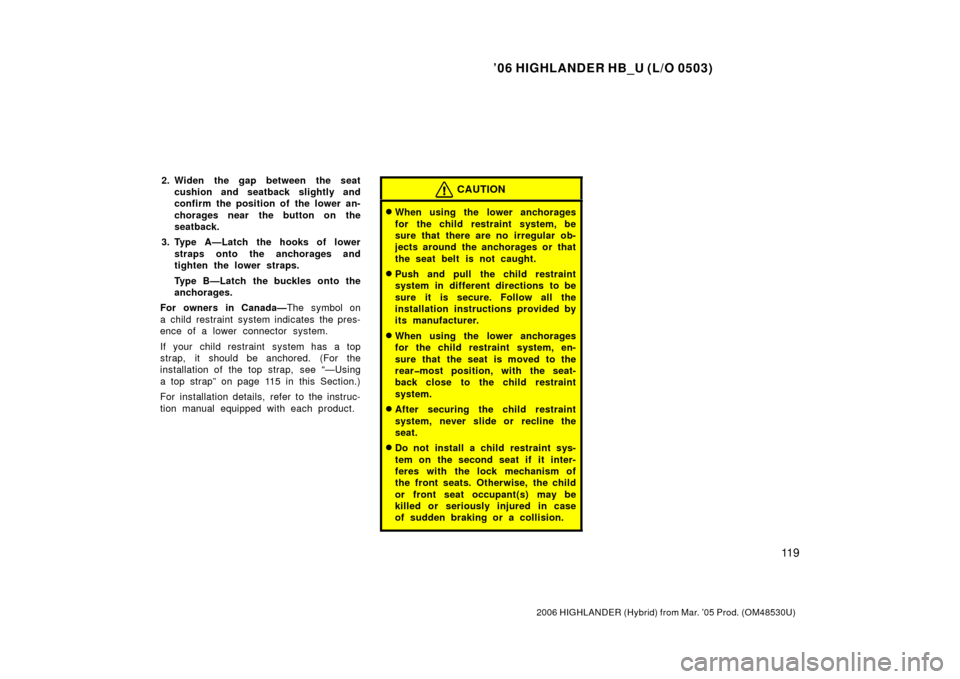

When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using the lower anchorages
for the child restraint system, en-
sure that the seat is moved to the
rearmost position, with the seat-
back close to the child restraint
system.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the second seat if it inter-
feres with the lock mechanism of
the front seats. Otherwise, the child
or front seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.

’06 HIGHLANDER HB_U (L/O 0503)
120
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

’06 HIGHLANDER HB_U (L/O 0503)
121
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Outside rear view mirrors 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 125
. . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
SECTION 1 4

’06 HIGHLANDER HB_U (L/O 0503)
122
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

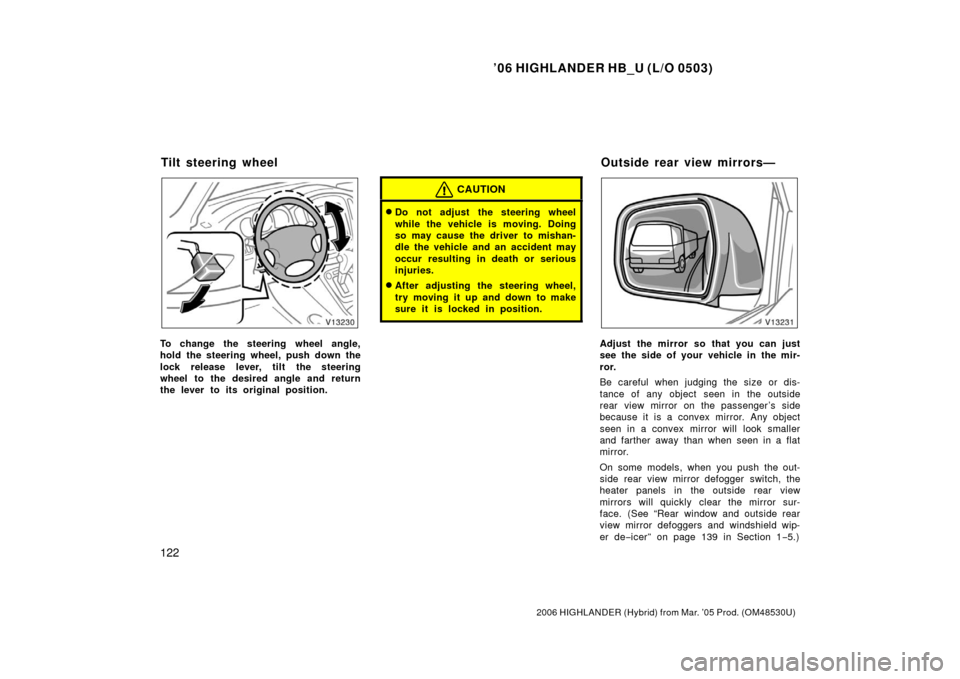

To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
On some models, when you push the out-
side rear view mirror defogger switch, the
heater panels in the outside rear view
mirrors will quickly clear the mirror sur-
face. (See “Rear window and outside rear
view mirror defoggers and windshield wip-
er de−icer” on page 139 in Section 1 −5.)
Tilt steering wheel Outside rear view mirrors—

’06 HIGHLANDER HB_U (L/O 0503)
123
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
Since the mirror surfaces can get
hot, do not touch them when the
defogger switch is on.

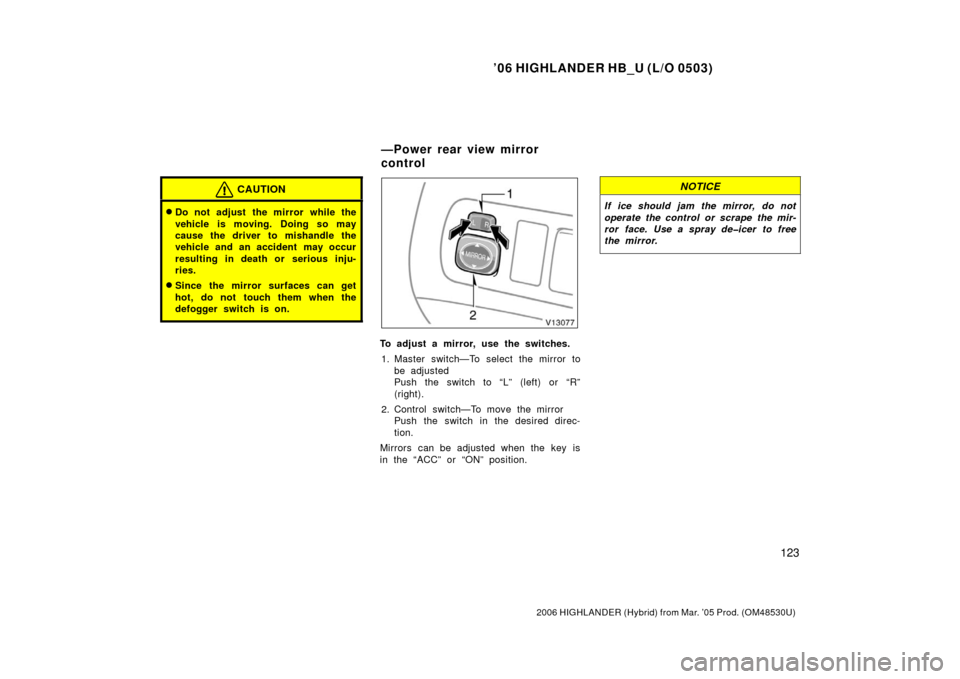

To adjust a mirror, use the switches.
1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

’06 HIGHLANDER HB_U (L/O 0503)
124
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

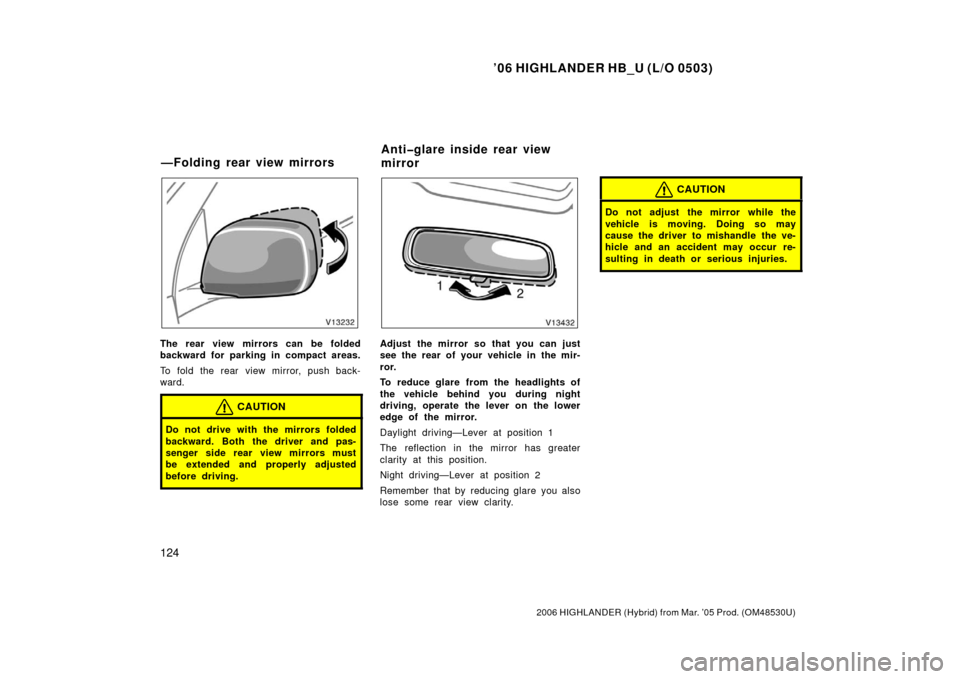

The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
—Folding rear view mirrors Antiglare inside rear view
mirror

’06 HIGHLANDER HB_U (L/O 0503)
125
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Ty p e A
Ty p e B
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.
In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.

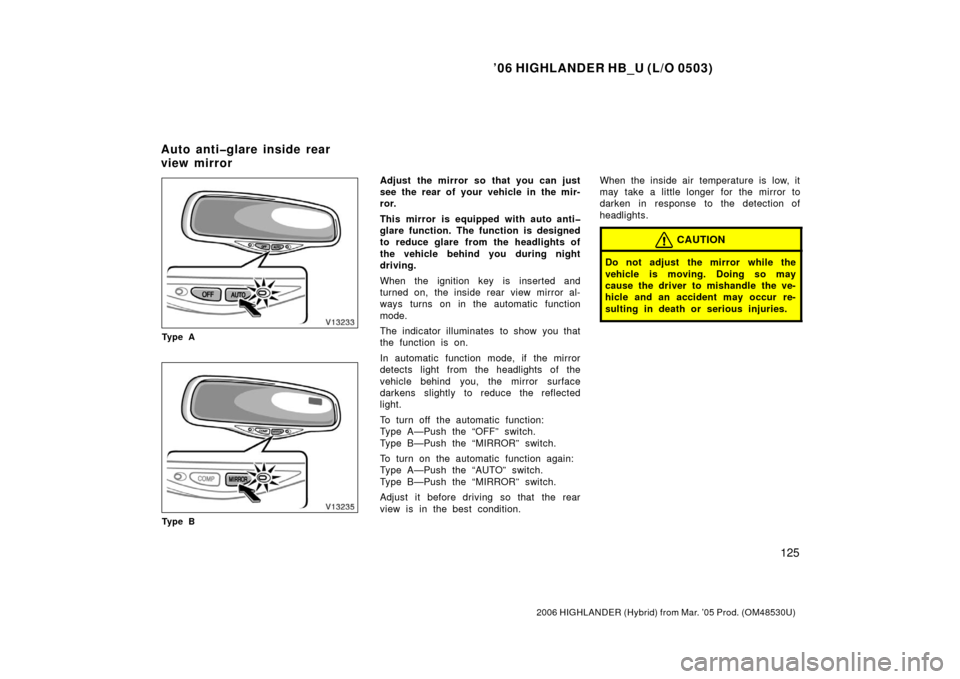

To turn off the automatic function:
Type A—Push the “OFF” switch.
Type B—Push the “MIRROR” switch.
To turn on the automatic function again:
Type A—Push the “AUTO” switch.
Type B—Push the “MIRROR” switch.
Adjust it before driving so that the rear
view is in the best condition. When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Auto antiglare inside rear
view mirror

’06 HIGHLANDER HB_U (L/O 0503)
126
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Ty p e A
Ty p e B
To ensure correct functioning of anti
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(position 3).
Sun visors—

’06 HIGHLANDER HB_U (L/O 0503)
127
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the antiglare
inside rear view mirror and obstruct
the rear view.
Ty p e A
Ty p e B

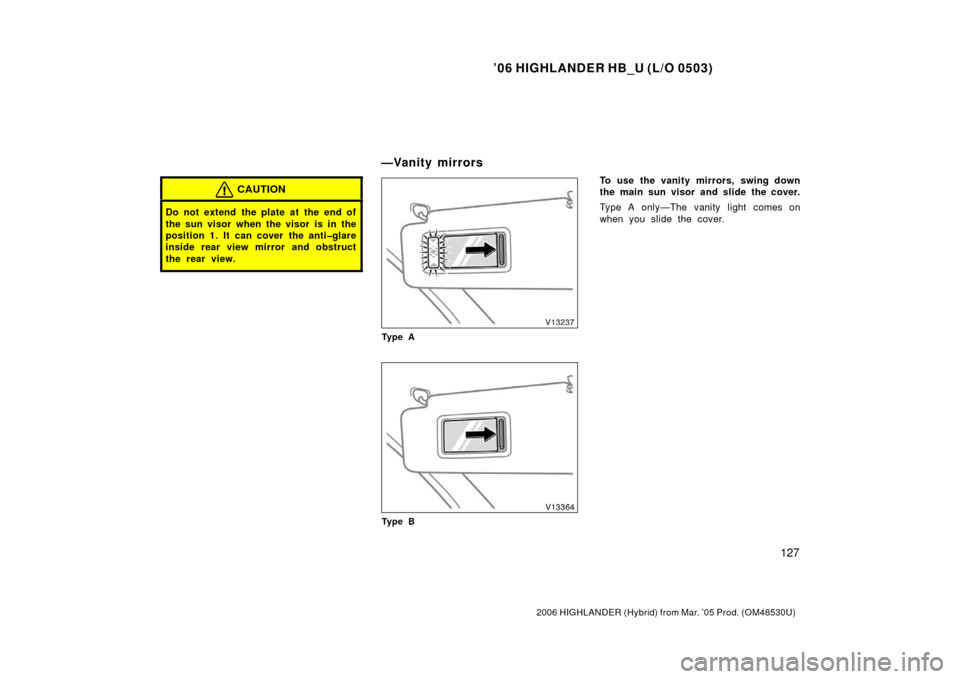

To use the vanity mirrors, swing down
the main sun visor and slide the cover.
Type A only—The vanity light comes on
when you slide the cover.
—Vanity mirrors
