’06 HIGHLANDER HB_U (L/O 0503)
12
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moonroof switch and personal
lights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Transmission selector lever
12. Ashtrays
13. A/V input adapter
14. Power outlet (115 VAC)
15. Cup holder
16. Container
17. Power outlet (12 VDC)
18. Audio remote control switches
19. Hood lock release lever
20. Fuel filler door switch
21. Parking brake pedal
22. Window lock switch
Instrument panel overview
 Vehicles with rear seat entertainment system (view A)

’06 HIGHLANDER HB_U (L/O 0503)
13
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

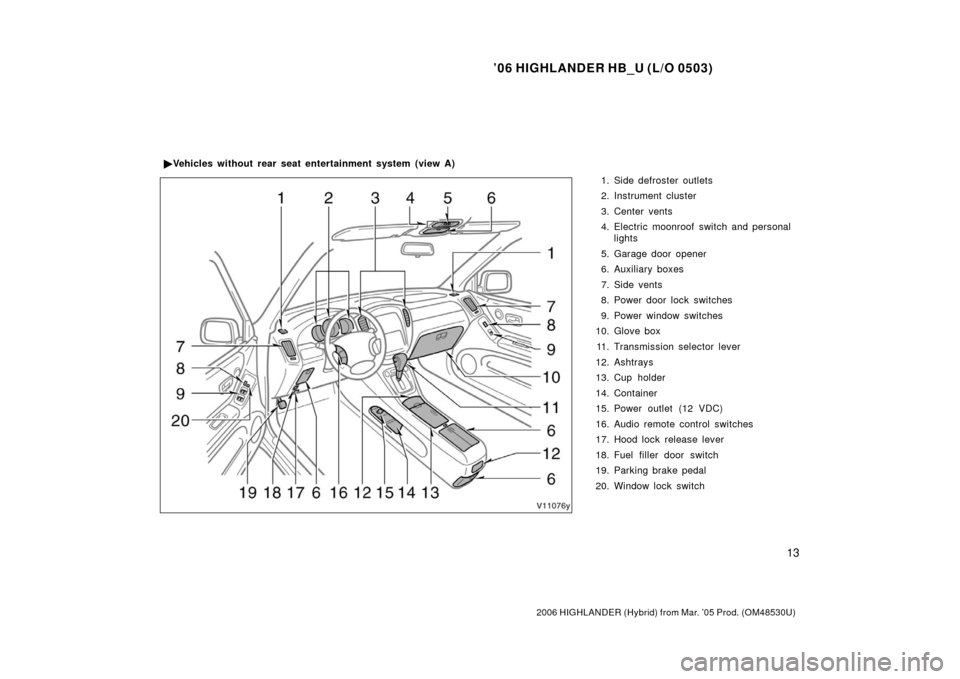

1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moonroof switch and personal
lights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Transmission selector lever
12. Ashtrays
13. Cup holder
14. Container
15. Power outlet (12 VDC)
16. Audio remote control switches
17. Hood lock release lever
18. Fuel filler door switch
19. Parking brake pedal
20. Window lock switch

Vehicles without rear seat entertainment system (view A)

’06 HIGHLANDER HB_U (L/O 0503)
21
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moonroof 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
SECTION 1 2

’06 HIGHLANDER HB_U (L/O 0503)
24
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

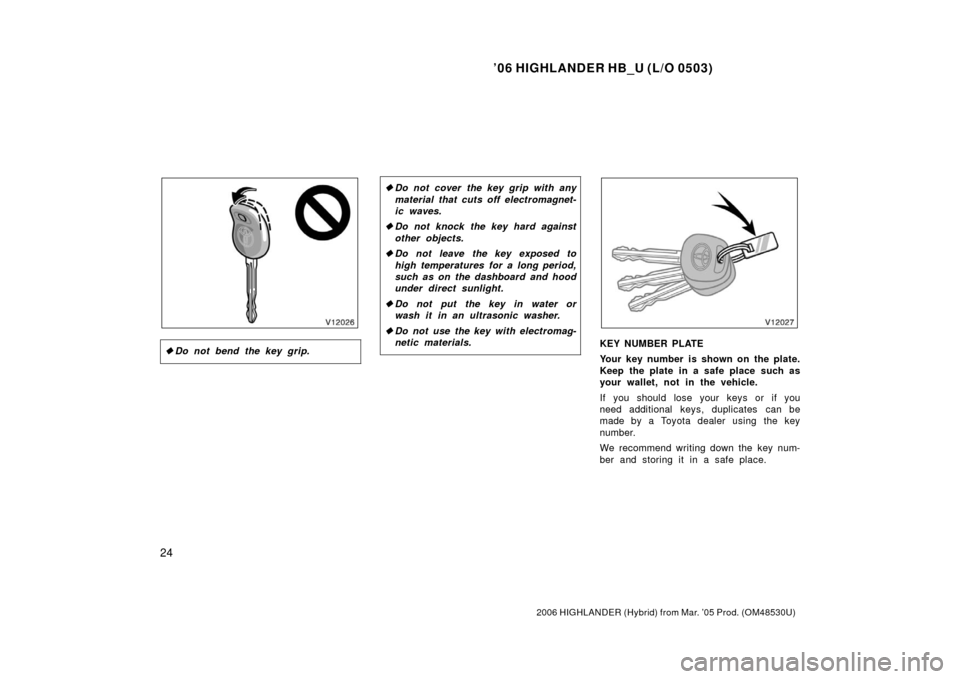

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

’06 HIGHLANDER HB_U (L/O 0503)
39
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

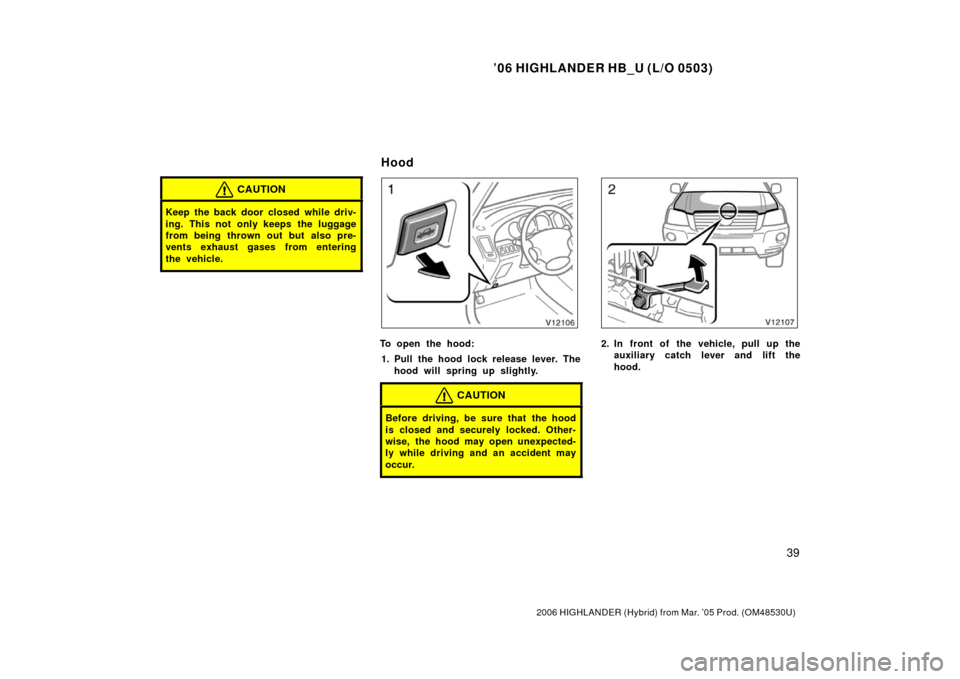

CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
To open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Hood

’06 HIGHLANDER HB_U (L/O 0503)
40
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

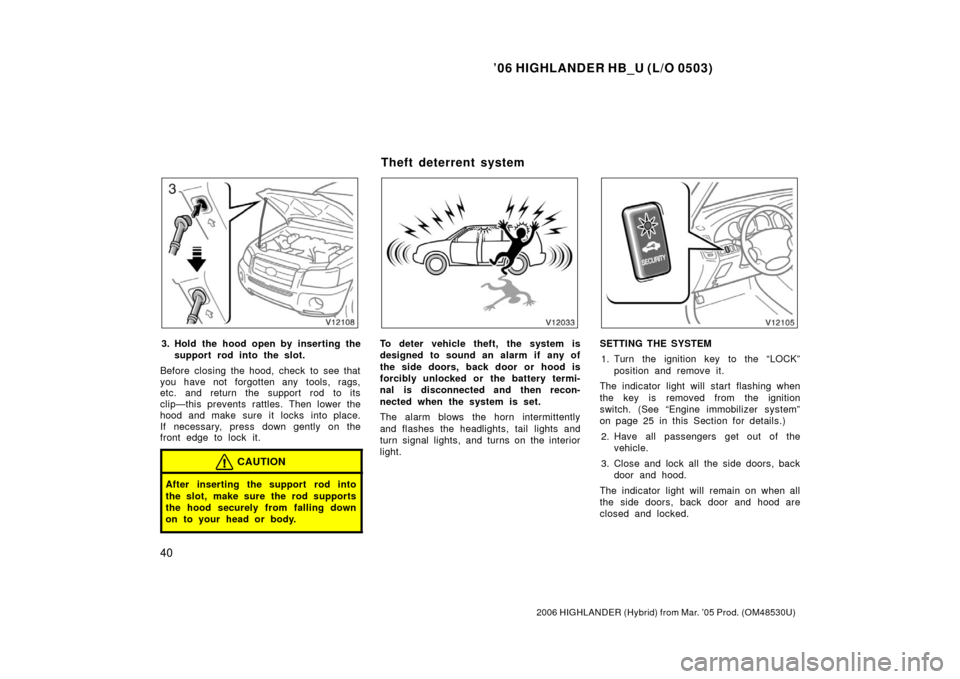

3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked or the battery termi-
nal is disconnected and then recon-
nected when the system is set.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
turn signal lights, and turns on the interior
light.SETTING THE SYSTEM 1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 25 in this Section for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked.
Theft deterrent system

’06 HIGHLANDER HB_U (L/O 0503)
41
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
Canceling the system
The system will cancel within 30 seconds
before the system is set automatically un-
der any of the following conditions:
Any of the side doors, back door or
hood is opened.
Any of the side doors or back door is
unlocked.
The key is inserted into the ignition.
The battery terminal is reconnected.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality with your vehicle. WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the side doors and back door
is unlocked or opened without the key
or wireless remote control transmitter,
or if the hood is forcibly opened.
If the battery terminal is disconnected
and then reconnected.
If the ignition is hot
−wired.
The indicator light will come on when the
system is activated.
If any of the side doors and back door is
unlocked without the key or wireless re-
mote control transmitter and the key is
not in the ignition switch, all the side
doors and back door will be automatically
locked again.
After about 1 minute, the alarm will auto-
matically stop and the indicator light will
start flashing again. Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
conditions:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control transmitter.
If the auxiliary battery becomes dis-
charged due to the vehicle being un-
used for a long time, etc., when the
battery is recharged or replaced, the sys-
tem will give the alarm. If this happens,
immediately unlock any of the side doors
or back door with the key or the wireless
remote control transmitter, and the alarm
will stop.

’06 HIGHLANDER HB_U (L/O 0503)
42
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light starts flash-
ing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.

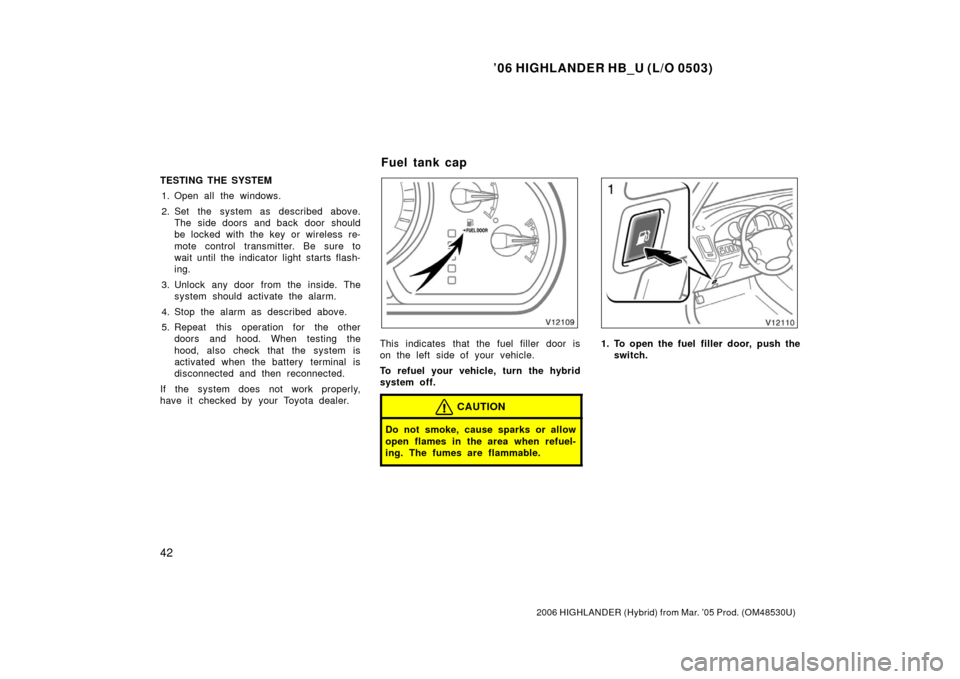

This indicates that the fuel filler door is
on the left side of your vehicle.
To refuel your vehicle, turn the hybrid
system off.
CAUTION
Do not smoke, cause sparks or allow
open flames in the area when refuel-
ing. The fumes are flammable.
1. To open the fuel filler door, push the switch.
Fuel tank cap

’06 HIGHLANDER HB_U (L/O 0503)
281
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

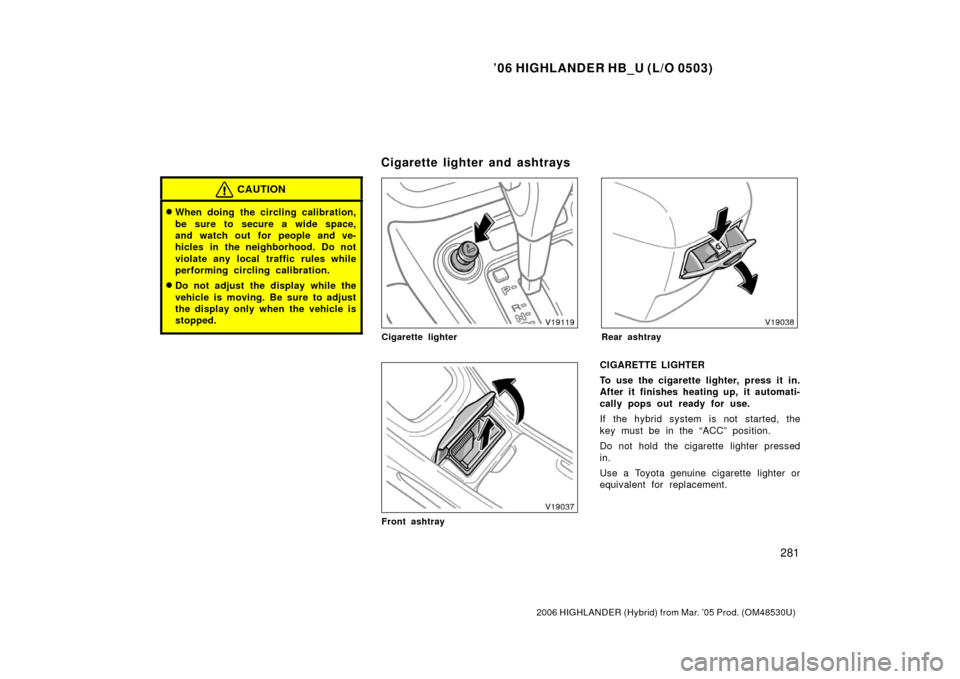

CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Cigarette lighter
Front ashtray
Rear ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the hybrid system is not started, the
key must be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
Cigarette lighter and ashtrays

’06 HIGHLANDER HB_U (L/O 0503)
343
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
If your hybrid system stalls while driv-
ing...
1. Reduce your speed gradually, keeping a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3. Turn the ignition key to “ACC” or “LOCK”, and try starting the hybrid
system again.
If the hybrid system will not start, see “If
your vehicle will not start”.
CAUTION
When the hybrid system is not oper-
ating, the power assist for the brakes
and steering will not work, so steer-
ing and braking will be much more
difficult than usual.
Any of the following may indicate that
the hybrid system has overheated:
The engine coolant temperature
gauge indicates overheating.
A “WATER TEMP” warning message
appears on the multiinformation
display.
A loss of power is experienced.
A loud knocking or pinging noise is
heard.
If the hybrid system overheats, follow
the procedures below: 1. Pull safely off the road, stop the ve- hicle and turn on your emergency
flashers. Put the hybrid transmission in
“P” and apply the parking brake. Turn
off the air conditioning if it is being
used.
2. If coolant or steam is boiling out of the radiator or reservoir, stop the hybrid
system. Wait until the steam subsides
before opening the hood. If there is no
coolant boiling over or steam, leave the
ignition turned on and make sure the
electric cooling fan is operating. If it is
not, turn the ignition off.
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
3. Look for obvious coolant leaks from theradiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the hybrid system is on, keep
hands and clothing away from the
moving fan.
4. If the coolant is leaking, stop the hy-
brid system immediately. Call a Toyota
dealer for assistance.
5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add
coolant to the reservoir while the hy-
brid system is on. Fill it about half full.
For the coolant type, see “Coolant type
selection” on page 389 in Section 7 −2.
If your hybrid system stalls
while driving If your vehicle overheats
